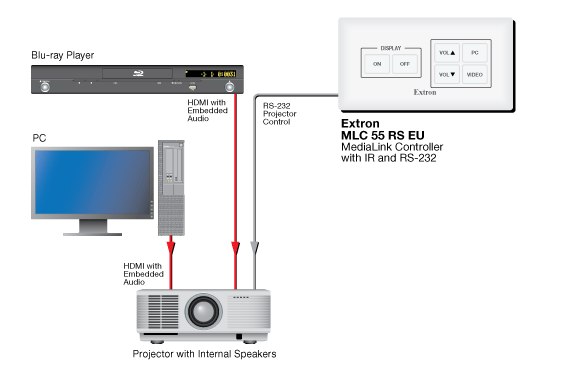

| MLC 55 RS EU and RS EU V |
|
| Communication — host port |
|---|
| USB host port | USB mini B, front panel behind faceplate |
| USB standards | USB 2.0, low speed |
| IR learning frequencies | 30 kHz to 300 kHz |
| IR learning distance | 4" (10 cm) to 14" (36 cm) from the receiver |
| Program control | Extron MLC 55, 62 and 64 Series Configuration Program for Windows®
Extron Simple Instruction Set (SIS™) |
|
| Communication — serial port |
|---|
| Serial control port | (1) 3.5 mm captive screw connector, 2 pole, ground pin shared with IR port, for unidirectional
RS-232 control (±5 V) |
| Baud rate and protocol (RS-232) | 9600 (default), 19200, 38400, 57600, or 115,200 baud; 8 (default) or 7 data bits; 1 stop bit; no parity (default), or even or odd parity |
|
| Communication — IR port |
|---|
| IR control port | (1) 3.5 mm captive screw connector, 2 pole, ground pin shared with serial port (transmit only)
TTL level (0 to 5 V) modulated infrared control from 30 kHz up to 300 kHz |
|
| General |
|---|
| Power supply | External
Input: 100-240 VAC, 50-60 Hz
Output: 12 VDC, 0.5 A, 6 watts |
| Power consumption | |
| Device | 1.0 watt, 12 VDC |
| Device and power supply | 1.5 watts, 100-240 VAC, 50-60 Hz |
| Ambient temperature/humidity | Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing |
| Cooling | Convection, no vents |
| Thermal dissipation | |
| Device | 3.3 BTU/hr |
| Device and power supply | 4.9 BTU/hr |
| Mounting | Wall or furniture mount
Mounts in a standard 2 gang EU electrical junction box. |
| Enclosure type | Plastic |
| Enclosure dimensions | |

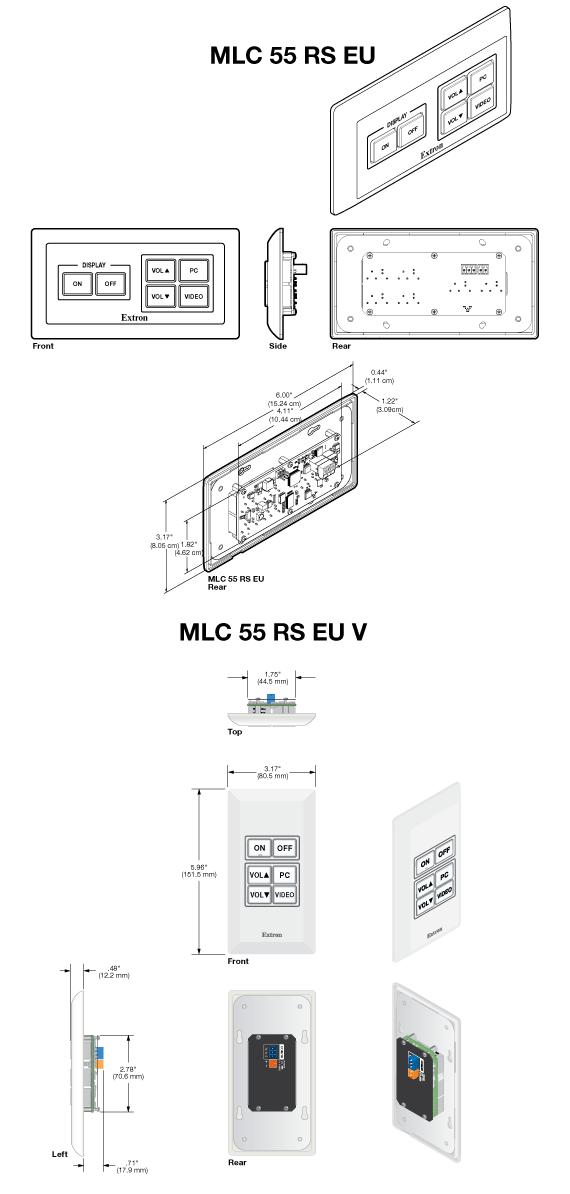

| Faceplate | |
| MLC 55 RS EU | 3.17" H x 6.00" W x 0.44" D
(81 mm H x 152 mm W x 12 mm D) |
| MLC 55 RS EU V | 6.00" H x 3.17" W x 0.44" D
(152 mm H x 81 mm W x 12 mm D) |
| Device | |
| MLC 55 RS EU | 1.82" H x 4.11" W x 1.22" D
(47 mm H x 105 mm W x 31 mm D)
Fits the opening in a standard 2 gang EU junction box.
Depth includes connectors. Allow enough depth in the junction box for device plus cable clearance.) |
| |  |
| MLC 55 RS EU V | 2.79" H x 1.76" W x 1.06" D
(71 mm H x 45 mm W x 27 mm D)
Fits the opening in a standard 2 gang EU junction box.
Depth includes connectors. Allow enough depth in the junction box for device plus cable clearance.) |
| | |
| |  |
| Product weight | 0.38 lbs (0.2 kg) |
| Regulatory compliance | CE, c-UL, C-tick, FCC Class A, ICES, UL, VCCI Class A |
| Accessibility | Section 508 of the Rehabilitation Act (29 U.S.C. 794d) |
| Product warranty | 3 years parts and labor |
| Everlast power supply warranty | 7 years parts and labor |
| NOTE | All nominal levels are at ±10%. |
|
| NOTE | Specifications are subject to change without notice. |
|
