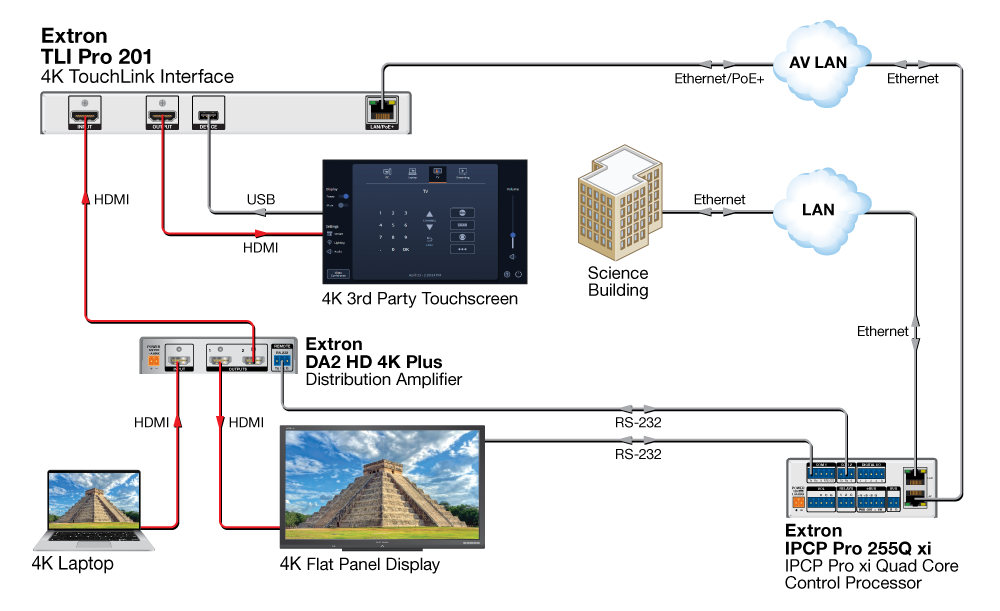

| TLI Pro 201 |
|
 specification |
|---|
 |
| Frame rate1 | 24, 25, or 30 fps |
| Chroma sampling1 | 4:4:4 or 4:2:2 |
| Color bit depth1 | 8 bits per color |
| Signal Type | HDMI 1.4b, HDCP 2.3 |
| Max. video data rate | 8.91 Gbps (2.97 Gbps per color) |
| Maximum pixel clock | 297 MHz |
| NOTE | 1Subject to the maximum data rate limit. Use our calculator (/8Kdatarate) to determine video parameters supported by this data rate.
|
|
|
| Video input |
|---|
| Number/signal type | 1 HDMI |
| Connectors | 1 female HDMI type A |
| Horizontal frequency | 15 kHz to 100 kHz |
| Vertical frequency | 24 Hz to 75 Hz |
| Resolution range | 640x480 @ 60 Hz through 3840x2160 @ 30Hz
includes 480p, 576p, 720p, 1080p, 2K, and 4K |
| NOTE | Interlaced sources are not supported. |
|
| Standards | DVI 1.0, HDMI 1.4b, HDCP 2.3 |
|
| Video processing |
|---|
| Maximum data rate | 8.91 Gbps (2.97 Gbps per color) |
| Maximum pixel clock | 297 MHz |
| Color bit depth | 8 bits per color |
| Formats | RGB and YCbCr digital video |
|
| Video output |
|---|
| Number/signal type | 1 HDMI output |
| Connectors | 1 female HDMI type A |
| Video output power for active cables | 1.1 W max. for the HDMI port |
| Peripheral device power | 250 mA |
| Horizontal frequency | 15 kHz through 100 kHz |
| Vertical frequencies | 23.98 Hz, 24 Hz, 25 Hz, 29.97 Hz, 30 Hz, 50 Hz, 59.94 Hz, 60 Hz |
| Output resolutions | 640x480, 800x600, 1024x768, 1280x720, 1280x724, 1366x768, 1600x1200, 1920x1200, 3840x2160 (up to 30 Hz), 480p, 576p, 720p, 1080p, 2K, 4K @ 30Hz |
| Standards | DVI 1.0, HDMI 1.4b, HDCP 2.3 |
|
| Memory |
|---|
| RAM | 2 GB |
| Storage | 16 GB |
|
| Audio input |
|---|
| Number/signal type | 1 embedded digital audio from HDMI (LPCM-2Ch only) |
| Connector | 1 female HDMI |
|
| Audio output |
|---|
| Number/signal type | 1 embedded digital audio on HDMI |
| Connector | 1 female HDMI |
| Playback format(s) | |
| Container format | WAV (Microsoft RIFF) |
| Encoding | LPCM (uncompressed) |
| Bit depth | Signed 16-bit or 24-bit |
| Sampling rate | Up to 48 kHz |
| Audio channels | mono and stereo |
|
| Ethernet |
|---|
| Connectors | 1 female RJ-45 connector |
| Data rate | 10/100/1000Base-T, half/full duplex with autodetect |
| Protocols | DHCP, DNS, HTTP, HTTPS, ICMP, IEEE 802.1x, SFTP, SNMP, SSH, TCP/IP, UDP/IP |
| Default settings | Link speed and duplex level: autodetected
IP address = 192.168.254.251
Subnet mask = 255.255.255.0
Default gateway = 0.0.0.0
DHCP = off
DNS = 127.0.0.1 |
|
| Software |
|---|
| Configuration software | Global Configurator Plus and Professional, GUI Designer |
| Programming software | Global Scripter |
| Control apps | Extron Control, iGVE |
| Resource management software | GlobalViewer Enterprise, iGVE |
| Utilities | Toolbelt, Embedded web page |
|
| USB device ports |
|---|
| Number/signal type | 1 high-speed USB 2.0 device |
| Connectors | 1 USB type A receptacle |
| Maximum built-in USB hubs | 0 |
| Minimum built-in USB hubs | 0 |
| USB standards | USB 2.0, USB 1.1, USB 1.0 compatible |
| USB data rates | Low speed (1.5 Mbps), full speed (12 Mbps), high speed (480 Mbps) |
| Available USB power | 480 mA |
|
| General |
|---|
| Power supply | External |
| Power input requirements | Power over Ethernet Plus (PoE 802.3at) |
| Power consumption — Power injector (PI 140, not included) |
| Device | 17.3 watts |
| Device and power injector | 22.0 watts |
| Ambient temperature/humidity | Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing |
| Cooling | Fan cooled |
| Thermal dissipation — Power injector (PI 140, not included) |
| Device | 49.9 BTU/hr |
| Device and power injector | 65.9 BTU/hr |
| Rack mount | Yes with optional rack shelf |
| Enclosure type | Metal |
| Enclosure dimensions | 1.00" H x 8.70" W x 8.00" D (half rack wide)
(25 mm H x 221 mm W x 203 mm D)
(Depth excludes connectors.) |
| Product weight | 1.70 lbs (0.77 kg) |
| Regulatory compliance | CE, C-Tick, FCC Class A, ICES, VCCI, c-UL, UL, RoHS, and WEEE |
| Warranty | 3 years parts and labor |
| NOTE | All nominal levels are at ±10%. |
|
| NOTE | Specifications are subject to change without notice. |
|
| (6303-D8) |
