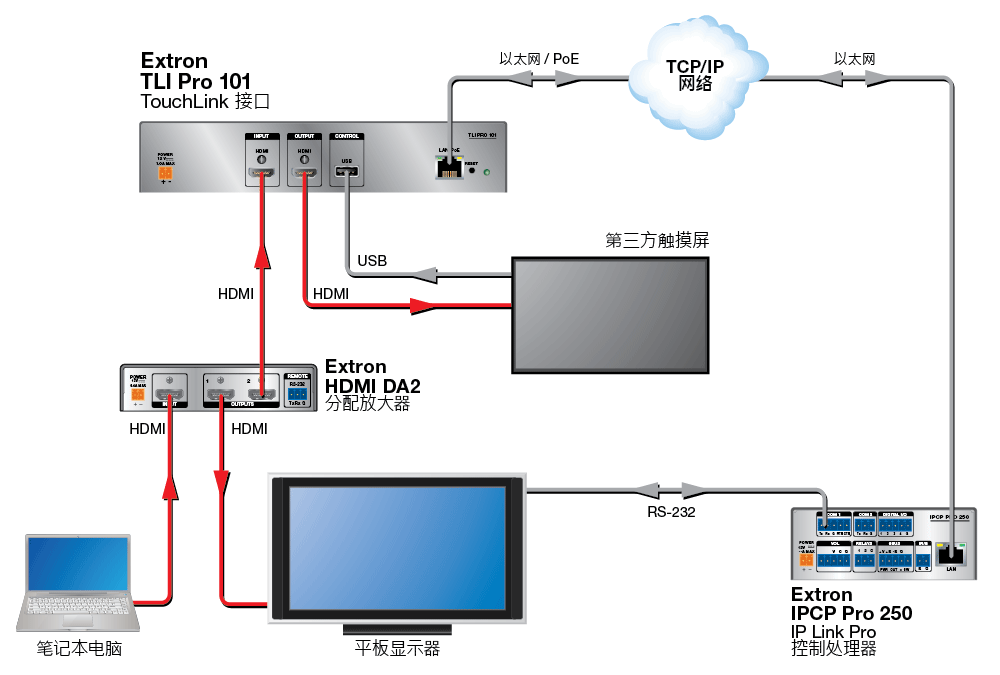

| TLI Pro 101 |
|
| Video input |
|---|
| Resolution range | 800x600 to 1920x1200*, 2K, or 1080p (HDTV)
* reduced blanking |
| Number/signal type | 1 HDMI (HDCP compliant) |
| Connectors | 1 female HDMI type A |
| Horizontal frequency | 18.75 kHz to 75 kHz |
| Vertical frequency | 24 Hz to 75 Hz |
| Standards | DVI 1.0, HDMI, HDCP |
|
| Video processing |
|---|
| HDMI pixel data bit depth | 8, 10, or 12 bits per channel; 165 MHz pixel clock |
| Colors | 1 billion (10 bit processing) |
|
| Memory |
|---|
| SDRAM | 512 MB |
| Flash | 512 MB |
|
| Video output |
|---|
| Number/signal type | 1 HDMI (HDCP compliant) |
| Connectors | 1 female HDMI type A |
| Supported resolutions | 800x6001, 1024x7681, 1280x7681, 1280x8001, 1280x10241, 1360x7681, 1366x7681, 1440x9001, 1400x10501, 1600x9001, 1680x10501, 1600x12001, 1920x12001
720p2, 1080p3, 2048x10803 |
| | 1 = 60 Hz,
2 = 25 Hz, 29.97 Hz, 30 Hz, 50 Hz, 59.94 Hz, and 60 Hz
3 = 23.98 Hz, 24 Hz, 25 Hz, 29.97 Hz, 30 Hz, 50 Hz, 59.94 Hz, and 60 Hz |
| NOTE | Interlaced sources are not supported. |
|
|
| Audio input |
|---|
| Number/signal type | 1 embedded digital audio from HDMI (LPCM-2Ch only) |
| Connector | 1 female HDMI type A |
|
| Audio output |
|---|
| Number/signal type | 1 embedded digital audio on HDMI |
| Connector | 1 female HDMI type A |
| Playback format(s) | |
| Container format | WAV (Microsoft RIFF) |
| Encoding | LPCM (uncompressed) |
| Bit depth | Unsigned 8-bit
Signed 16-bit
Signed 24-bit
Signed 32-bit |
| Sampling rate | 2 kHz to 192 kHz |
| Audio channels | mono and stereo |
|
| Communication — Ethernet interface |
|---|
| Ethernet control/communications port | 1 female RJ-45 connector |
| Ethernet data rate | 10/100 Base-T, half/full duplex with autodetect |
| Protocols | DHCP, DNS, HTTP, HTTPS, ICMP, SFTP, SSH, TCP/IP, UDP/IP |
| Default settings | Link speed and duplex level: autodetected
IP address = 192.168.254.251
Subnet mask = 255.255.255.0
Default gateway = 0.0.0.0
DHCP = off
DNS = 127.0.0.1 |
| Program control | Extron Global Configurator Plus and Professional
Extron GUI Designer
|
|
| USB device ports |
|---|
| Number/signal type | 1 high-speed USB 2.0 device |
| Connectors | 1 USB type A female |
| Maximum built-in USB hubs | 0 |
| Minimum built-in USB hubs | 0 |
| USB standards | USB 2.0, USB 1.1, USB 1.0 compatible |
| USB data rates | Low speed (1.5 Mbps), full speed (12 Mbps) |
| Available USB power | 900 mA |
|
| General |
|---|
| Power supply | External |
| Power input requirements | 12 VDC
or Power over Ethernet (PoE 802.3af, class 3) |
| Power consumption — Power injector (XTP PI 100, not included) |
| Device | 8.8 watts |
| Device and power injector | 12.2 watts |
| Power consumption — 12 VDC power supply (PS 1210 C, not included) |
| Device | 7.5 watts |
| Device and power supply | 9.1 watts |
| Power over Ethernet (PoE) requirements | Complies with 802.3af, class 3 |
| Ambient temperature/humidity | Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing |
| Cooling | Convection |
| Thermal dissipation — Power injector (XTP PI 100) |
| Device | 28.9 BTU/hr |
| Device and power injector | 40.3 BTU/hr |
| Thermal dissipation — 12 VDC power supply (PS 1210 C) |
| Device | 22.6 BTU/hr |
| Device and power supply | 28.1 BTU/hr |
| Rack mount | Yes |
| Enclosure type | Metal |
| Enclosure dimensions | 1.7" H x 8.7" W x 9" D (1U high, half rack wide)
(4.3 cm H x 22.1 cm W x 22.9 cm D)
(Depth excludes connectors) |
| Product weight | 1.74 lbs (0.79 kg) |
| Shipping weight | 4 lbs (2 kg) |
| DIM weight (International) | 5 lbs (3 kg) |
| Vibration | ISTA 1A in carton (International Safe Transit Association) |
| Regulatory compliance | |
| Safety | CE, c-UL, UL |
| EMI/EMC | CE, C-tick,FCC Class A, ICES, VCCI |
| Environmental | Complies with the appropriate requirements of RoHS and WEEE. |
| Warranty | 3 years parts and labor |
| NOTE | All nominal levels are at ±10%. |
|
| NOTE | Specifications are subject to change without notice. |
|
| (6304-D11) |
