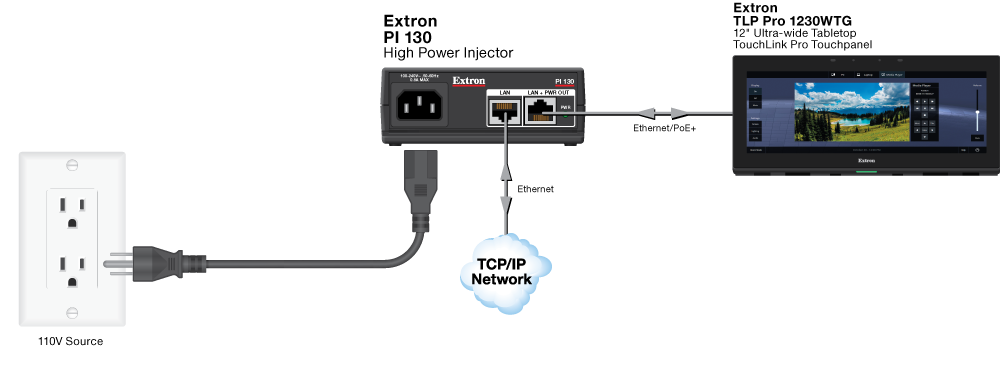

Extron PI 130 是一款单端口高功率电源合路器，可为任一兼容 PoE+ 802.3at 的设备供电，无需本地电源。该产品专为 XTP Systems^® 的高数据速率而设计，因此在使用时，信号质量不受影响。为了提高设计的灵活性，它可以安装在信号路径上的任一位置并支持点对点应用。电源合路器的紧凑型外壳使其能够被安装至狭小的空间内，随附的 Extron ZipClip^® 200 安装套件为设备安装提供了极大的灵活性。

其独有的 1U 高、1/4 机架宽外壳上具有绑扎带专用的螺纹衬套和凹槽，可轻松便捷地安装到 Extron 机架搁板或形状奇特的支撑物上，如投影机杆和机架导轨。此外，Extron 专有的 ZipClip 200 安装套件赋予其更为广阔的功能，使得 PI 130 能够被快速、牢固地安装在讲台、桌面下方及更多紧凑型空间内。

技术参数

PI 130
General
Connectors	1 RJ-45 female connector for pass-through input 1 RJ-45 female connector for pass-through and power output
Ethernet standards	10/100/1000Base-T
Power supply	Internal Input: ​100-240 VAC, 50-60 Hz
Power input
No load	​100 VAC to 240 VAC, 50-60 Hz, 0.8 watts
Full power	100 VAC to 240 VAC, 50-60 Hz, 34.2 watts, 0.6 A maximum
Power output	56 VDC, 0.5 A, 30 watts ​Compatible with 802.3at PoE+ devices
Efficiency
At full load, 230 VAC	89.30%
At full load, 100 VAC	87.70%
Power consumption
No load	100 VAC to 240 VAC, 50-60 Hz, 0.86 watts
Full load	100 VAC to 240 VAC, 50-60 Hz, 30 watts
Temperature/humidity	Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing
Cooling	Convection, no vents
Mounting
Rack mount	Yes, with optional 1U rack shelf with the included ZipClip 200 mounting clip or by securing to rack rails with tie wraps
Furniture mount	Yes, with the included ZipClip 200 mounting clip
Pole mount	Yes, using tie wraps
Enclosure type	High impact, high temperature plastic
Enclosure dimensions	1.7" H x 4.3" W x 4.5" D (1U high, quarter rack wide) (4.2 cm H x 11.0 cm W x 11.4 cm D)
Product weight	0.6 lb (0.3 kg)
Regulatory compliance
Safety, EMI/EMC	BIS, CE, C-tick, c-UL, UL, CISPR 32, CISPR 35, FCC Class B, NEC Class 2
Environmental	Complies with the appropriate requirements of RoHS, WEEE.
Product warranty	7 years parts and labor
NOTE     Specifications are subject to change without notice.
(6513-D3)

装运尺寸和重量
产品编号	高度	宽度	深度	重量
60-1361-02	7.3 cm	26.4 cm	19.1 cm	0.73 kg
