| TLP Pro 300M |
|
| Display |
|---|
| Screen type | TFT Active matrix color LCD |
| Size | 3.5" (89 mm), measured diagonally |
| Resolution | 320x480 (HVGA) |
| Pixel density | 165 PPI |
| Aspect ratio | 2:3 |
| Color depth | 18 bit, 262k colors |
| Transparency | 8 bit |
| Brightness | 490 nits (cd/m2) |
| Contrast | 500:1 |
| Backlight | LED |
| Viewing angle | ±80° horizontal, ±80° vertical |
| Touch screen | Capacitive |
|
| Storage |
|---|
| RAM | 1 GB |
| Storage | 8 GB |
|
| Ethernet |
|---|
| Connectors | 1 female RJ-45 connector |
| Data rate | 10/100Base-T, half/full duplex with autodetect |
| Protocols | DHCP, DNS, HTTP, HTTPS, ICMP, IEEE 802.1X, SFTP, SSH, TCP/IP, UDP/IP |
| Default settings | Link speed and duplex level = autodetected
IP address = 192.168.254.251
Subnet mask = 255.255.255.0
Default gateway = 0.0.0.0
DHCP = off
DNS = 127.0.0.1 |
|
| Software |
|---|
| Configuration software | Global Configurator Plus and Professional, GUI Designer |
| Programming software | ControlScript Programing |
| Control apps | Extron Control |
| Resource management software | GlobalViewer Enterprise |
| Utilities | Toolbelt, embedded web page |
|
| Sensors |
|---|
| Motion sensor | On/off |
| Light sensor | Auto/manual |
|
| USB |
|---|
| Quantity/type | 1 high-speed USB 2.0 |
| Connectors | 1 USB micro-B receptacle |
| Standards | USB 2.0, USB 1.1, USB 1.0 compatible |
| Max. data rates | Low speed (1.5 Mbps), full speed (12 Mbps), high speed (480 Mbps) |
|
| Audio output |
|---|
| Speaker output | 1 mono, 86 dB Max. SPL @ 0.1 m |
| Frequency response | 750 Hz to 20 kHz, ±5 dB |
| Playback format(s) | |
| Container format | WAV (Microsoft RIFF) |
| Encoding | LPCM (uncompressed) |
| Bit depth | Unsigned 8-bit
Signed 16-bit
Signed 24-bit
Signed 32-bit |
| Sampling rate | Up to 192 kHz |
| Audio channels | Mono or stereo |
|
| General |
|---|
| Power supply | Not included |
| Power input requirements | Power over Ethernet (PoE 802.3af, class 2) |
| Power consumption — Power over Ethernet injector |
| Device | 4.0 watts |
| Device and power injector | 7.3 watts |
| Auxiliary power output | |
| USB | 5 VDC, 275 mA |
| Temperature/humidity | Storage: -4 to +158 °F (-20 to +70 °C) / 5% to 90%, noncondensing
Operating: +32 to +104 °F (0 to +40 °C) / 10% to 90%, noncondensing |
| Cooling | Convection, vents on rear |
| Thermal dissipation — Power over Ethernet injector |
| Device | 9.0 BTU/hr |
| Device and power injector | 20.0 BTU/hr |
| Mounting | |
| Furniture or wall mount | Yes, in a standard US 1-gang electrical junction box or mud ring |
| Enclosure type | Plastic |

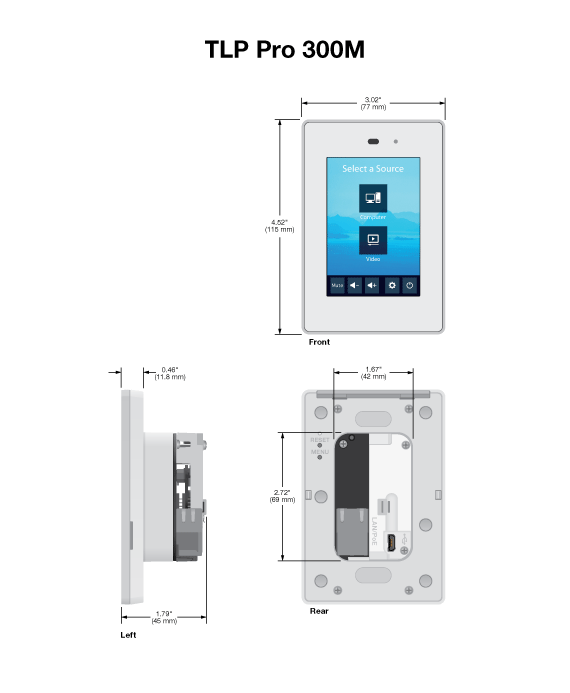

| Enclosure dimensions | 4.52" H x 3.02" W x 1.70" D
(115 mm H x 77 mm W x 43 mm D) |
| |  |
| Product weight | 0.4 lbs (0.2 kg) |
| Regulatory compliance | CE, C-Tick, c-UL,FCC Class A, ICES, RoHS, UL, VCCI, WEEE |
| Product warranty | 3 years parts and labor; touchpanel display and overlay components are covered for 1 year |
| NOTE | All nominal levels are at ±10%. |
|
| NOTE | Specifications are subject to change without notice. |
|
| (6099-D4) |
