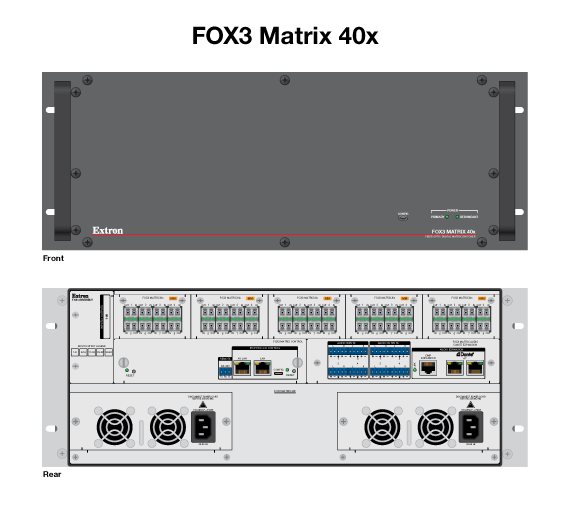

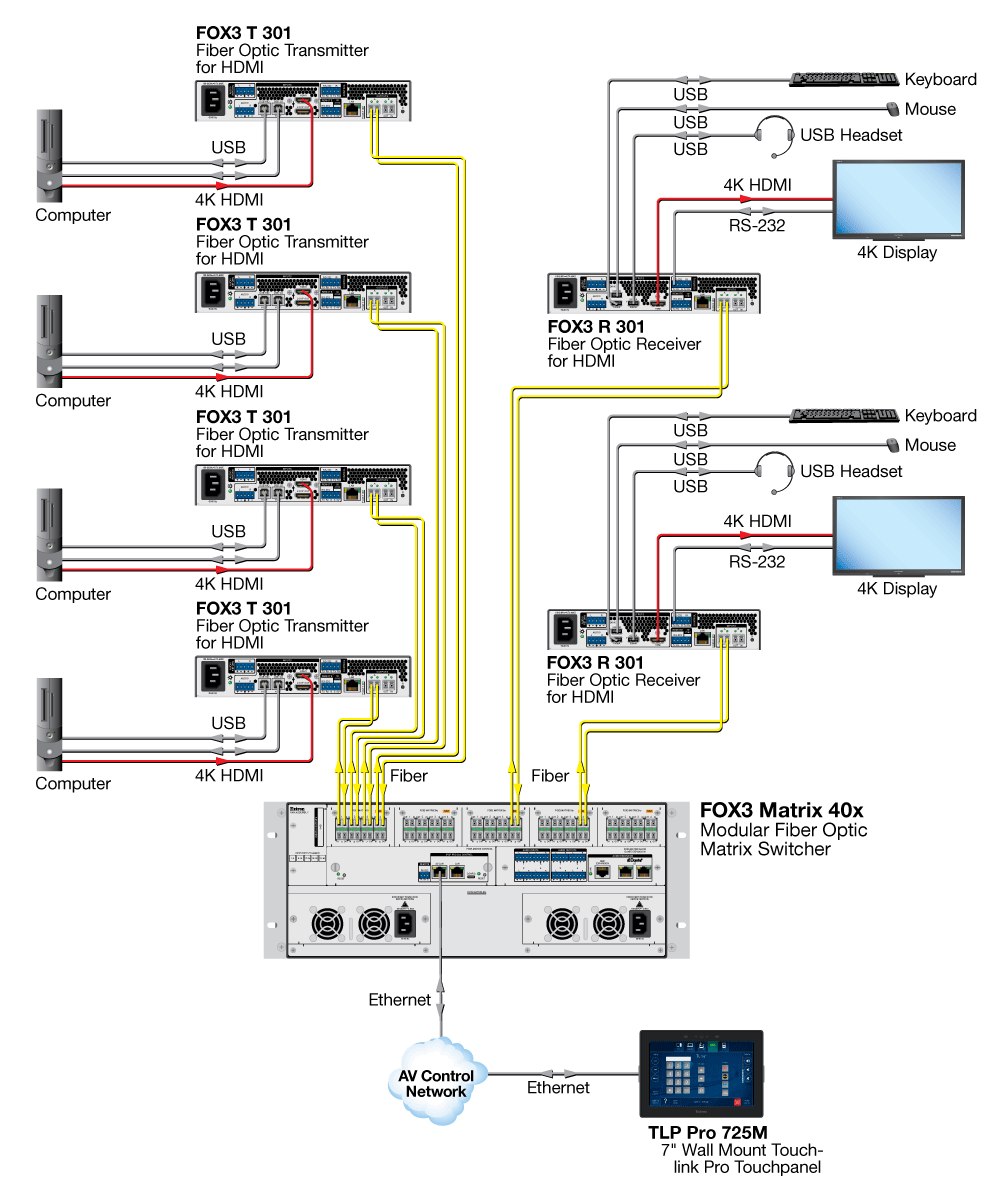

| FOX3 Matrix 40x |
|
 specification |
|---|
 |
| Frame rate3 | 24, 25, 30, 50, or 60 fps |
| Chroma sampling3 | 4:4:4, 4:2:2 |
| Color bit depth2,3 | 8, 10, or 12 bits per color |
| Signal Type | HDMI 2.0, HDCP 2.3 |
| Max. video data rate | 18.0 Gbps |
| NOTE | 1Supports lossless 4K video over one fiber or uncompressed 4K video over two fibers.
2Supports 12-bit color bit depth for uncompressed 4K video over two fibers. When using a FOX3 SR scaling receiver, the scaler must be in bypass mode to pass 4K video with a 12-bit color bit depth.
3Subject to the maximum data rate limit. Use our calculator at www.extron.com/8Kdatarate to determine video parameters supported by this data rate. |
|
| NOTE | This product contains Class 1 laser. It meets the safety regulation of IEC 60825-1, FDA 21 CFR 1040.10,
and FDA 21 CFR 1040.11. |
|
| NOTE | HDMI protocol exceptions: Consumer Electronics Control (CEC) signaling across the HDMI interface is not supported.
Ethernet signal transport is not supported (HDMI pin 14 is not connected).
Return Audio channel (ARC) is not supported (HDMI pin 14 is not connected). |
|
|
| Software |
|---|
| Configuration software | Product Configuration Software (PCS) |
| Utilities | Toolbelt, embedded web page |
|
| Optical specifications |
|---|
| Number/type | 8 singlemode or 8 multimode SFPs per board |
| Connectors | 16 LC connectors per I/O board |
| Signal Type | 8 to 40 fiber optic signals |
| Routing | 8 x 8 up to 40 x 40 unidirectional matrix or
4 x 4 up to 20 x 20 bidirectional matrix |
| Operating distance | |
| Singlemode | 20 km (12.4 miles) with singlemode (SM) cables |
| Multimode | 500 m (1640 feet) with 50 µm OM4 4700 MHz bandwidth laser optimized multimode cables |
| NOTE | The system works with OM1, OM2, and OM3 fiber at reduced distances.
|
|
| NOTE | Operating distance is approximate. These are typical distances. The maximum distance may be greater than these typical numbers depending on factors such as fiber type, fiber bandwidth, connector splicing, losses, modal or chromatic dispersion, environmental factors, and kinks. |
|
| Nominal peak wavelength | 850 nm for multimode (MM), 1310 nm for singlemode (SM) |
| Data rate | 10.0 Gbps (1 fiber) or 20.0 Gbps (2 fibers) |
| Transmission power | |
| Singlemode | -5.2 dBm, typical |
| Multimode | -2.8 dBm, typical |
| Receiver sensitivity | |
| Singlemode | -12.6 dBm, typical |
| Multimode | -11.1 dBm, typical |
| Optical loss budget | |
| Singlemode | +7.4 dB, maximum |
| Multimode | +8.3 dB, maximum |
| Maximum channel data rate | 10 Gbps |
|
| Audio input/output board |
|---|
| Number/signal type | 4 analog stereo inputs, balanced/unbalanced
4 analog stereo outputs, balanced/unbalanced |
| Connectors | (8) 3.5 mm captive screw connector, 5 pole |
| Source formats | 2 channel LPCM |
| Impedance | ≥10 k ohms unbalanced, ≥20 k ohms balanced |
| Nominal level | +4 dBu (1.23 Vrms), -10 dBV (316 mVrms) |
| Maximum level | +21 dBu balanced, +15 dBu unbalanced |
| Gain range | Adjustable, -18 dB to +24 dB, 1 dB steps |
| Gain | Unbalanced output: -6 dB; balanced output 0 dB (default) |
| Frequency response | 20 Hz to 20 kHz, ±0.5 dB |
| THD + Noise | <0.1% @ 20 Hz to 20 kHz at nominal level |
| S/N | >90 dB at maximum output (unweighted) |
| CMRR | 65 dB @ 20 Hz to 20 kHz |
| Output impedance | 50 ohms unbalanced, 100 ohms balanced (analog only) |
| Maximum level (Hi-Z) | +21 dBu balanced, +15 dBu unbalanced |
| Gain error | ± 0.5 dB channel to channel |
| Volume control range | -100 dB to 0 dB (0-100 in 1 dB steps) |
| Crosstalk | ≤-80 dB @ 1 kHz, fully loaded |
| Stereo channel separation | >80 dB @ 1 kHz |
| Bit depth | 16, 20, 24 |
| Sampling rate | 48 kHz |
| NOTE | 0 dBu = 0.775 Vrms, 0 dBV = 1 Vrms, 0 dBV ≈ 2 dBu |
|
|
| AT ports — Dante audio transport |
|---|
| Transmission type | Dante/AES-67, software selectable |
| Connectors | 2 RJ-45 to Dante interface |
| Inputs | Up to 32 stereo channels |
| Outputs | Up to 32 stereo channels |
| Audio format | 24 bit uncompressed at 48 kHz sampling rate |
| Latency | Deterministic, based on user selections: 0.25 ms, 0.5 ms, 1.0 ms (default), 2.0 ms, 5.0 ms |
|
| EXP port |
|---|
| Transmission type | Proprietary |
| Connector | 1 RJ-45 |
| Inputs | 8 stereo channels Rx |
| Outputs | 8 stereo channels Tx |
| Audio format | Uncompressed, 24-bit, 48 kHz |
| EXP cable | Shielded CAT6 up to 10 meters |
|
| Communications |
|---|
| USB configuration port | |
| Number/type | 1 front panel mini USB B, female |
| Standard | Ethernet over USB |
| Serial control port | 1 RS-232, 3.5 mm captive screw connector, 3-pole, female, rear panel |
| Baud rate and protocol | 300 to 115200 baud (default: 9600 ), 8 data bits, 1 stop bit, no parity |
| Serial control pin configuration | Captive screw: 1 = Tx, 2 = Rx, 3 = GND |
| Ethernet control | |
| Ethernet port | 1 RJ-45 connector, female |
| Ethernet data rate | 10/100/1000Base-T, half/full duplex with autodetect |
| Protocols | ARP, ICMP (Ping), DHCP, DNS, HTTPS, SFTP, SSH, TCP/IP, UDP/IP |
| Default settings | Link speed and duplex level = autodetected
IP address = 192.168.254.254
Subnet mask = 255.255.255.0
Gateway = 0.0.0.0
DHCP = off |
| Web server | Up to 200 simultaneous sessions
7.0 MB non-volatile memory |
| Program control | Extron Product Configuration Software
Extron Simple Instruction Set (SIS™) |
|
| USB host ports |
|---|
| Number/signal type | 1-port USB HID
1-port USB 2.0 |
| Connectors | 0 (Virtual USB) |
| USB 2.0 | |
| Maximum built-in USB hubs | 1 |
| Minimum built-in USB hubs | 1 |
| USB HID | |
| Maximum built-in USB hubs | 0 |
| Minimum built-in USB hubs | 0 |
|
| General |
|---|
| Power supply | Internal (IEC 60320 C14 inlet)
Input: 100-240 VAC, 50-60 Hz
A redundant power supply is standard. |
| |  |
| Power consumption | Enclosure without boards: 66 watts
Enclosure fully loaded with 5 MM boards: 157 watts
Enclosure fully loaded with 5 SM reclocking boards: 174 watts
Each MM board: 20.1 watts
Each SM board: 23.1 watts |
| Ambient temperature/humidity | Storage: -40 to +158°F (-40 to +70°C) / 10% to 90%, noncondensing
Operating: +32 to +122°F (0 to +50°C) / 10% to 90%, noncondensing |
| Cooling | Fan, right to left (as viewed from front panel) |
| Thermal dissipation, full load | MM: 535 BTU/hr
SM: 594 BTU/hr |
| Mounting | |
| Rack mount | Yes |
| Enclosure type | Metal |
| Enclosure dimensions | 7.0" H x 17.0" W x 20.0" D (4U high, full rack wide)
(17.8 cm H x 43.2 cm W x 50.8 cm D)
(Depth excludes connectors and handles. Width excludes rack ears.) |
| Product weight (fully loaded) | 45 lbs (20 kg) |
| Regulatory compliance | CE, c-UL, C-tick, FCC Class A, ICES, UL, VCCI
Complies with the appropriate requirements of RoHS, WEEE. |
| Product warranty | 3 years parts and labor |
| NOTE | All nominal levels are at ±10%. |
|
| NOTE | Specifications are subject to change without notice. |
|
| (6170-D8) |
