SMA-2 旋转式安装适配器设计可与 TLP Pro 525T、TLP Pro 535T、TLP Pro 725T、TLP Pro 835T、TLP Pro 1025T、TLP Pro 1035T 和 TLP Pro 1535T 配合使用。安装在 SMA-2 支架上时，TouchLink 触摸屏可轻松旋转，方便多用户查看和操作。SMA-2 提供多个定位点，使安装人员能够精确设定旋转角度，从而便于操作并防止电缆缠绕打结。SMA-2 支架将桌面触摸屏略微抬高，以防止安装表面磨破和损坏。

技术参数

SMA-2
General
Mounting
Furniture mount	Flat surface mountable
Adjustment ranges	The SMA-2 can be rotated horizontally ±180° from the installed position
Material	Metal
Table thickness	Minimum: 0.75" (1.91 cm) Maximum: 1.5" (3.81 cm)

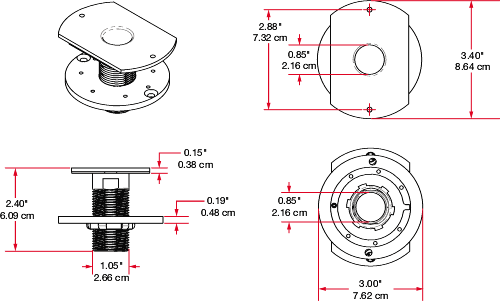

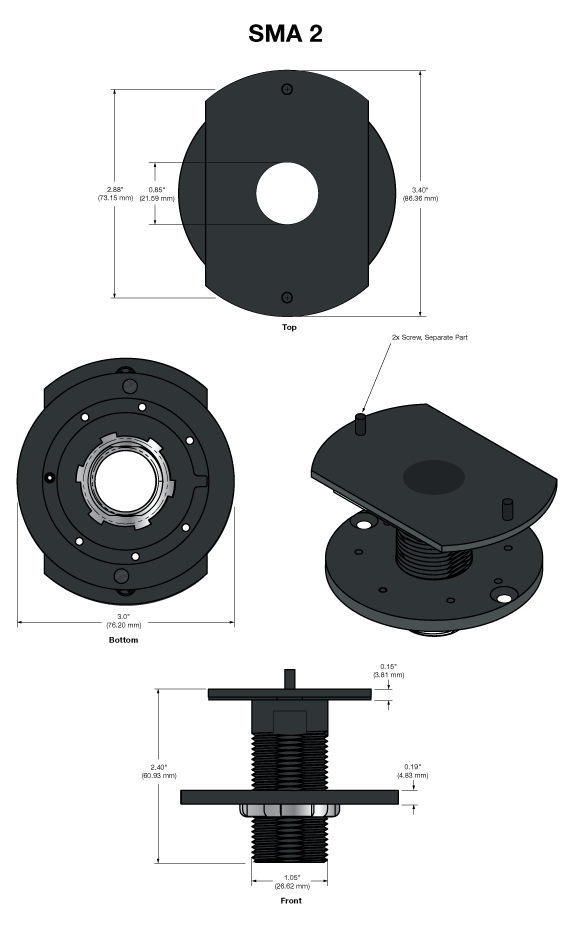

Dimensions	2.40" H x 3.40" diameter (6.09 cm H x 8.64 cm diameter)
Product weight	0.63 lb (0.28 kg)
Vibration	ISTA 1A in carton (International Safe Transit Association)
Regulatory compliance
Environmental	Complies wih the appropriate requirements of RoHS, WEEE
Product warranty	3 years parts and labor
NOTE     Specifications are subject to change without notice.
NOTE     Shipping dimensions and weights are available at www.extron.com.
(8.1-020717-D1)

装运尺寸和重量
产品编号	高度	宽度	深度	重量
70-1138-02	7.3 cm	16.5 cm	10.2 cm	0.36 kg
