VMK 1

VESA Mount Kit for TLP Pro 725M and TLP Pro 1025M
主要特性
  • VESA mount a TLP Pro 725M or TLP Pro 1025M
  • Supports VESA D 75mm x 75mm mounting standards
  • Provides a clean cable routing path
  • Durable all-metal enclosure
  • Available in black
The Extron VMK 1
型号 产品说明 产品编号
 VMK 1 VESA Mount Kit, black 70-1253-12

The Extron VMK 1 is a robust, all-metal VESA Mount Kit for the TLP Pro 725M and TLP Pro 1025M which allows the touchpanels to be installed on a VESA D-compatible standard mount. In addition to easing integration, the VMK 1 also provides a discreet means for routing the Ethernet cable out the bottom of the mount for a clean appearance. The VMK 1 is available in black.

特性

  • VESA mount a TLP Pro 725M or TLP Pro 1025M
  • Supports VESA D 75mm x 75mm mounting standards
  • Provides a clean cable routing path
  • Durable all-metal enclosure
  • Available in black

技术参数

VMK 1
General
   Mounting Mounts onto VESA MID-D 75mm standard mount
   Enclosure material Metal, painted black
   Enclosure dimensions

3.86" (98mm) Hx 5.75" (146mm) Wx 0.71" (18mm) D


   Surface cutout dimensions
   Product weight 0.7 lbs (0.31 kg)
   Regulatory compliance CE, RoHS, WEEE
   Product warranty 3 years parts and labor
    NOTE     Specifications are subject to change without notice.
()
装运尺寸和重量
    产品编号 高度 宽度 深度 重量
    70-1253-12 3.8 cm 22.9 cm 31.8 cm 0.32 kg

面板图

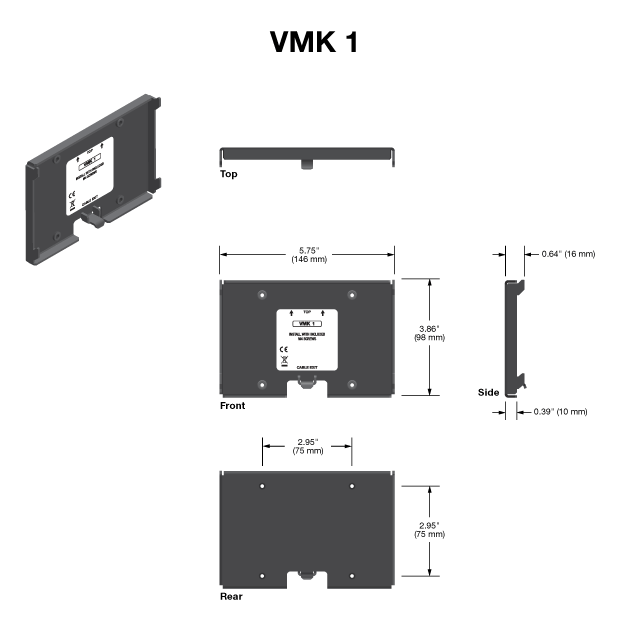

VMK 1 Panel Drawing
