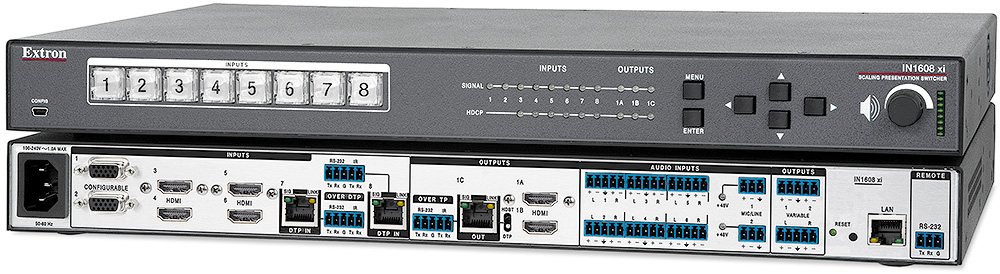

IN1608 xi
- Provide a video scaling presentation switcher that shall support up to eight inputs and three outputs for processing and switching of HDMI, HDTV, RGB, and composite video sources, with additional support for signal extension over shielded CATx cable.
- Rack-mountable scaler and switcher for HDMI, HDTV, RGB, and composite video sources and associated digital and analog audio, plus signal extension over shielded CATx cable
- Video Input Requirements
- Provide video input connections
- Four HDMI
- Two 15-pin HD, configurable for RGB, component video, S-video, or composite video
- Two RJ-45 for video from Extron DTP® twisted pair transmitters
- Provide automatic detection of input video parameters
- Determine total pixels, active pixels, active lines, H/V starting points, H/V image positions, H/V image sizes, and video clock phase
- The user may selectively enable or disable automatic detection for each input
- Provide image adjustments for brightness, contrast, color, tint, detail, H/V positioning, and sizing
- Provide storage and recall of video parameters and picture settings
- Automatic memories for each video input
- Save video settings and picture adjustments without user intervention
- Automatically recall settings when the same video rate is encountered
- The user may selectively enable or disable automatic memories
- Manual user presets
- Save picture adjustments
- User presets may be saved and recalled using front panel controls
- User presets may be saved and recalled electronically via Ethernet, RS-232, or USB connection
- Manual input presets
- Save video settings and picture adjustments
- Input presets may be saved and recalled electronically via Ethernet, RS-232, or USB connection
- Automatic memories for each video input
- Provide enhanced decoding of composite video
- Decoder shall include a temporal, 3D adaptive comb filter
- Support NTSC 3.58, NTSC 4.42, PAL, and SECAM formats
- Support HDMI specifications including 1080p/60 Deep Color, data rates up to 6.75 Gbps, and HD lossless audio formats
- Provide automatic 3:2 and 2:2 pulldown detection
- Support video transmission over shielded CATx up to 330 feet (100 meters)
- Provide video input connections
- Video Output Requirements
- Provide simultaneous video output connections
- Two HDMI
- One RJ-45 for video to an Extron DTP twisted pair receiver
- Shall be configurable for sending digital video and embedded audio, plus bidirectional RS-232 and IR signals to HDBaseT-enabled displays
- Provide a range of selectable video output rates from 640x480 to 1920x1200, including 1080p/60 and 2048x1080p/60
- Provide image scaling and video format conversion at 30-bit precision and support 1080i deinterlacing
- Provide aspect ratio control
- When in FILL mode, the video image shall always fill the output screen without letterbox or pillarbox
- When in FOLLOW mode, the video image shall always preserve the aspect ratio of the input signals without distortion
- Provide internal test patterns for calibration and setup
- Support image freeze via Ethernet, RS-232, or USB connection
- Support muting of one or all outputs at any time
- Support automatic muting of video and sync output when no video input signal is present
- Provide a choice to generate a blue screen or a black screen before disabling sync
- Provide a configurable timeout period before disabling sync
- The user may selectively enable or disable automatic muting of sync output
- Provide a low power standby state selectable via Ethernet, RS-232, or USB
- Support the connection of DVI displays that do not recognize HDMI-specific formats
- Automatically enable or disable embedded TMDS audio and infoframes
- Automatically set the correct color space
- Support video transmission over shielded CATx up to 330 feet (100 meters)
- Provide simultaneous video output connections
- Switching Requirements
- Provide automatic switching between input sources
- Automatically switch to the active input
- Provide a configurable switching priority when multiple inputs are active
- High to low: highest numbered input has priority
- Low to high: lowest numbered input has priority
- Provide selectable transition effects when switching inputs
- Cut: video output shall cut to black, then cut to the newly selected input source
- Fade: video output shall fade to black, then fade into the newly selected input source
- Accompanying audio shall ramp down, then ramp up to match the transition effect
- Provide automatic switching between input sources
- EDID Requirements
- Provide automatic EDID management between connected devices
- Provide a set of pre-stored EDID files
- Support capture of EDID from any connected display
- Support user uploading of custom-generated EDID files
- Support assignment of any pre-stored, captured, or custom uploaded EDID file to any input connection
- Provide automatic EDID management between connected devices
- HDCP Requirements
- The unit shall be HDCP compliant
- Provide authentication and maintain continuous verification of HDCP key exchange with connected sink devices
- Provide authentication and maintain continuous verification of HDCP key exchange with connected source devices
- Provide the option to disable HDCP processing at any HDMI input connection when passing unencrypted content
- Provide selectable, human-readable visual confirmation of HDCP compliance when encrypted content is routed to a non-HDCP compliant display
- When enabled, the video output shall be a solid green color and an on-screen message stating “HDCP CONTENT” shall be displayed
- When disabled, the output shall be muted
- Provide real-time verification of HDCP status for each HDMI input and output
- Directly readable on front panel LEDs
- Electronically accessible over Ethernet, RS-232, or USB connection
- The unit shall be HDCP compliant
- Audio Requirements
- Provide audio input connections
- Four HDMI, embedded
- Six 5-pole captive screw, balanced/unbalanced line level analog stereo
- Two 3-pole captive screw, mono mic/line level with switchable 48 V phantom power
- Two RJ-45, DTP HDMI embedded and analog audio
- Provide audio output connections
- Two simultaneous HDMI, embedded
- Two 5-pole captive screw, with independent output level control and configurable for balanced/unbalanced, analog stereo, or independently mixed analog mono
- One RJ-45, DTP HDMI embedded and analog audio
- Support embedding of any analog audio input signal onto the HDMI outputs
- Support extraction of two-channel LPCM HDMI audio signals to the analog stereo outputs, or pass bitstream audio to the HDMI outputs
- Support mixing of program audio with two mic/line inputs, providing three simultaneously available, independently mixed outputs
- Stereo output to HDMI
- Stereo analog audio output
- Stereo or dual mono analog audio output
- Provide the capability to break an analog audio signal away from its corresponding video signal and route to the audio outputs, allowing the analog audio channels to be operated as a separate switcher
- Provide a delay in the audio output to match the corresponding video processing delay
- Provide gain and attenuation adjustments for analog or embedded HDMI input audio
- Support individual muting of the analog stereo or HDMI audio inputs
- Support audio transmission over shielded CATx up to 330 feet (100 meters)
- Provide audio input connections
- Control/Remote – RS-232 and IR Pass-Through Over Shielded CATx Requirements
- Provide connections for AV device control
- Two 5-pole captive screw: RS-232 or IR pass-through to DTP twisted pair transmitters
- One 5-pole captive screw: RS-232 or IR pass-through to DTP twisted pair receiver
- Support RS-232 and IR transmission over shielded CATx up to 330 feet (100 meters)
- Provide connections for AV device control
- Control/Remote – Switcher Control Requirements
- Provide connections for remote switcher control
- RJ-45: 10/100Base-T Ethernet
- 3-pole captive screw: RS-232
- Mini USB-B: USB 2.0
- Provide alternatives for configuration and operation
- On-screen menus navigated using front panel controls
- Built-in Web pages accessible using a standard Web browser via Ethernet connection
- Product configuration software connected via Ethernet or USB
- Serial commands sent over Ethernet, RS-232, or USB connection
- Support disabling of front panel controls to prevent inadvertent or unauthorized changes to configuration settings
- Provide connections for remote switcher control
- General Requirements
- Provide real-time verification of signal flow and operation from DTP transmitter or DTP receiver
- Directly readable on RJ-45 signal and link LEDs
- Shall be compatible with all Extron DTP Series models and DTP-enabled products
- Shall be compatible with CATx shielded twisted pair cable, and Extron XTP DTP 24 shielded twisted pair cable
- Shall provide remote power to two remote DTP transmitters and a remote DTP receiver over the shielded CATx connections
- Enclosure shall be rack-mountable, full rack width, and 1RU in height
- Shall be equipped with an internal 100-240 VAC, 50/60 Hz universal power supply
- Shall meet regulatory compliances
- Shall meet safety compliances under CE, c-UL, and UL
- Shall meet EMI/EMC compliances under CE, C-tick, FCC Class A, ICES, and VCCI
- Shall comply with appropriate requirements of RoHS and WEEE
- Shall provide three year parts and labor warranty
- Provide real-time verification of signal flow and operation from DTP transmitter or DTP receiver
- Video Input Requirements
- Approved device shall be the Extron IN1608 xi (part number 60-1238-81); no alternates or equals
- Rack-mountable scaler and switcher for HDMI, HDTV, RGB, and composite video sources and associated digital and analog audio, plus signal extension over shielded CATx cable
IN1608 xi
- Provide a video scaling presentation switcher that shall support up to eight inputs and three outputs for processing and switching of HDMI, HDTV, RGB, and composite video sources, with additional support for signal extension over shielded CATx cable.
- Rack-mountable scaler and switcher for HDMI, HDTV, RGB, and composite video sources and associated digital and analog audio, plus signal extension over shielded CATx cable
- Video Input Requirements
- Provide video input connections
- Four HDMI
- Two 15-pin HD, configurable for RGB, component video, S-video, or composite video
- Two RJ-45 for video from Extron DTP® twisted pair transmitters
- Provide automatic detection of input video parameters
- Determine total pixels, active pixels, active lines, H/V starting points, H/V image positions, H/V image sizes, and video clock phase
- The user may selectively enable or disable automatic detection for each input
- Provide image adjustments for brightness, contrast, color, tint, detail, H/V positioning, and sizing
- Provide storage and recall of video parameters and picture settings
- Automatic memories for each video input
- Save video settings and picture adjustments without user intervention
- Automatically recall settings when the same video rate is encountered
- The user may selectively enable or disable automatic memories
- Manual user presets
- Save picture adjustments
- User presets may be saved and recalled using front panel controls
- User presets may be saved and recalled electronically via Ethernet, RS-232, or USB connection
- Manual input presets
- Save video settings and picture adjustments
- Input presets may be saved and recalled electronically via Ethernet, RS-232, or USB connection
- Automatic memories for each video input
- Provide enhanced decoding of composite video
- Decoder shall include a temporal, 3D adaptive comb filter
- Support NTSC 3.58, NTSC 4.42, PAL, and SECAM formats
- Support HDMI specifications including 1080p/60 Deep Color, data rates up to 6.75 Gbps, and HD lossless audio formats
- Provide automatic 3:2 and 2:2 pulldown detection
- Support video transmission over shielded CATx up to 330 feet (100 meters)
- Provide video input connections
- Video Output Requirements
- Provide simultaneous video output connections
- Two HDMI
- One RJ-45 for video to an Extron DTP twisted pair receiver
- Shall be configurable for sending digital video and embedded audio, plus bidirectional RS-232 and IR signals to HDBaseT-enabled displays
- Provide a range of selectable video output rates from 640x480 to 1920x1200, including 1080p/60 and 2048x1080p/60
- Provide image scaling and video format conversion at 30-bit precision and support 1080i deinterlacing
- Provide aspect ratio control
- When in FILL mode, the video image shall always fill the output screen without letterbox or pillarbox
- When in FOLLOW mode, the video image shall always preserve the aspect ratio of the input signals without distortion
- Provide internal test patterns for calibration and setup
- Support image freeze via Ethernet, RS-232, or USB connection
- Support muting of one or all outputs at any time
- Support automatic muting of video and sync output when no video input signal is present
- Provide a choice to generate a blue screen or a black screen before disabling sync
- Provide a configurable timeout period before disabling sync
- The user may selectively enable or disable automatic muting of sync output
- Provide a low power standby state selectable via Ethernet, RS-232, or USB
- Support the connection of DVI displays that do not recognize HDMI-specific formats
- Automatically enable or disable embedded TMDS audio and infoframes
- Automatically set the correct color space
- Support video transmission over shielded CATx up to 330 feet (100 meters)
- Provide simultaneous video output connections
- Switching Requirements
- Provide automatic switching between input sources
- Automatically switch to the active input
- Provide a configurable switching priority when multiple inputs are active
- High to low: highest numbered input has priority
- Low to high: lowest numbered input has priority
- Provide selectable transition effects when switching inputs
- Cut: video output shall cut to black, then cut to the newly selected input source
- Fade: video output shall fade to black, then fade into the newly selected input source
- Accompanying audio shall ramp down, then ramp up to match the transition effect
- Provide automatic switching between input sources
- EDID Requirements
- Provide automatic EDID management between connected devices
- Provide a set of pre-stored EDID files
- Support capture of EDID from any connected display
- Support user uploading of custom-generated EDID files
- Support assignment of any pre-stored, captured, or custom uploaded EDID file to any input connection
- Provide automatic EDID management between connected devices
- HDCP Requirements
- The unit shall be HDCP compliant
- Provide authentication and maintain continuous verification of HDCP key exchange with connected sink devices
- Provide authentication and maintain continuous verification of HDCP key exchange with connected source devices
- Provide the option to disable HDCP processing at any HDMI input connection when passing unencrypted content
- Provide selectable, human-readable visual confirmation of HDCP compliance when encrypted content is routed to a non-HDCP compliant display
- When enabled, the video output shall be a solid green color and an on-screen message stating “HDCP CONTENT” shall be displayed
- When disabled, the output shall be muted
- Provide real-time verification of HDCP status for each HDMI input and output
- Directly readable on front panel LEDs
- Electronically accessible over Ethernet, RS-232, or USB connection
- The unit shall be HDCP compliant
- Audio Requirements
- Provide audio input connections
- Four HDMI, embedded
- Six 5-pole captive screw, balanced/unbalanced line level analog stereo
- Two 3-pole captive screw, mono mic/line level with switchable 48 V phantom power
- Two RJ-45, DTP HDMI embedded and analog audio
- Provide audio output connections
- Two simultaneous HDMI, embedded
- Two 5-pole captive screw, with independent output level control and configurable for balanced/unbalanced, analog stereo, or independently mixed analog mono
- One RJ-45, DTP HDMI embedded and analog audio
- Support embedding of any analog audio input signal onto the HDMI outputs
- Support extraction of two-channel LPCM HDMI audio signals to the analog stereo outputs, or pass bitstream audio to the HDMI outputs
- Support mixing of program audio with two mic/line inputs, providing three simultaneously available, independently mixed outputs
- Stereo output to HDMI
- Stereo analog audio output
- Stereo or dual mono analog audio output
- Provide the capability to break an analog audio signal away from its corresponding video signal and route to the audio outputs, allowing the analog audio channels to be operated as a separate switcher
- Provide a delay in the audio output to match the corresponding video processing delay
- Provide gain and attenuation adjustments for analog or embedded HDMI input audio
- Support individual muting of the analog stereo or HDMI audio inputs
- Support audio transmission over shielded CATx up to 330 feet (100 meters)
- Provide audio input connections
- Control/Remote – RS-232 and IR Pass-Through Over Shielded CATx Requirements
- Provide connections for AV device control
- Two 5-pole captive screw: RS-232 or IR pass-through to DTP twisted pair transmitters
- One 5-pole captive screw: RS-232 or IR pass-through to DTP twisted pair receiver
- Support RS-232 and IR transmission over shielded CATx up to 330 feet (100 meters)
- Provide connections for AV device control
- Control/Remote – Switcher Control Requirements
- Provide connections for remote switcher control
- RJ-45: 10/100Base-T Ethernet
- 3-pole captive screw: RS-232
- Mini USB-B: USB 2.0
- Provide alternatives for configuration and operation
- On-screen menus navigated using front panel controls
- Built-in Web pages accessible using a standard Web browser via Ethernet connection
- Product configuration software connected via Ethernet or USB
- Serial commands sent over Ethernet, RS-232, or USB connection
- Support disabling of front panel controls to prevent inadvertent or unauthorized changes to configuration settings
- Provide connections for remote switcher control
- General Requirements
- Provide real-time verification of signal flow and operation from DTP transmitter or DTP receiver
- Directly readable on RJ-45 signal and link LEDs
- Shall be compatible with all Extron DTP Series models and DTP-enabled products
- Shall be compatible with CATx shielded twisted pair cable, and Extron XTP DTP 24 shielded twisted pair cable
- Shall provide remote power to two remote DTP transmitters and a remote DTP receiver over the shielded CATx connections
- Enclosure shall be rack-mountable, full rack width, and 1RU in height
- Shall be equipped with an internal 100-240 VAC, 50/60 Hz universal power supply
- Shall meet regulatory compliances
- Shall meet safety compliances under CE, c-UL, and UL
- Shall meet EMI/EMC compliances under CE, C-tick, FCC Class A, ICES, and VCCI
- Shall comply with appropriate requirements of RoHS and WEEE
- Shall provide three year parts and labor warranty
- Provide real-time verification of signal flow and operation from DTP transmitter or DTP receiver
- Video Input Requirements
- Approved device shall be the Extron IN1608 xi (part number 60-1238-81); no alternates or equals
- Rack-mountable scaler and switcher for HDMI, HDTV, RGB, and composite video sources and associated digital and analog audio, plus signal extension over shielded CATx cable

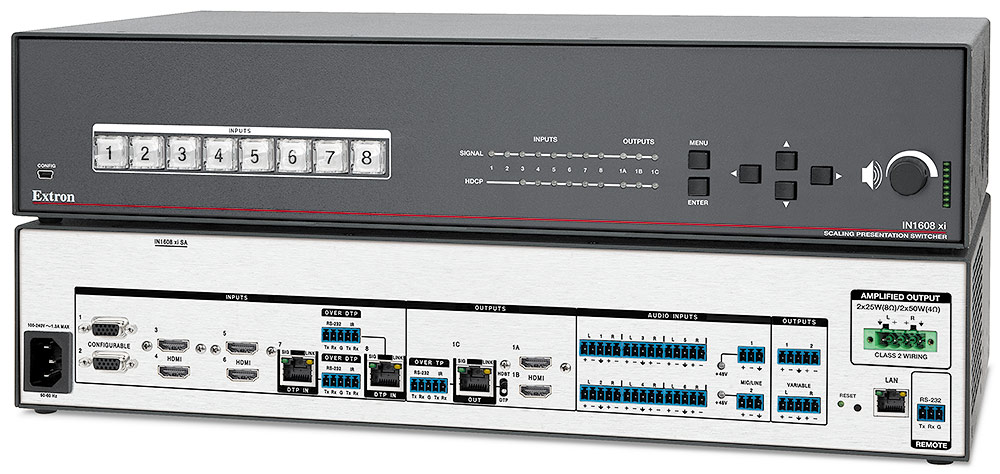

IN1608 xi SA
- Provide a video scaling presentation switcher that shall support up to eight inputs and three outputs for processing and switching of HDMI, HDTV, RGB, and composite video sources, with additional support for signal extension over shielded CATx cable.
- Rack-mountable scaler and switcher for HDMI, HDTV, RGB, and composite video sources and associated digital and analog audio, plus signal extension over shielded CATx cable
- Video Input Requirements
- Provide video input connections
- Four HDMI
- Two 15-pin HD, configurable for RGB, component video, S-video, or composite video
- Two RJ-45 for video from Extron DTP® twisted pair transmitters
- Provide automatic detection of input video parameters
- Determine total pixels, active pixels, active lines, H/V starting points, H/V image positions, H/V image sizes, and video clock phase
- The user may selectively enable or disable automatic detection for each input
- Provide image adjustments for brightness, contrast, color, tint, detail, H/V positioning, and sizing
- Provide storage and recall of video parameters and picture settings
- Automatic memories for each video input
- Save video settings and picture adjustments without user intervention
- Automatically recall settings when the same video rate is encountered
- The user may selectively enable or disable automatic memories
- Manual user presets
- Save picture adjustments
- User presets may be saved and recalled using front panel controls
- User presets may be saved and recalled electronically via Ethernet, RS-232, or USB connection
- Manual input presets
- Save video settings and picture adjustments
- Input presets may be saved and recalled electronically via Ethernet, RS-232, or USB connection
- Automatic memories for each video input
- Provide enhanced decoding of composite video
- Decoder shall include a temporal, 3D adaptive comb filter
- Support NTSC 3.58, NTSC 4.42, PAL, and SECAM formats
- Support HDMI specifications including 1080p/60 Deep Color, data rates up to 6.75 Gbps, and HD lossless audio formats
- Provide automatic 3:2 and 2:2 pulldown detection
- Support video transmission over shielded CATx up to 330 feet (100 meters)
- Provide video input connections
- Video Output Requirements
- Provide simultaneous video output connections
- Two HDMI
- One RJ-45 for video to an Extron DTP twisted pair receiver
- Shall be configurable for sending digital video and embedded audio, plus bidirectional RS-232 and IR signals to HDBaseT-enabled displays
- Provide a range of selectable video output rates from 640x480 to 1920x1200, including 1080p/60 and 2048x1080p/60
- Provide image scaling and video format conversion at 30-bit precision and support 1080i deinterlacing
- Provide aspect ratio control
- When in FILL mode, the video image shall always fill the output screen without letterbox or pillarbox
- When in FOLLOW mode, the video image shall always preserve the aspect ratio of the input signals without distortion
- Provide internal test patterns for calibration and setup
- Support image freeze via Ethernet, RS-232, or USB connection
- Support muting of one or all outputs at any time
- Support automatic muting of video and sync output when no video input signal is present
- Provide a choice to generate a blue screen or a black screen before disabling sync
- Provide a configurable timeout period before disabling sync
- The user may selectively enable or disable automatic muting of sync output
- Provide a low power standby state selectable via Ethernet, RS-232, or USB
- Support the connection of DVI displays that do not recognize HDMI-specific formats
- Automatically enable or disable embedded TMDS audio and InfoFrames
- Automatically set the correct color space
- Support video transmission over shielded CATx up to 330 feet (100 meters)
- Provide simultaneous video output connections
- Switching Requirements
- Provide automatic switching between input sources
- Automatically switch to the active input
- Provide a configurable switching priority when multiple inputs are active
- High to low: highest numbered input has priority
- Low to high: lowest numbered input has priority
- Provide selectable transition effects when switching inputs
- Cut: video output shall cut to black, then cut to the newly selected input source
- Fade: video output shall fade to black, then fade into the newly selected input source
- Accompanying audio shall ramp down, then ramp up to match the transition effect
- Provide automatic switching between input sources
- EDID Requirements
- Provide automatic EDID management between connected devices
- Provide a set of pre-stored EDID files
- Support capture of EDID from any connected display
- Support user uploading of custom-generated EDID files
- Support assignment of any pre-stored, captured, or custom uploaded EDID file to any input connection
- Provide automatic EDID management between connected devices
- HDCP Requirements
- The unit shall be HDCP compliant
- Provide authentication and maintain continuous verification of HDCP key exchange with connected sink devices
- Provide authentication and maintain continuous verification of HDCP key exchange with connected source devices
- Provide the option to disable HDCP processing at any HDMI input connection when passing unencrypted content
- Provide selectable, human-readable visual confirmation of HDCP compliance when encrypted content is routed to a non-HDCP compliant display
- When enabled, the video output shall be a solid green color and an on-screen message stating “HDCP CONTENT” shall be displayed
- When disabled, the output shall be muted
- Provide real-time verification of HDCP status for each HDMI input and output
- Directly readable on front panel LEDs
- Electronically accessible over Ethernet, RS-232, or USB connection
- The unit shall be HDCP compliant
- Audio Requirements
- Provide audio input connections
- Four HDMI, embedded
- Six 5-pole captive screw, balanced/unbalanced line level analog stereo
- Two 3-pole captive screw, mono mic/line level with switchable 48 V phantom power
- Two RJ-45, DTP HDMI embedded and analog audio
- Provide audio output connections
- Two simultaneous HDMI, embedded
- Two 5-pole captive screw, with independent output level control and configurable for balanced/unbalanced, analog stereo, or independently mixed analog mono
- One RJ-45, DTP HDMI embedded and analog audio
- 4-pole captive screw, amplified stereo audio
- Provide stereo power amplification with 50 watts rms per channel into 4 ohms and 25 watts rms per channel into 8 ohms
- Support embedding of any analog audio input signal onto the HDMI outputs
- Support extraction of two-channel LPCM HDMI audio signals to the analog stereo outputs, or pass bitstream audio to the HDMI outputs
- Support mixing of program audio with two mic/line inputs, providing three simultaneously available, independently mixed outputs
- Stereo output to HDMI
- Stereo analog audio output
- Stereo or dual mono analog audio output
- Provide the capability to break an analog audio signal away from its corresponding video signal and route to the audio outputs, allowing the analog audio channels to be operated as a separate switcher
- Provide a delay in the audio output to match the corresponding video processing delay
- Provide gain and attenuation adjustments for analog or embedded HDMI input audio
- Support individual muting of the analog stereo or HDMI audio inputs
- Support audio transmission over shielded CATx up to 330 feet (100 meters)
- Provide audio input connections
- Control/Remote – RS-232 and IR Pass-Through Over Shielded CATx Requirements
- Provide connections for AV device control
- Two 5-pole captive screw: RS-232 or IR pass-through to DTP twisted pair transmitters
- One 5-pole captive screw: RS-232 or IR pass-through to DTP twisted pair receiver
- Support RS-232 and IR transmission over shielded CATx up to 330 feet (100 meters)
- Provide connections for AV device control
- Control/Remote – Switcher Control Requirements
- Provide connections for remote switcher control
- RJ-45: 10/100Base-T Ethernet
- 3-pole captive screw: RS-232
- Mini USB-B: USB 2.0
- Provide alternatives for configuration and operation
- On-screen menus navigated using front panel controls
- Built-in Web pages accessible using a standard Web browser via Ethernet connection
- Product configuration software connected via Ethernet or USB
- Serial commands sent over Ethernet, RS-232, or USB connection
- Support disabling of front panel controls to prevent inadvertent or unauthorized changes to configuration settings
- Provide connections for remote switcher control
- General Requirements
- Provide real-time verification of signal flow and operation from DTP transmitter or DTP receiver
- Directly readable on RJ-45 signal and link LEDs
- Shall be compatible with all Extron DTP Series models and DTP-enabled products
- Shall be compatible with CATx shielded twisted pair cable, and Extron XTP DTP 24 shielded twisted pair cable
- Shall provide remote power to two remote DTP transmitters and a remote DTP receiver over the shielded CATx connections
- Enclosure shall be rack-mountable, full rack width, and 2RU in height
- Shall be equipped with an internal 100-240 VAC, 50/60 Hz universal power supply
- Shall meet regulatory compliances
- Shall meet safety compliances under CE, c-UL, and UL
- Shall meet EMI/EMC compliances under CE, C-tick, FCC Class A, ICES, and VCCI
- Shall comply with appropriate requirements of RoHS and WEEE
- Shall provide three year parts and labor warranty
- Provide real-time verification of signal flow and operation from DTP transmitter or DTP receiver
- Video Input Requirements
- Approved device shall be the Extron IN1608 xi SA (part number 60-1238-82); no alternates or equals
- Rack-mountable scaler and switcher for HDMI, HDTV, RGB, and composite video sources and associated digital and analog audio, plus signal extension over shielded CATx cable
IN1608 xi SA
- Provide a video scaling presentation switcher that shall support up to eight inputs and three outputs for processing and switching of HDMI, HDTV, RGB, and composite video sources, with additional support for signal extension over shielded CATx cable.
- Rack-mountable scaler and switcher for HDMI, HDTV, RGB, and composite video sources and associated digital and analog audio, plus signal extension over shielded CATx cable
- Video Input Requirements
- Provide video input connections
- Four HDMI
- Two 15-pin HD, configurable for RGB, component video, S-video, or composite video
- Two RJ-45 for video from Extron DTP® twisted pair transmitters
- Provide automatic detection of input video parameters
- Determine total pixels, active pixels, active lines, H/V starting points, H/V image positions, H/V image sizes, and video clock phase
- The user may selectively enable or disable automatic detection for each input
- Provide image adjustments for brightness, contrast, color, tint, detail, H/V positioning, and sizing
- Provide storage and recall of video parameters and picture settings
- Automatic memories for each video input
- Save video settings and picture adjustments without user intervention
- Automatically recall settings when the same video rate is encountered
- The user may selectively enable or disable automatic memories
- Manual user presets
- Save picture adjustments
- User presets may be saved and recalled using front panel controls
- User presets may be saved and recalled electronically via Ethernet, RS-232, or USB connection
- Manual input presets
- Save video settings and picture adjustments
- Input presets may be saved and recalled electronically via Ethernet, RS-232, or USB connection
- Automatic memories for each video input
- Provide enhanced decoding of composite video
- Decoder shall include a temporal, 3D adaptive comb filter
- Support NTSC 3.58, NTSC 4.42, PAL, and SECAM formats
- Support HDMI specifications including 1080p/60 Deep Color, data rates up to 6.75 Gbps, and HD lossless audio formats
- Provide automatic 3:2 and 2:2 pulldown detection
- Support video transmission over shielded CATx up to 330 feet (100 meters)
- Provide video input connections
- Video Output Requirements
- Provide simultaneous video output connections
- Two HDMI
- One RJ-45 for video to an Extron DTP twisted pair receiver
- Shall be configurable for sending digital video and embedded audio, plus bidirectional RS-232 and IR signals to HDBaseT-enabled displays
- Provide a range of selectable video output rates from 640x480 to 1920x1200, including 1080p/60 and 2048x1080p/60
- Provide image scaling and video format conversion at 30-bit precision and support 1080i deinterlacing
- Provide aspect ratio control
- When in FILL mode, the video image shall always fill the output screen without letterbox or pillarbox
- When in FOLLOW mode, the video image shall always preserve the aspect ratio of the input signals without distortion
- Provide internal test patterns for calibration and setup
- Support image freeze via Ethernet, RS-232, or USB connection
- Support muting of one or all outputs at any time
- Support automatic muting of video and sync output when no video input signal is present
- Provide a choice to generate a blue screen or a black screen before disabling sync
- Provide a configurable timeout period before disabling sync
- The user may selectively enable or disable automatic muting of sync output
- Provide a low power standby state selectable via Ethernet, RS-232, or USB
- Support the connection of DVI displays that do not recognize HDMI-specific formats
- Automatically enable or disable embedded TMDS audio and InfoFrames
- Automatically set the correct color space
- Support video transmission over shielded CATx up to 330 feet (100 meters)
- Provide simultaneous video output connections
- Switching Requirements
- Provide automatic switching between input sources
- Automatically switch to the active input
- Provide a configurable switching priority when multiple inputs are active
- High to low: highest numbered input has priority
- Low to high: lowest numbered input has priority
- Provide selectable transition effects when switching inputs
- Cut: video output shall cut to black, then cut to the newly selected input source
- Fade: video output shall fade to black, then fade into the newly selected input source
- Accompanying audio shall ramp down, then ramp up to match the transition effect
- Provide automatic switching between input sources
- EDID Requirements
- Provide automatic EDID management between connected devices
- Provide a set of pre-stored EDID files
- Support capture of EDID from any connected display
- Support user uploading of custom-generated EDID files
- Support assignment of any pre-stored, captured, or custom uploaded EDID file to any input connection
- Provide automatic EDID management between connected devices
- HDCP Requirements
- The unit shall be HDCP compliant
- Provide authentication and maintain continuous verification of HDCP key exchange with connected sink devices
- Provide authentication and maintain continuous verification of HDCP key exchange with connected source devices
- Provide the option to disable HDCP processing at any HDMI input connection when passing unencrypted content
- Provide selectable, human-readable visual confirmation of HDCP compliance when encrypted content is routed to a non-HDCP compliant display
- When enabled, the video output shall be a solid green color and an on-screen message stating “HDCP CONTENT” shall be displayed
- When disabled, the output shall be muted
- Provide real-time verification of HDCP status for each HDMI input and output
- Directly readable on front panel LEDs
- Electronically accessible over Ethernet, RS-232, or USB connection
- The unit shall be HDCP compliant
- Audio Requirements
- Provide audio input connections
- Four HDMI, embedded
- Six 5-pole captive screw, balanced/unbalanced line level analog stereo
- Two 3-pole captive screw, mono mic/line level with switchable 48 V phantom power
- Two RJ-45, DTP HDMI embedded and analog audio
- Provide audio output connections
- Two simultaneous HDMI, embedded
- Two 5-pole captive screw, with independent output level control and configurable for balanced/unbalanced, analog stereo, or independently mixed analog mono
- One RJ-45, DTP HDMI embedded and analog audio
- 4-pole captive screw, amplified stereo audio
- Provide stereo power amplification with 50 watts rms per channel into 4 ohms and 25 watts rms per channel into 8 ohms
- Support embedding of any analog audio input signal onto the HDMI outputs
- Support extraction of two-channel LPCM HDMI audio signals to the analog stereo outputs, or pass bitstream audio to the HDMI outputs
- Support mixing of program audio with two mic/line inputs, providing three simultaneously available, independently mixed outputs
- Stereo output to HDMI
- Stereo analog audio output
- Stereo or dual mono analog audio output
- Provide the capability to break an analog audio signal away from its corresponding video signal and route to the audio outputs, allowing the analog audio channels to be operated as a separate switcher
- Provide a delay in the audio output to match the corresponding video processing delay
- Provide gain and attenuation adjustments for analog or embedded HDMI input audio
- Support individual muting of the analog stereo or HDMI audio inputs
- Support audio transmission over shielded CATx up to 330 feet (100 meters)
- Provide audio input connections
- Control/Remote – RS-232 and IR Pass-Through Over Shielded CATx Requirements
- Provide connections for AV device control
- Two 5-pole captive screw: RS-232 or IR pass-through to DTP twisted pair transmitters
- One 5-pole captive screw: RS-232 or IR pass-through to DTP twisted pair receiver
- Support RS-232 and IR transmission over shielded CATx up to 330 feet (100 meters)
- Provide connections for AV device control
- Control/Remote – Switcher Control Requirements
- Provide connections for remote switcher control
- RJ-45: 10/100Base-T Ethernet
- 3-pole captive screw: RS-232
- Mini USB-B: USB 2.0
- Provide alternatives for configuration and operation
- On-screen menus navigated using front panel controls
- Built-in Web pages accessible using a standard Web browser via Ethernet connection
- Product configuration software connected via Ethernet or USB
- Serial commands sent over Ethernet, RS-232, or USB connection
- Support disabling of front panel controls to prevent inadvertent or unauthorized changes to configuration settings
- Provide connections for remote switcher control
- General Requirements
- Provide real-time verification of signal flow and operation from DTP transmitter or DTP receiver
- Directly readable on RJ-45 signal and link LEDs
- Shall be compatible with all Extron DTP Series models and DTP-enabled products
- Shall be compatible with CATx shielded twisted pair cable, and Extron XTP DTP 24 shielded twisted pair cable
- Shall provide remote power to two remote DTP transmitters and a remote DTP receiver over the shielded CATx connections
- Enclosure shall be rack-mountable, full rack width, and 2RU in height
- Shall be equipped with an internal 100-240 VAC, 50/60 Hz universal power supply
- Shall meet regulatory compliances
- Shall meet safety compliances under CE, c-UL, and UL
- Shall meet EMI/EMC compliances under CE, C-tick, FCC Class A, ICES, and VCCI
- Shall comply with appropriate requirements of RoHS and WEEE
- Shall provide three year parts and labor warranty
- Provide real-time verification of signal flow and operation from DTP transmitter or DTP receiver
- Video Input Requirements
- Approved device shall be the Extron IN1608 xi SA (part number 60-1238-82); no alternates or equals
- Rack-mountable scaler and switcher for HDMI, HDTV, RGB, and composite video sources and associated digital and analog audio, plus signal extension over shielded CATx cable

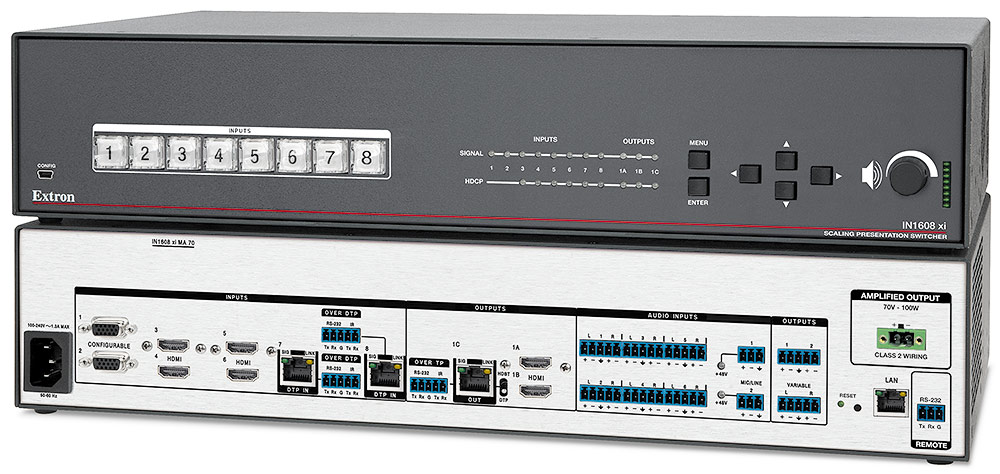

IN1608 xi MA 70
- Provide a video scaling presentation switcher that shall support up to eight inputs and three outputs for processing and switching of HDMI, HDTV, RGB, and composite video sources, with additional support for signal extension over shielded CATx cable.
- Rack-mountable scaler and switcher for HDMI, HDTV, RGB, and composite video sources and associated digital and analog audio, plus signal extension over shielded CATx cable
- Video Input Requirements
- Provide video input connections
- Four HDMI
- Two 15-pin HD, configurable for RGB, component video, S-video, or composite video
- Two RJ-45 for video from Extron DTP® twisted pair transmitters
- Provide automatic detection of input video parameters
- Determine total pixels, active pixels, active lines, H/V starting points, H/V image positions, H/V image sizes, and video clock phase
- The user may selectively enable or disable automatic detection for each input
- Provide image adjustments for brightness, contrast, color, tint, detail, H/V positioning, and sizing
- Provide storage and recall of video parameters and picture settings
- Automatic memories for each video input
- Save video settings and picture adjustments without user intervention
- Automatically recall settings when the same video rate is encountered
- The user may selectively enable or disable automatic memories
- Manual user presets
- Save picture adjustments
- User presets may be saved and recalled using front panel controls
- User presets may be saved and recalled electronically via Ethernet, RS-232, or USB connection
- Manual input presets
- Save video settings and picture adjustments
- Input presets may be saved and recalled electronically via Ethernet, RS-232, or USB connection
- Automatic memories for each video input
- Provide enhanced decoding of composite video
- Decoder shall include a temporal, 3D adaptive comb filter
- Support NTSC 3.58, NTSC 4.42, PAL, and SECAM formats
- Support HDMI specifications including 1080p/60 Deep Color, data rates up to 6.75 Gbps, and HD lossless audio formats
- Provide automatic 3:2 and 2:2 pulldown detection
- Support video transmission over shielded CATx up to 330 feet (100 meters)
- Provide video input connections
- Video Output Requirements
- Provide simultaneous video output connections
- Two HDMI
- One RJ-45 for video to an Extron DTP twisted pair receiver
- Shall be configurable for sending digital video and embedded audio, plus bidirectional RS-232 and IR signals to HDBaseT-enabled displays
- Provide a range of selectable video output rates from 640x480 to 1920x1200, including 1080p/60 and 2048x1080p/60
- Provide image scaling and video format conversion at 30-bit precision and support 1080i deinterlacing
- Provide aspect ratio control
- When in FILL mode, the video image shall always fill the output screen without letterbox or pillarbox
- When in FOLLOW mode, the video image shall always preserve the aspect ratio of the input signals without distortion
- Provide internal test patterns for calibration and setup
- Support image freeze via Ethernet, RS-232, or USB connection
- Support muting of one or all outputs at any time
- Support automatic muting of video and sync output when no video input signal is present
- Provide a choice to generate a blue screen or a black screen before disabling sync
- Provide a configurable timeout period before disabling sync
- The user may selectively enable or disable automatic muting of sync output
- Provide a low power standby state selectable via Ethernet, RS-232, or USB
- Support the connection of DVI displays that do not recognize HDMI-specific formats
- Automatically enable or disable embedded TMDS audio and InfoFrames
- Automatically set the correct color space
- Support video transmission over shielded CATx up to 330 feet (100 meters)
- Provide simultaneous video output connections
- Switching Requirements
- Provide automatic switching between input sources
- Automatically switch to the active input
- Provide a configurable switching priority when multiple inputs are active
- High to low: highest numbered input has priority
- Low to high: lowest numbered input has priority
- Provide selectable transition effects when switching inputs
- Cut: video output shall cut to black, then cut to the newly selected input source
- Fade: video output shall fade to black, then fade into the newly selected input source
- Accompanying audio shall ramp down, then ramp up to match the transition effect
- Provide automatic switching between input sources
- EDID Requirements
- Provide automatic EDID management between connected devices
- Provide a set of pre-stored EDID files
- Support capture of EDID from any connected display
- Support user uploading of custom-generated EDID files
- Support assignment of any pre-stored, captured, or custom uploaded EDID file to any input connection
- Provide automatic EDID management between connected devices
- HDCP Requirements
- The unit shall be HDCP compliant
- Provide authentication and maintain continuous verification of HDCP key exchange with connected sink devices
- Provide authentication and maintain continuous verification of HDCP key exchange with connected source devices
- Provide the option to disable HDCP processing at any HDMI input connection when passing unencrypted content
- Provide selectable, human-readable visual confirmation of HDCP compliance when encrypted content is routed to a non-HDCP compliant display
- When enabled, the video output shall be a solid green color and an on-screen message stating “HDCP CONTENT” shall be displayed
- When disabled, the output shall be muted
- Provide real-time verification of HDCP status for each HDMI input and output
- Directly readable on front panel LEDs
- Electronically accessible over Ethernet, RS-232, or USB connection
- The unit shall be HDCP compliant
- Audio Requirements
- Provide audio input connections
- Four HDMI, embedded
- Six 5-pole captive screw, balanced/unbalanced line level analog stereo
- Two 3-pole captive screw, mono mic/line level with switchable 48 V phantom power
- Two RJ-45, DTP HDMI embedded and analog audio
- Provide audio output connections
- Two simultaneous HDMI, embedded
- Two 5-pole captive screw, with independent output level control and configurable for balanced/unbalanced, analog stereo, or independently mixed analog mono
- One RJ-45, DTP HDMI embedded and analog audio
- 2-pole captive screw, amplified 70 volt mono
- Provide mono 70 volt power amplification with 100 watts rms output
- Support embedding of any analog audio input signal onto the HDMI outputs
- Support extraction of two-channel LPCM HDMI audio signals to the analog stereo outputs, or pass bitstream audio to the HDMI outputs
- Support mixing of program audio with two mic/line inputs, providing three simultaneously available, independently mixed outputs
- Stereo output to HDMI
- Stereo analog audio output
- Stereo or dual mono analog audio output
- Provide the capability to break an analog audio signal away from its corresponding video signal and route to the audio outputs, allowing the analog audio channels to be operated as a separate switcher
- Provide a delay in the audio output to match the corresponding video processing delay
- Provide gain and attenuation adjustments for analog or embedded HDMI input audio
- Support individual muting of the analog stereo or HDMI audio inputs
- Support audio transmission over shielded CATx up to 330 feet (100 meters)
- Provide audio input connections
- Control/Remote – RS-232 and IR Pass-Through Over Shielded CATx Requirements
- Provide connections for AV device control
- Two 5-pole captive screw: RS-232 or IR pass-through to DTP twisted pair transmitters
- One 5-pole captive screw: RS-232 or IR pass-through to DTP twisted pair receiver
- Support RS-232 and IR transmission over shielded CATx up to 330 feet (100 meters)
- Provide connections for AV device control
- Control/Remote – Switcher Control Requirements
- Provide connections for remote switcher control
- RJ-45: 10/100Base-T Ethernet
- 3-pole captive screw: RS-232
- Mini USB-B: USB 2.0
- Provide alternatives for configuration and operation
- On-screen menus navigated using front panel controls
- Built-in Web pages accessible using a standard Web browser via Ethernet connection
- Product configuration software connected via Ethernet or USB
- Serial commands sent over Ethernet, RS-232, or USB connection
- Support disabling of front panel controls to prevent inadvertent or unauthorized changes to configuration settings
- Provide connections for remote switcher control
- General Requirements
- Provide real-time verification of signal flow and operation from DTP transmitter or DTP receiver
- Directly readable on RJ-45 signal and link LEDs
- Shall be compatible with all Extron DTP Series models and DTP-enabled products
- Shall be compatible with CATx shielded twisted pair cable, and Extron XTP DTP 24 shielded twisted pair cable
- Shall provide remote power to two remote DTP transmitters and a remote DTP receiver over the shielded CATx connections
- Enclosure shall be rack-mountable, full rack width, and 2RU in height
- Shall be equipped with an internal 100-240 VAC, 50/60 Hz universal power supply
- Shall meet regulatory compliances
- Shall meet safety compliances under CE, c-UL, and UL
- Shall meet EMI/EMC compliances under CE, C-tick, FCC Class A, ICES, and VCCI
- Shall comply with appropriate requirements of RoHS and WEEE
- Shall provide three year parts and labor warranty
- Provide real-time verification of signal flow and operation from DTP transmitter or DTP receiver
- Video Input Requirements
- Approved device shall be the Extron IN1608 xi MA 70 (part number 60-1238-83); no alternates or equals
- Rack-mountable scaler and switcher for HDMI, HDTV, RGB, and composite video sources and associated digital and analog audio, plus signal extension over shielded CATx cable
IN1608 xi MA 70
- Provide a video scaling presentation switcher that shall support up to eight inputs and three outputs for processing and switching of HDMI, HDTV, RGB, and composite video sources, with additional support for signal extension over shielded CATx cable.
- Rack-mountable scaler and switcher for HDMI, HDTV, RGB, and composite video sources and associated digital and analog audio, plus signal extension over shielded CATx cable
- Video Input Requirements
- Provide video input connections
- Four HDMI
- Two 15-pin HD, configurable for RGB, component video, S-video, or composite video
- Two RJ-45 for video from Extron DTP® twisted pair transmitters
- Provide automatic detection of input video parameters
- Determine total pixels, active pixels, active lines, H/V starting points, H/V image positions, H/V image sizes, and video clock phase
- The user may selectively enable or disable automatic detection for each input
- Provide image adjustments for brightness, contrast, color, tint, detail, H/V positioning, and sizing
- Provide storage and recall of video parameters and picture settings
- Automatic memories for each video input
- Save video settings and picture adjustments without user intervention
- Automatically recall settings when the same video rate is encountered
- The user may selectively enable or disable automatic memories
- Manual user presets
- Save picture adjustments
- User presets may be saved and recalled using front panel controls
- User presets may be saved and recalled electronically via Ethernet, RS-232, or USB connection
- Manual input presets
- Save video settings and picture adjustments
- Input presets may be saved and recalled electronically via Ethernet, RS-232, or USB connection
- Automatic memories for each video input
- Provide enhanced decoding of composite video
- Decoder shall include a temporal, 3D adaptive comb filter
- Support NTSC 3.58, NTSC 4.42, PAL, and SECAM formats
- Support HDMI specifications including 1080p/60 Deep Color, data rates up to 6.75 Gbps, and HD lossless audio formats
- Provide automatic 3:2 and 2:2 pulldown detection
- Support video transmission over shielded CATx up to 330 feet (100 meters)
- Provide video input connections
- Video Output Requirements
- Provide simultaneous video output connections
- Two HDMI
- One RJ-45 for video to an Extron DTP twisted pair receiver
- Shall be configurable for sending digital video and embedded audio, plus bidirectional RS-232 and IR signals to HDBaseT-enabled displays
- Provide a range of selectable video output rates from 640x480 to 1920x1200, including 1080p/60 and 2048x1080p/60
- Provide image scaling and video format conversion at 30-bit precision and support 1080i deinterlacing
- Provide aspect ratio control
- When in FILL mode, the video image shall always fill the output screen without letterbox or pillarbox
- When in FOLLOW mode, the video image shall always preserve the aspect ratio of the input signals without distortion
- Provide internal test patterns for calibration and setup
- Support image freeze via Ethernet, RS-232, or USB connection
- Support muting of one or all outputs at any time
- Support automatic muting of video and sync output when no video input signal is present
- Provide a choice to generate a blue screen or a black screen before disabling sync
- Provide a configurable timeout period before disabling sync
- The user may selectively enable or disable automatic muting of sync output
- Provide a low power standby state selectable via Ethernet, RS-232, or USB
- Support the connection of DVI displays that do not recognize HDMI-specific formats
- Automatically enable or disable embedded TMDS audio and InfoFrames
- Automatically set the correct color space
- Support video transmission over shielded CATx up to 330 feet (100 meters)
- Provide simultaneous video output connections
- Switching Requirements
- Provide automatic switching between input sources
- Automatically switch to the active input
- Provide a configurable switching priority when multiple inputs are active
- High to low: highest numbered input has priority
- Low to high: lowest numbered input has priority
- Provide selectable transition effects when switching inputs
- Cut: video output shall cut to black, then cut to the newly selected input source
- Fade: video output shall fade to black, then fade into the newly selected input source
- Accompanying audio shall ramp down, then ramp up to match the transition effect
- Provide automatic switching between input sources
- EDID Requirements
- Provide automatic EDID management between connected devices
- Provide a set of pre-stored EDID files
- Support capture of EDID from any connected display
- Support user uploading of custom-generated EDID files
- Support assignment of any pre-stored, captured, or custom uploaded EDID file to any input connection
- Provide automatic EDID management between connected devices
- HDCP Requirements
- The unit shall be HDCP compliant
- Provide authentication and maintain continuous verification of HDCP key exchange with connected sink devices
- Provide authentication and maintain continuous verification of HDCP key exchange with connected source devices
- Provide the option to disable HDCP processing at any HDMI input connection when passing unencrypted content
- Provide selectable, human-readable visual confirmation of HDCP compliance when encrypted content is routed to a non-HDCP compliant display
- When enabled, the video output shall be a solid green color and an on-screen message stating “HDCP CONTENT” shall be displayed
- When disabled, the output shall be muted
- Provide real-time verification of HDCP status for each HDMI input and output
- Directly readable on front panel LEDs
- Electronically accessible over Ethernet, RS-232, or USB connection
- The unit shall be HDCP compliant
- Audio Requirements
- Provide audio input connections
- Four HDMI, embedded
- Six 5-pole captive screw, balanced/unbalanced line level analog stereo
- Two 3-pole captive screw, mono mic/line level with switchable 48 V phantom power
- Two RJ-45, DTP HDMI embedded and analog audio
- Provide audio output connections
- Two simultaneous HDMI, embedded
- Two 5-pole captive screw, with independent output level control and configurable for balanced/unbalanced, analog stereo, or independently mixed analog mono
- One RJ-45, DTP HDMI embedded and analog audio
- 2-pole captive screw, amplified 70 volt mono
- Provide mono 70 volt power amplification with 100 watts rms output
- Support embedding of any analog audio input signal onto the HDMI outputs
- Support extraction of two-channel LPCM HDMI audio signals to the analog stereo outputs, or pass bitstream audio to the HDMI outputs
- Support mixing of program audio with two mic/line inputs, providing three simultaneously available, independently mixed outputs
- Stereo output to HDMI
- Stereo analog audio output
- Stereo or dual mono analog audio output
- Provide the capability to break an analog audio signal away from its corresponding video signal and route to the audio outputs, allowing the analog audio channels to be operated as a separate switcher
- Provide a delay in the audio output to match the corresponding video processing delay
- Provide gain and attenuation adjustments for analog or embedded HDMI input audio
- Support individual muting of the analog stereo or HDMI audio inputs
- Support audio transmission over shielded CATx up to 330 feet (100 meters)
- Provide audio input connections
- Control/Remote – RS-232 and IR Pass-Through Over Shielded CATx Requirements
- Provide connections for AV device control
- Two 5-pole captive screw: RS-232 or IR pass-through to DTP twisted pair transmitters
- One 5-pole captive screw: RS-232 or IR pass-through to DTP twisted pair receiver
- Support RS-232 and IR transmission over shielded CATx up to 330 feet (100 meters)
- Provide connections for AV device control
- Control/Remote – Switcher Control Requirements
- Provide connections for remote switcher control
- RJ-45: 10/100Base-T Ethernet
- 3-pole captive screw: RS-232
- Mini USB-B: USB 2.0
- Provide alternatives for configuration and operation
- On-screen menus navigated using front panel controls
- Built-in Web pages accessible using a standard Web browser via Ethernet connection
- Product configuration software connected via Ethernet or USB
- Serial commands sent over Ethernet, RS-232, or USB connection
- Support disabling of front panel controls to prevent inadvertent or unauthorized changes to configuration settings
- Provide connections for remote switcher control
- General Requirements
- Provide real-time verification of signal flow and operation from DTP transmitter or DTP receiver
- Directly readable on RJ-45 signal and link LEDs
- Shall be compatible with all Extron DTP Series models and DTP-enabled products
- Shall be compatible with CATx shielded twisted pair cable, and Extron XTP DTP 24 shielded twisted pair cable
- Shall provide remote power to two remote DTP transmitters and a remote DTP receiver over the shielded CATx connections
- Enclosure shall be rack-mountable, full rack width, and 2RU in height
- Shall be equipped with an internal 100-240 VAC, 50/60 Hz universal power supply
- Shall meet regulatory compliances
- Shall meet safety compliances under CE, c-UL, and UL
- Shall meet EMI/EMC compliances under CE, C-tick, FCC Class A, ICES, and VCCI
- Shall comply with appropriate requirements of RoHS and WEEE
- Shall provide three year parts and labor warranty
- Provide real-time verification of signal flow and operation from DTP transmitter or DTP receiver
- Video Input Requirements
- Approved device shall be the Extron IN1608 xi MA 70 (part number 60-1238-83); no alternates or equals
- Rack-mountable scaler and switcher for HDMI, HDTV, RGB, and composite video sources and associated digital and analog audio, plus signal extension over shielded CATx cable

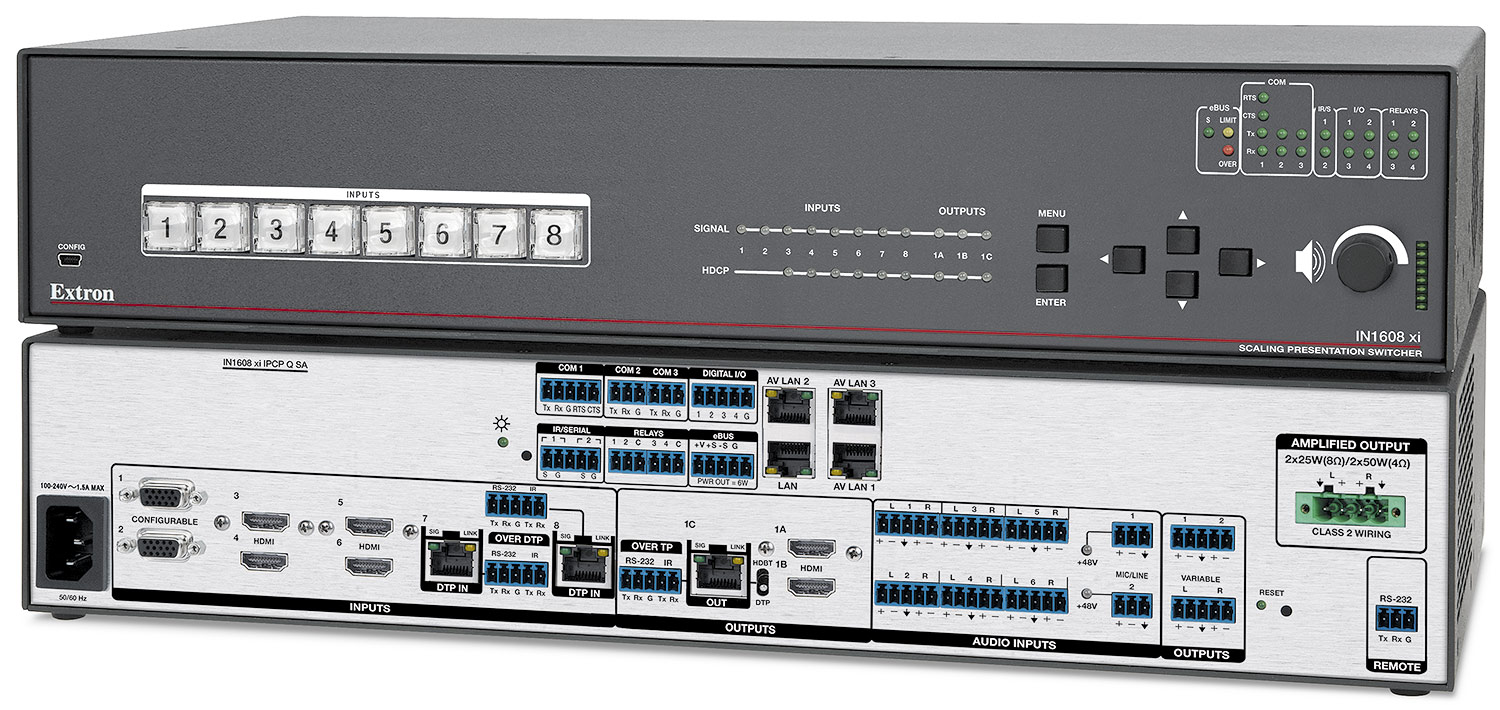

IN1608 xi IPCP Q SA
- Provide a video scaling presentation switcher that shall support up to eight inputs and three outputs for processing and switching of HDMI, HDTV, RGB, and composite video sources, one integrated Extron IP Link Pro xi quad core control processor, plus additional support for signal extension over shielded CATx cable.
- Rack-mountable scaler and switcher for HDMI, HDTV, RGB, and composite video sources and associated digital and analog audio, AV system control, plus signal extension over shielded CATx cable
- Video Input Requirements
- Provide video input connections
- Four HDMI
- Two 15-pin HD, configurable for RGB, component video, S-video, or composite video
- Two RJ-45 for video from Extron DTP® twisted pair transmitters
- Provide automatic detection of input video parameters
- Determine total pixels, active pixels, active lines, H/V starting points, H/V image positions, H/V image sizes, and video clock phase
- The user may selectively enable or disable automatic detection for each input
- Provide image adjustments for brightness, contrast, color, tint, detail, H/V positioning, and sizing
- Provide storage and recall of video parameters and picture settings
- Automatic memories for each video input
- Save video settings and picture adjustments without user intervention
- Automatically recall settings when the same video rate is encountered
- The user may selectively enable or disable automatic memories
- Manual user presets
- Save picture adjustments
- User presets may be saved and recalled using front panel controls
- User presets may be saved and recalled electronically via Ethernet, RS-232, or USB connection
- Manual input presets
- Save video settings and picture adjustments
- Input presets may be saved and recalled electronically via Ethernet, RS-232, or USB connection
- Automatic memories for each video input
- Provide enhanced decoding of composite video
- Decoder shall include a temporal, 3D adaptive comb filter
- Support NTSC 3.58, NTSC 4.42, PAL, and SECAM formats
- Support HDMI specifications including 1080p/60 Deep Color, data rates up to 6.75 Gbps, and HD lossless audio formats
- Provide automatic 3:2 and 2:2 pulldown detection
- Support video transmission over shielded CATx up to 330 feet (100 meters)
- Provide video input connections
- Video Output Requirements
- Provide simultaneous video output connections
- Two HDMI
- One RJ-45 for video to an Extron DTP twisted pair receiver
- Shall be configurable for sending digital video and embedded audio, plus bidirectional RS-232 and IR signals to HDBaseT-enabled displays
- Provide a range of selectable video output rates from 640x480 to 1920x1200, including 1080p/60 and 2048x1080p/60
- Provide image scaling and video format conversion at 30-bit precision and support 1080i deinterlacing
- Provide aspect ratio control
- When in FILL mode, the video image shall always fill the output screen without letterbox or pillarbox
- When in FOLLOW mode, the video image shall always preserve the aspect ratio of the input signals without distortion
- Provide internal test patterns for calibration and setup
- Support image freeze via Ethernet, RS-232, or USB connection
- Support muting of one or all outputs at any time
- Support automatic muting of video and sync output when no video input signal is present
- Provide a choice to generate a blue screen or a black screen before disabling sync
- Provide a configurable timeout period before disabling sync
- The user may selectively enable or disable automatic muting of sync output
- Provide a low power standby state selectable via Ethernet, RS-232, or USB
- Support the connection of DVI displays that do not recognize HDMI-specific formats
- Automatically enable or disable embedded TMDS audio and InfoFrames
- Automatically set the correct color space
- Support video transmission over shielded CATx up to 330 feet (100 meters)
- Provide simultaneous video output connections
- Switching Requirements
- Provide automatic switching between input sources
- Automatically switch to the active input
- Provide a configurable switching priority when multiple inputs are active
- High to low: highest numbered input has priority
- Low to high: lowest numbered input has priority
- Provide selectable transition effects when switching inputs
- Cut: video output shall cut to black, then cut to the newly selected input source
- Fade: video output shall fade to black, then fade into the newly selected input source
- Accompanying audio shall ramp down, then ramp up to match the transition effect
- Provide automatic switching between input sources
- EDID Requirements
- Provide automatic EDID management between connected devices
- Provide a set of pre-stored EDID files
- Support capture of EDID from any connected display
- Support user uploading of custom-generated EDID files
- Support assignment of any pre-stored, captured, or custom uploaded EDID file to any input connection
- Provide automatic EDID management between connected devices
- HDCP Requirements
- The unit shall be HDCP compliant
- Provide authentication and maintain continuous verification of HDCP key exchange with connected sink devices
- Provide authentication and maintain continuous verification of HDCP key exchange with connected source devices
- Provide the option to disable HDCP processing at any HDMI input connection when passing unencrypted content
- Provide selectable, human-readable visual confirmation of HDCP compliance when encrypted content is routed to a non-HDCP compliant display
- When enabled, the video output shall be a solid green color and an on-screen message stating “HDCP CONTENT” shall be displayed
- When disabled, the output shall be muted
- Provide real-time verification of HDCP status for each HDMI input and output
- Directly readable on front panel LEDs
- Electronically accessible over Ethernet, RS-232, or USB connection
- The unit shall be HDCP compliant
- Audio Requirements
- Provide audio input connections
- Four HDMI, embedded
- Six 5-pole captive screw, balanced/unbalanced line level analog stereo
- Two 3-pole captive screw, mono mic/line level with switchable 48 V phantom power
- Two RJ-45, DTP HDMI embedded and analog audio
- Provide audio output connections
- Two simultaneous HDMI, embedded
- Two 5-pole captive screw, with independent output level control and configurable for balanced/unbalanced, analog stereo, or independently mixed analog mono
- One RJ-45, DTP HDMI embedded and analog audio
- 4-pole captive screw, amplified stereo audio
- Provide stereo power amplification with 50 watts rms per channel into 4 ohms and 25 watts rms per channel into 8 ohms
- Support embedding of any analog audio input signal onto the HDMI outputs
- Support extraction of two-channel LPCM HDMI audio signals to the analog stereo outputs, or pass bitstream audio to the HDMI outputs
- Support mixing of program audio with two mic/line inputs, providing three simultaneously available, independently mixed outputs
- Stereo output to HDMI
- Stereo analog audio output
- Stereo or dual mono analog audio output
- Provide the capability to break an analog audio signal away from its corresponding video signal and route to the audio outputs, allowing the analog audio channels to be operated as a separate switcher
- Provide a delay in the audio output to match the corresponding video processing delay
- Provide gain and attenuation adjustments for analog or embedded HDMI input audio
- Support individual muting of the analog stereo or HDMI audio inputs
- Support audio transmission over shielded CATx up to 330 feet (100 meters)
- Provide audio input connections
- Integrated Control Processor Requirements
- Provide AV system control connections
- Three RJ-45: 10/100/1000Base-T Ethernet, half/full duplex with auto-detect for connection to a LAN and include link and activity LED indicators located on the left and right of each jack for troubleshooting network issues, these ports will be designated as AV LAN ports allowing for AV devices to be isolated from a corporate network
- AV LAN ports shall support a DHCP server that can distribute 50 dynamic IP addresses with a 24-hour lease
- One RJ-45: 10/100/1000Base-T, half/full duplex with auto-detect for connection to a LAN or WAN and includes link and activity LED indicators located on the left and right of the jack for troubleshooting network issues
- Two 3-pole captive screw: RS-232, configurable for unidirectional or bidirectional control of AV system components
- One 5-pole captive screw: RS-232/RS-422/RS-485, configurable for unidirectional or bidirectional control of AV system components
- Two IR/serial ports on one 5-pole captive screw: IR (using an IR emitter) or unidirectional RS-232 for control of AV system components
- Four low voltage relays on one 6-pole captive screw: configurable for controlling lighting, controlling screens, or other device functions
- Four digital input/output ports on one 5-pole captive screw: configurable for use as an interface with devices such as sensors, switches, LEDs, and relays
- One eBUS® port on a 4-pole captive screw for connecting to eBUS devices
- Shall support the following protocols: ICMP (ping), IEEE 802.1X, IPv4, TCP, UDP, DHCP, DNS, HTTP, HTTPS, NTP, SFTP, SMTP, SNMP, SSH
- Shall support a Web-based AV resource management application that provides a means to manage, monitor, and control AV equipment
- Provide an internal real-time clock with a 30-year backup battery that is used to keep track of the date and time
- Shall support the addition of an Extron LinkLicense® for use of third party devices as primary control interfaces
- Provide front panel LED activity indicators for RS-232 status, RS-232/RS-422/RS-485 status, IR/serial status, digital I/O status, relay status, eBUS status, and network status
- Shall support control system synchronization to allow users to retain and recover configured endpoints in case of network or power failure
- Shall be configured using Extron Global Configurator® Plus or Extron Global Configurator Professional with support for the following:
- Provide support for up to eight configurable Extron TouchLink Pro touchpanels
- Provide support for up to eight configurable eBUS button panels
- Provide remote monitoring and control via Ethernet
- Provide the ability to create E-mail notifications
- Provide multiple levels of password protection
- Provide the ability to create schedules and monitors
- Support up to 32 Ethernet-controllable AV devices
- Support local variables and conditional logic
- Support grouping of multiple Extron IP Link® Pro xi control processors to function as one when configured with Global Configurator Professional
- Security Requirements
- Support SFTP and SSH for secure communication between the control processor and a TouchLink Pro touchpanel or Network Button Panel
- Support HTTPS and SSH for secure communication between the control processor and Extron Control App
- Support HTTPS for secure communication between the control processor and Extron Control for Web
- Support SSH for secure communication between the control processor and controlled device for programmed systems
- Support SFTP and SSH for secure communication between the control processor and the configuration or programming software
- Provide the option to modify administrator and user credentials
- Support security updates to maintain network health
- Require that a Secure Socket Layer (SSL) Certificate is installed to maintain system confidentiality and data integrity
- Support the installation of an owner furnished certificate with the following properties:
- Certificates shall include x.509 support
- Certificates shall include public / private key exchange
- Certificates shall support PEM encoding
- Extron shall furnish documentation that describes all supported network ports and services
- Provide AV system control connections
- Control/Remote – RS-232 and IR Pass-Through Over Shielded CATx Requirements
- Provide connections for AV device control
- Two 5-pole captive screw: RS-232 or IR pass-through to DTP twisted pair transmitters
- One 5-pole captive screw: RS-232 or IR pass-through to DTP twisted pair receiver
- Support RS-232 and IR transmission over shielded CATx up to 330 feet (100 meters)
- Provide connections for AV device control
- Control/Remote - Switcher Control Requirements
- Provide connections for remote switcher control
- RJ-45: 10/100Base-T Ethernet
- 3-pole captive screw: RS-232
- Mini USB-B: USB 2.0
- Provide alternatives for configuration and operation
- On-screen menus navigated using front panel controls
- Built-in Web pages accessible using a standard Web browser via Ethernet connection
- Product configuration software connected via Ethernet or USB
- Serial commands sent over Ethernet, RS-232, or USB connection
- Support disabling of front panel controls to prevent inadvertent or unauthorized changes to configuration settings
- Provide connections for remote switcher control
- General Requirements
- Provide real-time verification of signal flow and operation from DTP transmitter or DTP receiver
- Directly readable on RJ-45 signal and link LEDs
- Shall be compatible with all Extron DTP Series models and DTP-enabled products
- Shall be compatible with CATx shielded twisted pair cable, and Extron XTP DTP 24 shielded twisted pair cable
- Shall provide remote power to two remote DTP transmitters and a remote DTP receiver over the shielded CATx connections
- Enclosure shall be rack-mountable, full rack width, and 2RU in height
- Shall be equipped with an internal 100-240 VAC, 50/60 Hz universal power supply
- Shall meet regulatory compliances
- Shall meet safety compliances under CE, c-UL, and UL
- Shall meet EMI/EMC compliances under CE, C-tick, FCC Class A, ICES, and VCCI
- Shall comply with appropriate requirements of RoHS and WEEE
- Shall provide three year parts and labor warranty
- Provide real-time verification of signal flow and operation from DTP transmitter or DTP receiver
- Video Input Requirements
- Approved device shall be the Extron IN1608 xi IPCP Q SA (part number 60-1238-95); no alternates or equals
- Rack-mountable scaler and switcher for HDMI, HDTV, RGB, and composite video sources and associated digital and analog audio, AV system control, plus signal extension over shielded CATx cable
IN1608 xi IPCP Q SA
- Provide a video scaling presentation switcher that shall support up to eight inputs and three outputs for processing and switching of HDMI, HDTV, RGB, and composite video sources, one integrated Extron IP Link Pro xi quad core control processor, plus additional support for signal extension over shielded CATx cable.
- Rack-mountable scaler and switcher for HDMI, HDTV, RGB, and composite video sources and associated digital and analog audio, AV system control, plus signal extension over shielded CATx cable
- Video Input Requirements
- Provide video input connections
- Four HDMI
- Two 15-pin HD, configurable for RGB, component video, S-video, or composite video
- Two RJ-45 for video from Extron DTP® twisted pair transmitters
- Provide automatic detection of input video parameters
- Determine total pixels, active pixels, active lines, H/V starting points, H/V image positions, H/V image sizes, and video clock phase
- The user may selectively enable or disable automatic detection for each input
- Provide image adjustments for brightness, contrast, color, tint, detail, H/V positioning, and sizing
- Provide storage and recall of video parameters and picture settings
- Automatic memories for each video input
- Save video settings and picture adjustments without user intervention
- Automatically recall settings when the same video rate is encountered
- The user may selectively enable or disable automatic memories
- Manual user presets
- Save picture adjustments
- User presets may be saved and recalled using front panel controls
- User presets may be saved and recalled electronically via Ethernet, RS-232, or USB connection
- Manual input presets
- Save video settings and picture adjustments
- Input presets may be saved and recalled electronically via Ethernet, RS-232, or USB connection
- Automatic memories for each video input
- Provide enhanced decoding of composite video
- Decoder shall include a temporal, 3D adaptive comb filter
- Support NTSC 3.58, NTSC 4.42, PAL, and SECAM formats
- Support HDMI specifications including 1080p/60 Deep Color, data rates up to 6.75 Gbps, and HD lossless audio formats
- Provide automatic 3:2 and 2:2 pulldown detection
- Support video transmission over shielded CATx up to 330 feet (100 meters)
- Provide video input connections
- Video Output Requirements
- Provide simultaneous video output connections
- Two HDMI
- One RJ-45 for video to an Extron DTP twisted pair receiver
- Shall be configurable for sending digital video and embedded audio, plus bidirectional RS-232 and IR signals to HDBaseT-enabled displays
- Provide a range of selectable video output rates from 640x480 to 1920x1200, including 1080p/60 and 2048x1080p/60
- Provide image scaling and video format conversion at 30-bit precision and support 1080i deinterlacing
- Provide aspect ratio control
- When in FILL mode, the video image shall always fill the output screen without letterbox or pillarbox
- When in FOLLOW mode, the video image shall always preserve the aspect ratio of the input signals without distortion
- Provide internal test patterns for calibration and setup
- Support image freeze via Ethernet, RS-232, or USB connection
- Support muting of one or all outputs at any time
- Support automatic muting of video and sync output when no video input signal is present
- Provide a choice to generate a blue screen or a black screen before disabling sync
- Provide a configurable timeout period before disabling sync
- The user may selectively enable or disable automatic muting of sync output
- Provide a low power standby state selectable via Ethernet, RS-232, or USB
- Support the connection of DVI displays that do not recognize HDMI-specific formats
- Automatically enable or disable embedded TMDS audio and InfoFrames
- Automatically set the correct color space
- Support video transmission over shielded CATx up to 330 feet (100 meters)
- Provide simultaneous video output connections
- Switching Requirements
- Provide automatic switching between input sources
- Automatically switch to the active input
- Provide a configurable switching priority when multiple inputs are active
- High to low: highest numbered input has priority
- Low to high: lowest numbered input has priority
- Provide selectable transition effects when switching inputs
- Cut: video output shall cut to black, then cut to the newly selected input source
- Fade: video output shall fade to black, then fade into the newly selected input source
- Accompanying audio shall ramp down, then ramp up to match the transition effect
- Provide automatic switching between input sources
- EDID Requirements
- Provide automatic EDID management between connected devices
- Provide a set of pre-stored EDID files
- Support capture of EDID from any connected display
- Support user uploading of custom-generated EDID files
- Support assignment of any pre-stored, captured, or custom uploaded EDID file to any input connection
- Provide automatic EDID management between connected devices
- HDCP Requirements
- The unit shall be HDCP compliant
- Provide authentication and maintain continuous verification of HDCP key exchange with connected sink devices
- Provide authentication and maintain continuous verification of HDCP key exchange with connected source devices
- Provide the option to disable HDCP processing at any HDMI input connection when passing unencrypted content
- Provide selectable, human-readable visual confirmation of HDCP compliance when encrypted content is routed to a non-HDCP compliant display
- When enabled, the video output shall be a solid green color and an on-screen message stating “HDCP CONTENT” shall be displayed
- When disabled, the output shall be muted
- Provide real-time verification of HDCP status for each HDMI input and output
- Directly readable on front panel LEDs
- Electronically accessible over Ethernet, RS-232, or USB connection
- The unit shall be HDCP compliant
- Audio Requirements
- Provide audio input connections
- Four HDMI, embedded
- Six 5-pole captive screw, balanced/unbalanced line level analog stereo
- Two 3-pole captive screw, mono mic/line level with switchable 48 V phantom power
- Two RJ-45, DTP HDMI embedded and analog audio
- Provide audio output connections
- Two simultaneous HDMI, embedded
- Two 5-pole captive screw, with independent output level control and configurable for balanced/unbalanced, analog stereo, or independently mixed analog mono
- One RJ-45, DTP HDMI embedded and analog audio
- 4-pole captive screw, amplified stereo audio
- Provide stereo power amplification with 50 watts rms per channel into 4 ohms and 25 watts rms per channel into 8 ohms
- Support embedding of any analog audio input signal onto the HDMI outputs
- Support extraction of two-channel LPCM HDMI audio signals to the analog stereo outputs, or pass bitstream audio to the HDMI outputs
- Support mixing of program audio with two mic/line inputs, providing three simultaneously available, independently mixed outputs
- Stereo output to HDMI
- Stereo analog audio output
- Stereo or dual mono analog audio output
- Provide the capability to break an analog audio signal away from its corresponding video signal and route to the audio outputs, allowing the analog audio channels to be operated as a separate switcher
- Provide a delay in the audio output to match the corresponding video processing delay
- Provide gain and attenuation adjustments for analog or embedded HDMI input audio
- Support individual muting of the analog stereo or HDMI audio inputs
- Support audio transmission over shielded CATx up to 330 feet (100 meters)
- Provide audio input connections
- Integrated Control Processor Requirements
- Provide AV system control connections
- Three RJ-45: 10/100/1000Base-T Ethernet, half/full duplex with auto-detect for connection to a LAN and include link and activity LED indicators located on the left and right of each jack for troubleshooting network issues, these ports will be designated as AV LAN ports allowing for AV devices to be isolated from a corporate network
- AV LAN ports shall support a DHCP server that can distribute 50 dynamic IP addresses with a 24-hour lease
- One RJ-45: 10/100/1000Base-T, half/full duplex with auto-detect for connection to a LAN or WAN and includes link and activity LED indicators located on the left and right of the jack for troubleshooting network issues
- Two 3-pole captive screw: RS-232, configurable for unidirectional or bidirectional control of AV system components
- One 5-pole captive screw: RS-232/RS-422/RS-485, configurable for unidirectional or bidirectional control of AV system components
- Two IR/serial ports on one 5-pole captive screw: IR (using an IR emitter) or unidirectional RS-232 for control of AV system components
- Four low voltage relays on one 6-pole captive screw: configurable for controlling lighting, controlling screens, or other device functions
- Four digital input/output ports on one 5-pole captive screw: configurable for use as an interface with devices such as sensors, switches, LEDs, and relays
- One eBUS® port on a 4-pole captive screw for connecting to eBUS devices
- Shall support the following protocols: ICMP (ping), IEEE 802.1X, IPv4, TCP, UDP, DHCP, DNS, HTTP, HTTPS, NTP, SFTP, SMTP, SNMP, SSH
- Shall support a Web-based AV resource management application that provides a means to manage, monitor, and control AV equipment
- Provide an internal real-time clock with a 30-year backup battery that is used to keep track of the date and time
- Shall support the addition of an Extron LinkLicense® for use of third party devices as primary control interfaces
- Provide front panel LED activity indicators for RS-232 status, RS-232/RS-422/RS-485 status, IR/serial status, digital I/O status, relay status, eBUS status, and network status
- Shall support control system synchronization to allow users to retain and recover configured endpoints in case of network or power failure
- Shall be configured using Extron Global Configurator® Plus or Extron Global Configurator Professional with support for the following:
- Provide support for up to eight configurable Extron TouchLink Pro touchpanels
- Provide support for up to eight configurable eBUS button panels
- Provide remote monitoring and control via Ethernet
- Provide the ability to create E-mail notifications
- Provide multiple levels of password protection
- Provide the ability to create schedules and monitors
- Support up to 32 Ethernet-controllable AV devices
- Support local variables and conditional logic
- Support grouping of multiple Extron IP Link® Pro xi control processors to function as one when configured with Global Configurator Professional
- Security Requirements
- Support SFTP and SSH for secure communication between the control processor and a TouchLink Pro touchpanel or Network Button Panel
- Support HTTPS and SSH for secure communication between the control processor and Extron Control App
- Support HTTPS for secure communication between the control processor and Extron Control for Web
- Support SSH for secure communication between the control processor and controlled device for programmed systems
- Support SFTP and SSH for secure communication between the control processor and the configuration or programming software
- Provide the option to modify administrator and user credentials
- Support security updates to maintain network health
- Require that a Secure Socket Layer (SSL) Certificate is installed to maintain system confidentiality and data integrity
- Support the installation of an owner furnished certificate with the following properties:
- Certificates shall include x.509 support
- Certificates shall include public / private key exchange
- Certificates shall support PEM encoding
- Extron shall furnish documentation that describes all supported network ports and services
- Provide AV system control connections
- Control/Remote – RS-232 and IR Pass-Through Over Shielded CATx Requirements
- Provide connections for AV device control
- Two 5-pole captive screw: RS-232 or IR pass-through to DTP twisted pair transmitters
- One 5-pole captive screw: RS-232 or IR pass-through to DTP twisted pair receiver
- Support RS-232 and IR transmission over shielded CATx up to 330 feet (100 meters)
- Provide connections for AV device control
- Control/Remote - Switcher Control Requirements
- Provide connections for remote switcher control
- RJ-45: 10/100Base-T Ethernet
- 3-pole captive screw: RS-232
- Mini USB-B: USB 2.0
- Provide alternatives for configuration and operation
- On-screen menus navigated using front panel controls
- Built-in Web pages accessible using a standard Web browser via Ethernet connection
- Product configuration software connected via Ethernet or USB
- Serial commands sent over Ethernet, RS-232, or USB connection
- Support disabling of front panel controls to prevent inadvertent or unauthorized changes to configuration settings
- Provide connections for remote switcher control
- General Requirements
- Provide real-time verification of signal flow and operation from DTP transmitter or DTP receiver
- Directly readable on RJ-45 signal and link LEDs
- Shall be compatible with all Extron DTP Series models and DTP-enabled products
- Shall be compatible with CATx shielded twisted pair cable, and Extron XTP DTP 24 shielded twisted pair cable
- Shall provide remote power to two remote DTP transmitters and a remote DTP receiver over the shielded CATx connections
- Enclosure shall be rack-mountable, full rack width, and 2RU in height
- Shall be equipped with an internal 100-240 VAC, 50/60 Hz universal power supply
- Shall meet regulatory compliances
- Shall meet safety compliances under CE, c-UL, and UL
- Shall meet EMI/EMC compliances under CE, C-tick, FCC Class A, ICES, and VCCI
- Shall comply with appropriate requirements of RoHS and WEEE
- Shall provide three year parts and labor warranty
- Provide real-time verification of signal flow and operation from DTP transmitter or DTP receiver
- Video Input Requirements
- Approved device shall be the Extron IN1608 xi IPCP Q SA (part number 60-1238-95); no alternates or equals
- Rack-mountable scaler and switcher for HDMI, HDTV, RGB, and composite video sources and associated digital and analog audio, AV system control, plus signal extension over shielded CATx cable
IN1608 xi IPCP Q SA
- Provide a video scaling presentation switcher that shall support up to eight inputs and three outputs for processing and switching of HDMI, HDTV, RGB, and composite video sources, one integrated Extron IP Link Pro xi quad core control processor, plus additional support for signal extension over shielded CATx cable.
- Rack-mountable scaler and switcher for HDMI, HDTV, RGB, and composite video sources and associated digital and analog audio, AV system control, plus signal extension over shielded CATx cable
- Video Input Requirements
- Provide video input connections
- Four HDMI
- Two 15-pin HD, configurable for RGB, component video, S-video, or composite video
- Two RJ-45 for video from Extron DTP® twisted pair transmitters
- Provide automatic detection of input video parameters
- Determine total pixels, active pixels, active lines, H/V starting points, H/V image positions, H/V image sizes, and video clock phase
- The user may selectively enable or disable automatic detection for each input
- Provide image adjustments for brightness, contrast, color, tint, detail, H/V positioning, and sizing
- Provide storage and recall of video parameters and picture settings
- Automatic memories for each video input
- Save video settings and picture adjustments without user intervention
- Automatically recall settings when the same video rate is encountered
- The user may selectively enable or disable automatic memories
- Manual user presets
- Save picture adjustments
- User presets may be saved and recalled using front panel controls
- User presets may be saved and recalled electronically via Ethernet, RS-232, or USB connection
- Manual input presets
- Save video settings and picture adjustments
- Input presets may be saved and recalled electronically via Ethernet, RS-232, or USB connection
- Automatic memories for each video input
- Provide enhanced decoding of composite video
- Decoder shall include a temporal, 3D adaptive comb filter
- Support NTSC 3.58, NTSC 4.42, PAL, and SECAM formats
- Support HDMI specifications including 1080p/60 Deep Color, data rates up to 6.75 Gbps, and HD lossless audio formats
- Provide automatic 3:2 and 2:2 pulldown detection
- Support video transmission over shielded CATx up to 330 feet (100 meters)
- Provide video input connections
- Video Output Requirements
- Provide simultaneous video output connections
- Two HDMI
- One RJ-45 for video to an Extron DTP twisted pair receiver
- Shall be configurable for sending digital video and embedded audio, plus bidirectional RS-232 and IR signals to HDBaseT-enabled displays
- Provide a range of selectable video output rates from 640x480 to 1920x1200, including 1080p/60 and 2048x1080p/60
- Provide image scaling and video format conversion at 30-bit precision and support 1080i deinterlacing
- Provide aspect ratio control
- When in FILL mode, the video image shall always fill the output screen without letterbox or pillarbox
- When in FOLLOW mode, the video image shall always preserve the aspect ratio of the input signals without distortion
- Provide internal test patterns for calibration and setup
- Support image freeze via Ethernet, RS-232, or USB connection
- Support muting of one or all outputs at any time
- Support automatic muting of video and sync output when no video input signal is present
- Provide a choice to generate a blue screen or a black screen before disabling sync
- Provide a configurable timeout period before disabling sync
- The user may selectively enable or disable automatic muting of sync output
- Provide a low power standby state selectable via Ethernet, RS-232, or USB
- Support the connection of DVI displays that do not recognize HDMI-specific formats
- Automatically enable or disable embedded TMDS audio and InfoFrames
- Automatically set the correct color space
- Support video transmission over shielded CATx up to 330 feet (100 meters)
- Provide simultaneous video output connections
- Switching Requirements
- Provide automatic switching between input sources
- Automatically switch to the active input
- Provide a configurable switching priority when multiple inputs are active
- High to low: highest numbered input has priority
- Low to high: lowest numbered input has priority
- Provide selectable transition effects when switching inputs
- Cut: video output shall cut to black, then cut to the newly selected input source
- Fade: video output shall fade to black, then fade into the newly selected input source
- Accompanying audio shall ramp down, then ramp up to match the transition effect
- Provide automatic switching between input sources
- EDID Requirements
- Provide automatic EDID management between connected devices
- Provide a set of pre-stored EDID files
- Support capture of EDID from any connected display
- Support user uploading of custom-generated EDID files
- Support assignment of any pre-stored, captured, or custom uploaded EDID file to any input connection
- Provide automatic EDID management between connected devices
- HDCP Requirements
- The unit shall be HDCP compliant
- Provide authentication and maintain continuous verification of HDCP key exchange with connected sink devices
- Provide authentication and maintain continuous verification of HDCP key exchange with connected source devices
- Provide the option to disable HDCP processing at any HDMI input connection when passing unencrypted content
- Provide selectable, human-readable visual confirmation of HDCP compliance when encrypted content is routed to a non-HDCP compliant display
- When enabled, the video output shall be a solid green color and an on-screen message stating “HDCP CONTENT” shall be displayed
- When disabled, the output shall be muted
- Provide real-time verification of HDCP status for each HDMI input and output
- Directly readable on front panel LEDs
- Electronically accessible over Ethernet, RS-232, or USB connection
- The unit shall be HDCP compliant
- Audio Requirements
- Provide audio input connections
- Four HDMI, embedded
- Six 5-pole captive screw, balanced/unbalanced line level analog stereo
- Two 3-pole captive screw, mono mic/line level with switchable 48 V phantom power
- Two RJ-45, DTP HDMI embedded and analog audio
- Provide audio output connections
- Two simultaneous HDMI, embedded
- Two 5-pole captive screw, with independent output level control and configurable for balanced/unbalanced, analog stereo, or independently mixed analog mono
- One RJ-45, DTP HDMI embedded and analog audio
- 4-pole captive screw, amplified stereo audio
- Provide stereo power amplification with 50 watts rms per channel into 4 ohms and 25 watts rms per channel into 8 ohms
- Support embedding of any analog audio input signal onto the HDMI outputs
- Support extraction of two-channel LPCM HDMI audio signals to the analog stereo outputs, or pass bitstream audio to the HDMI outputs
- Support mixing of program audio with two mic/line inputs, providing three simultaneously available, independently mixed outputs
- Stereo output to HDMI
- Stereo analog audio output
- Stereo or dual mono analog audio output
- Provide the capability to break an analog audio signal away from its corresponding video signal and route to the audio outputs, allowing the analog audio channels to be operated as a separate switcher
- Provide a delay in the audio output to match the corresponding video processing delay
- Provide gain and attenuation adjustments for analog or embedded HDMI input audio
- Support individual muting of the analog stereo or HDMI audio inputs
- Support audio transmission over shielded CATx up to 330 feet (100 meters)
- Provide audio input connections
- Integrated Control Processor Requirements
- Provide AV system control connections
- Three RJ-45: 10/100/1000Base-T Ethernet, half/full duplex with auto-detect for connection to a LAN and include link and activity LED indicators located on the left and right of each jack for troubleshooting network issues, these ports will be designated as AV LAN ports allowing for AV devices to be isolated from a corporate network
- AV LAN ports shall support a DHCP server that can distribute 50 dynamic IP addresses with a 24-hour lease
- One RJ-45: 10/100/1000Base-T, half/full duplex with auto-detect for connection to a LAN or WAN and includes link and activity LED indicators located on the left and right of the jack for troubleshooting network issues
- Two 3-pole captive screw: RS-232, configurable for unidirectional or bidirectional control of AV system components
- One 5-pole captive screw: RS-232/RS-422/RS-485, configurable for unidirectional or bidirectional control of AV system components
- Two IR/serial ports on one 5-pole captive screw: IR (using an IR emitter) or unidirectional RS-232 for control of AV system components
- Four low voltage relays on one 6-pole captive screw: configurable for controlling lighting, controlling screens, or other device functions
- Four digital input/output ports on one 5-pole captive screw: configurable for use as an interface with devices such as sensors, switches, LEDs, and relays
- One eBUS® port on a 4-pole captive screw for connecting to eBUS devices
- Shall support the following protocols: ICMP (ping), IEEE 802.1X, IPv4, TCP, UDP, DHCP, DNS, HTTP, HTTPS, NTP, SFTP, SMTP, SNMP, SSH
- Shall support a Web-based AV resource management application that provides a means to manage, monitor, and control AV equipment
- Provide an internal real-time clock with a 30-year backup battery that is used to keep track of the date and time
- Shall include an Extron LinkLicense® for use of third party devices as primary control interfaces
- Provide front panel LED activity indicators for RS-232 status, RS-232/RS-422/RS-485 status, IR/serial status, digital I/O status, relay status, eBUS status, and network status
- Shall support control system synchronization to allow users to retain and recover configured endpoints in case of network or power failure
- Shall be configured using Extron Global Configurator® Plus or Extron Global Configurator Professional with support for the following:
- Provide support for up to eight configurable Extron TouchLink Pro touchpanels
- Provide support for up to eight configurable eBUS button panels
- Provide remote monitoring and control via Ethernet
- Provide the ability to create E-mail notifications
- Provide multiple levels of password protection
- Provide the ability to create schedules and monitors
- Support up to 32 Ethernet-controllable AV devices
- Support local variables and conditional logic
- Support grouping of multiple Extron IP Link® Pro xi control processors to function as one when configured with Global Configurator Professional
- Security Requirements
- Support SFTP and SSH for secure communication between the control processor and a TouchLink Pro touchpanel or Network Button Panel
- Support HTTPS and SSH for secure communication between the control processor and Extron Control App
- Support HTTPS for secure communication between the control processor and Extron Control for Web
- Support SSH for secure communication between the control processor and controlled device for programmed systems
- Support SFTP and SSH for secure communication between the control processor and the configuration or programming software
- Provide the option to modify administrator and user credentials
- Support security updates to maintain network health
- Require that a Secure Socket Layer (SSL) Certificate is installed to maintain system confidentiality and data integrity
- Support the installation of an owner furnished certificate with the following properties:
- Certificates shall include x.509 support
- Certificates shall include public / private key exchange
- Certificates shall support PEM encoding
- Extron shall furnish documentation that describes all supported network ports and services
- Provide AV system control connections
- Control/Remote – RS-232 and IR Pass-Through Over Shielded CATx Requirements
- Provide connections for AV device control
- Two 5-pole captive screw: RS-232 or IR pass-through to DTP twisted pair transmitters
- One 5-pole captive screw: RS-232 or IR pass-through to DTP twisted pair receiver
- Support RS-232 and IR transmission over shielded CATx up to 330 feet (100 meters)
- Provide connections for AV device control
- Control/Remote - Switcher Control Requirements
- Provide connections for remote switcher control
- RJ-45: 10/100Base-T Ethernet
- 3-pole captive screw: RS-232
- Mini USB-B: USB 2.0
- Provide alternatives for configuration and operation
- On-screen menus navigated using front panel controls
- Built-in Web pages accessible using a standard Web browser via Ethernet connection
- Product configuration software connected via Ethernet or USB
- Serial commands sent over Ethernet, RS-232, or USB connection
- Support disabling of front panel controls to prevent inadvertent or unauthorized changes to configuration settings
- Provide connections for remote switcher control
- General Requirements
- Provide real-time verification of signal flow and operation from DTP transmitter or DTP receiver
- Directly readable on RJ-45 signal and link LEDs
- Shall be compatible with all Extron DTP Series models and DTP-enabled products
- Shall be compatible with CATx shielded twisted pair cable, and Extron XTP DTP 24 shielded twisted pair cable
- Shall provide remote power to two remote DTP transmitters and a remote DTP receiver over the shielded CATx connections
- Enclosure shall be rack-mountable, full rack width, and 2RU in height
- Shall be equipped with an internal 100-240 VAC, 50/60 Hz universal power supply
- Shall meet regulatory compliances
- Shall meet safety compliances under CE, c-UL, and UL
- Shall meet EMI/EMC compliances under CE, C-tick, FCC Class A, ICES, and VCCI
- Shall comply with appropriate requirements of RoHS and WEEE
- Shall provide three year parts and labor warranty
- Provide real-time verification of signal flow and operation from DTP transmitter or DTP receiver
- Video Input Requirements
- Approved device shall be the Extron IN1608 xi IPCP Q SA (part number 60-1238-95A); no alternates or equals
- Rack-mountable scaler and switcher for HDMI, HDTV, RGB, and composite video sources and associated digital and analog audio, AV system control, plus signal extension over shielded CATx cable
IN1608 xi IPCP Q SA
- Provide a video scaling presentation switcher that shall support up to eight inputs and three outputs for processing and switching of HDMI, HDTV, RGB, and composite video sources, one integrated Extron IP Link Pro xi quad core control processor, plus additional support for signal extension over shielded CATx cable.
- Rack-mountable scaler and switcher for HDMI, HDTV, RGB, and composite video sources and associated digital and analog audio, AV system control, plus signal extension over shielded CATx cable
- Video Input Requirements
- Provide video input connections
- Four HDMI
- Two 15-pin HD, configurable for RGB, component video, S-video, or composite video
- Two RJ-45 for video from Extron DTP® twisted pair transmitters
- Provide automatic detection of input video parameters
- Determine total pixels, active pixels, active lines, H/V starting points, H/V image positions, H/V image sizes, and video clock phase
- The user may selectively enable or disable automatic detection for each input
- Provide image adjustments for brightness, contrast, color, tint, detail, H/V positioning, and sizing
- Provide storage and recall of video parameters and picture settings
- Automatic memories for each video input
- Save video settings and picture adjustments without user intervention
- Automatically recall settings when the same video rate is encountered
- The user may selectively enable or disable automatic memories
- Manual user presets
- Save picture adjustments
- User presets may be saved and recalled using front panel controls
- User presets may be saved and recalled electronically via Ethernet, RS-232, or USB connection
- Manual input presets
- Save video settings and picture adjustments
- Input presets may be saved and recalled electronically via Ethernet, RS-232, or USB connection
- Automatic memories for each video input
- Provide enhanced decoding of composite video
- Decoder shall include a temporal, 3D adaptive comb filter
- Support NTSC 3.58, NTSC 4.42, PAL, and SECAM formats
- Support HDMI specifications including 1080p/60 Deep Color, data rates up to 6.75 Gbps, and HD lossless audio formats
- Provide automatic 3:2 and 2:2 pulldown detection
- Support video transmission over shielded CATx up to 330 feet (100 meters)
- Provide video input connections
- Video Output Requirements
- Provide simultaneous video output connections
- Two HDMI
- One RJ-45 for video to an Extron DTP twisted pair receiver
- Shall be configurable for sending digital video and embedded audio, plus bidirectional RS-232 and IR signals to HDBaseT-enabled displays
- Provide a range of selectable video output rates from 640x480 to 1920x1200, including 1080p/60 and 2048x1080p/60
- Provide image scaling and video format conversion at 30-bit precision and support 1080i deinterlacing
- Provide aspect ratio control
- When in FILL mode, the video image shall always fill the output screen without letterbox or pillarbox
- When in FOLLOW mode, the video image shall always preserve the aspect ratio of the input signals without distortion
- Provide internal test patterns for calibration and setup
- Support image freeze via Ethernet, RS-232, or USB connection
- Support muting of one or all outputs at any time
- Support automatic muting of video and sync output when no video input signal is present
- Provide a choice to generate a blue screen or a black screen before disabling sync
- Provide a configurable timeout period before disabling sync
- The user may selectively enable or disable automatic muting of sync output
- Provide a low power standby state selectable via Ethernet, RS-232, or USB
- Support the connection of DVI displays that do not recognize HDMI-specific formats
- Automatically enable or disable embedded TMDS audio and InfoFrames
- Automatically set the correct color space
- Support video transmission over shielded CATx up to 330 feet (100 meters)
- Provide simultaneous video output connections
- Switching Requirements
- Provide automatic switching between input sources
- Automatically switch to the active input
- Provide a configurable switching priority when multiple inputs are active
- High to low: highest numbered input has priority
- Low to high: lowest numbered input has priority
- Provide selectable transition effects when switching inputs
- Cut: video output shall cut to black, then cut to the newly selected input source
- Fade: video output shall fade to black, then fade into the newly selected input source
- Accompanying audio shall ramp down, then ramp up to match the transition effect
- Provide automatic switching between input sources
- EDID Requirements
- Provide automatic EDID management between connected devices
- Provide a set of pre-stored EDID files
- Support capture of EDID from any connected display
- Support user uploading of custom-generated EDID files
- Support assignment of any pre-stored, captured, or custom uploaded EDID file to any input connection
- Provide automatic EDID management between connected devices
- HDCP Requirements
- The unit shall be HDCP compliant
- Provide authentication and maintain continuous verification of HDCP key exchange with connected sink devices
- Provide authentication and maintain continuous verification of HDCP key exchange with connected source devices
- Provide the option to disable HDCP processing at any HDMI input connection when passing unencrypted content
- Provide selectable, human-readable visual confirmation of HDCP compliance when encrypted content is routed to a non-HDCP compliant display
- When enabled, the video output shall be a solid green color and an on-screen message stating “HDCP CONTENT” shall be displayed
- When disabled, the output shall be muted
- Provide real-time verification of HDCP status for each HDMI input and output
- Directly readable on front panel LEDs
- Electronically accessible over Ethernet, RS-232, or USB connection
- The unit shall be HDCP compliant
- Audio Requirements
- Provide audio input connections
- Four HDMI, embedded
- Six 5-pole captive screw, balanced/unbalanced line level analog stereo
- Two 3-pole captive screw, mono mic/line level with switchable 48 V phantom power
- Two RJ-45, DTP HDMI embedded and analog audio
- Provide audio output connections
- Two simultaneous HDMI, embedded
- Two 5-pole captive screw, with independent output level control and configurable for balanced/unbalanced, analog stereo, or independently mixed analog mono
- One RJ-45, DTP HDMI embedded and analog audio
- 4-pole captive screw, amplified stereo audio
- Provide stereo power amplification with 50 watts rms per channel into 4 ohms and 25 watts rms per channel into 8 ohms
- Support embedding of any analog audio input signal onto the HDMI outputs
- Support extraction of two-channel LPCM HDMI audio signals to the analog stereo outputs, or pass bitstream audio to the HDMI outputs
- Support mixing of program audio with two mic/line inputs, providing three simultaneously available, independently mixed outputs
- Stereo output to HDMI
- Stereo analog audio output
- Stereo or dual mono analog audio output
- Provide the capability to break an analog audio signal away from its corresponding video signal and route to the audio outputs, allowing the analog audio channels to be operated as a separate switcher
- Provide a delay in the audio output to match the corresponding video processing delay
- Provide gain and attenuation adjustments for analog or embedded HDMI input audio
- Support individual muting of the analog stereo or HDMI audio inputs
- Support audio transmission over shielded CATx up to 330 feet (100 meters)
- Provide audio input connections
- Integrated Control Processor Requirements
- Provide AV system control connections
- Three RJ-45: 10/100/1000Base-T Ethernet, half/full duplex with auto-detect for connection to a LAN and include link and activity LED indicators located on the left and right of each jack for troubleshooting network issues, these ports will be designated as AV LAN ports allowing for AV devices to be isolated from a corporate network
- AV LAN ports shall support a DHCP server that can distribute 50 dynamic IP addresses with a 24-hour lease
- One RJ-45: 10/100/1000Base-T, half/full duplex with auto-detect for connection to a LAN or WAN and includes link and activity LED indicators located on the left and right of the jack for troubleshooting network issues
- Two 3-pole captive screw: RS-232, configurable for unidirectional or bidirectional control of AV system components
- One 5-pole captive screw: RS-232/RS-422/RS-485, configurable for unidirectional or bidirectional control of AV system components
- Two IR/serial ports on one 5-pole captive screw: IR (using an IR emitter) or unidirectional RS-232 for control of AV system components
- Four low voltage relays on one 6-pole captive screw: configurable for controlling lighting, controlling screens, or other device functions
- Four digital input/output ports on one 5-pole captive screw: configurable for use as an interface with devices such as sensors, switches, LEDs, and relays
- One eBUS® port on a 4-pole captive screw for connecting to eBUS devices
- Shall support the following protocols: ICMP (ping), IEEE 802.1X, IPv4, TCP, UDP, DHCP, DNS, HTTP, HTTPS, NTP, SFTP, SMTP, SNMP, SSH
- Shall support a Web-based AV resource management application that provides a means to manage, monitor, and control AV equipment
- Provide an internal real-time clock with a 30-year backup battery that is used to keep track of the date and time
- Shall include an Extron LinkLicense® for use of third party devices as primary control interfaces
- Provide front panel LED activity indicators for RS-232 status, RS-232/RS-422/RS-485 status, IR/serial status, digital I/O status, relay status, eBUS status, and network status
- Shall support control system synchronization to allow users to retain and recover configured endpoints in case of network or power failure
- Shall be configured using Extron Global Configurator® Plus or Extron Global Configurator Professional with support for the following:
- Provide support for up to eight configurable Extron TouchLink Pro touchpanels
- Provide support for up to eight configurable eBUS button panels
- Provide remote monitoring and control via Ethernet
- Provide the ability to create E-mail notifications
- Provide multiple levels of password protection
- Provide the ability to create schedules and monitors
- Support up to 32 Ethernet-controllable AV devices
- Support local variables and conditional logic
- Support grouping of multiple Extron IP Link® Pro xi control processors to function as one when configured with Global Configurator Professional
- Security Requirements
- Support SFTP and SSH for secure communication between the control processor and a TouchLink Pro touchpanel or Network Button Panel
- Support HTTPS and SSH for secure communication between the control processor and Extron Control App
- Support HTTPS for secure communication between the control processor and Extron Control for Web
- Support SSH for secure communication between the control processor and controlled device for programmed systems
- Support SFTP and SSH for secure communication between the control processor and the configuration or programming software
- Provide the option to modify administrator and user credentials
- Support security updates to maintain network health
- Require that a Secure Socket Layer (SSL) Certificate is installed to maintain system confidentiality and data integrity
- Support the installation of an owner furnished certificate with the following properties:
- Certificates shall include x.509 support
- Certificates shall include public / private key exchange
- Certificates shall support PEM encoding
- Extron shall furnish documentation that describes all supported network ports and services
- Provide AV system control connections
- Control/Remote – RS-232 and IR Pass-Through Over Shielded CATx Requirements
- Provide connections for AV device control
- Two 5-pole captive screw: RS-232 or IR pass-through to DTP twisted pair transmitters
- One 5-pole captive screw: RS-232 or IR pass-through to DTP twisted pair receiver
- Support RS-232 and IR transmission over shielded CATx up to 330 feet (100 meters)
- Provide connections for AV device control
- Control/Remote - Switcher Control Requirements
- Provide connections for remote switcher control
- RJ-45: 10/100Base-T Ethernet
- 3-pole captive screw: RS-232
- Mini USB-B: USB 2.0
- Provide alternatives for configuration and operation
- On-screen menus navigated using front panel controls
- Built-in Web pages accessible using a standard Web browser via Ethernet connection
- Product configuration software connected via Ethernet or USB
- Serial commands sent over Ethernet, RS-232, or USB connection
- Support disabling of front panel controls to prevent inadvertent or unauthorized changes to configuration settings
- Provide connections for remote switcher control
- General Requirements
- Provide real-time verification of signal flow and operation from DTP transmitter or DTP receiver
- Directly readable on RJ-45 signal and link LEDs
- Shall be compatible with all Extron DTP Series models and DTP-enabled products
- Shall be compatible with CATx shielded twisted pair cable, and Extron XTP DTP 24 shielded twisted pair cable
- Shall provide remote power to two remote DTP transmitters and a remote DTP receiver over the shielded CATx connections
- Enclosure shall be rack-mountable, full rack width, and 2RU in height
- Shall be equipped with an internal 100-240 VAC, 50/60 Hz universal power supply
- Shall meet regulatory compliances
- Shall meet safety compliances under CE, c-UL, and UL
- Shall meet EMI/EMC compliances under CE, C-tick, FCC Class A, ICES, and VCCI
- Shall comply with appropriate requirements of RoHS and WEEE
- Shall provide three year parts and labor warranty
- Provide real-time verification of signal flow and operation from DTP transmitter or DTP receiver
- Video Input Requirements
- Approved device shall be the Extron IN1608 xi IPCP Q SA (part number 60-1238-95A); no alternates or equals
- Rack-mountable scaler and switcher for HDMI, HDTV, RGB, and composite video sources and associated digital and analog audio, AV system control, plus signal extension over shielded CATx cable

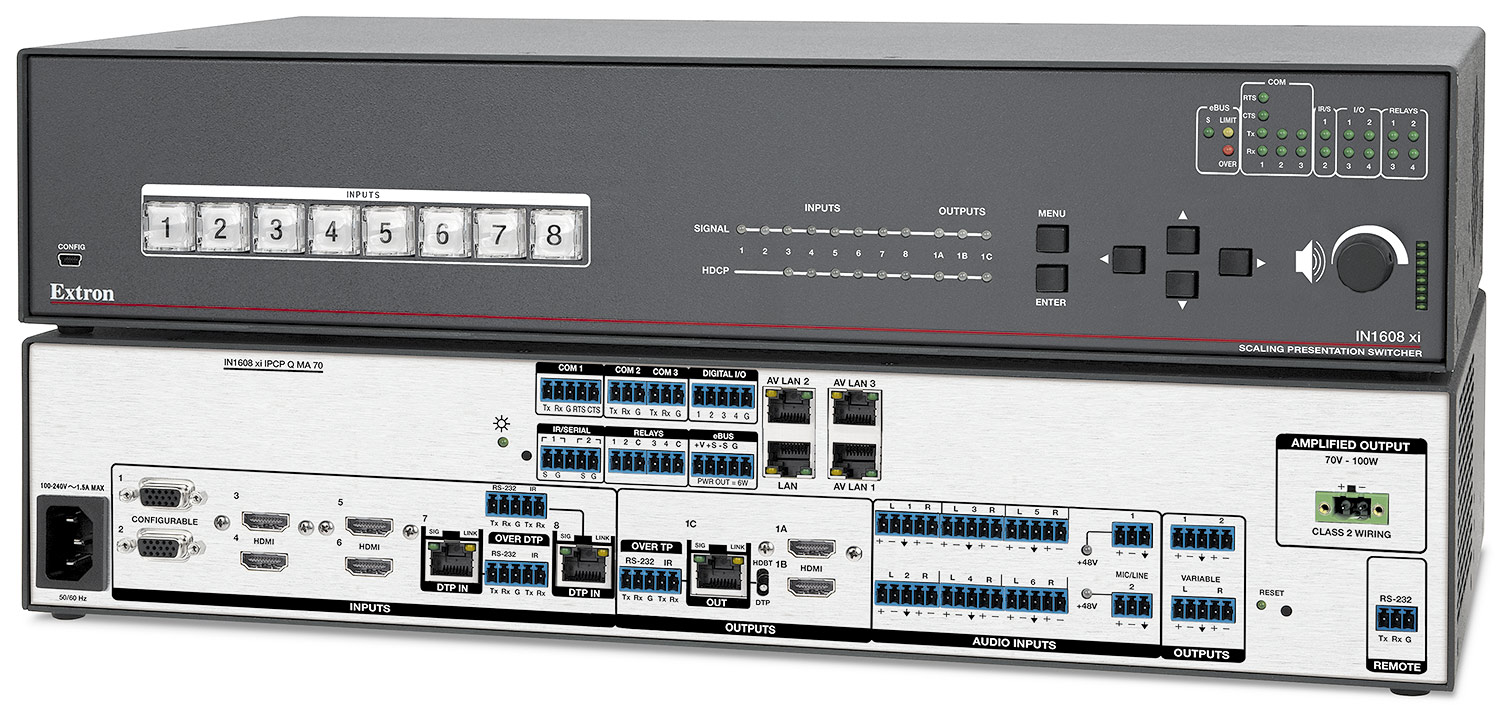

IN1608 xi IPCP Q MA 70
- Provide a video scaling presentation switcher that shall support up to eight inputs and three outputs for processing and switching of HDMI, HDTV, RGB, and composite video sources, one integrated Extron IP Link Pro xi quad core control processor, plus additional support for signal extension over shielded CATx cable.
- Rack-mountable scaler and switcher for HDMI, HDTV, RGB, and composite video sources and associated digital and analog audio, AV system control, plus signal extension over shielded CATx cable
- Video Input Requirements
- Provide video input connections
- Four HDMI
- Two 15-pin HD, configurable for RGB, component video, S-video, or composite video
- Two RJ-45 for video from Extron DTP® twisted pair transmitters
- Provide automatic detection of input video parameters
- Determine total pixels, active pixels, active lines, H/V starting points, H/V image positions, H/V image sizes, and video clock phase
- The user may selectively enable or disable automatic detection for each input
- Provide image adjustments for brightness, contrast, color, tint, detail, H/V positioning, and sizing
- Provide storage and recall of video parameters and picture settings
- Automatic memories for each video input
- Save video settings and picture adjustments without user intervention
- Automatically recall settings when the same video rate is encountered
- The user may selectively enable or disable automatic memories
- Manual user presets
- Save picture adjustments
- User presets may be saved and recalled using front panel controls
- User presets may be saved and recalled electronically via Ethernet, RS-232, or USB connection
- Manual input presets
- Save video settings and picture adjustments
- Input presets may be saved and recalled electronically via Ethernet, RS-232, or USB connection
- Automatic memories for each video input
- Provide enhanced decoding of composite video
- Decoder shall include a temporal, 3D adaptive comb filter
- Support NTSC 3.58, NTSC 4.42, PAL, and SECAM formats
- Support HDMI specifications including 1080p/60 Deep Color, data rates up to 6.75 Gbps, and HD lossless audio formats
- Provide automatic 3:2 and 2:2 pulldown detection
- Support video transmission over shielded CATx up to 330 feet (100 meters)
- Provide video input connections
- Video Output Requirements
- Provide simultaneous video output connections
- Two HDMI
- One RJ-45 for video to an Extron DTP twisted pair receiver
- Shall be configurable for sending digital video and embedded audio, plus bidirectional RS-232 and IR signals to HDBaseT-enabled displays
- Provide a range of selectable video output rates from 640x480 to 1920x1200, including 1080p/60 and 2048x1080p/60
- Provide image scaling and video format conversion at 30-bit precision and support 1080i deinterlacing
- Provide aspect ratio control
- When in FILL mode, the video image shall always fill the output screen without letterbox or pillarbox
- When in FOLLOW mode, the video image shall always preserve the aspect ratio of the input signals without distortion
- Provide internal test patterns for calibration and setup
- Support image freeze via Ethernet, RS-232, or USB connection
- Support muting of one or all outputs at any time
- Support automatic muting of video and sync output when no video input signal is present
- Provide a choice to generate a blue screen or a black screen before disabling sync
- Provide a configurable timeout period before disabling sync
- The user may selectively enable or disable automatic muting of sync output
- Provide a low power standby state selectable via Ethernet, RS-232, or USB
- Support the connection of DVI displays that do not recognize HDMI-specific formats
- Automatically enable or disable embedded TMDS audio and InfoFrames
- Automatically set the correct color space
- Support video transmission over shielded CATx up to 330 feet (100 meters)
- Provide simultaneous video output connections
- Switching Requirements
- Provide automatic switching between input sources
- Automatically switch to the active input
- Provide a configurable switching priority when multiple inputs are active
- High to low: highest numbered input has priority
- Low to high: lowest numbered input has priority
- Provide selectable transition effects when switching inputs
- Cut: video output shall cut to black, then cut to the newly selected input source
- Fade: video output shall fade to black, then fade into the newly selected input source
- Accompanying audio shall ramp down, then ramp up to match the transition effect
- Provide automatic switching between input sources
- EDID Requirements
- Provide automatic EDID management between connected devices
- Provide a set of pre-stored EDID files
- Support capture of EDID from any connected display
- Support user uploading of custom-generated EDID files
- Support assignment of any pre-stored, captured, or custom uploaded EDID file to any input connection
- Provide automatic EDID management between connected devices
- HDCP Requirements
- The unit shall be HDCP compliant
- Provide authentication and maintain continuous verification of HDCP key exchange with connected sink devices
- Provide authentication and maintain continuous verification of HDCP key exchange with connected source devices
- Provide the option to disable HDCP processing at any HDMI input connection when passing unencrypted content
- Provide selectable, human-readable visual confirmation of HDCP compliance when encrypted content is routed to a non-HDCP compliant display
- When enabled, the video output shall be a solid green color and an on-screen message stating “HDCP CONTENT” shall be displayed
- When disabled, the output shall be muted
- Provide real-time verification of HDCP status for each HDMI input and output
- Directly readable on front panel LEDs
- Electronically accessible over Ethernet, RS-232, or USB connection
- The unit shall be HDCP compliant
- Audio Requirements
- Provide audio input connections
- Four HDMI, embedded
- Six 5-pole captive screw, balanced/unbalanced line level analog stereo
- Two 3-pole captive screw, mono mic/line level with switchable 48 V phantom power
- Two RJ-45, DTP HDMI embedded and analog audio
- Provide audio output connections
- Two simultaneous HDMI, embedded
- Two 5-pole captive screw, with independent output level control and configurable for balanced/unbalanced, analog stereo, or independently mixed analog mono
- One RJ-45, DTP HDMI embedded and analog audio
- 2-pole captive screw, amplified 70 volt mono
- Provide mono 70 volt power amplification with 100 watts rms output
- Support embedding of any analog audio input signal onto the HDMI outputs
- Support extraction of two-channel LPCM HDMI audio signals to the analog stereo outputs, or pass bitstream audio to the HDMI outputs
- Support mixing of program audio with two mic/line inputs, providing three simultaneously available, independently mixed outputs
- Stereo output to HDMI
- Stereo analog audio output
- Stereo or dual mono analog audio output
- Provide the capability to break an analog audio signal away from its corresponding video signal and route to the audio outputs, allowing the analog audio channels to be operated as a separate switcher
- Provide a delay in the audio output to match the corresponding video processing delay
- Provide gain and attenuation adjustments for analog or embedded HDMI input audio
- Support individual muting of the analog stereo or HDMI audio inputs
- Support audio transmission over shielded CATx up to 330 feet (100 meters)
- Provide audio input connections
- Integrated Control Processor Requirements
- Provide AV system control connections
- Three RJ-45: 10/100/1000Base-T Ethernet, half/full duplex with auto-detect for connection to a LAN and include link and activity LED indicators located on the left and right of each jack for troubleshooting network issues, these ports will be designated as AV LAN ports allowing for AV devices to be isolated from a corporate network
- AV LAN ports shall support a DHCP server that can distribute 50 dynamic IP addresses with a 24-hour lease
- One RJ-45: 10/100/1000Base-T, half/full duplex with auto-detect for connection to a LAN or WAN and includes link and activity LED indicators located on the left and right of the jack for troubleshooting network issues
- Two 3-pole captive screw: RS-232, configurable for unidirectional or bidirectional control of AV system components
- One 5-pole captive screw: RS-232/RS-422/RS-485, configurable for unidirectional or bidirectional control of AV system components
- Two IR/serial ports on one 5-pole captive screw: IR (using an IR emitter) or unidirectional RS-232 for control of AV system components
- Four low voltage relays on one 6-pole captive screw: configurable for controlling lighting, controlling screens, or other device functions
- Four digital input/output ports on one 5-pole captive screw: configurable for use as an interface with devices such as sensors, switches, LEDs, and relays
- One eBUS® port on a 4-pole captive screw for connecting to eBUS devices
- Shall support the following protocols: ICMP (ping), IEEE 802.1X, IPv4, TCP, UDP, DHCP, DNS, HTTP, HTTPS, NTP, SFTP, SMTP, SNMP, SSH
- Shall support a Web-based AV resource management application that provides a means to manage, monitor, and control AV equipment
- Provide an internal real-time clock with a 30-year backup battery that is used to keep track of the date and time
- Shall support the addition of an Extron LinkLicense® for use of third party devices as primary control interfaces
- Provide front panel LED activity indicators for RS-232 status, RS-232/RS-422/RS-485 status, IR/serial status, digital I/O status, relay status, eBUS status, and network status
- Shall support control system synchronization to allow users to retain and recover configured endpoints in case of network or power failure
- Shall be configured using Extron Global Configurator® Plus or Extron Global Configurator Professional with support for the following:
- Provide support for up to eight configurable Extron TouchLink Pro touchpanels
- Provide support for up to eight configurable eBUS button panels
- Provide remote monitoring and control via Ethernet
- Provide the ability to create E-mail notifications
- Provide multiple levels of password protection
- Provide the ability to create schedules and monitors
- Support up to 32 Ethernet-controllable AV devices
- Support local variables and conditional logic
- Support grouping of multiple Extron IP Link® Pro xi control processors to function as one when configured with Global Configurator Professional
- Security Requirements
- Support SFTP and SSH for secure communication between the control processor and a TouchLink Pro touchpanel or Network Button Panel
- Support HTTPS and SSH for secure communication between the control processor and Extron Control App
- Support HTTPS for secure communication between the control processor and Extron Control for Web
- Support SSH for secure communication between the control processor and controlled device for programmed systems
- Support SFTP and SSH for secure communication between the control processor and the configuration or programming software
- Provide the option to modify administrator and user credentials
- Support security updates to maintain network health
- Require that a Secure Socket Layer (SSL) Certificate is installed to maintain system confidentiality and data integrity
- Support the installation of an owner furnished certificate with the following properties:
- Certificates shall include x.509 support
- Certificates shall include public / private key exchange
- Certificates shall support PEM encoding
- Extron shall furnish documentation that describes all supported network ports and services
- Provide AV system control connections
- Control/Remote – RS-232 and IR Pass-Through Over Shielded CATx Requirements
- Provide connections for AV device control
- Two 5-pole captive screw: RS-232 or IR pass-through to DTP twisted pair transmitters
- One 5-pole captive screw: RS-232 or IR pass-through to DTP twisted pair receiver
- Support RS-232 and IR transmission over shielded CATx up to 330 feet (100 meters)
- Provide connections for AV device control
- Control/Remote – Switcher Control Requirements
- Provide connections for remote switcher control
- RJ-45: 10/100Base-T Ethernet
- 3-pole captive screw: RS-232
- Mini USB-B: USB 2.0
- Provide alternatives for configuration and operation
- On-screen menus navigated using front panel controls
- Built-in Web pages accessible using a standard Web browser via Ethernet connection
- Product configuration software connected via Ethernet or USB
- Serial commands sent over Ethernet, RS-232, or USB connection
- Support disabling of front panel controls to prevent inadvertent or unauthorized changes to configuration settings
- Provide connections for remote switcher control
- General Requirements
- Provide real-time verification of signal flow and operation from DTP transmitter or DTP receiver
- Directly readable on RJ-45 signal and link LEDs
- Shall be compatible with all Extron DTP Series models and DTP-enabled products
- Shall be compatible with CATx shielded twisted pair cable, and Extron XTP DTP 24 shielded twisted pair cable
- Shall provide remote power to two remote DTP transmitters and a remote DTP receiver over the shielded CATx connections
- Enclosure shall be rack-mountable, full rack width, and 2RU in height
- Shall be equipped with an internal 100-240 VAC, 50/60 Hz universal power supply
- Shall meet regulatory compliances
- Shall meet safety compliances under CE, c-UL, and UL
- Shall meet EMI/EMC compliances under CE, C-tick, FCC Class A, ICES, and VCCI
- Shall comply with appropriate requirements of RoHS and WEEE
- Shall provide three year parts and labor warranty
- Provide real-time verification of signal flow and operation from DTP transmitter or DTP receiver
- Video Input Requirements
- Approved device shall be the Extron IN1608 xi IPCP Q MA 70 (part number 60-1238-96); no alternates or equals
- Rack-mountable scaler and switcher for HDMI, HDTV, RGB, and composite video sources and associated digital and analog audio, AV system control, plus signal extension over shielded CATx cable
IN1608 xi IPCP Q MA 70
- Provide a video scaling presentation switcher that shall support up to eight inputs and three outputs for processing and switching of HDMI, HDTV, RGB, and composite video sources, one integrated Extron IP Link Pro xi quad core control processor, plus additional support for signal extension over shielded CATx cable.
- Rack-mountable scaler and switcher for HDMI, HDTV, RGB, and composite video sources and associated digital and analog audio, AV system control, plus signal extension over shielded CATx cable
- Video Input Requirements
- Provide video input connections
- Four HDMI
- Two 15-pin HD, configurable for RGB, component video, S-video, or composite video
- Two RJ-45 for video from Extron DTP® twisted pair transmitters
- Provide automatic detection of input video parameters
- Determine total pixels, active pixels, active lines, H/V starting points, H/V image positions, H/V image sizes, and video clock phase
- The user may selectively enable or disable automatic detection for each input
- Provide image adjustments for brightness, contrast, color, tint, detail, H/V positioning, and sizing
- Provide storage and recall of video parameters and picture settings
- Automatic memories for each video input
- Save video settings and picture adjustments without user intervention
- Automatically recall settings when the same video rate is encountered
- The user may selectively enable or disable automatic memories
- Manual user presets
- Save picture adjustments
- User presets may be saved and recalled using front panel controls
- User presets may be saved and recalled electronically via Ethernet, RS-232, or USB connection
- Manual input presets
- Save video settings and picture adjustments
- Input presets may be saved and recalled electronically via Ethernet, RS-232, or USB connection
- Automatic memories for each video input
- Provide enhanced decoding of composite video
- Decoder shall include a temporal, 3D adaptive comb filter
- Support NTSC 3.58, NTSC 4.42, PAL, and SECAM formats
- Support HDMI specifications including 1080p/60 Deep Color, data rates up to 6.75 Gbps, and HD lossless audio formats
- Provide automatic 3:2 and 2:2 pulldown detection
- Support video transmission over shielded CATx up to 330 feet (100 meters)
- Provide video input connections
- Video Output Requirements
- Provide simultaneous video output connections
- Two HDMI
- One RJ-45 for video to an Extron DTP twisted pair receiver
- Shall be configurable for sending digital video and embedded audio, plus bidirectional RS-232 and IR signals to HDBaseT-enabled displays
- Provide a range of selectable video output rates from 640x480 to 1920x1200, including 1080p/60 and 2048x1080p/60
- Provide image scaling and video format conversion at 30-bit precision and support 1080i deinterlacing
- Provide aspect ratio control
- When in FILL mode, the video image shall always fill the output screen without letterbox or pillarbox
- When in FOLLOW mode, the video image shall always preserve the aspect ratio of the input signals without distortion
- Provide internal test patterns for calibration and setup
- Support image freeze via Ethernet, RS-232, or USB connection
- Support muting of one or all outputs at any time
- Support automatic muting of video and sync output when no video input signal is present
- Provide a choice to generate a blue screen or a black screen before disabling sync
- Provide a configurable timeout period before disabling sync
- The user may selectively enable or disable automatic muting of sync output
- Provide a low power standby state selectable via Ethernet, RS-232, or USB
- Support the connection of DVI displays that do not recognize HDMI-specific formats
- Automatically enable or disable embedded TMDS audio and InfoFrames
- Automatically set the correct color space
- Support video transmission over shielded CATx up to 330 feet (100 meters)
- Provide simultaneous video output connections
- Switching Requirements
- Provide automatic switching between input sources
- Automatically switch to the active input
- Provide a configurable switching priority when multiple inputs are active
- High to low: highest numbered input has priority
- Low to high: lowest numbered input has priority
- Provide selectable transition effects when switching inputs
- Cut: video output shall cut to black, then cut to the newly selected input source
- Fade: video output shall fade to black, then fade into the newly selected input source
- Accompanying audio shall ramp down, then ramp up to match the transition effect
- Provide automatic switching between input sources
- EDID Requirements
- Provide automatic EDID management between connected devices
- Provide a set of pre-stored EDID files
- Support capture of EDID from any connected display
- Support user uploading of custom-generated EDID files
- Support assignment of any pre-stored, captured, or custom uploaded EDID file to any input connection
- Provide automatic EDID management between connected devices
- HDCP Requirements
- The unit shall be HDCP compliant
- Provide authentication and maintain continuous verification of HDCP key exchange with connected sink devices
- Provide authentication and maintain continuous verification of HDCP key exchange with connected source devices
- Provide the option to disable HDCP processing at any HDMI input connection when passing unencrypted content
- Provide selectable, human-readable visual confirmation of HDCP compliance when encrypted content is routed to a non-HDCP compliant display
- When enabled, the video output shall be a solid green color and an on-screen message stating “HDCP CONTENT” shall be displayed
- When disabled, the output shall be muted
- Provide real-time verification of HDCP status for each HDMI input and output
- Directly readable on front panel LEDs
- Electronically accessible over Ethernet, RS-232, or USB connection
- The unit shall be HDCP compliant
- Audio Requirements
- Provide audio input connections
- Four HDMI, embedded
- Six 5-pole captive screw, balanced/unbalanced line level analog stereo
- Two 3-pole captive screw, mono mic/line level with switchable 48 V phantom power
- Two RJ-45, DTP HDMI embedded and analog audio
- Provide audio output connections
- Two simultaneous HDMI, embedded
- Two 5-pole captive screw, with independent output level control and configurable for balanced/unbalanced, analog stereo, or independently mixed analog mono
- One RJ-45, DTP HDMI embedded and analog audio
- 2-pole captive screw, amplified 70 volt mono
- Provide mono 70 volt power amplification with 100 watts rms output
- Support embedding of any analog audio input signal onto the HDMI outputs
- Support extraction of two-channel LPCM HDMI audio signals to the analog stereo outputs, or pass bitstream audio to the HDMI outputs
- Support mixing of program audio with two mic/line inputs, providing three simultaneously available, independently mixed outputs
- Stereo output to HDMI
- Stereo analog audio output
- Stereo or dual mono analog audio output
- Provide the capability to break an analog audio signal away from its corresponding video signal and route to the audio outputs, allowing the analog audio channels to be operated as a separate switcher
- Provide a delay in the audio output to match the corresponding video processing delay
- Provide gain and attenuation adjustments for analog or embedded HDMI input audio
- Support individual muting of the analog stereo or HDMI audio inputs
- Support audio transmission over shielded CATx up to 330 feet (100 meters)
- Provide audio input connections
- Integrated Control Processor Requirements
- Provide AV system control connections
- Three RJ-45: 10/100/1000Base-T Ethernet, half/full duplex with auto-detect for connection to a LAN and include link and activity LED indicators located on the left and right of each jack for troubleshooting network issues, these ports will be designated as AV LAN ports allowing for AV devices to be isolated from a corporate network
- AV LAN ports shall support a DHCP server that can distribute 50 dynamic IP addresses with a 24-hour lease
- One RJ-45: 10/100/1000Base-T, half/full duplex with auto-detect for connection to a LAN or WAN and includes link and activity LED indicators located on the left and right of the jack for troubleshooting network issues
- Two 3-pole captive screw: RS-232, configurable for unidirectional or bidirectional control of AV system components
- One 5-pole captive screw: RS-232/RS-422/RS-485, configurable for unidirectional or bidirectional control of AV system components
- Two IR/serial ports on one 5-pole captive screw: IR (using an IR emitter) or unidirectional RS-232 for control of AV system components
- Four low voltage relays on one 6-pole captive screw: configurable for controlling lighting, controlling screens, or other device functions
- Four digital input/output ports on one 5-pole captive screw: configurable for use as an interface with devices such as sensors, switches, LEDs, and relays
- One eBUS® port on a 4-pole captive screw for connecting to eBUS devices
- Shall support the following protocols: ICMP (ping), IEEE 802.1X, IPv4, TCP, UDP, DHCP, DNS, HTTP, HTTPS, NTP, SFTP, SMTP, SNMP, SSH
- Shall support a Web-based AV resource management application that provides a means to manage, monitor, and control AV equipment
- Provide an internal real-time clock with a 30-year backup battery that is used to keep track of the date and time
- Shall support the addition of an Extron LinkLicense® for use of third party devices as primary control interfaces
- Provide front panel LED activity indicators for RS-232 status, RS-232/RS-422/RS-485 status, IR/serial status, digital I/O status, relay status, eBUS status, and network status
- Shall support control system synchronization to allow users to retain and recover configured endpoints in case of network or power failure
- Shall be configured using Extron Global Configurator® Plus or Extron Global Configurator Professional with support for the following:
- Provide support for up to eight configurable Extron TouchLink Pro touchpanels
- Provide support for up to eight configurable eBUS button panels
- Provide remote monitoring and control via Ethernet
- Provide the ability to create E-mail notifications
- Provide multiple levels of password protection
- Provide the ability to create schedules and monitors
- Support up to 32 Ethernet-controllable AV devices
- Support local variables and conditional logic
- Support grouping of multiple Extron IP Link® Pro xi control processors to function as one when configured with Global Configurator Professional
- Security Requirements
- Support SFTP and SSH for secure communication between the control processor and a TouchLink Pro touchpanel or Network Button Panel
- Support HTTPS and SSH for secure communication between the control processor and Extron Control App
- Support HTTPS for secure communication between the control processor and Extron Control for Web
- Support SSH for secure communication between the control processor and controlled device for programmed systems
- Support SFTP and SSH for secure communication between the control processor and the configuration or programming software
- Provide the option to modify administrator and user credentials
- Support security updates to maintain network health
- Require that a Secure Socket Layer (SSL) Certificate is installed to maintain system confidentiality and data integrity
- Support the installation of an owner furnished certificate with the following properties:
- Certificates shall include x.509 support
- Certificates shall include public / private key exchange
- Certificates shall support PEM encoding
- Extron shall furnish documentation that describes all supported network ports and services
- Provide AV system control connections
- Control/Remote – RS-232 and IR Pass-Through Over Shielded CATx Requirements
- Provide connections for AV device control
- Two 5-pole captive screw: RS-232 or IR pass-through to DTP twisted pair transmitters
- One 5-pole captive screw: RS-232 or IR pass-through to DTP twisted pair receiver
- Support RS-232 and IR transmission over shielded CATx up to 330 feet (100 meters)
- Provide connections for AV device control
- Control/Remote – Switcher Control Requirements
- Provide connections for remote switcher control
- RJ-45: 10/100Base-T Ethernet
- 3-pole captive screw: RS-232
- Mini USB-B: USB 2.0
- Provide alternatives for configuration and operation
- On-screen menus navigated using front panel controls
- Built-in Web pages accessible using a standard Web browser via Ethernet connection
- Product configuration software connected via Ethernet or USB
- Serial commands sent over Ethernet, RS-232, or USB connection
- Support disabling of front panel controls to prevent inadvertent or unauthorized changes to configuration settings
- Provide connections for remote switcher control
- General Requirements
- Provide real-time verification of signal flow and operation from DTP transmitter or DTP receiver
- Directly readable on RJ-45 signal and link LEDs
- Shall be compatible with all Extron DTP Series models and DTP-enabled products
- Shall be compatible with CATx shielded twisted pair cable, and Extron XTP DTP 24 shielded twisted pair cable
- Shall provide remote power to two remote DTP transmitters and a remote DTP receiver over the shielded CATx connections
- Enclosure shall be rack-mountable, full rack width, and 2RU in height
- Shall be equipped with an internal 100-240 VAC, 50/60 Hz universal power supply
- Shall meet regulatory compliances
- Shall meet safety compliances under CE, c-UL, and UL
- Shall meet EMI/EMC compliances under CE, C-tick, FCC Class A, ICES, and VCCI
- Shall comply with appropriate requirements of RoHS and WEEE
- Shall provide three year parts and labor warranty
- Provide real-time verification of signal flow and operation from DTP transmitter or DTP receiver
- Video Input Requirements
- Approved device shall be the Extron IN1608 xi IPCP Q MA 70 (part number 60-1238-96); no alternates or equals
- Rack-mountable scaler and switcher for HDMI, HDTV, RGB, and composite video sources and associated digital and analog audio, AV system control, plus signal extension over shielded CATx cable
IN1608 xi IPCP Q MA 70
- Provide a video scaling presentation switcher that shall support up to eight inputs and three outputs for processing and switching of HDMI, HDTV, RGB, and composite video sources, one integrated Extron IP Link Pro xi quad core control processor, plus additional support for signal extension over shielded CATx cable.
- Rack-mountable scaler and switcher for HDMI, HDTV, RGB, and composite video sources and associated digital and analog audio, AV system control, plus signal extension over shielded CATx cable
- Video Input Requirements
- Provide video input connections
- Four HDMI
- Two 15-pin HD, configurable for RGB, component video, S-video, or composite video
- Two RJ-45 for video from Extron DTP® twisted pair transmitters
- Provide automatic detection of input video parameters
- Determine total pixels, active pixels, active lines, H/V starting points, H/V image positions, H/V image sizes, and video clock phase
- The user may selectively enable or disable automatic detection for each input
- Provide image adjustments for brightness, contrast, color, tint, detail, H/V positioning, and sizing
- Provide storage and recall of video parameters and picture settings
- Automatic memories for each video input
- Save video settings and picture adjustments without user intervention
- Automatically recall settings when the same video rate is encountered
- The user may selectively enable or disable automatic memories
- Manual user presets
- Save picture adjustments
- User presets may be saved and recalled using front panel controls
- User presets may be saved and recalled electronically via Ethernet, RS-232, or USB connection
- Manual input presets
- Save video settings and picture adjustments
- Input presets may be saved and recalled electronically via Ethernet, RS-232, or USB connection
- Automatic memories for each video input
- Provide enhanced decoding of composite video
- Decoder shall include a temporal, 3D adaptive comb filter
- Support NTSC 3.58, NTSC 4.42, PAL, and SECAM formats
- Support HDMI specifications including 1080p/60 Deep Color, data rates up to 6.75 Gbps, and HD lossless audio formats
- Provide automatic 3:2 and 2:2 pulldown detection
- Support video transmission over shielded CATx up to 330 feet (100 meters)
- Provide video input connections
- Video Output Requirements
- Provide simultaneous video output connections
- Two HDMI
- One RJ-45 for video to an Extron DTP twisted pair receiver
- Shall be configurable for sending digital video and embedded audio, plus bidirectional RS-232 and IR signals to HDBaseT-enabled displays
- Provide a range of selectable video output rates from 640x480 to 1920x1200, including 1080p/60 and 2048x1080p/60
- Provide image scaling and video format conversion at 30-bit precision and support 1080i deinterlacing
- Provide aspect ratio control
- When in FILL mode, the video image shall always fill the output screen without letterbox or pillarbox
- When in FOLLOW mode, the video image shall always preserve the aspect ratio of the input signals without distortion
- Provide internal test patterns for calibration and setup
- Support image freeze via Ethernet, RS-232, or USB connection
- Support muting of one or all outputs at any time
- Support automatic muting of video and sync output when no video input signal is present
- Provide a choice to generate a blue screen or a black screen before disabling sync
- Provide a configurable timeout period before disabling sync
- The user may selectively enable or disable automatic muting of sync output
- Provide a low power standby state selectable via Ethernet, RS-232, or USB
- Support the connection of DVI displays that do not recognize HDMI-specific formats
- Automatically enable or disable embedded TMDS audio and InfoFrames
- Automatically set the correct color space
- Support video transmission over shielded CATx up to 330 feet (100 meters)
- Provide simultaneous video output connections
- Switching Requirements
- Provide automatic switching between input sources
- Automatically switch to the active input
- Provide a configurable switching priority when multiple inputs are active
- High to low: highest numbered input has priority
- Low to high: lowest numbered input has priority
- Provide selectable transition effects when switching inputs
- Cut: video output shall cut to black, then cut to the newly selected input source
- Fade: video output shall fade to black, then fade into the newly selected input source
- Accompanying audio shall ramp down, then ramp up to match the transition effect
- Provide automatic switching between input sources
- EDID Requirements
- Provide automatic EDID management between connected devices
- Provide a set of pre-stored EDID files
- Support capture of EDID from any connected display
- Support user uploading of custom-generated EDID files
- Support assignment of any pre-stored, captured, or custom uploaded EDID file to any input connection
- Provide automatic EDID management between connected devices
- HDCP Requirements
- The unit shall be HDCP compliant
- Provide authentication and maintain continuous verification of HDCP key exchange with connected sink devices
- Provide authentication and maintain continuous verification of HDCP key exchange with connected source devices
- Provide the option to disable HDCP processing at any HDMI input connection when passing unencrypted content
- Provide selectable, human-readable visual confirmation of HDCP compliance when encrypted content is routed to a non-HDCP compliant display
- When enabled, the video output shall be a solid green color and an on-screen message stating “HDCP CONTENT” shall be displayed
- When disabled, the output shall be muted
- Provide real-time verification of HDCP status for each HDMI input and output
- Directly readable on front panel LEDs
- Electronically accessible over Ethernet, RS-232, or USB connection
- The unit shall be HDCP compliant
- Audio Requirements
- Provide audio input connections
- Four HDMI, embedded
- Six 5-pole captive screw, balanced/unbalanced line level analog stereo
- Two 3-pole captive screw, mono mic/line level with switchable 48 V phantom power
- Two RJ-45, DTP HDMI embedded and analog audio
- Provide audio output connections
- Two simultaneous HDMI, embedded
- Two 5-pole captive screw, with independent output level control and configurable for balanced/unbalanced, analog stereo, or independently mixed analog mono
- One RJ-45, DTP HDMI embedded and analog audio
- 2-pole captive screw, amplified 70 volt mono
- Provide mono 70 volt power amplification with 100 watts rms output
- Support embedding of any analog audio input signal onto the HDMI outputs
- Support extraction of two-channel LPCM HDMI audio signals to the analog stereo outputs, or pass bitstream audio to the HDMI outputs
- Support mixing of program audio with two mic/line inputs, providing three simultaneously available, independently mixed outputs
- Stereo output to HDMI
- Stereo analog audio output
- Stereo or dual mono analog audio output
- Provide the capability to break an analog audio signal away from its corresponding video signal and route to the audio outputs, allowing the analog audio channels to be operated as a separate switcher
- Provide a delay in the audio output to match the corresponding video processing delay
- Provide gain and attenuation adjustments for analog or embedded input audio
- Support individual muting of the analog stereo or HDMI audio inputs
- Support audio transmission over shielded CATx up to 330 feet (100 meters)
- Provide audio input connections
- Integrated Control Processor Requirements
- Provide AV system control connections
- Three RJ-45: 10/100/1000Base-T Ethernet, half/full duplex with auto-detect for connection to a LAN and include link and activity LED indicators located on the left and right of each jack for troubleshooting network issues, these ports will be designated as AV LAN ports allowing for AV devices to be isolated from a corporate network
- AV LAN ports shall support a DHCP server that can distribute 50 dynamic IP addresses with a 24-hour lease
- One RJ-45: 10/100/1000Base-T, half/full duplex with auto-detect for connection to a LAN or WAN and includes link and activity LED indicators located on the left and right of the jack for troubleshooting network issues
- Two 3-pole captive screw: RS-232, configurable for unidirectional or bidirectional control of AV system components
- One 5-pole captive screw: RS-232/RS-422/RS-485, configurable for unidirectional or bidirectional control of AV system components
- Two IR/serial ports on one 5-pole captive screw: IR (using an IR emitter) or unidirectional RS-232 for control of AV system components
- Four low voltage relays on one 6-pole captive screw: configurable for controlling lighting, controlling screens, or other device functions
- Four digital input/output ports on one 5-pole captive screw: configurable for use as an interface with devices such as sensors, switches, LEDs, and relays
- One eBUS® port on a 4-pole captive screw for connecting to eBUS devices
- Shall support the following protocols: ICMP (ping), IEEE 802.1X, IPv4, TCP, UDP, DHCP, DNS, HTTP, HTTPS, NTP, SFTP, SMTP, SNMP, SSH
- Shall support a Web-based AV resource management application that provides a means to manage, monitor, and control AV equipment
- Provide an internal real-time clock with a 30-year backup battery that is used to keep track of the date and time
- Shall include an Extron LinkLicense® for use of third party devices as primary control interfaces
- Provide front panel LED activity indicators for RS-232 status, RS-232/RS-422/RS-485 status, IR/serial status, digital I/O status, relay status, eBUS status, and network status
- Shall support control system synchronization to allow users to retain and recover configured endpoints in case of network or power failure
- Shall be configured using Extron Global Configurator® Plus or Extron Global Configurator Professional with support for the following:
- Provide support for up to eight configurable Extron TouchLink Pro touchpanels
- Provide support for up to eight configurable eBUS button panels
- Provide remote monitoring and control via Ethernet
- Provide the ability to create E-mail notifications
- Provide multiple levels of password protection
- Provide the ability to create schedules and monitors
- Support up to 32 Ethernet-controllable AV devices
- Support local variables and conditional logic
- Support grouping of multiple Extron IP Link® Pro xi control processors to function as one when configured with Global Configurator Professional
- Security Requirements
- Support SFTP and SSH for secure communication between the control processor and a TouchLink Pro touchpanel or Network Button Panel
- Support HTTPS and SSH for secure communication between the control processor and Extron Control App
- Support HTTPS for secure communication between the control processor and Extron Control for Web
- Support SSH for secure communication between the control processor and controlled device for programmed systems
- Support SFTP and SSH for secure communication between the control processor and the configuration or programming software
- Provide the option to modify administrator and user credentials
- Support security updates to maintain network health
- Require that a Secure Socket Layer (SSL) Certificate is installed to maintain system confidentiality and data integrity
- Support the installation of an owner furnished certificate with the following properties:
- Certificates shall include x.509 support
- Certificates shall include public / private key exchange
- Certificates shall support PEM encoding
- Extron shall furnish documentation that describes all supported network ports and services
- Provide AV system control connections
- Control/Remote – RS-232 and IR Pass-Through Over Shielded CATx Requirements
- Provide connections for AV device control
- Two 5-pole captive screw: RS-232 or IR pass-through to DTP twisted pair transmitters
- One 5-pole captive screw: RS-232 or IR pass-through to DTP twisted pair receiver
- Support RS-232 and IR transmission over shielded CATx up to 330 feet (100 meters)
- Provide connections for AV device control
- Control/Remote – Switcher Control Requirements
- Provide connections for remote switcher control
- RJ-45: 10/100Base-T Ethernet
- 3-pole captive screw: RS-232
- Mini USB-B: USB 2.0
- Provide alternatives for configuration and operation
- On-screen menus navigated using front panel controls
- Built-in Web pages accessible using a standard Web browser via Ethernet connection
- Product configuration software connected via Ethernet or USB
- Serial commands sent over Ethernet, RS-232, or USB connection
- Support disabling of front panel controls to prevent inadvertent or unauthorized changes to configuration settings
- Provide connections for remote switcher control
- General Requirements
- Provide real-time verification of signal flow and operation from DTP transmitter or DTP receiver
- Directly readable on RJ-45 signal and link LEDs
- Shall be compatible with all Extron DTP Series models and DTP-enabled products
- Shall be compatible with CATx shielded twisted pair cable, and Extron XTP DTP 24 shielded twisted pair cable
- Shall provide remote power to two remote DTP transmitters and a remote DTP receiver over the shielded CATx connections
- Enclosure shall be rack-mountable, full rack width, and 2RU in height
- Shall be equipped with an internal 100-240 VAC, 50/60 Hz universal power supply
- Shall meet regulatory compliances
- Shall meet safety compliances under CE, c-UL, and UL
- Shall meet EMI/EMC compliances under CE, C-tick, FCC Class A, ICES, and VCCI
- Shall comply with appropriate requirements of RoHS and WEEE
- Shall provide three year parts and labor warranty
- Provide real-time verification of signal flow and operation from DTP transmitter or DTP receiver
- Video Input Requirements
- Approved device shall be the Extron IN1608 xi IPCP Q MA 70 (part number 60-1238-96A); no alternates or equals
- Rack-mountable scaler and switcher for HDMI, HDTV, RGB, and composite video sources and associated digital and analog audio, AV system control, plus signal extension over shielded CATx cable
IN1608 xi IPCP Q MA 70
- Provide a video scaling presentation switcher that shall support up to eight inputs and three outputs for processing and switching of HDMI, HDTV, RGB, and composite video sources, one integrated Extron IP Link Pro xi quad core control processor, plus additional support for signal extension over shielded CATx cable.
- Rack-mountable scaler and switcher for HDMI, HDTV, RGB, and composite video sources and associated digital and analog audio, AV system control, plus signal extension over shielded CATx cable
- Video Input Requirements
- Provide video input connections
- Four HDMI
- Two 15-pin HD, configurable for RGB, component video, S-video, or composite video
- Two RJ-45 for video from Extron DTP® twisted pair transmitters
- Provide automatic detection of input video parameters
- Determine total pixels, active pixels, active lines, H/V starting points, H/V image positions, H/V image sizes, and video clock phase
- The user may selectively enable or disable automatic detection for each input
- Provide image adjustments for brightness, contrast, color, tint, detail, H/V positioning, and sizing
- Provide storage and recall of video parameters and picture settings
- Automatic memories for each video input
- Save video settings and picture adjustments without user intervention
- Automatically recall settings when the same video rate is encountered
- The user may selectively enable or disable automatic memories
- Manual user presets
- Save picture adjustments
- User presets may be saved and recalled using front panel controls
- User presets may be saved and recalled electronically via Ethernet, RS-232, or USB connection
- Manual input presets
- Save video settings and picture adjustments
- Input presets may be saved and recalled electronically via Ethernet, RS-232, or USB connection
- Automatic memories for each video input
- Provide enhanced decoding of composite video
- Decoder shall include a temporal, 3D adaptive comb filter
- Support NTSC 3.58, NTSC 4.42, PAL, and SECAM formats
- Support HDMI specifications including 1080p/60 Deep Color, data rates up to 6.75 Gbps, and HD lossless audio formats
- Provide automatic 3:2 and 2:2 pulldown detection
- Support video transmission over shielded CATx up to 330 feet (100 meters)
- Provide video input connections
- Video Output Requirements
- Provide simultaneous video output connections
- Two HDMI
- One RJ-45 for video to an Extron DTP twisted pair receiver
- Shall be configurable for sending digital video and embedded audio, plus bidirectional RS-232 and IR signals to HDBaseT-enabled displays
- Provide a range of selectable video output rates from 640x480 to 1920x1200, including 1080p/60 and 2048x1080p/60
- Provide image scaling and video format conversion at 30-bit precision and support 1080i deinterlacing
- Provide aspect ratio control
- When in FILL mode, the video image shall always fill the output screen without letterbox or pillarbox
- When in FOLLOW mode, the video image shall always preserve the aspect ratio of the input signals without distortion
- Provide internal test patterns for calibration and setup
- Support image freeze via Ethernet, RS-232, or USB connection
- Support muting of one or all outputs at any time
- Support automatic muting of video and sync output when no video input signal is present
- Provide a choice to generate a blue screen or a black screen before disabling sync
- Provide a configurable timeout period before disabling sync
- The user may selectively enable or disable automatic muting of sync output
- Provide a low power standby state selectable via Ethernet, RS-232, or USB
- Support the connection of DVI displays that do not recognize HDMI-specific formats
- Automatically enable or disable embedded TMDS audio and InfoFrames
- Automatically set the correct color space
- Support video transmission over shielded CATx up to 330 feet (100 meters)
- Provide simultaneous video output connections
- Switching Requirements
- Provide automatic switching between input sources
- Automatically switch to the active input
- Provide a configurable switching priority when multiple inputs are active
- High to low: highest numbered input has priority
- Low to high: lowest numbered input has priority
- Provide selectable transition effects when switching inputs
- Cut: video output shall cut to black, then cut to the newly selected input source
- Fade: video output shall fade to black, then fade into the newly selected input source
- Accompanying audio shall ramp down, then ramp up to match the transition effect
- Provide automatic switching between input sources
- EDID Requirements
- Provide automatic EDID management between connected devices
- Provide a set of pre-stored EDID files
- Support capture of EDID from any connected display
- Support user uploading of custom-generated EDID files
- Support assignment of any pre-stored, captured, or custom uploaded EDID file to any input connection
- Provide automatic EDID management between connected devices
- HDCP Requirements
- The unit shall be HDCP compliant
- Provide authentication and maintain continuous verification of HDCP key exchange with connected sink devices
- Provide authentication and maintain continuous verification of HDCP key exchange with connected source devices
- Provide the option to disable HDCP processing at any HDMI input connection when passing unencrypted content
- Provide selectable, human-readable visual confirmation of HDCP compliance when encrypted content is routed to a non-HDCP compliant display
- When enabled, the video output shall be a solid green color and an on-screen message stating “HDCP CONTENT” shall be displayed
- When disabled, the output shall be muted
- Provide real-time verification of HDCP status for each HDMI input and output
- Directly readable on front panel LEDs
- Electronically accessible over Ethernet, RS-232, or USB connection
- The unit shall be HDCP compliant
- Audio Requirements
- Provide audio input connections
- Four HDMI, embedded
- Six 5-pole captive screw, balanced/unbalanced line level analog stereo
- Two 3-pole captive screw, mono mic/line level with switchable 48 V phantom power
- Two RJ-45, DTP HDMI embedded and analog audio
- Provide audio output connections
- Two simultaneous HDMI, embedded
- Two 5-pole captive screw, with independent output level control and configurable for balanced/unbalanced, analog stereo, or independently mixed analog mono
- One RJ-45, DTP HDMI embedded and analog audio
- 2-pole captive screw, amplified 70 volt mono
- Provide mono 70 volt power amplification with 100 watts rms output
- Support embedding of any analog audio input signal onto the HDMI outputs
- Support extraction of two-channel LPCM HDMI audio signals to the analog stereo outputs, or pass bitstream audio to the HDMI outputs
- Support mixing of program audio with two mic/line inputs, providing three simultaneously available, independently mixed outputs
- Stereo output to HDMI
- Stereo analog audio output
- Stereo or dual mono analog audio output
- Provide the capability to break an analog audio signal away from its corresponding video signal and route to the audio outputs, allowing the analog audio channels to be operated as a separate switcher
- Provide a delay in the audio output to match the corresponding video processing delay
- Provide gain and attenuation adjustments for analog or embedded input audio
- Support individual muting of the analog stereo or HDMI audio inputs
- Support audio transmission over shielded CATx up to 330 feet (100 meters)
- Provide audio input connections
- Integrated Control Processor Requirements
- Provide AV system control connections
- Three RJ-45: 10/100/1000Base-T Ethernet, half/full duplex with auto-detect for connection to a LAN and include link and activity LED indicators located on the left and right of each jack for troubleshooting network issues, these ports will be designated as AV LAN ports allowing for AV devices to be isolated from a corporate network
- AV LAN ports shall support a DHCP server that can distribute 50 dynamic IP addresses with a 24-hour lease
- One RJ-45: 10/100/1000Base-T, half/full duplex with auto-detect for connection to a LAN or WAN and includes link and activity LED indicators located on the left and right of the jack for troubleshooting network issues
- Two 3-pole captive screw: RS-232, configurable for unidirectional or bidirectional control of AV system components
- One 5-pole captive screw: RS-232/RS-422/RS-485, configurable for unidirectional or bidirectional control of AV system components
- Two IR/serial ports on one 5-pole captive screw: IR (using an IR emitter) or unidirectional RS-232 for control of AV system components
- Four low voltage relays on one 6-pole captive screw: configurable for controlling lighting, controlling screens, or other device functions
- Four digital input/output ports on one 5-pole captive screw: configurable for use as an interface with devices such as sensors, switches, LEDs, and relays
- One eBUS® port on a 4-pole captive screw for connecting to eBUS devices
- Shall support the following protocols: ICMP (ping), IEEE 802.1X, IPv4, TCP, UDP, DHCP, DNS, HTTP, HTTPS, NTP, SFTP, SMTP, SNMP, SSH
- Shall support a Web-based AV resource management application that provides a means to manage, monitor, and control AV equipment
- Provide an internal real-time clock with a 30-year backup battery that is used to keep track of the date and time
- Shall include an Extron LinkLicense® for use of third party devices as primary control interfaces
- Provide front panel LED activity indicators for RS-232 status, RS-232/RS-422/RS-485 status, IR/serial status, digital I/O status, relay status, eBUS status, and network status
- Shall support control system synchronization to allow users to retain and recover configured endpoints in case of network or power failure
- Shall be configured using Extron Global Configurator® Plus or Extron Global Configurator Professional with support for the following:
- Provide support for up to eight configurable Extron TouchLink Pro touchpanels
- Provide support for up to eight configurable eBUS button panels
- Provide remote monitoring and control via Ethernet
- Provide the ability to create E-mail notifications
- Provide multiple levels of password protection
- Provide the ability to create schedules and monitors
- Support up to 32 Ethernet-controllable AV devices
- Support local variables and conditional logic
- Support grouping of multiple Extron IP Link® Pro xi control processors to function as one when configured with Global Configurator Professional
- Security Requirements
- Support SFTP and SSH for secure communication between the control processor and a TouchLink Pro touchpanel or Network Button Panel
- Support HTTPS and SSH for secure communication between the control processor and Extron Control App
- Support HTTPS for secure communication between the control processor and Extron Control for Web
- Support SSH for secure communication between the control processor and controlled device for programmed systems
- Support SFTP and SSH for secure communication between the control processor and the configuration or programming software
- Provide the option to modify administrator and user credentials
- Support security updates to maintain network health
- Require that a Secure Socket Layer (SSL) Certificate is installed to maintain system confidentiality and data integrity
- Support the installation of an owner furnished certificate with the following properties:
- Certificates shall include x.509 support
- Certificates shall include public / private key exchange
- Certificates shall support PEM encoding
- Extron shall furnish documentation that describes all supported network ports and services
- Provide AV system control connections
- Control/Remote – RS-232 and IR Pass-Through Over Shielded CATx Requirements
- Provide connections for AV device control
- Two 5-pole captive screw: RS-232 or IR pass-through to DTP twisted pair transmitters
- One 5-pole captive screw: RS-232 or IR pass-through to DTP twisted pair receiver
- Support RS-232 and IR transmission over shielded CATx up to 330 feet (100 meters)
- Provide connections for AV device control
- Control/Remote – Switcher Control Requirements
- Provide connections for remote switcher control
- RJ-45: 10/100Base-T Ethernet
- 3-pole captive screw: RS-232
- Mini USB-B: USB 2.0
- Provide alternatives for configuration and operation
- On-screen menus navigated using front panel controls
- Built-in Web pages accessible using a standard Web browser via Ethernet connection
- Product configuration software connected via Ethernet or USB
- Serial commands sent over Ethernet, RS-232, or USB connection
- Support disabling of front panel controls to prevent inadvertent or unauthorized changes to configuration settings
- Provide connections for remote switcher control
- General Requirements
- Provide real-time verification of signal flow and operation from DTP transmitter or DTP receiver
- Directly readable on RJ-45 signal and link LEDs
- Shall be compatible with all Extron DTP Series models and DTP-enabled products
- Shall be compatible with CATx shielded twisted pair cable, and Extron XTP DTP 24 shielded twisted pair cable
- Shall provide remote power to two remote DTP transmitters and a remote DTP receiver over the shielded CATx connections
- Enclosure shall be rack-mountable, full rack width, and 2RU in height
- Shall be equipped with an internal 100-240 VAC, 50/60 Hz universal power supply
- Shall meet regulatory compliances
- Shall meet safety compliances under CE, c-UL, and UL
- Shall meet EMI/EMC compliances under CE, C-tick, FCC Class A, ICES, and VCCI
- Shall comply with appropriate requirements of RoHS and WEEE
- Shall provide three year parts and labor warranty
- Provide real-time verification of signal flow and operation from DTP transmitter or DTP receiver
- Video Input Requirements
- Approved device shall be the Extron IN1608 xi IPCP Q MA 70 (part number 60-1238-96A); no alternates or equals
- Rack-mountable scaler and switcher for HDMI, HDTV, RGB, and composite video sources and associated digital and analog audio, AV system control, plus signal extension over shielded CATx cable
把商品添加到购物车
Order Message Number
产品编号
注: 使用通用交流电源插座的 Extron 产品可支持多种不同的交流电源插头类型。在使用之前，确保设备满足您所在区域的所有规定要求，并符合所有应用的本地安全和电气规程及标准。
当前总计：
Annotation Graphics Processor
To view this page ensure that Adobe Flash Player version
11.0.0 or greater is installed and enabled.
Chrome
Firefox
Edge
Safari
