DTP3 CrossPoint 42 USB
- Provide a scaling presentation matrix switcher that shall support 4x2 matrix switching of video sources, USB host switching, 4K upscaling and downscaling, and signal extension over shielded CAT 6A cable
- Rack-mountable scaler and matrix switcher for USB-C and HDMI video sources and associated digital and analog audio
- Video input requirements
- Video input connections
- One (1) USB-C for digital video signals
- Shall support USB-C sources with DisplayPort Alt Mode
- Three (3) HDMI inputs for digital video signals
- Shall support HDMI 2.0b specifications including data rates up to 18 Gbps, Deep Color up to 12-bit, and HD lossless audio formats
- One (1) USB-C for digital video signals
- Shall provide automatic 3:2 and 2:2 pulldown detection
- Video input connections
- Video output requirements
- Video output connections
- Two (2) switched video output channels
- One (1) mirrored HDMI/RJ-45 for video to Extron DTP3 twisted pair receivers
- DTP3 output shall provide signal transmission distance capability of 330 feet (100 meters) for all supported video resolutions using a shielded CAT 6A cable
- DTP3 output shall support video, audio, USB data, RS-232, and power transmission over a single shielded CAT 6A cable
- DTP3 output shall be compatible with CAT 6A shielded twisted pair cable, and Extron XTP DTP 22 shielded twisted pair cable
- DTP3 output shall be configurable for compatibility with
- Extron DTP inputs
- Extron DTP3 inputs
- HDBaseT inputs
- DTP3 and HDMI outputs shall support simultaneous content for local monitoring
- One (1) HDMI
- One (1) mirrored HDMI/RJ-45 for video to Extron DTP3 twisted pair receivers
- Shall provide a range of selectable video output rates from 640x480 to 4096x2160 @ 60 Hz
- Shall provide image scaling and video format conversion with 30-bit precision and 4:4:4 chroma sampling
- Shall provide motion adaptive deinterlacing for signals up to 1080i
- Shall provide aspect ratio control
- When in FILL mode, the video image shall always fill the output screen without letterbox or pillarbox
- When in FOLLOW mode, the video image on the output screen shall always preserve the aspect ratio of the input signals without distortion
- Shall provide internal test patterns for calibration and setup
- Shall support image freeze control
- Shall support upload and placement of a custom logo graphic at any position on the video output
- Shall support logo placement as a foreground image
- Shall support uploading logo graphics in BMP, JPG, PNG, GIF, or TIFF format
- Shall support displaying full screen images up to 4096x2160 resolution
- Shall support up to 16 logo presets
- Shall support keying with selectable effects including transparency, color key, level key, and alpha key
- Shall provide a low power standby state selectable via Ethernet or USB
- Shall support the connection of DVI displays that do not recognize HDMI-specific formats
- Automatically enable or disable embedded TMDS audio and InfoFrames
- Automatically set the correct color space
- Shall support selection of output color space as RGB or component video
- Two (2) switched video output channels
- Video output connections
- Video Switching requirements
- Shall provide video matrix switching between any input and any output
- Shall support routing of scaled 4K or UHD video signals to all outputs
- Shall provide selectable transition effects when switching inputs
- Seamless Cut: video output shall freeze, then cut to the newly selected input source
- Seamless Fade: video output shall freeze, then fade into the newly selected input source
- Cut through black: video output shall cut to black, then cut to the newly selected input source
- Fade through black: video output shall fade to black, then fade into the newly selected input source
- Shall provide video matrix switching between any input and any output
- USB data and switching requirements
- USB host connections
- One (1) USB-C, shared with video input 1
- Two (2) USB type B
- Shall support data transfer rates up to USB 10Gbps
- Connections at four-port USB device hub
- Two (2) USB type A
- Shall support transfer rates up to 10 Gbps
- Two (2) USB type A
- Shall support transfer rates up to 480 Mbps
- Two (2) USB type A
- USB extension requirements
- Shall support access to USB devices attached to a remote receiver connected to the DTP3 output
- Shall support transfer rates up to 480 Mbps
- USB host switching requirements
- USB host switching shall be independent of video switching
- Local 10 Gbps device ports shall always follow the selected host
- Local 480 Gbps devices ports shall follow the selected host or be assignable to either USB type B host port regardless of selected host
- USB host connections
- EDID requirements
- Shall provide automatic EDID management between connected devices
- Shall provide a set of pre-stored EDID files
- Shall support capture of EDID from any connected display
- Shall support user uploading of custom-generated EDID files
- Shall support assignment of any pre-stored, captured, or custom uploaded EDID file to any input connection
- Shall provide automatic EDID management between connected devices
- HDCP requirements
- The unit shall be HDCP 2.3 compliant
- Shall provide authentication and maintain continuous verification of HDCP key exchange with connected sink devices
- Shall provide authentication and maintain continuous verification of HDCP key exchange with connected source devices
- Shall provide the option to disable HDCP processing at any input connection when passing unencrypted content
- Shall provide selectable, human-readable visual confirmation of HDCP compliance when encrypted content is routed to a non-HDCP compliant display
- When enabled, the video output shall be a solid green color and an on-screen message stating “HDCP CONTENT” shall be displayed
- When enabled, the option shall be provided to display a user-provided image in place of the green video output
- When disabled, the output shall be muted
- Shall provide real-time verification of HDCP status for each input and output electronically accessible over Ethernet or USB connection
- The unit shall be HDCP 2.3 compliant
- Audio requirements
- Audio input connections
- One (1) USB-C, embedded
- Three (3) HDMI, embedded
- Audio output connections
- One (1) simultaneous DTP3 and HDMI, embedded
- One (1) separately switched HDMI, embedded
- One (1) 5-pole 3.5mm captive screw, with output level control and configurable for balanced/unbalanced, analog stereo or dual mono
- Shall support extraction of two-channel PCM embedded audio signals to the analog stereo output, or pass bitstream audio to the HDMI and DTP3 outputs
- Shall support storage and playback of up to 16 audio files
- Audio input connections
- Control/remote - RS-232 pass-through over shielded CAT 6A requirements
- Shall support Ethernet insertion of RS-232 signals for transmission to a DTP3 endpoint
- Control/remote - switcher requirements
- Control connections
- One (1) RJ-45: 10/100/1000Base-T Ethernet
- One (1) USB-C: USB 2.0
- Shall provide alternatives for configuration and operation
- Front panel controls
- Built-in Web pages accessible using a standard Web browser via Ethernet connection
- Product configuration software connected via Ethernet, or USB
- Serial commands sent over Ethernet or USB connection
- Shall support disabling of front panel controls to prevent inadvertent or unauthorized changes to configuration settings
- Control connections
- Power requirements
- Shall support USB-C device charging up to 60 watts
- Shall provide remote power to DTP3 receivers over the shielded CAT 6A connections
- Shall provide remote power to first-generation DTP receivers over the shielded CAT 6A connections
- General requirements
- Enclosure shall be rack-mountable, half rack width, and 1RU in height
- Shall be equipped with an internal 100-240 VAC, 50/60 Hz universal power supply
- Shall meet regulatory compliances
- Shall meet safety compliances under CE, c-UL, and UL
- Shall meet EMI/EMC compliances under CE, C-tick, FCC Class A, ICES, and VCCI
- Shall comply with appropriate requirements of RoHS and WEEE
- Shall provide three year parts and labor warranty
- Approved device shall be the Extron DTP3 CrossPoint 42 USB(part number 60-1925-02); no alternates or equals
DTP3 CrossPoint 42 USB
- Provide a scaling presentation matrix switcher that shall support 4x2 matrix switching of video sources, USB host switching, 4K upscaling and downscaling, and signal extension over shielded CAT 6A cable
- Rack-mountable scaler and matrix switcher for USB-C and HDMI video sources and associated digital and analog audio
- Video input requirements
- Video input connections
- One (1) USB-C for digital video signals
- Shall support USB-C sources with DisplayPort Alt Mode
- Three (3) HDMI inputs for digital video signals
- Shall support HDMI 2.0b specifications including data rates up to 18 Gbps, Deep Color up to 12-bit, and HD lossless audio formats
- One (1) USB-C for digital video signals
- Shall provide automatic 3:2 and 2:2 pulldown detection
- Video input connections
- Video output requirements
- Video output connections
- Two (2) switched video output channels
- One (1) mirrored HDMI/RJ-45 for video to Extron DTP3 twisted pair receivers
- DTP3 output shall provide signal transmission distance capability of 330 feet (100 meters) for all supported video resolutions using a shielded CAT 6A cable
- DTP3 output shall support video, audio, USB data, RS-232, and power transmission over a single shielded CAT 6A cable
- DTP3 output shall be compatible with CAT 6A shielded twisted pair cable, and Extron XTP DTP 22 shielded twisted pair cable
- DTP3 output shall be configurable for compatibility with
- Extron DTP inputs
- Extron DTP3 inputs
- HDBaseT inputs
- DTP3 and HDMI outputs shall support simultaneous content for local monitoring
- One (1) HDMI
- One (1) mirrored HDMI/RJ-45 for video to Extron DTP3 twisted pair receivers
- Shall provide a range of selectable video output rates from 640x480 to 4096x2160 @ 60 Hz
- Shall provide image scaling and video format conversion with 30-bit precision and 4:4:4 chroma sampling
- Shall provide motion adaptive deinterlacing for signals up to 1080i
- Shall provide aspect ratio control
- When in FILL mode, the video image shall always fill the output screen without letterbox or pillarbox
- When in FOLLOW mode, the video image on the output screen shall always preserve the aspect ratio of the input signals without distortion
- Shall provide internal test patterns for calibration and setup
- Shall support image freeze control
- Shall support upload and placement of a custom logo graphic at any position on the video output
- Shall support logo placement as a foreground image
- Shall support uploading logo graphics in BMP, JPG, PNG, GIF, or TIFF format
- Shall support displaying full screen images up to 4096x2160 resolution
- Shall support up to 16 logo presets
- Shall support keying with selectable effects including transparency, color key, level key, and alpha key
- Shall provide a low power standby state selectable via Ethernet or USB
- Shall support the connection of DVI displays that do not recognize HDMI-specific formats
- Automatically enable or disable embedded TMDS audio and InfoFrames
- Automatically set the correct color space
- Shall support selection of output color space as RGB or component video
- Two (2) switched video output channels
- Video output connections
- Video Switching requirements
- Shall provide video matrix switching between any input and any output
- Shall support routing of scaled 4K or UHD video signals to all outputs
- Shall provide selectable transition effects when switching inputs
- Seamless Cut: video output shall freeze, then cut to the newly selected input source
- Seamless Fade: video output shall freeze, then fade into the newly selected input source
- Cut through black: video output shall cut to black, then cut to the newly selected input source
- Fade through black: video output shall fade to black, then fade into the newly selected input source
- Shall provide video matrix switching between any input and any output
- USB data and switching requirements
- USB host connections
- One (1) USB-C, shared with video input 1
- Two (2) USB type B
- Shall support data transfer rates up to USB 10Gbps
- Connections at four-port USB device hub
- Two (2) USB type A
- Shall support transfer rates up to 10 Gbps
- Two (2) USB type A
- Shall support transfer rates up to 480 Mbps
- Two (2) USB type A
- USB extension requirements
- Shall support access to USB devices attached to a remote receiver connected to the DTP3 output
- Shall support transfer rates up to 480 Mbps
- USB host switching requirements
- USB host switching shall be independent of video switching
- Local 10 Gbps device ports shall always follow the selected host
- Local 480 Gbps devices ports shall follow the selected host or be assignable to either USB type B host port regardless of selected host
- USB host connections
- EDID requirements
- Shall provide automatic EDID management between connected devices
- Shall provide a set of pre-stored EDID files
- Shall support capture of EDID from any connected display
- Shall support user uploading of custom-generated EDID files
- Shall support assignment of any pre-stored, captured, or custom uploaded EDID file to any input connection
- Shall provide automatic EDID management between connected devices
- HDCP requirements
- The unit shall be HDCP 2.3 compliant
- Shall provide authentication and maintain continuous verification of HDCP key exchange with connected sink devices
- Shall provide authentication and maintain continuous verification of HDCP key exchange with connected source devices
- Shall provide the option to disable HDCP processing at any input connection when passing unencrypted content
- Shall provide selectable, human-readable visual confirmation of HDCP compliance when encrypted content is routed to a non-HDCP compliant display
- When enabled, the video output shall be a solid green color and an on-screen message stating “HDCP CONTENT” shall be displayed
- When enabled, the option shall be provided to display a user-provided image in place of the green video output
- When disabled, the output shall be muted
- Shall provide real-time verification of HDCP status for each input and output electronically accessible over Ethernet or USB connection
- The unit shall be HDCP 2.3 compliant
- Audio requirements
- Audio input connections
- One (1) USB-C, embedded
- Three (3) HDMI, embedded
- Audio output connections
- One (1) simultaneous DTP3 and HDMI, embedded
- One (1) separately switched HDMI, embedded
- One (1) 5-pole 3.5mm captive screw, with output level control and configurable for balanced/unbalanced, analog stereo or dual mono
- Shall support extraction of two-channel PCM embedded audio signals to the analog stereo output, or pass bitstream audio to the HDMI and DTP3 outputs
- Shall support storage and playback of up to 16 audio files
- Audio input connections
- Control/remote - RS-232 pass-through over shielded CAT 6A requirements
- Shall support Ethernet insertion of RS-232 signals for transmission to a DTP3 endpoint
- Control/remote - switcher requirements
- Control connections
- One (1) RJ-45: 10/100/1000Base-T Ethernet
- One (1) USB-C: USB 2.0
- Shall provide alternatives for configuration and operation
- Front panel controls
- Built-in Web pages accessible using a standard Web browser via Ethernet connection
- Product configuration software connected via Ethernet, or USB
- Serial commands sent over Ethernet or USB connection
- Shall support disabling of front panel controls to prevent inadvertent or unauthorized changes to configuration settings
- Control connections
- Power requirements
- Shall support USB-C device charging up to 60 watts
- Shall provide remote power to DTP3 receivers over the shielded CAT 6A connections
- Shall provide remote power to first-generation DTP receivers over the shielded CAT 6A connections
- General requirements
- Enclosure shall be rack-mountable, half rack width, and 1RU in height
- Shall be equipped with an internal 100-240 VAC, 50/60 Hz universal power supply
- Shall meet regulatory compliances
- Shall meet safety compliances under CE, c-UL, and UL
- Shall meet EMI/EMC compliances under CE, C-tick, FCC Class A, ICES, and VCCI
- Shall comply with appropriate requirements of RoHS and WEEE
- Shall provide three year parts and labor warranty

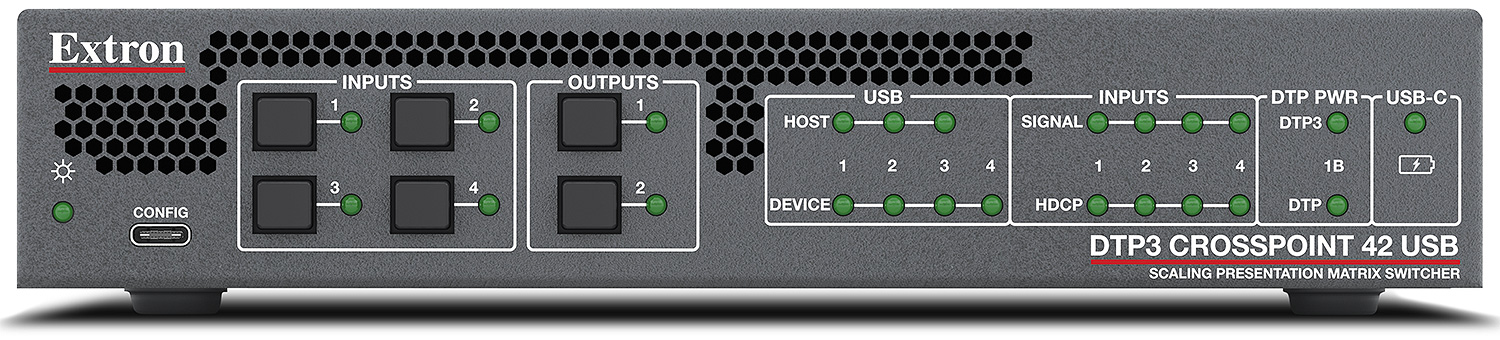

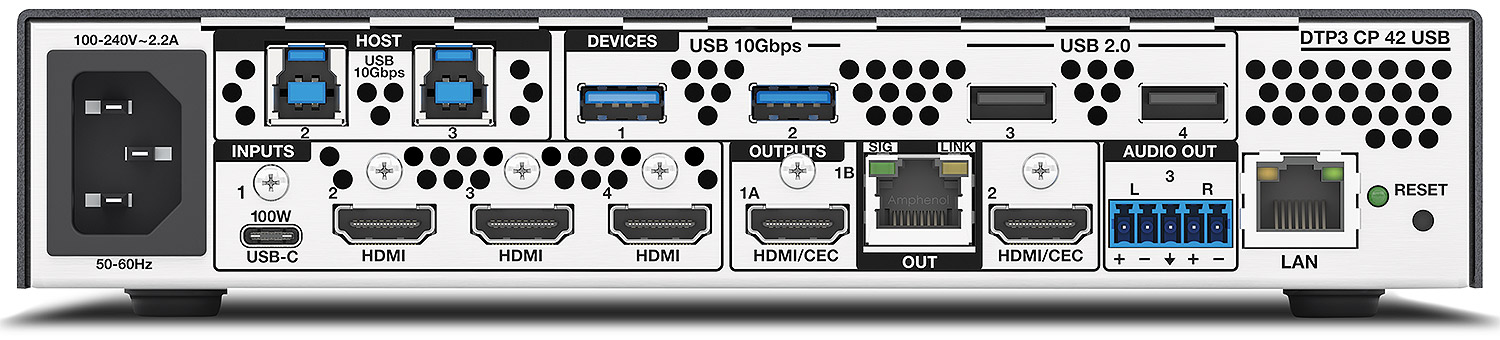

- Approved device shall be the Extron DTP3 CrossPoint 42 USB(part number 60-1925-02); no alternates or equals
DTP3 T CrossPoint 42
- Provide a scaling presentation matrix switcher that shall support 4x2 matrix switching of video sources, 4K upscaling and downscaling, and signal extension over shielded CAT 6A cable
- Rack-mountable scaler and matrix switcher for USB-C and HDMI video sources and associated digital and analog audio
- Video input requirements
- Video input connections
- One (1) USB-C for digital video signals
- Shall support USB-C sources with DisplayPort Alt Mode
- Three (3) HDMI inputs for digital video signals
- Shall support HDMI 2.0b specifications including data rates up to 18 Gbps, Deep Color up to 12-bit, and HD lossless audio formats
- One (1) USB-C for digital video signals
- Shall provide automatic 3:2 and 2:2 pulldown detection
- Video input connections
- Video output requirements
- Video output connections
- Two (2) switched video output channels
- One (1) mirrored HDMI/RJ-45 for video to Extron DTP3 twisted pair receivers
- DTP3 output shall provide signal transmission distance capability of 330 feet (100 meters) for all supported video resolutions using a shielded CAT 6A cable
- DTP3 output shall support video, audio, RS-232, and power transmission over a single shielded CAT 6A cable
- DTP3 output shall be compatible with CAT 6A shielded twisted pair cable, and Extron XTP DTP 22 shielded twisted pair cable
- DTP3 output shall be configurable for compatibility with
- Extron DTP inputs
- Extron DTP3 inputs
- HDBaseT inputs
- DTP3 and HDMI outputs shall support simultaneous content for local monitoring
- One (1) HDMI
- One (1) mirrored HDMI/RJ-45 for video to Extron DTP3 twisted pair receivers
- Shall provide a range of selectable video output rates from 640x480 to 4096x2160 @ 60 Hz
- Shall provide image scaling and video format conversion with 30-bit precision and 4:4:4 chroma sampling
- Shall provide motion adaptive deinterlacing for signals up to 1080i
- Shall provide aspect ratio control
- When in FILL mode, the video image shall always fill the output screen without letterbox or pillarbox
- When in FOLLOW mode, the video image on the output screen shall always preserve the aspect ratio of the input signals without distortion
- Shall provide internal test patterns for calibration and setup
- Shall support image freeze control
- Shall support upload and placement of a custom logo graphic at any position on the video output
- Shall support logo placement as a foreground image
- Shall support uploading logo graphics in BMP, JPG, PNG, GIF, or TIFF format
- Shall support displaying full screen images up to 4096x2160 resolution
- Shall support up to 16 logo presets
- Shall support keying with selectable effects including transparency, color key, level key, and alpha key
- Shall provide a low power standby state selectable via Ethernet or USB
- Shall support the connection of DVI displays that do not recognize HDMI-specific formats
- Automatically enable or disable embedded TMDS audio and InfoFrames
- Automatically set the correct color space
- Shall support selection of output color space as RGB or component video
- Two (2) switched video output channels
- Video output connections
- Video Switching requirements
- Shall provide video matrix switching between any input and any output
- Shall support routing of scaled 4K or UHD video signals to all outputs
- Shall provide selectable transition effects when switching inputs
- Seamless Cut: video output shall freeze, then cut to the newly selected input source
- Seamless Fade: video output shall freeze, then fade into the newly selected input source
- Cut through black: video output shall cut to black, then cut to the newly selected input source
- Fade through black: video output shall fade to black, then fade into the newly selected input source
- Shall provide video matrix switching between any input and any output
- EDID requirements
- Shall provide automatic EDID management between connected devices
- Shall provide a set of pre-stored EDID files
- Shall support capture of EDID from any connected display
- Shall support user uploading of custom-generated EDID files
- Shall support assignment of any pre-stored, captured, or custom uploaded EDID file to any input connection
- Shall provide automatic EDID management between connected devices
- HDCP requirements
- The unit shall be HDCP 2.3 compliant
- Shall provide authentication and maintain continuous verification of HDCP key exchange with connected sink devices
- Shall provide authentication and maintain continuous verification of HDCP key exchange with connected source devices
- Shall provide the option to disable HDCP processing at any input connection when passing unencrypted content
- Shall provide selectable, human-readable visual confirmation of HDCP compliance when encrypted content is routed to a non-HDCP compliant display
- When enabled, the video output shall be a solid green color and an on-screen message stating “HDCP CONTENT” shall be displayed
- When enabled, the option shall be provided to display a user-provided image in place of the green video output
- When disabled, the output shall be muted
- Shall provide real-time verification of HDCP status for each input and output electronically accessible over Ethernet or USB connection
- The unit shall be HDCP 2.3 compliant
- Audio requirements
- Audio input connections
- One (1) USB-C, embedded
- Three (3) HDMI, embedded
- Audio output connections
- One (1) simultaneous DTP3 and HDMI, embedded
- One (1) separately switched HDMI, embedded
- One (1) 5-pole 3.5mm captive screw, with output level control and configurable for balanced/unbalanced, analog stereo or dual mono
- Shall support extraction of two-channel PCM embedded audio signals to the analog stereo output, or pass bitstream audio to the HDMI and DTP3 outputs
- Shall support storage and playback of up to 16 audio files
- Audio input connections
- Control/remote - RS-232 pass-through over shielded CAT 6A requirements
- Shall support Ethernet insertion of RS-232 signals for transmission to a DTP3 endpoint
- Control/remote - switcher requirements
- Control connections
- One (1) RJ-45: 10/100/1000Base-T Ethernet
- One (1) USB-C: USB 2.0
- Shall provide alternatives for configuration and operation
- Front panel controls
- Built-in Web pages accessible using a standard Web browser via Ethernet connection
- Product configuration software connected via Ethernet, or USB
- Serial commands sent over Ethernet or USB connection
- Shall support disabling of front panel controls to prevent inadvertent or unauthorized changes to configuration settings
- Control connections
- Power requirements
- Shall support USB-C device charging up to 60 watts
- Shall provide remote power to DTP3 receivers over the shielded CAT 6A connection
- Shall provide remote power to first-generation receivers over the shielded CAT 6A connection
- General requirements
- Enclosure shall be rack-mountable, half rack width, and 1RU in height
- Shall be equipped with an internal 100-240 VAC, 50/60 Hz universal power supply
- Shall meet regulatory compliances
- Shall meet safety compliances under CE, c-UL, and UL
- Shall meet EMI/EMC compliances under CE, C-tick, FCC Class A, ICES, and VCCI
- Shall comply with appropriate requirements of RoHS and WEEE
- Shall provide three year parts and labor warranty

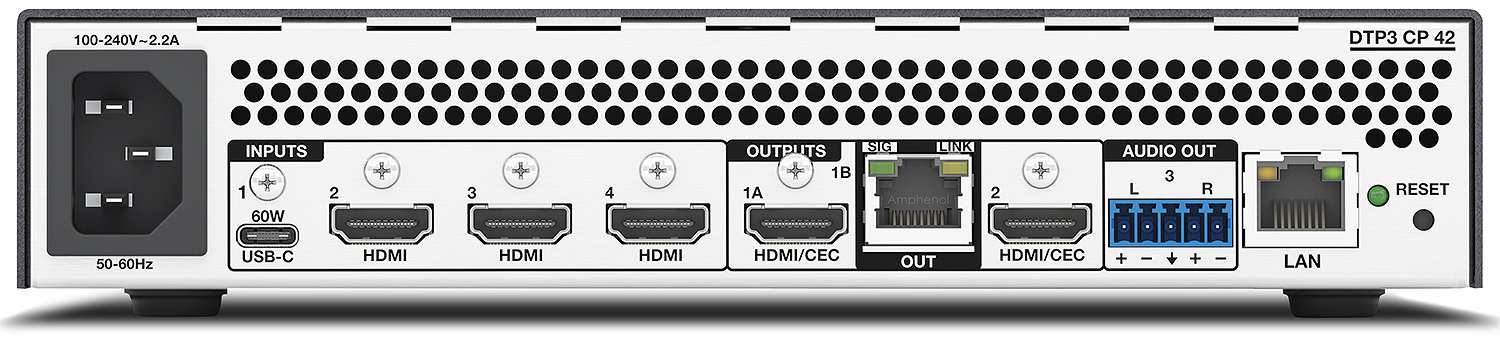

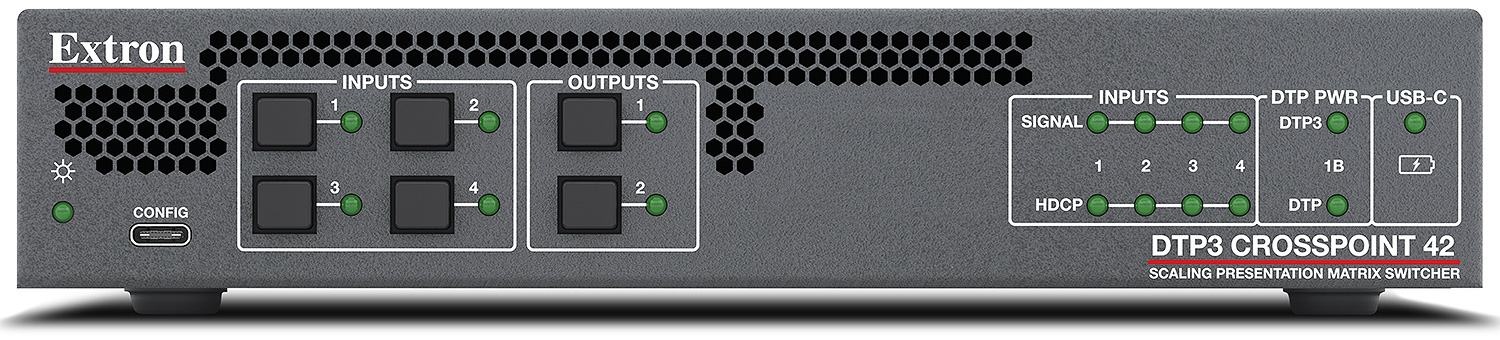

- Approved device shall be the Extron DTP3 CrossPoint 42 (part number 60-1925-01); no alternates or equals
DTP3 T CrossPoint 42
- Provide a scaling presentation matrix switcher that shall support 4x2 matrix switching of video sources, 4K upscaling and downscaling, and signal extension over shielded CAT 6A cable
- Rack-mountable scaler and matrix switcher for USB-C and HDMI video sources and associated digital and analog audio
- Video input requirements
- Video input connections
- One (1) USB-C for digital video signals
- Shall support USB-C sources with DisplayPort Alt Mode
- Three (3) HDMI inputs for digital video signals
- Shall support HDMI 2.0b specifications including data rates up to 18 Gbps, Deep Color up to 12-bit, and HD lossless audio formats
- One (1) USB-C for digital video signals
- Shall provide automatic 3:2 and 2:2 pulldown detection
- Video input connections
- Video output requirements
- Video output connections
- Two (2) switched video output channels
- One (1) mirrored HDMI/RJ-45 for video to Extron DTP3 twisted pair receivers
- DTP3 output shall provide signal transmission distance capability of 330 feet (100 meters) for all supported video resolutions using a shielded CAT 6A cable
- DTP3 output shall support video, audio, RS-232, and power transmission over a single shielded CAT 6A cable
- DTP3 output shall be compatible with CAT 6A shielded twisted pair cable, and Extron XTP DTP 22 shielded twisted pair cable
- DTP3 output shall be configurable for compatibility with
- Extron DTP inputs
- Extron DTP3 inputs
- HDBaseT inputs
- DTP3 and HDMI outputs shall support simultaneous content for local monitoring
- One (1) HDMI
- One (1) mirrored HDMI/RJ-45 for video to Extron DTP3 twisted pair receivers
- Shall provide a range of selectable video output rates from 640x480 to 4096x2160 @ 60 Hz
- Shall provide image scaling and video format conversion with 30-bit precision and 4:4:4 chroma sampling
- Shall provide motion adaptive deinterlacing for signals up to 1080i
- Shall provide aspect ratio control
- When in FILL mode, the video image shall always fill the output screen without letterbox or pillarbox
- When in FOLLOW mode, the video image on the output screen shall always preserve the aspect ratio of the input signals without distortion
- Shall provide internal test patterns for calibration and setup
- Shall support image freeze control
- Shall support upload and placement of a custom logo graphic at any position on the video output
- Shall support logo placement as a foreground image
- Shall support uploading logo graphics in BMP, JPG, PNG, GIF, or TIFF format
- Shall support displaying full screen images up to 4096x2160 resolution
- Shall support up to 16 logo presets
- Shall support keying with selectable effects including transparency, color key, level key, and alpha key
- Shall provide a low power standby state selectable via Ethernet or USB
- Shall support the connection of DVI displays that do not recognize HDMI-specific formats
- Automatically enable or disable embedded TMDS audio and InfoFrames
- Automatically set the correct color space
- Shall support selection of output color space as RGB or component video
- Two (2) switched video output channels
- Video output connections
- Video Switching requirements
- Shall provide video matrix switching between any input and any output
- Shall support routing of scaled 4K or UHD video signals to all outputs
- Shall provide selectable transition effects when switching inputs
- Seamless Cut: video output shall freeze, then cut to the newly selected input source
- Seamless Fade: video output shall freeze, then fade into the newly selected input source
- Cut through black: video output shall cut to black, then cut to the newly selected input source
- Fade through black: video output shall fade to black, then fade into the newly selected input source
- Shall provide video matrix switching between any input and any output
- EDID requirements
- Shall provide automatic EDID management between connected devices
- Shall provide a set of pre-stored EDID files
- Shall support capture of EDID from any connected display
- Shall support user uploading of custom-generated EDID files
- Shall support assignment of any pre-stored, captured, or custom uploaded EDID file to any input connection
- Shall provide automatic EDID management between connected devices
- HDCP requirements
- The unit shall be HDCP 2.3 compliant
- Shall provide authentication and maintain continuous verification of HDCP key exchange with connected sink devices
- Shall provide authentication and maintain continuous verification of HDCP key exchange with connected source devices
- Shall provide the option to disable HDCP processing at any input connection when passing unencrypted content
- Shall provide selectable, human-readable visual confirmation of HDCP compliance when encrypted content is routed to a non-HDCP compliant display
- When enabled, the video output shall be a solid green color and an on-screen message stating “HDCP CONTENT” shall be displayed
- When enabled, the option shall be provided to display a user-provided image in place of the green video output
- When disabled, the output shall be muted
- Shall provide real-time verification of HDCP status for each input and output electronically accessible over Ethernet or USB connection
- The unit shall be HDCP 2.3 compliant
- Audio requirements
- Audio input connections
- One (1) USB-C, embedded
- Three (3) HDMI, embedded
- Audio output connections
- One (1) simultaneous DTP3 and HDMI, embedded
- One (1) separately switched HDMI, embedded
- One (1) 5-pole 3.5mm captive screw, with output level control and configurable for balanced/unbalanced, analog stereo or dual mono
- Shall support extraction of two-channel PCM embedded audio signals to the analog stereo output, or pass bitstream audio to the HDMI and DTP3 outputs
- Shall support storage and playback of up to 16 audio files
- Audio input connections
- Control/remote - RS-232 pass-through over shielded CAT 6A requirements
- Shall support Ethernet insertion of RS-232 signals for transmission to a DTP3 endpoint
- Control/remote - switcher requirements
- Control connections
- One (1) RJ-45: 10/100/1000Base-T Ethernet
- One (1) USB-C: USB 2.0
- Shall provide alternatives for configuration and operation
- Front panel controls
- Built-in Web pages accessible using a standard Web browser via Ethernet connection
- Product configuration software connected via Ethernet, or USB
- Serial commands sent over Ethernet or USB connection
- Shall support disabling of front panel controls to prevent inadvertent or unauthorized changes to configuration settings
- Control connections
- Power requirements
- Shall support USB-C device charging up to 60 watts
- Shall provide remote power to DTP3 receivers over the shielded CAT 6A connection
- Shall provide remote power to first-generation receivers over the shielded CAT 6A connection
- General requirements
- Enclosure shall be rack-mountable, half rack width, and 1RU in height
- Shall be equipped with an internal 100-240 VAC, 50/60 Hz universal power supply
- Shall meet regulatory compliances
- Shall meet safety compliances under CE, c-UL, and UL
- Shall meet EMI/EMC compliances under CE, C-tick, FCC Class A, ICES, and VCCI
- Shall comply with appropriate requirements of RoHS and WEEE
- Shall provide three year parts and labor warranty
- Approved device shall be the Extron DTP3 CrossPoint 42 (part number 60-1925-01); no alternates or equals
把商品添加到购物车
Order Message Number
产品编号
注: 使用通用交流电源插座的 Extron 产品可支持多种不同的交流电源插头类型。在使用之前，确保设备满足您所在区域的所有规定要求，并符合所有应用的本地安全和电气规程及标准。
当前总计：
Annotation Graphics Processor
To view this page ensure that Adobe Flash Player version
11.0.0 or greater is installed and enabled.
Chrome
Firefox
Edge
Safari
