DTP CrossPoint 82 4K
- Provide an 8x2 scaling presentation matrix switcher that shall support up to eight inputs and two outputs for matrix switching of HDMI sources, one digital audio expansion port, 4K upscaling and downscaling, plus additional support for signal extension over shielded CATx cable and audio digital signal processing with AEC.
- Rack-mountable matrix switcher for HDMI and DTP sources and associated digital and analog audio, 4K scaling, signal extension over shielded CATx cable, audio digital signal processing with AEC, and automixing for eight microphone groups
- Video Input Requirements
- Provide video input connections
- Six HDMI
- Two RJ-45 for video from Extron DTP® twisted pair transmitters
- Shall be configurable for compatibility with Extron DTP transmitters or DTP-enabled products
- Shall be configurable for compatibility with Extron XTP® CrossPoint® matrix switchers
- Support 4K and UHD signals at all inputs
- Provide image adjustments for the DTP outputs, including brightness, contrast, color, tint, detail, H/V positioning, and sizing
- Provide storage and recall of video parameters and picture settings when activated for the scaled DTP outputs
- Automatic memories for each video input
- Save video settings and picture adjustments without user intervention
- Automatically recall settings when the same video rate is encountered
- The user may selectively enable or disable automatic memories
- Manual user presets
- Save picture adjustments
- User presets may be saved and recalled using front panel controls
- User presets may be saved and recalled electronically via Ethernet, RS-232, or USB connection
- Manual input presets
- Save video settings and picture adjustments
- Input presets may be saved and recalled electronically via Ethernet, RS-232, or USB connection
- Automatic memories for each video input
- Support HDMI specifications including data rates up to 10.2 Gbps, Deep Color up to 12-bit, 3D, and HD lossless audio formats
- Provide automatic cable equalization for each digital input to 100 feet (30 meters) at 1080p/60 with 8-bit color when used with Extron HDMI Pro cables
- Provide automatic cable equalization for each digital input to 50 feet (15 meters) at 4K/30 and 2560x1600 @ 60 Hz resolutions when used with Extron HDMI Pro cables
- Support video transmission over shielded CATx up to 330 feet (100 meters)
- Provide video input connections
- Video Output Requirements
- Provide video output connections
- Two RJ-45 for video to Extron DTP twisted pair receivers
- Shall be configurable for compatibility with Extron DTP receivers or DTP-enabled products
- Shall be configurable for sending digital video and embedded audio, plus bidirectional RS-232 and IR signals to Extron XTP CrossPoint matrix switchers
- Shall be configurable for sending digital video and embedded audio, plus bidirectional RS-232 and IR signals to HDBaseT-enabled displays
- Shall support mirrored content between both DTP outputs and the two corresponding HDMI outputs for local monitoring
- Two RJ-45 for video to Extron DTP twisted pair receivers
- Provide a range of selectable scaled DTP output rates from 640x480 to 4K, including 2560x1600 and 1080p/60
- Support 4K and UHD signals at the two HDMI outputs
- Provide independent scaling for each DTP output
- Provide image scaling and video format conversion at 30-bit precision for signals up to 4K
- Support motion-adaptive deinterlacing for signals up to 1080i
- Provide aspect ratio control for each scaled DTP output
- When in FILL mode, the video image shall always fill the output screen without letterbox or pillarbox
- When in FOLLOW mode, the video image shall always preserve the aspect ratio of the input signals without distortion
- Provide internal test patterns for the scaled DTP outputs to facilitate system setup and calibration
- Support upload and placement of custom logo graphics at any position on any of the scaled DTP outputs
- Support logo placement as a foreground image
- Shall support uploading logo graphics in BMP, JPG, PNG, or TIFF format
- Shall support displaying full screen images up to 4096x2400 resolution
- Shall support up to 16 logo presets
- Support muting of one or all video outputs at any time
- Support automatic muting of video and sync output when no video signal is present
- Provide a choice to generate a blue screen or a black screen before disabling sync
- Provide a configurable timeout period before disabling sync
- The user may selectively enable or disable automatic muting of sync output
- Support the connection of DVI displays that do not recognize HDMI-specific formats
- Automatically enable or disable embedded TMDS audio and InfoFrames
- Automatically set the correct color space
- Support video transmission over shielded CATx up to 330 feet (100 meters)
- Provide automatic reclocking of HDMI video signals at each HDMI output
- Provide video output connections
- Switching Requirements
- Provide video and audio matrix switching between any input and any output
- Support incoming 4K and UHD signals at all HDMI and DTP inputs
- Support routing of 4K and UHD signals to the two HDMI outputs
- Support routing of scaled 4K or UHD video signals to the two DTP outputs
- Provide storage and recall of input and output ties
- Save video and audio ties between inputs and outputs
- Presets may be recalled using front panel controls
- Presets may be saved and recalled electronically via Ethernet, RS-232, or USB connection
- Provide the ability to view which inputs and outputs are actively connected
- Provide selectable transition effects when switching inputs
- Freeze/Fade: video output shall fade out a final frozen frame of the previous input source as the newly selected input source fades in
- Cut: video output shall cut to black, then cut to the newly selected input source
- Fade: video output shall fade to black, then fade into the newly selected input source
- Provide video and audio matrix switching between any input and any output
- EDID Requirements
- Provide automatic EDID management between connected devices
- Provide a set of pre-stored EDID files
- Support capture of EDID from any connected display
- Support user uploading of custom-generated EDID files
- Support assignment of pre-stored, captured, or custom uploaded EDID files for each input connection
- Provide automatic EDID management between connected devices
- HDCP Requirements
- The unit shall be HDCP compliant
- Provide authentication and maintain continuous verification of HDCP key exchange with connected sink devices
- Provide authentication and maintain continuous verification of HDCP key exchange with connected source devices
- Provide the option to disable HDCP processing at any HDMI input connection when passing unencrypted content
- Provide selectable, human-readable visual confirmation of HDCP compliance when encrypted content is routed to a non-HDCP compliant display
- When enabled, the video output shall be a solid green color and an on-screen message stating “HDCP CONTENT” shall be displayed
- When disabled, the output shall be muted
- Provide real-time verification of HDCP status for each HDMI input and output
- Electronically accessible over Ethernet, RS-232, or USB connection
- The unit shall be HDCP compliant
- Audio Requirements
- Provide audio input connections
- Support embedded audio on six HDMI connectors
- Support embedded and analog audio on two RJ-45 connectors
- Support six stereo line level, balanced or unbalanced signals on six 5-pole, 3.5 mm captive screw connectors
- Support four mono microphone or line level, balanced or unbalanced signals with +48 volt phantom power on four 3-pole, 3.5 mm captive screw connectors
- Provide audio output connections
- Support embedded audio on two HDMI connectors
- Support embedded and analog audio on two RJ-45 connectors
- Support two stereo line level, balanced or unbalanced signals with independent output level control on two 5-pole, 3.5 mm captive screw connectors
- Support S/PDIF digital audio signal on one RCA connector
- Provide 64-bit floating point DSP engine
- Support 32-bit and 64-bit processing algorithms
- Provide a deterministic latency of 3.2 ms from input to output
- Provide additional, deterministic latency of 1.3 ms when Virtual Path routing is used
- Provide additional, deterministic latency of 12 ms when AEC is used
- Support embedding of any analog audio input signal onto the matrix video outputs
- Support extraction of two-channel PCM HDMI audio signals to the analog stereo outputs, or route embedded multi-channel bitstream audio to the HDMI outputs
- Support de-embedding, processing, and re-embedding of two-channel PCM HDMI audio signals onto the HDMI outputs
- Support mixing of program audio and mic/line audio signals
- Support mic audio mixed with program audio onto the HDMI/DTP outputs, variable audio outputs, and S/PDIF audio output
- Provide the capability to break two-channel audio away from its corresponding video signal and route to the audio outputs, allowing the audio and video signals from one source to be switched to different destinations
- Provide adjustable, automatic ducking of program audio when a signal is detected on the microphone input
- Program audio shall automatically ramp up to reach the original volume level when audio is no longer detected on the microphone input
- Support audio transmission over twisted pair up to 330 feet (100 meters)
- Provide audio input connections
- Expansion Port Requirements
- Provide a digital audio expansion port for bidirectional signal routing between the matrix switcher and a connected Extron DMP 128 Digital Matrix Processor
- Support 16 incoming signals and 16 outgoing signals
- Provide uncompressed digital audio at 48 kHz sampling rate with 24-bit resolution
- Automixer Requirements
- Shall provide Automixer Group selection for optional channel assignment into any of eight groups
- Shall provide gated and gain sharing automixer types
- Shall provide Last Mic Open Priority and Chairman Priority modes
- Shall provide Number of Open Microphone parameter from 0 to 12 microphones
- Shall provide Gate Threshold level and adjustable Off Reduction level for gated channels
- Shall provide adjustable parameters for Attack, Hold, and Release times
- Shall provide real-time metering of Signal Level, Gate Status, and Gate Threshold target from within the Automix parameter setup window in the DSP Configuration software
- Shall provide global view with Gate Status indication of all channels assigned to an automixer group, within the DSP Configuration software
- AEC - Acoustic Echo Cancellation Processing Requirements
- Shall provide four independent channels of AEC
- Shall provide real-time software-based metering of Echo Return Loss, Echo Return Loss Enhancement, and Total Echo Reduction levels
- Shall provide real-time indication of remote site activity, local site activity, and AEC processor reconverging
- Shall provide up to 20 dB of selectable noise cancellation for each AEC channel
- Shall provide advanced controls and adjustable parameters for Non-Linear Processing, Double Talk Echo Reduction, and Comfort Noise for each AEC channel
- Shall provide greater than 200 milliseconds of AEC tail length
- Shall provide up to 60 dB per second AEC convergence rate

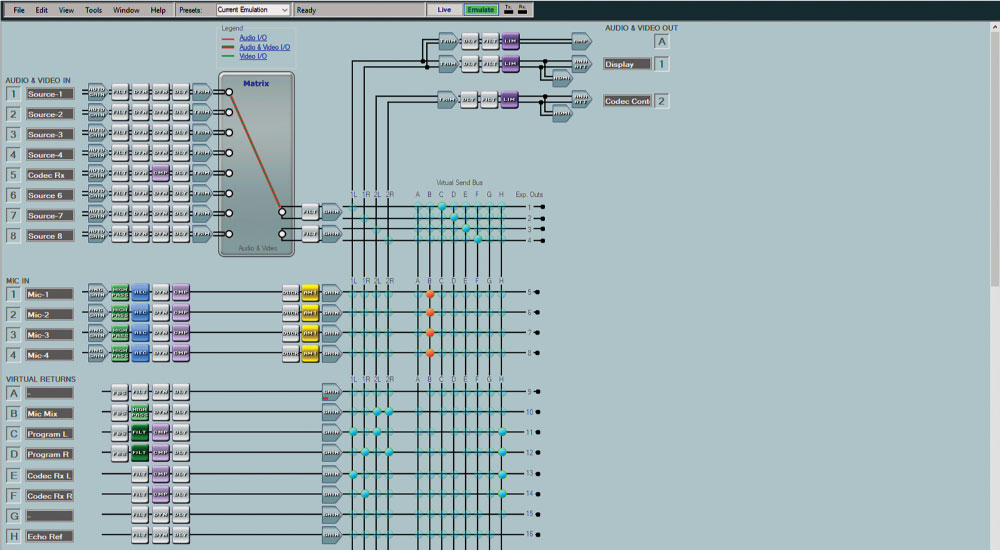

- DSP Configuration Software Requirements
- Shall support PC-based DSP configuration software, allowing flexible control of the integrated digital signal processing
- Shall provide a Live mode for real-time control of parameters without compiling and file uploading to matrix switcher
- Shall provide an Emulate mode for offline configuration
- Shall provide single window view of all inputs and outputs, audio processing blocks, routing, mix points, and virtual routing
- Shall provide setup and configuration of digital signal processing tools including, but not limited to: Filters (high pass, low pass, bass, treble, and parametric EQ); AEC; Dynamics processing (AGC, compressor, limiter, noise gate); Delay processing; Ducking processor; Automixing; Loudness processor; and multiple gain stages
- Shall provide cut and paste editing between processing blocks
- Shall provide matrix routing with integrated mix point gain adjustment between inputs, outputs, virtual sends, virtual returns, expansion inputs, and expansion outputs
- Shall provide a library of pre-designed processor settings for inputs and outputs with user-customizable parameters
- Shall provide 32 Group Master controls for consolidation of up to 28 individual gain or mute control members of the same type into one point of control
- Shall provide Soft Limits settings to define upper and lower control limits on Group Masters for use with external controls
- Shall provide 32 Presets for recall of any processing block setting, level setting, or audio routing; presets shall be saved for the entire system, or any selected partial groups of inputs, outputs, mix points, and DSP blocks
- Shall provide real-time metering of levels within each Input Gain, AEC, AGC, Compressor, Limiter, Noise Gate, Automixer, and Output Volume processing block in Live mode
- Shall support PC-based DSP configuration software, allowing flexible control of the integrated digital signal processing
- Shall provide a Meter Bridge window for real-time metering of all input and output channels with clipping indication in Live mode
- Shall provide keyboard-based navigation of configuration software utilizing directional controls, keyboard shortcuts, and spreadsheet software-style commands
- Shall provide file saving in both Live and Emulate mode
- Shall provide file upload in both Live and Emulate mode
- Shall provide configuration and file saving of the matrix switcher and a linked, compatible Extron digital matrix processor from a single configuration software session
- Control/remote - RS-232 and IR Pass-Through Over Shielded CATx Requirements
- Provide connections for AV device control
- Two 5-pole captive screw: RS-232 or IR pass-through to DTP twisted pair transmitters
- Two 5-pole captive screw: RS-232 or IR pass-through to DTP twisted pair receivers
- Support RS-232 and IR transmission over shielded CATx up to 330 feet (100 meters)
- Provide connections for AV device control
- Control/Remote - Matrix Switcher Requirements
- Provide connections for remote matrix switcher control
- RJ-45: 10/100Base-T Ethernet
- 3-pole captive screw: RS-232
- Mini USB-B: USB 2.0
- Provide alternatives for configuration and operation
- Front panel controls
- Built-in Web pages accessible using a standard Web browser via Ethernet connection
- Product configuration software connected via Ethernet or USB
- Serial commands sent over Ethernet, RS-232, or USB connection
- Support disabling of front panel controls to prevent inadvertent or unauthorized changes to configuration settings
- Provide connections for remote matrix switcher control
- General Requirements
- Provide real-time verification of signal flow and operation from DTP transmitter or DTP receiver
- Directly readable on RJ-45 signal and link LEDs
- Shall be compatible with all Extron DTP Series models, DTP-enabled products, and Extron XTP CrossPoint matrix switchers
- Shall be compatible with CATx shielded twisted pair cable, and Extron XTP DTP 24 shielded twisted pair cable
- Shall provide remote power to two DTP transmitters and two DTP receivers over the shielded CATx connections
- Shall provide power to external peripheral devices on each HDMI output
- Enclosure shall be rack-mountable, full rack width, and 2RU in height
- Shall be equipped with an internal 100-240 VAC, 50/60 Hz universal power supply
- Provide real-time verification of signal flow and operation from DTP transmitter or DTP receiver
- Video Input Requirements
- Approved device shall be the Extron DTP CrossPoint 82 4K (part number 60-1583-01); no alternates or equals
- Rack-mountable matrix switcher for HDMI and DTP sources and associated digital and analog audio, 4K scaling, signal extension over shielded CATx cable, audio digital signal processing with AEC, and automixing for eight microphone groups

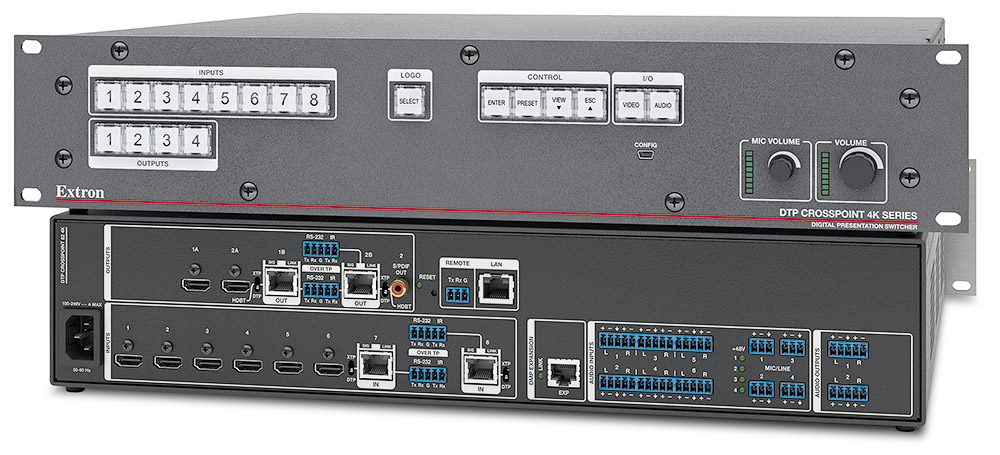

DTP CrossPoint 82 4K
- Provide an 8x2 scaling presentation matrix switcher that shall support up to eight inputs and two outputs for matrix switching of HDMI sources, one digital audio expansion port, 4K upscaling and downscaling, plus additional support for signal extension over shielded CATx cable and audio digital signal processing with AEC.
- Rack-mountable matrix switcher for HDMI and DTP sources and associated digital and analog audio, 4K scaling, signal extension over shielded CATx cable, audio digital signal processing with AEC, and automixing for eight microphone groups
- Video Input Requirements
- Provide video input connections
- Six HDMI
- Two RJ-45 for video from Extron DTP® twisted pair transmitters
- Shall be configurable for compatibility with Extron DTP transmitters or DTP-enabled products
- Shall be configurable for compatibility with Extron XTP® CrossPoint® matrix switchers
- Support 4K and UHD signals at all inputs
- Provide image adjustments for the DTP outputs, including brightness, contrast, color, tint, detail, H/V positioning, and sizing
- Provide storage and recall of video parameters and picture settings when activated for the scaled DTP outputs
- Automatic memories for each video input
- Save video settings and picture adjustments without user intervention
- Automatically recall settings when the same video rate is encountered
- The user may selectively enable or disable automatic memories
- Manual user presets
- Save picture adjustments
- User presets may be saved and recalled using front panel controls
- User presets may be saved and recalled electronically via Ethernet, RS-232, or USB connection
- Manual input presets
- Save video settings and picture adjustments
- Input presets may be saved and recalled electronically via Ethernet, RS-232, or USB connection
- Automatic memories for each video input
- Support HDMI specifications including data rates up to 10.2 Gbps, Deep Color up to 12-bit, 3D, and HD lossless audio formats
- Provide automatic cable equalization for each digital input to 100 feet (30 meters) at 1080p/60 with 8-bit color when used with Extron HDMI Pro cables
- Provide automatic cable equalization for each digital input to 50 feet (15 meters) at 4K/30 and 2560x1600 @ 60 Hz resolutions when used with Extron HDMI Pro cables
- Support video transmission over shielded CATx up to 330 feet (100 meters)
- Provide video input connections
- Video Output Requirements
- Provide video output connections
- Two RJ-45 for video to Extron DTP twisted pair receivers
- Shall be configurable for compatibility with Extron DTP receivers or DTP-enabled products
- Shall be configurable for sending digital video and embedded audio, plus bidirectional RS-232 and IR signals to Extron XTP CrossPoint matrix switchers
- Shall be configurable for sending digital video and embedded audio, plus bidirectional RS-232 and IR signals to HDBaseT-enabled displays
- Shall support mirrored content between both DTP outputs and the two corresponding HDMI outputs for local monitoring
- Two RJ-45 for video to Extron DTP twisted pair receivers
- Provide a range of selectable scaled DTP output rates from 640x480 to 4K, including 2560x1600 and 1080p/60
- Support 4K and UHD signals at the two HDMI outputs
- Provide independent scaling for each DTP output
- Provide image scaling and video format conversion at 30-bit precision for signals up to 4K
- Support motion-adaptive deinterlacing for signals up to 1080i
- Provide aspect ratio control for each scaled DTP output
- When in FILL mode, the video image shall always fill the output screen without letterbox or pillarbox
- When in FOLLOW mode, the video image shall always preserve the aspect ratio of the input signals without distortion
- Provide internal test patterns for the scaled DTP outputs to facilitate system setup and calibration
- Support upload and placement of custom logo graphics at any position on any of the scaled DTP outputs
- Support logo placement as a foreground image
- Shall support uploading logo graphics in BMP, JPG, PNG, or TIFF format
- Shall support displaying full screen images up to 4096x2400 resolution
- Shall support up to 16 logo presets
- Support muting of one or all video outputs at any time
- Support automatic muting of video and sync output when no video signal is present
- Provide a choice to generate a blue screen or a black screen before disabling sync
- Provide a configurable timeout period before disabling sync
- The user may selectively enable or disable automatic muting of sync output
- Support the connection of DVI displays that do not recognize HDMI-specific formats
- Automatically enable or disable embedded TMDS audio and InfoFrames
- Automatically set the correct color space
- Support video transmission over shielded CATx up to 330 feet (100 meters)
- Provide automatic reclocking of HDMI video signals at each HDMI output
- Provide video output connections
- Switching Requirements
- Provide video and audio matrix switching between any input and any output
- Support incoming 4K and UHD signals at all HDMI and DTP inputs
- Support routing of 4K and UHD signals to the two HDMI outputs
- Support routing of scaled 4K or UHD video signals to the two DTP outputs
- Provide storage and recall of input and output ties
- Save video and audio ties between inputs and outputs
- Presets may be recalled using front panel controls
- Presets may be saved and recalled electronically via Ethernet, RS-232, or USB connection
- Provide the ability to view which inputs and outputs are actively connected
- Provide selectable transition effects when switching inputs
- Freeze/Fade: video output shall fade out a final frozen frame of the previous input source as the newly selected input source fades in
- Cut: video output shall cut to black, then cut to the newly selected input source
- Fade: video output shall fade to black, then fade into the newly selected input source
- Provide video and audio matrix switching between any input and any output
- EDID Requirements
- Provide automatic EDID management between connected devices
- Provide a set of pre-stored EDID files
- Support capture of EDID from any connected display
- Support user uploading of custom-generated EDID files
- Support assignment of pre-stored, captured, or custom uploaded EDID files for each input connection
- Provide automatic EDID management between connected devices
- HDCP Requirements
- The unit shall be HDCP compliant
- Provide authentication and maintain continuous verification of HDCP key exchange with connected sink devices
- Provide authentication and maintain continuous verification of HDCP key exchange with connected source devices
- Provide the option to disable HDCP processing at any HDMI input connection when passing unencrypted content
- Provide selectable, human-readable visual confirmation of HDCP compliance when encrypted content is routed to a non-HDCP compliant display
- When enabled, the video output shall be a solid green color and an on-screen message stating “HDCP CONTENT” shall be displayed
- When disabled, the output shall be muted
- Provide real-time verification of HDCP status for each HDMI input and output
- Electronically accessible over Ethernet, RS-232, or USB connection
- The unit shall be HDCP compliant
- Audio Requirements
- Provide audio input connections
- Support embedded audio on six HDMI connectors
- Support embedded and analog audio on two RJ-45 connectors
- Support six stereo line level, balanced or unbalanced signals on six 5-pole, 3.5 mm captive screw connectors
- Support four mono microphone or line level, balanced or unbalanced signals with +48 volt phantom power on four 3-pole, 3.5 mm captive screw connectors
- Provide audio output connections
- Support embedded audio on two HDMI connectors
- Support embedded and analog audio on two RJ-45 connectors
- Support two stereo line level, balanced or unbalanced signals with independent output level control on two 5-pole, 3.5 mm captive screw connectors
- Support S/PDIF digital audio signal on one RCA connector
- Provide 64-bit floating point DSP engine
- Support 32-bit and 64-bit processing algorithms
- Provide a deterministic latency of 3.2 ms from input to output
- Provide additional, deterministic latency of 1.3 ms when Virtual Path routing is used
- Provide additional, deterministic latency of 12 ms when AEC is used
- Support embedding of any analog audio input signal onto the matrix video outputs
- Support extraction of two-channel PCM HDMI audio signals to the analog stereo outputs, or route embedded multi-channel bitstream audio to the HDMI outputs
- Support de-embedding, processing, and re-embedding of two-channel PCM HDMI audio signals onto the HDMI outputs
- Support mixing of program audio and mic/line audio signals
- Support mic audio mixed with program audio onto the HDMI/DTP outputs, variable audio outputs, and S/PDIF audio output
- Provide the capability to break two-channel audio away from its corresponding video signal and route to the audio outputs, allowing the audio and video signals from one source to be switched to different destinations
- Provide adjustable, automatic ducking of program audio when a signal is detected on the microphone input
- Program audio shall automatically ramp up to reach the original volume level when audio is no longer detected on the microphone input
- Support audio transmission over twisted pair up to 330 feet (100 meters)
- Provide audio input connections
- Expansion Port Requirements
- Provide a digital audio expansion port for bidirectional signal routing between the matrix switcher and a connected Extron DMP 128 Digital Matrix Processor
- Support 16 incoming signals and 16 outgoing signals
- Provide uncompressed digital audio at 48 kHz sampling rate with 24-bit resolution
- Automixer Requirements
- Shall provide Automixer Group selection for optional channel assignment into any of eight groups
- Shall provide gated and gain sharing automixer types
- Shall provide Last Mic Open Priority and Chairman Priority modes
- Shall provide Number of Open Microphone parameter from 0 to 12 microphones
- Shall provide Gate Threshold level and adjustable Off Reduction level for gated channels
- Shall provide adjustable parameters for Attack, Hold, and Release times
- Shall provide real-time metering of Signal Level, Gate Status, and Gate Threshold target from within the Automix parameter setup window in the DSP Configuration software
- Shall provide global view with Gate Status indication of all channels assigned to an automixer group, within the DSP Configuration software
- AEC - Acoustic Echo Cancellation Processing Requirements
- Shall provide four independent channels of AEC
- Shall provide real-time software-based metering of Echo Return Loss, Echo Return Loss Enhancement, and Total Echo Reduction levels
- Shall provide real-time indication of remote site activity, local site activity, and AEC processor reconverging
- Shall provide up to 20 dB of selectable noise cancellation for each AEC channel
- Shall provide advanced controls and adjustable parameters for Non-Linear Processing, Double Talk Echo Reduction, and Comfort Noise for each AEC channel
- Shall provide greater than 200 milliseconds of AEC tail length
- Shall provide up to 60 dB per second AEC convergence rate
- DSP Configuration Software Requirements
- Shall support PC-based DSP configuration software, allowing flexible control of the integrated digital signal processing
- Shall provide a Live mode for real-time control of parameters without compiling and file uploading to matrix switcher
- Shall provide an Emulate mode for offline configuration
- Shall provide single window view of all inputs and outputs, audio processing blocks, routing, mix points, and virtual routing
- Shall provide setup and configuration of digital signal processing tools including, but not limited to: Filters (high pass, low pass, bass, treble, and parametric EQ); AEC; Dynamics processing (AGC, compressor, limiter, noise gate); Delay processing; Ducking processor; Automixing; Loudness processor; and multiple gain stages
- Shall provide cut and paste editing between processing blocks
- Shall provide matrix routing with integrated mix point gain adjustment between inputs, outputs, virtual sends, virtual returns, expansion inputs, and expansion outputs
- Shall provide a library of pre-designed processor settings for inputs and outputs with user-customizable parameters
- Shall provide 32 Group Master controls for consolidation of up to 28 individual gain or mute control members of the same type into one point of control
- Shall provide Soft Limits settings to define upper and lower control limits on Group Masters for use with external controls
- Shall provide 32 Presets for recall of any processing block setting, level setting, or audio routing; presets shall be saved for the entire system, or any selected partial groups of inputs, outputs, mix points, and DSP blocks
- Shall provide real-time metering of levels within each Input Gain, AEC, AGC, Compressor, Limiter, Noise Gate, Automixer, and Output Volume processing block in Live mode
- Shall support PC-based DSP configuration software, allowing flexible control of the integrated digital signal processing
- Shall provide a Meter Bridge window for real-time metering of all input and output channels with clipping indication in Live mode
- Shall provide keyboard-based navigation of configuration software utilizing directional controls, keyboard shortcuts, and spreadsheet software-style commands
- Shall provide file saving in both Live and Emulate mode
- Shall provide file upload in both Live and Emulate mode
- Shall provide configuration and file saving of the matrix switcher and a linked, compatible Extron digital matrix processor from a single configuration software session
- Control/remote - RS-232 and IR Pass-Through Over Shielded CATx Requirements
- Provide connections for AV device control
- Two 5-pole captive screw: RS-232 or IR pass-through to DTP twisted pair transmitters
- Two 5-pole captive screw: RS-232 or IR pass-through to DTP twisted pair receivers
- Support RS-232 and IR transmission over shielded CATx up to 330 feet (100 meters)
- Provide connections for AV device control
- Control/Remote - Matrix Switcher Requirements
- Provide connections for remote matrix switcher control
- RJ-45: 10/100Base-T Ethernet
- 3-pole captive screw: RS-232
- Mini USB-B: USB 2.0
- Provide alternatives for configuration and operation
- Front panel controls
- Built-in Web pages accessible using a standard Web browser via Ethernet connection
- Product configuration software connected via Ethernet or USB
- Serial commands sent over Ethernet, RS-232, or USB connection
- Support disabling of front panel controls to prevent inadvertent or unauthorized changes to configuration settings
- Provide connections for remote matrix switcher control
- General Requirements
- Provide real-time verification of signal flow and operation from DTP transmitter or DTP receiver
- Directly readable on RJ-45 signal and link LEDs
- Shall be compatible with all Extron DTP Series models, DTP-enabled products, and Extron XTP CrossPoint matrix switchers
- Shall be compatible with CATx shielded twisted pair cable, and Extron XTP DTP 24 shielded twisted pair cable
- Shall provide remote power to two DTP transmitters and two DTP receivers over the shielded CATx connections
- Shall provide power to external peripheral devices on each HDMI output
- Enclosure shall be rack-mountable, full rack width, and 2RU in height
- Shall be equipped with an internal 100-240 VAC, 50/60 Hz universal power supply
- Provide real-time verification of signal flow and operation from DTP transmitter or DTP receiver
- Video Input Requirements
- Approved device shall be the Extron DTP CrossPoint 82 4K (part number 60-1583-01); no alternates or equals
- Rack-mountable matrix switcher for HDMI and DTP sources and associated digital and analog audio, 4K scaling, signal extension over shielded CATx cable, audio digital signal processing with AEC, and automixing for eight microphone groups

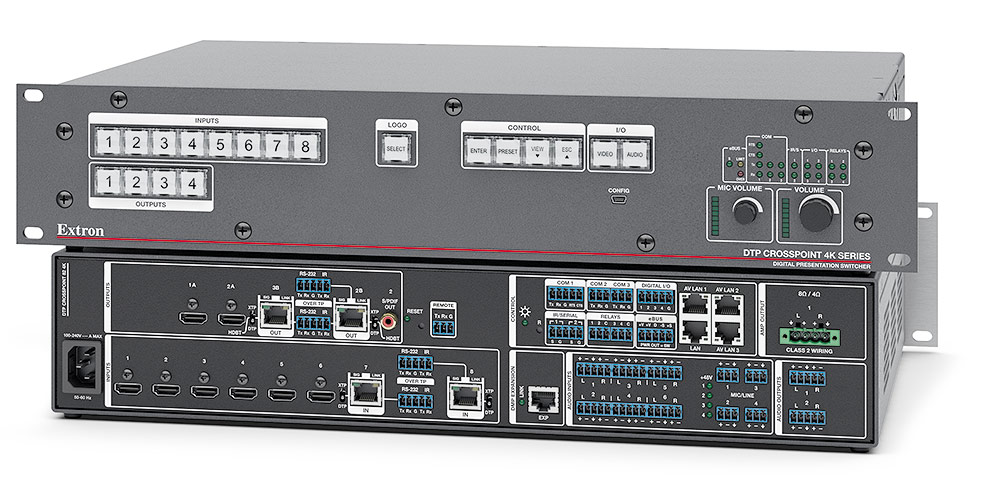

DTP CrossPoint 82 4K IPCP Q SA
- Provide an 8x2 scaling presentation matrix switcher that shall support up to eight inputs and two outputs for matrix switching of HDMI sources, one digital audio expansion port, 4K upscaling and downscaling, one integrated Extron IP Link Pro xi quad core control processor, plus additional support for signal extension over shielded CATx cable and audio digital signal processing with AEC.
- Rack-mountable matrix switcher for HDMI and DTP sources and associated digital and analog audio, AV system control 4K scaling, signal extension over shielded CATx cable, audio digital signal processing with AEC, and automixing for eight microphone groups
- Video Input Requirements
- Provide video input connections
- Six HDMI
- Two RJ-45 for video from Extron DTP® twisted pair transmitters
- Shall be configurable for compatibility with Extron DTP transmitters or DTP-enabled products
- Shall be configurable for compatibility with Extron XTP® CrossPoint® matrix switchers
- Support 4K and UHD signals at all inputs
- Provide image adjustments for the DTP outputs, including brightness, contrast, color, tint, detail, H/V positioning, and sizing
- Provide storage and recall of video parameters and picture settings when activated for the scaled DTP outputs
- Automatic memories for each video input
- Save video settings and picture adjustments without user intervention
- Automatically recall settings when the same video rate is encountered
- The user may selectively enable or disable automatic memories
- Manual user presets
- Save picture adjustments
- User presets may be saved and recalled using front panel controls
- User presets may be saved and recalled electronically via Ethernet, RS-232, or USB connection
- Manual input presets
- Save video settings and picture adjustments
- Input presets may be saved and recalled electronically via Ethernet, RS-232, or USB connection
- Automatic memories for each video input
- Support HDMI specifications including data rates up to 10.2 Gbps, Deep Color up to 12-bit, 3D, and HD lossless audio formats
- Provide automatic cable equalization for each digital input to 100 feet (30 meters) at 1080p/60 with 8-bit color when used with Extron HDMI Pro cables
- Provide automatic cable equalization for each digital input to 50 feet (15 meters) at 4K/30 and 2560x1600 @ 60 Hz resolutions when used with Extron HDMI Pro cables
- Support video transmission over shielded CATx up to 330 feet (100 meters)
- Provide video input connections
- Video Output Requirements
- Provide video output connections
- Two RJ-45 for video to Extron DTP twisted pair receivers
- Shall be configurable for compatibility with Extron DTP receivers or DTP-enabled products
- Shall be configurable for sending digital video and embedded audio, plus bidirectional RS-232 and IR signals to Extron XTP CrossPoint matrix switchers
- Shall be configurable for sending digital video and embedded audio, plus bidirectional RS-232 and IR signals to HDBaseT-enabled displays
- Shall support mirrored content between both DTP outputs and the two corresponding HDMI outputs for local monitoring
- Two RJ-45 for video to Extron DTP twisted pair receivers
- Provide a range of selectable scaled DTP output rates from 640x480 to 4K, including 2560x1600 and 1080p/60
- Support 4K and UHD signals at the two HDMI outputs
- Provide independent scaling for each DTP output
- Provide image scaling and video format conversion at 30-bit precision for signals up to 4K
- Support motion-adaptive deinterlacing for signals up to 1080i
- Provide aspect ratio control for each scaled DTP output
- When in FILL mode, the video image shall always fill the output screen without letterbox or pillarbox
- When in FOLLOW mode, the video image shall always preserve the aspect ratio of the input signals without distortion
- Provide internal test patterns for the scaled DTP outputs to facilitate system setup and calibration
- Support upload and placement of custom logo graphics at any position on any of the scaled DTP outputs
- Support logo placement as a foreground image
- Shall support uploading logo graphics in BMP, JPG, PNG, or TIFF format
- Shall support displaying full screen images up to 4096x2400 resolution
- Shall support up to 16 logo presets
- Support muting of one or all video outputs at any time
- Support automatic muting of video and sync output when no video signal is present
- Provide a choice to generate a blue screen or a black screen before disabling sync
- Provide a configurable timeout period before disabling sync
- The user may selectively enable or disable automatic muting of sync output
- Support the connection of DVI displays that do not recognize HDMI-specific formats
- Automatically enable or disable embedded TMDS audio and InfoFrames
- Automatically set the correct color space
- Support video transmission over shielded CATx up to 330 feet (100 meters)
- Provide automatic reclocking of HDMI video signals at each HDMI output
- Provide video output connections
- Switching Requirements
- Provide video and audio matrix switching between any input and any output
- Support incoming 4K and UHD signals at all HDMI and DTP inputs
- Support routing of 4K and UHD signals to the two HDMI outputs
- Support routing of scaled 4K or UHD video signals to the two DTP outputs
- Provide storage and recall of input and output ties
- Save video and audio ties between inputs and outputs
- Presets may be recalled using front panel controls
- Presets may be saved and recalled electronically via Ethernet, RS-232, or USB connection
- Provide the ability to view which inputs and outputs are actively connected
- Provide selectable transition effects when switching inputs
- Freeze/Fade: video output shall fade out a final frozen frame of the previous input source as the newly selected input source fades in
- Cut: video output shall cut to black, then cut to the newly selected input source
- Fade: video output shall fade to black, then fade into the newly selected input source
- Provide video and audio matrix switching between any input and any output
- EDID Requirements
- Provide automatic EDID management between connected devices
- Provide a set of pre-stored EDID files
- Support capture of EDID from any connected display
- Support user uploading of custom-generated EDID files
- Support assignment of pre-stored, captured, or custom uploaded EDID files for each input connection
- Provide automatic EDID management between connected devices
- HDCP Requirements
- The unit shall be HDCP compliant
- Provide authentication and maintain continuous verification of HDCP key exchange with connected sink devices
- Provide authentication and maintain continuous verification of HDCP key exchange with connected source devices
- Provide the option to disable HDCP processing at any HDMI input connection when passing unencrypted content
- Provide selectable, human-readable visual confirmation of HDCP compliance when encrypted content is routed to a non-HDCP compliant display
- When enabled, the video output shall be a solid green color and an on-screen message stating “HDCP CONTENT” shall be displayed
- When disabled, the output shall be muted
- Provide real-time verification of HDCP status for each HDMI input and output
- Electronically accessible over Ethernet, RS-232, or USB connection
- The unit shall be HDCP compliant
- Audio Requirements
- Provide audio input connections
- Support embedded audio on six HDMI connectors
- Support embedded and analog audio on two RJ-45 connectors
- Support six stereo line level, balanced or unbalanced signals on six 5-pole, 3.5 mm captive screw connectors
- Support four mono microphone or line level, balanced or unbalanced signals with +48 volt phantom power on four 3-pole, 3.5 mm captive screw connectors
- Provide audio output connections
- Support embedded audio on two HDMI connectors
- Support embedded and analog audio on two RJ-45 connectors
- Support two stereo line level, balanced or unbalanced signals with independent output level control on two 5-pole, 3.5 mm captive screw connectors
- Support S/PDIF digital audio signal on one RCA connector
- Support one stereo speaker level signal or two mono speaker level signals on one 4-pole, 5 mm captive screw connector
- Provide stereo amplification for low impedance speaker systems
- Support one stereo speaker level signal or two mono speaker level signals on one 4-pole, 5 mm screw-lock captive screw connector
- Provide a total of 100 watts rms output power with 50 watts rms per channel into 4 ohms, or 25 watts rms per channel into 8 ohms measured at 1 kHz with 0.1% THD
- Provide a THD+N measurement of less than 0.1 % measured at 3 dB below clipping
- Provide a signal-to-noise ratio of greater than 90 dB measured from 20 Hz to 20 kHz, unweighted
- Utilize an efficient Class D amplifier design
- Provide Class D Ripple Suppression technology
- Provide an automatic clip limiter to detect onset of clipping by comparing input and output waveforms and automatically reduce gain with a slow attack and fast release to eliminate clipping distortion
- Provide multiple protection circuits that activate during output shorts, thermal overload, or DC faults
- Provide 64-bit floating point DSP engine
- Support 32-bit and 64-bit processing algorithms
- Provide a deterministic latency of 3.2 ms from input to output
- Provide additional, deterministic latency of 1.3 ms when Virtual Path routing is used
- Provide additional, deterministic latency of 12 ms when AEC is used
- Support embedding of any analog audio input signal onto the matrix video outputs
- Support extraction of two-channel PCM HDMI audio signals to the analog stereo outputs, or route embedded multi-channel bitstream audio to the HDMI outputs
- Support de-embedding, processing, and re-embedding of two-channel PCM HDMI audio signals onto the HDMI outputs
- Support mixing of program audio and mic/line audio signals
- Support mic audio mixed with program audio onto the HDMI/DTP outputs, variable audio outputs, and S/PDIF audio output
- Provide the capability to break two-channel audio away from its corresponding video signal and route to the audio outputs, allowing the audio and video signals from one source to be switched to different destinations
- Provide adjustable, automatic ducking of program audio when a signal is detected on the microphone input
- Program audio shall automatically ramp up to reach the original volume level when audio is no longer detected on the microphone input
- Support audio transmission over twisted pair up to 330 feet (100 meters)
- Provide audio input connections
- Expansion Port Requirements
- Provide a digital audio expansion port for bidirectional signal routing between the matrix switcher and a connected Extron DMP 128 Digital Matrix Processor
- Support 16 incoming signals and 16 outgoing signals
- Provide uncompressed digital audio at 48 kHz sampling rate with 24-bit resolution
- Automixer Requirements
- Shall provide Automixer Group selection for optional channel assignment into any of eight groups
- Shall provide gated and gain sharing automixer types
- Shall provide Last Mic Open Priority and Chairman Priority modes
- Shall provide Number of Open Microphone parameter from 0 to 12 microphones
- Shall provide Gate Threshold level and adjustable Off Reduction level for gated channels
- Shall provide adjustable parameters for Attack, Hold, and Release times
- Shall provide real-time metering of Signal Level, Gate Status, and Gate Threshold target from within the Automix parameter setup window in the DSP Configuration software
- Shall provide global view with Gate Status indication of all channels assigned to an automixer group, within the DSP Configuration software
- AEC - Acoustic Echo Cancellation Processing Requirements
- Shall provide four independent channels of AEC
- Shall provide real-time software-based metering of Echo Return Loss, Echo Return Loss Enhancement, and Total Echo Reduction levels
- Shall provide real-time indication of remote site activity, local site activity, and AEC processor reconverging
- Shall provide up to 20 dB of selectable noise cancellation for each AEC channel
- Shall provide advanced controls and adjustable parameters for Non-Linear Processing, Double Talk Echo Reduction, and Comfort Noise for each AEC channel
- Shall provide greater than 200 milliseconds of AEC tail length
- Shall provide up to 60 dB per second AEC convergence rate
- DSP Configuration Software Requirements
- Shall support PC-based DSP configuration software, allowing flexible control of the integrated digital signal processing
- Shall provide a Live mode for real-time control of parameters without compiling and file uploading to matrix switcher
- Shall provide an Emulate mode for offline configuration
- Shall provide single window view of all inputs and outputs, audio processing blocks, routing, mix points, and virtual routing
- Shall provide setup and configuration of digital signal processing tools including, but not limited to: Filters (high pass, low pass, bass, treble, and parametric EQ); AEC; Dynamics processing (AGC, compressor, limiter, noise gate); Delay processing; Ducking processor; Automixing; Loudness processor; and multiple gain stages
- Shall provide cut and paste editing between processing blocks
- Shall provide matrix routing with integrated mix point gain adjustment between inputs, outputs, virtual sends, virtual returns, expansion inputs, and expansion outputs
- Shall provide a library of pre-designed processor settings for inputs and outputs with user-customizable parameters
- Shall provide 32 Group Master controls for consolidation of up to 28 individual gain or mute control members of the same type into one point of control
- Shall provide Soft Limits settings to define upper and lower control limits on Group Masters for use with external controls
- Shall provide 32 Presets for recall of any processing block setting, level setting, or audio routing; presets shall be saved for the entire system, or any selected partial groups of inputs, outputs, mix points, and DSP blocks
- Shall provide real-time metering of levels within each Input Gain, AEC, AGC, Compressor, Limiter, Noise Gate, Automixer, and Output Volume processing block in Live mode
- Shall provide a Meter Bridge window for real-time metering of all input and output channels with clipping indication in Live mode
- Shall provide keyboard-based navigation of configuration software utilizing directional controls, keyboard shortcuts, and spreadsheet software-style commands
- Shall provide file saving in both Live and Emulate mode
- Shall provide file upload in both Live and Emulate mode
- Shall provide configuration and file saving of the matrix switcher and a linked, compatible Extron digital matrix processor from a single configuration software session
- Shall support PC-based DSP configuration software, allowing flexible control of the integrated digital signal processing
- Integrated Control Processor Requirements
- Provide AV system control connections
- Three RJ-45: 10/100/1000Base-T Ethernet, half/full duplex with auto-detect for connection to a LAN and include link and activity LED indicators located on the left and right of each jack for troubleshooting network issues, these ports will be designated as AV LAN ports allowing for AV devices to be isolated from a corporate network
- AV LAN ports shall support a DHCP server that can distribute 50 dynamic IP addresses with a 24-hour lease
- One RJ-45: 10/100/1000Base-T, half/full duplex with auto-detect for connection to a LAN or WAN and includes link and activity LED indicators located on the left and right of the jack for troubleshooting network issues
- Two 3-pole captive screw: RS-232, configurable for unidirectional or bidirectional control of AV system components
- One 5-pole captive screw: RS-232/RS-422/RS-485, configurable for unidirectional or bidirectional control of AV system components
- Two IR/serial ports on one 5-pole captive screw: IR (using an IR emitter) or unidirectional RS-232 for control of AV system components
- Four low voltage relays on one 6-pole captive screw: configurable for controlling lighting, controlling screens, or other device functions
- Four digital input/output ports on one 5-pole captive screw: configurable for use as an interface with devices such as sensors, switches, LEDs, and relays
- One eBUS® port on a 4-pole captive screw for connecting to eBUS devices
- Shall support the following protocols: ICMP (ping), IEEE 802.1X, IPv4, TCP, UDP, DHCP, DNS, HTTP, HTTPS, NTP, SFTP, SMTP, SNMP, SSH
- Shall support a Web-based AV resource management application that provides a means to manage, monitor, and control AV equipment
- Provide an internal real-time clock with a 30-year backup battery that is used to keep track of the date and time
- Shall support the addition of an Extron LinkLicense® for use of third party devices as primary control interfaces
- Provide front panel LED activity indicators for RS-232 status, RS-232/RS-422/RS-485 status, IR/serial status, digital I/O status, relay status, eBUS status, and network status
- Shall support control system synchronization to allow users to retain and recover configured endpoints in case of network or power failure
- Shall be configured using Extron Global Configurator® Plus or Extron Global Configurator Professional with support for the following:
- Provide support for up to eight configurable Extron TouchLink Pro touchpanels
- Provide support for up to eight configurable eBUS button panels
- Provide remote monitoring and control via Ethernet
- Provide the ability to create E-mail notifications
- Provide multiple levels of password protection
- Provide the ability to create schedules and monitors
- Support up to 32 Ethernet-controllable AV devices
- Support local variables and conditional logic
- Support grouping of multiple Extron IP Link® Pro xi control processors to function as one when configured with Global Configurator Professional
- Security Requirements
- Support SFTP and SSH for secure communication between the control processor and a TouchLink Pro touchpanel or Network Button Panel
- Support HTTPS and SSH for secure communication between the control processor and Extron Control App
- Support HTTPS for secure communication between the control processor and Extron Control for Web
- Support SSH for secure communication between the control processor and controlled device for programmed systems
- Support SFTP and SSH for secure communication between the control processor and the configuration or programming software
- Provide the option to modify administrator and user credentials
- Support security updates to maintain network health
- Require that a Secure Socket Layer (SSL) Certificate is installed to maintain system confidentiality and data integrity
- Support the installation of an owner furnished certificate with the following properties:
- Certificates shall include x.509 support
- Certificates shall include public / private key exchange
- Certificates shall support PEM encoding
- Extron shall furnish documentation that describes all supported network ports and services
- Provide AV system control connections
- Control/remote - RS-232 and IR Pass-Through Over Shielded CATx Requirements
- Provide connections for AV device control
- Two 5-pole captive screw: RS-232 or IR pass-through to DTP twisted pair transmitters
- Two 5-pole captive screw: RS-232 or IR pass-through to DTP twisted pair receivers
- Support RS-232 and IR transmission over shielded CATx up to 330 feet (100 meters)
- Provide connections for AV device control
- Control/Remote - Matrix Switcher Requirements
- Provide connections for remote matrix switcher control
- RJ-45: 10/100Base-T Ethernet
- 3-pole captive screw: RS-232
- Mini USB-B: USB 2.0
- Provide alternatives for configuration and operation
- Front panel controls
- Built-in Web pages accessible using a standard Web browser via Ethernet connection
- Product configuration software connected via Ethernet or USB
- Serial commands sent over Ethernet, RS-232, or USB connection
- Support disabling of front panel controls to prevent inadvertent or unauthorized changes to configuration settings
- Provide connections for remote matrix switcher control
- General Requirements
- Provide real-time verification of signal flow and operation from DTP transmitter or DTP receiver
- Directly readable on RJ-45 signal and link LEDs
- Shall be compatible with all Extron DTP Series models, DTP-enabled products, and Extron XTP CrossPoint matrix switchers
- Shall be compatible with CATx shielded twisted pair cable, and Extron XTP DTP 24 shielded twisted pair cable
- Shall provide remote power to two DTP transmitters and two DTP receivers over the shielded CATx connections
- Shall provide power to external peripheral devices on each HDMI output
- Enclosure shall be rack-mountable, full rack width, and 2RU in height
- Shall be equipped with an internal 100-240 VAC, 50/60 Hz universal power supply
- Provide real-time verification of signal flow and operation from DTP transmitter or DTP receiver
- Video Input Requirements
- Approved device shall be the Extron DTP CrossPoint 82 4K IPCP Q SA (part number 60-1583-92); no alternates or equals
- Rack-mountable matrix switcher for HDMI and DTP sources and associated digital and analog audio, AV system control 4K scaling, signal extension over shielded CATx cable, audio digital signal processing with AEC, and automixing for eight microphone groups
DTP CrossPoint 82 4K IPCP Q SA
- Provide an 8x2 scaling presentation matrix switcher that shall support up to eight inputs and two outputs for matrix switching of HDMI sources, one digital audio expansion port, 4K upscaling and downscaling, one integrated Extron IP Link Pro xi quad core control processor, plus additional support for signal extension over shielded CATx cable and audio digital signal processing with AEC.
- Rack-mountable matrix switcher for HDMI and DTP sources and associated digital and analog audio, AV system control 4K scaling, signal extension over shielded CATx cable, audio digital signal processing with AEC, and automixing for eight microphone groups
- Video Input Requirements
- Provide video input connections
- Six HDMI
- Two RJ-45 for video from Extron DTP® twisted pair transmitters
- Shall be configurable for compatibility with Extron DTP transmitters or DTP-enabled products
- Shall be configurable for compatibility with Extron XTP® CrossPoint® matrix switchers
- Support 4K and UHD signals at all inputs
- Provide image adjustments for the DTP outputs, including brightness, contrast, color, tint, detail, H/V positioning, and sizing
- Provide storage and recall of video parameters and picture settings when activated for the scaled DTP outputs
- Automatic memories for each video input
- Save video settings and picture adjustments without user intervention
- Automatically recall settings when the same video rate is encountered
- The user may selectively enable or disable automatic memories
- Manual user presets
- Save picture adjustments
- User presets may be saved and recalled using front panel controls
- User presets may be saved and recalled electronically via Ethernet, RS-232, or USB connection
- Manual input presets
- Save video settings and picture adjustments
- Input presets may be saved and recalled electronically via Ethernet, RS-232, or USB connection
- Automatic memories for each video input
- Support HDMI specifications including data rates up to 10.2 Gbps, Deep Color up to 12-bit, 3D, and HD lossless audio formats
- Provide automatic cable equalization for each digital input to 100 feet (30 meters) at 1080p/60 with 8-bit color when used with Extron HDMI Pro cables
- Provide automatic cable equalization for each digital input to 50 feet (15 meters) at 4K/30 and 2560x1600 @ 60 Hz resolutions when used with Extron HDMI Pro cables
- Support video transmission over shielded CATx up to 330 feet (100 meters)
- Provide video input connections
- Video Output Requirements
- Provide video output connections
- Two RJ-45 for video to Extron DTP twisted pair receivers
- Shall be configurable for compatibility with Extron DTP receivers or DTP-enabled products
- Shall be configurable for sending digital video and embedded audio, plus bidirectional RS-232 and IR signals to Extron XTP CrossPoint matrix switchers
- Shall be configurable for sending digital video and embedded audio, plus bidirectional RS-232 and IR signals to HDBaseT-enabled displays
- Shall support mirrored content between both DTP outputs and the two corresponding HDMI outputs for local monitoring
- Two RJ-45 for video to Extron DTP twisted pair receivers
- Provide a range of selectable scaled DTP output rates from 640x480 to 4K, including 2560x1600 and 1080p/60
- Support 4K and UHD signals at the two HDMI outputs
- Provide independent scaling for each DTP output
- Provide image scaling and video format conversion at 30-bit precision for signals up to 4K
- Support motion-adaptive deinterlacing for signals up to 1080i
- Provide aspect ratio control for each scaled DTP output
- When in FILL mode, the video image shall always fill the output screen without letterbox or pillarbox
- When in FOLLOW mode, the video image shall always preserve the aspect ratio of the input signals without distortion
- Provide internal test patterns for the scaled DTP outputs to facilitate system setup and calibration
- Support upload and placement of custom logo graphics at any position on any of the scaled DTP outputs
- Support logo placement as a foreground image
- Shall support uploading logo graphics in BMP, JPG, PNG, or TIFF format
- Shall support displaying full screen images up to 4096x2400 resolution
- Shall support up to 16 logo presets
- Support muting of one or all video outputs at any time
- Support automatic muting of video and sync output when no video signal is present
- Provide a choice to generate a blue screen or a black screen before disabling sync
- Provide a configurable timeout period before disabling sync
- The user may selectively enable or disable automatic muting of sync output
- Support the connection of DVI displays that do not recognize HDMI-specific formats
- Automatically enable or disable embedded TMDS audio and InfoFrames
- Automatically set the correct color space
- Support video transmission over shielded CATx up to 330 feet (100 meters)
- Provide automatic reclocking of HDMI video signals at each HDMI output
- Provide video output connections
- Switching Requirements
- Provide video and audio matrix switching between any input and any output
- Support incoming 4K and UHD signals at all HDMI and DTP inputs
- Support routing of 4K and UHD signals to the two HDMI outputs
- Support routing of scaled 4K or UHD video signals to the two DTP outputs
- Provide storage and recall of input and output ties
- Save video and audio ties between inputs and outputs
- Presets may be recalled using front panel controls
- Presets may be saved and recalled electronically via Ethernet, RS-232, or USB connection
- Provide the ability to view which inputs and outputs are actively connected
- Provide selectable transition effects when switching inputs
- Freeze/Fade: video output shall fade out a final frozen frame of the previous input source as the newly selected input source fades in
- Cut: video output shall cut to black, then cut to the newly selected input source
- Fade: video output shall fade to black, then fade into the newly selected input source
- Provide video and audio matrix switching between any input and any output
- EDID Requirements
- Provide automatic EDID management between connected devices
- Provide a set of pre-stored EDID files
- Support capture of EDID from any connected display
- Support user uploading of custom-generated EDID files
- Support assignment of pre-stored, captured, or custom uploaded EDID files for each input connection
- Provide automatic EDID management between connected devices
- HDCP Requirements
- The unit shall be HDCP compliant
- Provide authentication and maintain continuous verification of HDCP key exchange with connected sink devices
- Provide authentication and maintain continuous verification of HDCP key exchange with connected source devices
- Provide the option to disable HDCP processing at any HDMI input connection when passing unencrypted content
- Provide selectable, human-readable visual confirmation of HDCP compliance when encrypted content is routed to a non-HDCP compliant display
- When enabled, the video output shall be a solid green color and an on-screen message stating “HDCP CONTENT” shall be displayed
- When disabled, the output shall be muted
- Provide real-time verification of HDCP status for each HDMI input and output
- Electronically accessible over Ethernet, RS-232, or USB connection
- The unit shall be HDCP compliant
- Audio Requirements
- Provide audio input connections
- Support embedded audio on six HDMI connectors
- Support embedded and analog audio on two RJ-45 connectors
- Support six stereo line level, balanced or unbalanced signals on six 5-pole, 3.5 mm captive screw connectors
- Support four mono microphone or line level, balanced or unbalanced signals with +48 volt phantom power on four 3-pole, 3.5 mm captive screw connectors
- Provide audio output connections
- Support embedded audio on two HDMI connectors
- Support embedded and analog audio on two RJ-45 connectors
- Support two stereo line level, balanced or unbalanced signals with independent output level control on two 5-pole, 3.5 mm captive screw connectors
- Support S/PDIF digital audio signal on one RCA connector
- Support one stereo speaker level signal or two mono speaker level signals on one 4-pole, 5 mm captive screw connector
- Provide stereo amplification for low impedance speaker systems
- Support one stereo speaker level signal or two mono speaker level signals on one 4-pole, 5 mm screw-lock captive screw connector
- Provide a total of 100 watts rms output power with 50 watts rms per channel into 4 ohms, or 25 watts rms per channel into 8 ohms measured at 1 kHz with 0.1% THD
- Provide a THD+N measurement of less than 0.1 % measured at 3 dB below clipping
- Provide a signal-to-noise ratio of greater than 90 dB measured from 20 Hz to 20 kHz, unweighted
- Utilize an efficient Class D amplifier design
- Provide Class D Ripple Suppression technology
- Provide an automatic clip limiter to detect onset of clipping by comparing input and output waveforms and automatically reduce gain with a slow attack and fast release to eliminate clipping distortion
- Provide multiple protection circuits that activate during output shorts, thermal overload, or DC faults
- Provide 64-bit floating point DSP engine
- Support 32-bit and 64-bit processing algorithms
- Provide a deterministic latency of 3.2 ms from input to output
- Provide additional, deterministic latency of 1.3 ms when Virtual Path routing is used
- Provide additional, deterministic latency of 12 ms when AEC is used
- Support embedding of any analog audio input signal onto the matrix video outputs
- Support extraction of two-channel PCM HDMI audio signals to the analog stereo outputs, or route embedded multi-channel bitstream audio to the HDMI outputs
- Support de-embedding, processing, and re-embedding of two-channel PCM HDMI audio signals onto the HDMI outputs
- Support mixing of program audio and mic/line audio signals
- Support mic audio mixed with program audio onto the HDMI/DTP outputs, variable audio outputs, and S/PDIF audio output
- Provide the capability to break two-channel audio away from its corresponding video signal and route to the audio outputs, allowing the audio and video signals from one source to be switched to different destinations
- Provide adjustable, automatic ducking of program audio when a signal is detected on the microphone input
- Program audio shall automatically ramp up to reach the original volume level when audio is no longer detected on the microphone input
- Support audio transmission over twisted pair up to 330 feet (100 meters)
- Provide audio input connections
- Expansion Port Requirements
- Provide a digital audio expansion port for bidirectional signal routing between the matrix switcher and a connected Extron DMP 128 Digital Matrix Processor
- Support 16 incoming signals and 16 outgoing signals
- Provide uncompressed digital audio at 48 kHz sampling rate with 24-bit resolution
- Automixer Requirements
- Shall provide Automixer Group selection for optional channel assignment into any of eight groups
- Shall provide gated and gain sharing automixer types
- Shall provide Last Mic Open Priority and Chairman Priority modes
- Shall provide Number of Open Microphone parameter from 0 to 12 microphones
- Shall provide Gate Threshold level and adjustable Off Reduction level for gated channels
- Shall provide adjustable parameters for Attack, Hold, and Release times
- Shall provide real-time metering of Signal Level, Gate Status, and Gate Threshold target from within the Automix parameter setup window in the DSP Configuration software
- Shall provide global view with Gate Status indication of all channels assigned to an automixer group, within the DSP Configuration software
- AEC - Acoustic Echo Cancellation Processing Requirements
- Shall provide four independent channels of AEC
- Shall provide real-time software-based metering of Echo Return Loss, Echo Return Loss Enhancement, and Total Echo Reduction levels
- Shall provide real-time indication of remote site activity, local site activity, and AEC processor reconverging
- Shall provide up to 20 dB of selectable noise cancellation for each AEC channel
- Shall provide advanced controls and adjustable parameters for Non-Linear Processing, Double Talk Echo Reduction, and Comfort Noise for each AEC channel
- Shall provide greater than 200 milliseconds of AEC tail length
- Shall provide up to 60 dB per second AEC convergence rate
- DSP Configuration Software Requirements
- Shall support PC-based DSP configuration software, allowing flexible control of the integrated digital signal processing
- Shall provide a Live mode for real-time control of parameters without compiling and file uploading to matrix switcher
- Shall provide an Emulate mode for offline configuration
- Shall provide single window view of all inputs and outputs, audio processing blocks, routing, mix points, and virtual routing
- Shall provide setup and configuration of digital signal processing tools including, but not limited to: Filters (high pass, low pass, bass, treble, and parametric EQ); AEC; Dynamics processing (AGC, compressor, limiter, noise gate); Delay processing; Ducking processor; Automixing; Loudness processor; and multiple gain stages
- Shall provide cut and paste editing between processing blocks
- Shall provide matrix routing with integrated mix point gain adjustment between inputs, outputs, virtual sends, virtual returns, expansion inputs, and expansion outputs
- Shall provide a library of pre-designed processor settings for inputs and outputs with user-customizable parameters
- Shall provide 32 Group Master controls for consolidation of up to 28 individual gain or mute control members of the same type into one point of control
- Shall provide Soft Limits settings to define upper and lower control limits on Group Masters for use with external controls
- Shall provide 32 Presets for recall of any processing block setting, level setting, or audio routing; presets shall be saved for the entire system, or any selected partial groups of inputs, outputs, mix points, and DSP blocks
- Shall provide real-time metering of levels within each Input Gain, AEC, AGC, Compressor, Limiter, Noise Gate, Automixer, and Output Volume processing block in Live mode
- Shall provide a Meter Bridge window for real-time metering of all input and output channels with clipping indication in Live mode
- Shall provide keyboard-based navigation of configuration software utilizing directional controls, keyboard shortcuts, and spreadsheet software-style commands
- Shall provide file saving in both Live and Emulate mode
- Shall provide file upload in both Live and Emulate mode
- Shall provide configuration and file saving of the matrix switcher and a linked, compatible Extron digital matrix processor from a single configuration software session
- Shall support PC-based DSP configuration software, allowing flexible control of the integrated digital signal processing
- Integrated Control Processor Requirements
- Provide AV system control connections
- Three RJ-45: 10/100/1000Base-T Ethernet, half/full duplex with auto-detect for connection to a LAN and include link and activity LED indicators located on the left and right of each jack for troubleshooting network issues, these ports will be designated as AV LAN ports allowing for AV devices to be isolated from a corporate network
- AV LAN ports shall support a DHCP server that can distribute 50 dynamic IP addresses with a 24-hour lease
- One RJ-45: 10/100/1000Base-T, half/full duplex with auto-detect for connection to a LAN or WAN and includes link and activity LED indicators located on the left and right of the jack for troubleshooting network issues
- Two 3-pole captive screw: RS-232, configurable for unidirectional or bidirectional control of AV system components
- One 5-pole captive screw: RS-232/RS-422/RS-485, configurable for unidirectional or bidirectional control of AV system components
- Two IR/serial ports on one 5-pole captive screw: IR (using an IR emitter) or unidirectional RS-232 for control of AV system components
- Four low voltage relays on one 6-pole captive screw: configurable for controlling lighting, controlling screens, or other device functions
- Four digital input/output ports on one 5-pole captive screw: configurable for use as an interface with devices such as sensors, switches, LEDs, and relays
- One eBUS® port on a 4-pole captive screw for connecting to eBUS devices
- Shall support the following protocols: ICMP (ping), IEEE 802.1X, IPv4, TCP, UDP, DHCP, DNS, HTTP, HTTPS, NTP, SFTP, SMTP, SNMP, SSH
- Shall support a Web-based AV resource management application that provides a means to manage, monitor, and control AV equipment
- Provide an internal real-time clock with a 30-year backup battery that is used to keep track of the date and time
- Shall support the addition of an Extron LinkLicense® for use of third party devices as primary control interfaces
- Provide front panel LED activity indicators for RS-232 status, RS-232/RS-422/RS-485 status, IR/serial status, digital I/O status, relay status, eBUS status, and network status
- Shall support control system synchronization to allow users to retain and recover configured endpoints in case of network or power failure
- Shall be configured using Extron Global Configurator® Plus or Extron Global Configurator Professional with support for the following:
- Provide support for up to eight configurable Extron TouchLink Pro touchpanels
- Provide support for up to eight configurable eBUS button panels
- Provide remote monitoring and control via Ethernet
- Provide the ability to create E-mail notifications
- Provide multiple levels of password protection
- Provide the ability to create schedules and monitors
- Support up to 32 Ethernet-controllable AV devices
- Support local variables and conditional logic
- Support grouping of multiple Extron IP Link® Pro xi control processors to function as one when configured with Global Configurator Professional
- Security Requirements
- Support SFTP and SSH for secure communication between the control processor and a TouchLink Pro touchpanel or Network Button Panel
- Support HTTPS and SSH for secure communication between the control processor and Extron Control App
- Support HTTPS for secure communication between the control processor and Extron Control for Web
- Support SSH for secure communication between the control processor and controlled device for programmed systems
- Support SFTP and SSH for secure communication between the control processor and the configuration or programming software
- Provide the option to modify administrator and user credentials
- Support security updates to maintain network health
- Require that a Secure Socket Layer (SSL) Certificate is installed to maintain system confidentiality and data integrity
- Support the installation of an owner furnished certificate with the following properties:
- Certificates shall include x.509 support
- Certificates shall include public / private key exchange
- Certificates shall support PEM encoding
- Extron shall furnish documentation that describes all supported network ports and services
- Provide AV system control connections
- Control/remote - RS-232 and IR Pass-Through Over Shielded CATx Requirements
- Provide connections for AV device control
- Two 5-pole captive screw: RS-232 or IR pass-through to DTP twisted pair transmitters
- Two 5-pole captive screw: RS-232 or IR pass-through to DTP twisted pair receivers
- Support RS-232 and IR transmission over shielded CATx up to 330 feet (100 meters)
- Provide connections for AV device control
- Control/Remote - Matrix Switcher Requirements
- Provide connections for remote matrix switcher control
- RJ-45: 10/100Base-T Ethernet
- 3-pole captive screw: RS-232
- Mini USB-B: USB 2.0
- Provide alternatives for configuration and operation
- Front panel controls
- Built-in Web pages accessible using a standard Web browser via Ethernet connection
- Product configuration software connected via Ethernet or USB
- Serial commands sent over Ethernet, RS-232, or USB connection
- Support disabling of front panel controls to prevent inadvertent or unauthorized changes to configuration settings
- Provide connections for remote matrix switcher control
- General Requirements
- Provide real-time verification of signal flow and operation from DTP transmitter or DTP receiver
- Directly readable on RJ-45 signal and link LEDs
- Shall be compatible with all Extron DTP Series models, DTP-enabled products, and Extron XTP CrossPoint matrix switchers
- Shall be compatible with CATx shielded twisted pair cable, and Extron XTP DTP 24 shielded twisted pair cable
- Shall provide remote power to two DTP transmitters and two DTP receivers over the shielded CATx connections
- Shall provide power to external peripheral devices on each HDMI output
- Enclosure shall be rack-mountable, full rack width, and 2RU in height
- Shall be equipped with an internal 100-240 VAC, 50/60 Hz universal power supply
- Provide real-time verification of signal flow and operation from DTP transmitter or DTP receiver
- Video Input Requirements
- Approved device shall be the Extron DTP CrossPoint 82 4K IPCP Q SA (part number 60-1583-92); no alternates or equals
- Rack-mountable matrix switcher for HDMI and DTP sources and associated digital and analog audio, AV system control 4K scaling, signal extension over shielded CATx cable, audio digital signal processing with AEC, and automixing for eight microphone groups
DTP CrossPoint 82 4K IPCP Q SA
- Provide an 8x2 scaling presentation matrix switcher that shall support up to eight inputs and two outputs for matrix switching of HDMI sources, one digital audio expansion port, 4K upscaling and downscaling, one integrated Extron IP Link Pro xi quad core control processor, plus additional support for signal extension over shielded CATx cable and audio digital signal processing with AEC.
- Rack-mountable matrix switcher for HDMI and DTP sources and associated digital and analog audio, AV system control 4K scaling, signal extension over shielded CATx cable, audio digital signal processing with AEC, and automixing for eight microphone groups
- Video Input Requirements
- Provide video input connections
- Six HDMI
- Two RJ-45 for video from Extron DTP® twisted pair transmitters
- Shall be configurable for compatibility with Extron DTP transmitters or DTP-enabled products
- Shall be configurable for compatibility with Extron XTP® CrossPoint® matrix switchers
- Support 4K and UHD signals at all inputs
- Provide image adjustments for the DTP outputs, including brightness, contrast, color, tint, detail, H/V positioning, and sizing
- Provide storage and recall of video parameters and picture settings when activated for the scaled DTP outputs
- Automatic memories for each video input
- Save video settings and picture adjustments without user intervention
- Automatically recall settings when the same video rate is encountered
- The user may selectively enable or disable automatic memories
- Manual user presets
- Save picture adjustments
- User presets may be saved and recalled using front panel controls
- User presets may be saved and recalled electronically via Ethernet, RS-232, or USB connection
- Manual input presets
- Save video settings and picture adjustments
- Input presets may be saved and recalled electronically via Ethernet, RS-232, or USB connection
- Automatic memories for each video input
- Support HDMI specifications including data rates up to 10.2 Gbps, Deep Color up to 12-bit, 3D, and HD lossless audio formats
- Provide automatic cable equalization for each digital input to 100 feet (30 meters) at 1080p/60 with 8-bit color when used with Extron HDMI Pro cables
- Provide automatic cable equalization for each digital input to 50 feet (15 meters) at 4K/30 and 2560x1600 @ 60 Hz resolutions when used with Extron HDMI Pro cables
- Support video transmission over shielded CATx up to 330 feet (100 meters)
- Provide video input connections
- Video Output Requirements
- Provide video output connections
- Two RJ-45 for video to Extron DTP twisted pair receivers
- Shall be configurable for compatibility with Extron DTP receivers or DTP-enabled products
- Shall be configurable for sending digital video and embedded audio, plus bidirectional RS-232 and IR signals to Extron XTP CrossPoint matrix switchers
- Shall be configurable for sending digital video and embedded audio, plus bidirectional RS-232 and IR signals to HDBaseT-enabled displays
- Shall support mirrored content between both DTP outputs and the two corresponding HDMI outputs for local monitoring
- Two RJ-45 for video to Extron DTP twisted pair receivers
- Provide a range of selectable scaled DTP output rates from 640x480 to 4K, including 2560x1600 and 1080p/60
- Support 4K and UHD signals at the two HDMI outputs
- Provide independent scaling for each DTP output
- Provide image scaling and video format conversion at 30-bit precision for signals up to 4K
- Support motion-adaptive deinterlacing for signals up to 1080i
- Provide aspect ratio control for each scaled DTP output
- When in FILL mode, the video image shall always fill the output screen without letterbox or pillarbox
- When in FOLLOW mode, the video image shall always preserve the aspect ratio of the input signals without distortion
- Provide internal test patterns for the scaled DTP outputs to facilitate system setup and calibration
- Support upload and placement of custom logo graphics at any position on any of the scaled DTP outputs
- Support logo placement as a foreground image
- Shall support uploading logo graphics in BMP, JPG, PNG, or TIFF format
- Shall support displaying full screen images up to 4096x2400 resolution
- Shall support up to 16 logo presets
- Support muting of one or all video outputs at any time
- Support automatic muting of video and sync output when no video signal is present
- Provide a choice to generate a blue screen or a black screen before disabling sync
- Provide a configurable timeout period before disabling sync
- The user may selectively enable or disable automatic muting of sync output
- Support the connection of DVI displays that do not recognize HDMI-specific formats
- Automatically enable or disable embedded TMDS audio and InfoFrames
- Automatically set the correct color space
- Support video transmission over shielded CATx up to 330 feet (100 meters)
- Provide automatic reclocking of HDMI video signals at each HDMI output
- Provide video output connections
- Switching Requirements
- Provide video and audio matrix switching between any input and any output
- Support incoming 4K and UHD signals at all HDMI and DTP inputs
- Support routing of 4K and UHD signals to the two HDMI outputs
- Support routing of scaled 4K or UHD video signals to the two DTP outputs
- Provide storage and recall of input and output ties
- Save video and audio ties between inputs and outputs
- Presets may be recalled using front panel controls
- Presets may be saved and recalled electronically via Ethernet, RS-232, or USB connection
- Provide the ability to view which inputs and outputs are actively connected
- Provide selectable transition effects when switching inputs
- Freeze/Fade: video output shall fade out a final frozen frame of the previous input source as the newly selected input source fades in
- Cut: video output shall cut to black, then cut to the newly selected input source
- Fade: video output shall fade to black, then fade into the newly selected input source
- Provide video and audio matrix switching between any input and any output
- EDID Requirements
- Provide automatic EDID management between connected devices
- Provide a set of pre-stored EDID files
- Support capture of EDID from any connected display
- Support user uploading of custom-generated EDID files
- Support assignment of pre-stored, captured, or custom uploaded EDID files for each input connection
- Provide automatic EDID management between connected devices
- HDCP Requirements
- The unit shall be HDCP compliant
- Provide authentication and maintain continuous verification of HDCP key exchange with connected sink devices
- Provide authentication and maintain continuous verification of HDCP key exchange with connected source devices
- Provide the option to disable HDCP processing at any HDMI input connection when passing unencrypted content
- Provide selectable, human-readable visual confirmation of HDCP compliance when encrypted content is routed to a non-HDCP compliant display
- When enabled, the video output shall be a solid green color and an on-screen message stating “HDCP CONTENT” shall be displayed
- When disabled, the output shall be muted
- Provide real-time verification of HDCP status for each HDMI input and output
- Electronically accessible over Ethernet, RS-232, or USB connection
- The unit shall be HDCP compliant
- Audio Requirements
- Provide audio input connections
- Support embedded audio on six HDMI connectors
- Support embedded and analog audio on two RJ-45 connectors
- Support six stereo line level, balanced or unbalanced signals on six 5-pole, 3.5 mm captive screw connectors
- Support four mono microphone or line level, balanced or unbalanced signals with +48 volt phantom power on four 3-pole, 3.5 mm captive screw connectors
- Provide audio output connections
- Support embedded audio on two HDMI connectors
- Support embedded and analog audio on two RJ-45 connectors
- Support two stereo line level, balanced or unbalanced signals with independent output level control on two 5-pole, 3.5 mm captive screw connectors
- Support S/PDIF digital audio signal on one RCA connector
- Support one stereo speaker level signal or two mono speaker level signals on one 4-pole, 5 mm captive screw connector
- Provide stereo amplification for low impedance speaker systems
- Support one stereo speaker level signal or two mono speaker level signals on one 4-pole, 5 mm screw-lock captive screw connector
- Provide a total of 100 watts rms output power with 50 watts rms per channel into 4 ohms, or 25 watts rms per channel into 8 ohms measured at 1 kHz with 0.1% THD
- Provide a THD+N measurement of less than 0.1 % measured at 3 dB below clipping
- Provide a signal-to-noise ratio of greater than 90 dB measured from 20 Hz to 20 kHz, unweighted
- Utilize an efficient Class D amplifier design
- Provide Class D Ripple Suppression technology
- Provide an automatic clip limiter to detect onset of clipping by comparing input and output waveforms and automatically reduce gain with a slow attack and fast release to eliminate clipping distortion
- Provide multiple protection circuits that activate during output shorts, thermal overload, or DC faults
- Provide 64-bit floating point DSP engine
- Support 32-bit and 64-bit processing algorithms
- Provide a deterministic latency of 3.2 ms from input to output
- Provide additional, deterministic latency of 1.3 ms when Virtual Path routing is used
- Provide additional, deterministic latency of 12 ms when AEC is used
- Support embedding of any analog audio input signal onto the matrix video outputs
- Support extraction of two-channel PCM HDMI audio signals to the analog stereo outputs, or route embedded multi-channel bitstream audio to the HDMI outputs
- Support de-embedding, processing, and re-embedding of two-channel PCM HDMI audio signals onto the HDMI outputs
- Support mixing of program audio and mic/line audio signals
- Support mic audio mixed with program audio onto the HDMI/DTP outputs, variable audio outputs, and S/PDIF audio output
- Provide the capability to break two-channel audio away from its corresponding video signal and route to the audio outputs, allowing the audio and video signals from one source to be switched to different destinations
- Provide adjustable, automatic ducking of program audio when a signal is detected on the microphone input
- Program audio shall automatically ramp up to reach the original volume level when audio is no longer detected on the microphone input
- Support audio transmission over twisted pair up to 330 feet (100 meters)
- Provide audio input connections
- Expansion Port Requirements
- Provide a digital audio expansion port for bidirectional signal routing between the matrix switcher and a connected Extron DMP 128 Digital Matrix Processor
- Support 16 incoming signals and 16 outgoing signals
- Provide uncompressed digital audio at 48 kHz sampling rate with 24-bit resolution
- Automixer Requirements
- Shall provide Automixer Group selection for optional channel assignment into any of eight groups
- Shall provide gated and gain sharing automixer types
- Shall provide Last Mic Open Priority and Chairman Priority modes
- Shall provide Number of Open Microphone parameter from 0 to 12 microphones
- Shall provide Gate Threshold level and adjustable Off Reduction level for gated channels
- Shall provide adjustable parameters for Attack, Hold, and Release times
- Shall provide real-time metering of Signal Level, Gate Status, and Gate Threshold target from within the Automix parameter setup window in the DSP Configuration software
- Shall provide global view with Gate Status indication of all channels assigned to an automixer group, within the DSP Configuration software
- AEC - Acoustic Echo Cancellation Processing Requirements
- Shall provide four independent channels of AEC
- Shall provide real-time software-based metering of Echo Return Loss, Echo Return Loss Enhancement, and Total Echo Reduction levels
- Shall provide real-time indication of remote site activity, local site activity, and AEC processor reconverging
- Shall provide up to 20 dB of selectable noise cancellation for each AEC channel
- Shall provide advanced controls and adjustable parameters for Non-Linear Processing, Double Talk Echo Reduction, and Comfort Noise for each AEC channel
- Shall provide greater than 200 milliseconds of AEC tail length
- Shall provide up to 60 dB per second AEC convergence rate
- DSP Configuration Software Requirements
- Shall support PC-based DSP configuration software, allowing flexible control of the integrated digital signal processing
- Shall provide a Live mode for real-time control of parameters without compiling and file uploading to matrix switcher
- Shall provide an Emulate mode for offline configuration
- Shall provide single window view of all inputs and outputs, audio processing blocks, routing, mix points, and virtual routing
- Shall provide setup and configuration of digital signal processing tools including, but not limited to: Filters (high pass, low pass, bass, treble, and parametric EQ); AEC; Dynamics processing (AGC, compressor, limiter, noise gate); Delay processing; Ducking processor; Automixing; Loudness processor; and multiple gain stages
- Shall provide cut and paste editing between processing blocks
- Shall provide matrix routing with integrated mix point gain adjustment between inputs, outputs, virtual sends, virtual returns, expansion inputs, and expansion outputs
- Shall provide a library of pre-designed processor settings for inputs and outputs with user-customizable parameters
- Shall provide 32 Group Master controls for consolidation of up to 28 individual gain or mute control members of the same type into one point of control
- Shall provide Soft Limits settings to define upper and lower control limits on Group Masters for use with external controls
- Shall provide 32 Presets for recall of any processing block setting, level setting, or audio routing; presets shall be saved for the entire system, or any selected partial groups of inputs, outputs, mix points, and DSP blocks
- Shall provide real-time metering of levels within each Input Gain, AEC, AGC, Compressor, Limiter, Noise Gate, Automixer, and Output Volume processing block in Live mode
- Shall provide a Meter Bridge window for real-time metering of all input and output channels with clipping indication in Live mode
- Shall provide keyboard-based navigation of configuration software utilizing directional controls, keyboard shortcuts, and spreadsheet software-style commands
- Shall provide file saving in both Live and Emulate mode
- Shall provide file upload in both Live and Emulate mode
- Shall provide configuration and file saving of the matrix switcher and a linked, compatible Extron digital matrix processor from a single configuration software session
- Shall support PC-based DSP configuration software, allowing flexible control of the integrated digital signal processing
- Integrated Control Processor Requirements
- Provide AV system control connections
- Three RJ-45: 10/100/1000Base-T Ethernet, half/full duplex with auto-detect for connection to a LAN and include link and activity LED indicators located on the left and right of each jack for troubleshooting network issues, these ports will be designated as AV LAN ports allowing for AV devices to be isolated from a corporate network
- AV LAN ports shall support a DHCP server that can distribute 50 dynamic IP addresses with a 24-hour lease
- One RJ-45: 10/100/1000Base-T, half/full duplex with auto-detect for connection to a LAN or WAN and includes link and activity LED indicators located on the left and right of the jack for troubleshooting network issues
- Two 3-pole captive screw: RS-232, configurable for unidirectional or bidirectional control of AV system components
- One 5-pole captive screw: RS-232/RS-422/RS-485, configurable for unidirectional or bidirectional control of AV system components
- Two IR/serial ports on one 5-pole captive screw: IR (using an IR emitter) or unidirectional RS-232 for control of AV system components
- Four low voltage relays on one 6-pole captive screw: configurable for controlling lighting, controlling screens, or other device functions
- Four digital input/output ports on one 5-pole captive screw: configurable for use as an interface with devices such as sensors, switches, LEDs, and relays
- One eBUS® port on a 4-pole captive screw for connecting to eBUS devices
- Shall support the following protocols: ICMP (ping), IEEE 802.1X, IPv4, TCP, UDP, DHCP, DNS, HTTP, HTTPS, NTP, SFTP, SMTP, SNMP, SSH
- Shall support a Web-based AV resource management application that provides a means to manage, monitor, and control AV equipment
- Provide an internal real-time clock with a 30-year backup battery that is used to keep track of the date and time
- Shall include an Extron LinkLicense® for use of third party devices as primary control interfaces
- Provide front panel LED activity indicators for RS-232 status, RS-232/RS-422/RS-485 status, IR/serial status, digital I/O status, relay status, eBUS status, and network status
- Shall support control system synchronization to allow users to retain and recover configured endpoints in case of network or power failure
- Shall be configured using Extron Global Configurator® Plus or Extron Global Configurator Professional with support for the following:
- Provide support for up to eight configurable Extron TouchLink Pro touchpanels
- Provide support for up to eight configurable eBUS button panels
- Provide remote monitoring and control via Ethernet
- Provide the ability to create E-mail notifications
- Provide multiple levels of password protection
- Provide the ability to create schedules and monitors
- Support up to 32 Ethernet-controllable AV devices
- Support local variables and conditional logic
- Support grouping of multiple Extron IP Link® Pro xi control processors to function as one when configured with Global Configurator Professional
- Security Requirements
- Support SFTP and SSH for secure communication between the control processor and a TouchLink Pro touchpanel or Network Button Panel
- Support HTTPS and SSH for secure communication between the control processor and Extron Control App
- Support HTTPS for secure communication between the control processor and Extron Control for Web
- Support SSH for secure communication between the control processor and controlled device for programmed systems
- Support SFTP and SSH for secure communication between the control processor and the configuration or programming software
- Provide the option to modify administrator and user credentials
- Support security updates to maintain network health
- Require that a Secure Socket Layer (SSL) Certificate is installed to maintain system confidentiality and data integrity
- Support the installation of an owner furnished certificate with the following properties:
- Certificates shall include x.509 support
- Certificates shall include public / private key exchange
- Certificates shall support PEM encoding
- Extron shall furnish documentation that describes all supported network ports and services
- Provide AV system control connections
- Control/remote - RS-232 and IR Pass-Through Over Shielded CATx Requirements
- Provide connections for AV device control
- Two 5-pole captive screw: RS-232 or IR pass-through to DTP twisted pair transmitters
- Two 5-pole captive screw: RS-232 or IR pass-through to DTP twisted pair receivers
- Support RS-232 and IR transmission over shielded CATx up to 330 feet (100 meters)
- Provide connections for AV device control
- Control/Remote - Matrix Switcher Requirements
- Provide connections for remote matrix switcher control
- RJ-45: 10/100Base-T Ethernet
- 3-pole captive screw: RS-232
- Mini USB-B: USB 2.0
- Provide alternatives for configuration and operation
- Front panel controls
- Built-in Web pages accessible using a standard Web browser via Ethernet connection
- Product configuration software connected via Ethernet or USB
- Serial commands sent over Ethernet, RS-232, or USB connection
- Support disabling of front panel controls to prevent inadvertent or unauthorized changes to configuration settings
- Provide connections for remote matrix switcher control
- General Requirements
- Provide real-time verification of signal flow and operation from DTP transmitter or DTP receiver
- Directly readable on RJ-45 signal and link LEDs
- Shall be compatible with all Extron DTP Series models, DTP-enabled products, and Extron XTP CrossPoint matrix switchers
- Shall be compatible with CATx shielded twisted pair cable, and Extron XTP DTP 24 shielded twisted pair cable
- Shall provide remote power to two DTP transmitters and two DTP receivers over the shielded CATx connections
- Shall provide power to external peripheral devices on each HDMI output
- Enclosure shall be rack-mountable, full rack width, and 2RU in height
- Shall be equipped with an internal 100-240 VAC, 50/60 Hz universal power supply
- Provide real-time verification of signal flow and operation from DTP transmitter or DTP receiver
- Video Input Requirements
- Approved device shall be the Extron DTP CrossPoint 82 4K IPCP Q SA (part number 60-1583-92A); no alternates or equals
- Rack-mountable matrix switcher for HDMI and DTP sources and associated digital and analog audio, AV system control 4K scaling, signal extension over shielded CATx cable, audio digital signal processing with AEC, and automixing for eight microphone groups
DTP CrossPoint 82 4K IPCP Q SA
- Provide an 8x2 scaling presentation matrix switcher that shall support up to eight inputs and two outputs for matrix switching of HDMI sources, one digital audio expansion port, 4K upscaling and downscaling, one integrated Extron IP Link Pro xi quad core control processor, plus additional support for signal extension over shielded CATx cable and audio digital signal processing with AEC.
- Rack-mountable matrix switcher for HDMI and DTP sources and associated digital and analog audio, AV system control 4K scaling, signal extension over shielded CATx cable, audio digital signal processing with AEC, and automixing for eight microphone groups
- Video Input Requirements
- Provide video input connections
- Six HDMI
- Two RJ-45 for video from Extron DTP® twisted pair transmitters
- Shall be configurable for compatibility with Extron DTP transmitters or DTP-enabled products
- Shall be configurable for compatibility with Extron XTP® CrossPoint® matrix switchers
- Support 4K and UHD signals at all inputs
- Provide image adjustments for the DTP outputs, including brightness, contrast, color, tint, detail, H/V positioning, and sizing
- Provide storage and recall of video parameters and picture settings when activated for the scaled DTP outputs
- Automatic memories for each video input
- Save video settings and picture adjustments without user intervention
- Automatically recall settings when the same video rate is encountered
- The user may selectively enable or disable automatic memories
- Manual user presets
- Save picture adjustments
- User presets may be saved and recalled using front panel controls
- User presets may be saved and recalled electronically via Ethernet, RS-232, or USB connection
- Manual input presets
- Save video settings and picture adjustments
- Input presets may be saved and recalled electronically via Ethernet, RS-232, or USB connection
- Automatic memories for each video input
- Support HDMI specifications including data rates up to 10.2 Gbps, Deep Color up to 12-bit, 3D, and HD lossless audio formats
- Provide automatic cable equalization for each digital input to 100 feet (30 meters) at 1080p/60 with 8-bit color when used with Extron HDMI Pro cables
- Provide automatic cable equalization for each digital input to 50 feet (15 meters) at 4K/30 and 2560x1600 @ 60 Hz resolutions when used with Extron HDMI Pro cables
- Support video transmission over shielded CATx up to 330 feet (100 meters)
- Provide video input connections
- Video Output Requirements
- Provide video output connections
- Two RJ-45 for video to Extron DTP twisted pair receivers
- Shall be configurable for compatibility with Extron DTP receivers or DTP-enabled products
- Shall be configurable for sending digital video and embedded audio, plus bidirectional RS-232 and IR signals to Extron XTP CrossPoint matrix switchers
- Shall be configurable for sending digital video and embedded audio, plus bidirectional RS-232 and IR signals to HDBaseT-enabled displays
- Shall support mirrored content between both DTP outputs and the two corresponding HDMI outputs for local monitoring
- Two RJ-45 for video to Extron DTP twisted pair receivers
- Provide a range of selectable scaled DTP output rates from 640x480 to 4K, including 2560x1600 and 1080p/60
- Support 4K and UHD signals at the two HDMI outputs
- Provide independent scaling for each DTP output
- Provide image scaling and video format conversion at 30-bit precision for signals up to 4K
- Support motion-adaptive deinterlacing for signals up to 1080i
- Provide aspect ratio control for each scaled DTP output
- When in FILL mode, the video image shall always fill the output screen without letterbox or pillarbox
- When in FOLLOW mode, the video image shall always preserve the aspect ratio of the input signals without distortion
- Provide internal test patterns for the scaled DTP outputs to facilitate system setup and calibration
- Support upload and placement of custom logo graphics at any position on any of the scaled DTP outputs
- Support logo placement as a foreground image
- Shall support uploading logo graphics in BMP, JPG, PNG, or TIFF format
- Shall support displaying full screen images up to 4096x2400 resolution
- Shall support up to 16 logo presets
- Support muting of one or all video outputs at any time
- Support automatic muting of video and sync output when no video signal is present
- Provide a choice to generate a blue screen or a black screen before disabling sync
- Provide a configurable timeout period before disabling sync
- The user may selectively enable or disable automatic muting of sync output
- Support the connection of DVI displays that do not recognize HDMI-specific formats
- Automatically enable or disable embedded TMDS audio and InfoFrames
- Automatically set the correct color space
- Support video transmission over shielded CATx up to 330 feet (100 meters)
- Provide automatic reclocking of HDMI video signals at each HDMI output
- Provide video output connections
- Switching Requirements
- Provide video and audio matrix switching between any input and any output
- Support incoming 4K and UHD signals at all HDMI and DTP inputs
- Support routing of 4K and UHD signals to the two HDMI outputs
- Support routing of scaled 4K or UHD video signals to the two DTP outputs
- Provide storage and recall of input and output ties
- Save video and audio ties between inputs and outputs
- Presets may be recalled using front panel controls
- Presets may be saved and recalled electronically via Ethernet, RS-232, or USB connection
- Provide the ability to view which inputs and outputs are actively connected
- Provide selectable transition effects when switching inputs
- Freeze/Fade: video output shall fade out a final frozen frame of the previous input source as the newly selected input source fades in
- Cut: video output shall cut to black, then cut to the newly selected input source
- Fade: video output shall fade to black, then fade into the newly selected input source
- Provide video and audio matrix switching between any input and any output
- EDID Requirements
- Provide automatic EDID management between connected devices
- Provide a set of pre-stored EDID files
- Support capture of EDID from any connected display
- Support user uploading of custom-generated EDID files
- Support assignment of pre-stored, captured, or custom uploaded EDID files for each input connection
- Provide automatic EDID management between connected devices
- HDCP Requirements
- The unit shall be HDCP compliant
- Provide authentication and maintain continuous verification of HDCP key exchange with connected sink devices
- Provide authentication and maintain continuous verification of HDCP key exchange with connected source devices
- Provide the option to disable HDCP processing at any HDMI input connection when passing unencrypted content
- Provide selectable, human-readable visual confirmation of HDCP compliance when encrypted content is routed to a non-HDCP compliant display
- When enabled, the video output shall be a solid green color and an on-screen message stating “HDCP CONTENT” shall be displayed
- When disabled, the output shall be muted
- Provide real-time verification of HDCP status for each HDMI input and output
- Electronically accessible over Ethernet, RS-232, or USB connection
- The unit shall be HDCP compliant
- Audio Requirements
- Provide audio input connections
- Support embedded audio on six HDMI connectors
- Support embedded and analog audio on two RJ-45 connectors
- Support six stereo line level, balanced or unbalanced signals on six 5-pole, 3.5 mm captive screw connectors
- Support four mono microphone or line level, balanced or unbalanced signals with +48 volt phantom power on four 3-pole, 3.5 mm captive screw connectors
- Provide audio output connections
- Support embedded audio on two HDMI connectors
- Support embedded and analog audio on two RJ-45 connectors
- Support two stereo line level, balanced or unbalanced signals with independent output level control on two 5-pole, 3.5 mm captive screw connectors
- Support S/PDIF digital audio signal on one RCA connector
- Support one stereo speaker level signal or two mono speaker level signals on one 4-pole, 5 mm captive screw connector
- Provide stereo amplification for low impedance speaker systems
- Support one stereo speaker level signal or two mono speaker level signals on one 4-pole, 5 mm screw-lock captive screw connector
- Provide a total of 100 watts rms output power with 50 watts rms per channel into 4 ohms, or 25 watts rms per channel into 8 ohms measured at 1 kHz with 0.1% THD
- Provide a THD+N measurement of less than 0.1 % measured at 3 dB below clipping
- Provide a signal-to-noise ratio of greater than 90 dB measured from 20 Hz to 20 kHz, unweighted
- Utilize an efficient Class D amplifier design
- Provide Class D Ripple Suppression technology
- Provide an automatic clip limiter to detect onset of clipping by comparing input and output waveforms and automatically reduce gain with a slow attack and fast release to eliminate clipping distortion
- Provide multiple protection circuits that activate during output shorts, thermal overload, or DC faults
- Provide 64-bit floating point DSP engine
- Support 32-bit and 64-bit processing algorithms
- Provide a deterministic latency of 3.2 ms from input to output
- Provide additional, deterministic latency of 1.3 ms when Virtual Path routing is used
- Provide additional, deterministic latency of 12 ms when AEC is used
- Support embedding of any analog audio input signal onto the matrix video outputs
- Support extraction of two-channel PCM HDMI audio signals to the analog stereo outputs, or route embedded multi-channel bitstream audio to the HDMI outputs
- Support de-embedding, processing, and re-embedding of two-channel PCM HDMI audio signals onto the HDMI outputs
- Support mixing of program audio and mic/line audio signals
- Support mic audio mixed with program audio onto the HDMI/DTP outputs, variable audio outputs, and S/PDIF audio output
- Provide the capability to break two-channel audio away from its corresponding video signal and route to the audio outputs, allowing the audio and video signals from one source to be switched to different destinations
- Provide adjustable, automatic ducking of program audio when a signal is detected on the microphone input
- Program audio shall automatically ramp up to reach the original volume level when audio is no longer detected on the microphone input
- Support audio transmission over twisted pair up to 330 feet (100 meters)
- Provide audio input connections
- Expansion Port Requirements
- Provide a digital audio expansion port for bidirectional signal routing between the matrix switcher and a connected Extron DMP 128 Digital Matrix Processor
- Support 16 incoming signals and 16 outgoing signals
- Provide uncompressed digital audio at 48 kHz sampling rate with 24-bit resolution
- Automixer Requirements
- Shall provide Automixer Group selection for optional channel assignment into any of eight groups
- Shall provide gated and gain sharing automixer types
- Shall provide Last Mic Open Priority and Chairman Priority modes
- Shall provide Number of Open Microphone parameter from 0 to 12 microphones
- Shall provide Gate Threshold level and adjustable Off Reduction level for gated channels
- Shall provide adjustable parameters for Attack, Hold, and Release times
- Shall provide real-time metering of Signal Level, Gate Status, and Gate Threshold target from within the Automix parameter setup window in the DSP Configuration software
- Shall provide global view with Gate Status indication of all channels assigned to an automixer group, within the DSP Configuration software
- AEC - Acoustic Echo Cancellation Processing Requirements
- Shall provide four independent channels of AEC
- Shall provide real-time software-based metering of Echo Return Loss, Echo Return Loss Enhancement, and Total Echo Reduction levels
- Shall provide real-time indication of remote site activity, local site activity, and AEC processor reconverging
- Shall provide up to 20 dB of selectable noise cancellation for each AEC channel
- Shall provide advanced controls and adjustable parameters for Non-Linear Processing, Double Talk Echo Reduction, and Comfort Noise for each AEC channel
- Shall provide greater than 200 milliseconds of AEC tail length
- Shall provide up to 60 dB per second AEC convergence rate
- DSP Configuration Software Requirements
- Shall support PC-based DSP configuration software, allowing flexible control of the integrated digital signal processing
- Shall provide a Live mode for real-time control of parameters without compiling and file uploading to matrix switcher
- Shall provide an Emulate mode for offline configuration
- Shall provide single window view of all inputs and outputs, audio processing blocks, routing, mix points, and virtual routing
- Shall provide setup and configuration of digital signal processing tools including, but not limited to: Filters (high pass, low pass, bass, treble, and parametric EQ); AEC; Dynamics processing (AGC, compressor, limiter, noise gate); Delay processing; Ducking processor; Automixing; Loudness processor; and multiple gain stages
- Shall provide cut and paste editing between processing blocks
- Shall provide matrix routing with integrated mix point gain adjustment between inputs, outputs, virtual sends, virtual returns, expansion inputs, and expansion outputs
- Shall provide a library of pre-designed processor settings for inputs and outputs with user-customizable parameters
- Shall provide 32 Group Master controls for consolidation of up to 28 individual gain or mute control members of the same type into one point of control
- Shall provide Soft Limits settings to define upper and lower control limits on Group Masters for use with external controls
- Shall provide 32 Presets for recall of any processing block setting, level setting, or audio routing; presets shall be saved for the entire system, or any selected partial groups of inputs, outputs, mix points, and DSP blocks
- Shall provide real-time metering of levels within each Input Gain, AEC, AGC, Compressor, Limiter, Noise Gate, Automixer, and Output Volume processing block in Live mode
- Shall provide a Meter Bridge window for real-time metering of all input and output channels with clipping indication in Live mode
- Shall provide keyboard-based navigation of configuration software utilizing directional controls, keyboard shortcuts, and spreadsheet software-style commands
- Shall provide file saving in both Live and Emulate mode
- Shall provide file upload in both Live and Emulate mode
- Shall provide configuration and file saving of the matrix switcher and a linked, compatible Extron digital matrix processor from a single configuration software session
- Shall support PC-based DSP configuration software, allowing flexible control of the integrated digital signal processing
- Integrated Control Processor Requirements
- Provide AV system control connections
- Three RJ-45: 10/100/1000Base-T Ethernet, half/full duplex with auto-detect for connection to a LAN and include link and activity LED indicators located on the left and right of each jack for troubleshooting network issues, these ports will be designated as AV LAN ports allowing for AV devices to be isolated from a corporate network
- AV LAN ports shall support a DHCP server that can distribute 50 dynamic IP addresses with a 24-hour lease
- One RJ-45: 10/100/1000Base-T, half/full duplex with auto-detect for connection to a LAN or WAN and includes link and activity LED indicators located on the left and right of the jack for troubleshooting network issues
- Two 3-pole captive screw: RS-232, configurable for unidirectional or bidirectional control of AV system components
- One 5-pole captive screw: RS-232/RS-422/RS-485, configurable for unidirectional or bidirectional control of AV system components
- Two IR/serial ports on one 5-pole captive screw: IR (using an IR emitter) or unidirectional RS-232 for control of AV system components
- Four low voltage relays on one 6-pole captive screw: configurable for controlling lighting, controlling screens, or other device functions
- Four digital input/output ports on one 5-pole captive screw: configurable for use as an interface with devices such as sensors, switches, LEDs, and relays
- One eBUS® port on a 4-pole captive screw for connecting to eBUS devices
- Shall support the following protocols: ICMP (ping), IEEE 802.1X, IPv4, TCP, UDP, DHCP, DNS, HTTP, HTTPS, NTP, SFTP, SMTP, SNMP, SSH
- Shall support a Web-based AV resource management application that provides a means to manage, monitor, and control AV equipment
- Provide an internal real-time clock with a 30-year backup battery that is used to keep track of the date and time
- Shall include an Extron LinkLicense® for use of third party devices as primary control interfaces
- Provide front panel LED activity indicators for RS-232 status, RS-232/RS-422/RS-485 status, IR/serial status, digital I/O status, relay status, eBUS status, and network status
- Shall support control system synchronization to allow users to retain and recover configured endpoints in case of network or power failure
- Shall be configured using Extron Global Configurator® Plus or Extron Global Configurator Professional with support for the following:
- Provide support for up to eight configurable Extron TouchLink Pro touchpanels
- Provide support for up to eight configurable eBUS button panels
- Provide remote monitoring and control via Ethernet
- Provide the ability to create E-mail notifications
- Provide multiple levels of password protection
- Provide the ability to create schedules and monitors
- Support up to 32 Ethernet-controllable AV devices
- Support local variables and conditional logic
- Support grouping of multiple Extron IP Link® Pro xi control processors to function as one when configured with Global Configurator Professional
- Security Requirements
- Support SFTP and SSH for secure communication between the control processor and a TouchLink Pro touchpanel or Network Button Panel
- Support HTTPS and SSH for secure communication between the control processor and Extron Control App
- Support HTTPS for secure communication between the control processor and Extron Control for Web
- Support SSH for secure communication between the control processor and controlled device for programmed systems
- Support SFTP and SSH for secure communication between the control processor and the configuration or programming software
- Provide the option to modify administrator and user credentials
- Support security updates to maintain network health
- Require that a Secure Socket Layer (SSL) Certificate is installed to maintain system confidentiality and data integrity
- Support the installation of an owner furnished certificate with the following properties:
- Certificates shall include x.509 support
- Certificates shall include public / private key exchange
- Certificates shall support PEM encoding
- Extron shall furnish documentation that describes all supported network ports and services
- Provide AV system control connections
- Control/remote - RS-232 and IR Pass-Through Over Shielded CATx Requirements
- Provide connections for AV device control
- Two 5-pole captive screw: RS-232 or IR pass-through to DTP twisted pair transmitters
- Two 5-pole captive screw: RS-232 or IR pass-through to DTP twisted pair receivers
- Support RS-232 and IR transmission over shielded CATx up to 330 feet (100 meters)
- Provide connections for AV device control
- Control/Remote - Matrix Switcher Requirements
- Provide connections for remote matrix switcher control
- RJ-45: 10/100Base-T Ethernet
- 3-pole captive screw: RS-232
- Mini USB-B: USB 2.0
- Provide alternatives for configuration and operation
- Front panel controls
- Built-in Web pages accessible using a standard Web browser via Ethernet connection
- Product configuration software connected via Ethernet or USB
- Serial commands sent over Ethernet, RS-232, or USB connection
- Support disabling of front panel controls to prevent inadvertent or unauthorized changes to configuration settings
- Provide connections for remote matrix switcher control
- General Requirements
- Provide real-time verification of signal flow and operation from DTP transmitter or DTP receiver
- Directly readable on RJ-45 signal and link LEDs
- Shall be compatible with all Extron DTP Series models, DTP-enabled products, and Extron XTP CrossPoint matrix switchers
- Shall be compatible with CATx shielded twisted pair cable, and Extron XTP DTP 24 shielded twisted pair cable
- Shall provide remote power to two DTP transmitters and two DTP receivers over the shielded CATx connections
- Shall provide power to external peripheral devices on each HDMI output
- Enclosure shall be rack-mountable, full rack width, and 2RU in height
- Shall be equipped with an internal 100-240 VAC, 50/60 Hz universal power supply
- Provide real-time verification of signal flow and operation from DTP transmitter or DTP receiver
- Video Input Requirements
- Approved device shall be the Extron DTP CrossPoint 82 4K IPCP Q SA (part number 60-1583-92A); no alternates or equals
- Rack-mountable matrix switcher for HDMI and DTP sources and associated digital and analog audio, AV system control 4K scaling, signal extension over shielded CATx cable, audio digital signal processing with AEC, and automixing for eight microphone groups

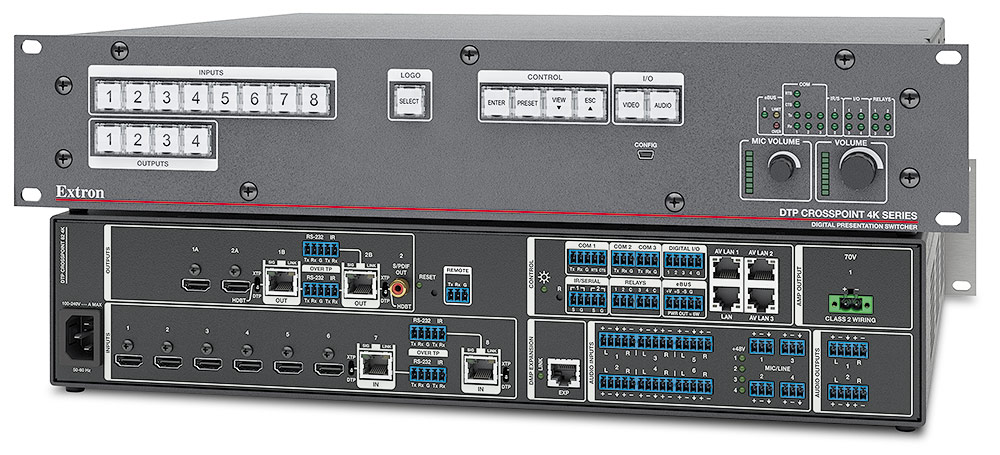

DTP CrossPoint 82 4K IPCP Q MA 70
- Provide an 8x2 scaling presentation matrix switcher that shall support up to eight inputs and two outputs for matrix switching of HDMI sources, one digital audio expansion port, 4K upscaling and downscaling, one integrated Extron IP Link Pro xi quad core control processor, plus additional support for signal extension over shielded CATx cable and audio digital signal processing with AEC.
- Rack-mountable matrix switcher for HDMI and DTP sources and associated digital and analog audio, AV system control 4K scaling, signal extension over shielded CATx cable, audio digital signal processing with AEC, and automixing for eight microphone groups
- Video Input Requirements
- Provide video input connections
- Six HDMI
- Two RJ-45 for video from Extron DTP® twisted pair transmitters
- Shall be configurable for compatibility with Extron DTP transmitters or DTP-enabled products
- Shall be configurable for compatibility with Extron XTP® CrossPoint® matrix switchers
- Support 4K and UHD signals at all inputs
- Provide image adjustments for the DTP outputs, including brightness, contrast, color, tint, detail, H/V positioning, and sizing
- Provide storage and recall of video parameters and picture settings when activated for the scaled DTP outputs
- Automatic memories for each video input
- Save video settings and picture adjustments without user intervention
- Automatically recall settings when the same video rate is encountered
- The user may selectively enable or disable automatic memories
- Manual user presets
- Save picture adjustments
- User presets may be saved and recalled using front panel controls
- User presets may be saved and recalled electronically via Ethernet, RS-232, or USB connection
- Manual input presets
- Save video settings and picture adjustments
- Input presets may be saved and recalled electronically via Ethernet, RS-232, or USB connection
- Automatic memories for each video input
- Support HDMI specifications including data rates up to 10.2 Gbps, Deep Color up to 12-bit, 3D, and HD lossless audio formats
- Provide automatic cable equalization for each digital input to 100 feet (30 meters) at 1080p/60 with 8-bit color when used with Extron HDMI Pro cables
- Provide automatic cable equalization for each digital input to 50 feet (15 meters) at 4K/30 and 2560x1600 @ 60 Hz resolutions when used with Extron HDMI Pro cables
- Support video transmission over shielded CATx up to 330 feet (100 meters)
- Provide video input connections
- Video Output Requirements
- Provide video output connections
- Two RJ-45 for video to Extron DTP twisted pair receivers
- Shall be configurable for compatibility with Extron DTP receivers or DTP-enabled products
- Shall be configurable for sending digital video and embedded audio, plus bidirectional RS-232 and IR signals to Extron XTP CrossPoint matrix switchers
- Shall be configurable for sending digital video and embedded audio, plus bidirectional RS-232 and IR signals to HDBaseT-enabled displays
- Shall support mirrored content between both DTP outputs and the two corresponding HDMI outputs for local monitoring
- Two RJ-45 for video to Extron DTP twisted pair receivers
- Provide a range of selectable scaled DTP output rates from 640x480 to 4K, including 2560x1600 and 1080p/60
- Support 4K and UHD signals at the two HDMI outputs
- Provide independent scaling for each DTP output
- Provide image scaling and video format conversion at 30-bit precision for signals up to 4K
- Support motion-adaptive deinterlacing for signals up to 1080i
- Provide aspect ratio control for each scaled DTP output
- When in FILL mode, the video image shall always fill the output screen without letterbox or pillarbox
- When in FOLLOW mode, the video image shall always preserve the aspect ratio of the input signals without distortion
- Provide internal test patterns for the scaled DTP outputs to facilitate system setup and calibration
- Support upload and placement of custom logo graphics at any position on any of the scaled DTP outputs
- Support logo placement as a foreground image
- Shall support uploading logo graphics in BMP, JPG, PNG, or TIFF format
- Shall support displaying full screen images up to 4096x2400 resolution
- Shall support up to 16 logo presets
- Support muting of one or all video outputs at any time
- Support automatic muting of video and sync output when no video signal is present
- Provide a choice to generate a blue screen or a black screen before disabling sync
- Provide a configurable timeout period before disabling sync
- The user may selectively enable or disable automatic muting of sync output
- Support the connection of DVI displays that do not recognize HDMI-specific formats
- Automatically enable or disable embedded TMDS audio and InfoFrames
- Automatically set the correct color space
- Support video transmission over shielded CATx up to 330 feet (100 meters)
- Provide automatic reclocking of HDMI video signals at each HDMI output
- Provide video output connections
- Switching Requirements
- Provide video and audio matrix switching between any input and any output
- Support incoming 4K and UHD signals at all HDMI and DTP inputs
- Support routing of 4K and UHD signals to the two HDMI outputs
- Support routing of scaled 4K or UHD video signals to the two DTP outputs
- Provide storage and recall of input and output ties
- Save video and audio ties between inputs and outputs
- Presets may be recalled using front panel controls
- Presets may be saved and recalled electronically via Ethernet, RS-232, or USB connection
- Provide the ability to view which inputs and outputs are actively connected
- Provide selectable transition effects when switching inputs
- Freeze/Fade: video output shall fade out a final frozen frame of the previous input source as the newly selected input source fades in
- Cut: video output shall cut to black, then cut to the newly selected input source
- Fade: video output shall fade to black, then fade into the newly selected input source
- Provide video and audio matrix switching between any input and any output
- EDID Requirements
- Provide automatic EDID management between connected devices
- Provide a set of pre-stored EDID files
- Support capture of EDID from any connected display
- Support user uploading of custom-generated EDID files
- Support assignment of pre-stored, captured, or custom uploaded EDID files for each input connection
- Provide automatic EDID management between connected devices
- HDCP Requirements
- The unit shall be HDCP compliant
- Provide authentication and maintain continuous verification of HDCP key exchange with connected sink devices
- Provide authentication and maintain continuous verification of HDCP key exchange with connected source devices
- Provide the option to disable HDCP processing at any HDMI input connection when passing unencrypted content
- Provide selectable, human-readable visual confirmation of HDCP compliance when encrypted content is routed to a non-HDCP compliant display
- When enabled, the video output shall be a solid green color and an on-screen message stating “HDCP CONTENT” shall be displayed
- When disabled, the output shall be muted
- Provide real-time verification of HDCP status for each HDMI input and output
- Electronically accessible over Ethernet, RS-232, or USB connection
- The unit shall be HDCP compliant
- Audio Requirements
- Provide audio input connections
- Support embedded audio on six HDMI connectors
- Support embedded and analog audio on two RJ-45 connectors
- Support six stereo line level, balanced or unbalanced signals on six 5-pole, 3.5 mm captive screw connectors
- Support four mono microphone or line level, balanced or unbalanced signals with +48 volt phantom power on four 3-pole, 3.5 mm captive screw connectors
- Provide audio output connections
- Support embedded audio on two HDMI connectors
- Support embedded and analog audio on two RJ-45 connectors
- Support two stereo line level, balanced or unbalanced signals with independent output level control on two 5-pole, 3.5 mm captive screw connectors
- Support S/PDIF digital audio signal on one RCA connector
- Support one mono speaker level signal on one 2-pole, 5 mm captive screw connector
- Provide mono amplification for high impedance speaker systems
- Support one mono speaker level signal on one 2-pole, 5 mm screw-lock captive screw connector
- Provide a total of 100 watts rms output power into a 70 volt load, measured at 1 kHz with 0.1% THD
- Provide a THD+N measurement of less than 0.1 % measured at 3 dB below clipping
- Provide a signal-to-noise ratio of greater than 90 dB measured from 20 Hz to 20 kHz, unweighted
- Utilize an efficient Class D amplifier design
- Provide Class D Ripple Suppression technology
- Provide an automatic clip limiter to detect onset of clipping by comparing input and output waveforms and automatically reduce gain with a slow attack and fast release to eliminate clipping distortion
- Provide multiple protection circuits that activate during output shorts, thermal overload, or DC faults
- Provide 64-bit floating point DSP engine
- Support 32-bit and 64-bit processing algorithms
- Provide a deterministic latency of 3.2 ms from input to output
- Provide additional, deterministic latency of 1.3 ms when Virtual Path routing is used
- Provide additional, deterministic latency of 12 ms when AEC is used
- Support embedding of any analog audio input signal onto the matrix video outputs
- Support extraction of two-channel PCM HDMI audio signals to the analog stereo outputs, or route embedded multi-channel bitstream audio to the HDMI outputs
- Support de-embedding, processing, and re-embedding of two-channel PCM HDMI audio signals onto the HDMI outputs
- Support mixing of program audio and mic/line audio signals
- Support mic audio mixed with program audio onto the HDMI/DTP outputs, variable audio outputs, and S/PDIF audio output
- Provide the capability to break two-channel audio away from its corresponding video signal and route to the audio outputs, allowing the audio and video signals from one source to be switched to different destinations
- Provide adjustable, automatic ducking of program audio when a signal is detected on the microphone input
- Program audio shall automatically ramp up to reach the original volume level when audio is no longer detected on the microphone input
- Support audio transmission over twisted pair up to 330 feet (100 meters)
- Provide audio input connections
- Expansion Port Requirements
- Provide a digital audio expansion port for bidirectional signal routing between the matrix switcher and a connected Extron DMP 128 Digital Matrix Processor
- Support 16 incoming signals and 16 outgoing signals
- Provide uncompressed digital audio at 48 kHz sampling rate with 24-bit resolution
- Automixer Requirements
- Shall provide Automixer Group selection for optional channel assignment into any of eight groups
- Shall provide gated and gain sharing automixer types
- Shall provide Last Mic Open Priority and Chairman Priority modes
- Shall provide Number of Open Microphone parameter from 0 to 12 microphones
- Shall provide Gate Threshold level and adjustable Off Reduction level for gated channels
- Shall provide adjustable parameters for Attack, Hold, and Release times
- Shall provide real-time metering of Signal Level, Gate Status, and Gate Threshold target from within the Automix parameter setup window in the DSP Configuration software
- Shall provide global view with Gate Status indication of all channels assigned to an automixer group, within the DSP Configuration software
- AEC - Acoustic Echo Cancellation Processing Requirements
- Shall provide four independent channels of AEC
- Shall provide real-time software-based metering of Echo Return Loss, Echo Return Loss Enhancement, and Total Echo Reduction levels
- Shall provide real-time indication of remote site activity, local site activity, and AEC processor reconverging
- Shall provide up to 20 dB of selectable noise cancellation for each AEC channel
- Shall provide advanced controls and adjustable parameters for Non-Linear Processing, Double Talk Echo Reduction, and Comfort Noise for each AEC channel
- Shall provide greater than 200 milliseconds of AEC tail length
- Shall provide up to 60 dB per second AEC convergence rate
- DSP Configuration Software Requirements
- Shall support PC-based DSP configuration software, allowing flexible control of the integrated digital signal processing
- Shall provide a Live mode for real-time control of parameters without compiling and file uploading to matrix switcher
- Shall provide an Emulate mode for offline configuration
- Shall provide single window view of all inputs and outputs, audio processing blocks, routing, mix points, and virtual routing
- Shall provide setup and configuration of digital signal processing tools including, but not limited to: Filters (high pass, low pass, bass, treble, and parametric EQ); AEC; Dynamics processing (AGC, compressor, limiter, noise gate); Delay processing; Ducking processor; Automixing; Loudness processor; and multiple gain stages
- Shall provide cut and paste editing between processing blocks
- Shall provide matrix routing with integrated mix point gain adjustment between inputs, outputs, virtual sends, virtual returns, expansion inputs, and expansion outputs
- Shall provide a library of pre-designed processor settings for inputs and outputs with user-customizable parameters
- Shall provide 32 Group Master controls for consolidation of up to 28 individual gain or mute control members of the same type into one point of control
- Shall provide Soft Limits settings to define upper and lower control limits on Group Masters for use with external controls
- Shall provide 32 Presets for recall of any processing block setting, level setting, or audio routing; presets shall be saved for the entire system, or any selected partial groups of inputs, outputs, mix points, and DSP blocks
- Shall provide real-time metering of levels within each Input Gain, AEC, AGC, Compressor, Limiter, Noise Gate, Automixer, and Output Volume processing block in Live mode
- Shall provide a Meter Bridge window for real-time metering of all input and output channels with clipping indication in Live mode
- Shall provide keyboard-based navigation of configuration software utilizing directional controls, keyboard shortcuts, and spreadsheet software-style commands
- Shall provide file saving in both Live and Emulate mode
- Shall provide file upload in both Live and Emulate mode
- Shall provide configuration and file saving of the matrix switcher and a linked, compatible Extron digital matrix processor from a single configuration software session
- Shall support PC-based DSP configuration software, allowing flexible control of the integrated digital signal processing
- Integrated Control Processor Requirements
- Provide AV system control connections
- Three RJ-45: 10/100/1000Base-T Ethernet, half/full duplex with auto-detect for connection to a LAN and include link and activity LED indicators located on the left and right of each jack for troubleshooting network issues, these ports will be designated as AV LAN ports allowing for AV devices to be isolated from a corporate network
- AV LAN ports shall support a DHCP server that can distribute 50 dynamic IP addresses with a 24-hour lease
- One RJ-45: 10/100/1000Base-T, half/full duplex with auto-detect for connection to a LAN or WAN and includes link and activity LED indicators located on the left and right of the jack for troubleshooting network issues
- Two 3-pole captive screw: RS-232, configurable for unidirectional or bidirectional control of AV system components
- One 5-pole captive screw: RS-232/RS-422/RS-485, configurable for unidirectional or bidirectional control of AV system components
- Two IR/serial ports on one 5-pole captive screw: IR (using an IR emitter) or unidirectional RS-232 for control of AV system components
- Four low voltage relays on one 6-pole captive screw: configurable for controlling lighting, controlling screens, or other device functions
- Four digital input/output ports on one 5-pole captive screw: configurable for use as an interface with devices such as sensors, switches, LEDs, and relays
- One eBUS® port on a 4-pole captive screw for connecting to eBUS devices
- Shall support the following protocols: ICMP (ping), IEEE 802.1X, IPv4, TCP, UDP, DHCP, DNS, HTTP, HTTPS, NTP, SFTP, SMTP, SNMP, SSH
- Shall support a Web-based AV resource management application that provides a means to manage, monitor, and control AV equipment
- Provide an internal real-time clock with a 30-year backup battery that is used to keep track of the date and time
- Shall support the addition of an Extron LinkLicense® for use of third party devices as primary control interfaces
- Provide front panel LED activity indicators for RS-232 status, RS-232/RS-422/RS-485 status, IR/serial status, digital I/O status, relay status, eBUS status, and network status
- Shall support control system synchronization to allow users to retain and recover configured endpoints in case of network or power failure
- Shall be configured using Extron Global Configurator® Plus or Extron Global Configurator Professional with support for the following:
- Provide support for up to eight configurable Extron TouchLink Pro touchpanels
- Provide support for up to eight configurable eBUS button panels
- Provide remote monitoring and control via Ethernet
- Provide the ability to create E-mail notifications
- Provide multiple levels of password protection
- Provide the ability to create schedules and monitors
- Support up to 32 Ethernet-controllable AV devices
- Support local variables and conditional logic
- Support grouping of multiple Extron IP Link® Pro xi control processors to function as one when configured with Global Configurator Professional
- Security Requirements
- Support SFTP and SSH for secure communication between the control processor and a TouchLink Pro touchpanel or Network Button Panel
- Support HTTPS and SSH for secure communication between the control processor and Extron Control App
- Support HTTPS for secure communication between the control processor and Extron Control for Web
- Support SSH for secure communication between the control processor and controlled device for programmed systems
- Support SFTP and SSH for secure communication between the control processor and the configuration or programming software
- Provide the option to modify administrator and user credentials
- Support security updates to maintain network health
- Require that a Secure Socket Layer (SSL) Certificate is installed to maintain system confidentiality and data integrity
- Support the installation of an owner furnished certificate with the following properties:
- Certificates shall include x.509 support
- Certificates shall include public / private key exchange
- Certificates shall support PEM encoding
- Extron shall furnish documentation that describes all supported network ports and services
- Provide AV system control connections
- Control/remote - RS-232 and IR Pass-Through Over Shielded CATx Requirements
- Provide connections for AV device control
- Two 5-pole captive screw: RS-232 or IR pass-through to DTP twisted pair transmitters
- Two 5-pole captive screw: RS-232 or IR pass-through to DTP twisted pair receivers
- Support RS-232 and IR transmission over shielded CATx up to 330 feet (100 meters)
- Provide connections for AV device control
- Control/Remote - Matrix Switcher Requirements
- Provide connections for remote matrix switcher control
- RJ-45: 10/100Base-T Ethernet
- 3-pole captive screw: RS-232
- Mini USB-B: USB 2.0
- Provide alternatives for configuration and operation
- Front panel controls
- Built-in Web pages accessible using a standard Web browser via Ethernet connection
- Product configuration software connected via Ethernet or USB
- Serial commands sent over Ethernet, RS-232, or USB connection
- Support disabling of front panel controls to prevent inadvertent or unauthorized changes to configuration settings
- Provide connections for remote matrix switcher control
- General Requirements
- Provide real-time verification of signal flow and operation from DTP transmitter or DTP receiver
- Directly readable on RJ-45 signal and link LEDs
- Shall be compatible with all Extron DTP Series models, DTP-enabled products, and Extron XTP CrossPoint matrix switchers
- Shall be compatible with CATx shielded twisted pair cable, and Extron XTP DTP 24 shielded twisted pair cable
- Shall provide remote power to two DTP transmitters and two DTP receivers over the shielded CATx connections
- Shall provide power to external peripheral devices on each HDMI output
- Enclosure shall be rack-mountable, full rack width, and 2RU in height
- Shall be equipped with an internal 100-240 VAC, 50/60 Hz universal power supply
- Provide real-time verification of signal flow and operation from DTP transmitter or DTP receiver
- Video Input Requirements
- Approved device shall be the Extron DTP CrossPoint 82 4K IPCP Q MA 70 (part number 60-1583-93); no alternates or equals
- Rack-mountable matrix switcher for HDMI and DTP sources and associated digital and analog audio, AV system control 4K scaling, signal extension over shielded CATx cable, audio digital signal processing with AEC, and automixing for eight microphone groups
DTP CrossPoint 82 4K IPCP Q MA 70
- Provide an 8x2 scaling presentation matrix switcher that shall support up to eight inputs and two outputs for matrix switching of HDMI sources, one digital audio expansion port, 4K upscaling and downscaling, one integrated Extron IP Link Pro xi quad core control processor, plus additional support for signal extension over shielded CATx cable and audio digital signal processing with AEC.
- Rack-mountable matrix switcher for HDMI and DTP sources and associated digital and analog audio, AV system control 4K scaling, signal extension over shielded CATx cable, audio digital signal processing with AEC, and automixing for eight microphone groups
- Video Input Requirements
- Provide video input connections
- Six HDMI
- Two RJ-45 for video from Extron DTP® twisted pair transmitters
- Shall be configurable for compatibility with Extron DTP transmitters or DTP-enabled products
- Shall be configurable for compatibility with Extron XTP® CrossPoint® matrix switchers
- Support 4K and UHD signals at all inputs
- Provide image adjustments for the DTP outputs, including brightness, contrast, color, tint, detail, H/V positioning, and sizing
- Provide storage and recall of video parameters and picture settings when activated for the scaled DTP outputs
- Automatic memories for each video input
- Save video settings and picture adjustments without user intervention
- Automatically recall settings when the same video rate is encountered
- The user may selectively enable or disable automatic memories
- Manual user presets
- Save picture adjustments
- User presets may be saved and recalled using front panel controls
- User presets may be saved and recalled electronically via Ethernet, RS-232, or USB connection
- Manual input presets
- Save video settings and picture adjustments
- Input presets may be saved and recalled electronically via Ethernet, RS-232, or USB connection
- Automatic memories for each video input
- Support HDMI specifications including data rates up to 10.2 Gbps, Deep Color up to 12-bit, 3D, and HD lossless audio formats
- Provide automatic cable equalization for each digital input to 100 feet (30 meters) at 1080p/60 with 8-bit color when used with Extron HDMI Pro cables
- Provide automatic cable equalization for each digital input to 50 feet (15 meters) at 4K/30 and 2560x1600 @ 60 Hz resolutions when used with Extron HDMI Pro cables
- Support video transmission over shielded CATx up to 330 feet (100 meters)
- Provide video input connections
- Video Output Requirements
- Provide video output connections
- Two RJ-45 for video to Extron DTP twisted pair receivers
- Shall be configurable for compatibility with Extron DTP receivers or DTP-enabled products
- Shall be configurable for sending digital video and embedded audio, plus bidirectional RS-232 and IR signals to Extron XTP CrossPoint matrix switchers
- Shall be configurable for sending digital video and embedded audio, plus bidirectional RS-232 and IR signals to HDBaseT-enabled displays
- Shall support mirrored content between both DTP outputs and the two corresponding HDMI outputs for local monitoring
- Two RJ-45 for video to Extron DTP twisted pair receivers
- Provide a range of selectable scaled DTP output rates from 640x480 to 4K, including 2560x1600 and 1080p/60
- Support 4K and UHD signals at the two HDMI outputs
- Provide independent scaling for each DTP output
- Provide image scaling and video format conversion at 30-bit precision for signals up to 4K
- Support motion-adaptive deinterlacing for signals up to 1080i
- Provide aspect ratio control for each scaled DTP output
- When in FILL mode, the video image shall always fill the output screen without letterbox or pillarbox
- When in FOLLOW mode, the video image shall always preserve the aspect ratio of the input signals without distortion
- Provide internal test patterns for the scaled DTP outputs to facilitate system setup and calibration
- Support upload and placement of custom logo graphics at any position on any of the scaled DTP outputs
- Support logo placement as a foreground image
- Shall support uploading logo graphics in BMP, JPG, PNG, or TIFF format
- Shall support displaying full screen images up to 4096x2400 resolution
- Shall support up to 16 logo presets
- Support muting of one or all video outputs at any time
- Support automatic muting of video and sync output when no video signal is present
- Provide a choice to generate a blue screen or a black screen before disabling sync
- Provide a configurable timeout period before disabling sync
- The user may selectively enable or disable automatic muting of sync output
- Support the connection of DVI displays that do not recognize HDMI-specific formats
- Automatically enable or disable embedded TMDS audio and InfoFrames
- Automatically set the correct color space
- Support video transmission over shielded CATx up to 330 feet (100 meters)
- Provide automatic reclocking of HDMI video signals at each HDMI output
- Provide video output connections
- Switching Requirements
- Provide video and audio matrix switching between any input and any output
- Support incoming 4K and UHD signals at all HDMI and DTP inputs
- Support routing of 4K and UHD signals to the two HDMI outputs
- Support routing of scaled 4K or UHD video signals to the two DTP outputs
- Provide storage and recall of input and output ties
- Save video and audio ties between inputs and outputs
- Presets may be recalled using front panel controls
- Presets may be saved and recalled electronically via Ethernet, RS-232, or USB connection
- Provide the ability to view which inputs and outputs are actively connected
- Provide selectable transition effects when switching inputs
- Freeze/Fade: video output shall fade out a final frozen frame of the previous input source as the newly selected input source fades in
- Cut: video output shall cut to black, then cut to the newly selected input source
- Fade: video output shall fade to black, then fade into the newly selected input source
- Provide video and audio matrix switching between any input and any output
- EDID Requirements
- Provide automatic EDID management between connected devices
- Provide a set of pre-stored EDID files
- Support capture of EDID from any connected display
- Support user uploading of custom-generated EDID files
- Support assignment of pre-stored, captured, or custom uploaded EDID files for each input connection
- Provide automatic EDID management between connected devices
- HDCP Requirements
- The unit shall be HDCP compliant
- Provide authentication and maintain continuous verification of HDCP key exchange with connected sink devices
- Provide authentication and maintain continuous verification of HDCP key exchange with connected source devices
- Provide the option to disable HDCP processing at any HDMI input connection when passing unencrypted content
- Provide selectable, human-readable visual confirmation of HDCP compliance when encrypted content is routed to a non-HDCP compliant display
- When enabled, the video output shall be a solid green color and an on-screen message stating “HDCP CONTENT” shall be displayed
- When disabled, the output shall be muted
- Provide real-time verification of HDCP status for each HDMI input and output
- Electronically accessible over Ethernet, RS-232, or USB connection
- The unit shall be HDCP compliant
- Audio Requirements
- Provide audio input connections
- Support embedded audio on six HDMI connectors
- Support embedded and analog audio on two RJ-45 connectors
- Support six stereo line level, balanced or unbalanced signals on six 5-pole, 3.5 mm captive screw connectors
- Support four mono microphone or line level, balanced or unbalanced signals with +48 volt phantom power on four 3-pole, 3.5 mm captive screw connectors
- Provide audio output connections
- Support embedded audio on two HDMI connectors
- Support embedded and analog audio on two RJ-45 connectors
- Support two stereo line level, balanced or unbalanced signals with independent output level control on two 5-pole, 3.5 mm captive screw connectors
- Support S/PDIF digital audio signal on one RCA connector
- Support one mono speaker level signal on one 2-pole, 5 mm captive screw connector
- Provide mono amplification for high impedance speaker systems
- Support one mono speaker level signal on one 2-pole, 5 mm screw-lock captive screw connector
- Provide a total of 100 watts rms output power into a 70 volt load, measured at 1 kHz with 0.1% THD
- Provide a THD+N measurement of less than 0.1 % measured at 3 dB below clipping
- Provide a signal-to-noise ratio of greater than 90 dB measured from 20 Hz to 20 kHz, unweighted
- Utilize an efficient Class D amplifier design
- Provide Class D Ripple Suppression technology
- Provide an automatic clip limiter to detect onset of clipping by comparing input and output waveforms and automatically reduce gain with a slow attack and fast release to eliminate clipping distortion
- Provide multiple protection circuits that activate during output shorts, thermal overload, or DC faults
- Provide 64-bit floating point DSP engine
- Support 32-bit and 64-bit processing algorithms
- Provide a deterministic latency of 3.2 ms from input to output
- Provide additional, deterministic latency of 1.3 ms when Virtual Path routing is used
- Provide additional, deterministic latency of 12 ms when AEC is used
- Support embedding of any analog audio input signal onto the matrix video outputs
- Support extraction of two-channel PCM HDMI audio signals to the analog stereo outputs, or route embedded multi-channel bitstream audio to the HDMI outputs
- Support de-embedding, processing, and re-embedding of two-channel PCM HDMI audio signals onto the HDMI outputs
- Support mixing of program audio and mic/line audio signals
- Support mic audio mixed with program audio onto the HDMI/DTP outputs, variable audio outputs, and S/PDIF audio output
- Provide the capability to break two-channel audio away from its corresponding video signal and route to the audio outputs, allowing the audio and video signals from one source to be switched to different destinations
- Provide adjustable, automatic ducking of program audio when a signal is detected on the microphone input
- Program audio shall automatically ramp up to reach the original volume level when audio is no longer detected on the microphone input
- Support audio transmission over twisted pair up to 330 feet (100 meters)
- Provide audio input connections
- Expansion Port Requirements
- Provide a digital audio expansion port for bidirectional signal routing between the matrix switcher and a connected Extron DMP 128 Digital Matrix Processor
- Support 16 incoming signals and 16 outgoing signals
- Provide uncompressed digital audio at 48 kHz sampling rate with 24-bit resolution
- Automixer Requirements
- Shall provide Automixer Group selection for optional channel assignment into any of eight groups
- Shall provide gated and gain sharing automixer types
- Shall provide Last Mic Open Priority and Chairman Priority modes
- Shall provide Number of Open Microphone parameter from 0 to 12 microphones
- Shall provide Gate Threshold level and adjustable Off Reduction level for gated channels
- Shall provide adjustable parameters for Attack, Hold, and Release times
- Shall provide real-time metering of Signal Level, Gate Status, and Gate Threshold target from within the Automix parameter setup window in the DSP Configuration software
- Shall provide global view with Gate Status indication of all channels assigned to an automixer group, within the DSP Configuration software
- AEC - Acoustic Echo Cancellation Processing Requirements
- Shall provide four independent channels of AEC
- Shall provide real-time software-based metering of Echo Return Loss, Echo Return Loss Enhancement, and Total Echo Reduction levels
- Shall provide real-time indication of remote site activity, local site activity, and AEC processor reconverging
- Shall provide up to 20 dB of selectable noise cancellation for each AEC channel
- Shall provide advanced controls and adjustable parameters for Non-Linear Processing, Double Talk Echo Reduction, and Comfort Noise for each AEC channel
- Shall provide greater than 200 milliseconds of AEC tail length
- Shall provide up to 60 dB per second AEC convergence rate
- DSP Configuration Software Requirements
- Shall support PC-based DSP configuration software, allowing flexible control of the integrated digital signal processing
- Shall provide a Live mode for real-time control of parameters without compiling and file uploading to matrix switcher
- Shall provide an Emulate mode for offline configuration
- Shall provide single window view of all inputs and outputs, audio processing blocks, routing, mix points, and virtual routing
- Shall provide setup and configuration of digital signal processing tools including, but not limited to: Filters (high pass, low pass, bass, treble, and parametric EQ); AEC; Dynamics processing (AGC, compressor, limiter, noise gate); Delay processing; Ducking processor; Automixing; Loudness processor; and multiple gain stages
- Shall provide cut and paste editing between processing blocks
- Shall provide matrix routing with integrated mix point gain adjustment between inputs, outputs, virtual sends, virtual returns, expansion inputs, and expansion outputs
- Shall provide a library of pre-designed processor settings for inputs and outputs with user-customizable parameters
- Shall provide 32 Group Master controls for consolidation of up to 28 individual gain or mute control members of the same type into one point of control
- Shall provide Soft Limits settings to define upper and lower control limits on Group Masters for use with external controls
- Shall provide 32 Presets for recall of any processing block setting, level setting, or audio routing; presets shall be saved for the entire system, or any selected partial groups of inputs, outputs, mix points, and DSP blocks
- Shall provide real-time metering of levels within each Input Gain, AEC, AGC, Compressor, Limiter, Noise Gate, Automixer, and Output Volume processing block in Live mode
- Shall provide a Meter Bridge window for real-time metering of all input and output channels with clipping indication in Live mode
- Shall provide keyboard-based navigation of configuration software utilizing directional controls, keyboard shortcuts, and spreadsheet software-style commands
- Shall provide file saving in both Live and Emulate mode
- Shall provide file upload in both Live and Emulate mode
- Shall provide configuration and file saving of the matrix switcher and a linked, compatible Extron digital matrix processor from a single configuration software session
- Shall support PC-based DSP configuration software, allowing flexible control of the integrated digital signal processing
- Integrated Control Processor Requirements
- Provide AV system control connections
- Three RJ-45: 10/100/1000Base-T Ethernet, half/full duplex with auto-detect for connection to a LAN and include link and activity LED indicators located on the left and right of each jack for troubleshooting network issues, these ports will be designated as AV LAN ports allowing for AV devices to be isolated from a corporate network
- AV LAN ports shall support a DHCP server that can distribute 50 dynamic IP addresses with a 24-hour lease
- One RJ-45: 10/100/1000Base-T, half/full duplex with auto-detect for connection to a LAN or WAN and includes link and activity LED indicators located on the left and right of the jack for troubleshooting network issues
- Two 3-pole captive screw: RS-232, configurable for unidirectional or bidirectional control of AV system components
- One 5-pole captive screw: RS-232/RS-422/RS-485, configurable for unidirectional or bidirectional control of AV system components
- Two IR/serial ports on one 5-pole captive screw: IR (using an IR emitter) or unidirectional RS-232 for control of AV system components
- Four low voltage relays on one 6-pole captive screw: configurable for controlling lighting, controlling screens, or other device functions
- Four digital input/output ports on one 5-pole captive screw: configurable for use as an interface with devices such as sensors, switches, LEDs, and relays
- One eBUS® port on a 4-pole captive screw for connecting to eBUS devices
- Shall support the following protocols: ICMP (ping), IEEE 802.1X, IPv4, TCP, UDP, DHCP, DNS, HTTP, HTTPS, NTP, SFTP, SMTP, SNMP, SSH
- Shall support a Web-based AV resource management application that provides a means to manage, monitor, and control AV equipment
- Provide an internal real-time clock with a 30-year backup battery that is used to keep track of the date and time
- Shall support the addition of an Extron LinkLicense® for use of third party devices as primary control interfaces
- Provide front panel LED activity indicators for RS-232 status, RS-232/RS-422/RS-485 status, IR/serial status, digital I/O status, relay status, eBUS status, and network status
- Shall support control system synchronization to allow users to retain and recover configured endpoints in case of network or power failure
- Shall be configured using Extron Global Configurator® Plus or Extron Global Configurator Professional with support for the following:
- Provide support for up to eight configurable Extron TouchLink Pro touchpanels
- Provide support for up to eight configurable eBUS button panels
- Provide remote monitoring and control via Ethernet
- Provide the ability to create E-mail notifications
- Provide multiple levels of password protection
- Provide the ability to create schedules and monitors
- Support up to 32 Ethernet-controllable AV devices
- Support local variables and conditional logic
- Support grouping of multiple Extron IP Link® Pro xi control processors to function as one when configured with Global Configurator Professional
- Security Requirements
- Support SFTP and SSH for secure communication between the control processor and a TouchLink Pro touchpanel or Network Button Panel
- Support HTTPS and SSH for secure communication between the control processor and Extron Control App
- Support HTTPS for secure communication between the control processor and Extron Control for Web
- Support SSH for secure communication between the control processor and controlled device for programmed systems
- Support SFTP and SSH for secure communication between the control processor and the configuration or programming software
- Provide the option to modify administrator and user credentials
- Support security updates to maintain network health
- Require that a Secure Socket Layer (SSL) Certificate is installed to maintain system confidentiality and data integrity
- Support the installation of an owner furnished certificate with the following properties:
- Certificates shall include x.509 support
- Certificates shall include public / private key exchange
- Certificates shall support PEM encoding
- Extron shall furnish documentation that describes all supported network ports and services
- Provide AV system control connections
- Control/remote - RS-232 and IR Pass-Through Over Shielded CATx Requirements
- Provide connections for AV device control
- Two 5-pole captive screw: RS-232 or IR pass-through to DTP twisted pair transmitters
- Two 5-pole captive screw: RS-232 or IR pass-through to DTP twisted pair receivers
- Support RS-232 and IR transmission over shielded CATx up to 330 feet (100 meters)
- Provide connections for AV device control
- Control/Remote - Matrix Switcher Requirements
- Provide connections for remote matrix switcher control
- RJ-45: 10/100Base-T Ethernet
- 3-pole captive screw: RS-232
- Mini USB-B: USB 2.0
- Provide alternatives for configuration and operation
- Front panel controls
- Built-in Web pages accessible using a standard Web browser via Ethernet connection
- Product configuration software connected via Ethernet or USB
- Serial commands sent over Ethernet, RS-232, or USB connection
- Support disabling of front panel controls to prevent inadvertent or unauthorized changes to configuration settings
- Provide connections for remote matrix switcher control
- General Requirements
- Provide real-time verification of signal flow and operation from DTP transmitter or DTP receiver
- Directly readable on RJ-45 signal and link LEDs
- Shall be compatible with all Extron DTP Series models, DTP-enabled products, and Extron XTP CrossPoint matrix switchers
- Shall be compatible with CATx shielded twisted pair cable, and Extron XTP DTP 24 shielded twisted pair cable
- Shall provide remote power to two DTP transmitters and two DTP receivers over the shielded CATx connections
- Shall provide power to external peripheral devices on each HDMI output
- Enclosure shall be rack-mountable, full rack width, and 2RU in height
- Shall be equipped with an internal 100-240 VAC, 50/60 Hz universal power supply
- Provide real-time verification of signal flow and operation from DTP transmitter or DTP receiver
- Video Input Requirements
- Approved device shall be the Extron DTP CrossPoint 82 4K IPCP Q MA 70 (part number 60-1583-93); no alternates or equals
- Rack-mountable matrix switcher for HDMI and DTP sources and associated digital and analog audio, AV system control 4K scaling, signal extension over shielded CATx cable, audio digital signal processing with AEC, and automixing for eight microphone groups
DTP CrossPoint 82 4K IPCP Q MA 70
- Provide an 8x2 scaling presentation matrix switcher that shall support up to eight inputs and two outputs for matrix switching of HDMI sources, one digital audio expansion port, 4K upscaling and downscaling, one integrated Extron IP Link Pro xi quad core control processor, plus additional support for signal extension over shielded CATx cable and audio digital signal processing with AEC.
- Rack-mountable matrix switcher for HDMI and DTP sources and associated digital and analog audio, AV system control 4K scaling, signal extension over shielded CATx cable, audio digital signal processing with AEC, and automixing for eight microphone groups
- Video Input Requirements
- Provide video input connections
- Six HDMI
- Two RJ-45 for video from Extron DTP® twisted pair transmitters
- Shall be configurable for compatibility with Extron DTP transmitters or DTP-enabled products
- Shall be configurable for compatibility with Extron XTP® CrossPoint® matrix switchers
- Support 4K and UHD signals at all inputs
- Provide image adjustments for the DTP outputs, including brightness, contrast, color, tint, detail, H/V positioning, and sizing
- Provide storage and recall of video parameters and picture settings when activated for the scaled DTP outputs
- Automatic memories for each video input
- Save video settings and picture adjustments without user intervention
- Automatically recall settings when the same video rate is encountered
- The user may selectively enable or disable automatic memories
- Manual user presets
- Save picture adjustments
- User presets may be saved and recalled using front panel controls
- User presets may be saved and recalled electronically via Ethernet, RS-232, or USB connection
- Manual input presets
- Save video settings and picture adjustments
- Input presets may be saved and recalled electronically via Ethernet, RS-232, or USB connection
- Automatic memories for each video input
- Support HDMI specifications including data rates up to 10.2 Gbps, Deep Color up to 12-bit, 3D, and HD lossless audio formats
- Provide automatic cable equalization for each digital input to 100 feet (30 meters) at 1080p/60 with 8-bit color when used with Extron HDMI Pro cables
- Provide automatic cable equalization for each digital input to 50 feet (15 meters) at 4K/30 and 2560x1600 @ 60 Hz resolutions when used with Extron HDMI Pro cables
- Support video transmission over shielded CATx up to 330 feet (100 meters)
- Provide video input connections
- Video Output Requirements
- Provide video output connections
- Two RJ-45 for video to Extron DTP twisted pair receivers
- Shall be configurable for compatibility with Extron DTP receivers or DTP-enabled products
- Shall be configurable for sending digital video and embedded audio, plus bidirectional RS-232 and IR signals to Extron XTP CrossPoint matrix switchers
- Shall be configurable for sending digital video and embedded audio, plus bidirectional RS-232 and IR signals to HDBaseT-enabled displays
- Shall support mirrored content between both DTP outputs and the two corresponding HDMI outputs for local monitoring
- Two RJ-45 for video to Extron DTP twisted pair receivers
- Provide a range of selectable scaled DTP output rates from 640x480 to 4K, including 2560x1600 and 1080p/60
- Support 4K and UHD signals at the two HDMI outputs
- Provide independent scaling for each DTP output
- Provide image scaling and video format conversion at 30-bit precision for signals up to 4K
- Support motion-adaptive deinterlacing for signals up to 1080i
- Provide aspect ratio control for each scaled DTP output
- When in FILL mode, the video image shall always fill the output screen without letterbox or pillarbox
- When in FOLLOW mode, the video image shall always preserve the aspect ratio of the input signals without distortion
- Provide internal test patterns for the scaled DTP outputs to facilitate system setup and calibration
- Support upload and placement of custom logo graphics at any position on any of the scaled DTP outputs
- Support logo placement as a foreground image
- Shall support uploading logo graphics in BMP, JPG, PNG, or TIFF format
- Shall support displaying full screen images up to 4096x2400 resolution
- Shall support up to 16 logo presets
- Support muting of one or all video outputs at any time
- Support automatic muting of video and sync output when no video signal is present
- Provide a choice to generate a blue screen or a black screen before disabling sync
- Provide a configurable timeout period before disabling sync
- The user may selectively enable or disable automatic muting of sync output
- Support the connection of DVI displays that do not recognize HDMI-specific formats
- Automatically enable or disable embedded TMDS audio and InfoFrames
- Automatically set the correct color space
- Support video transmission over shielded CATx up to 330 feet (100 meters)
- Provide automatic reclocking of HDMI video signals at each HDMI output
- Provide video output connections
- Switching Requirements
- Provide video and audio matrix switching between any input and any output
- Support incoming 4K and UHD signals at all HDMI and DTP inputs
- Support routing of 4K and UHD signals to the two HDMI outputs
- Support routing of scaled 4K or UHD video signals to the two DTP outputs
- Provide storage and recall of input and output ties
- Save video and audio ties between inputs and outputs
- Presets may be recalled using front panel controls
- Presets may be saved and recalled electronically via Ethernet, RS-232, or USB connection
- Provide the ability to view which inputs and outputs are actively connected
- Provide selectable transition effects when switching inputs
- Freeze/Fade: video output shall fade out a final frozen frame of the previous input source as the newly selected input source fades in
- Cut: video output shall cut to black, then cut to the newly selected input source
- Fade: video output shall fade to black, then fade into the newly selected input source
- Provide video and audio matrix switching between any input and any output
- EDID Requirements
- Provide automatic EDID management between connected devices
- Provide a set of pre-stored EDID files
- Support capture of EDID from any connected display
- Support user uploading of custom-generated EDID files
- Support assignment of pre-stored, captured, or custom uploaded EDID files for each input connection
- Provide automatic EDID management between connected devices
- HDCP Requirements
- The unit shall be HDCP compliant
- Provide authentication and maintain continuous verification of HDCP key exchange with connected sink devices
- Provide authentication and maintain continuous verification of HDCP key exchange with connected source devices
- Provide the option to disable HDCP processing at any HDMI input connection when passing unencrypted content
- Provide selectable, human-readable visual confirmation of HDCP compliance when encrypted content is routed to a non-HDCP compliant display
- When enabled, the video output shall be a solid green color and an on-screen message stating “HDCP CONTENT” shall be displayed
- When disabled, the output shall be muted
- Provide real-time verification of HDCP status for each HDMI input and output
- Electronically accessible over Ethernet, RS-232, or USB connection
- The unit shall be HDCP compliant
- Audio Requirements
- Provide audio input connections
- Support embedded audio on six HDMI connectors
- Support embedded and analog audio on two RJ-45 connectors
- Support six stereo line level, balanced or unbalanced signals on six 5-pole, 3.5 mm captive screw connectors
- Support four mono microphone or line level, balanced or unbalanced signals with +48 volt phantom power on four 3-pole, 3.5 mm captive screw connectors
- Provide audio output connections
- Support embedded audio on two HDMI connectors
- Support embedded and analog audio on two RJ-45 connectors
- Support two stereo line level, balanced or unbalanced signals with independent output level control on two 5-pole, 3.5 mm captive screw connectors
- Support S/PDIF digital audio signal on one RCA connector
- Support one mono speaker level signal on one 2-pole, 5 mm captive screw connector
- Provide mono amplification for high impedance speaker systems
- Support one mono speaker level signal on one 2-pole, 5 mm screw-lock captive screw connector
- Provide a total of 100 watts rms output power into a 70 volt load, measured at 1 kHz with 0.1% THD
- Provide a THD+N measurement of less than 0.1 % measured at 3 dB below clipping
- Provide a signal-to-noise ratio of greater than 90 dB measured from 20 Hz to 20 kHz, unweighted
- Utilize an efficient Class D amplifier design
- Provide Class D Ripple Suppression technology
- Provide an automatic clip limiter to detect onset of clipping by comparing input and output waveforms and automatically reduce gain with a slow attack and fast release to eliminate clipping distortion
- Provide multiple protection circuits that activate during output shorts, thermal overload, or DC faults
- Provide 64-bit floating point DSP engine
- Support 32-bit and 64-bit processing algorithms
- Provide a deterministic latency of 3.2 ms from input to output
- Provide additional, deterministic latency of 1.3 ms when Virtual Path routing is used
- Provide additional, deterministic latency of 12 ms when AEC is used
- Support embedding of any analog audio input signal onto the matrix video outputs
- Support extraction of two-channel PCM HDMI audio signals to the analog stereo outputs, or route embedded multi-channel bitstream audio to the HDMI outputs
- Support de-embedding, processing, and re-embedding of two-channel PCM HDMI audio signals onto the HDMI outputs
- Support mixing of program audio and mic/line audio signals
- Support mic audio mixed with program audio onto the HDMI/DTP outputs, variable audio outputs, and S/PDIF audio output
- Provide the capability to break two-channel audio away from its corresponding video signal and route to the audio outputs, allowing the audio and video signals from one source to be switched to different destinations
- Provide adjustable, automatic ducking of program audio when a signal is detected on the microphone input
- Program audio shall automatically ramp up to reach the original volume level when audio is no longer detected on the microphone input
- Support audio transmission over twisted pair up to 330 feet (100 meters)
- Provide audio input connections
- Expansion Port Requirements
- Provide a digital audio expansion port for bidirectional signal routing between the matrix switcher and a connected Extron DMP 128 Digital Matrix Processor
- Support 16 incoming signals and 16 outgoing signals
- Provide uncompressed digital audio at 48 kHz sampling rate with 24-bit resolution
- Automixer Requirements
- Shall provide Automixer Group selection for optional channel assignment into any of eight groups
- Shall provide gated and gain sharing automixer types
- Shall provide Last Mic Open Priority and Chairman Priority modes
- Shall provide Number of Open Microphone parameter from 0 to 12 microphones
- Shall provide Gate Threshold level and adjustable Off Reduction level for gated channels
- Shall provide adjustable parameters for Attack, Hold, and Release times
- Shall provide real-time metering of Signal Level, Gate Status, and Gate Threshold target from within the Automix parameter setup window in the DSP Configuration software
- Shall provide global view with Gate Status indication of all channels assigned to an automixer group, within the DSP Configuration software
- AEC - Acoustic Echo Cancellation Processing Requirements
- Shall provide four independent channels of AEC
- Shall provide real-time software-based metering of Echo Return Loss, Echo Return Loss Enhancement, and Total Echo Reduction levels
- Shall provide real-time indication of remote site activity, local site activity, and AEC processor reconverging
- Shall provide up to 20 dB of selectable noise cancellation for each AEC channel
- Shall provide advanced controls and adjustable parameters for Non-Linear Processing, Double Talk Echo Reduction, and Comfort Noise for each AEC channel
- Shall provide greater than 200 milliseconds of AEC tail length
- Shall provide up to 60 dB per second AEC convergence rate
- DSP Configuration Software Requirements
- Shall support PC-based DSP configuration software, allowing flexible control of the integrated digital signal processing
- Shall provide a Live mode for real-time control of parameters without compiling and file uploading to matrix switcher
- Shall provide an Emulate mode for offline configuration
- Shall provide single window view of all inputs and outputs, audio processing blocks, routing, mix points, and virtual routing
- Shall provide setup and configuration of digital signal processing tools including, but not limited to: Filters (high pass, low pass, bass, treble, and parametric EQ); AEC; Dynamics processing (AGC, compressor, limiter, noise gate); Delay processing; Ducking processor; Automixing; Loudness processor; and multiple gain stages
- Shall provide cut and paste editing between processing blocks
- Shall provide matrix routing with integrated mix point gain adjustment between inputs, outputs, virtual sends, virtual returns, expansion inputs, and expansion outputs
- Shall provide a library of pre-designed processor settings for inputs and outputs with user-customizable parameters
- Shall provide 32 Group Master controls for consolidation of up to 28 individual gain or mute control members of the same type into one point of control
- Shall provide Soft Limits settings to define upper and lower control limits on Group Masters for use with external controls
- Shall provide 32 Presets for recall of any processing block setting, level setting, or audio routing; presets shall be saved for the entire system, or any selected partial groups of inputs, outputs, mix points, and DSP blocks
- Shall provide real-time metering of levels within each Input Gain, AEC, AGC, Compressor, Limiter, Noise Gate, Automixer, and Output Volume processing block in Live mode
- Shall provide a Meter Bridge window for real-time metering of all input and output channels with clipping indication in Live mode
- Shall provide keyboard-based navigation of configuration software utilizing directional controls, keyboard shortcuts, and spreadsheet software-style commands
- Shall provide file saving in both Live and Emulate mode
- Shall provide file upload in both Live and Emulate mode
- Shall provide configuration and file saving of the matrix switcher and a linked, compatible Extron digital matrix processor from a single configuration software session
- Shall support PC-based DSP configuration software, allowing flexible control of the integrated digital signal processing
- Integrated Control Processor Requirements
- Provide AV system control connections
- Three RJ-45: 10/100/1000Base-T Ethernet, half/full duplex with auto-detect for connection to a LAN and include link and activity LED indicators located on the left and right of each jack for troubleshooting network issues, these ports will be designated as AV LAN ports allowing for AV devices to be isolated from a corporate network
- AV LAN ports shall support a DHCP server that can distribute 50 dynamic IP addresses with a 24-hour lease
- One RJ-45: 10/100/1000Base-T, half/full duplex with auto-detect for connection to a LAN or WAN and includes link and activity LED indicators located on the left and right of the jack for troubleshooting network issues
- Two 3-pole captive screw: RS-232, configurable for unidirectional or bidirectional control of AV system components
- One 5-pole captive screw: RS-232/RS-422/RS-485, configurable for unidirectional or bidirectional control of AV system components
- Two IR/serial ports on one 5-pole captive screw: IR (using an IR emitter) or unidirectional RS-232 for control of AV system components
- Four low voltage relays on one 6-pole captive screw: configurable for controlling lighting, controlling screens, or other device functions
- Four digital input/output ports on one 5-pole captive screw: configurable for use as an interface with devices such as sensors, switches, LEDs, and relays
- One eBUS® port on a 4-pole captive screw for connecting to eBUS devices
- Shall support the following protocols: ICMP (ping), IEEE 802.1X, IPv4, TCP, UDP, DHCP, DNS, HTTP, HTTPS, NTP, SFTP, SMTP, SNMP, SSH
- Shall support a Web-based AV resource management application that provides a means to manage, monitor, and control AV equipment
- Provide an internal real-time clock with a 30-year backup battery that is used to keep track of the date and time
- Shall include an Extron LinkLicense® for use of third party devices as primary control interfaces
- Provide front panel LED activity indicators for RS-232 status, RS-232/RS-422/RS-485 status, IR/serial status, digital I/O status, relay status, eBUS status, and network status
- Shall support control system synchronization to allow users to retain and recover configured endpoints in case of network or power failure
- Shall be configured using Extron Global Configurator® Plus or Extron Global Configurator Professional with support for the following:
- Provide support for up to eight configurable Extron TouchLink Pro touchpanels
- Provide support for up to eight configurable eBUS button panels
- Provide remote monitoring and control via Ethernet
- Provide the ability to create E-mail notifications
- Provide multiple levels of password protection
- Provide the ability to create schedules and monitors
- Support up to 32 Ethernet-controllable AV devices
- Support local variables and conditional logic
- Support grouping of multiple Extron IP Link® Pro xi control processors to function as one when configured with Global Configurator Professional
- Security Requirements
- Support SFTP and SSH for secure communication between the control processor and a TouchLink Pro touchpanel or Network Button Panel
- Support HTTPS and SSH for secure communication between the control processor and Extron Control App
- Support HTTPS for secure communication between the control processor and Extron Control for Web
- Support SSH for secure communication between the control processor and controlled device for programmed systems
- Support SFTP and SSH for secure communication between the control processor and the configuration or programming software
- Provide the option to modify administrator and user credentials
- Support security updates to maintain network health
- Require that a Secure Socket Layer (SSL) Certificate is installed to maintain system confidentiality and data integrity
- Support the installation of an owner furnished certificate with the following properties:
- Certificates shall include x.509 support
- Certificates shall include public / private key exchange
- Certificates shall support PEM encoding
- Extron shall furnish documentation that describes all supported network ports and services
- Provide AV system control connections
- Control/remote - RS-232 and IR Pass-Through Over Shielded CATx Requirements
- Provide connections for AV device control
- Two 5-pole captive screw: RS-232 or IR pass-through to DTP twisted pair transmitters
- Two 5-pole captive screw: RS-232 or IR pass-through to DTP twisted pair receivers
- Support RS-232 and IR transmission over shielded CATx up to 330 feet (100 meters)
- Provide connections for AV device control
- Control/Remote - Matrix Switcher Requirements
- Provide connections for remote matrix switcher control
- RJ-45: 10/100Base-T Ethernet
- 3-pole captive screw: RS-232
- Mini USB-B: USB 2.0
- Provide alternatives for configuration and operation
- Front panel controls
- Built-in Web pages accessible using a standard Web browser via Ethernet connection
- Product configuration software connected via Ethernet or USB
- Serial commands sent over Ethernet, RS-232, or USB connection
- Support disabling of front panel controls to prevent inadvertent or unauthorized changes to configuration settings
- Provide connections for remote matrix switcher control
- General Requirements
- Provide real-time verification of signal flow and operation from DTP transmitter or DTP receiver
- Directly readable on RJ-45 signal and link LEDs
- Shall be compatible with all Extron DTP Series models, DTP-enabled products, and Extron XTP CrossPoint matrix switchers
- Shall be compatible with CATx shielded twisted pair cable, and Extron XTP DTP 24 shielded twisted pair cable
- Shall provide remote power to two DTP transmitters and two DTP receivers over the shielded CATx connections
- Shall provide power to external peripheral devices on each HDMI output
- Enclosure shall be rack-mountable, full rack width, and 2RU in height
- Shall be equipped with an internal 100-240 VAC, 50/60 Hz universal power supply
- Provide real-time verification of signal flow and operation from DTP transmitter or DTP receiver
- Video Input Requirements
- Approved device shall be the Extron DTP CrossPoint 82 4K IPCP Q MA 70 (part number 60-1583-93A); no alternates or equals
- Rack-mountable matrix switcher for HDMI and DTP sources and associated digital and analog audio, AV system control 4K scaling, signal extension over shielded CATx cable, audio digital signal processing with AEC, and automixing for eight microphone groups
DTP CrossPoint 82 4K IPCP Q MA 70
- Provide an 8x2 scaling presentation matrix switcher that shall support up to eight inputs and two outputs for matrix switching of HDMI sources, one digital audio expansion port, 4K upscaling and downscaling, one integrated Extron IP Link Pro xi quad core control processor, plus additional support for signal extension over shielded CATx cable and audio digital signal processing with AEC.
- Rack-mountable matrix switcher for HDMI and DTP sources and associated digital and analog audio, AV system control 4K scaling, signal extension over shielded CATx cable, audio digital signal processing with AEC, and automixing for eight microphone groups
- Video Input Requirements
- Provide video input connections
- Six HDMI
- Two RJ-45 for video from Extron DTP® twisted pair transmitters
- Shall be configurable for compatibility with Extron DTP transmitters or DTP-enabled products
- Shall be configurable for compatibility with Extron XTP® CrossPoint® matrix switchers
- Support 4K and UHD signals at all inputs
- Provide image adjustments for the DTP outputs, including brightness, contrast, color, tint, detail, H/V positioning, and sizing
- Provide storage and recall of video parameters and picture settings when activated for the scaled DTP outputs
- Automatic memories for each video input
- Save video settings and picture adjustments without user intervention
- Automatically recall settings when the same video rate is encountered
- The user may selectively enable or disable automatic memories
- Manual user presets
- Save picture adjustments
- User presets may be saved and recalled using front panel controls
- User presets may be saved and recalled electronically via Ethernet, RS-232, or USB connection
- Manual input presets
- Save video settings and picture adjustments
- Input presets may be saved and recalled electronically via Ethernet, RS-232, or USB connection
- Automatic memories for each video input
- Support HDMI specifications including data rates up to 10.2 Gbps, Deep Color up to 12-bit, 3D, and HD lossless audio formats
- Provide automatic cable equalization for each digital input to 100 feet (30 meters) at 1080p/60 with 8-bit color when used with Extron HDMI Pro cables
- Provide automatic cable equalization for each digital input to 50 feet (15 meters) at 4K/30 and 2560x1600 @ 60 Hz resolutions when used with Extron HDMI Pro cables
- Support video transmission over shielded CATx up to 330 feet (100 meters)
- Provide video input connections
- Video Output Requirements
- Provide video output connections
- Two RJ-45 for video to Extron DTP twisted pair receivers
- Shall be configurable for compatibility with Extron DTP receivers or DTP-enabled products
- Shall be configurable for sending digital video and embedded audio, plus bidirectional RS-232 and IR signals to Extron XTP CrossPoint matrix switchers
- Shall be configurable for sending digital video and embedded audio, plus bidirectional RS-232 and IR signals to HDBaseT-enabled displays
- Shall support mirrored content between both DTP outputs and the two corresponding HDMI outputs for local monitoring
- Two RJ-45 for video to Extron DTP twisted pair receivers
- Provide a range of selectable scaled DTP output rates from 640x480 to 4K, including 2560x1600 and 1080p/60
- Support 4K and UHD signals at the two HDMI outputs
- Provide independent scaling for each DTP output
- Provide image scaling and video format conversion at 30-bit precision for signals up to 4K
- Support motion-adaptive deinterlacing for signals up to 1080i
- Provide aspect ratio control for each scaled DTP output
- When in FILL mode, the video image shall always fill the output screen without letterbox or pillarbox
- When in FOLLOW mode, the video image shall always preserve the aspect ratio of the input signals without distortion
- Provide internal test patterns for the scaled DTP outputs to facilitate system setup and calibration
- Support upload and placement of custom logo graphics at any position on any of the scaled DTP outputs
- Support logo placement as a foreground image
- Shall support uploading logo graphics in BMP, JPG, PNG, or TIFF format
- Shall support displaying full screen images up to 4096x2400 resolution
- Shall support up to 16 logo presets
- Support muting of one or all video outputs at any time
- Support automatic muting of video and sync output when no video signal is present
- Provide a choice to generate a blue screen or a black screen before disabling sync
- Provide a configurable timeout period before disabling sync
- The user may selectively enable or disable automatic muting of sync output
- Support the connection of DVI displays that do not recognize HDMI-specific formats
- Automatically enable or disable embedded TMDS audio and InfoFrames
- Automatically set the correct color space
- Support video transmission over shielded CATx up to 330 feet (100 meters)
- Provide automatic reclocking of HDMI video signals at each HDMI output
- Provide video output connections
- Switching Requirements
- Provide video and audio matrix switching between any input and any output
- Support incoming 4K and UHD signals at all HDMI and DTP inputs
- Support routing of 4K and UHD signals to the two HDMI outputs
- Support routing of scaled 4K or UHD video signals to the two DTP outputs
- Provide storage and recall of input and output ties
- Save video and audio ties between inputs and outputs
- Presets may be recalled using front panel controls
- Presets may be saved and recalled electronically via Ethernet, RS-232, or USB connection
- Provide the ability to view which inputs and outputs are actively connected
- Provide selectable transition effects when switching inputs
- Freeze/Fade: video output shall fade out a final frozen frame of the previous input source as the newly selected input source fades in
- Cut: video output shall cut to black, then cut to the newly selected input source
- Fade: video output shall fade to black, then fade into the newly selected input source
- Provide video and audio matrix switching between any input and any output
- EDID Requirements
- Provide automatic EDID management between connected devices
- Provide a set of pre-stored EDID files
- Support capture of EDID from any connected display
- Support user uploading of custom-generated EDID files
- Support assignment of pre-stored, captured, or custom uploaded EDID files for each input connection
- Provide automatic EDID management between connected devices
- HDCP Requirements
- The unit shall be HDCP compliant
- Provide authentication and maintain continuous verification of HDCP key exchange with connected sink devices
- Provide authentication and maintain continuous verification of HDCP key exchange with connected source devices
- Provide the option to disable HDCP processing at any HDMI input connection when passing unencrypted content
- Provide selectable, human-readable visual confirmation of HDCP compliance when encrypted content is routed to a non-HDCP compliant display
- When enabled, the video output shall be a solid green color and an on-screen message stating “HDCP CONTENT” shall be displayed
- When disabled, the output shall be muted
- Provide real-time verification of HDCP status for each HDMI input and output
- Electronically accessible over Ethernet, RS-232, or USB connection
- The unit shall be HDCP compliant
- Audio Requirements
- Provide audio input connections
- Support embedded audio on six HDMI connectors
- Support embedded and analog audio on two RJ-45 connectors
- Support six stereo line level, balanced or unbalanced signals on six 5-pole, 3.5 mm captive screw connectors
- Support four mono microphone or line level, balanced or unbalanced signals with +48 volt phantom power on four 3-pole, 3.5 mm captive screw connectors
- Provide audio output connections
- Support embedded audio on two HDMI connectors
- Support embedded and analog audio on two RJ-45 connectors
- Support two stereo line level, balanced or unbalanced signals with independent output level control on two 5-pole, 3.5 mm captive screw connectors
- Support S/PDIF digital audio signal on one RCA connector
- Support one mono speaker level signal on one 2-pole, 5 mm captive screw connector
- Provide mono amplification for high impedance speaker systems
- Support one mono speaker level signal on one 2-pole, 5 mm screw-lock captive screw connector
- Provide a total of 100 watts rms output power into a 70 volt load, measured at 1 kHz with 0.1% THD
- Provide a THD+N measurement of less than 0.1 % measured at 3 dB below clipping
- Provide a signal-to-noise ratio of greater than 90 dB measured from 20 Hz to 20 kHz, unweighted
- Utilize an efficient Class D amplifier design
- Provide Class D Ripple Suppression technology
- Provide an automatic clip limiter to detect onset of clipping by comparing input and output waveforms and automatically reduce gain with a slow attack and fast release to eliminate clipping distortion
- Provide multiple protection circuits that activate during output shorts, thermal overload, or DC faults
- Provide 64-bit floating point DSP engine
- Support 32-bit and 64-bit processing algorithms
- Provide a deterministic latency of 3.2 ms from input to output
- Provide additional, deterministic latency of 1.3 ms when Virtual Path routing is used
- Provide additional, deterministic latency of 12 ms when AEC is used
- Support embedding of any analog audio input signal onto the matrix video outputs
- Support extraction of two-channel PCM HDMI audio signals to the analog stereo outputs, or route embedded multi-channel bitstream audio to the HDMI outputs
- Support de-embedding, processing, and re-embedding of two-channel PCM HDMI audio signals onto the HDMI outputs
- Support mixing of program audio and mic/line audio signals
- Support mic audio mixed with program audio onto the HDMI/DTP outputs, variable audio outputs, and S/PDIF audio output
- Provide the capability to break two-channel audio away from its corresponding video signal and route to the audio outputs, allowing the audio and video signals from one source to be switched to different destinations
- Provide adjustable, automatic ducking of program audio when a signal is detected on the microphone input
- Program audio shall automatically ramp up to reach the original volume level when audio is no longer detected on the microphone input
- Support audio transmission over twisted pair up to 330 feet (100 meters)
- Provide audio input connections
- Expansion Port Requirements
- Provide a digital audio expansion port for bidirectional signal routing between the matrix switcher and a connected Extron DMP 128 Digital Matrix Processor
- Support 16 incoming signals and 16 outgoing signals
- Provide uncompressed digital audio at 48 kHz sampling rate with 24-bit resolution
- Automixer Requirements
- Shall provide Automixer Group selection for optional channel assignment into any of eight groups
- Shall provide gated and gain sharing automixer types
- Shall provide Last Mic Open Priority and Chairman Priority modes
- Shall provide Number of Open Microphone parameter from 0 to 12 microphones
- Shall provide Gate Threshold level and adjustable Off Reduction level for gated channels
- Shall provide adjustable parameters for Attack, Hold, and Release times
- Shall provide real-time metering of Signal Level, Gate Status, and Gate Threshold target from within the Automix parameter setup window in the DSP Configuration software
- Shall provide global view with Gate Status indication of all channels assigned to an automixer group, within the DSP Configuration software
- AEC - Acoustic Echo Cancellation Processing Requirements
- Shall provide four independent channels of AEC
- Shall provide real-time software-based metering of Echo Return Loss, Echo Return Loss Enhancement, and Total Echo Reduction levels
- Shall provide real-time indication of remote site activity, local site activity, and AEC processor reconverging
- Shall provide up to 20 dB of selectable noise cancellation for each AEC channel
- Shall provide advanced controls and adjustable parameters for Non-Linear Processing, Double Talk Echo Reduction, and Comfort Noise for each AEC channel
- Shall provide greater than 200 milliseconds of AEC tail length
- Shall provide up to 60 dB per second AEC convergence rate
- DSP Configuration Software Requirements
- Shall support PC-based DSP configuration software, allowing flexible control of the integrated digital signal processing
- Shall provide a Live mode for real-time control of parameters without compiling and file uploading to matrix switcher
- Shall provide an Emulate mode for offline configuration
- Shall provide single window view of all inputs and outputs, audio processing blocks, routing, mix points, and virtual routing
- Shall provide setup and configuration of digital signal processing tools including, but not limited to: Filters (high pass, low pass, bass, treble, and parametric EQ); AEC; Dynamics processing (AGC, compressor, limiter, noise gate); Delay processing; Ducking processor; Automixing; Loudness processor; and multiple gain stages
- Shall provide cut and paste editing between processing blocks
- Shall provide matrix routing with integrated mix point gain adjustment between inputs, outputs, virtual sends, virtual returns, expansion inputs, and expansion outputs
- Shall provide a library of pre-designed processor settings for inputs and outputs with user-customizable parameters
- Shall provide 32 Group Master controls for consolidation of up to 28 individual gain or mute control members of the same type into one point of control
- Shall provide Soft Limits settings to define upper and lower control limits on Group Masters for use with external controls
- Shall provide 32 Presets for recall of any processing block setting, level setting, or audio routing; presets shall be saved for the entire system, or any selected partial groups of inputs, outputs, mix points, and DSP blocks
- Shall provide real-time metering of levels within each Input Gain, AEC, AGC, Compressor, Limiter, Noise Gate, Automixer, and Output Volume processing block in Live mode
- Shall provide a Meter Bridge window for real-time metering of all input and output channels with clipping indication in Live mode
- Shall provide keyboard-based navigation of configuration software utilizing directional controls, keyboard shortcuts, and spreadsheet software-style commands
- Shall provide file saving in both Live and Emulate mode
- Shall provide file upload in both Live and Emulate mode
- Shall provide configuration and file saving of the matrix switcher and a linked, compatible Extron digital matrix processor from a single configuration software session
- Shall support PC-based DSP configuration software, allowing flexible control of the integrated digital signal processing
- Integrated Control Processor Requirements
- Provide AV system control connections
- Three RJ-45: 10/100/1000Base-T Ethernet, half/full duplex with auto-detect for connection to a LAN and include link and activity LED indicators located on the left and right of each jack for troubleshooting network issues, these ports will be designated as AV LAN ports allowing for AV devices to be isolated from a corporate network
- AV LAN ports shall support a DHCP server that can distribute 50 dynamic IP addresses with a 24-hour lease
- One RJ-45: 10/100/1000Base-T, half/full duplex with auto-detect for connection to a LAN or WAN and includes link and activity LED indicators located on the left and right of the jack for troubleshooting network issues
- Two 3-pole captive screw: RS-232, configurable for unidirectional or bidirectional control of AV system components
- One 5-pole captive screw: RS-232/RS-422/RS-485, configurable for unidirectional or bidirectional control of AV system components
- Two IR/serial ports on one 5-pole captive screw: IR (using an IR emitter) or unidirectional RS-232 for control of AV system components
- Four low voltage relays on one 6-pole captive screw: configurable for controlling lighting, controlling screens, or other device functions
- Four digital input/output ports on one 5-pole captive screw: configurable for use as an interface with devices such as sensors, switches, LEDs, and relays
- One eBUS® port on a 4-pole captive screw for connecting to eBUS devices
- Shall support the following protocols: ICMP (ping), IEEE 802.1X, IPv4, TCP, UDP, DHCP, DNS, HTTP, HTTPS, NTP, SFTP, SMTP, SNMP, SSH
- Shall support a Web-based AV resource management application that provides a means to manage, monitor, and control AV equipment
- Provide an internal real-time clock with a 30-year backup battery that is used to keep track of the date and time
- Shall include an Extron LinkLicense® for use of third party devices as primary control interfaces
- Provide front panel LED activity indicators for RS-232 status, RS-232/RS-422/RS-485 status, IR/serial status, digital I/O status, relay status, eBUS status, and network status
- Shall support control system synchronization to allow users to retain and recover configured endpoints in case of network or power failure
- Shall be configured using Extron Global Configurator® Plus or Extron Global Configurator Professional with support for the following:
- Provide support for up to eight configurable Extron TouchLink Pro touchpanels
- Provide support for up to eight configurable eBUS button panels
- Provide remote monitoring and control via Ethernet
- Provide the ability to create E-mail notifications
- Provide multiple levels of password protection
- Provide the ability to create schedules and monitors
- Support up to 32 Ethernet-controllable AV devices
- Support local variables and conditional logic
- Support grouping of multiple Extron IP Link® Pro xi control processors to function as one when configured with Global Configurator Professional
- Security Requirements
- Support SFTP and SSH for secure communication between the control processor and a TouchLink Pro touchpanel or Network Button Panel
- Support HTTPS and SSH for secure communication between the control processor and Extron Control App
- Support HTTPS for secure communication between the control processor and Extron Control for Web
- Support SSH for secure communication between the control processor and controlled device for programmed systems
- Support SFTP and SSH for secure communication between the control processor and the configuration or programming software
- Provide the option to modify administrator and user credentials
- Support security updates to maintain network health
- Require that a Secure Socket Layer (SSL) Certificate is installed to maintain system confidentiality and data integrity
- Support the installation of an owner furnished certificate with the following properties:
- Certificates shall include x.509 support
- Certificates shall include public / private key exchange
- Certificates shall support PEM encoding
- Extron shall furnish documentation that describes all supported network ports and services
- Provide AV system control connections
- Control/remote - RS-232 and IR Pass-Through Over Shielded CATx Requirements
- Provide connections for AV device control
- Two 5-pole captive screw: RS-232 or IR pass-through to DTP twisted pair transmitters
- Two 5-pole captive screw: RS-232 or IR pass-through to DTP twisted pair receivers
- Support RS-232 and IR transmission over shielded CATx up to 330 feet (100 meters)
- Provide connections for AV device control
- Control/Remote - Matrix Switcher Requirements
- Provide connections for remote matrix switcher control
- RJ-45: 10/100Base-T Ethernet
- 3-pole captive screw: RS-232
- Mini USB-B: USB 2.0
- Provide alternatives for configuration and operation
- Front panel controls
- Built-in Web pages accessible using a standard Web browser via Ethernet connection
- Product configuration software connected via Ethernet or USB
- Serial commands sent over Ethernet, RS-232, or USB connection
- Support disabling of front panel controls to prevent inadvertent or unauthorized changes to configuration settings
- Provide connections for remote matrix switcher control
- General Requirements
- Provide real-time verification of signal flow and operation from DTP transmitter or DTP receiver
- Directly readable on RJ-45 signal and link LEDs
- Shall be compatible with all Extron DTP Series models, DTP-enabled products, and Extron XTP CrossPoint matrix switchers
- Shall be compatible with CATx shielded twisted pair cable, and Extron XTP DTP 24 shielded twisted pair cable
- Shall provide remote power to two DTP transmitters and two DTP receivers over the shielded CATx connections
- Shall provide power to external peripheral devices on each HDMI output
- Enclosure shall be rack-mountable, full rack width, and 2RU in height
- Shall be equipped with an internal 100-240 VAC, 50/60 Hz universal power supply
- Provide real-time verification of signal flow and operation from DTP transmitter or DTP receiver
- Video Input Requirements
- Approved device shall be the Extron DTP CrossPoint 82 4K IPCP Q MA 70 (part number 60-1583-93A); no alternates or equals
- Rack-mountable matrix switcher for HDMI and DTP sources and associated digital and analog audio, AV system control 4K scaling, signal extension over shielded CATx cable, audio digital signal processing with AEC, and automixing for eight microphone groups
把商品添加到购物车
Order Message Number
产品编号
注: 使用通用交流电源插座的 Extron 产品可支持多种不同的交流电源插头类型。在使用之前，确保设备满足您所在区域的所有规定要求，并符合所有应用的本地安全和电气规程及标准。
当前总计：
Annotation Graphics Processor
To view this page ensure that Adobe Flash Player version
11.0.0 or greater is installed and enabled.
Chrome
Firefox
Edge
Safari
