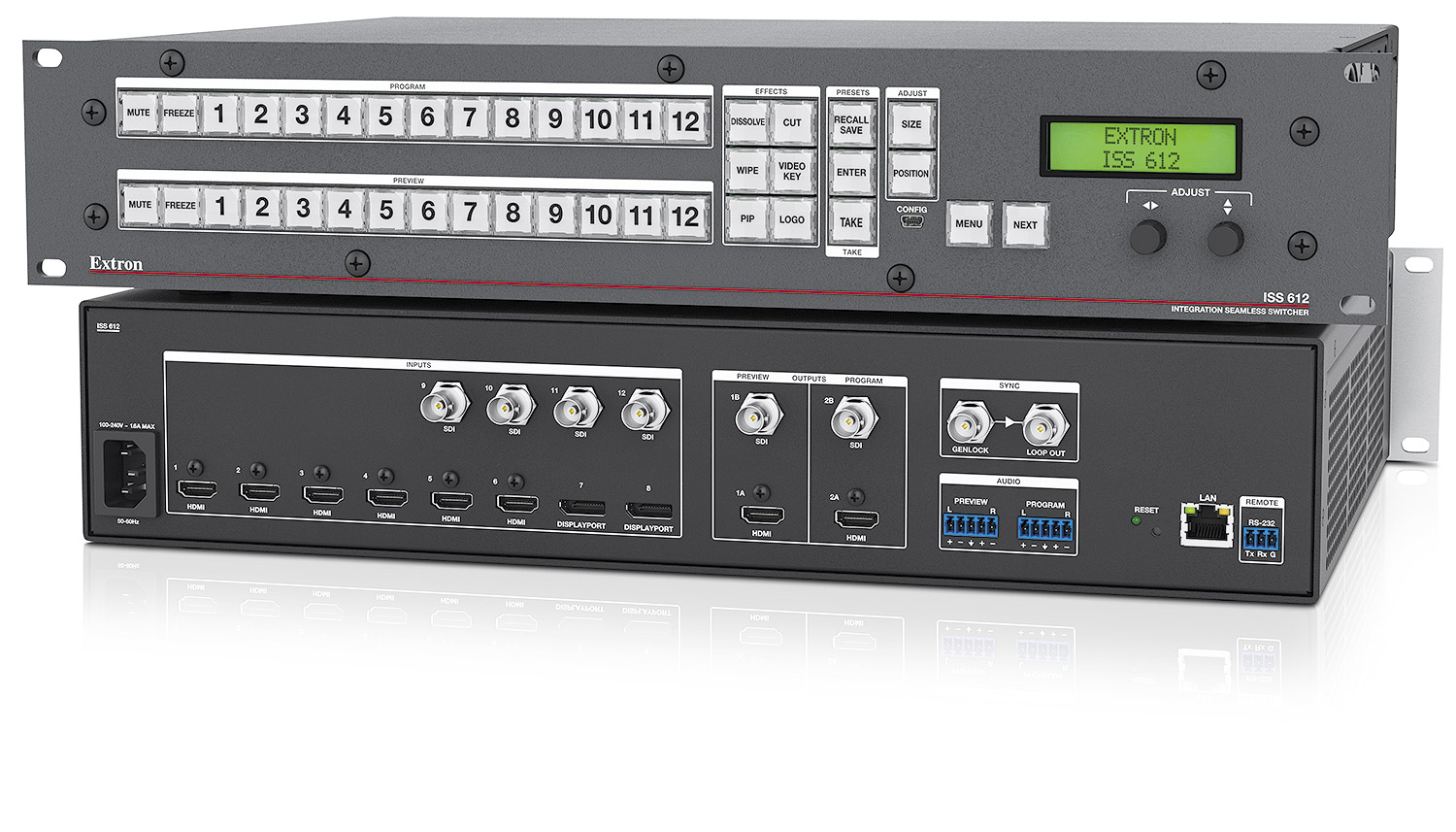

ISS 612
- Provide a seamless switcher that shall support video resolutions up to 4K @ 60 Hz over HDMI, DisplayPort, and SDI inputs from multiple sources to Program and Preview HDMI and SDI outputs
- Rack-mountable switcher for HDMI, DisplayPort, and 12G-SDI source signals with or without embedded audio
- Video Input Requirements
- Shall provide six (6) female HDMI Type A connectors for digital video signals
- Shall provide two (2) female DisplayPort connectors for digital video signals
- Shall provide four (4) female BNC connectors for digital video signals
- Shall support HDMI 2.0 and DisplayPort 1.2 signals up to 4096x2160 @ 60 Hz with 4:4:4 chroma sampling, and 12G-SDI signals up to 4K/60 with 4:2:2 color sampling.
- Shall support 12G‑SDI, 6G‑SDI, 3G‑SDI, and HD‑SDI signals at data rates from 270 Mbps to 11.88 Gbps
- Shall automatically adapt to SMPTE and ITU digital video standards for SDI signals
- Shall provide buffering on BNC inputs
- Shall support genlock on BNC inputs
- BNC inputs shall provide loop-through
- Video Output Requirements
- Shall provide two (2) female HDMI type-A connectors
- Shall provide two (2) female BNC connectors
- Shall provide a range of selectable video output rates from 640x480 to 4096x2160 @ 60 Hz
- Shall support 12G‑SDI, 6G‑SDI, 3G‑SDI, and HD‑SDI signals at data rates from 270 Mbps to 11.88 Gbps
- Shall automatically adapt to SMPTE and ITU digital video standards for SDI signals
- Shall provide buffering on BNC outputs
- Shall support genlock on BNC outputs
- Shall support custom user-defined output resolutions via EDID management
- Shall provide two (2) independent video buses that shall enable the operator to view video prior to audience display
- One (1) Preview output
- One (1) Program output
- Shall provide picture controls for brightness, contrast, and detail, as well as horizontal and vertical sizing, positions, and zoom for both Preview and Program output buses
- Shall provide upscaling and downscaling of input sources with 30-bit precision processing and 4:4:4 color bandwidth
- Shall provide video format conversion
- Shall allow one or more video outputs to be muted
- Shall allow one or more video output images to be frozen
- Audio Management Requirements
- Shall switch embedded multi-channel audio, along with video, to the Preview and Program HDMI and SDI outputs
- Shall provide two (2) 3.5 mm 5-pole captive screw connectors for Preview and Program audio output
- Stereo/mono
- Balanced/unbalanced
- Shall provide audio extraction of two-channel audio to the Preview and Program analog audio outputs
- Shall provide audio extraction of multi-channel audio to the Program analog audio output
- Shall provide unity gain from input to output
- Shall provide individual audio output muting
- Switching and Processing Requirements
- Shall support switching between input sources using front panel buttons
- Shall provide multiple effects for transitioning between Preview and Program outputs
- Wipes in four directions and of selectable duration
- Selectable hard/soft wipe edge
- Dissolve with selectable duration
- Seamless Cut
- Shall allow any input image to be displayed on-screen simultaneously with another image for picture-in-picture – PIP display and allow:
- Dynamic sizing of window
- Window positioning at any X:Y coordinate
- Transitioning into or out of the image using the dissolve effect
- Shall provide sixteen (16) PIP presets
- Shall allow title information or other input source content to be keyed over the program image
- Shall allow a logo graphic to be positioned and keyed over live video
- Upload of a .BMP, .JPG, .PNG, or .TIFF format logo graphic
- Selectable full screen image display in resolutions up to 4K/60
- Shall allow storage for up to sixteen (16) logo images
- Shall allow a selectable transparency level to be applied to a logo image or graphic
- Shall provide motion-adaptive deinterlacing for signals up to 1080i
- Shall provide aspect ratio control
- When in FILL mode, the video image on the output screen shall always fill the output screen without letterbox or pillar box
- When in FOLLOW mode, the video image on the output screen shall always preserve the original aspect ratio of the input signals
- Shall provide storage and recall of video parameters and picture settings
- Automatic memories for each video input
- Save video settings and picture adjustments without user intervention
- Automatically recall settings when the same video rate is encountered
- Layout presets
- Save picture adjustments, transition effect settings and duration, window size and position, video key settings, logo preset, background image, and Preview input
- Save and recall layout presets using front panel controls
- Save and recall layout presents electronically via RS-232, Ethernet, or USB connection
- Manual input presets
- Save video settings and picture adjustments
- Save and recall input presets using front panel controls
- Save and recall input presents electronically via RS-232, Ethernet, or USB connection
- Automatic memories for each video input
- Shall provide automatic 3:2 and 2:2 pulldown detection
- EDID Communication Requirements
- Shall include technology to automatically manage EDID communication between connected devices
- Maintain continuous EDID communication with the connected sources
- User-selection of EDID from a remotely connected display
- User-selection of EDID from pre-stored data files
- Shall include technology to automatically manage EDID communication between connected devices
- HDCP Requirements - HDMI inputs
- Shall be HDCP 2.3 compliant
- Shall provide an option to disable HDCP processing at an HDMI input connection when passing unencrypted content
- Shall include technology to authenticate and maintain continuous HDCP encryption and key exchange between connected devices
- Shall provide selectable, human-readable visual confirmation of HDCP compliance when encrypted content is sent to a non-HDCP compliant display
- When enabled, the video output shall be a solid green color and an on-screen message stating “HDCP CONTENT” shall be displayed
- When disabled, the output shall be muted
- Shall provide real-time verification of HDCP status for HDMI inputs and outputs
- Electronically accessible over RS-232, Ethernet, or USB connection
- Status information available on front panel LCD display
- Control Requirements
- Shall provide one (1) female mini USB port on front panel for configuration and setup
- Shall provide lockout mode to restrict access to controls
- Shall provide alternatives for configuration and operation
- Back-lit buttons with LCD menu display on front panel
- Rotary dials on front panel for image adjustment and positioning
- On-screen menus navigated using front panel controls
- Product configuration software connected via Ethernet or USB
- Serial commands sent over Ethernet, RS-232 or USB connection
- Shall provide one (1) RJ-45 connector on rear panel for LAN connection
- Shall provide one (1) bidirectional RS-232 3-pole captive screw connector on rear panel for RS-232 control
- Outboard Switching Requirements
- Shall allow two (2) HDMI inputs to cause a connected matrix switcher with HDMI outputs to emulate a seamless switcher
- Power Requirements
- Shall be equipped with an internal, universal AC power supply with a seven- (7) year parts and labor warranty
- General Requirements
- Shall provide internal video test patterns and pink noise generator for calibration and setup of display devices
- Shall provide visual signal on LED indicators located on rear panel for link status
- Shall have a 2U high, full rack width metal enclosure
- Shall be rack mountable
- Shall include Extron LockIt® HDMI cable lacing brackets
- Shall support the use of HDMI to DVI-D cables or adapters for DVI-D signals
- Shall meet regulatory compliance
- CE, c-UL, UL
- CE, C-tick, FCC Class A, ICES, VCCI
- Product appropriate RoHS and WEEE
- Shall provide at least three (3) years parts and labor warranty
- Approved device shall be the ISS 612 (60-1685-01); no alternates or equals
ISS 612
- Provide a seamless switcher that shall support video resolutions up to 4K @ 60 Hz over HDMI, DisplayPort, and SDI inputs from multiple sources to Program and Preview HDMI and SDI outputs
- Rack-mountable switcher for HDMI, DisplayPort, and 12G-SDI source signals with or without embedded audio
- Video Input Requirements
- Shall provide six (6) female HDMI Type A connectors for digital video signals
- Shall provide two (2) female DisplayPort connectors for digital video signals
- Shall provide four (4) female BNC connectors for digital video signals
- Shall support HDMI 2.0 and DisplayPort 1.2 signals up to 4096x2160 @ 60 Hz with 4:4:4 chroma sampling, and 12G-SDI signals up to 4K/60 with 4:2:2 color sampling.
- Shall support 12G‑SDI, 6G‑SDI, 3G‑SDI, and HD‑SDI signals at data rates from 270 Mbps to 11.88 Gbps
- Shall automatically adapt to SMPTE and ITU digital video standards for SDI signals
- Shall provide buffering on BNC inputs
- Shall support genlock on BNC inputs
- BNC inputs shall provide loop-through
- Video Output Requirements
- Shall provide two (2) female HDMI type-A connectors
- Shall provide two (2) female BNC connectors
- Shall provide a range of selectable video output rates from 640x480 to 4096x2160 @ 60 Hz
- Shall support 12G‑SDI, 6G‑SDI, 3G‑SDI, and HD‑SDI signals at data rates from 270 Mbps to 11.88 Gbps
- Shall automatically adapt to SMPTE and ITU digital video standards for SDI signals
- Shall provide buffering on BNC outputs
- Shall support genlock on BNC outputs
- Shall support custom user-defined output resolutions via EDID management
- Shall provide two (2) independent video buses that shall enable the operator to view video prior to audience display
- One (1) Preview output
- One (1) Program output
- Shall provide picture controls for brightness, contrast, and detail, as well as horizontal and vertical sizing, positions, and zoom for both Preview and Program output buses
- Shall provide upscaling and downscaling of input sources with 30-bit precision processing and 4:4:4 color bandwidth
- Shall provide video format conversion
- Shall allow one or more video outputs to be muted
- Shall allow one or more video output images to be frozen
- Audio Management Requirements
- Shall switch embedded multi-channel audio, along with video, to the Preview and Program HDMI and SDI outputs
- Shall provide two (2) 3.5 mm 5-pole captive screw connectors for Preview and Program audio output
- Stereo/mono
- Balanced/unbalanced
- Shall provide audio extraction of two-channel audio to the Preview and Program analog audio outputs
- Shall provide audio extraction of multi-channel audio to the Program analog audio output
- Shall provide unity gain from input to output
- Shall provide individual audio output muting
- Switching and Processing Requirements
- Shall support switching between input sources using front panel buttons
- Shall provide multiple effects for transitioning between Preview and Program outputs
- Wipes in four directions and of selectable duration
- Selectable hard/soft wipe edge
- Dissolve with selectable duration
- Seamless Cut
- Shall allow any input image to be displayed on-screen simultaneously with another image for picture-in-picture – PIP display and allow:
- Dynamic sizing of window
- Window positioning at any X:Y coordinate
- Transitioning into or out of the image using the dissolve effect
- Shall provide sixteen (16) PIP presets
- Shall allow title information or other input source content to be keyed over the program image
- Shall allow a logo graphic to be positioned and keyed over live video
- Upload of a .BMP, .JPG, .PNG, or .TIFF format logo graphic
- Selectable full screen image display in resolutions up to 4K/60
- Shall allow storage for up to sixteen (16) logo images
- Shall allow a selectable transparency level to be applied to a logo image or graphic
- Shall provide motion-adaptive deinterlacing for signals up to 1080i
- Shall provide aspect ratio control
- When in FILL mode, the video image on the output screen shall always fill the output screen without letterbox or pillar box
- When in FOLLOW mode, the video image on the output screen shall always preserve the original aspect ratio of the input signals
- Shall provide storage and recall of video parameters and picture settings
- Automatic memories for each video input
- Save video settings and picture adjustments without user intervention
- Automatically recall settings when the same video rate is encountered
- Layout presets
- Save picture adjustments, transition effect settings and duration, window size and position, video key settings, logo preset, background image, and Preview input
- Save and recall layout presets using front panel controls
- Save and recall layout presents electronically via RS-232, Ethernet, or USB connection
- Manual input presets
- Save video settings and picture adjustments
- Save and recall input presets using front panel controls
- Save and recall input presents electronically via RS-232, Ethernet, or USB connection
- Automatic memories for each video input
- Shall provide automatic 3:2 and 2:2 pulldown detection
- EDID Communication Requirements
- Shall include technology to automatically manage EDID communication between connected devices
- Maintain continuous EDID communication with the connected sources
- User-selection of EDID from a remotely connected display
- User-selection of EDID from pre-stored data files
- Shall include technology to automatically manage EDID communication between connected devices
- HDCP Requirements - HDMI inputs
- Shall be HDCP 2.3 compliant
- Shall provide an option to disable HDCP processing at an HDMI input connection when passing unencrypted content
- Shall include technology to authenticate and maintain continuous HDCP encryption and key exchange between connected devices
- Shall provide selectable, human-readable visual confirmation of HDCP compliance when encrypted content is sent to a non-HDCP compliant display
- When enabled, the video output shall be a solid green color and an on-screen message stating “HDCP CONTENT” shall be displayed
- When disabled, the output shall be muted
- Shall provide real-time verification of HDCP status for HDMI inputs and outputs
- Electronically accessible over RS-232, Ethernet, or USB connection
- Status information available on front panel LCD display
- Control Requirements
- Shall provide one (1) female mini USB port on front panel for configuration and setup
- Shall provide lockout mode to restrict access to controls
- Shall provide alternatives for configuration and operation
- Back-lit buttons with LCD menu display on front panel
- Rotary dials on front panel for image adjustment and positioning
- On-screen menus navigated using front panel controls
- Product configuration software connected via Ethernet or USB
- Serial commands sent over Ethernet, RS-232 or USB connection
- Shall provide one (1) RJ-45 connector on rear panel for LAN connection
- Shall provide one (1) bidirectional RS-232 3-pole captive screw connector on rear panel for RS-232 control
- Outboard Switching Requirements
- Shall allow two (2) HDMI inputs to cause a connected matrix switcher with HDMI outputs to emulate a seamless switcher
- Power Requirements
- Shall be equipped with an internal, universal AC power supply with a seven- (7) year parts and labor warranty
- General Requirements
- Shall provide internal video test patterns and pink noise generator for calibration and setup of display devices
- Shall provide visual signal on LED indicators located on rear panel for link status
- Shall have a 2U high, full rack width metal enclosure
- Shall be rack mountable
- Shall include Extron LockIt® HDMI cable lacing brackets
- Shall support the use of HDMI to DVI-D cables or adapters for DVI-D signals
- Shall meet regulatory compliance
- CE, c-UL, UL
- CE, C-tick, FCC Class A, ICES, VCCI
- Product appropriate RoHS and WEEE
- Shall provide at least three (3) years parts and labor warranty
- Approved device shall be the ISS 612 (60-1685-01); no alternates or equals
ISS 608
- Provide a seamless switcher that shall support video resolutions up to 4K @ 60 Hz over HDMI and DisplayPort inputs from multiple sources to Program and Preview HDMI outputs
- Rack-mountable switcher for HDMI and DisplayPort source signals with or without embedded audio
- Video Input Requirements
- Shall provide six (6) female HDMI Type A connectors for digital video signals
- Shall provide two (2) female DisplayPort connectors for digital video signals
- Shall support computer and video resolutions up to 4096x2160 @ 60 Hz with 4:4:4 chroma sampling
- Video Output Requirements
- Shall provide two (2) female HDMI type-A connectors
- Shall provide a range of selectable video output rates from 640x480 to 4096x2160 @ 60 Hz
- Shall support custom user-defined output resolutions via EDID management
- Shall provide two (2) independent video buses that shall enable the operator to view video prior to audience display
- One (1) Preview output
- One (1) Program output
- Shall provide picture controls for brightness, contrast, and detail, as well as horizontal and vertical sizing, positions, and zoom for both Preview and Program output buses
- Shall provide upscaling and downscaling of input sources with 30-bit precision processing and 4:4:4 color bandwidth
- Shall provide video format conversion
- Shall allow one or both video outputs to be muted
- Shall allow one or both video output images to be frozen
- Audio Management Requirements
- Shall switch embedded multi-channel HDMI and DisplayPort audio, along with video, to the Preview and Program HDMI outputs.
- Shall provide two (2) 3.5 mm 5-pole captive screw connectors for Preview and Program audio output
- Stereo/mono
- Balanced/unbalanced
- Shall provide audio extraction of HDMI and DisplayPort two-channel audio to the Preview and Program analog audio outputs
- Shall provide audio extraction of HDMI and DisplayPort multi-channel audio to the Program analog audio output
- Shall provide unity gain from input to output
- Shall provide individual audio output muting
- Switching and Processing Requirements
- Shall support switching between input sources using front panel buttons
- Shall provide multiple effects for transitioning between Preview and Program outputs
- Wipes in four directions and of selectable duration
- Selectable hard/soft wipe edge
- Dissolve with selectable duration
- Seamless Cut
- Shall allow any input image to be displayed on-screen simultaneously with another image for picture-in-picture – PIP display and allow:
- Dynamic sizing of window
- Window positioning at any X:Y coordinate
- Transitioning into or out of the image using the dissolve effect
- Shall provide sixteen (16) PIP presets
- Shall allow title information or other input source content to be keyed over the program image
- Shall allow a logo graphic to be positioned and keyed over live video
- Upload of a .BMP, .JPG, .PNG, or .TIFF format logo graphic
- Selectable full screen image display in resolutions up to 4K/60
- Shall allow storage for up to sixteen (16) logo images
- Shall allow a selectable transparency level to be applied to a logo image or graphic
- Shall provide motion-adaptive deinterlacing for signals up to 1080i
- Shall provide aspect ratio control
- When in FILL mode, the video image on the output screen shall always fill the output screen without letterbox or pillar box
- When in FOLLOW mode, the video image on the output screen shall always preserve the original aspect ratio of the input signals
- Shall provide storage and recall of video parameters and picture settings
- Automatic memories for each video input
- Save video settings and picture adjustments without user intervention
- Automatically recall settings when the same video rate is encountered
- Layout presets
- Save picture adjustments, transition effect settings and duration, window size and position, video key settings, logo preset, background image, and Preview input
- Save and recall layout presets using front panel controls
- Save and recall layout presents electronically via RS-232, Ethernet, or USB connection
- Manual input presets
- Save video settings and picture adjustments
- Save and recall input presets using front panel controls
- Save and recall input presents electronically via RS-232, Ethernet, or USB connection
- Automatic memories for each video input
- Shall provide automatic 3:2 and 2:2 pulldown detection
- EDID Communication Requirements
- Shall include technology to automatically manage EDID communication between connected devices
- Maintain continuous EDID communication with the connected sources
- User-selection of EDID from a remotely connected display
- User-selection of EDID from pre-stored data files
- Shall include technology to automatically manage EDID communication between connected devices
- HDCP Requirements - HDMI inputs
- Shall be HDCP 2.3 compliant
- Shall provide an option to disable HDCP processing at an HDMI input connection when passing unencrypted content
- Shall include technology to authenticate and maintain continuous HDCP encryption and key exchange between connected devices
- Shall provide selectable, human-readable visual confirmation of HDCP compliance when encrypted content is sent to a non-HDCP compliant display
- When enabled, the video output shall be a solid green color and an on-screen message stating “HDCP CONTENT” shall be displayed
- When disabled, the output shall be muted
- Shall provide real-time verification of HDCP status for HDMI inputs and outputs
- Electronically accessible over RS-232, Ethernet, or USB connection
- Status information available on front panel LCD display
- Control Requirements
- Shall provide one (1) female mini USB port on front panel for configuration and setup
- Shall provide lockout mode to restrict access to controls
- Shall provide alternatives for configuration and operation
- Back-lit buttons with LCD menu display on front panel
- Rotary dials on front panel for image adjustment and positioning
- On-screen menus navigated using front panel controls
- Product configuration software connected via Ethernet or USB
- Serial commands sent over Ethernet, RS-232 or USB connection
- Shall provide one (1) RJ-45 connector on rear panel for LAN connection
- Shall provide one (1) bidirectional RS-232 3-pole captive screw connector on rear panel for RS-232 control
- Outboard Switching Requirements
- Shall allow two (2) HDMI inputs to cause a connected matrix switcher with HDMI outputs to emulate a seamless switcher
- Power Requirements
- Shall be equipped with an internal, universal AC power supply with a seven- (7) year parts and labor warranty
- General Requirements
- Shall provide internal video test patterns and pink noise generator for calibration and setup of display devices
- Shall provide visual signal on LED indicators located on rear panel for link status
- Shall have a 2U high, full rack width metal enclosure
- Shall be rack mountable
- Shall include Extron LockIt® HDMI cable lacing brackets
- Shall support the use of HDMI to DVI-D cables or adapters for DVI-D signals
- Shall meet regulatory compliance
- CE, c-UL, UL
- CE, C-tick, FCC Class A, ICES, VCCI
- Product appropriate RoHS and WEEE
- Shall provide at least three (3) years parts and labor warranty
- Approved device shall be the ISS 608 (60-1684-01); no alternates or equals
ISS 608
- Provide a seamless switcher that shall support video resolutions up to 4K @ 60 Hz over HDMI and DisplayPort inputs from multiple sources to Program and Preview HDMI outputs
- Rack-mountable switcher for HDMI and DisplayPort source signals with or without embedded audio
- Video Input Requirements
- Shall provide six (6) female HDMI Type A connectors for digital video signals
- Shall provide two (2) female DisplayPort connectors for digital video signals
- Shall support computer and video resolutions up to 4096x2160 @ 60 Hz with 4:4:4 chroma sampling
- Video Output Requirements
- Shall provide two (2) female HDMI type-A connectors
- Shall provide a range of selectable video output rates from 640x480 to 4096x2160 @ 60 Hz
- Shall support custom user-defined output resolutions via EDID management
- Shall provide two (2) independent video buses that shall enable the operator to view video prior to audience display
- One (1) Preview output
- One (1) Program output
- Shall provide picture controls for brightness, contrast, and detail, as well as horizontal and vertical sizing, positions, and zoom for both Preview and Program output buses
- Shall provide upscaling and downscaling of input sources with 30-bit precision processing and 4:4:4 color bandwidth
- Shall provide video format conversion
- Shall allow one or both video outputs to be muted
- Shall allow one or both video output images to be frozen
- Audio Management Requirements
- Shall switch embedded multi-channel HDMI and DisplayPort audio, along with video, to the Preview and Program HDMI outputs.
- Shall provide two (2) 3.5 mm 5-pole captive screw connectors for Preview and Program audio output
- Stereo/mono
- Balanced/unbalanced
- Shall provide audio extraction of HDMI and DisplayPort two-channel audio to the Preview and Program analog audio outputs
- Shall provide audio extraction of HDMI and DisplayPort multi-channel audio to the Program analog audio output
- Shall provide unity gain from input to output
- Shall provide individual audio output muting
- Switching and Processing Requirements
- Shall support switching between input sources using front panel buttons
- Shall provide multiple effects for transitioning between Preview and Program outputs
- Wipes in four directions and of selectable duration
- Selectable hard/soft wipe edge
- Dissolve with selectable duration
- Seamless Cut
- Shall allow any input image to be displayed on-screen simultaneously with another image for picture-in-picture – PIP display and allow:
- Dynamic sizing of window
- Window positioning at any X:Y coordinate
- Transitioning into or out of the image using the dissolve effect
- Shall provide sixteen (16) PIP presets
- Shall allow title information or other input source content to be keyed over the program image
- Shall allow a logo graphic to be positioned and keyed over live video
- Upload of a .BMP, .JPG, .PNG, or .TIFF format logo graphic
- Selectable full screen image display in resolutions up to 4K/60
- Shall allow storage for up to sixteen (16) logo images
- Shall allow a selectable transparency level to be applied to a logo image or graphic
- Shall provide motion-adaptive deinterlacing for signals up to 1080i
- Shall provide aspect ratio control
- When in FILL mode, the video image on the output screen shall always fill the output screen without letterbox or pillar box
- When in FOLLOW mode, the video image on the output screen shall always preserve the original aspect ratio of the input signals
- Shall provide storage and recall of video parameters and picture settings
- Automatic memories for each video input
- Save video settings and picture adjustments without user intervention
- Automatically recall settings when the same video rate is encountered
- Layout presets
- Save picture adjustments, transition effect settings and duration, window size and position, video key settings, logo preset, background image, and Preview input
- Save and recall layout presets using front panel controls
- Save and recall layout presents electronically via RS-232, Ethernet, or USB connection
- Manual input presets
- Save video settings and picture adjustments
- Save and recall input presets using front panel controls
- Save and recall input presents electronically via RS-232, Ethernet, or USB connection
- Automatic memories for each video input
- Shall provide automatic 3:2 and 2:2 pulldown detection
- EDID Communication Requirements
- Shall include technology to automatically manage EDID communication between connected devices
- Maintain continuous EDID communication with the connected sources
- User-selection of EDID from a remotely connected display
- User-selection of EDID from pre-stored data files
- Shall include technology to automatically manage EDID communication between connected devices
- HDCP Requirements - HDMI inputs
- Shall be HDCP 2.3 compliant
- Shall provide an option to disable HDCP processing at an HDMI input connection when passing unencrypted content
- Shall include technology to authenticate and maintain continuous HDCP encryption and key exchange between connected devices
- Shall provide selectable, human-readable visual confirmation of HDCP compliance when encrypted content is sent to a non-HDCP compliant display
- When enabled, the video output shall be a solid green color and an on-screen message stating “HDCP CONTENT” shall be displayed
- When disabled, the output shall be muted
- Shall provide real-time verification of HDCP status for HDMI inputs and outputs
- Electronically accessible over RS-232, Ethernet, or USB connection
- Status information available on front panel LCD display
- Control Requirements
- Shall provide one (1) female mini USB port on front panel for configuration and setup
- Shall provide lockout mode to restrict access to controls
- Shall provide alternatives for configuration and operation

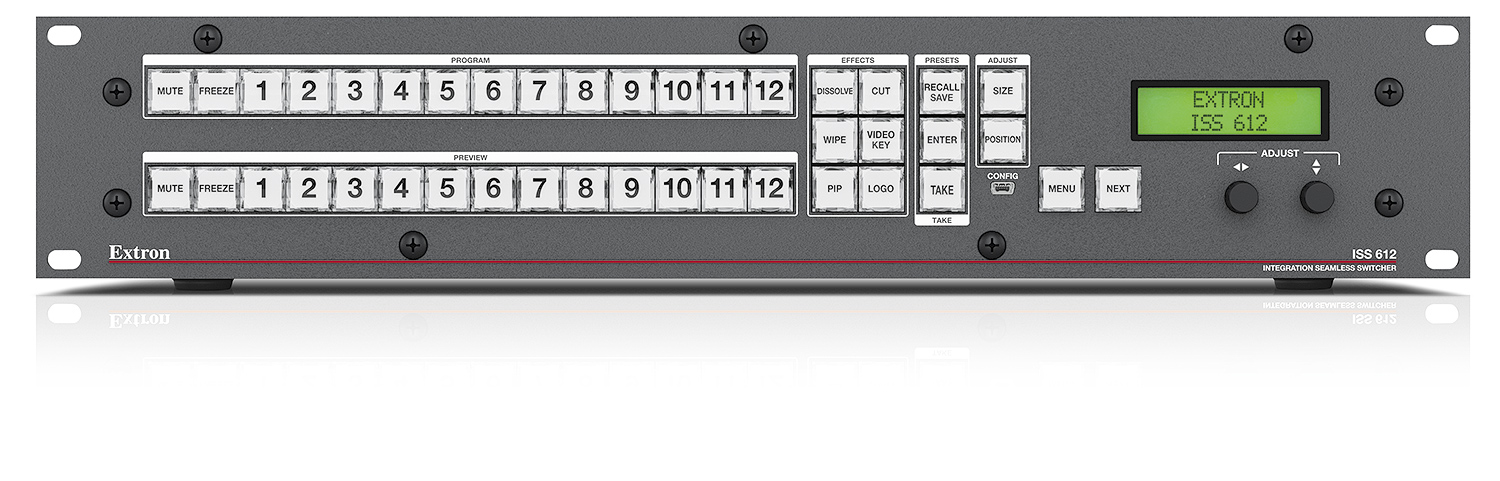

- Back-lit buttons with LCD menu display on front panel
- Rotary dials on front panel for image adjustment and positioning
- On-screen menus navigated using front panel controls
- Product configuration software connected via Ethernet or USB
- Serial commands sent over Ethernet, RS-232 or USB connection

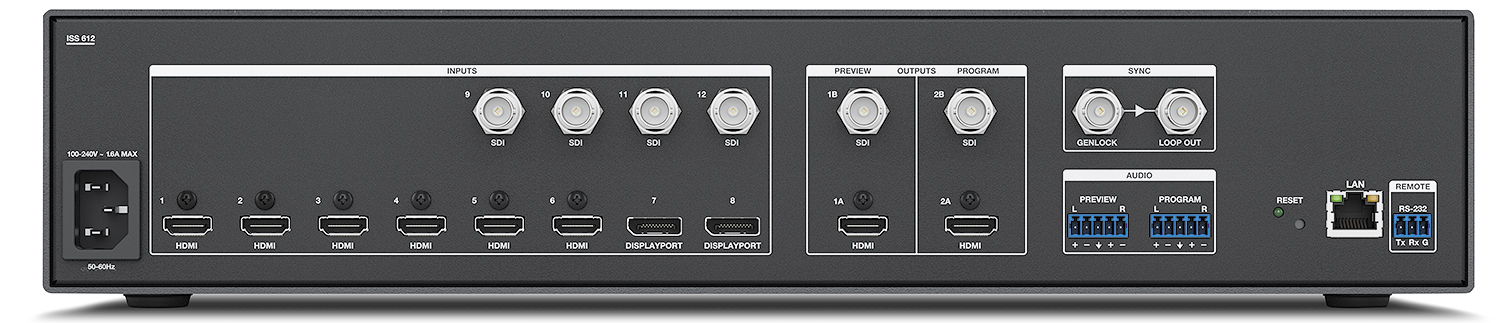

- Shall provide one (1) RJ-45 connector on rear panel for LAN connection
- Shall provide one (1) bidirectional RS-232 3-pole captive screw connector on rear panel for RS-232 control
- Outboard Switching Requirements
- Shall allow two (2) HDMI inputs to cause a connected matrix switcher with HDMI outputs to emulate a seamless switcher
- Power Requirements
- Shall be equipped with an internal, universal AC power supply with a seven- (7) year parts and labor warranty
- General Requirements
- Shall provide internal video test patterns and pink noise generator for calibration and setup of display devices
- Shall provide visual signal on LED indicators located on rear panel for link status
- Shall have a 2U high, full rack width metal enclosure
- Shall be rack mountable
- Shall include Extron LockIt® HDMI cable lacing brackets
- Shall support the use of HDMI to DVI-D cables or adapters for DVI-D signals
- Shall meet regulatory compliance
- CE, c-UL, UL
- CE, C-tick, FCC Class A, ICES, VCCI
- Product appropriate RoHS and WEEE
- Shall provide at least three (3) years parts and labor warranty
- Approved device shall be the ISS 608 (60-1684-01); no alternates or equals
把商品添加到购物车
Order Message Number
产品编号
注: 使用通用交流电源插座的 Extron 产品可支持多种不同的交流电源插头类型。在使用之前，确保设备满足您所在区域的所有规定要求，并符合所有应用的本地安全和电气规程及标准。
当前总计：
Annotation Graphics Processor
To view this page ensure that Adobe Flash Player version
11.0.0 or greater is installed and enabled.
Chrome
Firefox
Edge
Safari
