SF 3PT

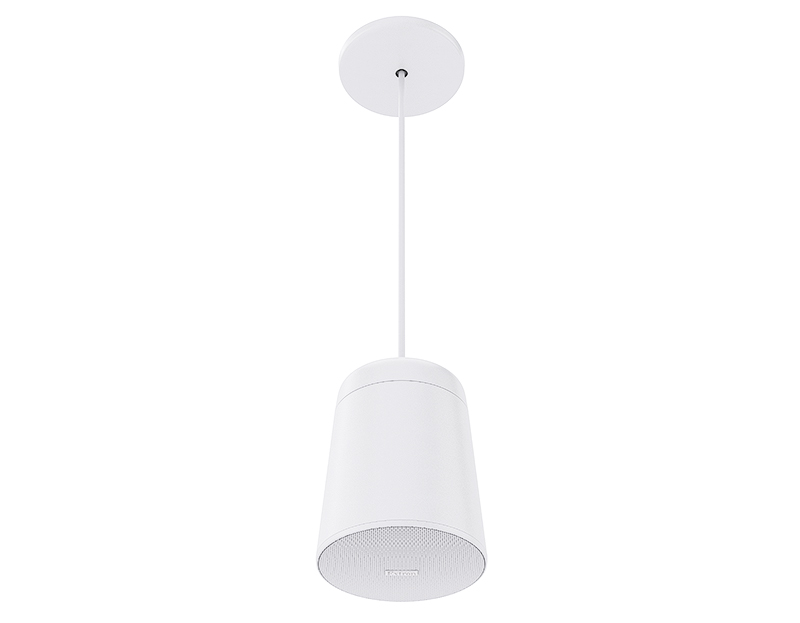

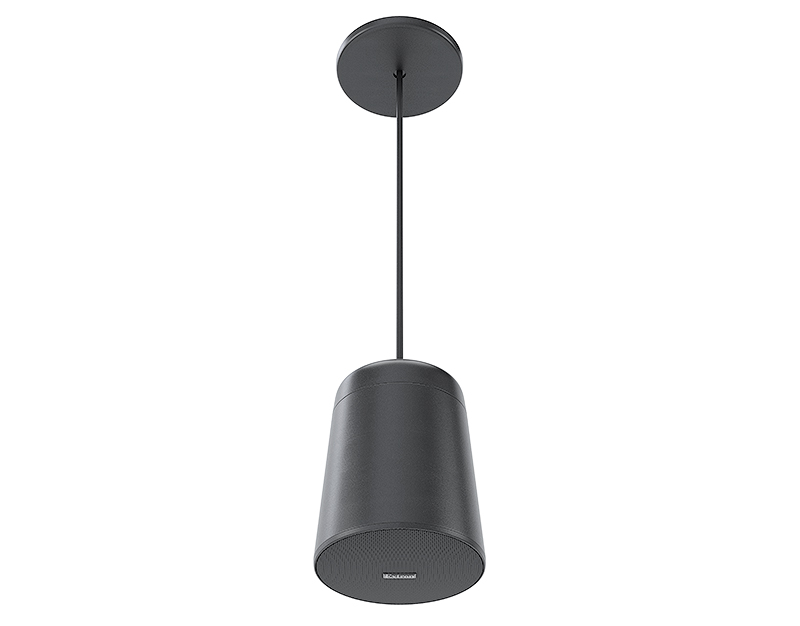

- Provide a full-range, plastic enclosure, pendant speaker that shall provide an internal transformer.
- Full-range, plastic enclosure, pendant speaker with internal transformer for 8 ohm direct and 70/100 volt operation
- Driver Requirements
- Shall consist of a 3" (76 mm) full-range driver
- Performance Requirements
- Shall provide a frequency range of 110 Hz to 20 kHz, -10 dB below average SPL, measured on-axis in full space (per IEC 60268-5)
- Shall provide a power handling capacity of 16 watts (rms) continuous pink noise (per IEC 60268-5) and 32 watts (rms) continuous program
- Shall provide a nominal sensitivity of 82 dB SPL (1 W, 1 m) measured in full space (per IEC 60268-5)
- Shall provide a nominal impedance of 8 ohms per speaker
- Shall provide a nominal conical coverage angle of 116° (1 kHz to 4 kHz, weighted 2-4 kHz)
- Electrical Requirements
- Shall support 8 ohm direct or 70/100 volt connection from power amplifiers
- Shall provide a six-position power tap selector, located on top of the enclosure under a removable cap
- Shall provide selectable rotary switch taps for 70 volt operation, including 16 watts, 8 watts, 4 watts, 2 watts, 1 watt, and 8 ohms direct
- Shall provide selectable rotary switch taps for 100 volt operation, including null, 16 watts, 8 watts, 4 watts, 2 watts, and 8 ohms direct
- Shall support one incoming and one outgoing speaker level signal on two splicing connectors
- Shall support wiring multiple speakers using parallel or loop-through wiring
- Shall support Extron PendantConnect speaker cable, model PCC-1 18
- Speaker Enclosure Requirements
- Shall provide a high impact, fire-resistant (UL94V-0) plastic, tapered cylindrical enclosure
- Shall measure 5.31 inches (135 mm) in diameter at its widest point

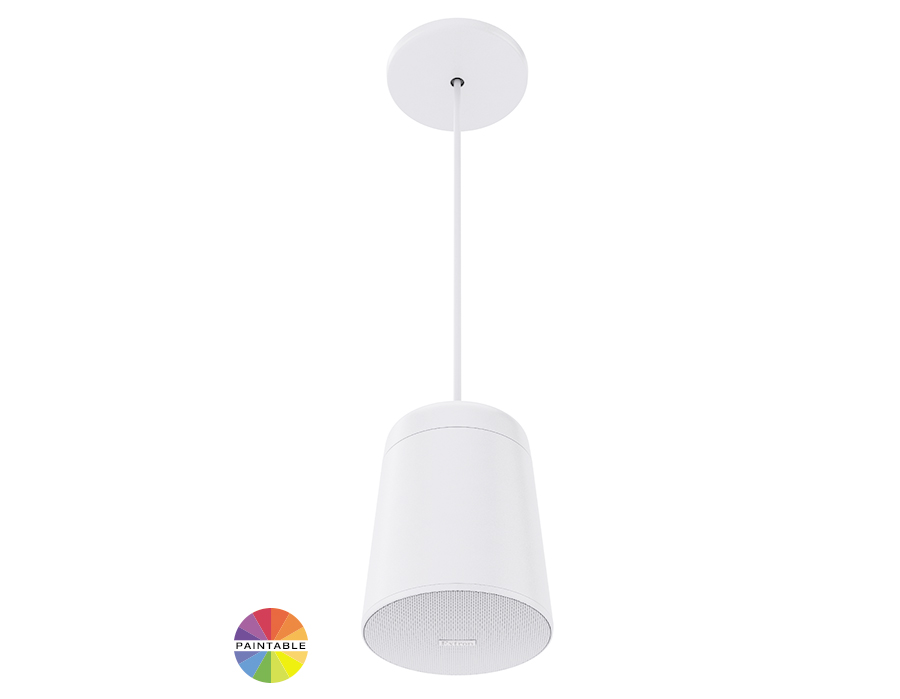

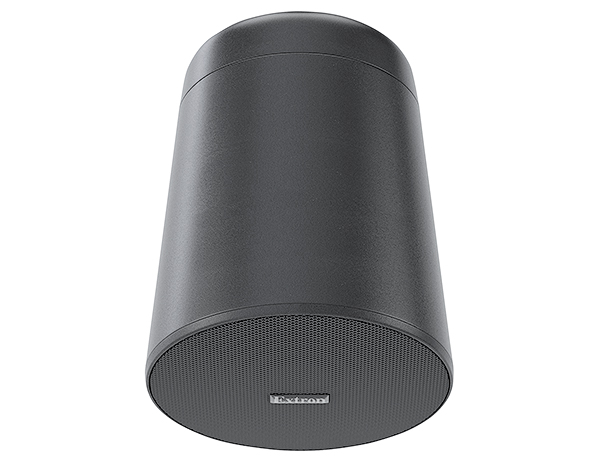

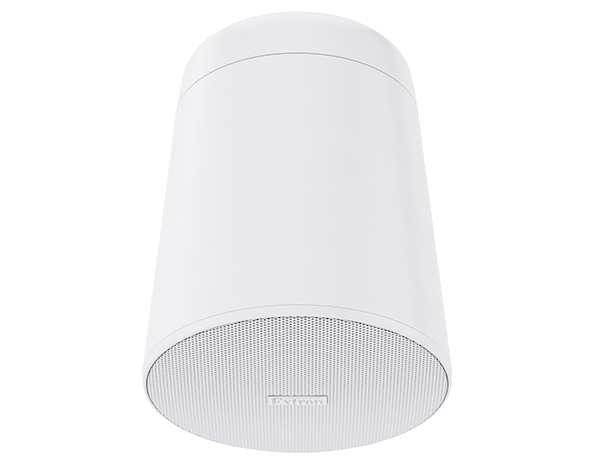

- Shall be available with a white or black, paintable finish
- Shall include removable cap for the top of the enclosure such that the tap selector, and connection points, are not visible when the cap is in place
- Shalle have a removable grille that can be painted.
- Shall provide a high impact, fire-resistant (UL94V-0) plastic, tapered cylindrical enclosure
- General Requirements
- Shall be sold in pairs
- Shall include a ceiling bracket that mounts directly to an octagon electrical junction box
- Shall include a black or white cover plate that magnetically attaches to the installed ceiling bracket
- Shall include 20 feet (6.1 m) of Extron PendantConnect PCC-1 18 speaker cable that incorporates the speaker wires and a steel safety cable into a single outer jacket
- Shall meet regulatory compliances
- Shall meet safety compliances under CE, UL1480
- Shall meet UL 1480 for commercial and professional audio systems
- Shall comply with appropriate requirements for RoHS and WEEE
- Shall provide five year parts and labor warranty
- Driver Requirements
- Approved device shall be the Extron SF 3PT, part numbers 60-1736-12 for black or 60-1736-13 for white; no alternates or equals.
- Full-range, plastic enclosure, pendant speaker with internal transformer for 8 ohm direct and 70/100 volt operation
