SM 26
- Provide a two-way, 8 ohm surface mount speaker that shall accommodate division-of-labor installations.
- Two-way surface mount speaker with a dual-ported enclosure, grille, crossover network, 8 ohm nominal impedance, and a concealed, lockable mounting system
- Driver Requirements
- Shall consist of a 6.5" (16.5 cm) polypropylene woofer
- Shall consist of a 1" (2.5 cm) silk dome tweeter
- Performance Requirements
- Shall provide a frequency range of 70 Hz to 18 kHz, -10 dB below average SPL, measured on-axis in full space
- Shall provide a power capacity of 60 watts (rms) continuous pink noise per IEC 60268-5 and 120 watts (rms) continuous program
- Shall provide a nominal sensitivity of 87 dB SPL (1 W, 1 m) measured in full space
- Shall provide a nominal impedance of 8 ohms
- Shall provide a crossover frequency of 2.5 kHz
- Electrical Requirements
- Shall support 8 ohm direct connection from power amplifiers
- Shall provide an internal overload protection circuit
- Shall support one incoming and one outgoing speaker level signal on one 4-pole, 10 mm Euro-style captive screw terminal block built into 0° mounting plate
- Shall support direct wiring of speaker or support wiring of multiple speakers using loop-through wiring terminals
- Shall support a maximum wire gauge of 12 AWG per connection point for a single wire
- Shall support a maximum wire gauge of 16 AWG per connection point for two wires
- Enclosure Requirements
- Shall consist of a plastic, trapezoidal enclosure with molded grille and dual bass reflex ports

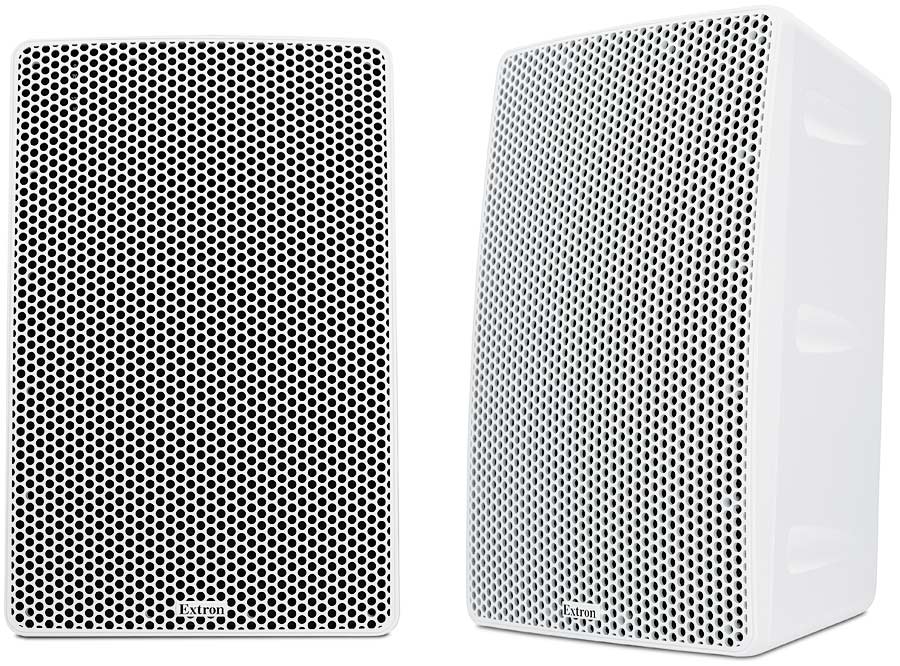

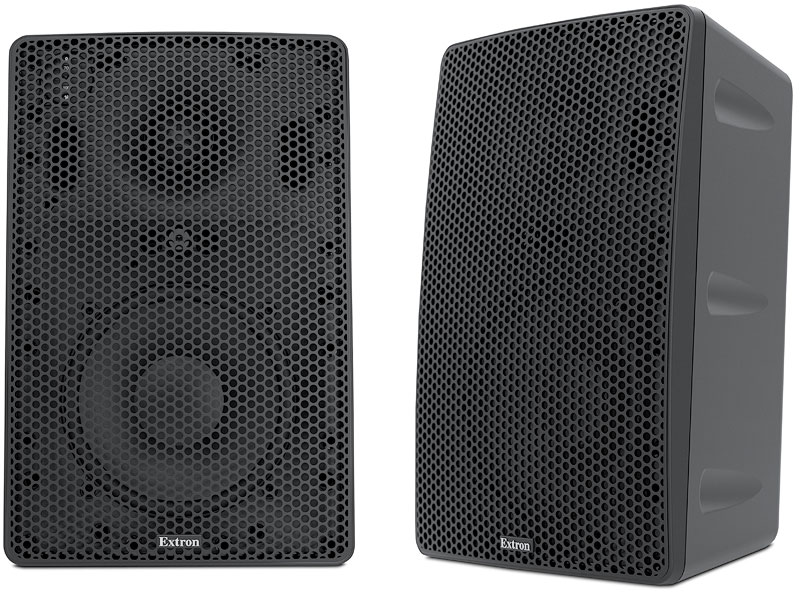

- Shall have a black or white finish
- Shall measure 12.98" (32.97 cm) in height when using 0° mounting plate
- Shall measure 8.45" (21.46 cm) in width when using 0° mounting plate
- Shall protrude 6.45" (16.38 cm) into environment from mounting surface when using 0° mounting plate
- Shall weigh 8.4 lbs (3.81 kg) per speaker when using 0° mounting plate
- Mounting Requirements

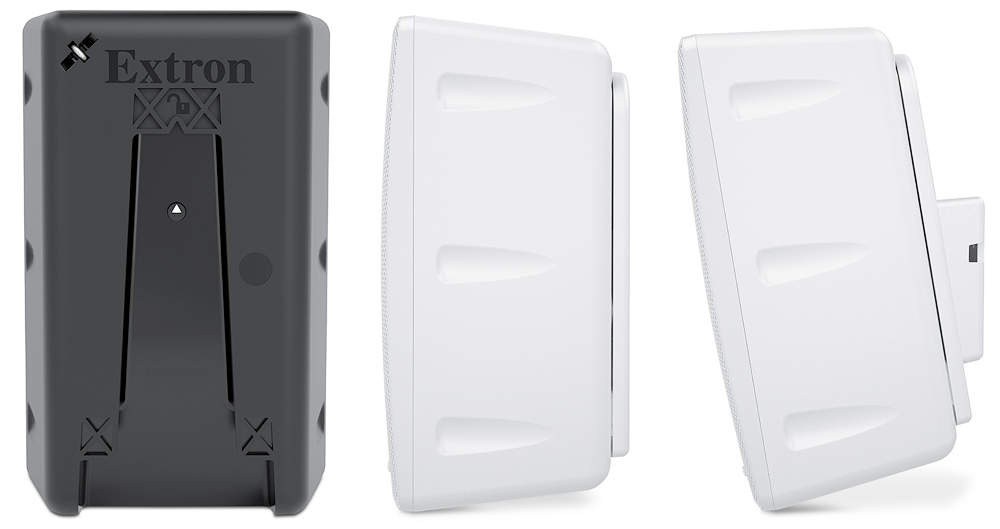

- Shall include a 0° mounting plate for vertical or horizontal flush-with-the-wall installation
- Shall support both enclosure mounting and electrical connection as speaker is placed on mount
- Shall support all incoming and pass-through wiring for speaker
- Shall have a black or white finish to match speaker
- Shall include a four-position 10° mounting adapter for vertical or horizontal speaker installation with 10° of tilt downward, upward, left, or right
- Shall have a black or white finish to match speaker
- Shall provide cable raceway access on 0° mounting plate and 10° mounting adapter for surface-mounted wiring
- Shall support 180° of speaker pivot in 10° detented steps with the use of optional Extron Yoke Mount Kit that is available in black or white finish
- Shall provide a hidden locking speaker release mechanism
- Shall include a 0° mounting plate for vertical or horizontal flush-with-the-wall installation
- General Requirements
- Shall be sold in pairs
- Shall meet regulatory compliances
- Shall comply with appropriate requirements of RoHS and WEEE
- Shall provide five year parts and labor warranty
- Driver Requirements
- Approved device shall be the Extron SM 26, part number 60-1308-02 or 60-1308-03; no alternates or equals.
- Two-way surface mount speaker with a dual-ported enclosure, grille, crossover network, 8 ohm nominal impedance, and a concealed, lockable mounting system
