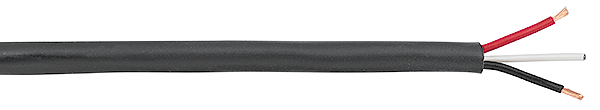

PCC-1 18/500 Black

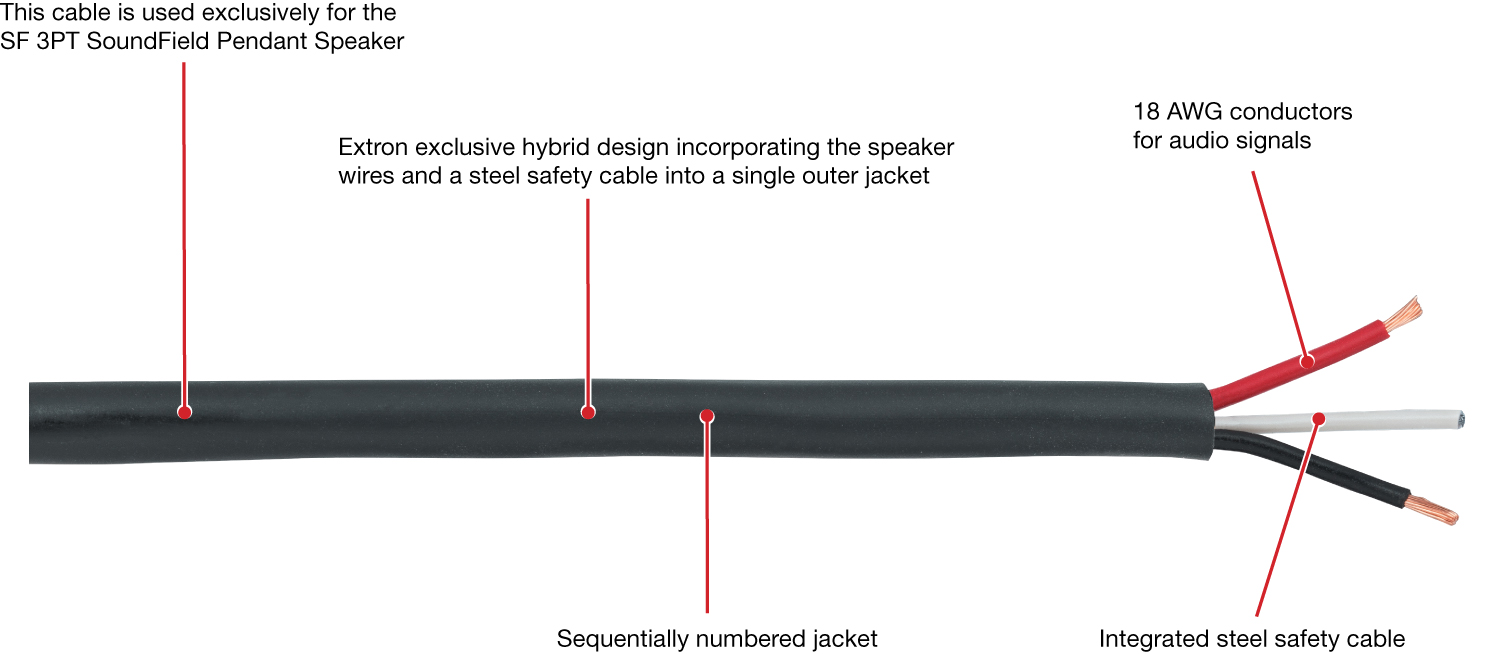

- Provide interconnection for transmission and distribution of analog audio signals with an integrated safety cable
- Cable shall be designed for use with the Extron SF 3PT pendant speaker
- Cable overall nominal outer diameter shall be 0.29 inches (7.40 mm)
- One pair, twisted pair cable
- 18 AWG bare copper, stranded conductor
- Polyvinyl Chloride (PVC) inner and outer jackets
- One stranded safety cable
- Diameter of 0.032 inches (0.80 mm)
- Minimum tensile strength of 10.3 Mpa
- Cable shall comply with NEC – National Electrical Code CM and C(UL) standards at 80 degrees Celsius
- Cable shall comply with the European Union's Restriction of Hazardous Substances (RoHS) and Waste Electrical & Electronic Equipment (WEEE) directives
- Cable shall be rated and in compliance with European Commission CPR, Construction Products Regulation (EU 305/2011)
- Euroclass Eca classification

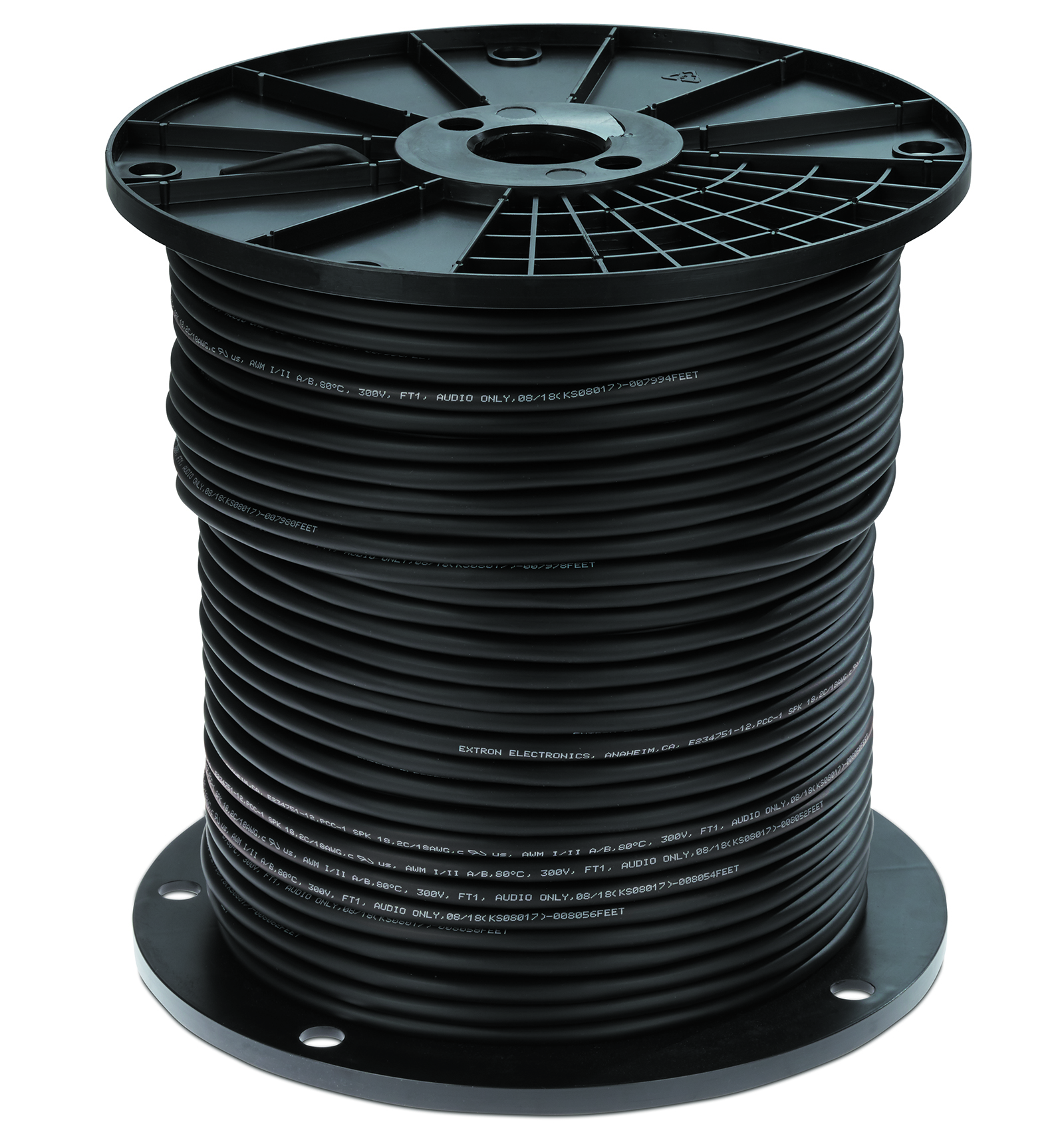

- Cable shall be packaged in lengths of 500 feet (152 meters)
- Approved cable shall be Extron PCC-1 18/500, part number 22-271-02; no alternates or equals
PCC-1 18/500 Black
- Provide interconnection for transmission and distribution of analog audio signals with an integrated safety cable
- Cable shall be designed for use with the Extron SF 3PT pendant speaker
- Cable overall nominal outer diameter shall be 0.29 inches (7.40 mm)
- One pair, twisted pair cable
- 18 AWG bare copper, stranded conductor
- Polyvinyl Chloride (PVC) inner and outer jackets
- One stranded safety cable
- Diameter of 0.032 inches (0.80 mm)
- Minimum tensile strength of 10.3 Mpa
- Cable shall comply with NEC – National Electrical Code CM and C(UL) standards at 80 degrees Celsius
- Cable shall comply with the European Union's Restriction of Hazardous Substances (RoHS) and Waste Electrical & Electronic Equipment (WEEE) directives
- Cable shall be rated and in compliance with European Commission CPR, Construction Products Regulation (EU 305/2011)
- Euroclass Eca classification
- Cable shall be packaged in lengths of 500 feet (152 meters)
- Approved cable shall be Extron PCC-1 18/500, part number 22-271-02; no alternates or equals

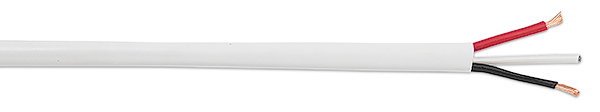

PCC-1 18/500 White
- Provide interconnection for transmission and distribution of analog audio signals with an integrated safety cable
- Cable shall be designed for use with the Extron SF 3PT pendant speaker
- Cable overall nominal outer diameter shall be 0.29 inches (7.40 mm)
- One pair, twisted pair cable
- 18 AWG bare copper, stranded conductor
- Polyvinyl Chloride (PVC) inner and outer jackets
- One stranded safety cable
- Diameter of 0.032 inches (0.80 mm)
- Minimum tensile strength of 10.3 Mpa
- Cable shall comply with NEC – National Electrical Code CM and C(UL) standards at 80 degrees Celsius
- Cable shall comply with the European Union's Restriction of Hazardous Substances (RoHS) and Waste Electrical & Electronic Equipment (WEEE) directives
- Cable shall be rated and in compliance with European Commission CPR, Construction Products Regulation (EU 305/2011)
- Euroclass Eca classification
- Cable shall be packaged in lengths of 500 feet (152 meters)
- Approved cable shall be Extron PCC-1 18/500, part number 22-270-02; no alternates or equals
PCC-1 18/500 White
- Provide interconnection for transmission and distribution of analog audio signals with an integrated safety cable
- Cable shall be designed for use with the Extron SF 3PT pendant speaker
- Cable overall nominal outer diameter shall be 0.29 inches (7.40 mm)
- One pair, twisted pair cable
- 18 AWG bare copper, stranded conductor
- Polyvinyl Chloride (PVC) inner and outer jackets
- One stranded safety cable
- Diameter of 0.032 inches (0.80 mm)
- Minimum tensile strength of 10.3 Mpa
- Cable shall comply with NEC – National Electrical Code CM and C(UL) standards at 80 degrees Celsius
- Cable shall comply with the European Union's Restriction of Hazardous Substances (RoHS) and Waste Electrical & Electronic Equipment (WEEE) directives
- Cable shall be rated and in compliance with European Commission CPR, Construction Products Regulation (EU 305/2011)
- Euroclass Eca classification
- Cable shall be packaged in lengths of 500 feet (152 meters)
- Approved cable shall be Extron PCC-1 18/500, part number 22-270-02; no alternates or equals
