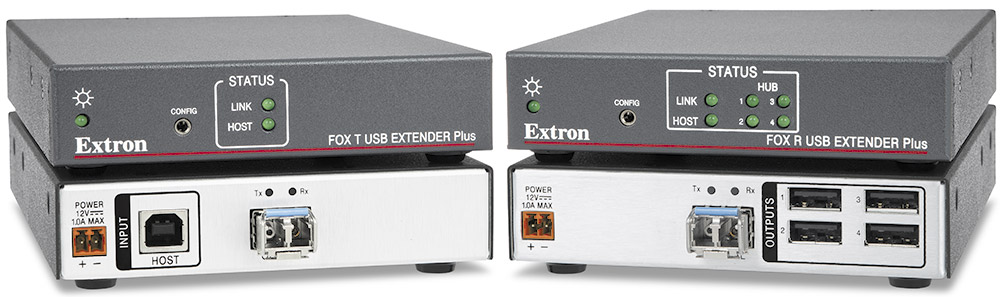

FOX USB Extender Plus
建筑工程规范
选择一个产品编号：
复制文本
已复制！
发生错误。请稍后重试。

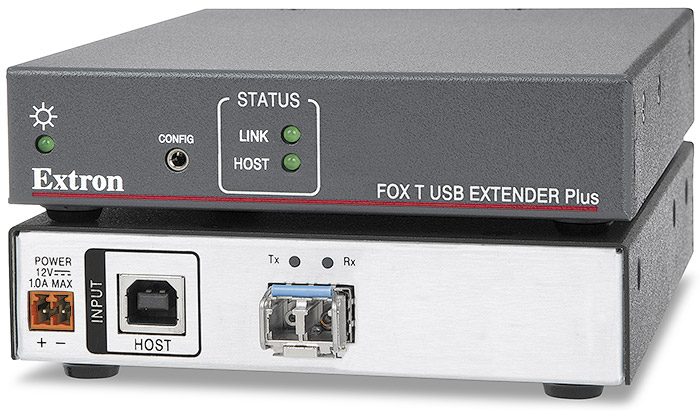

FOX T USB Extender Plus MM
- Shall provide a transmitter that supports long-haul transmission of USB signals over multimode fiber optic cabling
- Long distance signal extension for USB peripherals over multimode fiber optic cabling
- USB input requirements
- Shall provide one (1) USB Type B connector on the rear panel for host computer
- Provide peripheral emulation for a virtual connection of a keyboard and mouse to the host computer
- Provide the capability to configure the unit with peripheral emulation disabled
- Shall support USB 2.0, 1.1, or 1.0 hosts
- Shall support USB 3.0 hosts that can operate at USB 2.0 rates
- Shall support data transfer rates up to 480 Mbps
- Shall provide one (1) USB Type B connector on the rear panel for host computer
- Interconnection requirements
- Shall provide interconnection between transmitter and receiver over multimode fiber optic cabling
- Shall provide two (2) LC-type fiber optic connectors on rear panel
- Transmission requirement
- Shall provide a fiber optic signal transmission distance capability of 2 km (1.25 miles) over OM3 or OM4 multimode fiber optic cabling
- Shall support an optical loss budget of at least 7 dB between transmitter and receiver
- Setup, control, and configuration requirements
- Shall provide one (1) bidirectional RS-232 2.5 mm jack on front panel for setup and configuration
- Power requirements
- Shall be equipped with an external, universal AC power supply capable of supporting 100 - 240 VAC, 50/60 Hz power
- General requirements
- Shall be a 1” (2.5 cm) high, quarter rack width metal enclosure
- Shall be rack mountable with optional rack shelf or rack mounting brackets
- Shall be wall or furniture mountable with optional mounting kits
- Shall provide LED indicators on the front panel for power, link status, and host status
- Shall provide LED indicators on rear panel for link status
- Shall meet regulatory compliances
- CE, c-UL, UL
- CE, C-tick, FCC Class A, ICES, VCCI
- RoHS, WEEE
- Shall provide at least three (3) years parts and labor warranty
- Shall be compatible with the Extron FOX R USB Extender Plus MM fiber optic receiver for USB peripherals
- Shall be compatible with Extron FOX Series matrix switchers to create a signal distribution system up to 1000x1000 and larger
- Approved device shall be the Extron FOX T USB Extender Plus MM (60-1474-11); no alternates or equals
FOX T USB Extender Plus MM
- Shall provide a transmitter that supports long-haul transmission of USB signals over multimode fiber optic cabling
- Long distance signal extension for USB peripherals over multimode fiber optic cabling
- USB input requirements
- Shall provide one (1) USB Type B connector on the rear panel for host computer
- Provide peripheral emulation for a virtual connection of a keyboard and mouse to the host computer
- Provide the capability to configure the unit with peripheral emulation disabled
- Shall support USB 2.0, 1.1, or 1.0 hosts
- Shall support USB 3.0 hosts that can operate at USB 2.0 rates
- Shall support data transfer rates up to 480 Mbps
- Shall provide one (1) USB Type B connector on the rear panel for host computer
- Interconnection requirements
- Shall provide interconnection between transmitter and receiver over multimode fiber optic cabling
- Shall provide two (2) LC-type fiber optic connectors on rear panel
- Transmission requirement
- Shall provide a fiber optic signal transmission distance capability of 2 km (1.25 miles) over OM3 or OM4 multimode fiber optic cabling
- Shall support an optical loss budget of at least 7 dB between transmitter and receiver
- Setup, control, and configuration requirements
- Shall provide one (1) bidirectional RS-232 2.5 mm jack on front panel for setup and configuration
- Power requirements
- Shall be equipped with an external, universal AC power supply capable of supporting 100 - 240 VAC, 50/60 Hz power
- General requirements
- Shall be a 1” (2.5 cm) high, quarter rack width metal enclosure
- Shall be rack mountable with optional rack shelf or rack mounting brackets
- Shall be wall or furniture mountable with optional mounting kits
- Shall provide LED indicators on the front panel for power, link status, and host status
- Shall provide LED indicators on rear panel for link status
- Shall meet regulatory compliances
- CE, c-UL, UL
- CE, C-tick, FCC Class A, ICES, VCCI
- RoHS, WEEE
- Shall provide at least three (3) years parts and labor warranty
- Shall be compatible with the Extron FOX R USB Extender Plus MM fiber optic receiver for USB peripherals
- Shall be compatible with Extron FOX Series matrix switchers to create a signal distribution system up to 1000x1000 and larger
- Approved device shall be the Extron FOX T USB Extender Plus MM (60-1474-11); no alternates or equals

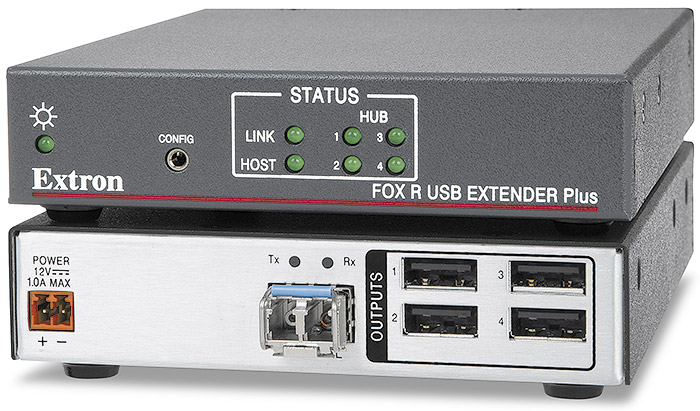

FOX R USB Extender Plus MM
- Shall provide a receiver that supports long-haul transmission of USB signals over multimode fiber optic cabling
- Long distance signal extension for USB peripherals over fiber optic cabling
- USB output requirements
- Shall provide an integrated four-port hub of USB Type A connectors on the rear panel for peripheral devices
- Provide 5 Volts, 500 mA on each port to power a peripheral device
- Provide the capability to charge a peripheral device that is connected to a hub port
- Shall support USB 2.0, 1.1, or 1.0 devices
- Shall support USB 3.0 devices that can operate at USB 2.0 rates
- Shall support data transfer rates up to 480 Mbps
- Shall provide an integrated four-port hub of USB Type A connectors on the rear panel for peripheral devices
- Interconnection requirements
- Shall provide interconnection between transmitter and receiver over multimode fiber optic cabling
- Shall provide two (2) LC-type fiber optic connectors on rear panel
- Transmission requirement
- Shall provide a fiber optic signal transmission distance capability of 2 km (1.25 miles) over OM3 or OM4 multimode fiber optic cabling
- Shall support an optical loss budget of at least 7 dB between transmitter and receiver
- Setup, control, and configuration requirements
- Shall provide one (1) bidirectional RS-232 2.5 mm jack on front panel for setup and configuration
- Power requirements
- Shall be equipped with an external, universal AC power supply capable of supporting 100 - 240 VAC, 50/60 Hz power
- General requirements
- Shall be a 1” (2.5 cm) high, quarter rack width metal enclosure
- Shall be rack mountable with optional rack shelf or rack mounting brackets
- Shall be wall or furniture mountable with optional mounting kits
- Shall provide LED indicators on the front panel for power, link status, host status, and each hub port activity
- Shall provide LED indicators on rear panel for link status
- Shall meet regulatory compliances
- CE, c-UL, UL
- CE, C-tick, FCC Class A, ICES, VCCI
- RoHS, WEEE
- Shall provide at least three (3) years parts and labor warranty
- Shall be compatible with the Extron FOX T USB Extender Plus MM fiber optic transmitter for USB peripherals
- Shall be compatible with Extron FOX Series matrix switchers to create a signal distribution system up to 1000x1000 and larger
- Approved device shall be the Extron R FOX USB Extender Plus MM (60-1474-21); no alternates or equals
FOX R USB Extender Plus MM
- Shall provide a receiver that supports long-haul transmission of USB signals over multimode fiber optic cabling
- Long distance signal extension for USB peripherals over fiber optic cabling
- USB output requirements
- Shall provide an integrated four-port hub of USB Type A connectors on the rear panel for peripheral devices
- Provide 5 Volts, 500 mA on each port to power a peripheral device
- Provide the capability to charge a peripheral device that is connected to a hub port
- Shall support USB 2.0, 1.1, or 1.0 devices
- Shall support USB 3.0 devices that can operate at USB 2.0 rates
- Shall support data transfer rates up to 480 Mbps
- Shall provide an integrated four-port hub of USB Type A connectors on the rear panel for peripheral devices
- Interconnection requirements
- Shall provide interconnection between transmitter and receiver over multimode fiber optic cabling
- Shall provide two (2) LC-type fiber optic connectors on rear panel
- Transmission requirement
- Shall provide a fiber optic signal transmission distance capability of 2 km (1.25 miles) over OM3 or OM4 multimode fiber optic cabling
- Shall support an optical loss budget of at least 7 dB between transmitter and receiver
- Setup, control, and configuration requirements
- Shall provide one (1) bidirectional RS-232 2.5 mm jack on front panel for setup and configuration
- Power requirements
- Shall be equipped with an external, universal AC power supply capable of supporting 100 - 240 VAC, 50/60 Hz power
- General requirements
- Shall be a 1” (2.5 cm) high, quarter rack width metal enclosure
- Shall be rack mountable with optional rack shelf or rack mounting brackets
- Shall be wall or furniture mountable with optional mounting kits
- Shall provide LED indicators on the front panel for power, link status, host status, and each hub port activity
- Shall provide LED indicators on rear panel for link status
- Shall meet regulatory compliances
- CE, c-UL, UL
- CE, C-tick, FCC Class A, ICES, VCCI
- RoHS, WEEE
- Shall provide at least three (3) years parts and labor warranty
- Shall be compatible with the Extron FOX T USB Extender Plus MM fiber optic transmitter for USB peripherals
- Shall be compatible with Extron FOX Series matrix switchers to create a signal distribution system up to 1000x1000 and larger
- Approved device shall be the Extron R FOX USB Extender Plus MM (60-1474-21); no alternates or equals
FOX T USB Extender Plus SM
- Shall provide a transmitter that supports long-haul transmission of USB signals over singlemode fiber optic cabling
- Long distance signal extension for USB peripherals over multimode fiber optic cabling
- USB input requirements
- Shall provide one (1) USB Type B connector on the rear panel for host computer
- Provide peripheral emulation for a virtual connection of a keyboard and mouse to the host computer
- Provide the capability to configure the unit with peripheral emulation disabled
- Shall support USB 2.0, 1.1, or 1.0 hosts
- Shall support USB 3.0 hosts that can operate at USB 2.0 rates
- Shall support data transfer rates up to 480 Mbps
- Shall provide one (1) USB Type B connector on the rear panel for host computer
- Interconnection requirements
- Shall provide interconnection between transmitter and receiver over singlemode fiber optic cabling
- Shall provide two (2) LC-type fiber optic connectors on rear panel
- Transmission requirement
- Shall provide a fiber optic signal transmission distance capability of 30 km (18.75 miles) over singlemode fiber optic cabling
- Shall support an optical loss budget of at least 13 dB between transmitter and receiver
- Setup, control, and configuration requirements
- Shall provide one (1) bidirectional RS-232 2.5 mm jack on front panel for setup and configuration
- Power requirements
- Shall be equipped with an external, universal AC power supply capable of supporting 100 - 240 VAC, 50/60 Hz power
- General requirements
- Shall be a 1” (2.5 cm) high, quarter rack width metal enclosure
- Shall be rack mountable with optional rack shelf or rack mounting brackets
- Shall be wall or furniture mountable with optional mounting kits
- Shall provide LED indicators on the front panel for power, link status, and host status
- Shall provide LED indicators on rear panel for link status
- Shall meet regulatory compliances
- CE, c-UL, UL
- CE, C-tick, FCC Class A, ICES, VCCI
- RoHS, WEEE
- Shall provide at least three (3) years parts and labor warranty
- Shall be compatible with the Extron FOX R USB Extender Plus SM fiber optic receiver for USB peripherals
- Shall be compatible with Extron FOX Series matrix switchers to create a signal distribution system up to 1000x1000 and larger
- Approved device shall be the Extron FOX T USB Extender Plus SM (60-1474-12); no alternates or equals
FOX T USB Extender Plus SM
- Shall provide a transmitter that supports long-haul transmission of USB signals over singlemode fiber optic cabling
- Long distance signal extension for USB peripherals over multimode fiber optic cabling
- USB input requirements
- Shall provide one (1) USB Type B connector on the rear panel for host computer
- Provide peripheral emulation for a virtual connection of a keyboard and mouse to the host computer
- Provide the capability to configure the unit with peripheral emulation disabled
- Shall support USB 2.0, 1.1, or 1.0 hosts
- Shall support USB 3.0 hosts that can operate at USB 2.0 rates
- Shall support data transfer rates up to 480 Mbps
- Shall provide one (1) USB Type B connector on the rear panel for host computer
- Interconnection requirements
- Shall provide interconnection between transmitter and receiver over singlemode fiber optic cabling
- Shall provide two (2) LC-type fiber optic connectors on rear panel
- Transmission requirement
- Shall provide a fiber optic signal transmission distance capability of 30 km (18.75 miles) over singlemode fiber optic cabling
- Shall support an optical loss budget of at least 13 dB between transmitter and receiver
- Setup, control, and configuration requirements
- Shall provide one (1) bidirectional RS-232 2.5 mm jack on front panel for setup and configuration
- Power requirements
- Shall be equipped with an external, universal AC power supply capable of supporting 100 - 240 VAC, 50/60 Hz power
- General requirements
- Shall be a 1” (2.5 cm) high, quarter rack width metal enclosure
- Shall be rack mountable with optional rack shelf or rack mounting brackets
- Shall be wall or furniture mountable with optional mounting kits
- Shall provide LED indicators on the front panel for power, link status, and host status
- Shall provide LED indicators on rear panel for link status
- Shall meet regulatory compliances
- CE, c-UL, UL
- CE, C-tick, FCC Class A, ICES, VCCI
- RoHS, WEEE
- Shall provide at least three (3) years parts and labor warranty
- Shall be compatible with the Extron FOX R USB Extender Plus SM fiber optic receiver for USB peripherals
- Shall be compatible with Extron FOX Series matrix switchers to create a signal distribution system up to 1000x1000 and larger
- Approved device shall be the Extron FOX T USB Extender Plus SM (60-1474-12); no alternates or equals
FOX R USB Extender Plus SM
- Shall provide a receiver that supports long-haul transmission of USB signals over singlemode fiber optic cabling
- Long distance signal extension for USB peripherals over fiber optic cabling
- USB output requirements
- Shall provide an integrated four-port hub of USB Type A connectors on the rear panel for peripheral devices
- Provide 5 Volts, 500 mA on each port to power a peripheral device
- Provide the capability to charge a peripheral device that is connected to a hub port
- Shall support USB 2.0, 1.1, or 1.0 devices
- Shall support USB 3.0 devices that can operate at USB 2.0 rates
- Shall support data transfer rates up to 480 Mbps
- Shall provide an integrated four-port hub of USB Type A connectors on the rear panel for peripheral devices
- Interconnection requirements
- Shall provide interconnection between transmitter and receiver over singlemode fiber optic cabling
- Shall provide two (2) LC-type fiber optic connectors on rear panel
- Transmission requirement
- Shall provide a fiber optic signal transmission distance capability of 30 km (18.75 miles) over singlemode fiber optic cabling
- Shall support an optical loss budget of at least 13 dB between transmitter and receiver
- Setup, control, and configuration requirements
- Shall provide one (1) bidirectional RS-232 2.5 mm jack on front panel for setup and configuration
- Power requirements
- Shall be equipped with an external, universal AC power supply capable of supporting 100 - 240 VAC, 50/60 Hz power
- General requirements
- Shall be a 1” (2.5 cm) high, quarter rack width metal enclosure
- Shall be rack mountable with optional rack shelf or rack mounting brackets
- Shall be wall or furniture mountable with optional mounting kits
- Shall provide LED indicators on the front panel for power, link status, host status, and each hub port activity
- Shall provide LED indicators on rear panel for link status
- Shall meet regulatory compliances
- CE, c-UL, UL
- CE, C-tick, FCC Class A, ICES, VCCI
- RoHS, WEEE
- Shall provide at least three (3) years parts and labor warranty
- Shall be compatible with the Extron FOX T USB Extender Plus SM fiber optic transmitter for USB peripherals
- Shall be compatible with Extron FOX Series matrix switchers to create a signal distribution system up to 1000x1000 and larger
- Approved device shall be the Extron R FOX USB Extender Plus SM (60-1474-22); no alternates or equals
FOX R USB Extender Plus SM
- Shall provide a receiver that supports long-haul transmission of USB signals over singlemode fiber optic cabling
- Long distance signal extension for USB peripherals over fiber optic cabling
- USB output requirements
- Shall provide an integrated four-port hub of USB Type A connectors on the rear panel for peripheral devices
- Provide 5 Volts, 500 mA on each port to power a peripheral device
- Provide the capability to charge a peripheral device that is connected to a hub port
- Shall support USB 2.0, 1.1, or 1.0 devices
- Shall support USB 3.0 devices that can operate at USB 2.0 rates
- Shall support data transfer rates up to 480 Mbps
- Shall provide an integrated four-port hub of USB Type A connectors on the rear panel for peripheral devices
- Interconnection requirements
- Shall provide interconnection between transmitter and receiver over singlemode fiber optic cabling
- Shall provide two (2) LC-type fiber optic connectors on rear panel
- Transmission requirement
- Shall provide a fiber optic signal transmission distance capability of 30 km (18.75 miles) over singlemode fiber optic cabling
- Shall support an optical loss budget of at least 13 dB between transmitter and receiver
- Setup, control, and configuration requirements
- Shall provide one (1) bidirectional RS-232 2.5 mm jack on front panel for setup and configuration
- Power requirements
- Shall be equipped with an external, universal AC power supply capable of supporting 100 - 240 VAC, 50/60 Hz power
- General requirements
- Shall be a 1” (2.5 cm) high, quarter rack width metal enclosure
- Shall be rack mountable with optional rack shelf or rack mounting brackets
- Shall be wall or furniture mountable with optional mounting kits
- Shall provide LED indicators on the front panel for power, link status, host status, and each hub port activity
- Shall provide LED indicators on rear panel for link status
- Shall meet regulatory compliances
- CE, c-UL, UL
- CE, C-tick, FCC Class A, ICES, VCCI
- RoHS, WEEE
- Shall provide at least three (3) years parts and labor warranty
- Shall be compatible with the Extron FOX T USB Extender Plus SM fiber optic transmitter for USB peripherals
- Shall be compatible with Extron FOX Series matrix switchers to create a signal distribution system up to 1000x1000 and larger
- Approved device shall be the Extron R FOX USB Extender Plus SM (60-1474-22); no alternates or equals
FOX T USB Extender Plus HID MM
- Shall provide a transmitter that supports long-haul transmission of USB signals for human interface device – HID types and smart card readers
- Long distance signal extension of USB HID and smart card readers over multimode fiber optic cabling
- USB input requirements
- Shall provide one (1) USB Type B connector on the rear panel for host computer
- Provide peripheral emulation for a virtual connection of a keyboard and mouse to the host computer
- Provide the capability to configure the unit with peripheral emulation disabled
- Shall support USB 2.0, 1.1, or 1.0 hosts
- Shall support USB 3.0 hosts that can operate at USB 2.0 rates
- Shall support data transfer rates up to 480 Mbps
- Shall provide device class filtering to recognize only authorized device types
- Allow connection of HID and smart card reader device classes only
- Prevent connection of unauthorized hardware, such as a storage device
- Factory-configured to ensure device class filtering cannot be removed or altered in the field
- Shall provide one (1) USB Type B connector on the rear panel for host computer
- Interconnection requirements
- Shall provide interconnection between transmitter and receiver over multimode fiber optic cabling
- Shall provide two (2) LC-type fiber optic connectors on rear panel
- Transmission requirement
- Shall provide a fiber optic signal transmission distance capability of 2 km (1.25 miles) over OM3 or OM4 multimode fiber optic cabling
- Shall support an optical loss budget of at least 7 dB between transmitter and receiver
- Setup, control, and configuration requirements
- Shall provide one (1) bidirectional RS-232 2.5 mm jack on front panel for setup and configuration
- Power requirements
- Shall be equipped with an external, universal AC power supply capable of supporting 100 - 240 VAC, 50/60 Hz power
- General requirements
- Shall be a 1” (2.5 cm) high, quarter rack width metal enclosure
- Shall be rack mountable with optional rack shelf or rack mounting brackets
- Shall be wall or furniture mountable with optional mounting kits
- Shall provide LED indicators on the front panel for power, link status, and host status
- Shall provide LED indicators on rear panel for link status
- Shall meet regulatory compliances
- CE, c-UL, UL
- CE, C-tick, FCC Class A, ICES, VCCI
- RoHS, WEEE
- Shall provide at least three (3) years parts and labor warranty
- Shall be compatible with the Extron FOX R USB Extender Plus HID MM fiber optic receiver for USB peripherals
- Shall be compatible with Extron FOX Series matrix switchers to create a signal distribution system up to 1000x1000 and larger
- Approved device shall be the Extron FOX T USB Extender Plus HID MM (60-1526-11); no alternates or equals
FOX T USB Extender Plus HID MM
- Shall provide a transmitter that supports long-haul transmission of USB signals for human interface device – HID types and smart card readers
- Long distance signal extension of USB HID and smart card readers over multimode fiber optic cabling
- USB input requirements
- Shall provide one (1) USB Type B connector on the rear panel for host computer
- Provide peripheral emulation for a virtual connection of a keyboard and mouse to the host computer
- Provide the capability to configure the unit with peripheral emulation disabled
- Shall support USB 2.0, 1.1, or 1.0 hosts
- Shall support USB 3.0 hosts that can operate at USB 2.0 rates
- Shall support data transfer rates up to 480 Mbps
- Shall provide device class filtering to recognize only authorized device types
- Allow connection of HID and smart card reader device classes only
- Prevent connection of unauthorized hardware, such as a storage device
- Factory-configured to ensure device class filtering cannot be removed or altered in the field
- Shall provide one (1) USB Type B connector on the rear panel for host computer
- Interconnection requirements
- Shall provide interconnection between transmitter and receiver over multimode fiber optic cabling
- Shall provide two (2) LC-type fiber optic connectors on rear panel
- Transmission requirement
- Shall provide a fiber optic signal transmission distance capability of 2 km (1.25 miles) over OM3 or OM4 multimode fiber optic cabling
- Shall support an optical loss budget of at least 7 dB between transmitter and receiver
- Setup, control, and configuration requirements
- Shall provide one (1) bidirectional RS-232 2.5 mm jack on front panel for setup and configuration
- Power requirements
- Shall be equipped with an external, universal AC power supply capable of supporting 100 - 240 VAC, 50/60 Hz power
- General requirements
- Shall be a 1” (2.5 cm) high, quarter rack width metal enclosure
- Shall be rack mountable with optional rack shelf or rack mounting brackets
- Shall be wall or furniture mountable with optional mounting kits
- Shall provide LED indicators on the front panel for power, link status, and host status
- Shall provide LED indicators on rear panel for link status
- Shall meet regulatory compliances
- CE, c-UL, UL
- CE, C-tick, FCC Class A, ICES, VCCI
- RoHS, WEEE
- Shall provide at least three (3) years parts and labor warranty
- Shall be compatible with the Extron FOX R USB Extender Plus HID MM fiber optic receiver for USB peripherals
- Shall be compatible with Extron FOX Series matrix switchers to create a signal distribution system up to 1000x1000 and larger
- Approved device shall be the Extron FOX T USB Extender Plus HID MM (60-1526-11); no alternates or equals
FOX R USB Extender Plus HID MM
- Shall provide a receiver that supports long-haul transmission of USB signals for human interface device – HID types and smart card readers
- Long distance signal extension of USB HID and smart card readers over multimode fiber optic cabling
- USB output requirements
- Shall provide an integrated four-port hub of USB Type A connectors on the rear panel for supported peripheral devices
- Provide 5 Volts, 500 mA on each port to power a peripheral device
- Provide the capability to charge a peripheral device that is connected to a hub port
- Shall support USB 2.0, 1.1, or 1.0 devices
- Shall support USB 3.0 devices that can operate at USB 2.0 rates
- Shall support data transfer rates up to 480 Mbps
- Shall provide device class filtering to recognize only authorized device types
- Allow connection of HID and smart card reader device classes only
- Prevent connection of unauthorized hardware, such as a storage device
- Factory-configured to ensure device class filtering cannot be removed or altered in the field
- Shall provide an integrated four-port hub of USB Type A connectors on the rear panel for supported peripheral devices
- Interconnection requirements
- Shall provide interconnection between transmitter and receiver over multimode fiber optic cabling
- Shall provide two (2) LC-type fiber optic connectors on rear panel
- Transmission requirement
- Shall provide a fiber optic signal transmission distance capability of 2 km (1.25 miles) over OM3 or OM4 multimode fiber optic cabling
- Shall support an optical loss budget of at least 7 dB between transmitter and receiver
- Setup, control, and configuration requirements
- Shall provide one (1) bidirectional RS-232 2.5 mm jack on front panel for setup and configuration
- Power requirements
- Shall be equipped with an external, universal AC power supply capable of supporting 100 - 240 VAC, 50/60 Hz power
- General requirements
- Shall be a 1” (2.5 cm) high, quarter rack width metal enclosure
- Shall be rack mountable with optional rack shelf or rack mounting brackets
- Shall be wall or furniture mountable with optional mounting kits
- Shall provide LED indicators on the front panel for power, link status, host status, and each hub port activity
- Shall provide LED indicators on rear panel for link status
- Shall meet regulatory compliances
- CE, c-UL, UL
- CE, C-tick, FCC Class A, ICES, VCCI
- RoHS, WEEE
- Shall provide at least three (3) years parts and labor warranty
- Shall be compatible with the Extron FOX T USB Extender Plus HID MM fiber optic transmitter for USB peripherals
- Shall be compatible with Extron FOX Series matrix switchers to create a signal distribution system up to 1000x1000 and larger
- Approved device shall be the Extron R FOX USB Extender Plus HID MM (60-1526-21); no alternates or equals
FOX R USB Extender Plus HID MM
- Shall provide a receiver that supports long-haul transmission of USB signals for human interface device – HID types and smart card readers
- Long distance signal extension of USB HID and smart card readers over multimode fiber optic cabling
- USB output requirements
- Shall provide an integrated four-port hub of USB Type A connectors on the rear panel for supported peripheral devices
- Provide 5 Volts, 500 mA on each port to power a peripheral device
- Provide the capability to charge a peripheral device that is connected to a hub port
- Shall support USB 2.0, 1.1, or 1.0 devices
- Shall support USB 3.0 devices that can operate at USB 2.0 rates
- Shall support data transfer rates up to 480 Mbps
- Shall provide device class filtering to recognize only authorized device types
- Allow connection of HID and smart card reader device classes only
- Prevent connection of unauthorized hardware, such as a storage device
- Factory-configured to ensure device class filtering cannot be removed or altered in the field
- Shall provide an integrated four-port hub of USB Type A connectors on the rear panel for supported peripheral devices
- Interconnection requirements
- Shall provide interconnection between transmitter and receiver over multimode fiber optic cabling
- Shall provide two (2) LC-type fiber optic connectors on rear panel
- Transmission requirement
- Shall provide a fiber optic signal transmission distance capability of 2 km (1.25 miles) over OM3 or OM4 multimode fiber optic cabling
- Shall support an optical loss budget of at least 7 dB between transmitter and receiver
- Setup, control, and configuration requirements
- Shall provide one (1) bidirectional RS-232 2.5 mm jack on front panel for setup and configuration
- Power requirements
- Shall be equipped with an external, universal AC power supply capable of supporting 100 - 240 VAC, 50/60 Hz power
- General requirements
- Shall be a 1” (2.5 cm) high, quarter rack width metal enclosure
- Shall be rack mountable with optional rack shelf or rack mounting brackets
- Shall be wall or furniture mountable with optional mounting kits
- Shall provide LED indicators on the front panel for power, link status, host status, and each hub port activity
- Shall provide LED indicators on rear panel for link status
- Shall meet regulatory compliances
- CE, c-UL, UL
- CE, C-tick, FCC Class A, ICES, VCCI
- RoHS, WEEE
- Shall provide at least three (3) years parts and labor warranty
- Shall be compatible with the Extron FOX T USB Extender Plus HID MM fiber optic transmitter for USB peripherals
- Shall be compatible with Extron FOX Series matrix switchers to create a signal distribution system up to 1000x1000 and larger
- Approved device shall be the Extron R FOX USB Extender Plus HID MM (60-1526-21); no alternates or equals
FOX T USB Extender Plus HID SM
- Shall provide a transmitter that supports long-haul transmission of USB signals for human interface device – HID types and smart card readers
- Long distance signal extension of USB HID and smart card readers over singlemode fiber optic cabling
- USB input requirements
- Shall provide one (1) USB Type B connector on the rear panel for host computer
- Provide peripheral emulation for a virtual connection of a keyboard and mouse to the host computer
- Provide the capability to configure the unit with peripheral emulation disabled
- Shall support USB 2.0, 1.1, or 1.0 hosts
- Shall support USB 3.0 hosts that can operate at USB 2.0 rates
- Shall support data transfer rates up to 480 Mbps
- Shall provide device class filtering to recognize only authorized device types
- Allow connection of HID and smart card reader device classes only
- Prevent connection of unauthorized hardware, such as a storage device
- Factory-configured to ensure device class filtering cannot be removed or altered in the field
- Shall provide one (1) USB Type B connector on the rear panel for host computer
- Interconnection requirements
- Shall provide interconnection between transmitter and receiver over singlemode fiber optic cabling
- Shall provide two (2) LC-type fiber optic connectors on rear panel
- Transmission requirement
- Shall provide a fiber optic signal transmission distance capability of 30 km (18.75 miles) over singlemode fiber optic cabling
- Shall support an optical loss budget of at least 13 dB between transmitter and receiver
- Setup, control, and configuration requirements
- Shall provide one (1) bidirectional RS-232 2.5 mm jack on front panel for setup and configuration
- Power requirements
- Shall be equipped with an external, universal AC power supply capable of supporting 100 - 240 VAC, 50/60 Hz power
- General requirements
- Shall be a 1” (2.5 cm) high, quarter rack width metal enclosure
- Shall be rack mountable with optional rack shelf or rack mounting brackets
- Shall be wall or furniture mountable with optional mounting kits
- Shall provide LED indicators on the front panel for power, link status, and host status
- Shall provide LED indicators on rear panel for link status
- Shall meet regulatory compliances
- CE, c-UL, UL
- CE, C-tick, FCC Class A, ICES, VCCI
- RoHS, WEEE
- Shall provide at least three (3) years parts and labor warranty
- Shall be compatible with the Extron FOX R USB Extender Plus HID SM fiber optic receiver for USB peripherals
- Shall be compatible with Extron FOX Series matrix switchers to create a signal distribution system up to 1000x1000 and larger
- Approved device shall be the Extron FOX T USB Extender Plus HID SM (60-1526-12); no alternates or equals
FOX T USB Extender Plus HID SM
- Shall provide a transmitter that supports long-haul transmission of USB signals for human interface device – HID types and smart card readers
- Long distance signal extension of USB HID and smart card readers over singlemode fiber optic cabling
- USB input requirements
- Shall provide one (1) USB Type B connector on the rear panel for host computer
- Provide peripheral emulation for a virtual connection of a keyboard and mouse to the host computer
- Provide the capability to configure the unit with peripheral emulation disabled
- Shall support USB 2.0, 1.1, or 1.0 hosts
- Shall support USB 3.0 hosts that can operate at USB 2.0 rates
- Shall support data transfer rates up to 480 Mbps
- Shall provide device class filtering to recognize only authorized device types
- Allow connection of HID and smart card reader device classes only
- Prevent connection of unauthorized hardware, such as a storage device
- Factory-configured to ensure device class filtering cannot be removed or altered in the field
- Shall provide one (1) USB Type B connector on the rear panel for host computer
- Interconnection requirements
- Shall provide interconnection between transmitter and receiver over singlemode fiber optic cabling
- Shall provide two (2) LC-type fiber optic connectors on rear panel
- Transmission requirement
- Shall provide a fiber optic signal transmission distance capability of 30 km (18.75 miles) over singlemode fiber optic cabling
- Shall support an optical loss budget of at least 13 dB between transmitter and receiver
- Setup, control, and configuration requirements
- Shall provide one (1) bidirectional RS-232 2.5 mm jack on front panel for setup and configuration
- Power requirements
- Shall be equipped with an external, universal AC power supply capable of supporting 100 - 240 VAC, 50/60 Hz power
- General requirements
- Shall be a 1” (2.5 cm) high, quarter rack width metal enclosure
- Shall be rack mountable with optional rack shelf or rack mounting brackets
- Shall be wall or furniture mountable with optional mounting kits
- Shall provide LED indicators on the front panel for power, link status, and host status
- Shall provide LED indicators on rear panel for link status
- Shall meet regulatory compliances
- CE, c-UL, UL
- CE, C-tick, FCC Class A, ICES, VCCI
- RoHS, WEEE
- Shall provide at least three (3) years parts and labor warranty
- Shall be compatible with the Extron FOX R USB Extender Plus HID SM fiber optic receiver for USB peripherals
- Shall be compatible with Extron FOX Series matrix switchers to create a signal distribution system up to 1000x1000 and larger
- Approved device shall be the Extron FOX T USB Extender Plus HID SM (60-1526-12); no alternates or equals
FOX R USB Extender Plus HID SM
- Shall provide a receiver that supports long-haul transmission of USB signals for human interface device – HID types and smart card readers
- Long distance signal extension of USB HID and smart card readers over singlemode fiber optic cabling
- USB output requirements
- Shall provide an integrated four-port hub of USB Type A connectors on the rear panel for peripheral devices
- Shall provide 5 Volts, 500 mA on each port to power a peripheral device
- Shall provide the capability to charge a peripheral device that is connected to a hub port
- Shall support USB 2.0, 1.1, or 1.0 devices
- Shall support USB 3.0 devices that can operate at USB 2.0 rates
- Shall support data transfer rates up to 480 Mbps
- Shall provide device class filtering to recognize only authorized device types
- Allow connection of HID and smart card reader device classes only
- Prevent connection of unauthorized hardware, such as a storage device
- Factory-configured to ensure device class filtering cannot be removed or altered in the field
- Shall provide an integrated four-port hub of USB Type A connectors on the rear panel for peripheral devices
- Interconnection requirements
- Shall provide interconnection between transmitter and receiver over singlemode fiber optic cabling
- Shall provide two (2) LC-type fiber optic connectors on rear panel
- Transmission requirement
- Shall provide a fiber optic signal transmission distance capability of 30 km (18.75 miles) over singlemode fiber optic cabling
- Shall support an optical loss budget of at least 13 dB between transmitter and receiver
- Setup, control, and configuration requirements
- Shall provide one (1) bidirectional RS-232 2.5 mm jack on front panel for setup and configuration
- Power requirements
- Shall be equipped with an external, universal AC power supply capable of supporting 100 - 240 VAC, 50/60 Hz power
- General requirements
- Shall be a 1” (2.5 cm) high, quarter rack width metal enclosure
- Shall be rack mountable with optional rack shelf or rack mounting brackets
- Shall be wall or furniture mountable with optional mounting kits
- Shall provide LED indicators on the front panel for power, link status, host status, and each hub port activity
- Shall provide LED indicators on rear panel for link status
- Shall meet regulatory compliances
- CE, c-UL, UL
- CE, C-tick, FCC Class A, ICES, VCCI
- RoHS, WEEE
- Shall provide at least three (3) years parts and labor warranty
- Shall be compatible with the Extron FOX T USB Extender Plus HID SM fiber optic transmitter for USB peripherals
- Shall be compatible with Extron FOX Series matrix switchers to create a signal distribution system up to 1000x1000 and larger
- Approved device shall be the Extron R FOX USB Extender Plus HID SM (60-1526-22); no alternates or equals
FOX R USB Extender Plus HID SM
- Shall provide a receiver that supports long-haul transmission of USB signals for human interface device – HID types and smart card readers
- Long distance signal extension of USB HID and smart card readers over singlemode fiber optic cabling
- USB output requirements
- Shall provide an integrated four-port hub of USB Type A connectors on the rear panel for peripheral devices
- Shall provide 5 Volts, 500 mA on each port to power a peripheral device
- Shall provide the capability to charge a peripheral device that is connected to a hub port
- Shall support USB 2.0, 1.1, or 1.0 devices
- Shall support USB 3.0 devices that can operate at USB 2.0 rates
- Shall support data transfer rates up to 480 Mbps
- Shall provide device class filtering to recognize only authorized device types
- Allow connection of HID and smart card reader device classes only
- Prevent connection of unauthorized hardware, such as a storage device
- Factory-configured to ensure device class filtering cannot be removed or altered in the field
- Shall provide an integrated four-port hub of USB Type A connectors on the rear panel for peripheral devices
- Interconnection requirements
- Shall provide interconnection between transmitter and receiver over singlemode fiber optic cabling
- Shall provide two (2) LC-type fiber optic connectors on rear panel
- Transmission requirement
- Shall provide a fiber optic signal transmission distance capability of 30 km (18.75 miles) over singlemode fiber optic cabling
- Shall support an optical loss budget of at least 13 dB between transmitter and receiver
- Setup, control, and configuration requirements
- Shall provide one (1) bidirectional RS-232 2.5 mm jack on front panel for setup and configuration
- Power requirements
- Shall be equipped with an external, universal AC power supply capable of supporting 100 - 240 VAC, 50/60 Hz power
- General requirements
- Shall be a 1” (2.5 cm) high, quarter rack width metal enclosure
- Shall be rack mountable with optional rack shelf or rack mounting brackets
- Shall be wall or furniture mountable with optional mounting kits
- Shall provide LED indicators on the front panel for power, link status, host status, and each hub port activity
- Shall provide LED indicators on rear panel for link status
- Shall meet regulatory compliances
- CE, c-UL, UL
- CE, C-tick, FCC Class A, ICES, VCCI
- RoHS, WEEE
- Shall provide at least three (3) years parts and labor warranty
- Shall be compatible with the Extron FOX T USB Extender Plus HID SM fiber optic transmitter for USB peripherals
- Shall be compatible with Extron FOX Series matrix switchers to create a signal distribution system up to 1000x1000 and larger
- Approved device shall be the Extron R FOX USB Extender Plus HID SM (60-1526-22); no alternates or equals
把商品添加到购物车
Order Message Number
产品编号
注: 使用通用交流电源插座的 Extron 产品可支持多种不同的交流电源插头类型。在使用之前，确保设备满足您所在区域的所有规定要求，并符合所有应用的本地安全和电气规程及标准。
当前总计：
Annotation Graphics Processor
To view this page ensure that Adobe Flash Player version
11.0.0 or greater is installed and enabled.
Chrome
Firefox
Edge
Safari
