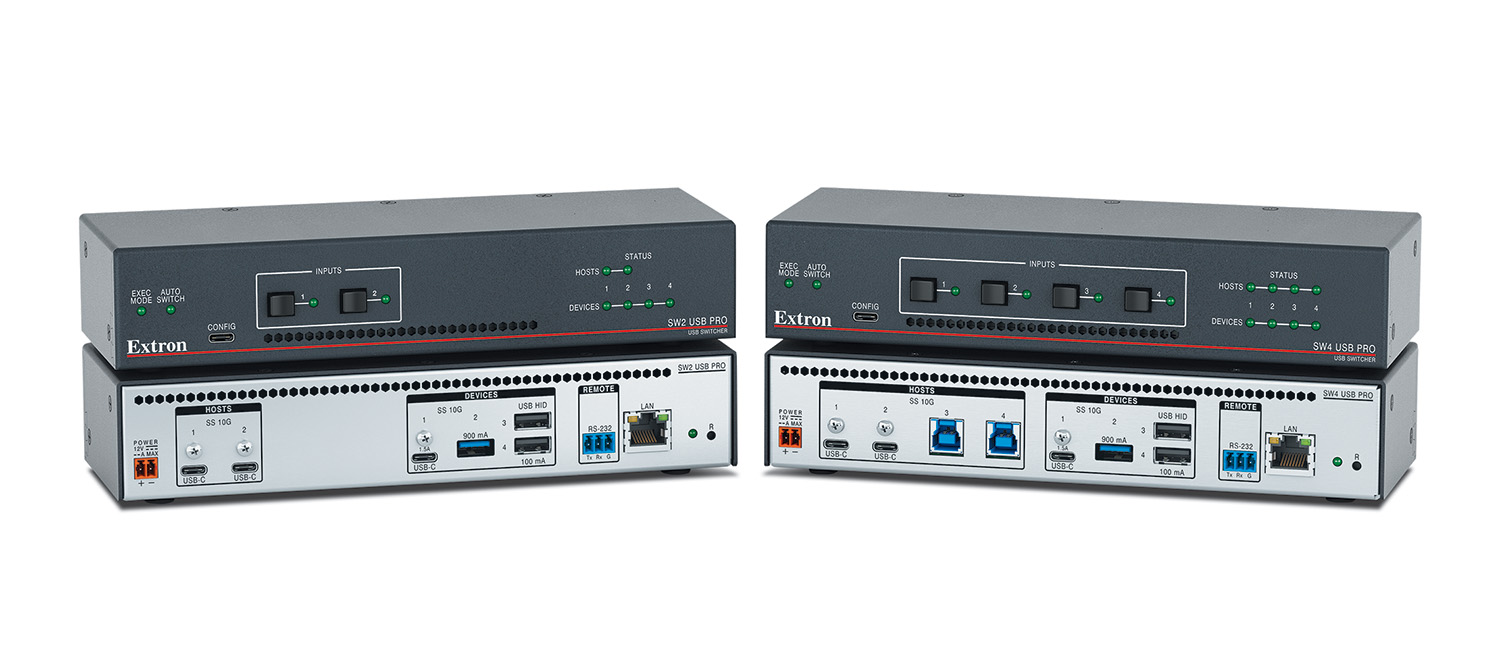

SW USB Pro 系列

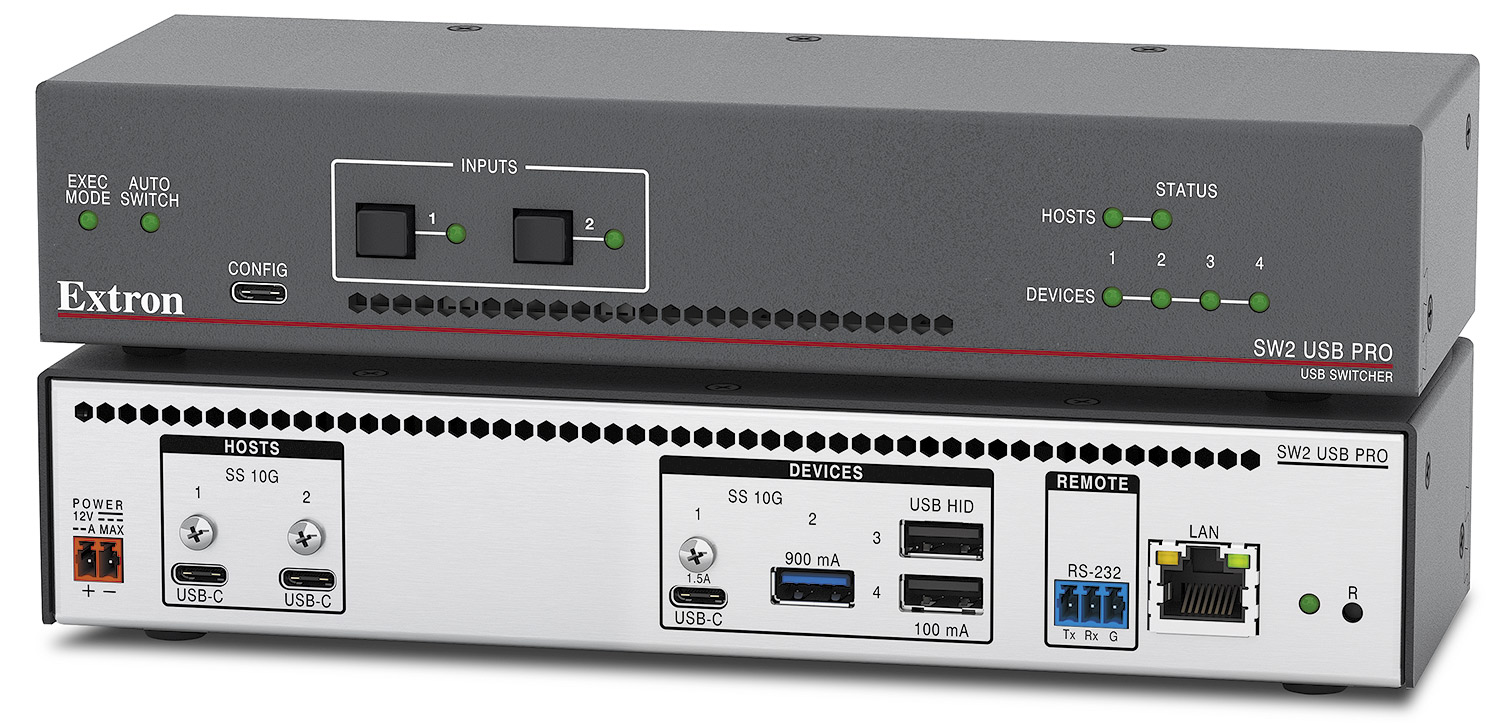

SW2 USB Pro

SW2 USB Pro

a. Rack-mountable switcher for USB devices

     i. Device shall support USB 3.2, 2.0, or 1.1 standards

    ii. Device shall support data transfer rates up to 10 Gbps

   iii. Device shall support two USB hosts

        1. Host ports shall emulate the presence of a human interface device, such as a keyboard or mouse, without such a device being connected to a peripheral port

    iv. Device shall support up to four USB peripheral devices

        2. HID peripheral ports shall emulate the presence of a host device whenever the peripheral is not actively connected to the host

        3. Peripheral ports shall each provide

            1. +5 VDC, 1500 mA power to USB-C port per USB specifications

            2. +5 VDC, 900 mA power to USB 3.0 Type A port per USB specifications

            3. +5 VDC, 100 mA power to USB Type A HID ports per USB specifications

    v. Front panel shall provide physical buttons for selection of input signals

    vi. Auto Switch and Hot Key switching from HID peripheral ports shall be provided

    vii. Provide one RS-232 serial and one Gigabit Ethernet control port

    viii. Device shall be housed in a 1 RU, one-half EIA rack width metal enclosure

    ix. Device shall be equipped with an external, universal AC Extron Everlast power supply capable of supporting 100 - 240 VAC, 50/60 Hz power

        1. Shall provide at least 7-year parts and labor warranty on the Extron Everlast Power Supply

b. Approved device shall be the Extron SW2 USB Pro, part number 60-1833-01; no alternates or equals.

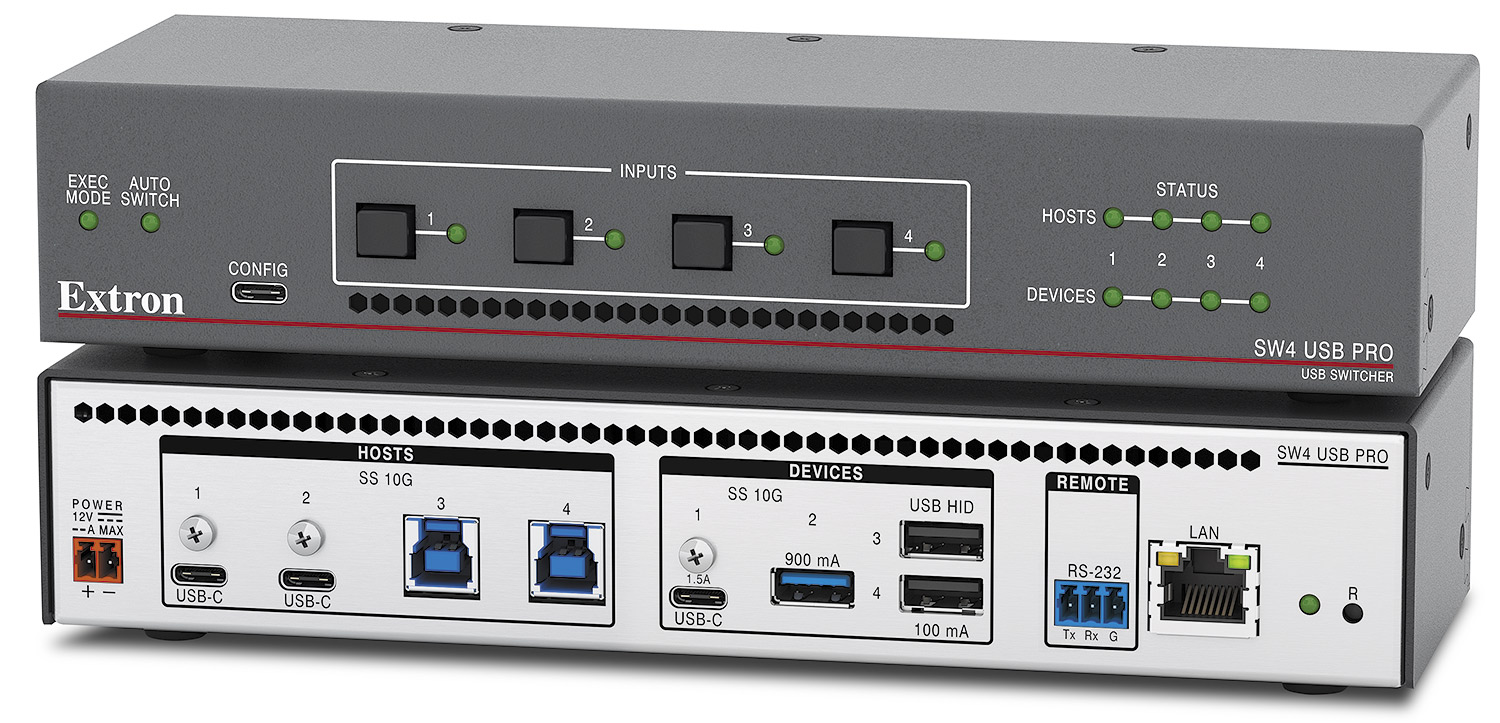

SW4 USB Pro

SW4 USB Pro

Provide a switcher that shall supports four USB hosts and up to four USB peripheral devices

    c. Rack-mountable switcher for USB devices

        x. Device shall support USB 3.2, 2.0, or 1.1 standards

        xi. Device shall support data transfer rates up to 10 Gbps

        xii. Device shall support four USB hosts

            4. Host ports shall emulate the presence of a human interface device, such as a keyboard or mouse, without such a device being connected to a peripheral port

        xiii. Device shall support up to four USB peripheral devices

                5. HID peripheral ports shall emulate the presence of a host device whenever the peripheral is not actively connected to the host

                6. Peripheral ports shall each provide

                    1. +5 VDC, 1500 mA power to USB-C port per USB specifications

                    2. +5 VDC, 900 mA power to USB 3.0 Type A port per USB specifications

                    3. +5 VDC, 100 mA power to USB Type A HID ports per USB specifications

    xiv. Front panel shall provide physical buttons for selection of input signals

    xv. Auto Switch and Hot Key switching from HID peripheral ports shall be provided

    xvi. Provide one RS-232 serial and one Gigabit Ethernet control port

    xvii. Device shall be housed in a 1 RU, one-half EIA rack width metal enclosure

    xviii. Device shall be equipped with an external, universal AC Extron Everlast power supply capable of supporting 100 - 240 VAC, 50/60 Hz power

            1. Shall provide at least 7-year parts and labor warranty on the Extron Everlast Power Supply

b. Approved device shall be the Extron SW4 USB Pro, part number 60-1834-01; no alternates or equals.
