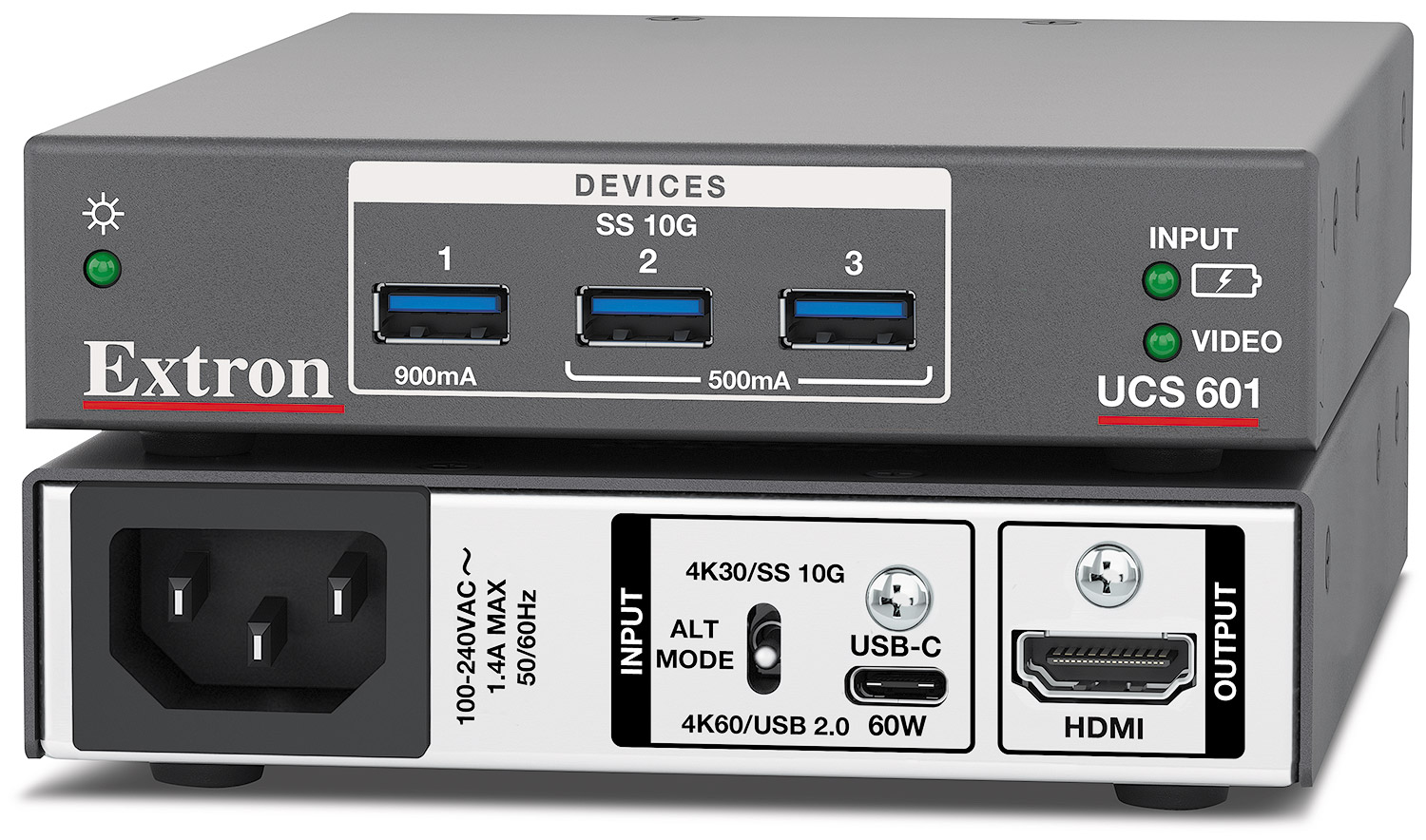

UCS 601

UCS 601

1. Shall provide a USB-C dock with included mounting bracket that supports USB data and AV signals
   1. Video Requirements
      1. Input Requirements
         1. Provide USB-C input connection
            1. One female USB-C connector
      2. Output Requirements
         1. Provide HDMI output connection
         2. One female HDMI type A connector
            1. Shall support computer and video resolutions up to 5K/30 @ 4:4:4 with data rates up to 18 Gbps
            2. USB-C video signals supported via DisplayPort Alt Mode to HDMI output
         3. One rear panel switch sets maximum video output resolution and USB data rate
            1. Supports 4K/60 and USB data rates up to High Speed (USB 2) or 4K/30 and USB data rates up to USB 10 Gbps
            2. USB Requirements
            3. Host Requirements
               1. Shall connect a USB-C source device at rates up to USB 10 Gbps
               2. USB-C connector provides up to 60 watts of power to USB-C source
      3. USB Device Requirements
         1. Shall provide 3 blue female USB 3.2 A connectors used for USB 3.2 device ports
            1. Provide 5V, 900 mA on port 1
            2. Provide 5V, 500 mA on ports 2 & 3
            3. Shall support data transfer rates up to USB 10Gbps
            4. EDID Requirements
            5. Shall support EDID pass-through
            6. HDCP requirements
            7. Shall support HDCP 2.3 and HDCP 1.x
      4. Shall support HDCP pass-through
   2. Power Requirements
      1. Shall include and internal power supply supporting 100-240 VAC, 50/60 Hz power
         1. High demonstrated reliability
         2. Worldwide power compatibility
   3. General Requirements
      1. Shall be housed in a 1” (2.5 cm) high, one quarter EIA rack-width metal enclosure
      2. Shall be rack mountable with optional rack shelf
      3. Shall provide visual signal on LED indicators located on front panel for signal presence, USB-C power, and unit power
      4. Shall include LockIt HDMI cable lacing brackets
      5. Device shall be able to be installed under a table, desk, or other flat surface using included ZipClip 200 mounting kit
      6. Shall meet regulatory compliance
         1. Shall meet safety compliances under CE, c-UL, and UL
         2. Shall meet EMI/EMC compliances under CE, C-tick, FCC Class A, ICES, and VCCI
         3. Shall comply with appropriate requirements of RoHS and WEEE
      7. Shall provide three-year parts and labor warranty
      8. Shall provide seven years parts and labor warranty for the internal power supply
2. Approved device shall be the Extron UCS 601, part number 60-2042-01, no alternates or equals.
