DXP 42 HD 8K
- Shall provide a fixed I/O matrix switcher that shall support up to four (4) inputs and two (2) outputs for distribution and routing of HDCP-compliant digital video and embedded digital audio signals
- Shall be a matrix switcher for HDMI video and embedded digital audio signals
- Shall support local direct device connection
- Shall provide a digital backplane with a data rate of 40.1 Gbps
- Shall support computer and video resolutions up to 7680x4320 at 30 Hz with 4:4:4 color sampling at 10 bits per color
- Shall support HDMI 2.1 specification features, including data rates up to 40.1 Gbps, VRR, HDR, Deep Color up to 12‑bit, 3D, and HD lossless audio formats
- Shall supports ultra-wide aspect ratios, including 21:9 and 5K
- Video input requirements

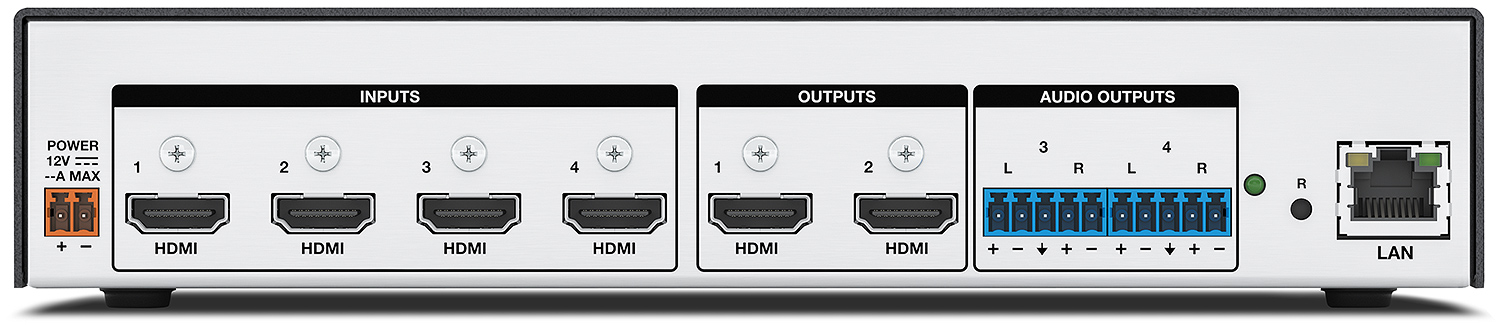

- Shall provide four (4) female HDMI Type A connectors for digital video signals with embedded audio
- Shall provide automatic input cable equalization for each input
- Video output requirements
- Shall provide two (2) female HDMI Type A connectors for digital video signals with or without embedded audio
- Shall provide automatic output reclocking
- Shall provide automatic reformatting of HDMI source signals when routed to a DVI display device
- Audio output requirements
- Shall provide two (2) female HDMI Type A connectors for embedded two-channel audio – shared with video signal
- Shall provide two (2) five-pole captive screw connectors for analog audio
- Shall support audio de-embedding from HDMI signal
- Shall provide independent routing of audio and video signals – break-away routing
- Audio assignment from any HDMI input source
- Shall provide audio extraction to analog audio outputs
- Unbalance / Balanced
- EDID requirements
- Shall include Extron EDID Minder® Plus technology for automatic management of EDID communication between connected devices
- Support additional memory blocks for displays that convey advanced features via both EDID and DisplayID
- Support 5K and 21:9 aspect ratio content
- Maintain continuous EDID communication with the connected sources
- User-selection of EDID from any connected display device, pre-stored data files, or EDID capture from any connected display device via configuration software
- User upload of custom generated EDID files via configuration software
- Assignment of pre-stored, capture, or custom uploaded files per input via configuration software
- Shall include Extron EDID Minder® Plus technology for automatic management of EDID communication between connected devices
- HDCP requirements
- Shall be HDCP 2.3 compliant
- Authenticate and maintain continuous verification of HDCP key exchange between connected sink and source devices
- One-to-one, one-to-many, or one-to-all matrix ties with HDCP-encrypted content
- Shall include Extron Key Minder® technology to authenticate and maintain continuous HDCP encryption between the input and output devices
- Shall include Extron SpeedSwitch® technology for high speed switching of HDCP-encrypted content
- Shall provide real-time verification of HDCP status for each port
- Electronically accessible over Ethernet
- Shall be HDCP 2.3 compliant
- Switching requirements
- Shall provide video and audio matrix switching between any input and any output
- HDMI video with embedded audio
- HDMI video without embedded audio
- Independent routing of de-embedded audio
- Shall provide front panel visual confirmation of active input and output connections
- Shall provide video and audio matrix switching between any input and any output
- Control requirements
- Shall allow proactive monitoring, management, and control over a LAN, WAN, or the Internet using standard TCP/IP protocols
- Shall support 802.1X Authentication
- Shall support control/configuration programming for Microsoft® Windows®, Telnet, and basic ASCII code commands
- Support triggering of standard CEC commands at each HDMI output
- Power requirements
- Shall include an external, universal AC power supply capable of supporting 100-240 VAC, 50/60 Hz power
- High demonstrated reliability
- Worldwide power compatibility
- Shall provide +5 VDC, 250 mA power on each output for external peripheral devices
- General requirements
- Shall provide one (1) USB-C connector on the front panel for setup, configuration, and firmware updates

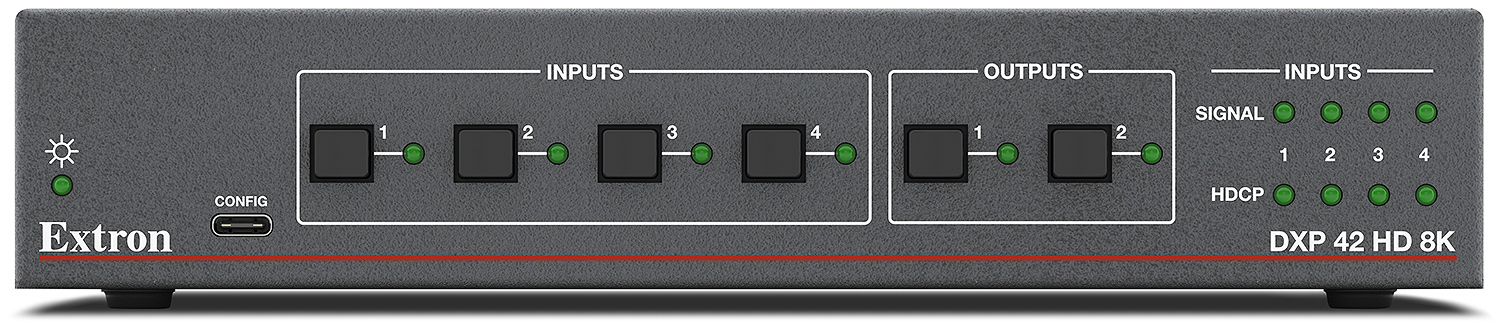

- Shall provide physical buttons on front panel for creating ties within the matrix switcher
- Shall support front panel security lockout to prevent unauthorized user in non-secure environments
- Shall have a 1U high, half rack width metal enclosure
- Shall be rack mountable
- Shall include LockIt® Plus cable lacing brackets for USB-C® and HDMI
- Shall meet regulatory compliance
- CE, c-UL, UL
- CD, C-tick, FCC Class A, ICES, VCCI
- Product-appropriate RoHS and WEEE
- Shall provide a minimum of three (3) years parts and labor warranty
- Approved device shall be the Extron DXP 42 HD 8K, part number 60-1879-01; no alternates or equals
- Shall be a matrix switcher for HDMI video and embedded digital audio signals
