AVEdge 100

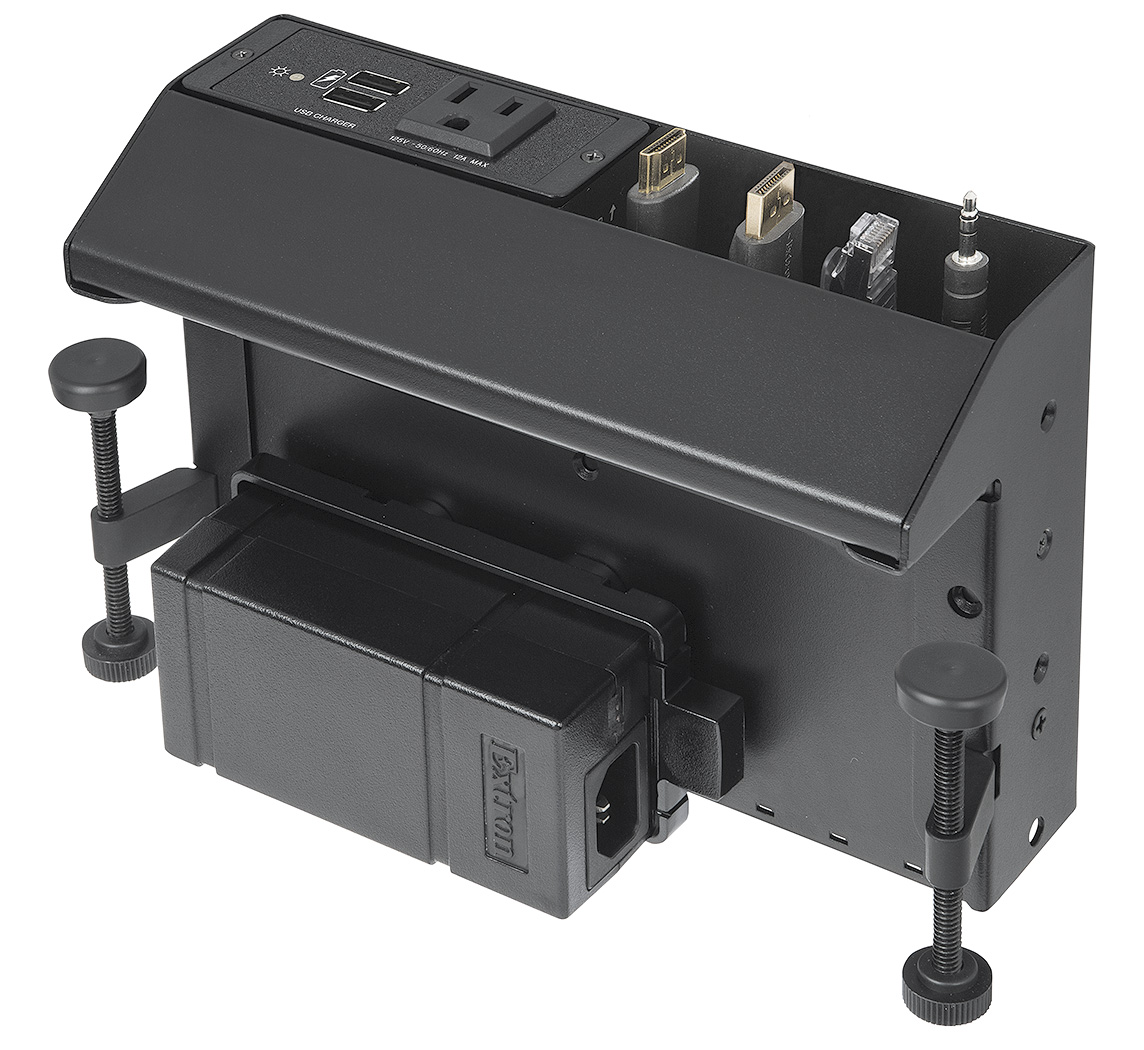

- Provide a modular, configurable, edge furniture-mountable enclosure that shall support a combination of AV cables and cable retraction modules
- If cable retraction modules are not required, the device shall then support
- Up to eight AV cables, or
- Up to four AV connectivity modules, or
- Up to three cable retraction modules, plus up to four AV cables or two AV connectivity plates
- If cable retraction modules are required, the device shall then support
- Up to four AV cables, or
- Up to two AV connectivity modules, or
- The device shall include modules and mounting frames to support AV cables and/or AV connectivity modules.
- modules shall be positionable within the enclosure, with no fewer than two installer-determined height positions
- modules shall be positionable within the enclosure, mounting to the left of installed retractor modules
- cable pass-through module shall be a single unit
- plate shall be flexible to allow the installation, removal, or replacement of cables
- plate shall utilize a split-ring design that accommodates a range of AV cable diameters without the need for supplemental grommets
- plate shall include plugs to cap cable pass-through openings that are not utilized
- assembled plate, with cables, shall install from the top of the enclosure, after it’s installed within the furniture surface
- AV connectivity frame shall be a single unit
- frame shall support two single-space AV connectivity modules, or one double-space AV connectivity module
- The assembled frame, with AV connectivity modules and attached cables, shall install from the top of the enclosure, after it’s installed within the furniture surface
- Device enclosure shall mount entirely on to the furniture edge sufficient to accommodate the enclosure

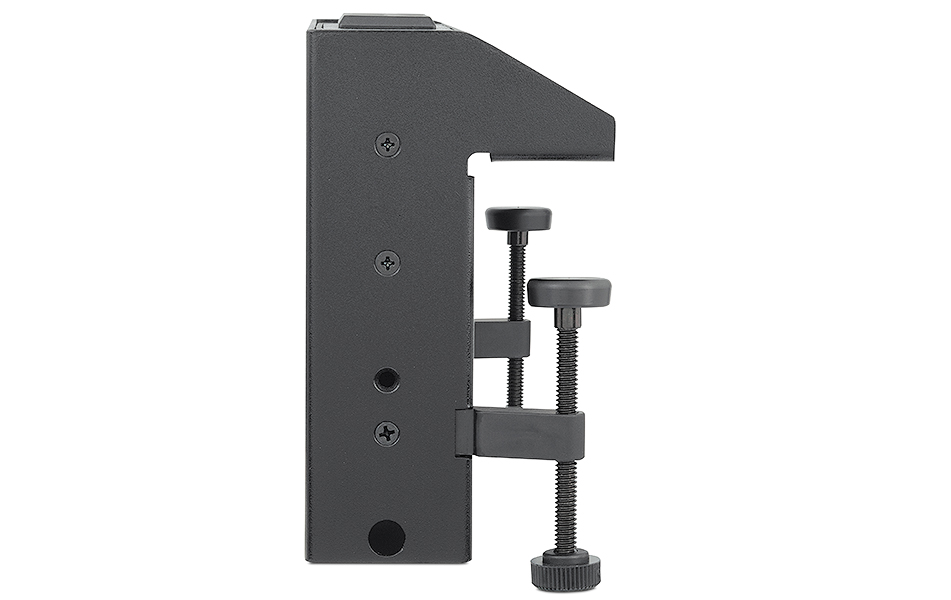

- enclosure shall feature an integrated clamp system
- clamps shall be semi-permanently affixed to the enclosure body
- clamps shall utilize a thumb screw on each clamp
- clamps shall secure the enclosure to the furniture without the need for tools or additional parts
- clamps shall allow for removal of the enclosure from the furniture without the need for specialized tools
- enclosure shall feature an integrated clamp system
- An Internet-accessible application for enclosure configuration and visualization shall be available
- Application shall provide for selection of the enclosure AV cables, AV connectivity plates, and cable retraction modules
- Application shall provide accurate depiction of connectivity selections
- Application shall provide a method of saving a representation of the configured enclosure and corresponding bill of materials
- Application shall provide market-specific pricing of the configured enclosure for budgetary purposes
- Approved device shall be the AVEdge 100 (70-1128-02); no alternates or equals
- If cable retraction modules are not required, the device shall then support
