Provide a modular, configurable, and furniture-mountable enclosure that shall support a combination of AC power modules, AV cables, control modules, and cable retraction modules

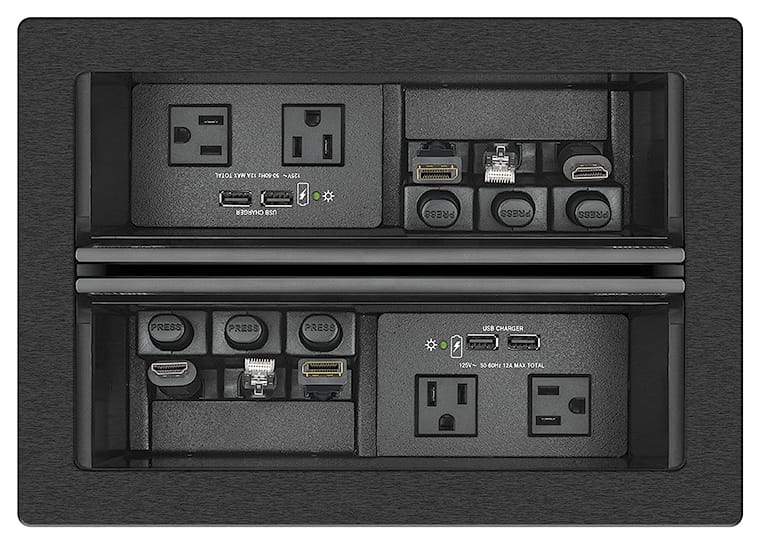

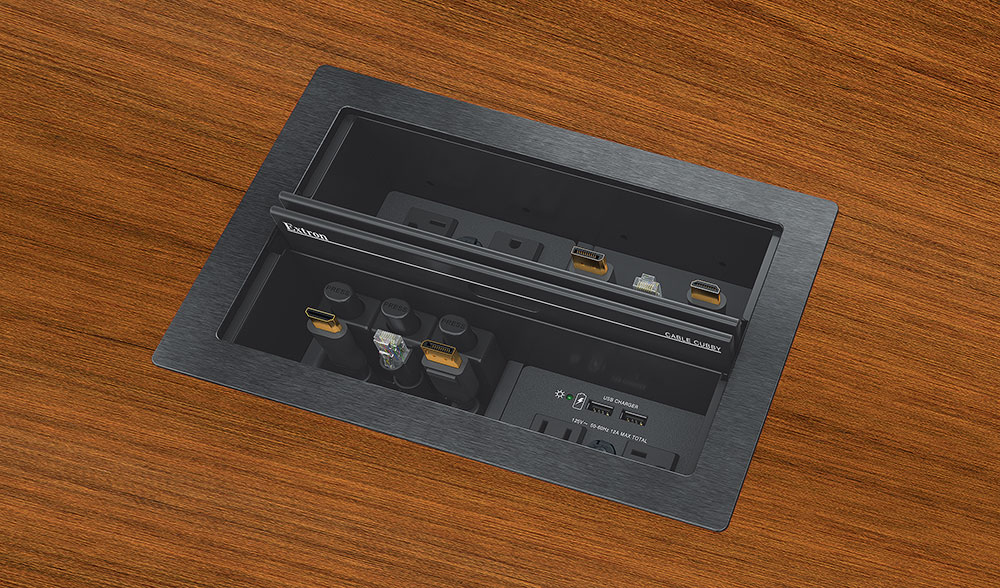

Device shall support two AC power modules plus
Up to eight AV cables, or
Up to three AV connectivity plates, or
Up to four cable retraction modules, or
Up to two control modules and six AV cables or two single-space mini AC connectivity plates
If AC power is not required, the device shall then support
Up to twenty-four AV cables, or
Up to twelve AV connectivity plates, or
Up to twelve cable retraction modules
Up to eight AV cables, or
Up to six AV connectivity plates, or
Up to six cable retraction modules, or
Up to four control modules and twelve AV cables or eight single-space mini AV connectivity plates

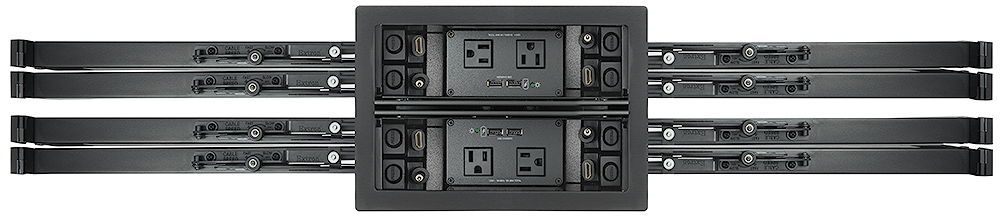

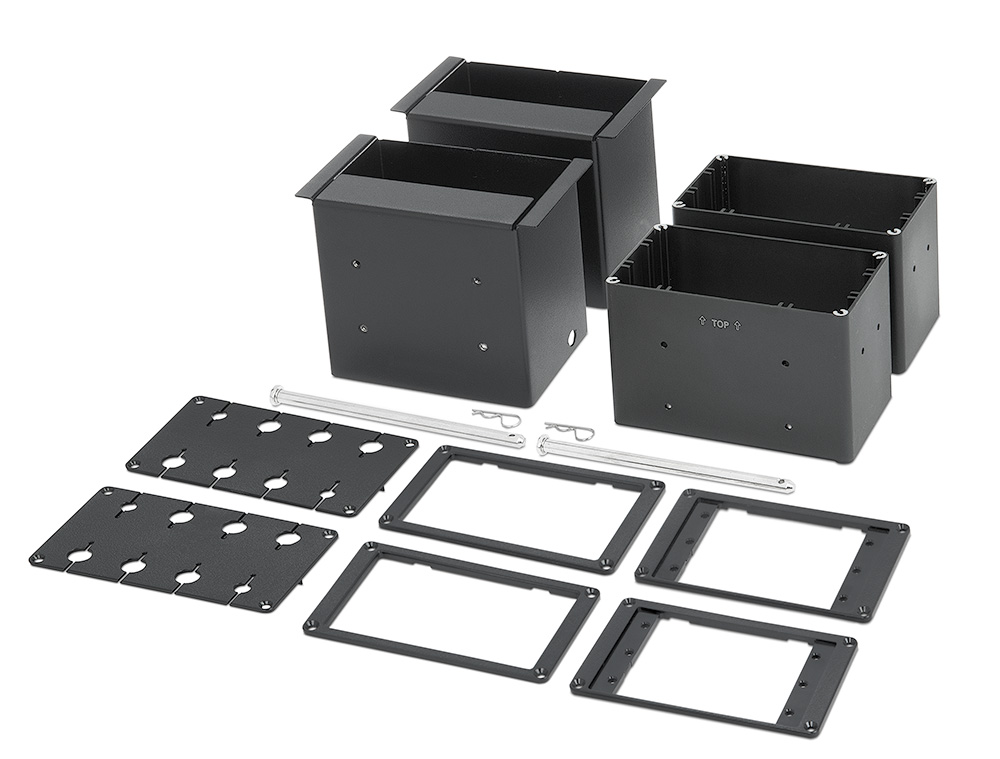

The device shall include retractor and connectivity brackets to support cable retraction modules, AV cables and/or AV connectivity plates
The AC or AC-plus-USB power module, and cable pass-through or connectivity module, shall be secured within the enclosure, with no fewer than three installer-determined height positions

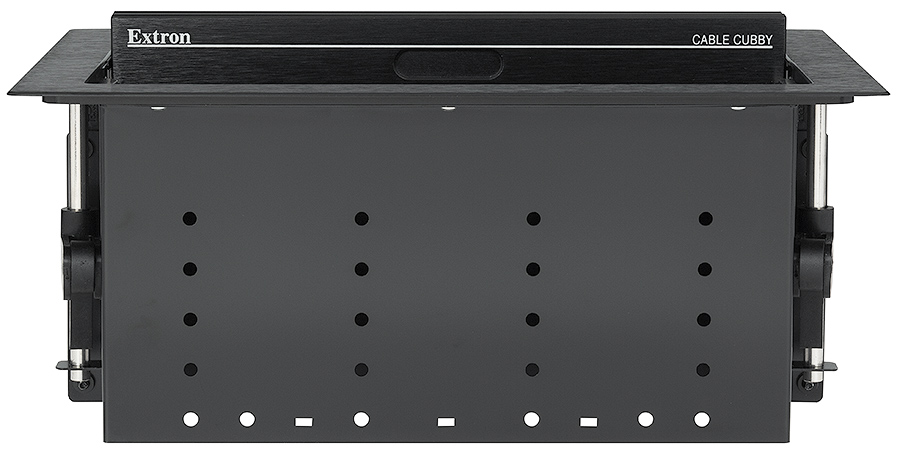

The module shall be secured within the enclosure, mounting to the left or right of an installed AC or AC-plus-USB power module
AC power modules shall be available for major world markets
AC US power modules shall be UL listed and CE compliant when installed within the enclosure
AC power modules shall include one or two AC power outlets, depending on the size of the AC outlet
AC power modules shall include an attached AC power cord or IEC power inlet with detachable AC power cord, as required by local electrical power codes and conventions
AC-plus-USB power modules shall also be available for world markets
AC-plus-USB US series power modules shall be UL listed and CE compliant when installed within the enclosure
AC-plus-USB power modules shall include one or two AC power outlets, depending on the size of the AC outlet
AC-plus-USB power modules shall include an attached AC power cord or IEC power inlet with detachable AC power cord, as required by local electrical power codes and conventions
AC-plus-USB power modules shall provide two USB Type-A power outlets
AC-plus-USB US outlet USB Type-A power outlets shall provide 5 volts direct current and up to 4.0 amps, or 20 watts total of shared power
AC-plus-USB non-US outlet USB Type-A power outlets shall provide 5 volts direct current and up to 2.1 amps, or 10.5 watts shared total power by the two USB Type-A outlets
An external, 12 volts direct current, 1 amp, or 12 watts power supply shall be included with AC-plus-USB non-US series power outlets
The internal and external power supply shall both be energy efficient and highly reliable
The internal and external power supply shall both be designed and manufactured by the same entity providing the enclosure and power module
The cable pass-through plate shall be a single unit
The plate shall be flexible to allow the installation, removal, or replacement of cables
The plate shall utilize a split-ring design that accommodates a range of AV cable diameters without the need for supplemental grommets
The plate shall include plugs to cap cable pass-through openings that are not utilized
The plate shall install from the bottom of the installed enclosure
The assembled, installed plate shall allow servicing from the top of the installed enclosure
The AV connectivity frame shall be a single unit
The frame shall be installed to the left or right of an installed AV bracket
The connectivity bracket shall install from the bottom of the enclosure
The assembled, installed frame, shall allow servicing from the top of the installed enclosure
A control bracket shall allow mounting of 55 mm x 55 mm connector plates
The bracket shall be installed to the left or right of an installed AV bracket
The bracket shall install from the bottom of the installed enclosure
The assembled, installed bracket shall allow servicing from the top of the installed enclosure
Device shall include two independently attached and fully integrated all metal lids with bezel assembly
The lids and bezel assembly shall have a black anodized finish
Device lids shall fit entirely within the bezel

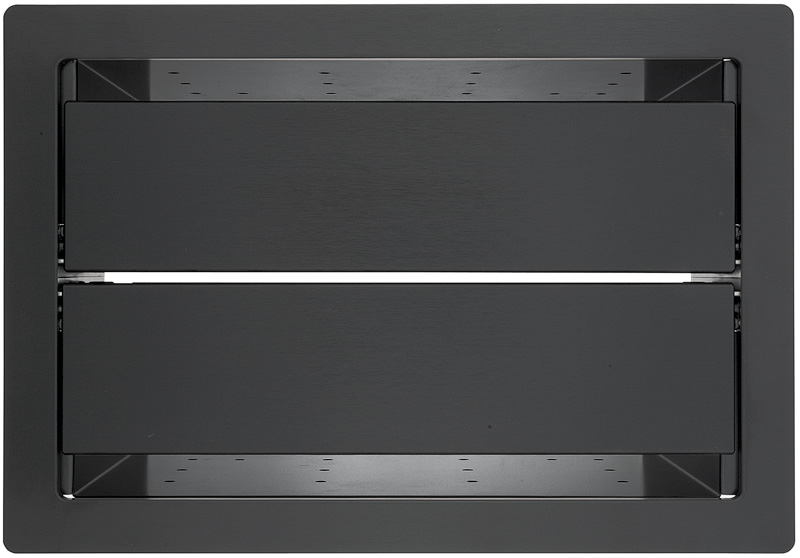

When closed, each lid shall provide a full-width opening for cable pass-through
When open, each lid shall articulate such that it fits within the enclosure body
Device shall include a damper that controls the speed of each lid as it moves within the enclosure
Device enclosure shall mount entirely within an opening sufficient to accommodate the enclosure
An installation routing template, of an appropriate size to accommodate the enclosure, shall be available

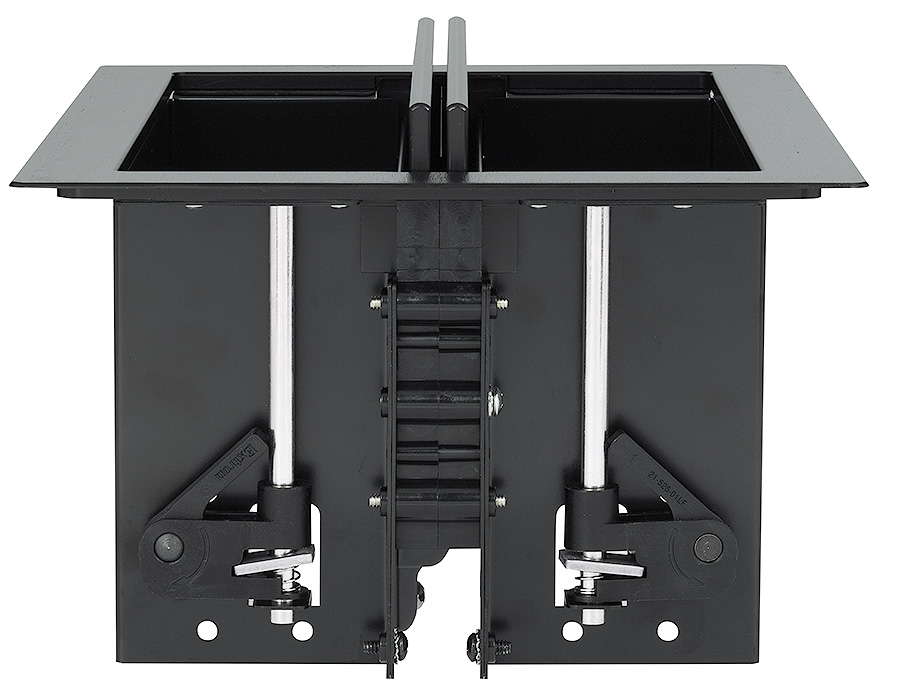

The enclosure shall feature an integrated clamp system
The clamps shall be permanently affixed to the enclosure body
The clamps shall utilize a lever-and-cam mechanism
The clamps shall secure the enclosure to the furniture without the need for tools or additional parts
The clamps shall allow for removal of the enclosure from the furniture without the need for specialized tools
An Internet-accessible application for enclosure configuration and visualization shall be available
Application shall provide for selection of the enclosure, AC power modules, AV cables, AV connectivity plates, control modules, and cable retraction modules
Application shall provide accurate depiction of power and connectivity selections
Application shall provide a method of saving a representation of the configured enclosure and corresponding bill of materials
Application shall provide market-specific pricing of the configured enclosure for budgetary purposes
Approved device shall be the Extron Cable Cubby 1402, part number 70-1185-02; no alternates or equals.
Cable Cubby 1402; Black-AC Module Not Included
Provide a modular, configurable, and furniture-mountable enclosure that shall support a combination of AC power modules, AV cables, control modules, and cable retraction modules
Device shall support two AC power modules plus
Up to eight AV cables, or
Up to three AV connectivity plates, or
Up to four cable retraction modules, or
Up to two control modules and six AV cables or two single-space mini AC connectivity plates
If AC power is not required, the device shall then support
Up to twenty-four AV cables, or
Up to twelve AV connectivity plates, or
Up to twelve cable retraction modules
Up to eight AV cables, or
Up to six AV connectivity plates, or
Up to six cable retraction modules, or
Up to four control modules and twelve AV cables or eight single-space mini AV connectivity plates
The device shall include retractor and connectivity brackets to support cable retraction modules, AV cables and/or AV connectivity plates
The AC or AC-plus-USB power module, and cable pass-through or connectivity module, shall be secured within the enclosure, with no fewer than three installer-determined height positions
The module shall be secured within the enclosure, mounting to the left or right of an installed AC or AC-plus-USB power module
AC power modules shall be available for major world markets
AC US power modules shall be UL listed and CE compliant when installed within the enclosure
AC power modules shall include one or two AC power outlets, depending on the size of the AC outlet
AC power modules shall include an attached AC power cord or IEC power inlet with detachable AC power cord, as required by local electrical power codes and conventions
AC-plus-USB power modules shall also be available for world markets
AC-plus-USB US series power modules shall be UL listed and CE compliant when installed within the enclosure
AC-plus-USB power modules shall include one or two AC power outlets, depending on the size of the AC outlet
AC-plus-USB power modules shall include an attached AC power cord or IEC power inlet with detachable AC power cord, as required by local electrical power codes and conventions
AC-plus-USB power modules shall provide two USB Type-A power outlets
AC-plus-USB US outlet USB Type-A power outlets shall provide 5 volts direct current and up to 4.0 amps, or 20 watts total of shared power
AC-plus-USB non-US outlet USB Type-A power outlets shall provide 5 volts direct current and up to 2.1 amps, or 10.5 watts shared total power by the two USB Type-A outlets
An external, 12 volts direct current, 1 amp, or 12 watts power supply shall be included with AC-plus-USB non-US series power outlets
The internal and external power supply shall both be energy efficient and highly reliable
The internal and external power supply shall both be designed and manufactured by the same entity providing the enclosure and power module
The cable pass-through plate shall be a single unit
The plate shall be flexible to allow the installation, removal, or replacement of cables
The plate shall utilize a split-ring design that accommodates a range of AV cable diameters without the need for supplemental grommets
The plate shall include plugs to cap cable pass-through openings that are not utilized
The plate shall install from the bottom of the installed enclosure
The assembled, installed plate shall allow servicing from the top of the installed enclosure
The AV connectivity frame shall be a single unit
The frame shall be installed to the left or right of an installed AV bracket
The connectivity bracket shall install from the bottom of the enclosure
The assembled, installed frame, shall allow servicing from the top of the installed enclosure
A control bracket shall allow mounting of 55 mm x 55 mm connector plates
The bracket shall be installed to the left or right of an installed AV bracket
The bracket shall install from the bottom of the installed enclosure
The assembled, installed bracket shall allow servicing from the top of the installed enclosure
Device shall include two independently attached and fully integrated all metal lids with bezel assembly
The lids and bezel assembly shall have a black anodized finish
Device lids shall fit entirely within the bezel
When closed, each lid shall provide a full-width opening for cable pass-through
When open, each lid shall articulate such that it fits within the enclosure body
Device shall include a damper that controls the speed of each lid as it moves within the enclosure
Device enclosure shall mount entirely within an opening sufficient to accommodate the enclosure
An installation routing template, of an appropriate size to accommodate the enclosure, shall be available
The enclosure shall feature an integrated clamp system
The clamps shall be permanently affixed to the enclosure body
The clamps shall utilize a lever-and-cam mechanism
The clamps shall secure the enclosure to the furniture without the need for tools or additional parts
The clamps shall allow for removal of the enclosure from the furniture without the need for specialized tools
An Internet-accessible application for enclosure configuration and visualization shall be available
Application shall provide for selection of the enclosure, AC power modules, AV cables, AV connectivity plates, control modules, and cable retraction modules
Application shall provide accurate depiction of power and connectivity selections
Application shall provide a method of saving a representation of the configured enclosure and corresponding bill of materials
Application shall provide market-specific pricing of the configured enclosure for budgetary purposes
Approved device shall be the Extron Cable Cubby 1402, part number 70-1185-02; no alternates or equals.
Cable Cubby 1402; Brushed Aluminum-AC Module Not Included
Provide a modular, configurable, and furniture-mountable enclosure that shall support a combination of AC power modules, AV cables, control modules, and cable retraction modules
Device shall support two AC power modules plus
Up to eight AV cables, or
Up to three AV connectivity plates, or
Up to four cable retraction modules, or
Up to two control modules and six AV cables or two single-space mini AC connectivity plates
If AC power is not required, the device shall then support
Up to twenty-four AV cables, or
Up to twelve AV connectivity plates, or
Up to twelve cable retraction modules
Up to eight AV cables, or
Up to six AV connectivity plates, or
Up to six cable retraction modules, or
Up to four control modules and twelve AV cables or eight single-space mini AV connectivity plates
The device shall include retractor and connectivity brackets to support cable retraction modules, AV cables and/or AV connectivity plates
The AC or AC-plus-USB power module, and cable pass-through or connectivity module, shall be secured within the enclosure, with no fewer than three installer-determined height positions
The module shall be secured within the enclosure, mounting to the left or right of an installed AC or AC-plus-USB power module
AC power modules shall be available for major world markets
AC US power modules shall be UL listed and CE compliant when installed within the enclosure
AC power modules shall include one or two AC power outlets, depending on the size of the AC outlet
AC power modules shall include an attached AC power cord or IEC power inlet with detachable AC power cord, as required by local electrical power codes and conventions
AC-plus-USB power modules shall also be available for world markets
AC-plus-USB US series power modules shall be UL listed and CE compliant when installed within the enclosure
AC-plus-USB power modules shall include one or two AC power outlets, depending on the size of the AC outlet
AC-plus-USB power modules shall include an attached AC power cord or IEC power inlet with detachable AC power cord, as required by local electrical power codes and conventions
AC-plus-USB power modules shall provide two USB Type-A power outlets
AC-plus-USB US outlet USB Type-A power outlets shall provide 5 volts direct current and up to 4.0 amps, or 20 watts total of shared power
AC-plus-USB non-US outlet USB Type-A power outlets shall provide 5 volts direct current and up to 2.1 amps, or 10.5 watts shared total power by the two USB Type-A outlets
An external, 12 volts direct current, 1 amp, or 12 watts power supply shall be included with AC-plus-USB non-US series power outlets
The internal and external power supply shall both be energy efficient and highly reliable
The internal and external power supply shall both be designed and manufactured by the same entity providing the enclosure and power module
The cable pass-through plate shall be a single unit
The plate shall be flexible to allow the installation, removal, or replacement of cables
The plate shall utilize a split-ring design that accommodates a range of AV cable diameters without the need for supplemental grommets
The plate shall include plugs to cap cable pass-through openings that are not utilized
The plate shall install from the bottom of the installed enclosure
The assembled, installed plate shall allow servicing from the top of the installed enclosure
The AV connectivity frame shall be a single unit
The frame shall be installed to the left or right of an installed AV bracket
The connectivity bracket shall install from the bottom of the enclosure
The assembled, installed frame, shall allow servicing from the top of the installed enclosure
A control bracket shall allow mounting of 55 mm x 55 mm connector plates
The bracket shall be installed to the left or right of an installed AV bracket
The bracket shall install from the bottom of the installed enclosure
The assembled, installed bracket shall allow servicing from the top of the installed enclosure
Device shall include two independently attached and fully integrated all metal lids with bezel assembly

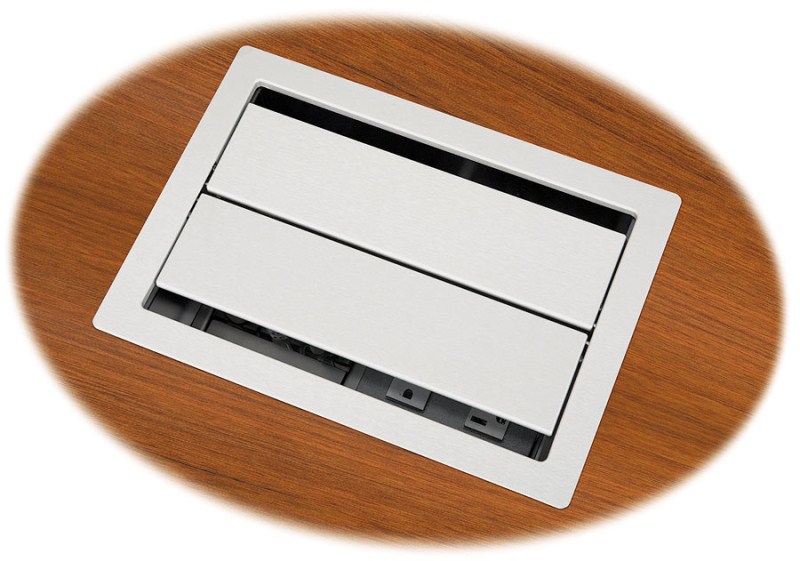

The lids and bezel assembly shall have a brushed aluminum finish
Device lids shall fit entirely within the bezel
When closed, each lid shall provide a full-width opening for cable pass-through
When open, each lid shall articulate such that it fits within the enclosure body
Device shall include a damper that controls the speed of each lid as it moves within the enclosure
Device enclosure shall mount entirely within an opening sufficient to accommodate the enclosure
An installation routing template, of an appropriate size to accommodate the enclosure, shall be available
The enclosure shall feature an integrated clamp system
The clamps shall be permanently affixed to the enclosure body
The clamps shall utilize a lever-and-cam mechanism
The clamps shall secure the enclosure to the furniture without the need for tools or additional parts
The clamps shall allow for removal of the enclosure from the furniture without the need for specialized tools
An Internet-accessible application for enclosure configuration and visualization shall be available
Application shall provide for selection of the enclosure, AC power modules, AV cables, AV connectivity plates, control modules, and cable retraction modules
Application shall provide accurate depiction of power and connectivity selections
Application shall provide a method of saving a representation of the configured enclosure and corresponding bill of materials
Application shall provide market-specific pricing of the configured enclosure for budgetary purposes
Approved device shall be the Extron Cable Cubby 1402, part number 70-1185-08; no alternates or equals.
Cable Cubby 1402; Brushed Aluminum-AC Module Not Included
Provide a modular, configurable, and furniture-mountable enclosure that shall support a combination of AC power modules, AV cables, control modules, and cable retraction modules
Device shall support two AC power modules plus
Up to eight AV cables, or
Up to three AV connectivity plates, or
Up to four cable retraction modules, or
Up to two control modules and six AV cables or two single-space mini AC connectivity plates
If AC power is not required, the device shall then support
Up to twenty-four AV cables, or
Up to twelve AV connectivity plates, or
Up to twelve cable retraction modules
Up to eight AV cables, or
Up to six AV connectivity plates, or
Up to six cable retraction modules, or
Up to four control modules and twelve AV cables or eight single-space mini AV connectivity plates
The device shall include retractor and connectivity brackets to support cable retraction modules, AV cables and/or AV connectivity plates
The AC or AC-plus-USB power module, and cable pass-through or connectivity module, shall be secured within the enclosure, with no fewer than three installer-determined height positions
The module shall be secured within the enclosure, mounting to the left or right of an installed AC or AC-plus-USB power module
AC power modules shall be available for major world markets
AC US power modules shall be UL listed and CE compliant when installed within the enclosure
AC power modules shall include one or two AC power outlets, depending on the size of the AC outlet
AC power modules shall include an attached AC power cord or IEC power inlet with detachable AC power cord, as required by local electrical power codes and conventions
AC-plus-USB power modules shall also be available for world markets
AC-plus-USB US series power modules shall be UL listed and CE compliant when installed within the enclosure
AC-plus-USB power modules shall include one or two AC power outlets, depending on the size of the AC outlet
AC-plus-USB power modules shall include an attached AC power cord or IEC power inlet with detachable AC power cord, as required by local electrical power codes and conventions
AC-plus-USB power modules shall provide two USB Type-A power outlets
AC-plus-USB US outlet USB Type-A power outlets shall provide 5 volts direct current and up to 4.0 amps, or 20 watts total of shared power
AC-plus-USB non-US outlet USB Type-A power outlets shall provide 5 volts direct current and up to 2.1 amps, or 10.5 watts shared total power by the two USB Type-A outlets
An external, 12 volts direct current, 1 amp, or 12 watts power supply shall be included with AC-plus-USB non-US series power outlets
The internal and external power supply shall both be energy efficient and highly reliable
The internal and external power supply shall both be designed and manufactured by the same entity providing the enclosure and power module
The cable pass-through plate shall be a single unit
The plate shall be flexible to allow the installation, removal, or replacement of cables
The plate shall utilize a split-ring design that accommodates a range of AV cable diameters without the need for supplemental grommets
The plate shall include plugs to cap cable pass-through openings that are not utilized
The plate shall install from the bottom of the installed enclosure
The assembled, installed plate shall allow servicing from the top of the installed enclosure
The AV connectivity frame shall be a single unit
The frame shall be installed to the left or right of an installed AV bracket
The connectivity bracket shall install from the bottom of the enclosure
The assembled, installed frame, shall allow servicing from the top of the installed enclosure
A control bracket shall allow mounting of 55 mm x 55 mm connector plates
The bracket shall be installed to the left or right of an installed AV bracket
The bracket shall install from the bottom of the installed enclosure
The assembled, installed bracket shall allow servicing from the top of the installed enclosure
Device shall include two independently attached and fully integrated all metal lids with bezel assembly
The lids and bezel assembly shall have a brushed aluminum finish
Device lids shall fit entirely within the bezel
When closed, each lid shall provide a full-width opening for cable pass-through
When open, each lid shall articulate such that it fits within the enclosure body
Device shall include a damper that controls the speed of each lid as it moves within the enclosure
Device enclosure shall mount entirely within an opening sufficient to accommodate the enclosure
An installation routing template, of an appropriate size to accommodate the enclosure, shall be available
The enclosure shall feature an integrated clamp system
The clamps shall be permanently affixed to the enclosure body
The clamps shall utilize a lever-and-cam mechanism
The clamps shall secure the enclosure to the furniture without the need for tools or additional parts
The clamps shall allow for removal of the enclosure from the furniture without the need for specialized tools
An Internet-accessible application for enclosure configuration and visualization shall be available
Application shall provide for selection of the enclosure, AC power modules, AV cables, AV connectivity plates, control modules, and cable retraction modules
Application shall provide accurate depiction of power and connectivity selections
Application shall provide a method of saving a representation of the configured enclosure and corresponding bill of materials
Application shall provide market-specific pricing of the configured enclosure for budgetary purposes
Approved device shall be the Extron Cable Cubby 1402, part number 70-1185-08; no alternates or equals.
