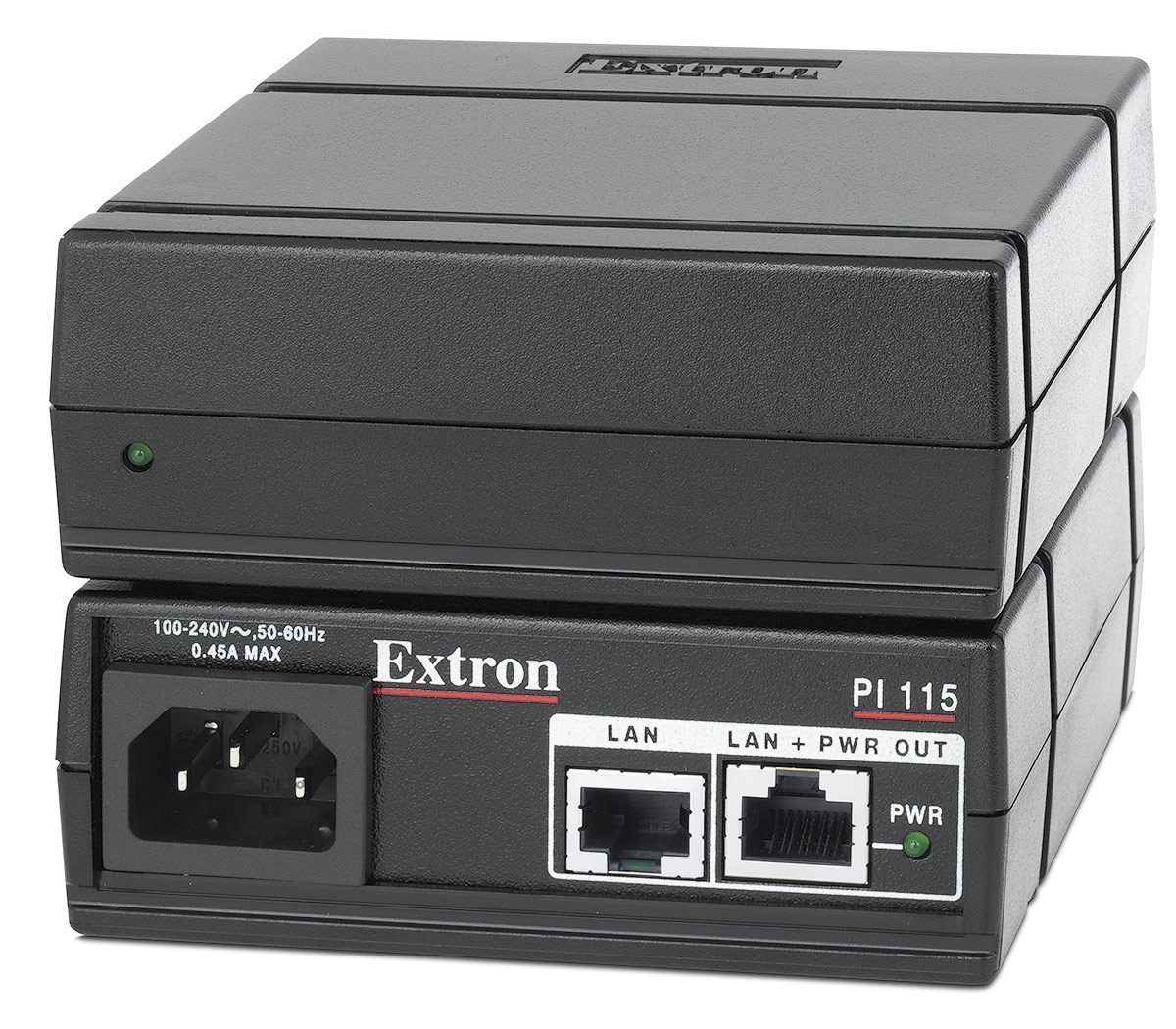

PI 115

PI 115

1. Provide a single port power injector that is compatible with XTP Systems transmitters, receivers, and Pro Series Control Systems.
   1. Single port power injector that supplies the required power to compatible PoE 802.3af devices and select XTP devices
   2. Device shall support network speeds of 10/100/1000Base-T for 802.3af compatible devices
   3. Shall power one (1) remote device to eliminate the need for a local power supply
      1. Provide two (2) RJ-45 style jacks
         1. One (1) LAN signal input
         2. One (1) LAN+Power loop-through
   4. Shall have no impact on signal quality
      1. Supports high data rate of XTP System devices
   5. Shall provide an included secure mounting kit
      1. Provides integrated mounting solution with quick release or easy installation and removal
   6. Shall be UL/c-UL listed and CE compliant
   7. Shall be TAA Compliant
   8. Shall be an EVERLAST power supply
   9. Approved device shall be the Extron PI 115 (60-1233-02); no alternates or equals
