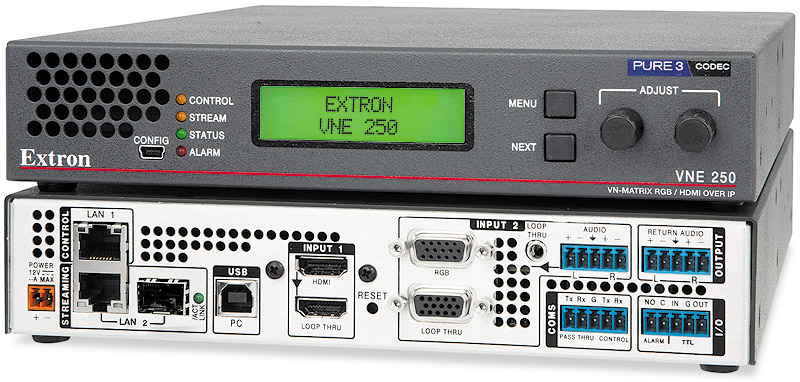

VNE 250 Encoder
- Provide an HDCP-compliant encoder that supports low-delay, high quality streaming applications for computer-video or standard video resolutions, analog and digital audio, RS232, USB keyboard and mouse data and with return audio decoding
- Rack mountable, one-half rack width, 1U high metal enclosure that encodes audio, video, USB keyboard and mouse, RS232 data and decodes return audio shall:
- Provide an HDMI connector for interfacing digital video signal inputs with embedded audio and a loop through HDMI connection
- Provide a 15 pin HD female connector for interfacing analog RGB video signals and a loop through 15 pin HD female connector
- Provide connections for interfacing analog audio signals
- One set of captive screw connections on rear panel for line-level balanced/unbalanced stereo audio input
- One 3.5mm female jack for local monitoring of stereo analog audio input
- One set of captive screw connections on rear panel for line-level balanced/unbalanced stereo audio return audio connection output
- Provide front panel LCD display and controls for device configuration
- Provide connections for device configuration from a PC or other peripheral
- One USB connection on the front panel
- One RS-232 captive screw connection on rear panel
- Provide one 10/100BASE-T RJ-45 network connection to provide access to the system from an external AV control interface
- Provide one 100/1000BASE-T RJ45 connector for transport of streaming data
- Provide one SFP socket for optional use of fiber-optic transceivers to provide optical Ethernet transport in place of the 100/1000BASE-T RJ45 streaming connection
- Provide four LED indicators for status monitoring
- Control LED to indicate status of control data
- Stream LED to indicate status of streaming
- Status LED to indicate status of input source
- Alarm LED to indicate presence of a system fault
- Provide a USB host interface to connect a source PC’s keyboard and mouse to the encoder, enabling remote keyboard/mouse control from a decoder
- Support bidirectional serial RS-232 control between external AV devices across an encoder and decoder connection
- Support two-way audio streaming to enable bi-directional audio communication between encoder and decoder
- Support streaming of HDCP-encrypted sources to decoders connected to HDCP-compliant displays
- Maintain continuous HDCP-encryption between the source and encoder
- Support Extended Display Identification Data – EDID and Display Data Channel – DDC data using the EDID 2.0 standard
- Support use of EDID values defined by the user, supplied by a locally connected display or stored values captured from previously connected displays
- Support standard video resolutions including: 480p, 720p, 1080i and 1080p
- Support computer-video resolutions from 640x480 up to 1920x1200 and 2048x1080
- Support HDMI signals with RGB or YCrCb color space
- Accept RGBHV and RGsB analog signals
- Support vertical scan rates for RGB signals between 23.98 Hz and 85 Hz
- Support horizontal scan rates for RGB signals between 15 kHz and 100 kHz
- Support automatic sensing of the resolution and signal format of video inputs
- Support manual selection of signal format for video signal input
- Support HDMI embedded and analog stereo audio
- Support automatic detection of video source input resolutions
- Support 24 bit, 8 bit per color encoding and processing that is capable of maintaining the 4:4:4 color information throughout the entire encode-streaming-decode process
- Support streaming of all video and computer-video signals maintaining native resolution from encode to decode
- Support streaming of signals at 60 frames per second at resolutions up to 2048x1080p and 1920x1200
- Support a low delay, encode and decode process of 70 ms
- Provide a video error concealment system which does not increase streaming bandwidth or encoding delay
- Support unicast streaming to up to four destination addresses
- Support unicast RTP, unicast TCP and IGMP multicast streaming applications
- Support audio breakaway streaming
- Offer adjustment over the Ethernet frame Maximum Transmission Unit – MTU
- Provide contact closure notice of definable warnings or alarms to support system monitoring
- Support automatic or manual negotiation of network link speed and duplex mode
- Support VLAN tagging
- Support creation of user defined device names
- Support configuration and control from an embedded web browser
- Support optional on-screen messaging for device identification
- Support compatibility with a network appliance for recording and playing back audio, video, RS-232 or UDP data
- Support configuration and control in systems consisting of multiple codecs, encoders, decoders and recorder appliances from a central networked control unit
- Support encoding and decoding audio and video at bit rates from 500 kbps to 270 Mbps
- Maintain audio-video synchronization and synchronization of multiple channels of audio and video
- Encoder shall be capable of preserving absolute changes to the video on a frame-by-frame basis up to 60 frames per second.
- Offer independent control over spatial compression of luminance and chrominance information
- Support temporal compression applied on a sub-picture basis examining change that discriminates between luminance, chrominance as well as a threshold for signal or image noise
- Support compression and encoding based on constant quality, variable spatial quality or frame rate based on bit rate targets
- Offer bit rate management based on: definable frame rates from 1 to 60 frames per second, adaptive frame dropping based on bit rate targets, adaptive spatial compression based on bit rate targets or combined adaptive spatial compression and adaptive frame dropping
- Supports compression of audio at various bit rates from 3 Mbps for program quality down to 400 kbps for voice grade applications
- Support intelligent power management including control over continuous operation and sleep mode as well as the video output detected by displays that apply intelligent power management
- Approved device shall be the Extron VNE 250 Encoder (60-1274-01; no alternates or equals)
- Rack mountable, one-half rack width, 1U high metal enclosure that encodes audio, video, USB keyboard and mouse, RS232 data and decodes return audio shall:
VNE 250 Encoder
- Provide an HDCP-compliant encoder that supports low-delay, high quality streaming applications for computer-video or standard video resolutions, analog and digital audio, RS232, USB keyboard and mouse data and with return audio decoding
- Rack mountable, one-half rack width, 1U high metal enclosure that encodes audio, video, USB keyboard and mouse, RS232 data and decodes return audio shall:
- Provide an HDMI connector for interfacing digital video signal inputs with embedded audio and a loop through HDMI connection
- Provide a 15 pin HD female connector for interfacing analog RGB video signals and a loop through 15 pin HD female connector
- Provide connections for interfacing analog audio signals
- One set of captive screw connections on rear panel for line-level balanced/unbalanced stereo audio input
- One 3.5mm female jack for local monitoring of stereo analog audio input
- One set of captive screw connections on rear panel for line-level balanced/unbalanced stereo audio return audio connection output
- Provide front panel LCD display and controls for device configuration
- Provide connections for device configuration from a PC or other peripheral
- One USB connection on the front panel
- One RS-232 captive screw connection on rear panel
- Provide one 10/100BASE-T RJ-45 network connection to provide access to the system from an external AV control interface
- Provide one 100/1000BASE-T RJ45 connector for transport of streaming data
- Provide one SFP socket for optional use of fiber-optic transceivers to provide optical Ethernet transport in place of the 100/1000BASE-T RJ45 streaming connection
- Provide four LED indicators for status monitoring
- Control LED to indicate status of control data
- Stream LED to indicate status of streaming
- Status LED to indicate status of input source
- Alarm LED to indicate presence of a system fault
- Provide a USB host interface to connect a source PC’s keyboard and mouse to the encoder, enabling remote keyboard/mouse control from a decoder
- Support bidirectional serial RS-232 control between external AV devices across an encoder and decoder connection
- Support two-way audio streaming to enable bi-directional audio communication between encoder and decoder
- Support streaming of HDCP-encrypted sources to decoders connected to HDCP-compliant displays
- Maintain continuous HDCP-encryption between the source and encoder
- Support Extended Display Identification Data – EDID and Display Data Channel – DDC data using the EDID 2.0 standard
- Support use of EDID values defined by the user, supplied by a locally connected display or stored values captured from previously connected displays
- Support standard video resolutions including: 480p, 720p, 1080i and 1080p
- Support computer-video resolutions from 640x480 up to 1920x1200 and 2048x1080
- Support HDMI signals with RGB or YCrCb color space
- Accept RGBHV and RGsB analog signals
- Support vertical scan rates for RGB signals between 23.98 Hz and 85 Hz
- Support horizontal scan rates for RGB signals between 15 kHz and 100 kHz
- Support automatic sensing of the resolution and signal format of video inputs
- Support manual selection of signal format for video signal input
- Support HDMI embedded and analog stereo audio
- Support automatic detection of video source input resolutions
- Support 24 bit, 8 bit per color encoding and processing that is capable of maintaining the 4:4:4 color information throughout the entire encode-streaming-decode process
- Support streaming of all video and computer-video signals maintaining native resolution from encode to decode
- Support streaming of signals at 60 frames per second at resolutions up to 2048x1080p and 1920x1200
- Support a low delay, encode and decode process of 70 ms
- Provide a video error concealment system which does not increase streaming bandwidth or encoding delay
- Support unicast streaming to up to four destination addresses
- Support unicast RTP, unicast TCP and IGMP multicast streaming applications
- Support audio breakaway streaming
- Offer adjustment over the Ethernet frame Maximum Transmission Unit – MTU
- Provide contact closure notice of definable warnings or alarms to support system monitoring
- Support automatic or manual negotiation of network link speed and duplex mode
- Support VLAN tagging
- Support creation of user defined device names
- Support configuration and control from an embedded web browser
- Support optional on-screen messaging for device identification
- Support compatibility with a network appliance for recording and playing back audio, video, RS-232 or UDP data
- Support configuration and control in systems consisting of multiple codecs, encoders, decoders and recorder appliances from a central networked control unit
- Support encoding and decoding audio and video at bit rates from 500 kbps to 270 Mbps
- Maintain audio-video synchronization and synchronization of multiple channels of audio and video
- Encoder shall be capable of preserving absolute changes to the video on a frame-by-frame basis up to 60 frames per second.
- Offer independent control over spatial compression of luminance and chrominance information
- Support temporal compression applied on a sub-picture basis examining change that discriminates between luminance, chrominance as well as a threshold for signal or image noise
- Support compression and encoding based on constant quality, variable spatial quality or frame rate based on bit rate targets
- Offer bit rate management based on: definable frame rates from 1 to 60 frames per second, adaptive frame dropping based on bit rate targets, adaptive spatial compression based on bit rate targets or combined adaptive spatial compression and adaptive frame dropping
- Supports compression of audio at various bit rates from 3 Mbps for program quality down to 400 kbps for voice grade applications
- Support intelligent power management including control over continuous operation and sleep mode as well as the video output detected by displays that apply intelligent power management
- Approved device shall be the Extron VNE 250 Encoder (60-1274-01; no alternates or equals)
- Rack mountable, one-half rack width, 1U high metal enclosure that encodes audio, video, USB keyboard and mouse, RS232 data and decodes return audio shall:

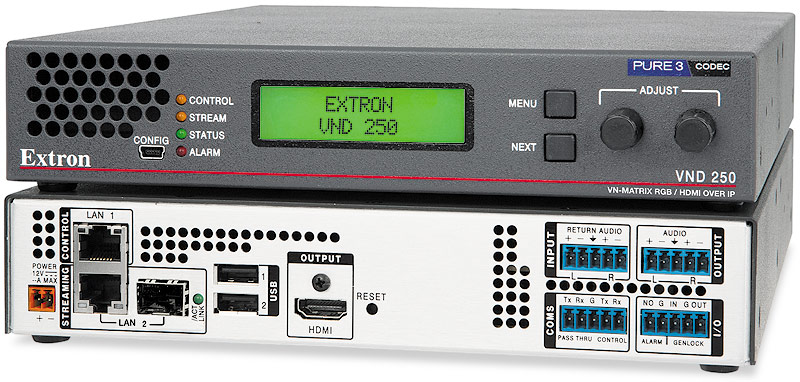

VND 250 Decoder
- Provide an HDCP-compliant decoder that supports low-delay, high quality streaming applications for computer-video or standard video resolutions, analog and digital audio, RS232, USB keyboard and mouse data and with return audio encoding
- Rack mountable, one-half rack width, 1U high metal enclosure that decodes audio, video, USB keyboard and mouse, RS232 data and encodes return audio shall:
- Provide an HDMI connector to supply video and embedded audio to a digital display system
- Provide connections for interfacing analog audio signals
- One set of captive screw connections on rear panel for balanced/unbalanced line level stereo audio
- One set of captive screw connections on rear panel for balanced/unbalanced line level stereo audio return signals
- Provide front panel LCD display and controls for device configuration
- Provide connections for device configuration from a PC or other peripheral
- One USB connection on the front panel
- One RS-232 captive screw connection on rear panel
- Provide one 10/100BASE-T RJ-45 network connection to provide access to AV system control devices
- Provide one 100/1000BASE-T RJ45 connector for transport of streaming data
- Provide one SFP socket for optional use of fiber-optic transceivers to provide optical Ethernet transport in place of the 100/1000BASE-T RJ45 streaming connection
- Provide four LED indicators for status monitoring
- Control LED to indicate status of control data
- Stream LED to indicate status of streamed data
- Status LED to indicate status of streamed source
- Alarm LED to indicate presence of a system fault
- Provide two USB connections for keyboard and mouse supporting remote control of a PC connected to an encoder
- Support bidirectional serial RS-232 control between external AV devices across an encoder and decoder connection
- Support two-way audio streaming capabilities to enable bi-directional audio communication between encoder and decoder
- Support decoding of HDCP-encrypted sources when an HDCP-compliant display is connected
- Maintain continuous HDCP-encryption between the decoder and display
- Support streaming of all video and computer-video signals maintaining native resolution from encode to decode
- Support decoding of video signals from 640x480 up to 1920x1200 and 2048x1080
- Support scaling of video signals at selectable resolutions from 640x480 up to 1920x1200 and 2048x1080
- Support streaming of signals at 60 frames per second at resolutions up to 2048x1080p and 1920x1200
- Support standard video resolutions including: 480p, 720p 1080i, and 1080p
- Support Extended Display Identification Data – EDID and Display Data Channel – DDC data using the EDID 2.0 standard
- Support use of EDID values defined by the user, supplied by a locally connected display or stored values captured from previously connected displays
- Support 24 bit, 8 bit per color encoding and processing that is capable of maintaining the 4:4:4 color information throughout the entire encode-streaming-decode process
- Support a low delay, encode and decode process of 70 ms
- Provide a video error concealment system which does not increase streaming bandwidth or encoding delay
- Support unicast RTP, unicast TCP and IGMP multicast streaming applications
- Offer adjustment over the Ethernet frame Maximum Transmission Unit – MTU
- Provide contact closure notice of definable warnings or alarms to support system monitoring
- Support automatic or manual negotiation of network link speed and duplex mode
- Support VLAN tagging
- Support creation of user defined device names
- Support configuration and control from an embedded web browser
- Support optional on screen messaging for device identification
- Support compatibility with a network appliance for recording and playing back audio, video, RS-232 or UDP data
- Support configuration and control in systems consisting of multiple codecs, encoders, decoders and recorder appliances from a central networked control unit
- Support decoding audio and video at bit rates from 500 kbps to 270 Mbps
- Maintain audio-video lip synchronization
- Provide a genlock and loop through connection supporting synchronizing across multiple decoders
- Support clean switching between sources when scaling the output to a defined resolution
- Support scaling of outputs to integer videowall magnification sizes such as 2x2
- Provide the following aspect ratio management options for displaying streaming sources:
- Decoded video fills display
- Decoded video maintains source’s original aspect ratio with no image cropping
- Provide an adjustable buffer supporting the ability to adapt to varying network latency conditions
- Support intelligent power management including control over continuous operation and sleep mode as well as the video output detected by displays that apply intelligent power management
- Approved device shall be the Extron VND 250 Decoder (60-1275-01; no alternates or equals)
- Rack mountable, one-half rack width, 1U high metal enclosure that decodes audio, video, USB keyboard and mouse, RS232 data and encodes return audio shall:
VND 250 Decoder
- Provide an HDCP-compliant decoder that supports low-delay, high quality streaming applications for computer-video or standard video resolutions, analog and digital audio, RS232, USB keyboard and mouse data and with return audio encoding
- Rack mountable, one-half rack width, 1U high metal enclosure that decodes audio, video, USB keyboard and mouse, RS232 data and encodes return audio shall:
- Provide an HDMI connector to supply video and embedded audio to a digital display system
- Provide connections for interfacing analog audio signals
- One set of captive screw connections on rear panel for balanced/unbalanced line level stereo audio
- One set of captive screw connections on rear panel for balanced/unbalanced line level stereo audio return signals
- Provide front panel LCD display and controls for device configuration
- Provide connections for device configuration from a PC or other peripheral
- One USB connection on the front panel
- One RS-232 captive screw connection on rear panel
- Provide one 10/100BASE-T RJ-45 network connection to provide access to AV system control devices
- Provide one 100/1000BASE-T RJ45 connector for transport of streaming data
- Provide one SFP socket for optional use of fiber-optic transceivers to provide optical Ethernet transport in place of the 100/1000BASE-T RJ45 streaming connection
- Provide four LED indicators for status monitoring
- Control LED to indicate status of control data
- Stream LED to indicate status of streamed data
- Status LED to indicate status of streamed source
- Alarm LED to indicate presence of a system fault
- Provide two USB connections for keyboard and mouse supporting remote control of a PC connected to an encoder
- Support bidirectional serial RS-232 control between external AV devices across an encoder and decoder connection
- Support two-way audio streaming capabilities to enable bi-directional audio communication between encoder and decoder
- Support decoding of HDCP-encrypted sources when an HDCP-compliant display is connected
- Maintain continuous HDCP-encryption between the decoder and display
- Support streaming of all video and computer-video signals maintaining native resolution from encode to decode
- Support decoding of video signals from 640x480 up to 1920x1200 and 2048x1080
- Support scaling of video signals at selectable resolutions from 640x480 up to 1920x1200 and 2048x1080
- Support streaming of signals at 60 frames per second at resolutions up to 2048x1080p and 1920x1200
- Support standard video resolutions including: 480p, 720p 1080i, and 1080p
- Support Extended Display Identification Data – EDID and Display Data Channel – DDC data using the EDID 2.0 standard
- Support use of EDID values defined by the user, supplied by a locally connected display or stored values captured from previously connected displays
- Support 24 bit, 8 bit per color encoding and processing that is capable of maintaining the 4:4:4 color information throughout the entire encode-streaming-decode process
- Support a low delay, encode and decode process of 70 ms
- Provide a video error concealment system which does not increase streaming bandwidth or encoding delay
- Support unicast RTP, unicast TCP and IGMP multicast streaming applications
- Offer adjustment over the Ethernet frame Maximum Transmission Unit – MTU
- Provide contact closure notice of definable warnings or alarms to support system monitoring
- Support automatic or manual negotiation of network link speed and duplex mode
- Support VLAN tagging
- Support creation of user defined device names
- Support configuration and control from an embedded web browser
- Support optional on screen messaging for device identification
- Support compatibility with a network appliance for recording and playing back audio, video, RS-232 or UDP data
- Support configuration and control in systems consisting of multiple codecs, encoders, decoders and recorder appliances from a central networked control unit
- Support decoding audio and video at bit rates from 500 kbps to 270 Mbps
- Maintain audio-video lip synchronization
- Provide a genlock and loop through connection supporting synchronizing across multiple decoders
- Support clean switching between sources when scaling the output to a defined resolution
- Support scaling of outputs to integer videowall magnification sizes such as 2x2
- Provide the following aspect ratio management options for displaying streaming sources:
- Decoded video fills display
- Decoded video maintains source’s original aspect ratio with no image cropping
- Provide an adjustable buffer supporting the ability to adapt to varying network latency conditions
- Support intelligent power management including control over continuous operation and sleep mode as well as the video output detected by displays that apply intelligent power management
- Approved device shall be the Extron VND 250 Decoder (60-1275-01; no alternates or equals)
- Rack mountable, one-half rack width, 1U high metal enclosure that decodes audio, video, USB keyboard and mouse, RS232 data and encodes return audio shall:
把商品添加到购物车
Order Message Number
产品编号
注: 使用通用交流电源插座的 Extron 产品可支持多种不同的交流电源插头类型。在使用之前，确保设备满足您所在区域的所有规定要求，并符合所有应用的本地安全和电气规程及标准。
当前总计：
Annotation Graphics Processor
To view this page ensure that Adobe Flash Player version
11.0.0 or greater is installed and enabled.
Chrome
Firefox
Edge
Safari
