SB 33 A

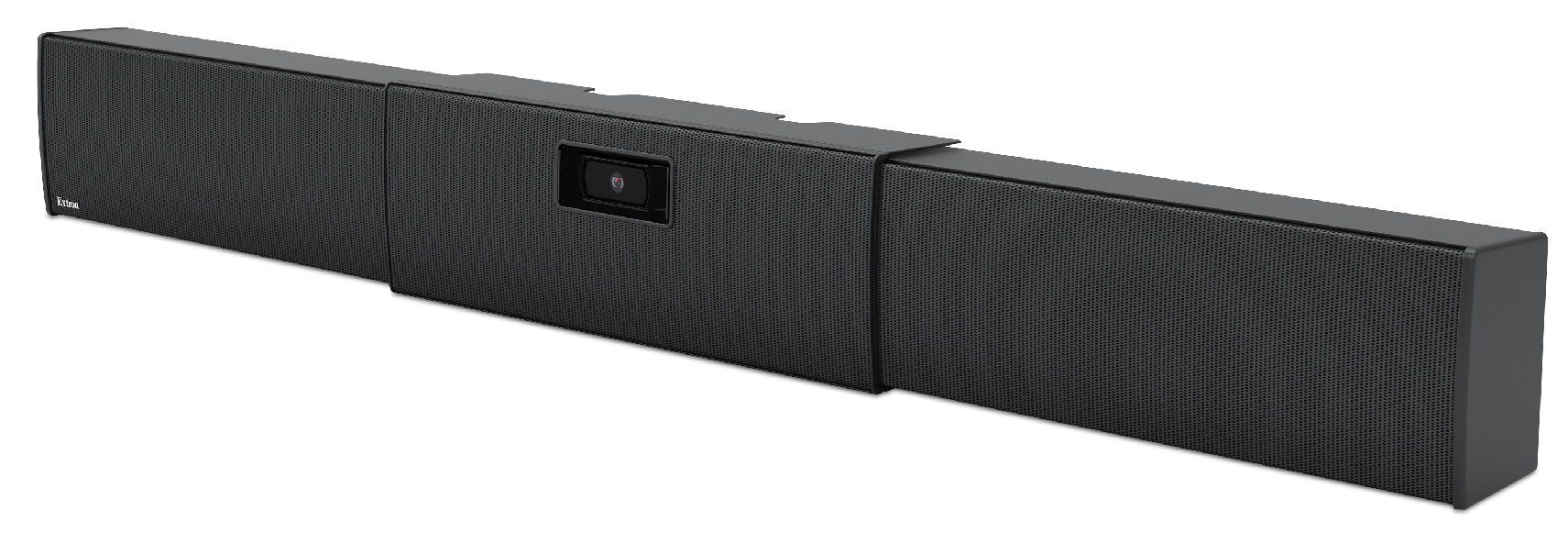

- Provide a powered, adjustable-width, wall-mountable stereo sound bar, that shall accommodate internal mounting of a webcam and options for PTZ camera mounting, use with no camera, and VESA mounting
- Adjustable-width, powered sound bar with two full-range speakers, internal amplifier, internal webcam mount, and included wall bracket.
- Internal Driver Requirements
- Shall consist of two 3” (76.2 mm) full-range, paper cone drivers
- Internal Amplifier Requirements

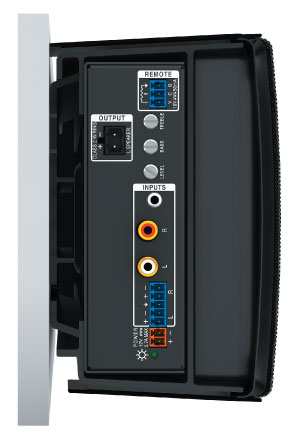

- Input Requirements
- Shall support one stereo, balanced or unbalanced signal on one 5-pole, 3.5 mm captive screw connector with a maximum level of +12 dBu (balanced) at 1% THD+N
- Shall support one stereo, unbalanced signal on one pair of RCA connectors with a maximum level of +7 dBu at 1% THD+N
- Shall support one stereo, unbalanced signal on one 3.5 mm mini jack (tip, ring, sleeve) with a maximum level of +7 dBu at 1% THD+N
- Shall have an input impedance of >10k ohms unbalanced/balanced, DC coupled
- Shall have a balanced input sensitivity of -8 dBu
- Shall have an unbalanced input sensitivity of -16 dBV
- Output Requirements
- Shall provide a signal-to-noise ratio of >90 dB, at maximum output (15 dBu), balanced (unweighted)
- Amplifier Requirements
- Shall utilize an efficient Class D amplifier design
- Shall provide Class D Ripple Suppression technology
- Shall be convection cooled and operate without fans
- Shall provide an automatic clip limiter to detect onset of clipping by comparing input and output waveforms and automatically reduce gain without audible artifacts to eliminate clipping distortion
- Shall provide a level adjustment
- Shall provide a bass adjustment of +/- 10 dB at 80 Hz
- Shall provide a treble adjustment of +/- 10 dB at 10 kHz
- Power Requirements
- Shall be Ecofficient Level 3 qualified
- Shall draw 9.1 watts during 1/8 power operation with both output channels driven
- Shall draw 3.7 watts during quiescent operation
- Shall provide a low power standby mode
- Input Requirements
- Internal Driver Requirements
- Adjustable-width, powered sound bar with two full-range speakers, internal amplifier, internal webcam mount, and included wall bracket.
- Shall enter standby mode after 25 minutes of inactivity (+/- 5 minutes)
- Shall draw less than 1 watt while in standby mode
- Shall return to full power status in less than one second upon signal detection while in standby mode
- Shall feature an input signal detection threshold of -55 dBV, +/- 3 dB on unbalanced RCA and 3.5 mm stereo mini jack inputs to deactivate standby mode
- Shall feature an input signal detection threshold of -46 dBu, +/- 3 dB on balanced captive screw connector input to deactivate standby mode

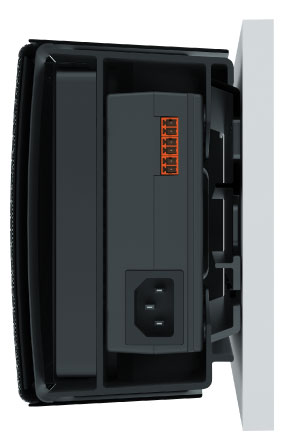

- Shall provide an internal Everlast power supply that accepts 100 to 240 VAC, 50 to 60 Hz, 4.2 A
- Audio Requirements
- Shall provide a frequency range of 100 Hz to 20 kHz, -10dB, full space (per IEC 60268-5) when the bass and treble adjustments are set to their 12 o’clock positions
- Shall provide a calculated maximum SPL of 95 dB at 1 meter
- Shall provide nominal coverage angles
- Horizontal: 130° (1 kHz-4 kHz, weighted 2 kHz-4 kHz)
- Vertical: 130° (1 kHz-4 kHz, weighted 2 kHz-4 kHz)
- Control Requirements
- Shall support remote control of volume and muting on one 3-pole, 3.5 mm captive screw connector using optional Extron analog volume and mute controllers
- Enclosure Requirements
- Shall consist of a metal, rectangular enclosure with metal grille
- Shall have a black finish
- Mounting Requirements
- Shall include a wall bracket for horizontal flush with wall installation
- Wall bracket shall include a bubble level
- Wall bracket shall have a black finish to match sound bar
- Shall include a wall bracket for horizontal flush with wall installation
- General Requirements
- Shall be offered in six different widths, each with a range of adjustability defined by a supported diagonal display size
- For 46 inch to 55 inch displays
- For 55 inch to 65 inch displays
- For 65 inch to 70 inch displays
- For 75 inch to 80 inch displays
- For 82 inch to 90 inch displays
- For 90 inch to 100 inch displays
- Shall provide a 9 inch range of width adjustability
- Shall measure 6” (15.3 cm) in height
- Shall protrude no more than 4.0” (10.2 cm) into environment from mounting surface
- Shall comply with ADA – Americans with Disabilities Act standards for protruding object limits

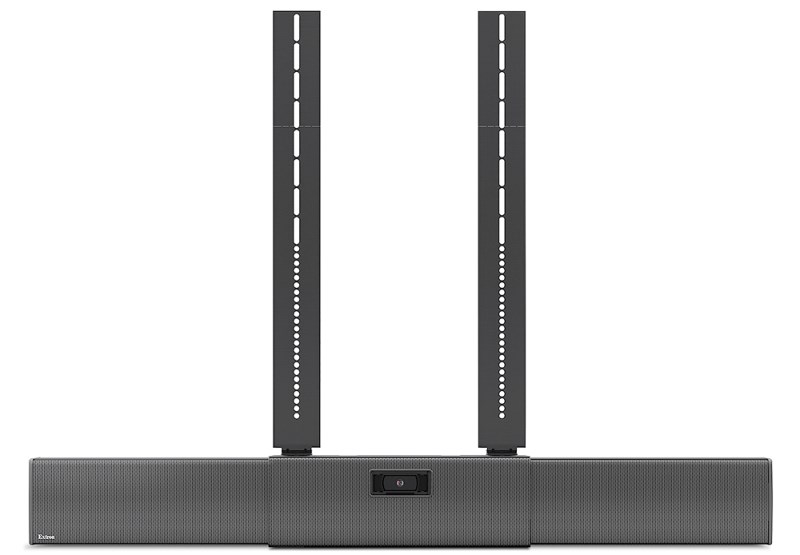

- Shall support use of an optional VESA mounting kit
- Approved optional VESA mounting kit for 46 inch to 80 inch displays shall be the Extron SMK V SB 33 Plus, part number 70-1192-02, no alternatives or equals
- Approved optional VESA mounting kit for 82 inch to 100 inch displays shall be the Extron SMK V SB 33 82-100, part number 70-1192-03, no alternatives or equals

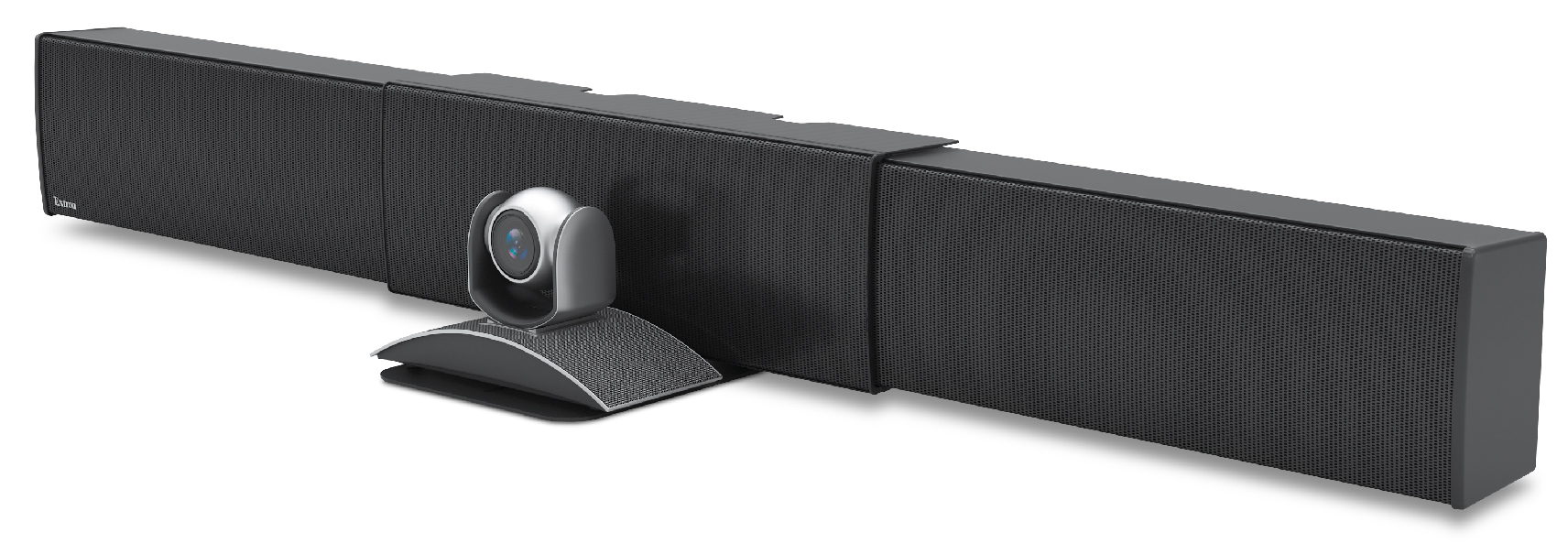

- Shall support use of an optional shelf for mounting a PTZ camera
- Approved optional shelf for mounting a PTZ camera shall be the Extron SAK PTZ SB 33, part number 70-1260-01, no alternatives or equals
- Shall support use of an optional blank center grille
- Approved optional blank center grille shall be the Extron SAK BCG SB 33, part number 70-1229-01, no alternatives or equals
- Shall meet regulatory compliances: CE, CEC, CISPR 22 Class B, C-tick, European Code of Conduct, FCC Class B, ICES, RoHS, UL, CUL, VCCI Class B
- Shall provide a five year parts and labor product warranty
- Shall provide a seven year parts and labor Everlast power supply warranty
- Shall be offered in six different widths, each with a range of adjustability defined by a supported diagonal display size
- Audio Requirements
- Approved device shall be the Extron SB 33 A, part numbers 60-1737-11, 60-1737-12, 60-1737-13, 60-1737-14, 60-1737-15, 60-1737-16; no alternatives or equals
- Shall provide an internal Everlast power supply that accepts 100 to 240 VAC, 50 to 60 Hz, 4.2 A
SB 33 A
- Provide a powered, adjustable-width, wall-mountable stereo sound bar, that shall accommodate internal mounting of a webcam and options for PTZ camera mounting, use with no camera, and VESA mounting
- Adjustable-width, powered sound bar with two full-range speakers, internal amplifier, internal webcam mount, and included wall bracket.
- Internal Driver Requirements
- Shall consist of two 3” (76.2 mm) full-range, paper cone drivers
- Internal Amplifier Requirements
- Input Requirements
- Shall support one stereo, balanced or unbalanced signal on one 5-pole, 3.5 mm captive screw connector with a maximum level of +12 dBu (balanced) at 1% THD+N
- Shall support one stereo, unbalanced signal on one pair of RCA connectors with a maximum level of +7 dBu at 1% THD+N
- Shall support one stereo, unbalanced signal on one 3.5 mm mini jack (tip, ring, sleeve) with a maximum level of +7 dBu at 1% THD+N
- Shall have an input impedance of >10k ohms unbalanced/balanced, DC coupled
- Shall have a balanced input sensitivity of -8 dBu
- Shall have an unbalanced input sensitivity of -16 dBV
- Output Requirements
- Shall provide a signal-to-noise ratio of >90 dB, at maximum output (15 dBu), balanced (unweighted)
- Amplifier Requirements
- Shall utilize an efficient Class D amplifier design
- Shall provide Class D Ripple Suppression technology
- Shall be convection cooled and operate without fans
- Shall provide an automatic clip limiter to detect onset of clipping by comparing input and output waveforms and automatically reduce gain without audible artifacts to eliminate clipping distortion
- Shall provide a level adjustment
- Shall provide a bass adjustment of +/- 10 dB at 80 Hz
- Shall provide a treble adjustment of +/- 10 dB at 10 kHz
- Power Requirements
- Shall be Ecofficient Level 3 qualified
- Shall draw 9.1 watts during 1/8 power operation with both output channels driven
- Shall draw 3.7 watts during quiescent operation
- Shall provide a low power standby mode
- Input Requirements
- Internal Driver Requirements
- Adjustable-width, powered sound bar with two full-range speakers, internal amplifier, internal webcam mount, and included wall bracket.
- Shall enter standby mode after 25 minutes of inactivity (+/- 5 minutes)
- Shall draw less than 1 watt while in standby mode
- Shall return to full power status in less than one second upon signal detection while in standby mode
- Shall feature an input signal detection threshold of -55 dBV, +/- 3 dB on unbalanced RCA and 3.5 mm stereo mini jack inputs to deactivate standby mode
- Shall feature an input signal detection threshold of -46 dBu, +/- 3 dB on balanced captive screw connector input to deactivate standby mode
- Shall provide an internal Everlast power supply that accepts 100 to 240 VAC, 50 to 60 Hz, 4.2 A
- Audio Requirements
- Shall provide a frequency range of 100 Hz to 20 kHz, -10dB, full space (per IEC 60268-5) when the bass and treble adjustments are set to their 12 o’clock positions
- Shall provide a calculated maximum SPL of 95 dB at 1 meter
- Shall provide nominal coverage angles
- Horizontal: 130° (1 kHz-4 kHz, weighted 2 kHz-4 kHz)
- Vertical: 130° (1 kHz-4 kHz, weighted 2 kHz-4 kHz)
- Control Requirements
- Shall support remote control of volume and muting on one 3-pole, 3.5 mm captive screw connector using optional Extron analog volume and mute controllers
- Enclosure Requirements
- Shall consist of a metal, rectangular enclosure with metal grille
- Shall have a black finish
- Mounting Requirements
- Shall include a wall bracket for horizontal flush with wall installation
- Wall bracket shall include a bubble level
- Wall bracket shall have a black finish to match sound bar
- Shall include a wall bracket for horizontal flush with wall installation
- General Requirements
- Shall be offered in six different widths, each with a range of adjustability defined by a supported diagonal display size
- For 46 inch to 55 inch displays
- For 55 inch to 65 inch displays
- For 65 inch to 70 inch displays
- For 75 inch to 80 inch displays
- For 82 inch to 90 inch displays
- For 90 inch to 100 inch displays
- Shall provide a 9 inch range of width adjustability
- Shall measure 6” (15.3 cm) in height
- Shall protrude no more than 4.0” (10.2 cm) into environment from mounting surface
- Shall comply with ADA – Americans with Disabilities Act standards for protruding object limits
- Shall support use of an optional VESA mounting kit
- Approved optional VESA mounting kit for 46 inch to 80 inch displays shall be the Extron SMK V SB 33 Plus, part number 70-1192-02, no alternatives or equals
- Approved optional VESA mounting kit for 82 inch to 100 inch displays shall be the Extron SMK V SB 33 82-100, part number 70-1192-03, no alternatives or equals
- Shall support use of an optional shelf for mounting a PTZ camera
- Approved optional shelf for mounting a PTZ camera shall be the Extron SAK PTZ SB 33, part number 70-1260-01, no alternatives or equals
- Shall support use of an optional blank center grille
- Approved optional blank center grille shall be the Extron SAK BCG SB 33, part number 70-1229-01, no alternatives or equals
- Shall meet regulatory compliances: CE, CEC, CISPR 22 Class B, C-tick, European Code of Conduct, FCC Class B, ICES, RoHS, UL, CUL, VCCI Class B
- Shall provide a five year parts and labor product warranty
- Shall provide a seven year parts and labor Everlast power supply warranty
- Shall be offered in six different widths, each with a range of adjustability defined by a supported diagonal display size
- Audio Requirements
- Approved device shall be the Extron SB 33 A, part numbers 60-1737-11, 60-1737-12, 60-1737-13, 60-1737-14, 60-1737-15, 60-1737-16; no alternatives or equals
- Shall provide an internal Everlast power supply that accepts 100 to 240 VAC, 50 to 60 Hz, 4.2 A
DAC 102
- Provide a digital to analog audio converter that shall support two digital audio input channels and two analog audio output channels.
- Two channel digital to analog audio converter with coaxial and TOSLINK S/PDIF digital audio inputs and balanced and unbalanced analog audio outputs
- Input Requirements
- Shall support two uncompressed PCM digital audio signals on coaxial and TOSLINK connectors
- Output Requirements
- Shall support two balanced or unbalanced signals on one 5-pole, 3.5 mm captive screw connector
- Control Requirements
- Shall support remote control of volume and muting on 3-pole, 3.5 mm captive screw connector using optional Extron analog volume and mute controllers
- Front Panel Requirements
- Shall provide a green LED for power indication
- Shall provide a TOSLINK connector for S/PDIF digital audio input
- Shall provide a green LED for TOSLINK signal present indication
- Shall provide a coaxial connector for S/PDIF digital audio input
- Shall provide a green LED for coaxial signal present indication
- Rear Panel Requirements
- Shall provide a female USB mini type B port for software control and power
- Shall provide two analog audio outputs on one 5-pole, 3.5 mm captive screw connector
- Shall provide remote volume and mute control port on one 3-pole, 3.5 mm captive screw connector
- General Requirements
- Shall support 5 VDC power on a USB mini type B port from an external power source
- Shall include an Extron ZipClip™ 25 mounting bracket
- Shall meet regulatory compliances
- CE, C-tick, FCC Class B, ICES, VCCI, RoHS, WEEE
- Shall provide a three year parts and labor warranty
- Input Requirements
- Approved device shall be the Extron DAC 102, part number 60-1811-01; no alternates or equals.
- Two channel digital to analog audio converter with coaxial and TOSLINK S/PDIF digital audio inputs and balanced and unbalanced analog audio outputs
DAC 102
- Provide a digital to analog audio converter that shall support two digital audio input channels and two analog audio output channels.
- Two channel digital to analog audio converter with coaxial and TOSLINK S/PDIF digital audio inputs and balanced and unbalanced analog audio outputs
- Input Requirements
- Shall support two uncompressed PCM digital audio signals on coaxial and TOSLINK connectors
- Output Requirements
- Shall support two balanced or unbalanced signals on one 5-pole, 3.5 mm captive screw connector
- Control Requirements
- Shall support remote control of volume and muting on 3-pole, 3.5 mm captive screw connector using optional Extron analog volume and mute controllers
- Front Panel Requirements
- Shall provide a green LED for power indication
- Shall provide a TOSLINK connector for S/PDIF digital audio input
- Shall provide a green LED for TOSLINK signal present indication
- Shall provide a coaxial connector for S/PDIF digital audio input
- Shall provide a green LED for coaxial signal present indication
- Rear Panel Requirements
- Shall provide a female USB mini type B port for software control and power
- Shall provide two analog audio outputs on one 5-pole, 3.5 mm captive screw connector
- Shall provide remote volume and mute control port on one 3-pole, 3.5 mm captive screw connector
- General Requirements
- Shall support 5 VDC power on a USB mini type B port from an external power source
- Shall include an Extron ZipClip™ 25 mounting bracket
- Shall meet regulatory compliances
- CE, C-tick, FCC Class B, ICES, VCCI, RoHS, WEEE
- Shall provide a three year parts and labor warranty
- Input Requirements
- Approved device shall be the Extron DAC 102, part number 60-1811-01; no alternates or equals.
- Two channel digital to analog audio converter with coaxial and TOSLINK S/PDIF digital audio inputs and balanced and unbalanced analog audio outputs
把商品添加到购物车
Order Message Number
产品编号
注: 使用通用交流电源插座的 Extron 产品可支持多种不同的交流电源插头类型。在使用之前，确保设备满足您所在区域的所有规定要求，并符合所有应用的本地安全和电气规程及标准。
当前总计：
Annotation Graphics Processor
To view this page ensure that Adobe Flash Player version
11.0.0 or greater is installed and enabled.
Chrome
Firefox
Edge
Safari
