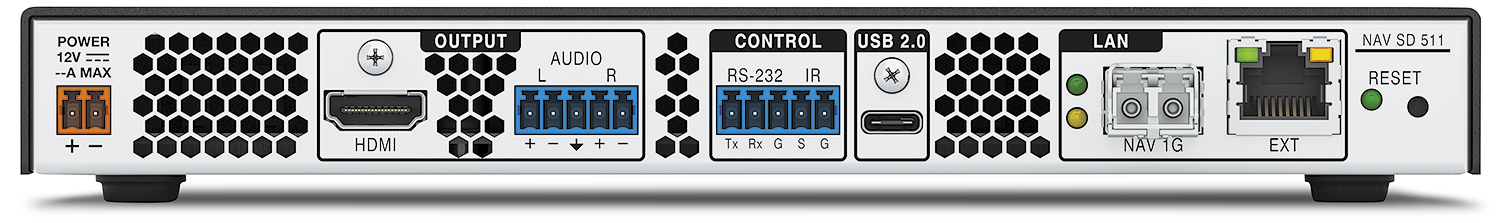

NAV SD 511
建筑工程规范
选择一个产品编号：
复制文本
已复制！
发生错误。请稍后重试。
NAV SD 511 (multimode)
- Provide a Pro AV over IP scaling decoder that shall receive ultra-low latency, high quality video, audio, Ethernet, and USB 2.0 signals over a 1 Gbps fiber optic Ethernet interface
- Decode and scale video, audio, Ethernet, and USB 2.0, and shall:
- Provide an HDMI connector for interfacing digital video signal output with embedded audio
- Provide connections for interfacing analog audio signals
- One set of captive screw connections on back panel for line-level balanced/unbalanced stereo audio output
- Provide connections for device configuration from a PC or other peripheral
- One USB connection on the front panel
- Provide a 5-pole captive screw connector for remote RS-232 and IR control from a central control processor via remote port access mapping
- Provide one LC/LC fiber optic connector for control and transport of streaming data over multimode fiber optic cable for distances up to 550 meters (1804 feet)
- LC/LC interface shall also support Ethernet expansion for remote LAN connectivity over multimode fiber optic cable
- Provide one 2-pole captive screw connector for 12VDC power
- Provide nineteen LED indicators for status monitoring
- Power LED on front panel to indicate power connection
- HDMI LED on front panel to indicate HDMI input signal presence
- HDCP LED on front panel to indicate encryption status
- HDMI audio LED on front panel to indicate HDMI audio input status
- Analog audio LED on front panel to indicate analog audio input status
- NAV Stream LED on front panel to indicate streaming status
- NAV USB LED on front panel to indicate streaming status
- USB Host LED on front panel to indicate mode
- USB Active LED on front panel to indicate activity
- Two LAN LEDs on front panel to indicate the NAV network link status and activity
- Two LAN EXT LEDs on front panel to indicate the Ethernet Expansion link status and activity
- Two LAN LEDs on back panel to indicate the NAV network link status and activity
- Two LAN LEDs on back panel RJ-45 jack to indicate the Ethernet Expansion link status and activity
- ID LED on front panel for visual confirmation of units on the network
- Reset LED on back panel to indicate reset status
- Provide an ID button on the front panel to identify the unit on the network
- Provide a recessed reset button on the back panel to revert unit back to factory loaded firmware
- Provide a USB Type-C interface configurable as Host or Hub for USB 1.1, 2.0, and USB 3.0 peripherals that operate at USB 2.0 rates up to 480 Mbps.
- Support audio streaming between encoder and decoder
- Support streaming to HDCP 2.3 compliant displays from encoders connected to HDCP encrypted sources
- Maintain continuous HDCP encryption between the decoder and display
- Support Extended Display Identification Data – EDID and Display Data Channel – DDC data using the EDID 2.0 standard
- Support use of EDID values defined by the user, supplied by a locally connected display or stored values captured from previously connected displays
- Support standard video resolutions including: 720p, 1080i ,1080p, UHD (3840 x 2160), and 4K (4096 x 2160) @ 60 Hz
- Support computer video resolutions from 640 x 480 up to 4096 x 2160
- Support HDMI embedded and analog stereo audio
- Support 30-bit, 10-bit per color encoding and processing that maintains 4:4:4 color information throughout the entire encode-streaming-decode process
- Support streaming of all video and computer-video signals maintaining native resolution from encode to decode
- Support streaming of signals at 60 frames per second at resolutions up to 4096 x 2160 with 4:4:4 chroma sampling
- Support selectable aspect ratio control
- FILL mode – the video image shall always fill the output screen without letterbox or pillarbox
- FOLLOW mode – the video image on the output screen shall always preserve the aspect ratio of the input signals without distortion
- Support videowall mode to enable a mix of full screen and image magnification across multiple displays
- Support a low latency encode and decode process
- Provide a video error concealment system which does not increase streaming bandwidth or encoding delay
- Support IGMP v2 and v3 multicast per RFC 2236 and 3376
- Support RTP Real-time Transport Protocol per RFC 3550
- Support 802.1X port-based Network Access Control (PNAC)
- Support audio and USB breakaway
- Support Audio only streaming with a blackburst signal
- Support AES67 audio streaming
- Support DiffServ QoS with DSCP and Precedence Values Support multicast TTL (Time to Live) values
- Support SRTP Secure Real-time Transport Protocol encryption of AV and data stream per RFC 3711
- Support both immunity to EMI/RFI noise and optical isolation by streaming data over fiber optic Ethernet link to the network
- Support creation of user defined device names
- Support configuration and control from an embedded web browser
- Support optional on-screen messaging for device identification
- Support matrix switching between multiple encoders or decoders
- Support reception of lower bitrate video from 10 Gbps encoders in mixed 1/10 Gbps systems
- Support configuration and control in systems consisting of multiple encoders and decoders from a central networked control unit
- Support encoding and decoding video and audio at bit rates adjustable from 150 Mbps to 900 Mbps
- Decoder shall be capable of preserving absolute changes to the video on a frame-by-frame basis up to 60 frames per second
- Support temporal compression applied on a sub-picture basis examining change that discriminates between luminance, chrominance as well as a threshold for signal or image noise
- Shall be rack mountable, one-half rack width, 1” (2.5 cm) high metal enclosure
- Approved device shall be the Extron NAV SD 511 (60-1958-07; no alternates or equals).
- Decode and scale video, audio, Ethernet, and USB 2.0, and shall:
NAV SD 511 (multimode)
- Provide a Pro AV over IP scaling decoder that shall receive ultra-low latency, high quality video, audio, Ethernet, and USB 2.0 signals over a 1 Gbps fiber optic Ethernet interface
- Decode and scale video, audio, Ethernet, and USB 2.0, and shall:
- Provide an HDMI connector for interfacing digital video signal output with embedded audio
- Provide connections for interfacing analog audio signals
- One set of captive screw connections on back panel for line-level balanced/unbalanced stereo audio output
- Provide connections for device configuration from a PC or other peripheral
- One USB connection on the front panel
- Provide a 5-pole captive screw connector for remote RS-232 and IR control from a central control processor via remote port access mapping
- Provide one LC/LC fiber optic connector for control and transport of streaming data over multimode fiber optic cable for distances up to 550 meters (1804 feet)
- LC/LC interface shall also support Ethernet expansion for remote LAN connectivity over multimode fiber optic cable
- Provide one 2-pole captive screw connector for 12VDC power
- Provide nineteen LED indicators for status monitoring
- Power LED on front panel to indicate power connection
- HDMI LED on front panel to indicate HDMI input signal presence
- HDCP LED on front panel to indicate encryption status
- HDMI audio LED on front panel to indicate HDMI audio input status
- Analog audio LED on front panel to indicate analog audio input status
- NAV Stream LED on front panel to indicate streaming status
- NAV USB LED on front panel to indicate streaming status
- USB Host LED on front panel to indicate mode
- USB Active LED on front panel to indicate activity
- Two LAN LEDs on front panel to indicate the NAV network link status and activity
- Two LAN EXT LEDs on front panel to indicate the Ethernet Expansion link status and activity
- Two LAN LEDs on back panel to indicate the NAV network link status and activity
- Two LAN LEDs on back panel RJ-45 jack to indicate the Ethernet Expansion link status and activity
- ID LED on front panel for visual confirmation of units on the network
- Reset LED on back panel to indicate reset status
- Provide an ID button on the front panel to identify the unit on the network
- Provide a recessed reset button on the back panel to revert unit back to factory loaded firmware
- Provide a USB Type-C interface configurable as Host or Hub for USB 1.1, 2.0, and USB 3.0 peripherals that operate at USB 2.0 rates up to 480 Mbps.
- Support audio streaming between encoder and decoder
- Support streaming to HDCP 2.3 compliant displays from encoders connected to HDCP encrypted sources
- Maintain continuous HDCP encryption between the decoder and display
- Support Extended Display Identification Data – EDID and Display Data Channel – DDC data using the EDID 2.0 standard
- Support use of EDID values defined by the user, supplied by a locally connected display or stored values captured from previously connected displays
- Support standard video resolutions including: 720p, 1080i ,1080p, UHD (3840 x 2160), and 4K (4096 x 2160) @ 60 Hz
- Support computer video resolutions from 640 x 480 up to 4096 x 2160
- Support HDMI embedded and analog stereo audio
- Support 30-bit, 10-bit per color encoding and processing that maintains 4:4:4 color information throughout the entire encode-streaming-decode process
- Support streaming of all video and computer-video signals maintaining native resolution from encode to decode
- Support streaming of signals at 60 frames per second at resolutions up to 4096 x 2160 with 4:4:4 chroma sampling
- Support selectable aspect ratio control
- FILL mode – the video image shall always fill the output screen without letterbox or pillarbox
- FOLLOW mode – the video image on the output screen shall always preserve the aspect ratio of the input signals without distortion
- Support videowall mode to enable a mix of full screen and image magnification across multiple displays
- Support a low latency encode and decode process
- Provide a video error concealment system which does not increase streaming bandwidth or encoding delay
- Support IGMP v2 and v3 multicast per RFC 2236 and 3376
- Support RTP Real-time Transport Protocol per RFC 3550
- Support 802.1X port-based Network Access Control (PNAC)
- Support audio and USB breakaway
- Support Audio only streaming with a blackburst signal
- Support AES67 audio streaming
- Support DiffServ QoS with DSCP and Precedence Values Support multicast TTL (Time to Live) values
- Support SRTP Secure Real-time Transport Protocol encryption of AV and data stream per RFC 3711
- Support both immunity to EMI/RFI noise and optical isolation by streaming data over fiber optic Ethernet link to the network
- Support creation of user defined device names
- Support configuration and control from an embedded web browser
- Support optional on-screen messaging for device identification
- Support matrix switching between multiple encoders or decoders
- Support reception of lower bitrate video from 10 Gbps encoders in mixed 1/10 Gbps systems
- Support configuration and control in systems consisting of multiple encoders and decoders from a central networked control unit
- Support encoding and decoding video and audio at bit rates adjustable from 150 Mbps to 900 Mbps
- Decoder shall be capable of preserving absolute changes to the video on a frame-by-frame basis up to 60 frames per second
- Support temporal compression applied on a sub-picture basis examining change that discriminates between luminance, chrominance as well as a threshold for signal or image noise
- Shall be rack mountable, one-half rack width, 1” (2.5 cm) high metal enclosure
- Approved device shall be the Extron NAV SD 511 (60-1958-07; no alternates or equals).
- Decode and scale video, audio, Ethernet, and USB 2.0, and shall:
NAV SD 511 (singlemode)
- Provide a Pro AV over IP scaling decoder that shall receive ultra-low latency, high quality video, audio, Ethernet, and USB 2.0 signals over a 1 Gbps fiber optic Ethernet interface
- Decode and scale video, audio, Ethernet, and USB 2.0, and shall:
- Provide an HDMI connector for interfacing digital video signal output with embedded audio
- Provide connections for interfacing analog audio signals
- One set of captive screw connections on back panel for line-level balanced/unbalanced stereo audio output
- Provide connections for device configuration from a PC or other peripheral
- One USB connection on the front panel
- Provide a 5-pole captive screw connector for remote RS-232 and IR control from a central control processor via remote port access mapping
- Provide one LC/LC fiber optic connector for control and transport of streaming data over singlemode fiber optic cable for distances up to 10 kilometers (6.25 miles)
- LC/LC interface shall also support Ethernet expansion for remote LAN connectivity over singlemode fiber optic cable
- Provide one 2-pole captive screw connector for 12VDC power
- Provide nineteen LED indicators for status monitoring
- Power LED on front panel to indicate power connection
- HDMI LED on front panel to indicate HDMI input signal presence
- HDCP LED on front panel to indicate encryption status
- HDMI audio LED on front panel to indicate HDMI audio input status
- Analog audio LED on front panel to indicate analog audio input status
- NAV Stream LED on front panel to indicate streaming status
- NAV USB LED on front panel to indicate streaming status
- USB Host LED on front panel to indicate mode
- USB Active LED on front panel to indicate activity
- Two LAN LEDs on front panel to indicate the NAV network link status and activity
- Two LAN EXT LEDs on front panel to indicate the Ethernet Expansion link status and activity
- Two LAN LEDs on back panel to indicate the NAV network link status and activity
- Two LAN LEDs on back panel RJ-45 jack to indicate the Ethernet Expansion link status and activity
- ID LED on front panel for visual confirmation of units on the network
- Reset LED on back panel to indicate reset status
- Provide an ID button on the front panel to identify the unit on the network
- Provide a recessed reset button on the back panel to revert unit back to factory loaded firmware
- Provide a USB Type-C interface configurable as Host or Hub for USB 1.1, 2.0, and USB 3.0 peripherals that operate at USB 2.0 rates up to 480 Mbps.
- Support audio streaming between encoder and decoder
- Support streaming to HDCP 2.3 compliant displays from encoders connected to HDCP encrypted sources
- Maintain continuous HDCP encryption between the decoder and display
- Support Extended Display Identification Data – EDID and Display Data Channel – DDC data using the EDID 2.0 standard
- Support use of EDID values defined by the user, supplied by a locally connected display or stored values captured from previously connected displays
- Support standard video resolutions including: 720p, 1080i ,1080p, UHD (3840 x 2160), and 4K (4096 x 2160) @ 60 Hz
- Support computer video resolutions from 640 x 480 up to 4096 x 2160
- Support HDMI embedded and analog stereo audio
- Support 30-bit, 10-bit per color encoding and processing that maintains 4:4:4 color information throughout the entire encode-streaming-decode process
- Support streaming of all video and computer-video signals maintaining native resolution from encode to decode
- Support streaming of signals at 60 frames per second at resolutions up to 4096 x 2160 with 4:4:4 chroma sampling
- Support selectable aspect ratio control
- FILL mode – the video image shall always fill the output screen without letterbox or pillarbox
- FOLLOW mode – the video image on the output screen shall always preserve the aspect ratio of the input signals without distortion
- Support videowall mode to enable a mix of full screen and image magnification across multiple displays
- Support a low latency encode and decode process
- Provide a video error concealment system which does not increase streaming bandwidth or encoding delay
- Support IGMP v2 and v3 multicast per RFC 2236 and 3376
- Support RTP Real-time Transport Protocol per RFC 3550
- Support 802.1X port-based Network Access Control (PNAC)
- Support audio and USB breakaway
- Support Audio only streaming with a blackburst signal
- Support AES67 audio streaming
- Support DiffServ QoS with DSCP and Precedence Values Support multicast TTL (Time to Live) values
- Support SRTP Secure Real-time Transport Protocol encryption of AV and data stream per RFC 3711
- Support both immunity to EMI/RFI noise and optical isolation by streaming data over fiber optic Ethernet link to the network
- Support creation of user defined device names
- Support configuration and control from an embedded web browser
- Support optional on-screen messaging for device identification
- Support matrix switching between multiple encoders or decoders
- Support reception of lower bitrate video from 10 Gbps encoders in mixed 1/10 Gbps systems
- Support configuration and control in systems consisting of multiple encoders and decoders from a central networked control unit
- Support encoding and decoding video and audio at bit rates adjustable from 150 Mbps to 900 Mbps
- Decoder shall be capable of preserving absolute changes to the video on a frame-by-frame basis up to 60 frames per second
- Support temporal compression applied on a sub-picture basis examining change that discriminates between luminance, chrominance as well as a threshold for signal or image noise
- Shall be rack mountable, one-half rack width, 1” (2.5 cm) high metal enclosure
- Approved device shall be the Extron NAV SD 511 (60-1958-08; no alternates or equals).
- Decode and scale video, audio, Ethernet, and USB 2.0, and shall:
NAV SD 511 (singlemode)
- Provide a Pro AV over IP scaling decoder that shall receive ultra-low latency, high quality video, audio, Ethernet, and USB 2.0 signals over a 1 Gbps fiber optic Ethernet interface
- Decode and scale video, audio, Ethernet, and USB 2.0, and shall:
- Provide an HDMI connector for interfacing digital video signal output with embedded audio
- Provide connections for interfacing analog audio signals
- One set of captive screw connections on back panel for line-level balanced/unbalanced stereo audio output
- Provide connections for device configuration from a PC or other peripheral
- One USB connection on the front panel
- Provide a 5-pole captive screw connector for remote RS-232 and IR control from a central control processor via remote port access mapping
- Provide one LC/LC fiber optic connector for control and transport of streaming data over singlemode fiber optic cable for distances up to 10 kilometers (6.25 miles)
- LC/LC interface shall also support Ethernet expansion for remote LAN connectivity over singlemode fiber optic cable
- Provide one 2-pole captive screw connector for 12VDC power
- Provide nineteen LED indicators for status monitoring
- Power LED on front panel to indicate power connection
- HDMI LED on front panel to indicate HDMI input signal presence
- HDCP LED on front panel to indicate encryption status
- HDMI audio LED on front panel to indicate HDMI audio input status
- Analog audio LED on front panel to indicate analog audio input status
- NAV Stream LED on front panel to indicate streaming status
- NAV USB LED on front panel to indicate streaming status
- USB Host LED on front panel to indicate mode
- USB Active LED on front panel to indicate activity
- Two LAN LEDs on front panel to indicate the NAV network link status and activity
- Two LAN EXT LEDs on front panel to indicate the Ethernet Expansion link status and activity
- Two LAN LEDs on back panel to indicate the NAV network link status and activity
- Two LAN LEDs on back panel RJ-45 jack to indicate the Ethernet Expansion link status and activity
- ID LED on front panel for visual confirmation of units on the network
- Reset LED on back panel to indicate reset status
- Provide an ID button on the front panel to identify the unit on the network
- Provide a recessed reset button on the back panel to revert unit back to factory loaded firmware
- Provide a USB Type-C interface configurable as Host or Hub for USB 1.1, 2.0, and USB 3.0 peripherals that operate at USB 2.0 rates up to 480 Mbps.
- Support audio streaming between encoder and decoder
- Support streaming to HDCP 2.3 compliant displays from encoders connected to HDCP encrypted sources
- Maintain continuous HDCP encryption between the decoder and display
- Support Extended Display Identification Data – EDID and Display Data Channel – DDC data using the EDID 2.0 standard
- Support use of EDID values defined by the user, supplied by a locally connected display or stored values captured from previously connected displays
- Support standard video resolutions including: 720p, 1080i ,1080p, UHD (3840 x 2160), and 4K (4096 x 2160) @ 60 Hz
- Support computer video resolutions from 640 x 480 up to 4096 x 2160
- Support HDMI embedded and analog stereo audio
- Support 30-bit, 10-bit per color encoding and processing that maintains 4:4:4 color information throughout the entire encode-streaming-decode process
- Support streaming of all video and computer-video signals maintaining native resolution from encode to decode
- Support streaming of signals at 60 frames per second at resolutions up to 4096 x 2160 with 4:4:4 chroma sampling
- Support selectable aspect ratio control
- FILL mode – the video image shall always fill the output screen without letterbox or pillarbox
- FOLLOW mode – the video image on the output screen shall always preserve the aspect ratio of the input signals without distortion
- Support videowall mode to enable a mix of full screen and image magnification across multiple displays
- Support a low latency encode and decode process
- Provide a video error concealment system which does not increase streaming bandwidth or encoding delay
- Support IGMP v2 and v3 multicast per RFC 2236 and 3376
- Support RTP Real-time Transport Protocol per RFC 3550
- Support 802.1X port-based Network Access Control (PNAC)
- Support audio and USB breakaway
- Support Audio only streaming with a blackburst signal
- Support AES67 audio streaming
- Support DiffServ QoS with DSCP and Precedence Values Support multicast TTL (Time to Live) values
- Support SRTP Secure Real-time Transport Protocol encryption of AV and data stream per RFC 3711
- Support both immunity to EMI/RFI noise and optical isolation by streaming data over fiber optic Ethernet link to the network
- Support creation of user defined device names
- Support configuration and control from an embedded web browser
- Support optional on-screen messaging for device identification
- Support matrix switching between multiple encoders or decoders
- Support reception of lower bitrate video from 10 Gbps encoders in mixed 1/10 Gbps systems
- Support configuration and control in systems consisting of multiple encoders and decoders from a central networked control unit
- Support encoding and decoding video and audio at bit rates adjustable from 150 Mbps to 900 Mbps
- Decoder shall be capable of preserving absolute changes to the video on a frame-by-frame basis up to 60 frames per second
- Support temporal compression applied on a sub-picture basis examining change that discriminates between luminance, chrominance as well as a threshold for signal or image noise
- Shall be rack mountable, one-half rack width, 1” (2.5 cm) high metal enclosure
- Approved device shall be the Extron NAV SD 511 (60-1958-08; no alternates or equals).
- Decode and scale video, audio, Ethernet, and USB 2.0, and shall:
把商品添加到购物车
Order Message Number
产品编号
注: 使用通用交流电源插座的 Extron 产品可支持多种不同的交流电源插头类型。在使用之前，确保设备满足您所在区域的所有规定要求，并符合所有应用的本地安全和电气规程及标准。
当前总计：
Annotation Graphics Processor
To view this page ensure that Adobe Flash Player version
11.0.0 or greater is installed and enabled.
Chrome
Firefox
Edge
Safari
