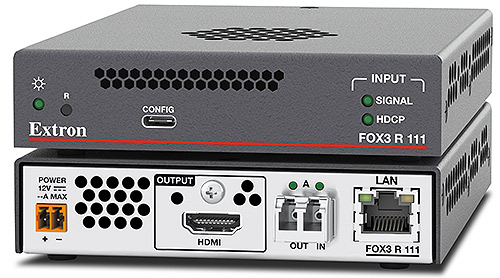

FOX3 R 111
建筑工程规范
选择一个产品编号：
复制文本
已复制！
发生错误。请稍后重试。
60-1957-41 - FOX3 R 111 MM - Lossless 4K/60 Receiver MM
- Shall provide a fiber optic receiver that support the distribution of HDMI video with embedded two-channel PCM audio
- Long distance signal extension of digital video with embedded stereo audio over multimode fiber optic cabling
- Video output requirements
- Shall provide one (1) female HDMI Type A connector for digital video signals with embedded audio
- Shall support the following HDMI 2.0 specification features:
- Shall support computer and video resolutions up to 4096x2160 @ 60 Hz with 4:4:4 chroma sampling
- Shall support data rates up to 18 Gbps – 6 Gbps per lane
- Shall support 10-bit color bit depth for resolutions up to 4K/60
- Embedded audio output requirements
- Shall provide one (1) female HDMI Type A connector – shared with video input
- Shall support PCM stereo audio formats
- Shall support HD lossless audio formats
- Control requirements
- Shall provide one (1) female USB-C port on front panel for setup and configuration
- Shall provide one (1) Ethernet port on rear panel for the following functionalities:
- Support setup and configuration
- Support control signals from a control system
- Interconnection requirements
- Shall provide interconnection between transmitter and receiver over multimode fiber optic cabling
- Shall provide two (2) LC-type fiber optic connectors for interconnection between transmitter and receiver
- Transmission requirements
- Shall support extension of video and audio signals over multimode fiber optic cabling
- Shall support transmission of mathematically lossless computer and video at resolutions up to 4096x2160 @ 60 Hz with 4:4:4 chroma sampling over one fiber
- Shall provide a fiber optic signal transmission distance capability of 500 m (1,640 feet) over OM4 laser optimized multimode fiber optic cabling
- Shall support an optical loss budget of at least 9.7 dB between transmitter and receiver
- HDCP requirements
- Shall be HDCP 2.3 compliant
- Shall include Extron Key Minder® technology to authenticate and maintain continuous HDCP encryption between the input and output devices to ensure quick and reliable switching
- Shall support human-readable visual confirmation of HDCP compliance when encrypted content is routed to a non-compliant display
- Power requirements
- Shall be equipped with an external, universal AC power supply capable of supporting 100 - 240 VAC, 50/60 Hz power
- General requirements
- Shall provide visual signal on LED indicators located on the front panel for HDMI video signal presence, HDCP authentication, and power
- Shall provide visual signal on LED indicators located on rear panel for fiber optic link status
- Shall have a compact 1” high, quarter rack width metal enclosure
- Shall be rack mountable with optional rack shelf
- Shall be furniture mountable with optional mounting kits
- Shall meet regulatory compliance
- CE, c-UL, UL
- CE, C-tick, FCC Class A, ICES, VCCI
- Appropriate requirements of RoHS, WEEE
- Shall provide at least three years parts and labor warranty
- Shall be compatible with Extron FOX3 Series fiber optic transmitters
- Shall be compatible with Extron FOX3 Series matrix switchers to create an HDCP-compliant signal distribution system up to 2000x2000 and larger
- Approved device shall be the Extron FOX3 R 111 MM (60-1957-41); no alternates or equals
60-1957-41 - FOX3 R 111 MM - Lossless 4K/60 Receiver MM
- Shall provide a fiber optic receiver that support the distribution of HDMI video with embedded two-channel PCM audio
- Long distance signal extension of digital video with embedded stereo audio over multimode fiber optic cabling
- Video output requirements
- Shall provide one (1) female HDMI Type A connector for digital video signals with embedded audio
- Shall support the following HDMI 2.0 specification features:
- Shall support computer and video resolutions up to 4096x2160 @ 60 Hz with 4:4:4 chroma sampling
- Shall support data rates up to 18 Gbps – 6 Gbps per lane
- Shall support 10-bit color bit depth for resolutions up to 4K/60
- Embedded audio output requirements
- Shall provide one (1) female HDMI Type A connector – shared with video input
- Shall support PCM stereo audio formats
- Shall support HD lossless audio formats
- Control requirements
- Shall provide one (1) female USB-C port on front panel for setup and configuration
- Shall provide one (1) Ethernet port on rear panel for the following functionalities:
- Support setup and configuration
- Support control signals from a control system
- Interconnection requirements
- Shall provide interconnection between transmitter and receiver over multimode fiber optic cabling
- Shall provide two (2) LC-type fiber optic connectors for interconnection between transmitter and receiver
- Transmission requirements
- Shall support extension of video and audio signals over multimode fiber optic cabling
- Shall support transmission of mathematically lossless computer and video at resolutions up to 4096x2160 @ 60 Hz with 4:4:4 chroma sampling over one fiber
- Shall provide a fiber optic signal transmission distance capability of 500 m (1,640 feet) over OM4 laser optimized multimode fiber optic cabling
- Shall support an optical loss budget of at least 9.7 dB between transmitter and receiver
- HDCP requirements
- Shall be HDCP 2.3 compliant
- Shall include Extron Key Minder® technology to authenticate and maintain continuous HDCP encryption between the input and output devices to ensure quick and reliable switching
- Shall support human-readable visual confirmation of HDCP compliance when encrypted content is routed to a non-compliant display
- Power requirements
- Shall be equipped with an external, universal AC power supply capable of supporting 100 - 240 VAC, 50/60 Hz power
- General requirements
- Shall provide visual signal on LED indicators located on the front panel for HDMI video signal presence, HDCP authentication, and power
- Shall provide visual signal on LED indicators located on rear panel for fiber optic link status
- Shall have a compact 1” high, quarter rack width metal enclosure
- Shall be rack mountable with optional rack shelf
- Shall be furniture mountable with optional mounting kits
- Shall meet regulatory compliance
- CE, c-UL, UL
- CE, C-tick, FCC Class A, ICES, VCCI
- Appropriate requirements of RoHS, WEEE
- Shall provide at least three years parts and labor warranty
- Shall be compatible with Extron FOX3 Series fiber optic transmitters
- Shall be compatible with Extron FOX3 Series matrix switchers to create an HDCP-compliant signal distribution system up to 2000x2000 and larger
- Approved device shall be the Extron FOX3 R 111 MM (60-1957-41); no alternates or equals
60-1957-42 - FOX3 R 111 SM - Lossless 4K/60 Receiver SM
- Shall provide a fiber optic receiver that support the distribution of HDMI video with embedded two-channel PCM audio
- Long distance signal extension of digital video with embedded stereo audio over singlemode fiber optic cabling
- Video output requirements
- Shall provide one (1) female HDMI Type A connector for digital video signals with embedded audio
- Shall support the following HDMI 2.0 specification features:
- Shall support computer and video resolutions up to 4096x2160 @ 60 Hz with 4:4:4 chroma sampling
- Shall support data rates up to 18 Gbps – 6 Gbps per lane
- Shall support 10-bit color bit depth for resolutions up to 4K/60
- Embedded audio output requirements
- Shall provide one (1) female HDMI Type A connector – shared with video input
- Shall support PCM stereo audio formats
- Control requirements
- Shall provide one (1) female USB-C port on front panel for setup and configuration
- Shall provide one (1) Ethernet port on rear panel for the following functionalities:
- Support setup and configuration
- Support control signals from a control system
- Interconnection requirements
- Shall provide interconnection between transmitter and receiver over singlemode fiber optic cabling
- Shall provide two (2) LC-type fiber optic connectors for interconnection between transmitter and receiver
- Transmission requirements
- Shall support extension of video and audio signals over singlemode fiber optic cabling
- Shall support transmission of mathematically lossless computer and video at resolutions up to 4096x2160 @ 60 Hz with 4:4:4 chroma sampling over one fiber
- Shall provide a fiber optic signal transmission distance capability of 20 km (12.4 miles) over singlemode fiber optic cabling
- Shall support an optical loss budget of at least 7.4 dB between transmitter and receiver
- HDCP requirements
- Shall be HDCP 2.3 compliant
- Shall include Extron Key Minder® technology to authenticate and maintain continuous HDCP encryption between the input and output devices to ensure quick and reliable switching
- Shall support human-readable visual confirmation of HDCP compliance when encrypted content is routed to a non-compliant display
- Power requirements
- Shall be equipped with an external, universal AC power supply capable of supporting 100 - 240 VAC, 50/60 Hz power
- General requirements
- Shall provide visual signal on LED indicators located on the front panel for HDMI video signal presence, HDCP authentication, and power
- Shall provide visual signal on LED indicators located on rear panel for fiber optic link status
- Shall have a compact 1” high, quarter rack width metal enclosure
- Shall be rack mountable with optional rack shelf
- Shall be furniture mountable with optional mounting kits
- Shall meet regulatory compliance
- CE, c-UL, UL
- CE, C-tick, FCC Class A, ICES, VCCI
- Appropriate requirements of RoHS, WEEE
- Shall provide at least three years parts and labor warranty
- Shall be compatible with Extron FOX3 Series fiber optic transmitters
- Shall be compatible with Extron FOX3 Series matrix switchers to create an HDCP-compliant signal distribution system up to 2000x2000 and larger
- Approved device shall be the Extron FOX3 R 111 SM (60-1957-42); no alternates or equals
60-1957-42 - FOX3 R 111 SM - Lossless 4K/60 Receiver SM
- Shall provide a fiber optic receiver that support the distribution of HDMI video with embedded two-channel PCM audio
- Long distance signal extension of digital video with embedded stereo audio over singlemode fiber optic cabling
- Video output requirements
- Shall provide one (1) female HDMI Type A connector for digital video signals with embedded audio
- Shall support the following HDMI 2.0 specification features:
- Shall support computer and video resolutions up to 4096x2160 @ 60 Hz with 4:4:4 chroma sampling
- Shall support data rates up to 18 Gbps – 6 Gbps per lane
- Shall support 10-bit color bit depth for resolutions up to 4K/60
- Embedded audio output requirements
- Shall provide one (1) female HDMI Type A connector – shared with video input
- Shall support PCM stereo audio formats
- Control requirements
- Shall provide one (1) female USB-C port on front panel for setup and configuration
- Shall provide one (1) Ethernet port on rear panel for the following functionalities:
- Support setup and configuration
- Support control signals from a control system
- Interconnection requirements
- Shall provide interconnection between transmitter and receiver over singlemode fiber optic cabling
- Shall provide two (2) LC-type fiber optic connectors for interconnection between transmitter and receiver
- Transmission requirements
- Shall support extension of video and audio signals over singlemode fiber optic cabling
- Shall support transmission of mathematically lossless computer and video at resolutions up to 4096x2160 @ 60 Hz with 4:4:4 chroma sampling over one fiber
- Shall provide a fiber optic signal transmission distance capability of 20 km (12.4 miles) over singlemode fiber optic cabling
- Shall support an optical loss budget of at least 7.4 dB between transmitter and receiver
- HDCP requirements
- Shall be HDCP 2.3 compliant
- Shall include Extron Key Minder® technology to authenticate and maintain continuous HDCP encryption between the input and output devices to ensure quick and reliable switching
- Shall support human-readable visual confirmation of HDCP compliance when encrypted content is routed to a non-compliant display
- Power requirements
- Shall be equipped with an external, universal AC power supply capable of supporting 100 - 240 VAC, 50/60 Hz power
- General requirements
- Shall provide visual signal on LED indicators located on the front panel for HDMI video signal presence, HDCP authentication, and power
- Shall provide visual signal on LED indicators located on rear panel for fiber optic link status
- Shall have a compact 1” high, quarter rack width metal enclosure
- Shall be rack mountable with optional rack shelf
- Shall be furniture mountable with optional mounting kits
- Shall meet regulatory compliance
- CE, c-UL, UL
- CE, C-tick, FCC Class A, ICES, VCCI
- Appropriate requirements of RoHS, WEEE
- Shall provide at least three years parts and labor warranty
- Shall be compatible with Extron FOX3 Series fiber optic transmitters
- Shall be compatible with Extron FOX3 Series matrix switchers to create an HDCP-compliant signal distribution system up to 2000x2000 and larger
- Approved device shall be the Extron FOX3 R 111 SM (60-1957-42); no alternates or equals
