MLC IR/RS-232

Communication Cable - Plenum

主要特性

Used to send IR and serial RS‑232 commands to a projector or display from a MediaLink^® or IP Link^® control system
Unterminated, dual 20 AWG shielded twisted pairs with drain wires for captive screw connectors to a 9-pin D female for RS‑232 projector or display control and a 20 AWG pigtail for use with an IR Emitter
Plenum, NEC CMP‑rated cable
所有特性

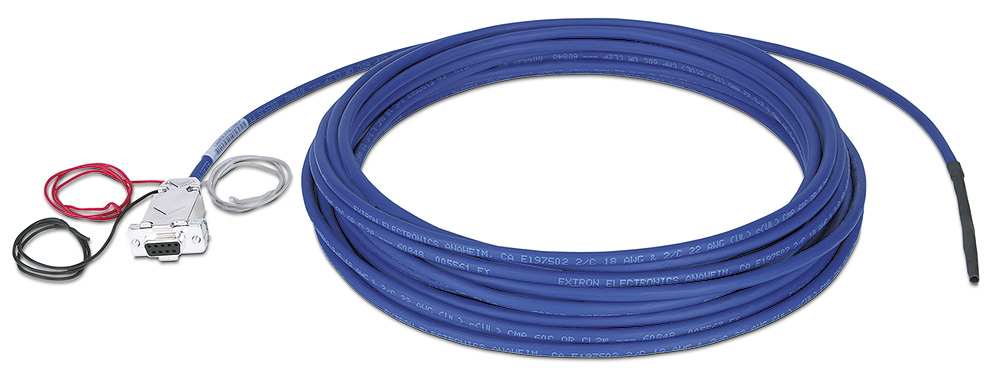

MLC IR/RS-232 P/50 - Comm Cable, 50’ (15.2m)

概述

Extron MLC IR/RS-232 cable is used to send IR and RS-232 commands to a projector or display from an MediaLink^® or IP Link^®control system. One end of the MLC IR/RS-232 interconnect cable features a 9-pin D Female for RS-232 control and a 20 AWG pigtail for use with an IR Emitter. The other end has unterminated dual 20 AWG shielded twisted pairs with two drain wires for simple termination to captive screw connectors. This time-saving and cost-effective cable assembly is available in a pre-cut length of 50' (15.2 m).
