DTP T UWP 4K 332 D
建筑工程规范
选择一个产品编号：
复制文本
已复制！
发生错误。请稍后重试。
DTP T UWP 4K 332 D
- Provide a two-input decorator-style wallplate twisted pair transmitter that shall support the long distance distribution of video, audio, and control over a shielded CATx cable
- Two-gang decorator-style wallplate transmitter for the transmission of HDMI, VGA, audio, and control
- Video input requirements
- Shall provide one (1) female HDMI Type-A input for digital video signals
- Supported HDMI specifications include data rates up to 10.2 Gbps, 3D, and HD lossless audio formats
- Shall provide one (1) female HD-15 input for VGA signals
- Digitize analog video input signals prior to transmission to the digital video output
- Support computer and video resolutions up to 4K
- Shall provide one (1) female HDMI Type-A input for digital video signals
- Switching requirements
- Shall provide automatic switching between input sources
- Automatically switch to the highest-numbered input with an active video signal when multiple inputs are active
- Shall support RS-232 control
- Shall support contact closure control
- Shall provide automatic switching between input sources
- Audio input requirements
- Shall support embedded digital audio on HDMI input
- Shall provide two (2) independent analog audio input connections for simultaneous transmission over the same shielded, twisted pair cable
- Shall allow the HDMI input to be set to pass the embedded digital audio, embed the analog audio, or to automatically embed the analog audio when no digital audio is detected
- Shall support embedding of the analog audio input signals on the digital video output signal and transport over DTP
- For 4K HDMI video input, only the original digital audio is switched through the DTP output
- Control input requirements
- Shall provide communication connections for AV device control
- One bidirectional RS-232 pass-through
- Shall be RS-232 controllable
- Shall support input switching via contact closure
- Shall provide communication connections for AV device control
- Interconnection requirements
- Shall provide one (1) female RJ-45 twisted pair connection
- Shall support interconnection between transmitter and receiver or DTP® 330-enabled products
- Transmission requirements
- Shall provide a signal transmission distance capability of 330 feet (100 meters) at 4096x2160 at 30 Hz or 2048x1080p at 60 Hz using a shielded CATx cable
- Shall support digital and analog video, audio, and control over a single, shielded CATx cable
- Shall support embedded HD lossless audio formats
- Shall support embedded analog audio
- Shall actively buffer DDC channels
- Resolution requirements
- Shall support computer and video resolutions up to 4096x2160 at 30 Hz and 2048x1080p at 60 Hz
- Shall support RGB and YCbCr color space formats
- Audio requirements
- Shall accept additional analog stereo audio signals
- Shall support multiple embedded audio formats
- Shall support embedding analog stereo audio signals onto the digital video output signal and transport over DTP
- Shall support embedded HD lossless audio formats
- EDID requirements
- Shall provide automatic EDID management between connected devices
- Provide user-selection of EDID from any connected display
- Provide user-selection of EDID from pre-stored data files
- Maintain continuous EDID communication with the connected source
- Shall provide automatic EDID management between connected devices
- HDCP requirements
- Shall be HDCP compliant
- Shall provide the option to disable HDCP processing at the HDMI input connection when passing unencrypted content
- Communication requirements
- Shall support bidirectional RS-232 communication pass-through up to 115200 baud
- Shall support EDID and HDCP transmission
- Power requirements
- Shall support remote power capability
- Shall support being locally powered
- Control/Configuration requirements
- Shall support auto-switching between inputs
- Shall support RS-232 control
- Shall support contact closure for input selection
- Shall support product configuration/setup through a product configuration software application connected via USB
- General requirements
- Shall be compatible with CATx shielded twisted pair cable, and Extron XTP DTP 24 shielded twisted pair cable
- Shall support the use of HDMI to DVI-D cables or adapters for DVI-D signals
- Shall mount in an included two-gang decorator-style wallplate
- Shall support installation into standard two-gang electrical junction boxes
- Shall provide visual indication for signal presence and power
- Shall meet regulatory compliances
- CE, c-UL, UL
- CE, C-tick, FCC Class A, ICES, VCCI
- Shall provide at least three (3) years parts and labor warranty
- Shall be compatible with other DTP 330-enabled products
- Approved device shall be the Extron DTP T UWP 4K 332 D (60-1755-52); no alternates or equals
DTP T UWP 4K 332 D
- Provide a two-input decorator-style wallplate twisted pair transmitter that shall support the long distance distribution of video, audio, and control over a shielded CATx cable
- Two-gang decorator-style wallplate transmitter for the transmission of HDMI, VGA, audio, and control
- Video input requirements
- Shall provide one (1) female HDMI Type-A input for digital video signals
- Supported HDMI specifications include data rates up to 10.2 Gbps, 3D, and HD lossless audio formats
- Shall provide one (1) female HD-15 input for VGA signals
- Digitize analog video input signals prior to transmission to the digital video output
- Support computer and video resolutions up to 4K
- Shall provide one (1) female HDMI Type-A input for digital video signals
- Switching requirements
- Shall provide automatic switching between input sources
- Automatically switch to the highest-numbered input with an active video signal when multiple inputs are active
- Shall support RS-232 control
- Shall support contact closure control
- Shall provide automatic switching between input sources
- Audio input requirements
- Shall support embedded digital audio on HDMI input
- Shall provide two (2) independent analog audio input connections for simultaneous transmission over the same shielded, twisted pair cable
- Shall allow the HDMI input to be set to pass the embedded digital audio, embed the analog audio, or to automatically embed the analog audio when no digital audio is detected
- Shall support embedding of the analog audio input signals on the digital video output signal and transport over DTP
- For 4K HDMI video input, only the original digital audio is switched through the DTP output
- Control input requirements
- Shall provide communication connections for AV device control
- One bidirectional RS-232 pass-through
- Shall be RS-232 controllable
- Shall support input switching via contact closure
- Shall provide communication connections for AV device control
- Interconnection requirements
- Shall provide one (1) female RJ-45 twisted pair connection
- Shall support interconnection between transmitter and receiver or DTP® 330-enabled products
- Transmission requirements
- Shall provide a signal transmission distance capability of 330 feet (100 meters) at 4096x2160 at 30 Hz or 2048x1080p at 60 Hz using a shielded CATx cable
- Shall support digital and analog video, audio, and control over a single, shielded CATx cable
- Shall support embedded HD lossless audio formats
- Shall support embedded analog audio
- Shall actively buffer DDC channels
- Resolution requirements
- Shall support computer and video resolutions up to 4096x2160 at 30 Hz and 2048x1080p at 60 Hz
- Shall support RGB and YCbCr color space formats
- Audio requirements
- Shall accept additional analog stereo audio signals
- Shall support multiple embedded audio formats
- Shall support embedding analog stereo audio signals onto the digital video output signal and transport over DTP
- Shall support embedded HD lossless audio formats
- EDID requirements
- Shall provide automatic EDID management between connected devices
- Provide user-selection of EDID from any connected display
- Provide user-selection of EDID from pre-stored data files
- Maintain continuous EDID communication with the connected source
- Shall provide automatic EDID management between connected devices
- HDCP requirements
- Shall be HDCP compliant
- Shall provide the option to disable HDCP processing at the HDMI input connection when passing unencrypted content
- Communication requirements
- Shall support bidirectional RS-232 communication pass-through up to 115200 baud
- Shall support EDID and HDCP transmission
- Power requirements
- Shall support remote power capability
- Shall support being locally powered
- Control/Configuration requirements
- Shall support auto-switching between inputs
- Shall support RS-232 control
- Shall support contact closure for input selection
- Shall support product configuration/setup through a product configuration software application connected via USB
- General requirements
- Shall be compatible with CATx shielded twisted pair cable, and Extron XTP DTP 24 shielded twisted pair cable
- Shall support the use of HDMI to DVI-D cables or adapters for DVI-D signals
- Shall mount in an included two-gang decorator-style wallplate
- Shall support installation into standard two-gang electrical junction boxes
- Shall provide visual indication for signal presence and power
- Shall meet regulatory compliances
- CE, c-UL, UL
- CE, C-tick, FCC Class A, ICES, VCCI
- Shall provide at least three (3) years parts and labor warranty
- Shall be compatible with other DTP 330-enabled products
- Approved device shall be the Extron DTP T UWP 4K 332 D (60-1755-52); no alternates or equals
DTP T UWP 4K 332 D
- Provide a two-input decorator-style wallplate twisted pair transmitter that shall support the long distance distribution of video, audio, and control over a shielded CATx cable
- Two-gang decorator-style wallplate transmitter for the transmission of HDMI, VGA, audio, and control
- Video input requirements
- Shall provide one (1) female HDMI Type-A input for digital video signals
- Supported HDMI specifications include data rates up to 10.2 Gbps, 3D, and HD lossless audio formats
- Shall provide one (1) female HD-15 input for VGA signals
- Digitize analog video input signals prior to transmission to the digital video output
- Support computer and video resolutions up to 4K
- Shall provide one (1) female HDMI Type-A input for digital video signals
- Switching requirements
- Shall provide automatic switching between input sources
- Automatically switch to the highest-numbered input with an active video signal when multiple inputs are active
- Shall support RS-232 control
- Shall support contact closure control
- Shall provide automatic switching between input sources
- Audio input requirements
- Shall support embedded digital audio on HDMI input
- Shall provide two (2) independent analog audio input connections for simultaneous transmission over the same shielded, twisted pair cable
- Shall allow the HDMI input to be set to pass the embedded digital audio, embed the analog audio, or to automatically embed the analog audio when no digital audio is detected
- Shall support embedding of the analog audio input signals on the digital video output signal and transport over DTP
- For 4K HDMI video input, only the original digital audio is switched through the DTP output
- Control input requirements
- Shall provide communication connections for AV device control
- One bidirectional RS-232 pass-through
- Shall be RS-232 controllable
- Shall support input switching via contact closure
- Shall provide communication connections for AV device control
- Interconnection requirements
- Shall provide one (1) female RJ-45 twisted pair connection
- Shall support interconnection between transmitter and receiver or DTP® 330-enabled products
- Transmission requirements
- Shall provide a signal transmission distance capability of 330 feet (100 meters) at 4096x2160 at 30 Hz or 2048x1080p at 60 Hz using a shielded CATx cable
- Shall support digital and analog video, audio, and control over a single, shielded CATx cable
- Shall support embedded HD lossless audio formats
- Shall support embedded analog audio
- Shall actively buffer DDC channels
- Resolution requirements
- Shall support computer and video resolutions up to 4096x2160 at 30 Hz and 2048x1080p at 60 Hz
- Shall support RGB and YCbCr color space formats
- Audio requirements
- Shall accept additional analog stereo audio signals
- Shall support multiple embedded audio formats
- Shall support embedding analog stereo audio signals onto the digital video output signal and transport over DTP
- Shall support embedded HD lossless audio formats
- EDID requirements
- Shall provide automatic EDID management between connected devices
- Provide user-selection of EDID from any connected display
- Provide user-selection of EDID from pre-stored data files
- Maintain continuous EDID communication with the connected source
- Shall provide automatic EDID management between connected devices
- HDCP requirements
- Shall be HDCP compliant
- Shall provide the option to disable HDCP processing at the HDMI input connection when passing unencrypted content
- Communication requirements
- Shall support bidirectional RS-232 communication pass-through up to 115200 baud
- Shall support EDID and HDCP transmission
- Power requirements
- Shall support remote power capability
- Shall support being locally powered
- Control/Configuration requirements
- Shall support auto-switching between inputs
- Shall support RS-232 control
- Shall support contact closure for input selection
- Shall support product configuration/setup through a product configuration software application connected via USB
- General requirements
- Shall be compatible with CATx shielded twisted pair cable, and Extron XTP DTP 24 shielded twisted pair cable
- Shall support the use of HDMI to DVI-D cables or adapters for DVI-D signals
- Shall mount in an included two-gang decorator-style wallplate
- Shall support installation into standard two-gang electrical junction boxes
- Shall provide visual indication for signal presence and power
- Shall meet regulatory compliances
- CE, c-UL, UL
- CE, C-tick, FCC Class A, ICES, VCCI
- Shall provide at least three (3) years parts and labor warranty
- Shall be compatible with other DTP 330-enabled products
- Approved device shall be the Extron DTP T UWP 4K 332 D (60-1755-53); no alternates or equals

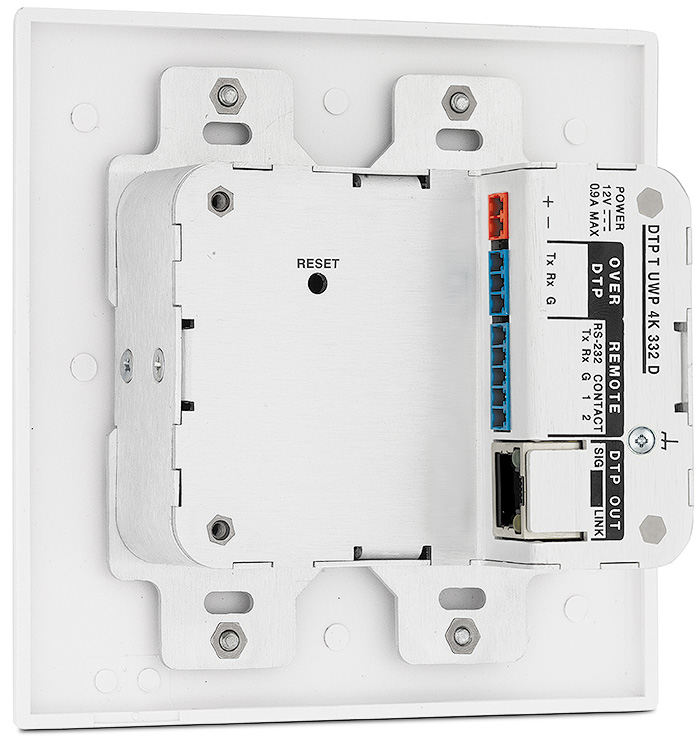

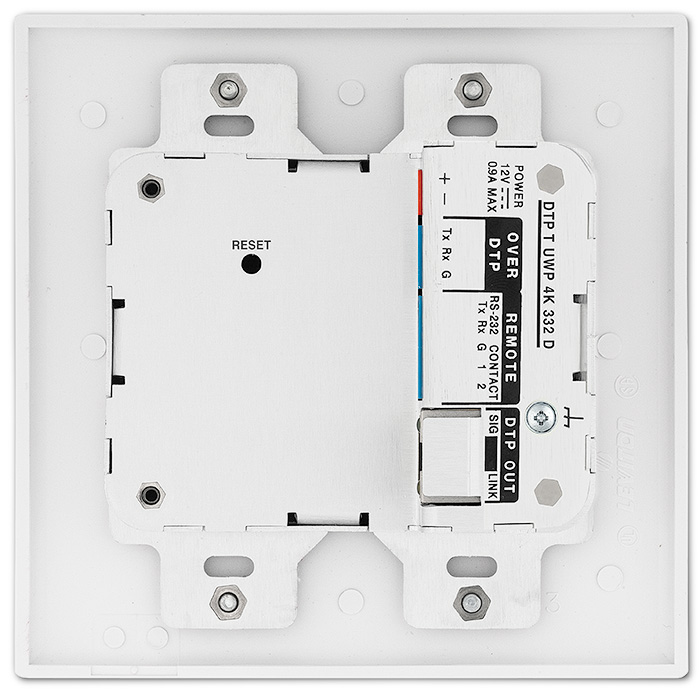

DTP T UWP 4K 332 D
- Provide a two-input decorator-style wallplate twisted pair transmitter that shall support the long distance distribution of video, audio, and control over a shielded CATx cable
- Two-gang decorator-style wallplate transmitter for the transmission of HDMI, VGA, audio, and control
- Video input requirements
- Shall provide one (1) female HDMI Type-A input for digital video signals
- Supported HDMI specifications include data rates up to 10.2 Gbps, 3D, and HD lossless audio formats
- Shall provide one (1) female HD-15 input for VGA signals
- Digitize analog video input signals prior to transmission to the digital video output
- Support computer and video resolutions up to 4K
- Shall provide one (1) female HDMI Type-A input for digital video signals
- Switching requirements
- Shall provide automatic switching between input sources
- Automatically switch to the highest-numbered input with an active video signal when multiple inputs are active
- Shall support RS-232 control
- Shall support contact closure control
- Shall provide automatic switching between input sources
- Audio input requirements
- Shall support embedded digital audio on HDMI input
- Shall provide two (2) independent analog audio input connections for simultaneous transmission over the same shielded, twisted pair cable
- Shall allow the HDMI input to be set to pass the embedded digital audio, embed the analog audio, or to automatically embed the analog audio when no digital audio is detected
- Shall support embedding of the analog audio input signals on the digital video output signal and transport over DTP
- For 4K HDMI video input, only the original digital audio is switched through the DTP output
- Control input requirements
- Shall provide communication connections for AV device control
- One bidirectional RS-232 pass-through
- Shall be RS-232 controllable
- Shall support input switching via contact closure
- Shall provide communication connections for AV device control
- Interconnection requirements
- Shall provide one (1) female RJ-45 twisted pair connection
- Shall support interconnection between transmitter and receiver or DTP® 330-enabled products
- Transmission requirements
- Shall provide a signal transmission distance capability of 330 feet (100 meters) at 4096x2160 at 30 Hz or 2048x1080p at 60 Hz using a shielded CATx cable
- Shall support digital and analog video, audio, and control over a single, shielded CATx cable
- Shall support embedded HD lossless audio formats
- Shall support embedded analog audio
- Shall actively buffer DDC channels
- Resolution requirements
- Shall support computer and video resolutions up to 4096x2160 at 30 Hz and 2048x1080p at 60 Hz
- Shall support RGB and YCbCr color space formats
- Audio requirements
- Shall accept additional analog stereo audio signals
- Shall support multiple embedded audio formats
- Shall support embedding analog stereo audio signals onto the digital video output signal and transport over DTP
- Shall support embedded HD lossless audio formats
- EDID requirements
- Shall provide automatic EDID management between connected devices
- Provide user-selection of EDID from any connected display
- Provide user-selection of EDID from pre-stored data files
- Maintain continuous EDID communication with the connected source
- Shall provide automatic EDID management between connected devices
- HDCP requirements
- Shall be HDCP compliant
- Shall provide the option to disable HDCP processing at the HDMI input connection when passing unencrypted content
- Communication requirements
- Shall support bidirectional RS-232 communication pass-through up to 115200 baud
- Shall support EDID and HDCP transmission
- Power requirements
- Shall support remote power capability
- Shall support being locally powered
- Control/Configuration requirements
- Shall support auto-switching between inputs
- Shall support RS-232 control
- Shall support contact closure for input selection
- Shall support product configuration/setup through a product configuration software application connected via USB
- General requirements
- Shall be compatible with CATx shielded twisted pair cable, and Extron XTP DTP 24 shielded twisted pair cable
- Shall support the use of HDMI to DVI-D cables or adapters for DVI-D signals
- Shall mount in an included two-gang decorator-style wallplate
- Shall support installation into standard two-gang electrical junction boxes
- Shall provide visual indication for signal presence and power
- Shall meet regulatory compliances
- CE, c-UL, UL
- CE, C-tick, FCC Class A, ICES, VCCI
- Shall provide at least three (3) years parts and labor warranty
- Shall be compatible with other DTP 330-enabled products
- Approved device shall be the Extron DTP T UWP 4K 332 D (60-1755-53); no alternates or equals
把商品添加到购物车
Order Message Number
产品编号
注: 使用通用交流电源插座的 Extron 产品可支持多种不同的交流电源插头类型。在使用之前，确保设备满足您所在区域的所有规定要求，并符合所有应用的本地安全和电气规程及标准。
当前总计：
Annotation Graphics Processor
To view this page ensure that Adobe Flash Player version
11.0.0 or greater is installed and enabled.
Chrome
Firefox
Edge
Safari
