MLC 62 RS EU
- Provide a 55 mm x 55 mm button panel controller with an included adapter frame that mounts in a standard single size European electrical junction box with 60 mm mounting centers as well as Extron Flex55 wall frames and enclosures for the purpose for switching and control of AV equipment
- Mountable button panel controller for AV and control systems
- Device shall have a total of eight fully configurable soft touch LED backlit buttons, four dedicated for input selection, two dedicated for volume control and the remaining two dedicated for power control arranged in a logical order
- Buttons shall illuminate white when active and should have the ability to flash
- Input source buttons shall be able to be configured for either a single or dual function setup by simply swapping out the bezel and buttons with an included bezel kit
- Button text shall be able to be customized by selected from pre-packaged kits or may be ordered individually
- Device shall have five LEDs, arranged horizontally located just above the volume buttons that shall provide visual feedback of the volume level in a system
- Device shall support the creation of IR drivers by capturing IR commands from handheld remotes. IR receiver shall be located on the left side of the controller

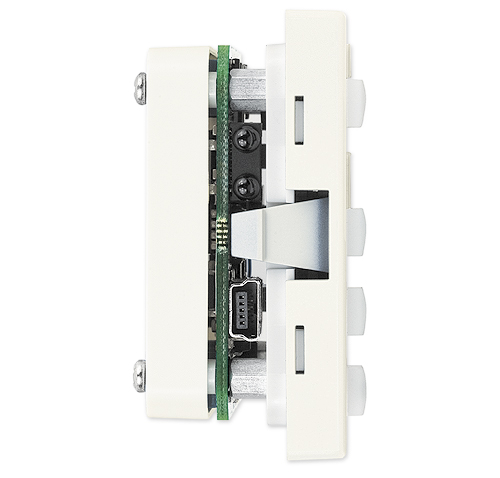

- Device shall feature a mini female USB B Port that shall be located on the left side of the controller that shall allow for device configuration

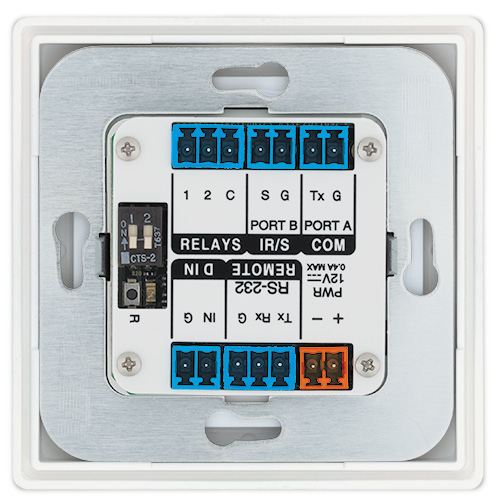

- Device shall feature a host port on captive screw connectors located on the back of the panel that shall allow for device configuration
- Device shall support one digital input on captive screw connector located on the back of the controller that can be used to interface with devices such as sensors, switches, and relays
- Device shall have two normally open low voltage relays on captive screw connectors that can be configured to control lighting, screen control or other device functions
- Device shall have one configurable IR/Serial port on captive screw connector located on the back of the controller. This port shall allow the transmission of IR signals (using an IR emitter) or unidirectional RS-232 communications for control of AV system components
- Device shall have a configurable unidirectional RS-232 port on captive screw connector located on the back of the panel for universal display control
- Device shall have a 12-volt captive screw connection located on the back of the panel that will be used to power the panel using an included universal power supply
- Device shall provide audible feedback from the built-in speaker by beeping when a button is pressed
- Device shall be Section 508 Compliant and shall meet or exceed accessibility standards for Electronic Information Technology

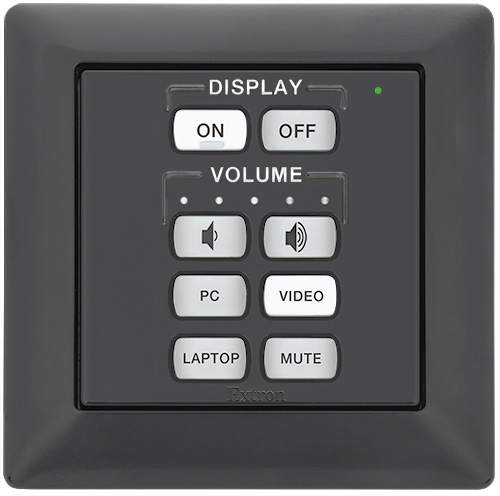

- Device shall include black face plate that mounts into a 1 gang EU junction box

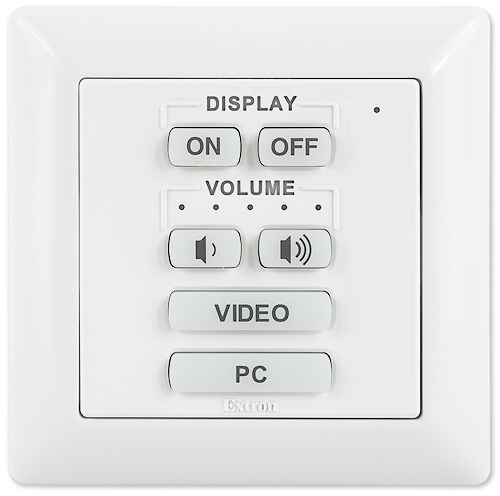

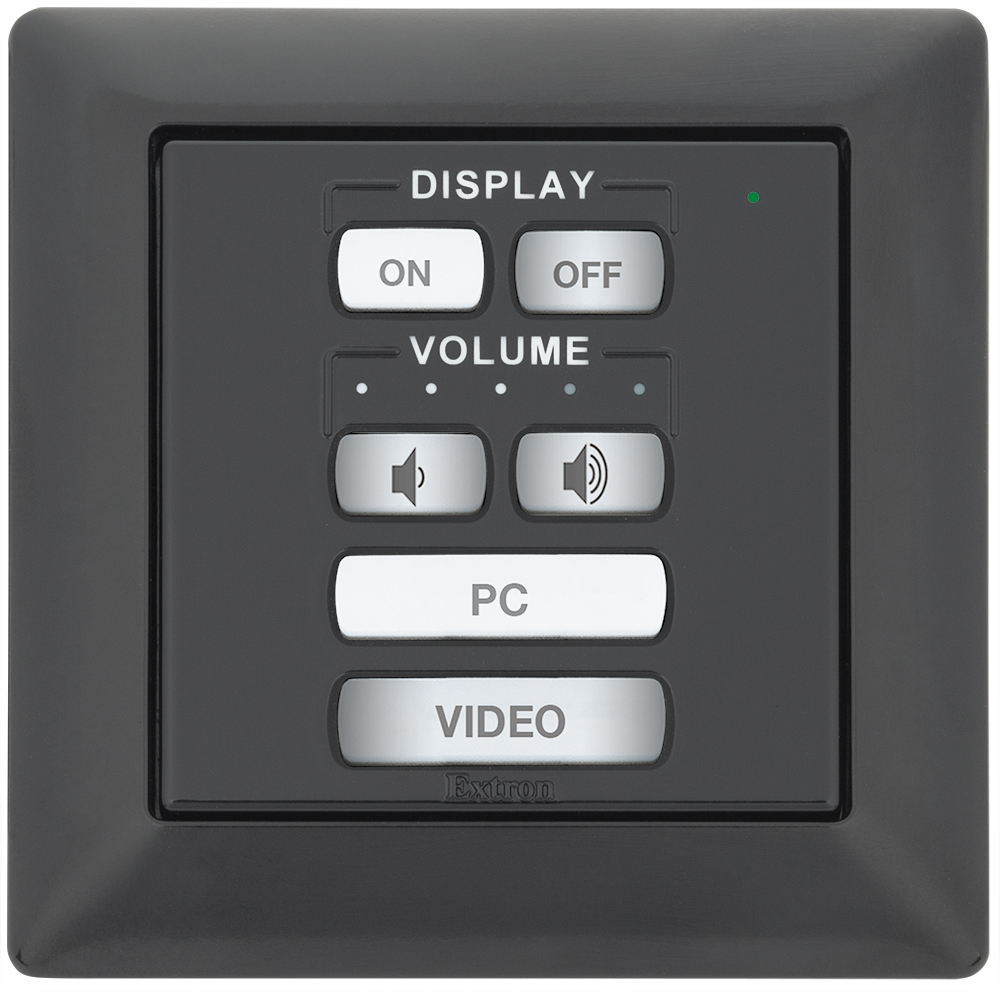

- Device shall ship with an optional six button bezel kit and additional buttons listed below:
- ON/OFF
- Volume up/Volume down represented by speaker symbols
- PC/VIDEO
- HDMI/VGA
- LAPTOP/MUTE
- HDMI 1/HDMI 2
- PC
- VIDEO
- HDMI
- Two buttons with no text
- Device shall have a total of eight fully configurable soft touch LED backlit buttons, four dedicated for input selection, two dedicated for volume control and the remaining two dedicated for power control arranged in a logical order
- Mounting requirements
- Device shall have the ability to be mounted directly in a wall, lectern, or other flat surface
- Device shall be able to mount in a standard single gang EU electrical junction box with 60 mm mounting centers with an included adapter frame.

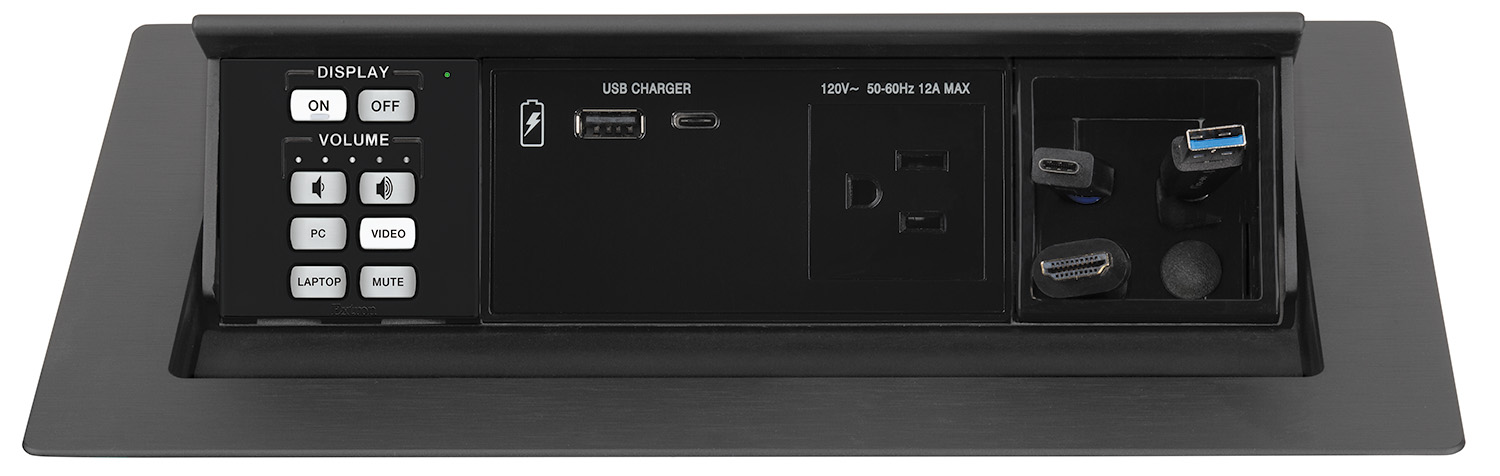

- Device shall be compatible with Flex55 mounting systems.
- Software requirements
- Device shall be configured using MLC 55, 62 and 64 Series Configuration software
- Shall meet regulatory compliances
- CE
- c-UL
- UL
- C-Tick
- FCC Class A
- ICES
- VCCI Class A
- Product Warranty
- Shall provide at least 3 years parts and labor
- Approved device shall be the Extron MLC 62 RS EU, part number 60-1005-32; no alternates or equals
- Mountable button panel controller for AV and control systems
MLC 62 RS EU
- Provide a 55 mm x 55 mm button panel controller with an included adapter frame that mounts in a standard single size European electrical junction box with 60 mm mounting centers as well as Extron Flex55 wall frames and enclosures for the purpose for switching and control of AV equipment
- Mountable button panel controller for AV and control systems
- Device shall have a total of eight fully configurable soft touch LED backlit buttons, four dedicated for input selection, two dedicated for volume control and the remaining two dedicated for power control arranged in a logical order
- Buttons shall illuminate white when active and should have the ability to flash
- Input source buttons shall be able to be configured for either a single or dual function setup by simply swapping out the bezel and buttons with an included bezel kit
- Button text shall be able to be customized by selected from pre-packaged kits or may be ordered individually
- Device shall have five LEDs, arranged horizontally located just above the volume buttons that shall provide visual feedback of the volume level in a system
- Device shall support the creation of IR drivers by capturing IR commands from handheld remotes. IR receiver shall be located on the left side of the controller
- Device shall feature a mini female USB B Port that shall be located on the left side of the controller that shall allow for device configuration
- Device shall feature a host port on captive screw connectors located on the back of the panel that shall allow for device configuration
- Device shall support one digital input on captive screw connector located on the back of the controller that can be used to interface with devices such as sensors, switches, and relays
- Device shall have two normally open low voltage relays on captive screw connectors that can be configured to control lighting, screen control or other device functions
- Device shall have one configurable IR/Serial port on captive screw connector located on the back of the controller. This port shall allow the transmission of IR signals (using an IR emitter) or unidirectional RS-232 communications for control of AV system components
- Device shall have a configurable unidirectional RS-232 port on captive screw connector located on the back of the panel for universal display control
- Device shall have a 12-volt captive screw connection located on the back of the panel that will be used to power the panel using an included universal power supply
- Device shall provide audible feedback from the built-in speaker by beeping when a button is pressed
- Device shall be Section 508 Compliant and shall meet or exceed accessibility standards for Electronic Information Technology
- Device shall include black face plate that mounts into a 1 gang EU junction box
- Device shall ship with an optional six button bezel kit and additional buttons listed below:
- ON/OFF
- Volume up/Volume down represented by speaker symbols
- PC/VIDEO
- HDMI/VGA
- LAPTOP/MUTE
- HDMI 1/HDMI 2
- PC
- VIDEO
- HDMI
- Two buttons with no text
- Device shall have a total of eight fully configurable soft touch LED backlit buttons, four dedicated for input selection, two dedicated for volume control and the remaining two dedicated for power control arranged in a logical order
- Mounting requirements
- Device shall have the ability to be mounted directly in a wall, lectern, or other flat surface
- Device shall be able to mount in a standard single gang EU electrical junction box with 60 mm mounting centers with an included adapter frame.
- Device shall be compatible with Flex55 mounting systems.
- Software requirements
- Device shall be configured using MLC 55, 62 and 64 Series Configuration software
- Shall meet regulatory compliances
- CE
- c-UL
- UL
- C-Tick
- FCC Class A
- ICES
- VCCI Class A
- Product Warranty
- Shall provide at least 3 years parts and labor
- Approved device shall be the Extron MLC 62 RS EU, part number 60-1005-32; no alternates or equals
- Mountable button panel controller for AV and control systems
MLC 62 RS EU
- Provide a 55 mm x 55 mm button panel controller with an included adapter frame that mounts in a standard single size European electrical junction box with 60 mm mounting centers as well as Extron Flex55 wall frames and enclosures for the purpose for switching and control of AV equipment
- Mountable button panel controller for AV and control systems
- Device shall have a total of eight fully configurable soft touch LED backlit buttons, four dedicated for input selection, two dedicated for volume control and the remaining two dedicated for power control arranged in a logical order
- Buttons shall illuminate white when active and should have the ability to flash
- Input source buttons shall be able to be configured for either a single or dual function setup by simply swapping out the bezel and buttons with an included bezel kit
- Button text shall be able to be customized by selected from pre-packaged kits or may be ordered individually
- Device shall have five LEDs, arranged horizontally located just above the volume buttons that shall provide visual feedback of the volume level in a system
- Device shall support the creation of IR drivers by capturing IR commands from handheld remotes. IR receiver shall be located on the left side of the controller
- Device shall feature a mini female USB B Port that shall be located on the left side of the controller that shall allow for device configuration
- Device shall feature a host port on captive screw connectors located on the back of the panel that shall allow for device configuration
- Device shall support one digital input on captive screw connector located on the back of the controller that can be used to interface with devices such as sensors, switches, and relays
- Device shall have two normally open low voltage relays on captive screw connectors that can be configured to control lighting, screen control or other device functions
- Device shall have one configurable IR/Serial port on captive screw connector located on the back of the controller. This port shall allow the transmission of IR signals (using an IR emitter) or unidirectional RS-232 communications for control of AV system components
- Device shall have a configurable unidirectional RS-232 port on captive screw connector located on the back of the panel for universal display control
- Device shall have a 12-volt captive screw connection located on the back of the panel that will be used to power the panel using an included universal power supply
- Device shall provide audible feedback from the built-in speaker by beeping when a button is pressed
- Device shall be Section 508 Compliant and shall meet or exceed accessibility standards for Electronic Information Technology

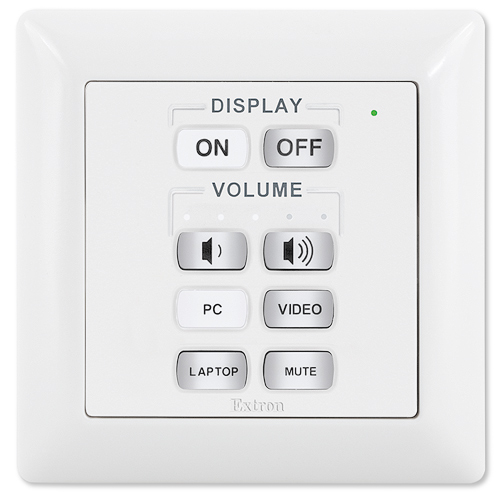

- Device shall include white face plate that mounts into a 1 gang EU junction box
- Device shall ship with an optional six button bezel kit and additional buttons listed below:
- ON/OFF
- Volume up/Volume down represented by speaker symbols
- PC/VIDEO
- HDMI/VGA
- LAPTOP/MUTE
- HDMI 1/HDMI 2
- PC
- VIDEO
- HDMI
- Two buttons with no text
- Device shall have a total of eight fully configurable soft touch LED backlit buttons, four dedicated for input selection, two dedicated for volume control and the remaining two dedicated for power control arranged in a logical order
- Mounting requirements
- Device shall have the ability to be mounted directly in a wall, lectern, or other flat surface
- Device shall be able to mount in a standard single gang EU electrical junction box with 60 mm mounting centers with an included adapter frame.
- Device shall be compatible with Flex55 mounting systems.
- Software requirements
- Device shall be configured using MLC 55, 62 and 64 Series Configuration software
- Shall meet regulatory compliances
- CE
- c-UL
- UL
- C-Tick
- FCC Class A
- ICES
- VCCI Class A
- Product Warranty
- Shall provide at least 3 years parts and labor
- Approved device shall be the Extron MLC 62 RS EU, part number 60-1005-35; no alternates or equals
- Mountable button panel controller for AV and control systems
MLC 62 RS EU
- Provide a 55 mm x 55 mm button panel controller with an included adapter frame that mounts in a standard single size European electrical junction box with 60 mm mounting centers as well as Extron Flex55 wall frames and enclosures for the purpose for switching and control of AV equipment
- Mountable button panel controller for AV and control systems
- Device shall have a total of eight fully configurable soft touch LED backlit buttons, four dedicated for input selection, two dedicated for volume control and the remaining two dedicated for power control arranged in a logical order
- Buttons shall illuminate white when active and should have the ability to flash
- Input source buttons shall be able to be configured for either a single or dual function setup by simply swapping out the bezel and buttons with an included bezel kit
- Button text shall be able to be customized by selected from pre-packaged kits or may be ordered individually
- Device shall have five LEDs, arranged horizontally located just above the volume buttons that shall provide visual feedback of the volume level in a system
- Device shall support the creation of IR drivers by capturing IR commands from handheld remotes. IR receiver shall be located on the left side of the controller
- Device shall feature a mini female USB B Port that shall be located on the left side of the controller that shall allow for device configuration
- Device shall feature a host port on captive screw connectors located on the back of the panel that shall allow for device configuration
- Device shall support one digital input on captive screw connector located on the back of the controller that can be used to interface with devices such as sensors, switches, and relays
- Device shall have two normally open low voltage relays on captive screw connectors that can be configured to control lighting, screen control or other device functions
- Device shall have one configurable IR/Serial port on captive screw connector located on the back of the controller. This port shall allow the transmission of IR signals (using an IR emitter) or unidirectional RS-232 communications for control of AV system components
- Device shall have a configurable unidirectional RS-232 port on captive screw connector located on the back of the panel for universal display control
- Device shall have a 12-volt captive screw connection located on the back of the panel that will be used to power the panel using an included universal power supply
- Device shall provide audible feedback from the built-in speaker by beeping when a button is pressed
- Device shall be Section 508 Compliant and shall meet or exceed accessibility standards for Electronic Information Technology
- Device shall include white face plate that mounts into a 1 gang EU junction box
- Device shall ship with an optional six button bezel kit and additional buttons listed below:
- ON/OFF
- Volume up/Volume down represented by speaker symbols
- PC/VIDEO
- HDMI/VGA
- LAPTOP/MUTE
- HDMI 1/HDMI 2
- PC
- VIDEO
- HDMI
- Two buttons with no text
- Device shall have a total of eight fully configurable soft touch LED backlit buttons, four dedicated for input selection, two dedicated for volume control and the remaining two dedicated for power control arranged in a logical order
- Mounting requirements
- Device shall have the ability to be mounted directly in a wall, lectern, or other flat surface
- Device shall be able to mount in a standard single gang EU electrical junction box with 60 mm mounting centers with an included adapter frame.
- Device shall be compatible with Flex55 mounting systems.
- Software requirements
- Device shall be configured using MLC 55, 62 and 64 Series Configuration software
- Shall meet regulatory compliances
- CE
- c-UL
- UL
- C-Tick
- FCC Class A
- ICES
- VCCI Class A
- Product Warranty
- Shall provide at least 3 years parts and labor
- Approved device shall be the Extron MLC 62 RS EU, part number 60-1005-35; no alternates or equals
- Mountable button panel controller for AV and control systems
