Extron and Audio-Technica

Integrated AV Control and DSP for Modern Workspaces

Extron is working with Audio-Technica to create easy to deploy Certified for Microsoft Teams audio solutions for modern workspaces. We provide control system and audio DSP resources that simplify the integration of Audio-Technica Dante microphone arrays and automatic camera tracking with Extron devices. Using an Extron DMP Plus series audio DSP processor or a DTP3 CrossPoint Presentation Matrix Switcher with integrated audio DSP connected to a Audio-Technica ATND1061 or Engineered Sound^® Wireless microphone, customers can create high quality sound systems that are easy to control and work reliably.

Technology Benefits

Dante network audio provides seamless connection between the microphone, an Extron DMP Plus series audio DSP or a DTP3 CrossPoint Presentation Matrix Switcher with integrated audio DSP, and the rest of the system.
Extron Dante-enabled devices provide studio quality audio:
- Extron audio DSP implements the latest technology to flawlessly connect, process and distribute Audio-Technica microphones to the rest of the system.
Certified GCP Drivers control mic output level, mute states, LED states, and other functions:
- Extron Certified control drivers have been created and tested with Audio-Technica.
- Audio-Technica provides Extron with advanced knowledge of upcoming firmware changes to make sure the integrator has the latest functional system possible.
- Integrated DSP Configurator Building Blocks for Audio-Technica ATND1061 and Engineered Sound Wireless microphones provide a streamlined setup process with a comprehensive set of processing and gain settings optimized for the Audio-Technica microphone.
- The Extron Control for Microsoft Teams Rooms software application adds environmental and AV system control to the full range of conferencing features provided by the Microsoft Teams Rooms application.

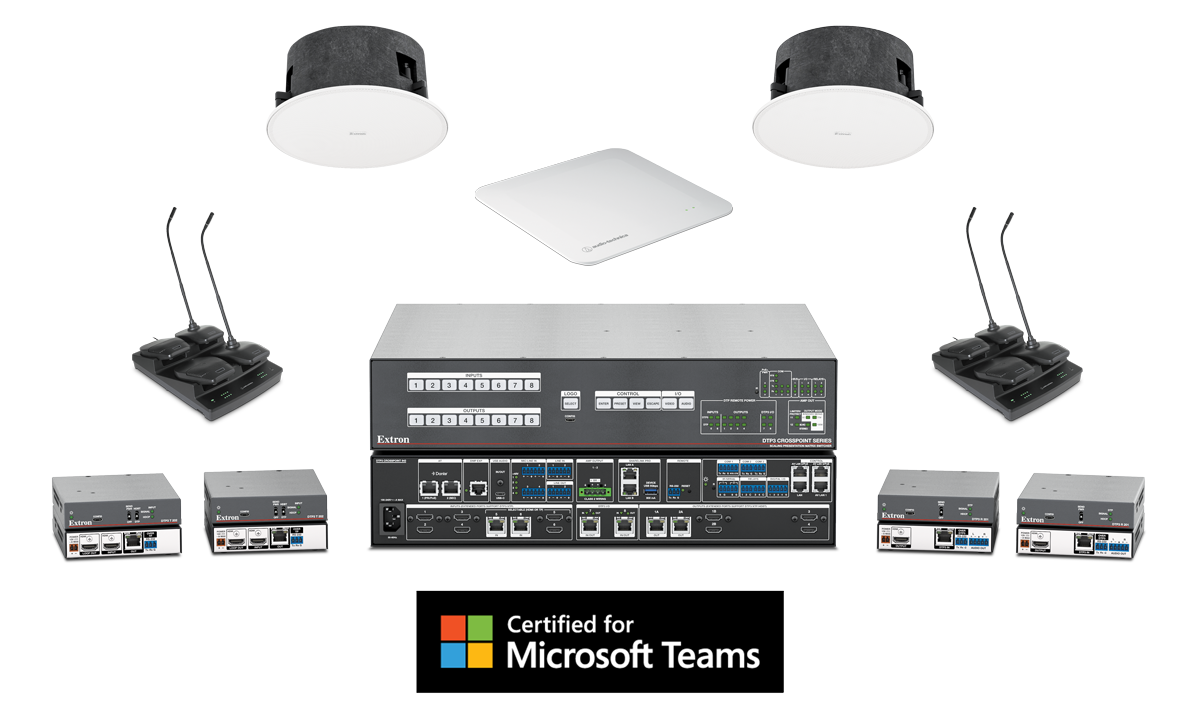

Audio-Technica and Extron Audio Equipment

Key Features

Dante network audio provides seamless connection between the microphone, an Extron audio DSP processor, and the rest of the system
Control the state and behaviors of ATND1061 and Engineered Sound Wireless microphone LEDs from the Extron control system
Automatic camera tracking for the ATND1061 and Engineered Sound Wireless microphones
Remote control of the microphone output level
Remote control of the microphone mute state
DSP system templates and building blocks simplify setup
Audio DSPs, Amplifiers, and Speakers Certified for Microsoft Teams Rooms

Audio-Technica Design Solutions

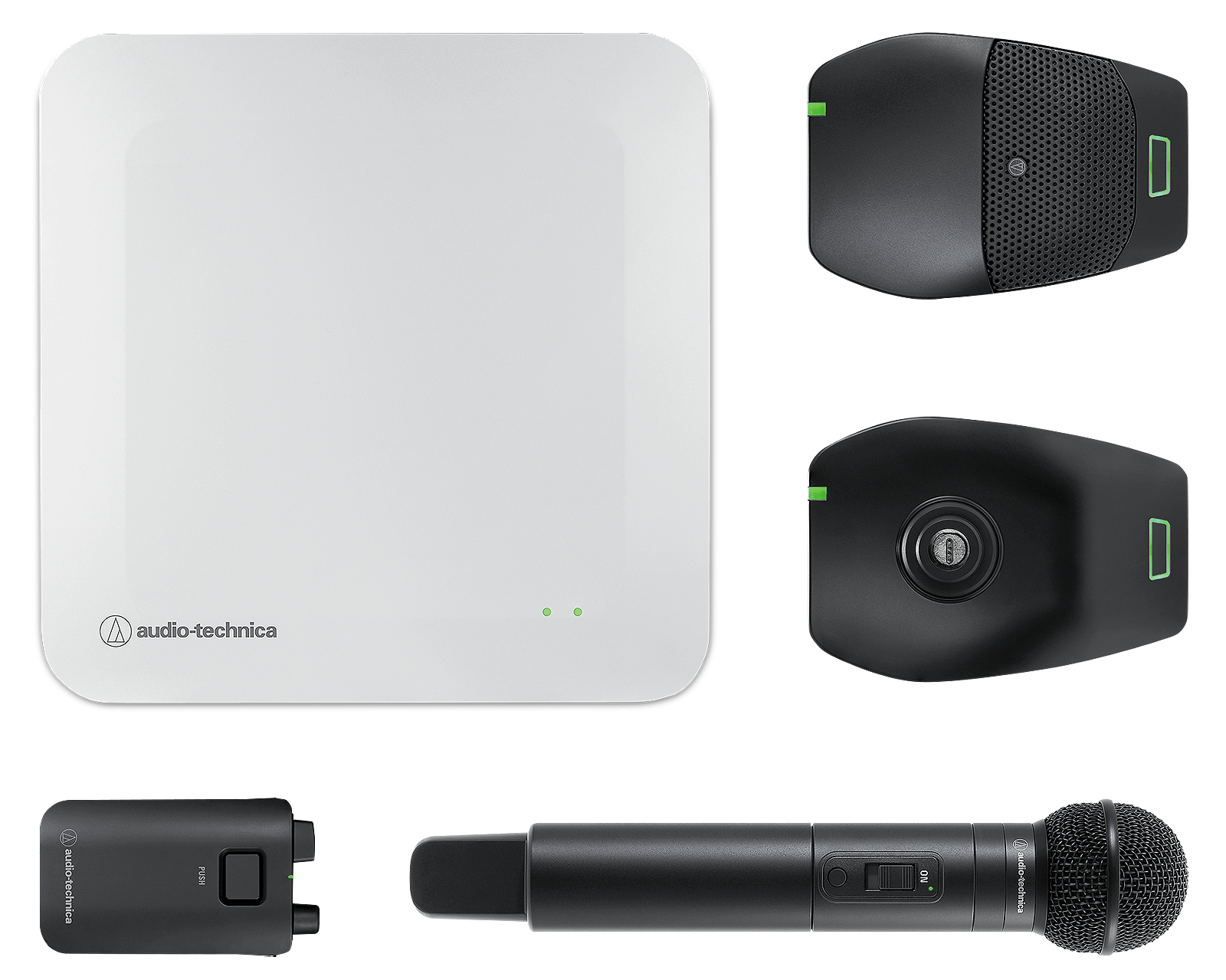

Audio-Technica ATND1061 and Engineered Sound Wireless

Learn more

Large Conference Room

Up to 15 People

Learn more

Extra Large Conference Room

Up to 18+ People

Learn more

Classroom or Training Room

Up to 18+ People

Large Conference Room

Space requirements

Large conference room accommodates up to 15 people and includes Microsoft Teams Rooms conferencing capabilities, enabling anyone in remote locations to participate in meetings. This system includes dual displays, an MTR Computer for Microsoft Teams Rooms conferencing, as well as a single camera. The room size requires an audio system with high intelligibility ceiling mounted speakers for even sound distribution, and ceiling mounted microphones for in-room participation.

Extron equipment list

DTP3 CrossPoint 884 IPCP A LL	4K/60 Presentation Matrix Switcher Configurable from 8x12 to 12x8	1
SF 26CT LP	6.5" Two-Way Ceiling Speakers, 70/100V, Pair	2
DTP3 T 202	4K/60 HDMI DTP3 Transmitter with Input Loop-Out	2
DTP3 R 201	4K/60 HDMI DTP3 Receiver with Audio De-Embedding	2
HDMI Ultra Series	Ultra Flexible Premium High Speed HDMI Cables - 9' (2.7 m)	4
MBU 125	Low-Profile Mount Kit for 1/4 and 1/2 Rack Width, Two-Piece Enclosures	4
XTP DTP 22 Series	Precision-terminated Shielded Twisted Pair Cables for XTP Systems and DTP Systems - 35' (10.6 m)	4
SPK14P/1000	14 AWG Plenum Speaker Cable - 150' (45.7 m)	1
USBC	USB C to USB C - 6' (1.8 m)	1
Network Cable	Cat-6 Plenum network cable - 35' (10.7 m)	1
Network Cable	Cat-6 Plenum network cable - 50' (15.2 m)	1
Network Cable	Cat-6 Non-Plenum network cable - 6' (1.8 m)	2

Audio-Technica equipment list

ATND1061	Beamforming Ceiling Array Microphone - Dante	1
ESW-R4180DAN	Engineered Sound Wireless Systems (ESW) 8ch Receiver (1.9 GHz) - Dante	1
ESW-T4102/C510	ESW Handheld Transmitter (1.9 GHz)	1
ESW-T4101	ESW Lavalier wireless microphone transmitter (1.9 GHz)	1
ESW-CHG4	Two-Bay Body-Pack and Handheld Charging Station	1

Network Switch

Network Switch	10 port PoE network switch	1

Additional Required Equipment

MTR Computer	Microsoft Teams Rooms Computer with Camera and Control interface	1

Capabilities

Connect the room with a Microsoft Teams Rooms meeting
Exceptional intelligibility with Extron AEC and the Audio Technica ATND1061 Ceiling microphone array and Engineered Sound Wireless Systems
Enterprise level routing flexibility and device compatibility with Dante AoIP
Clear audio playback

Downloads

Extra Large Conference Room

Space requirements

Extra Large conference room accommodates up to 18+ people and includes Microsoft Teams Rooms conferencing capabilities, enabling anyone in remote locations to participate in meetings. This system includes dual displays, an MTR Computer for Microsoft Teams Rooms conferencing, as well as a single camera. The room size requires an audio system with high intelligibility ceiling mounted speakers for even sound distribution, and ceiling mounted microphones for in-room participation.

Extron equipment list

DTP3 CrossPoint 884 IPCP A LL	4K/60 Presentation Matrix Switcher Configurable from 8x12 to 12x8	1
SF 26CT LP	6.5" Two-Way Ceiling Speakers, 70/100V, Pair	3
DTP3 T 202	4K/60 HDMI DTP3 Transmitter with Input Loop-Out	2
DTP3 R 201	4K/60 HDMI DTP3 Receiver with Audio De-Embedding	2
HDMI Ultra Series	Ultra Flexible Premium High Speed HDMI Cables - 9' (2.7 m)	4
MBU 125	Low-Profile Mount Kit for 1/4 and 1/2 Rack Width, Two-Piece Enclosures	4
XTP DTP 22 Series	Precision-terminated Shielded Twisted Pair Cables for XTP Systems and DTP Systems - 35' (10.6 m)	4
SPK14P/1000	14 AWG Plenum Speaker Cable - 150' (45.7 m)	1
USBC	USB C to USB C - 6' (1.8 m)	1
Network Cable	Cat-6 Plenum network cable - 35' (10.7 m)	2
Network Cable	Cat-6 Plenum network cable - 50' (15.2 m)	2
Network Cable	Cat-6 Non-Plenum network cable - 6' (1.8 m)	2

Audio-Technica equipment list

ATND1061	Beamforming Ceiling Array Microphone - Dante	2
ESW-R4180DAN	Engineered Sound Wireless Systems (ESW) 8ch Receiver (1.9 GHz) - Dante	1
ESW-T4102/C510	ESW Handheld Transmitter (1.9 GHz)	1
ESW-T4101	ESW Lavalier wireless microphone transmitter (1.9 GHz)	1
ESW-CHG4	Two-Bay Body-Pack and Handheld Charging Station	1

Network Switch

Network Switch	10 port PoE network switch	1

Additional Required Equipment

MTR Computer	Microsoft Teams Rooms Computer with Camera and Control interface	1

Capabilities

Connect the room with a Microsoft Teams Rooms meeting
Exceptional intelligibility with Extron AEC and the Audio Technica ATND1061 Ceiling microphone array and Engineered Sound Wireless Systems
Enterprise level routing flexibility and device compatibility with Dante AoIP
Clear audio playback

Extra Large Conference Room Audio Equipment

Downloads

Classroom or Training Room

Space requirements

Typical classrooms accommodate up to 18+ people and include Microsoft Teams Rooms conferencing capabilities for remote learning. This system includes dual displays, an MTR Computer for Microsoft Teams Rooms conferencing, as well as a single camera. The room size and use require an audio system with high intelligibility and even sound distribution from ceiling mounted speakers. Ceiling mounted microphones enable in-room student participation.

Extron equipment list

DTP3 CrossPoint 884 IPCP A LL	4K/60 Presentation Matrix Switcher Configurable from 8x12 to 12x8	1
SF 26CT LP	6.5" Two-Way Ceiling Speakers, 70/100V, Pair	3
DTP3 T 202	4K/60 HDMI DTP3 Transmitter with Input Loop-Out	2
DTP3 R 201	4K/60 HDMI DTP3 Receiver with Audio De-Embedding	2
HDMI Ultra Series	Ultra Flexible Premium High Speed HDMI Cables - 9' (2.7 m)	4
MBU 125	Low-Profile Mount Kit for 1/4 and 1/2 Rack Width, Two-Piece Enclosures	4
XTP DTP 22 Series	Precision-terminated Shielded Twisted Pair Cables for XTP Systems and DTP Systems - 35' (10.6 m)	4
SPK14P/1000	14 AWG Plenum Speaker Cable - 150' (45.7 m)	1
USBC	USB C to USB C - 6' (1.8 m)	1
Network Cable	Cat-6 Plenum network cable - 35' (10.7 m)	2
Network Cable	Cat-6 Plenum network cable - 50' (15.2 m)	2
Network Cable	Cat-6 Non-Plenum network cable - 6' (1.8 m)	2

Audio-Technica equipment list

ATND1061	Beamforming Ceiling Array Microphone - Dante	2
ESW-R4180DAN	Engineered Sound Wireless Systems (ESW) 8ch Receiver (1.9 GHz) - Dante	1
ESW-T4102/C510	ESW Handheld Transmitter (1.9 GHz)	1
ESW-T4101	ESW Lavalier wireless microphone transmitter (1.9 GHz)	1
ESW-CHG4	Two-Bay Body-Pack and Handheld Charging Station	1

Network Switch

Network Switch	10 port PoE network switch	1

Additional Required Equipment

MTR Computer	Microsoft Teams Rooms Computer with Camera and Control interface	1

Capabilities

Connect the room with a Microsoft Teams Rooms meeting
Exceptional intelligibility with Extron AEC and the Audio Technica ATND1061 Ceiling microphone array and Engineered Sound Wireless Systems
Enterprise level routing flexibility and device compatibility with Dante AoIP
Clear audio playback

Classroom or Training Room Audio Equipment

Downloads

DSP Templates

Find DSP Template Files

Get started with preconfigured DSP configuration files
