ACP 100

ACP 100

1. Provide a two-gang button panel for the purpose of remotely controlling, monitoring and troubleshooting connected DMP 128 Plus Digital Matrix Processors.
   1. Fully-configurable ACP button panel interface.

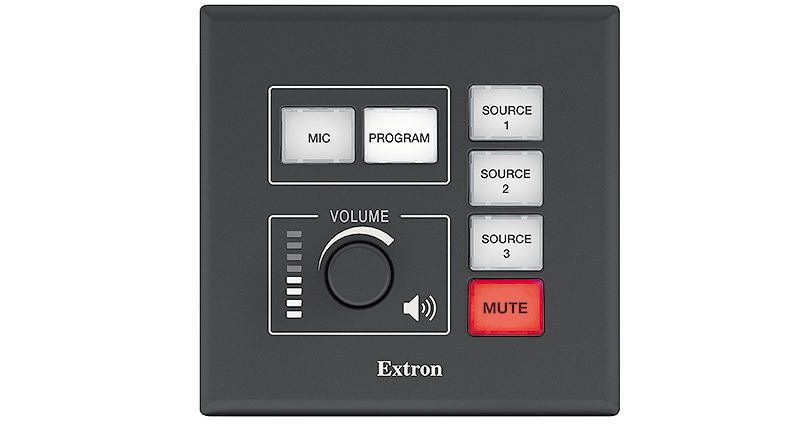

      1. Device shall have a total of six customizable dual color LED backlit buttons.
         1. Buttons shall illuminate white or red, depending on function, for ease of use in low-light environments.
         2. Buttons shall feature two levels of illumination, dim and bright
         3. Buttons shall feature removable button caps allowing them to be custom labeled for easy identification.
      2. Device shall provide a rotary encoder knob located in the bottom left of the panel that can be configured to control any Gain Group on the DMP 128 Plus Digital Matrix Processor.
      3. Device shall feature eight white LEDs arranged vertically located adjacent to the rotary encoder. When configured, these LEDs shall provide visual feedback to reflect the gain setting of the Gain Group associated with the rotary encoder.

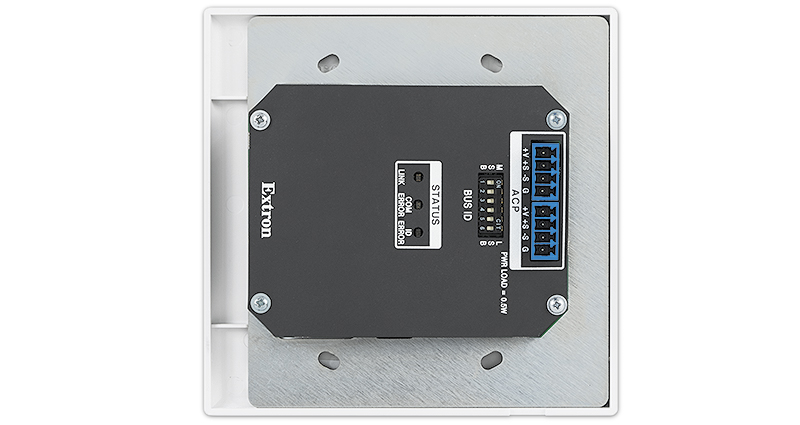

      4. Provides two ACP ports on the rear panel that accept 4-pole, 3.5mm captive screw connectors, for power and communication via the connection to a DMP 128 Plus Digital Matrix Processor.
         1. These ports are also used to add additional ACP panels in a Daisy Chain.
      5. Device shall feature a 6-pole dip switch for assigning a unique Bus ID to the button panel.
      6. Device shall include a reset button that resets the device back to original factory settings.
      7. Device shall feature a diagnostic status LED that will be used as a visual indication that the ACP panel is communicating properly with the DMP 128 Plus Digital Matrix Processor.
      8. Device shall be Section 508 compliant and shall meet or exceed U.S. accessibility standards for Electronic Information Technology.
      9. Device may be wired using a Daisy Chain topology.
         1. The cable length of a Daisy Chain may not exceed a sum total 1,000 feet.
      10. ACP supports up to eight panels per one DMP 128 Plus Digital Matrix Processor.
      11. ACP supports the following cabling types:
          1. Extron STP20-2 Cable
          2. CAT5e or CAT 6 cable, the cable must be 23 AWG solid copper wire.
      12. ACP supports power and communication over a single cable.
      13. Supports configuration and setup by Extron DSP Configurator Software.
   2. Mounting requirements
      1. Device shall have the ability to be mounted directly in a wall, lectern, or other flat surface and shall be able to be secured using the supplied mud ring and hardware.
      2. Device shall have the ability to be mounted to the surface of a wall using an optional wall box.

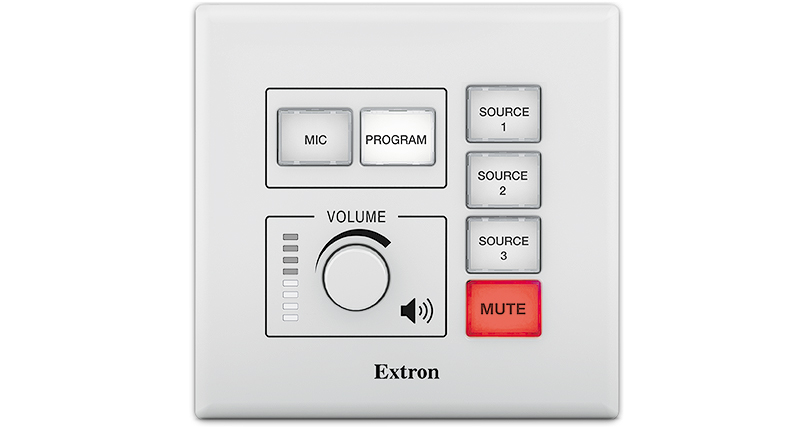

      3. Device shall include both white and black faceplates.
   3. Software requirements
      1. Device shall be configured using DSP Configurator:
         1. Buttons will support the following button actions:
            1. Group Mute On/Off
            2. Group Volume Up/Down
            3. Preset Recall/Toggle
            4. Macro Recall/Toggle
            5. Shall meet regulatory compliances
            6. CE
      2. c-UL
      3. C-tick
      4. FCC Class A
      5. ICES
      6. RoHS
      7. UL
      8. VCCI Class A
      9. WEEE
      10. Section 508 of the Rehabilitation Act (29 U.S.C. 964d)
   4. Product Warranty
      1. Shall provide 3 years parts and labor
   5. Approved device shall be the Extron ACP 100 part number 60-1643-03; no alternates or equals
