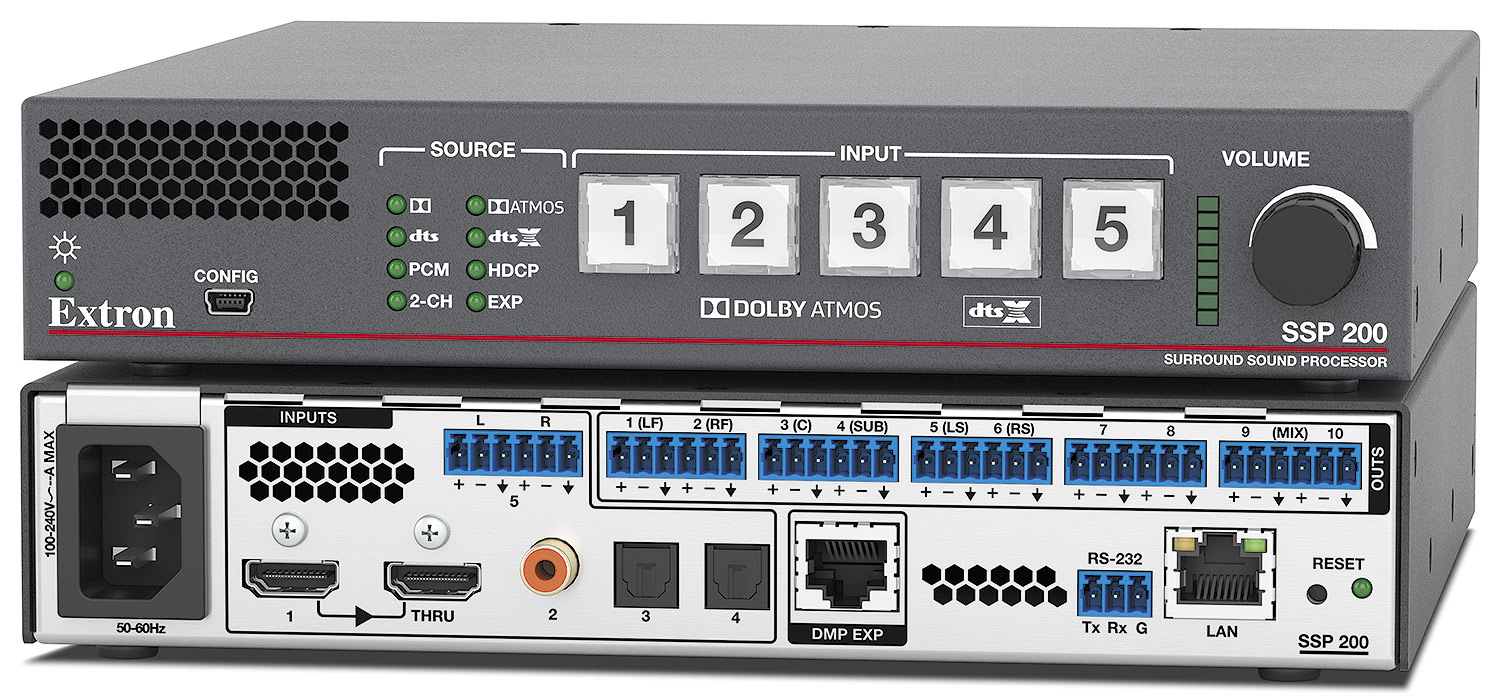

Provide a surround sound processor that shall support one HDMI input, one HDMI loop through, three digital audio inputs, one stereo analog audio input, a DMP EXP port, and ten built-in analog line level outputs.

Surround sound processor for delivering up to twelve channels of surround sound plus one stereo downmix

Shall support computer and video resolutions up to 4096x2160 at 60 Hz at 4:4:4 chroma sampling

Shall support HDMI specifications including data rates up to 18 Gbps, HDR, 12-bit Deep Color, 3D, and HD lossless audio formats

Video input requirements

Shall provide one female HDMI Type A connector for digital video signals with embedded audio

Shall provide one female HDMI Type A connector for loop through of input video signals

Shall provide automatic input cable equalization up to 25 feet (7.6 meters) for signals up to 4096x2160 at 60 Hz with 8-bit color depth when used with Extron HDMI Pro cables

Audio Input Requirements

Shall support uncompressed and surround encoded digital audio signals on two optical connectors

Shall support uncompressed and surround encoded digital audio signals on one HDMI connector

Shall support uncompressed and surround encoded digital audio signals on one coaxial RCA connector

Shall support one analog stereo (or mono), balanced or unbalanced signal on one 6-pole, 3.5 mm captive screw connector

Shall provide automatic surround sound format detection

Shall support PCM, Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, Dolby Surround, Dolby Digital EX, Dolby Digital, Dolby Pro Logic IIx, Dolby Pro Logic II, DTS:X, DTS-HD Master Audio, DTS-HD High Resolution Audio, DTS Neural:X, DTS-ES, DTS 96/24, DTS NEO:6 audio formats

Shall provide up to 300 ms of delay for lip sync offset, adjustable per input

Shall support an upmix function that converts from any input format to any selected higher output channel count format

Audio Output Requirements

Shall provide six fixed line level, balanced or unbalanced signals on three 6-pole, 3.5 mm captive screw connectors for Front, Surround, and Subwoofer channels

Shall provide four assignable line level, balanced or unbalanced signals on two 6-pole captive screw connectors for Back, Height, and Downmix channels

Processor Requirements

Shall automatically decode the detected incoming signal format as necessary, to route to the appropriate outputs

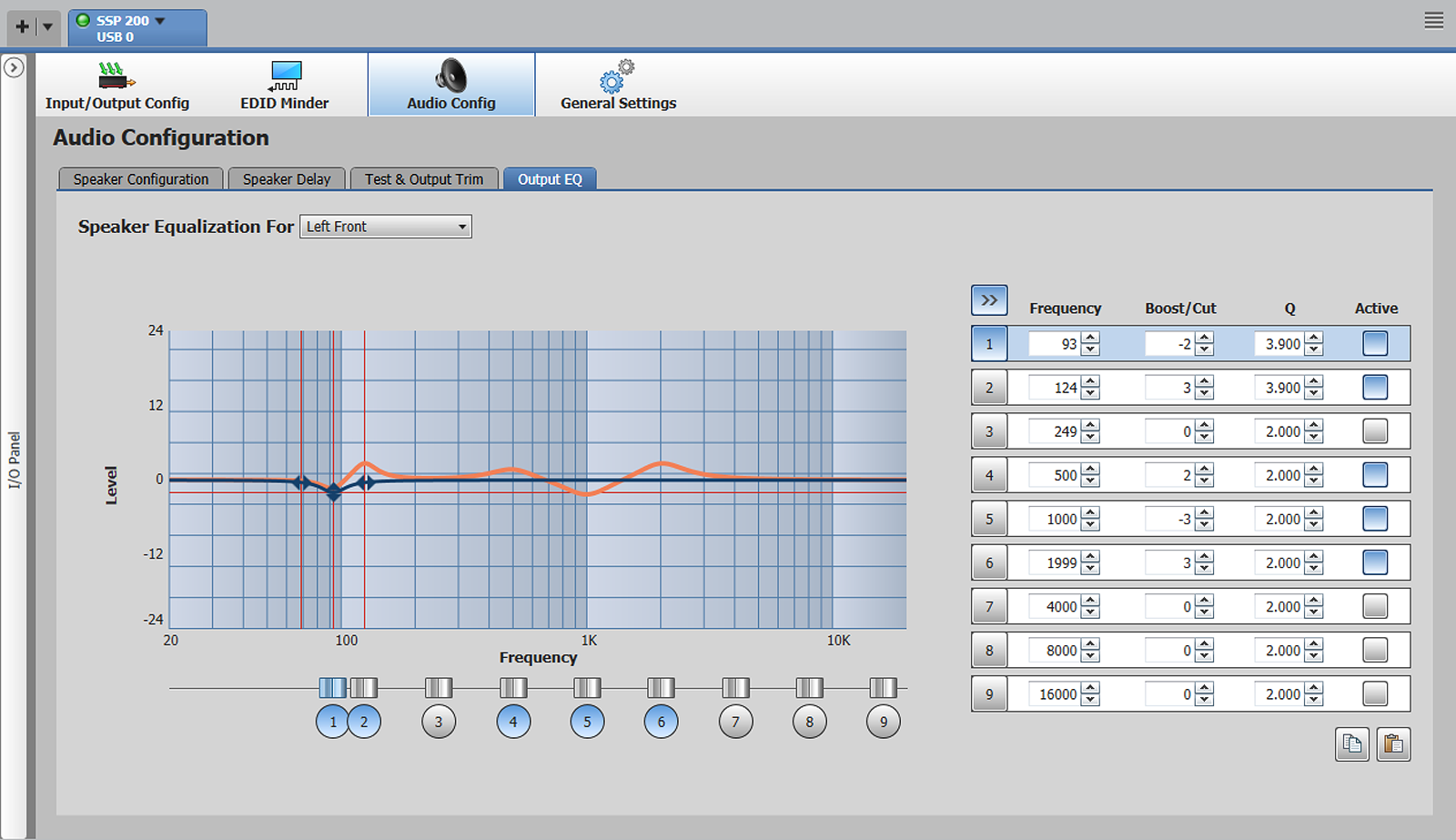

Shall provide nine fully parametric EQ filters on each full range output, with +/- 24 dB of boost and attenuation, adjustable frequency, and adjustable Q

Shall generate test signals, including band-limited Dolby noise and full-bandwidth pink noise, for calibration of sound pressure levels from all speakers and fine-tuning

Shall support directing test signals to any speaker or all speakers in sequence

Shall support use of an external source for test signals

Audio Device Requirements — Input to Output

Shall provide a signal-to-noise ratio of greater than 100 dB measured from 20 Hz to 20 kHz, unweighted

Shall provide a THD+N measurement of less than 0.03% measured at 1 kHz, at maximum output level

Configuration Software Requirements

Shall be compatible with Extron Product Configuration Software (PCS) for flexible setup and control of the surround sound processor, plus calibration of the sound system

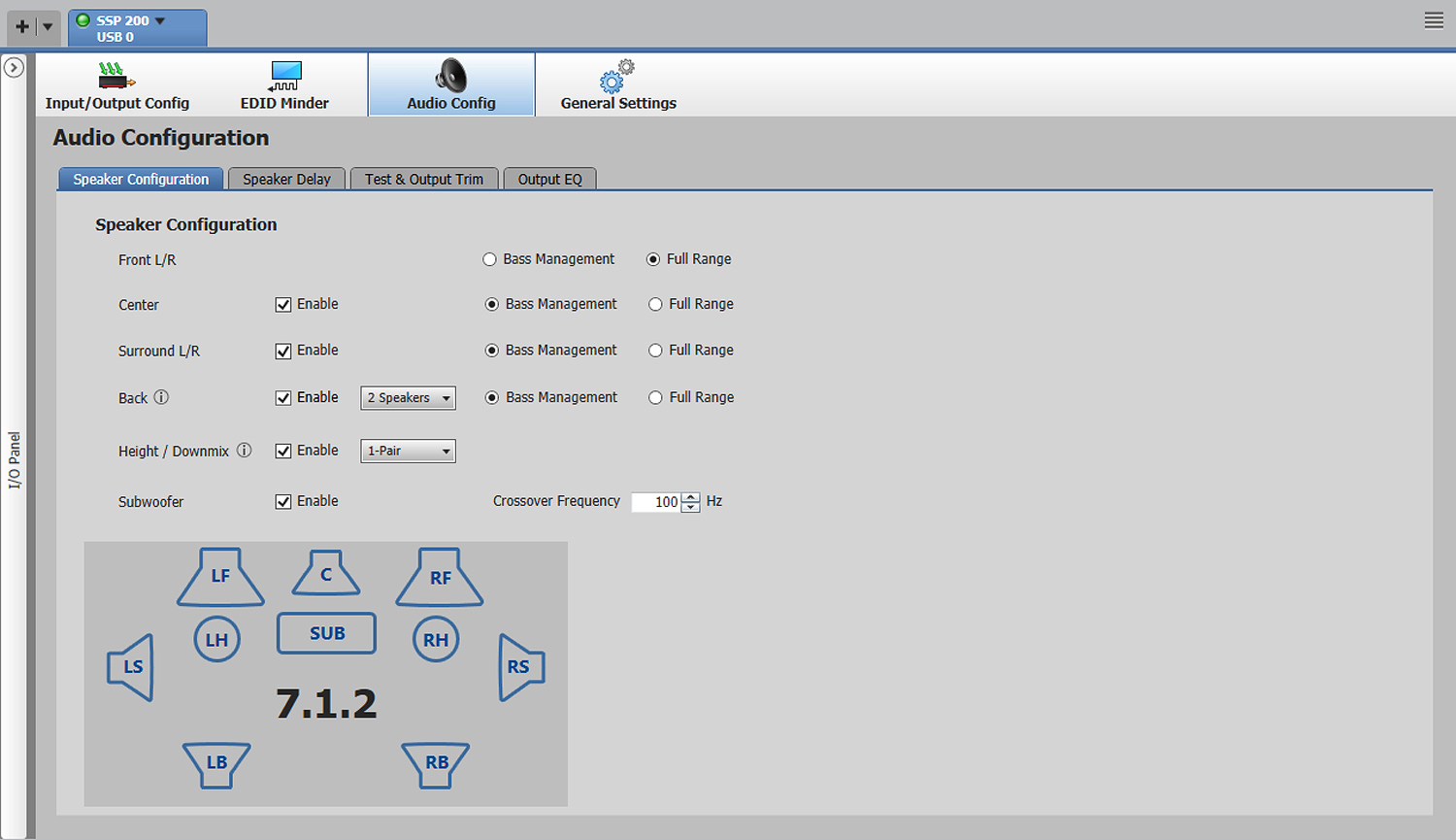

Shall provide setup and configuration of audio processing tools including, but not limited to: speaker configuration; master volume; parametric EQ filters; speaker delay; and output trim

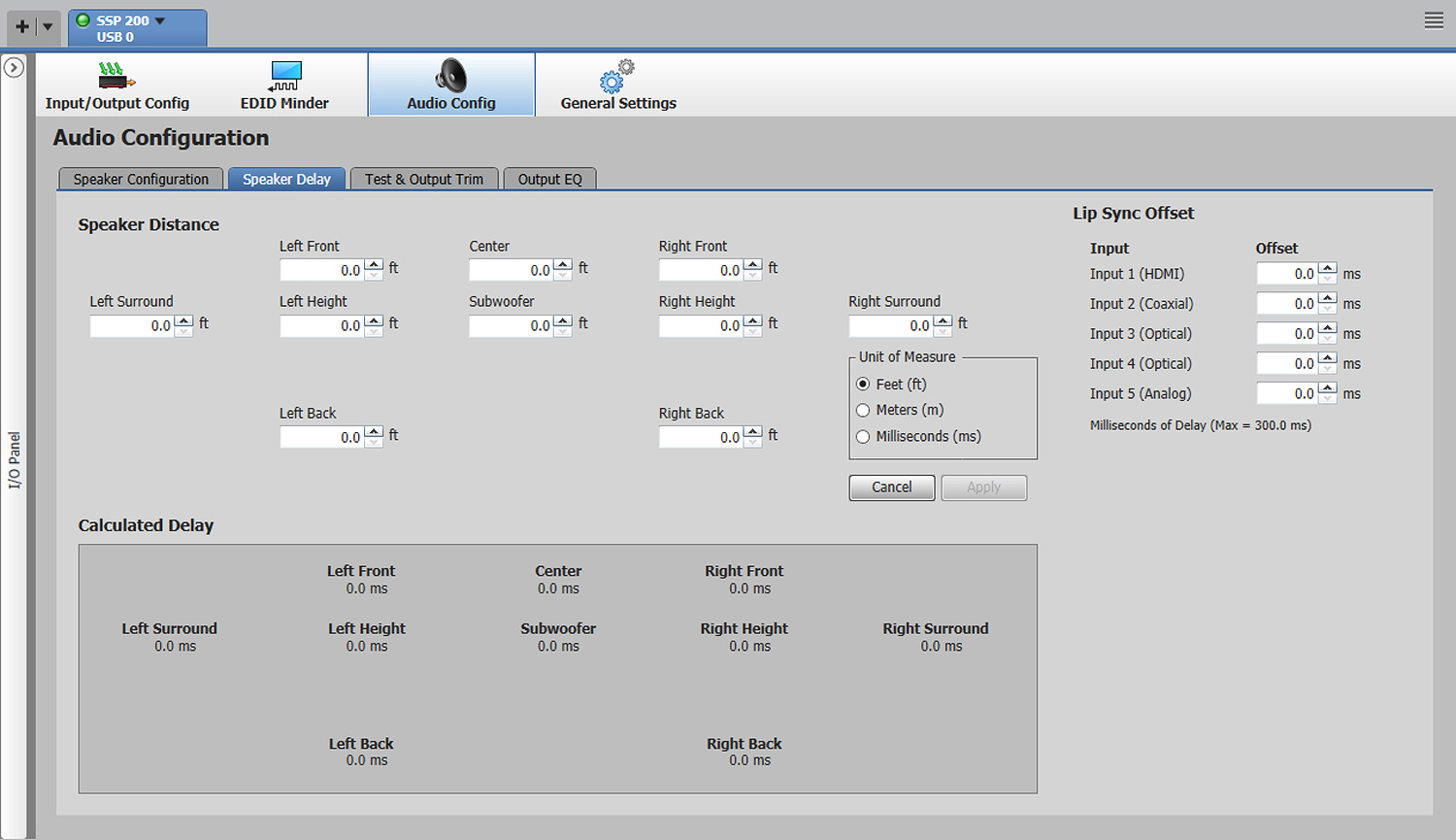

Shall provide up to 700 ms of adjustable signal delay per output for speaker distance compensation

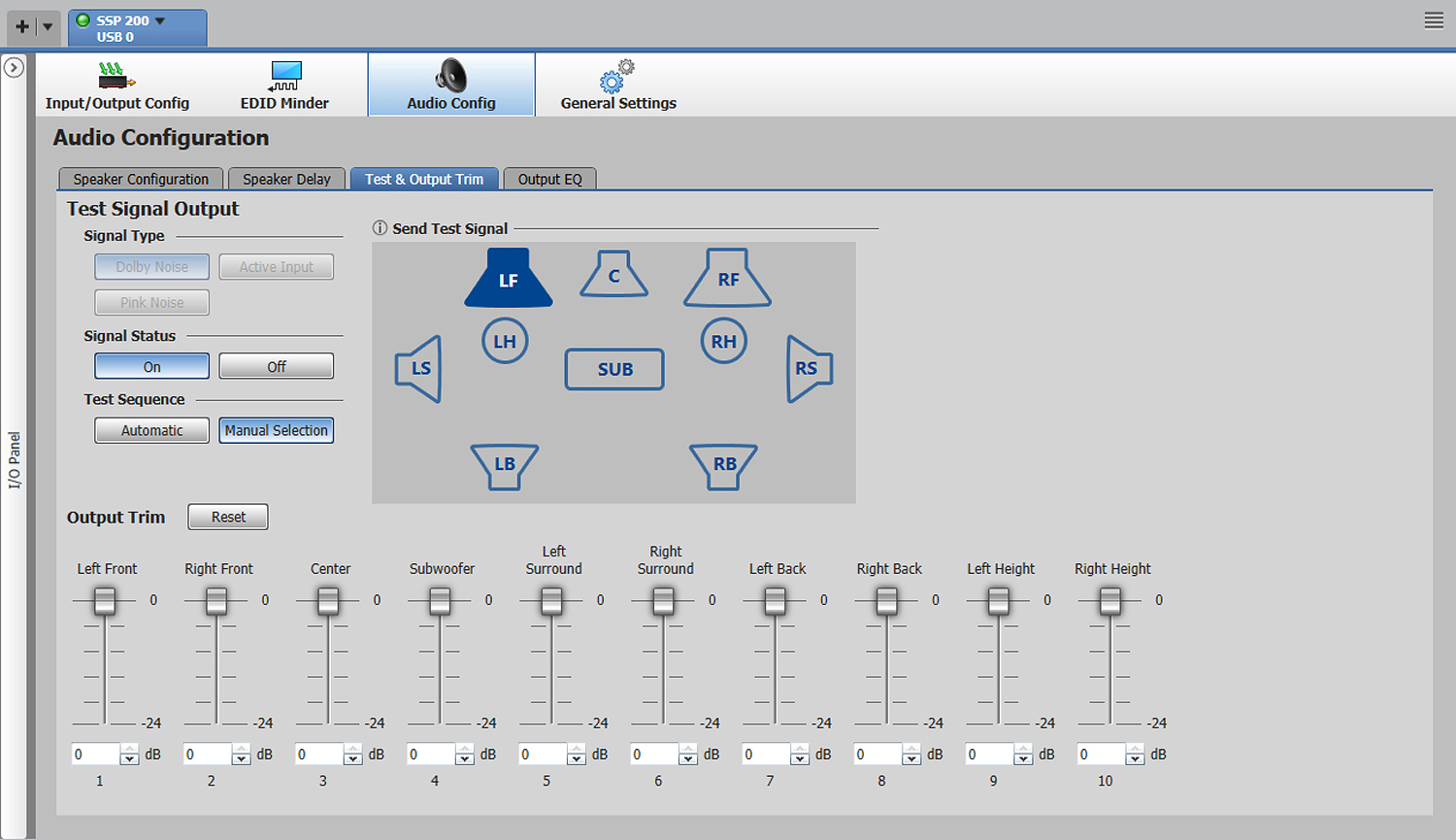

Shall provide the ability to select a test signal type and direct the signal to any connected speaker or all connected speakers in sequence

Control Requirements

Shall support one bidirectional RS-232 port on one 3-pole, 3.5 mm captive screw connector

Shall support remote control operation via external control system using Simple Instruction Set commands sent over RS-232 on 3-pole, 3.5 mm captive screw connector or RJ-45 connector using standard TCP/IP protocols

Shall support disabling of front panel controls to prevent inadvertent or unauthorized changes to configuration settings

Front Panel Requirements

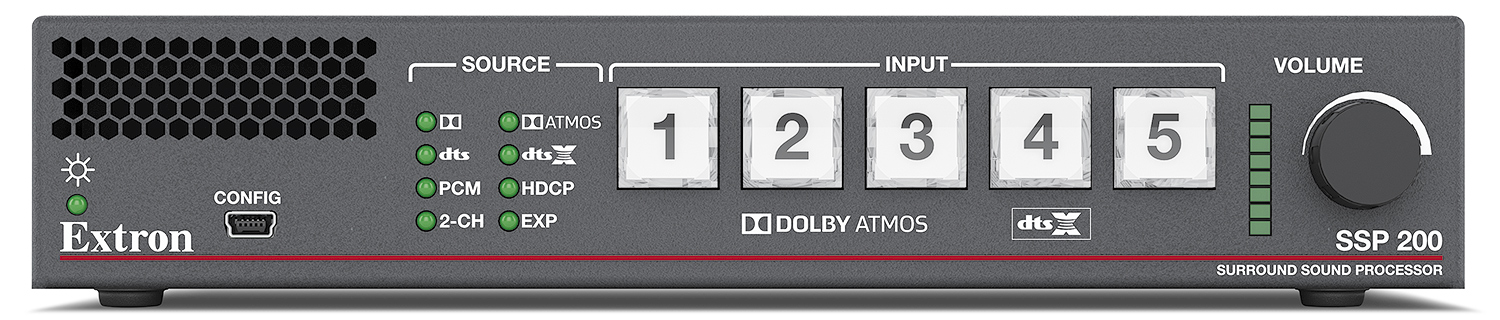

Shall provide a female USB mini type B port for software control

Shall provide green LEDs for input source signal format indication

Shall provide discrete input selection buttons that illuminate when selected

Shall provide a rotary encoder for output volume adjustment

Shall provide an LED bar for indicating the current output volume

Rear Panel Requirements

Shall provide video input on one female HDMI Type A connector

Shall provide video loop through on one female HDMI Type A connector

Shall provide digital audio input on two inputs on optical connectors

Shall provide digital audio input on one input on coaxial RCA connector

Shall provide one stereo analog audio input on 3.5 mm captive screw connectors

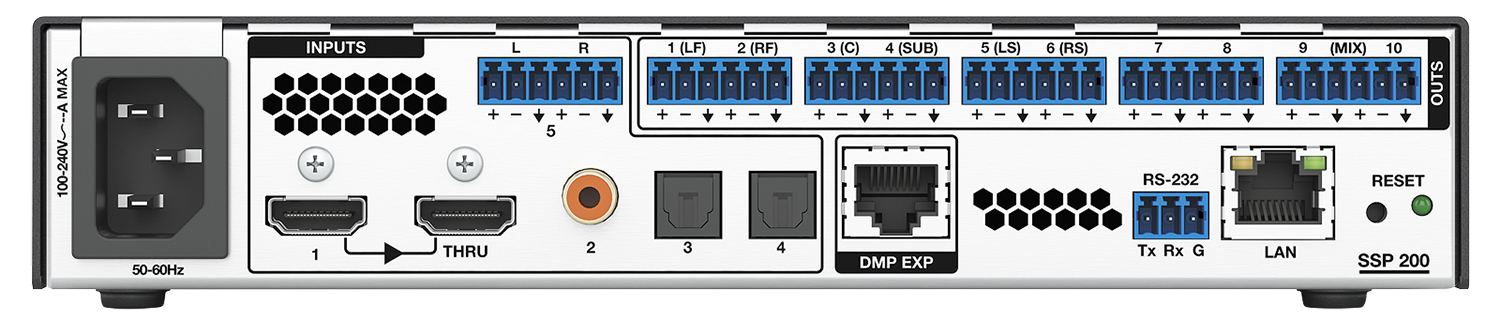

Shall provide ten outputs on 3.5 mm captive screw connectors

Shall provide one bidirectional RS-232 port on 3.5 mm captive screw connector

Shall provide one RJ-45 connector for LAN

Shall provide one RJ-45 connector for DMP Expansion

General Requirements

Shall provide internal universal power supply with IEC power socket and support for international 100-240 VAC, 50/60 Hz standards

Shall be enclosed in a rack-mountable 1U, half rack width metal enclosure

Shall meet regulatory compliances under CE, c-UL, UL, C-tick, FCC Class B, ICES, and VCCI

Shall comply with appropriate requirements of RoHS and WEEE

Shall provide three year parts and labor warranty

Approved device shall be the Extron SSP 200, part number 60-1658-01; no alternates or equals.
