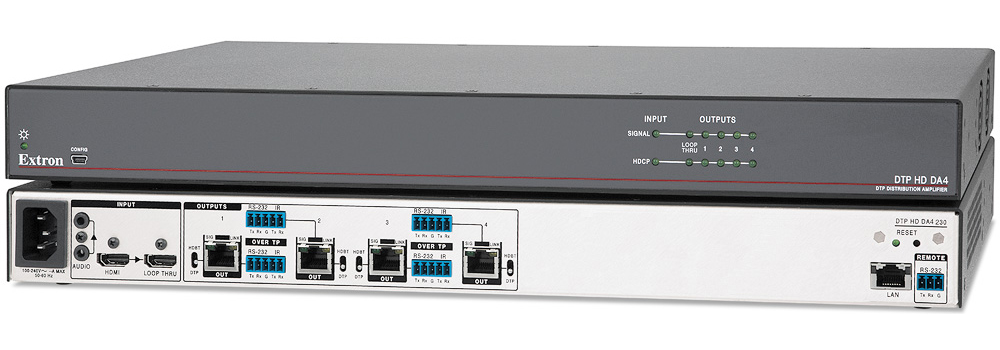

DTP HD DA4 4K 230
- Provide an HDMI to twisted pair distribution amplifier that shall support four twisted pair outputs for the extension and distribution of video, audio, and control over shielded CATx cable
- Twisted pair distribution amplifier for the extension and distribution of HDMI, audio, and control
- Video input requirements
- Provide one (1) HDMI input for digital video signals
- Supported HDMI specifications include data rates up to 10.2 Gbps, Deep Color up to 12-bit, 3D, and HD lossless audio formats
- Provide automatic cable equalization for the digital input to 75 feet (22.8 meters) at 1080p/60 with 8-bit color when used with Extron HDMI Pro cables
- Provide automatic cable equalization for the digital input to 50 feet (15 meters) at 4K/30 and 2560x1600 @ 60 Hz resolutions when used with Extron HDMI Pro cables
- Provide one (1) HDMI input for digital video signals
- Audio input requirements
- Supported embedded digital audio on HDMI input
- Provide a dedicated analog audio input connection
- One (1) stereo analog audio
- Control input requirements
- Provide communication connections for AV device control
- Four bidirectional RS-232 pass-through
- Four bidirectional IR pass-through
- One RJ-45 for RS-232 insertion over Ethernet
- The distribution amplifier shall be Ethernet controllable
- The distribution amplifier shall be RS-232 controllable
- Provide communication connections for AV device control
- Video output requirements
- Provide one (1) HDMI for buffered input loop-through for local monitor support or system expansion
- Provide four (4) RJ-45 twisted pair connections
- Support the connection of DVI displays that do not recognize HDMI-specific formats
- Automatically enable or disable embedded TMDS audio and InfoFrames
- Automatically set the correct color space
- Provide +5 VDC, 250 mA power on local HDMI output
- Provide independent muting for each output via Ethernet or RS-232 control
- Audio output requirements
- Provide one (1) stereo analog audio for audio input loop-through
- Interconnection requirements
- Support interconnection between distribution amplifier and receivers or DTP®-enabled products
- Four RJ-45 twisted pair connections
- Each twisted pair output shall be configurable for HDBaseT-enabled displays to send digital video and embedded audio, plus bidirectional RS-232 and IR signals
- Support interconnection between distribution amplifier and receivers or DTP®-enabled products
- Transmission requirements
- Provide a signal transmission distance capability of 230 feet (70 m) at 1920x1200, including 1080p @ 60 Hz and 2K using shielded CATx cable
- Support signal transmission distance capability of 4K @ 30 Hz, UHD, and 2560x1600 up to 130 feet (40 m) using shielded CATx cable
- Support video, audio, and control over shielded CATx cable
- Support embedded HD lossless audio formats
- Actively buffer DDC channels
- Resolution requirements
- Support computer and video resolutions up to 4K, including 1080p/60 Deep Color
- Support RGB YCbCr digital video formats
- Audio requirements
- The unit shall accept additional analog stereo audio signals for simultaneous transmission with HDMI embedded audio
- The unit shall support multiple embedded audio formats
- The unit shall support embedded HD lossless audio formats
- EDID requirements
- Provide automatic EDID management between connected devices
- Shall provide user-selection of EDID from any connected display
- Shall provide user-selection of EDID from pre-stored data files
- Shall maintain continuous EDID communication with the connected source
- Provide automatic EDID management between connected devices
- HDCP requirements
- The unit shall be HDCP compliant
- Provide authentication and maintain continuous verification of HDCP key exchange with connected sink devices
- Provide authentication and maintain continuous verification of HDCP key exchange with the connected source device
- Shall provide the option to disable HDCP processing at the HDMI input connection when passing unencrypted content
- Provide real-time verification of HDCP status for each HDMI input and output
- Electronically accessible over Ethernet, RS-232, or USB connection
- The unit shall be HDCP compliant
- Communication requirements
- The unit shall support bidirectional RS-232 communication pass-through up to 115200 baud
- The unit shall support bidirectional IR pass-through
- The unit shall support EDID and HDCP transmission
- Power requirements
- Shall provide remote power to four DTP receivers over the shielded CATx connections
- The unit shall support being locally powered
- Control/Configuration requirements
- Shall support RS-232 control
- Shall support configuration and operation through Built-in Web pages accessible using a standard Web browser via Ethernet connection
- Shall support product configuration/setup through a product configuration software application connected via Ethernet or USB
- General requirements
- The unit shall be HDCP compliant
- The unit shall be compatible with CATx shielded twisted pair cable, and Extron XTP DTP 24 shielded twisted pair cable
- The unit shall support HDMI specifications including data rates up to 10.2 Gbps, 3D, and HD lossless audio formats
- The unit shall support compatibility with HDBaseT-enabled devices
- The unit shall support being locally powered
- The unit shall support the remote powering of connected DTP receivers
- The unit shall support embedded HD lossless audio formats
- The unit shall support the use of HDMI to DVI-D cables or adapters for DVI-D signals
- Enclosure shall be rack-mountable, full rack width, and 1RU in height
- Shall provide visual indication for signal presence and power
- Shall meet regulatory compliances
- CE, c-UL, UL
- CE, C-tick, FCC Class A, ICES, VCCI
- Shall provide at least 3 years parts and labor warranty
- Shall be compatible with other DTP-enabled products
- Approved device shall be the Extron DTP HD DA4 4K 230 (60-1437-01); no alternates or equals
DTP HD DA4 4K 230
- Provide an HDMI to twisted pair distribution amplifier that shall support four twisted pair outputs for the extension and distribution of video, audio, and control over shielded CATx cable
- Twisted pair distribution amplifier for the extension and distribution of HDMI, audio, and control
- Video input requirements
- Provide one (1) HDMI input for digital video signals
- Supported HDMI specifications include data rates up to 10.2 Gbps, Deep Color up to 12-bit, 3D, and HD lossless audio formats
- Provide automatic cable equalization for the digital input to 75 feet (22.8 meters) at 1080p/60 with 8-bit color when used with Extron HDMI Pro cables
- Provide automatic cable equalization for the digital input to 50 feet (15 meters) at 4K/30 and 2560x1600 @ 60 Hz resolutions when used with Extron HDMI Pro cables
- Provide one (1) HDMI input for digital video signals
- Audio input requirements
- Supported embedded digital audio on HDMI input
- Provide a dedicated analog audio input connection
- One (1) stereo analog audio
- Control input requirements
- Provide communication connections for AV device control
- Four bidirectional RS-232 pass-through
- Four bidirectional IR pass-through
- One RJ-45 for RS-232 insertion over Ethernet
- The distribution amplifier shall be Ethernet controllable
- The distribution amplifier shall be RS-232 controllable
- Provide communication connections for AV device control
- Video output requirements
- Provide one (1) HDMI for buffered input loop-through for local monitor support or system expansion
- Provide four (4) RJ-45 twisted pair connections
- Support the connection of DVI displays that do not recognize HDMI-specific formats
- Automatically enable or disable embedded TMDS audio and InfoFrames
- Automatically set the correct color space
- Provide +5 VDC, 250 mA power on local HDMI output
- Provide independent muting for each output via Ethernet or RS-232 control
- Audio output requirements
- Provide one (1) stereo analog audio for audio input loop-through
- Interconnection requirements
- Support interconnection between distribution amplifier and receivers or DTP®-enabled products
- Four RJ-45 twisted pair connections
- Each twisted pair output shall be configurable for HDBaseT-enabled displays to send digital video and embedded audio, plus bidirectional RS-232 and IR signals
- Support interconnection between distribution amplifier and receivers or DTP®-enabled products
- Transmission requirements
- Provide a signal transmission distance capability of 230 feet (70 m) at 1920x1200, including 1080p @ 60 Hz and 2K using shielded CATx cable
- Support signal transmission distance capability of 4K @ 30 Hz, UHD, and 2560x1600 up to 130 feet (40 m) using shielded CATx cable
- Support video, audio, and control over shielded CATx cable
- Support embedded HD lossless audio formats
- Actively buffer DDC channels
- Resolution requirements
- Support computer and video resolutions up to 4K, including 1080p/60 Deep Color
- Support RGB YCbCr digital video formats
- Audio requirements
- The unit shall accept additional analog stereo audio signals for simultaneous transmission with HDMI embedded audio
- The unit shall support multiple embedded audio formats
- The unit shall support embedded HD lossless audio formats
- EDID requirements
- Provide automatic EDID management between connected devices
- Shall provide user-selection of EDID from any connected display
- Shall provide user-selection of EDID from pre-stored data files
- Shall maintain continuous EDID communication with the connected source
- Provide automatic EDID management between connected devices
- HDCP requirements
- The unit shall be HDCP compliant
- Provide authentication and maintain continuous verification of HDCP key exchange with connected sink devices
- Provide authentication and maintain continuous verification of HDCP key exchange with the connected source device
- Shall provide the option to disable HDCP processing at the HDMI input connection when passing unencrypted content
- Provide real-time verification of HDCP status for each HDMI input and output
- Electronically accessible over Ethernet, RS-232, or USB connection
- The unit shall be HDCP compliant
- Communication requirements
- The unit shall support bidirectional RS-232 communication pass-through up to 115200 baud
- The unit shall support bidirectional IR pass-through
- The unit shall support EDID and HDCP transmission
- Power requirements
- Shall provide remote power to four DTP receivers over the shielded CATx connections
- The unit shall support being locally powered
- Control/Configuration requirements
- Shall support RS-232 control
- Shall support configuration and operation through Built-in Web pages accessible using a standard Web browser via Ethernet connection
- Shall support product configuration/setup through a product configuration software application connected via Ethernet or USB
- General requirements
- The unit shall be HDCP compliant
- The unit shall be compatible with CATx shielded twisted pair cable, and Extron XTP DTP 24 shielded twisted pair cable
- The unit shall support HDMI specifications including data rates up to 10.2 Gbps, 3D, and HD lossless audio formats
- The unit shall support compatibility with HDBaseT-enabled devices
- The unit shall support being locally powered
- The unit shall support the remote powering of connected DTP receivers
- The unit shall support embedded HD lossless audio formats
- The unit shall support the use of HDMI to DVI-D cables or adapters for DVI-D signals
- Enclosure shall be rack-mountable, full rack width, and 1RU in height
- Shall provide visual indication for signal presence and power
- Shall meet regulatory compliances
- CE, c-UL, UL
- CE, C-tick, FCC Class A, ICES, VCCI
- Shall provide at least 3 years parts and labor warranty
- Shall be compatible with other DTP-enabled products
- Approved device shall be the Extron DTP HD DA4 4K 230 (60-1437-01); no alternates or equals

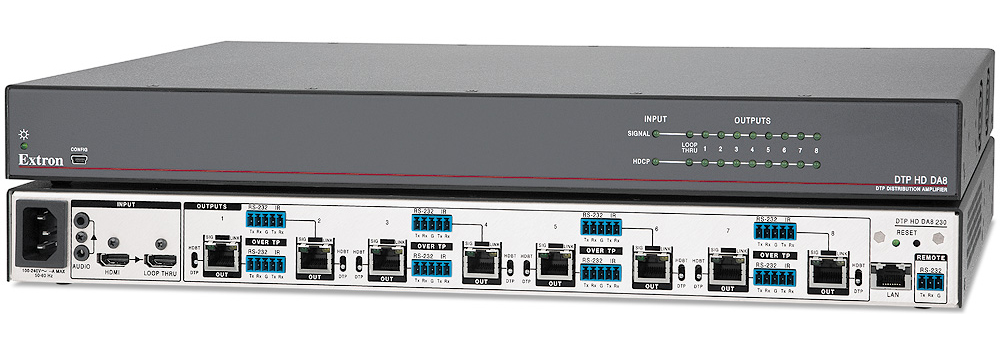

DTP HD DA8 4K 230
- Provide an HDMI to twisted pair distribution amplifier that shall support eight twisted pair outputs for the extension and distribution of video, audio, and control over shielded CATx cable
- Twisted pair distribution amplifier for the extension and distribution of HDMI, audio, and control
- Video input requirements
- Provide one (1) HDMI input for digital video signals
- Supported HDMI specifications include data rates up to 10.2 Gbps, Deep Color up to 12-bit, 3D, and HD lossless audio formats
- Provide automatic cable equalization for the digital input to 75 feet (22.8 meters) at 1080p/60 with 8-bit color when used with Extron HDMI Pro cables
- Provide automatic cable equalization for the digital input to 50 feet (15 meters) at 4K/30 and 2560x1600 @ 60 Hz resolutions when used with Extron HDMI Pro cables
- Provide one (1) HDMI input for digital video signals
- Audio input requirements
- Supported embedded digital audio on HDMI input
- Provide a dedicated analog audio input connection
- One (1) stereo analog audio
- Control input requirements
- Provide communication connections for AV device control
- Eight bidirectional RS-232 pass-through
- Eight bidirectional IR pass-through
- One RJ-45 for RS-232 insertion over Ethernet
- The distribution amplifier shall be Ethernet controllable
- The distribution amplifier shall be RS-232 controllable
- Provide communication connections for AV device control
- Video output requirements
- Provide one (1) HDMI for buffered input loop-through for local monitor support or system expansion
- Provide eight (8) RJ-45 twisted pair connections
- Support the connection of DVI displays that do not recognize HDMI-specific formats
- Automatically enable or disable embedded TMDS audio and InfoFrames
- Automatically set the correct color space
- Provide +5 VDC, 250 mA power on local HDMI output
- Provide independent muting for each output via Ethernet or RS-232 control
- Audio output requirements
- Provide one (1) stereo analog audio for audio input loop-through
- Interconnection requirements
- Support interconnection between distribution amplifier and receivers or DTP®-enabled products
- Eight RJ-45 twisted pair connections
- Each twisted pair output shall be configurable for HDBaseT-enabled displays to send digital video and embedded audio, plus bidirectional RS-232 and IR signals
- Support interconnection between distribution amplifier and receivers or DTP®-enabled products
- Transmission requirements
- Provide a signal transmission distance capability of 230 feet (70 m) at 1920x1200, including 1080p @ 60 Hz and 2K using shielded CATx cable
- Support signal transmission distance capability of 4K @ 30 Hz, UHD, and 2560x1600 up to 130 feet (40 m) using shielded CATx cable
- Support video, audio, and control over shielded CATx cable
- Support embedded HD lossless audio formats
- Actively buffer DDC channels
- Resolution requirements
- Support computer and video resolutions up to 4K, including 1080p/60 Deep Color
- Support RGB YCbCr digital video formats
- Audio requirements
- The unit shall accept additional analog stereo audio signals for simultaneous transmission with HDMI embedded audio
- The unit shall support multiple embedded audio formats
- The unit shall support embedded HD lossless audio formats
- EDID requirements
- Provide automatic EDID management between connected devices
- Shall provide user-selection of EDID from any connected display
- Shall provide user-selection of EDID from pre-stored data files
- Shall maintain continuous EDID communication with the connected source
- Provide automatic EDID management between connected devices
- HDCP requirements
- The unit shall be HDCP compliant
- Provide authentication and maintain continuous verification of HDCP key exchange with connected sink devices
- Provide authentication and maintain continuous verification of HDCP key exchange with the connected source device
- Shall provide the option to disable HDCP processing at the HDMI input connection when passing unencrypted content
- Provide real-time verification of HDCP status for each HDMI input and output
- Electronically accessible over Ethernet, RS-232, or USB connection
- The unit shall be HDCP compliant
- Communication requirements
- The unit shall support bidirectional RS-232 communication pass-through up to 115200 baud
- The unit shall support bidirectional IR pass-through
- The unit shall support EDID and HDCP transmission
- Power requirements
- Shall provide remote power to eight DTP receivers over the shielded CATx connections
- The unit shall support being locally powered
- Control/Configuration requirements
- Shall support RS-232 control
- Shall support configuration and operation through Built-in Web pages accessible using a standard Web browser via Ethernet connection
- Shall support product configuration/setup through a product configuration software application connected via Ethernet or USB
- General requirements
- The unit shall be HDCP compliant
- The unit shall be compatible with CATx shielded twisted pair cable, and Extron XTP DTP 24 shielded twisted pair cable
- The unit shall support HDMI specifications including data rates up to 10.2 Gbps, 3D, and HD lossless audio formats
- The unit shall support compatibility with HDBaseT-enabled devices
- The unit shall support being locally powered
- The unit shall support the remote powering of connected DTP receivers
- The unit shall support embedded HD lossless audio formats
- The unit shall support the use of HDMI to DVI-D cables or adapters for DVI-D signals
- Enclosure shall be rack-mountable, full rack width, and 1RU in height
- Shall provide visual indication for signal presence and power
- Shall meet regulatory compliances
- CE, c-UL, UL
- CE, C-tick, FCC Class A, ICES, VCCI
- Shall provide at least 3 years parts and labor warranty
- Shall be compatible with other DTP-enabled products
- Approved device shall be the Extron DTP HD DA8 4K 230 (60-1438-01); no alternates or equals
DTP HD DA8 4K 230
- Provide an HDMI to twisted pair distribution amplifier that shall support eight twisted pair outputs for the extension and distribution of video, audio, and control over shielded CATx cable
- Twisted pair distribution amplifier for the extension and distribution of HDMI, audio, and control
- Video input requirements
- Provide one (1) HDMI input for digital video signals
- Supported HDMI specifications include data rates up to 10.2 Gbps, Deep Color up to 12-bit, 3D, and HD lossless audio formats
- Provide automatic cable equalization for the digital input to 75 feet (22.8 meters) at 1080p/60 with 8-bit color when used with Extron HDMI Pro cables
- Provide automatic cable equalization for the digital input to 50 feet (15 meters) at 4K/30 and 2560x1600 @ 60 Hz resolutions when used with Extron HDMI Pro cables
- Provide one (1) HDMI input for digital video signals
- Audio input requirements
- Supported embedded digital audio on HDMI input
- Provide a dedicated analog audio input connection
- One (1) stereo analog audio
- Control input requirements
- Provide communication connections for AV device control
- Eight bidirectional RS-232 pass-through
- Eight bidirectional IR pass-through
- One RJ-45 for RS-232 insertion over Ethernet
- The distribution amplifier shall be Ethernet controllable
- The distribution amplifier shall be RS-232 controllable
- Provide communication connections for AV device control
- Video output requirements
- Provide one (1) HDMI for buffered input loop-through for local monitor support or system expansion
- Provide eight (8) RJ-45 twisted pair connections
- Support the connection of DVI displays that do not recognize HDMI-specific formats
- Automatically enable or disable embedded TMDS audio and InfoFrames
- Automatically set the correct color space
- Provide +5 VDC, 250 mA power on local HDMI output
- Provide independent muting for each output via Ethernet or RS-232 control
- Audio output requirements
- Provide one (1) stereo analog audio for audio input loop-through
- Interconnection requirements
- Support interconnection between distribution amplifier and receivers or DTP®-enabled products
- Eight RJ-45 twisted pair connections
- Each twisted pair output shall be configurable for HDBaseT-enabled displays to send digital video and embedded audio, plus bidirectional RS-232 and IR signals
- Support interconnection between distribution amplifier and receivers or DTP®-enabled products
- Transmission requirements
- Provide a signal transmission distance capability of 230 feet (70 m) at 1920x1200, including 1080p @ 60 Hz and 2K using shielded CATx cable
- Support signal transmission distance capability of 4K @ 30 Hz, UHD, and 2560x1600 up to 130 feet (40 m) using shielded CATx cable
- Support video, audio, and control over shielded CATx cable
- Support embedded HD lossless audio formats
- Actively buffer DDC channels
- Resolution requirements
- Support computer and video resolutions up to 4K, including 1080p/60 Deep Color
- Support RGB YCbCr digital video formats
- Audio requirements
- The unit shall accept additional analog stereo audio signals for simultaneous transmission with HDMI embedded audio
- The unit shall support multiple embedded audio formats
- The unit shall support embedded HD lossless audio formats
- EDID requirements
- Provide automatic EDID management between connected devices
- Shall provide user-selection of EDID from any connected display
- Shall provide user-selection of EDID from pre-stored data files
- Shall maintain continuous EDID communication with the connected source
- Provide automatic EDID management between connected devices
- HDCP requirements
- The unit shall be HDCP compliant
- Provide authentication and maintain continuous verification of HDCP key exchange with connected sink devices
- Provide authentication and maintain continuous verification of HDCP key exchange with the connected source device
- Shall provide the option to disable HDCP processing at the HDMI input connection when passing unencrypted content
- Provide real-time verification of HDCP status for each HDMI input and output
- Electronically accessible over Ethernet, RS-232, or USB connection
- The unit shall be HDCP compliant
- Communication requirements
- The unit shall support bidirectional RS-232 communication pass-through up to 115200 baud
- The unit shall support bidirectional IR pass-through
- The unit shall support EDID and HDCP transmission
- Power requirements
- Shall provide remote power to eight DTP receivers over the shielded CATx connections
- The unit shall support being locally powered
- Control/Configuration requirements
- Shall support RS-232 control
- Shall support configuration and operation through Built-in Web pages accessible using a standard Web browser via Ethernet connection
- Shall support product configuration/setup through a product configuration software application connected via Ethernet or USB
- General requirements
- The unit shall be HDCP compliant
- The unit shall be compatible with CATx shielded twisted pair cable, and Extron XTP DTP 24 shielded twisted pair cable
- The unit shall support HDMI specifications including data rates up to 10.2 Gbps, 3D, and HD lossless audio formats
- The unit shall support compatibility with HDBaseT-enabled devices
- The unit shall support being locally powered
- The unit shall support the remote powering of connected DTP receivers
- The unit shall support embedded HD lossless audio formats
- The unit shall support the use of HDMI to DVI-D cables or adapters for DVI-D signals
- Enclosure shall be rack-mountable, full rack width, and 1RU in height
- Shall provide visual indication for signal presence and power
- Shall meet regulatory compliances
- CE, c-UL, UL
- CE, C-tick, FCC Class A, ICES, VCCI
- Shall provide at least 3 years parts and labor warranty
- Shall be compatible with other DTP-enabled products
- Approved device shall be the Extron DTP HD DA8 4K 230 (60-1438-01); no alternates or equals
把商品添加到购物车
Order Message Number
产品编号
注: 使用通用交流电源插座的 Extron 产品可支持多种不同的交流电源插头类型。在使用之前，确保设备满足您所在区域的所有规定要求，并符合所有应用的本地安全和电气规程及标准。
当前总计：
Annotation Graphics Processor
To view this page ensure that Adobe Flash Player version
11.0.0 or greater is installed and enabled.
Chrome
Firefox
Edge
Safari
