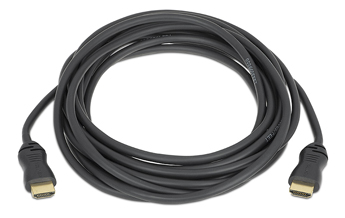

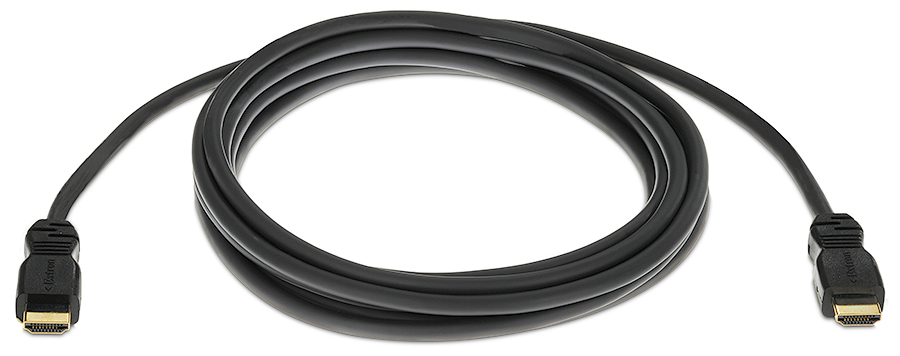

HDMI Ultra/1.5
- Provide interconnection for the transmission of HDMI digital video and audio signals over a copper cable assembly.
- Cable shall conform to the Premium High Speed HDMI Cable specification established by the HDMI organization
- Shall support resolutions up to 4096x2160 @ 60 Hz with 4:4:4 chroma sampling and 8-bit color depth
- Shall support data rates up to 18.0 Gbps
- Shall meet the following cable construction requirements:
- 30 AWG copper wire
- HDMI type A male connectors with gold-plated contacts
- Low bend radius of 0.80” (20.3 mm)
- Cable outer diameter of 0.22” (5.7 mm)
- Cable shall be 1.5 foot (45 cm) in length
- Cable shall provide protection from outside electrical interference
- Cable shall comply with UL VW-1 and CSA FT-1 standards
- Cable shall have a temperature rating of 80 °C
- Cable shall be certified for use with AVEdge, Cable Cubby®, and HSA surface access enclosures
- Approved cable shall be Extron HDMI Ultra/1.5, part number 26-663-01; no alternates or equals
- Cable shall conform to the Premium High Speed HDMI Cable specification established by the HDMI organization
HDMI Ultra/1.5
- Provide interconnection for the transmission of HDMI digital video and audio signals over a copper cable assembly.
- Cable shall conform to the Premium High Speed HDMI Cable specification established by the HDMI organization
- Shall support resolutions up to 4096x2160 @ 60 Hz with 4:4:4 chroma sampling and 8-bit color depth
- Shall support data rates up to 18.0 Gbps
- Shall meet the following cable construction requirements:
- 30 AWG copper wire
- HDMI type A male connectors with gold-plated contacts
- Low bend radius of 0.80” (20.3 mm)
- Cable outer diameter of 0.22” (5.7 mm)
- Cable shall be 1.5 foot (45 cm) in length
- Cable shall provide protection from outside electrical interference
- Cable shall comply with UL VW-1 and CSA FT-1 standards
- Cable shall have a temperature rating of 80 °C
- Cable shall be certified for use with AVEdge, Cable Cubby®, and HSA surface access enclosures
- Approved cable shall be Extron HDMI Ultra/1.5, part number 26-663-01; no alternates or equals
- Cable shall conform to the Premium High Speed HDMI Cable specification established by the HDMI organization
HDMI Ultra/1.5
- Provide interconnection for the transmission of HDMI digital video and audio signals over a copper cable assembly.
- Cable shall conform to the Premium High Speed HDMI Cable specification established by the HDMI organization
- Shall support resolutions up to 4096x2160 @ 60 Hz with 4:4:4 chroma sampling and 8-bit color depth
- Shall support data rates up to 18.0 Gbps
- Shall meet the following cable construction requirements:
- 28 AWG copper wire
- HDMI type A male connectors with gold-plated contacts
- Low bend radius of 0.80” (20.3 mm)
- Cable outer diameter of 0.22” (5.7 mm)
- Cable shall be 1.5 foot (45 cm) in length
- Cable shall provide protection from outside electrical interference
- Cable shall comply with UL VW-1 and CSA FT-1 standards
- Cable shall have a temperature rating of 80 °C
- Cable shall be certified for use with AVEdge, Cable Cubby®, and HSA surface access enclosures
- Approved cable shall be Extron HDMI Ultra/1.5, part number 26-663-02; no alternates or equals
- Cable shall conform to the Premium High Speed HDMI Cable specification established by the HDMI organization
HDMI Ultra/1.5
- Provide interconnection for the transmission of HDMI digital video and audio signals over a copper cable assembly.
- Cable shall conform to the Premium High Speed HDMI Cable specification established by the HDMI organization
- Shall support resolutions up to 4096x2160 @ 60 Hz with 4:4:4 chroma sampling and 8-bit color depth
- Shall support data rates up to 18.0 Gbps
- Shall meet the following cable construction requirements:
- 28 AWG copper wire
- HDMI type A male connectors with gold-plated contacts
- Low bend radius of 0.80” (20.3 mm)
- Cable outer diameter of 0.22” (5.7 mm)
- Cable shall be 1.5 foot (45 cm) in length
- Cable shall provide protection from outside electrical interference
- Cable shall comply with UL VW-1 and CSA FT-1 standards
- Cable shall have a temperature rating of 80 °C
- Cable shall be certified for use with AVEdge, Cable Cubby®, and HSA surface access enclosures
- Approved cable shall be Extron HDMI Ultra/1.5, part number 26-663-02; no alternates or equals
- Cable shall conform to the Premium High Speed HDMI Cable specification established by the HDMI organization
HDMI Ultra/3
- Provide interconnection for the transmission of HDMI digital video and audio signals over a copper cable assembly.
- Cable shall conform to the Premium High Speed HDMI Cable specification established by the HDMI organization
- Shall support resolutions up to 4096x2160 @ 60 Hz with 4:4:4 chroma sampling and 8-bit color depth
- Shall support data rates up to 18.0 Gbps
- Shall meet the following cable construction requirements:
- 28 AWG copper wire
- HDMI type A male connectors with gold-plated contacts
- Low bend radius of 0.80” (20.3 mm)
- Cable outer diameter of 0.22” (5.7 mm)
- Cable shall be 3 foot (90 cm) in length
- Cable shall provide protection from outside electrical interference
- Cable shall comply with UL VW-1 and CSA FT-1 standards
- Cable shall have a temperature rating of 80 °C
- Cable shall be certified for use with AVEdge, Cable Cubby®, and HSA surface access enclosures
- Approved cable shall be Extron HDMI Ultra/3, part number 26-663-03; no alternates or equals
- Cable shall conform to the Premium High Speed HDMI Cable specification established by the HDMI organization
HDMI Ultra/3
- Provide interconnection for the transmission of HDMI digital video and audio signals over a copper cable assembly.
- Cable shall conform to the Premium High Speed HDMI Cable specification established by the HDMI organization
- Shall support resolutions up to 4096x2160 @ 60 Hz with 4:4:4 chroma sampling and 8-bit color depth
- Shall support data rates up to 18.0 Gbps
- Shall meet the following cable construction requirements:
- 28 AWG copper wire
- HDMI type A male connectors with gold-plated contacts
- Low bend radius of 0.80” (20.3 mm)
- Cable outer diameter of 0.22” (5.7 mm)
- Cable shall be 3 foot (90 cm) in length
- Cable shall provide protection from outside electrical interference
- Cable shall comply with UL VW-1 and CSA FT-1 standards
- Cable shall have a temperature rating of 80 °C
- Cable shall be certified for use with AVEdge, Cable Cubby®, and HSA surface access enclosures
- Approved cable shall be Extron HDMI Ultra/3, part number 26-663-03; no alternates or equals
- Cable shall conform to the Premium High Speed HDMI Cable specification established by the HDMI organization
HDMI Ultra/6
- Provide interconnection for the transmission of HDMI digital video and audio signals over a copper cable assembly.
- Cable shall conform to the Premium High Speed HDMI Cable specification established by the HDMI organization
- Shall support resolutions up to 4096x2160 @ 60 Hz with 4:4:4 chroma sampling and 8-bit color depth
- Shall support data rates up to 18.0 Gbps
- Shall meet the following cable construction requirements:
- 28 AWG copper wire
- HDMI type A male connectors with gold-plated contacts
- Low bend radius of 0.80” (20.3 mm)
- Cable outer diameter of 0.22” (5.7 mm)
- Cable shall be 6 foot (1.8 m) in length
- Cable shall provide protection from outside electrical interference
- Cable shall comply with UL VW-1 and CSA FT-1 standards
- Cable shall have a temperature rating of 80 °C
- Cable shall be certified for use with AVEdge, Cable Cubby®, and HSA surface access enclosures
- Approved cable shall be Extron HDMI Ultra/6, part number 26-663-06; no alternates or equals
- Cable shall conform to the Premium High Speed HDMI Cable specification established by the HDMI organization
HDMI Ultra/6
- Provide interconnection for the transmission of HDMI digital video and audio signals over a copper cable assembly.
- Cable shall conform to the Premium High Speed HDMI Cable specification established by the HDMI organization
- Shall support resolutions up to 4096x2160 @ 60 Hz with 4:4:4 chroma sampling and 8-bit color depth
- Shall support data rates up to 18.0 Gbps
- Shall meet the following cable construction requirements:
- 28 AWG copper wire
- HDMI type A male connectors with gold-plated contacts
- Low bend radius of 0.80” (20.3 mm)
- Cable outer diameter of 0.22” (5.7 mm)
- Cable shall be 6 foot (1.8 m) in length
- Cable shall provide protection from outside electrical interference
- Cable shall comply with UL VW-1 and CSA FT-1 standards
- Cable shall have a temperature rating of 80 °C
- Cable shall be certified for use with AVEdge, Cable Cubby®, and HSA surface access enclosures
- Approved cable shall be Extron HDMI Ultra/6, part number 26-663-06; no alternates or equals
- Cable shall conform to the Premium High Speed HDMI Cable specification established by the HDMI organization
HDMI Ultra/9
- Provide interconnection for the transmission of HDMI digital video and audio signals over a copper cable assembly.
- Cable shall conform to the Premium High Speed HDMI Cable specification established by the HDMI organization
- Shall support resolutions up to 4096x2160 @ 60 Hz with 4:4:4 chroma sampling and 8-bit color depth
- Shall support data rates up to 18.0 Gbps
- Shall meet the following cable construction requirements:
- 28 AWG copper wire
- HDMI type A male connectors with gold-plated contacts
- Low bend radius of 0.80” (20.3 mm)
- Cable outer diameter of 0.22” (5.7 mm)
- Cable shall be 9 foot (2.7 m) in length
- Cable shall provide protection from outside electrical interference
- Cable shall comply with UL VW-1 and CSA FT-1 standards
- Cable shall have a temperature rating of 80 °C
- Cable shall be certified for use with AVEdge, Cable Cubby®, and HSA surface access enclosures
- Approved cable shall be Extron HDMI Ultra/9, part number 26-663-09; no alternates or equals
- Cable shall conform to the Premium High Speed HDMI Cable specification established by the HDMI organization
HDMI Ultra/9
- Provide interconnection for the transmission of HDMI digital video and audio signals over a copper cable assembly.
- Cable shall conform to the Premium High Speed HDMI Cable specification established by the HDMI organization
- Shall support resolutions up to 4096x2160 @ 60 Hz with 4:4:4 chroma sampling and 8-bit color depth
- Shall support data rates up to 18.0 Gbps
- Shall meet the following cable construction requirements:
- 28 AWG copper wire
- HDMI type A male connectors with gold-plated contacts
- Low bend radius of 0.80” (20.3 mm)
- Cable outer diameter of 0.22” (5.7 mm)
- Cable shall be 9 foot (2.7 m) in length
- Cable shall provide protection from outside electrical interference
- Cable shall comply with UL VW-1 and CSA FT-1 standards
- Cable shall have a temperature rating of 80 °C
- Cable shall be certified for use with AVEdge, Cable Cubby®, and HSA surface access enclosures
- Approved cable shall be Extron HDMI Ultra/9, part number 26-663-09; no alternates or equals
- Cable shall conform to the Premium High Speed HDMI Cable specification established by the HDMI organization
HDMI Ultra/12
- Provide interconnection for the transmission of HDMI digital video and audio signals over a copper cable assembly.
- Cable shall conform to the Premium High Speed HDMI Cable specification established by the HDMI organization
- Shall support resolutions up to 4096x2160 @ 60 Hz with 4:4:4 chroma sampling and 8-bit color depth
- Shall support data rates up to 18.0 Gbps
- Shall meet the following cable construction requirements:
- 28 AWG copper wire
- HDMI type A male connectors with gold-plated contacts
- Low bend radius of 0.80” (20.3 mm)
- Cable outer diameter of 0.22” (5.7 mm)
- Cable shall be 12 foot (3.6 m) in length
- Cable shall provide protection from outside electrical interference
- Cable shall comply with UL VW-1 and CSA FT-1 standards
- Cable shall have a temperature rating of 80 °C
- Cable shall be certified for use with AVEdge, Cable Cubby®, and HSA surface access enclosures
- Approved cable shall be Extron HDMI Ultra/12, part number 26-663-12; no alternates or equals
- Cable shall conform to the Premium High Speed HDMI Cable specification established by the HDMI organization
HDMI Ultra/12
- Provide interconnection for the transmission of HDMI digital video and audio signals over a copper cable assembly.
- Cable shall conform to the Premium High Speed HDMI Cable specification established by the HDMI organization
- Shall support resolutions up to 4096x2160 @ 60 Hz with 4:4:4 chroma sampling and 8-bit color depth
- Shall support data rates up to 18.0 Gbps
- Shall meet the following cable construction requirements:
- 28 AWG copper wire
- HDMI type A male connectors with gold-plated contacts
- Low bend radius of 0.80” (20.3 mm)
- Cable outer diameter of 0.22” (5.7 mm)
- Cable shall be 12 foot (3.6 m) in length
- Cable shall provide protection from outside electrical interference
- Cable shall comply with UL VW-1 and CSA FT-1 standards
- Cable shall have a temperature rating of 80 °C
- Cable shall be certified for use with AVEdge, Cable Cubby®, and HSA surface access enclosures
- Approved cable shall be Extron HDMI Ultra/12, part number 26-663-12; no alternates or equals
- Cable shall conform to the Premium High Speed HDMI Cable specification established by the HDMI organization
HDMI Ultra/15
- Provide interconnection for the transmission of HDMI digital video and audio signals over a copper cable assembly.
- Cable shall conform to the Premium High Speed HDMI Cable specification established by the HDMI organization
- Shall support resolutions up to 4096x2160 @ 60 Hz with 4:4:4 chroma sampling and 8-bit color depth
- Shall support data rates up to 18.0 Gbps
- Shall meet the following cable construction requirements:
- 28 AWG copper wire
- HDMI type A male connectors with gold-plated contacts
- Low bend radius of 0.80” (20.3 mm)
- Cable outer diameter of 0.22” (5.7 mm)
- Cable shall be 15 foot (4.5 m) in length
- Cable shall provide protection from outside electrical interference
- Cable shall comply with UL VW-1 and CSA FT-1 standards
- Cable shall have a temperature rating of 80 °C
- Cable shall be certified for use with AVEdge, Cable Cubby®, and HSA surface access enclosures
- Approved cable shall be Extron HDMI Ultra/15, part number 26-663-15; no alternates or equals
- Cable shall conform to the Premium High Speed HDMI Cable specification established by the HDMI organization
HDMI Ultra/15
- Provide interconnection for the transmission of HDMI digital video and audio signals over a copper cable assembly.
- Cable shall conform to the Premium High Speed HDMI Cable specification established by the HDMI organization
- Shall support resolutions up to 4096x2160 @ 60 Hz with 4:4:4 chroma sampling and 8-bit color depth
- Shall support data rates up to 18.0 Gbps
- Shall meet the following cable construction requirements:
- 28 AWG copper wire
- HDMI type A male connectors with gold-plated contacts
- Low bend radius of 0.80” (20.3 mm)
- Cable outer diameter of 0.22” (5.7 mm)
- Cable shall be 15 foot (4.5 m) in length
- Cable shall provide protection from outside electrical interference
- Cable shall comply with UL VW-1 and CSA FT-1 standards
- Cable shall have a temperature rating of 80 °C
- Cable shall be certified for use with AVEdge, Cable Cubby®, and HSA surface access enclosures
- Approved cable shall be Extron HDMI Ultra/15, part number 26-663-15; no alternates or equals
- Cable shall conform to the Premium High Speed HDMI Cable specification established by the HDMI organization
把商品添加到购物车
Order Message Number
产品编号
注: 使用通用交流电源插座的 Extron 产品可支持多种不同的交流电源插头类型。在使用之前，确保设备满足您所在区域的所有规定要求，并符合所有应用的本地安全和电气规程及标准。
当前总计：
Annotation Graphics Processor
To view this page ensure that Adobe Flash Player version
11.0.0 or greater is installed and enabled.
Chrome
Firefox
Edge
Safari
