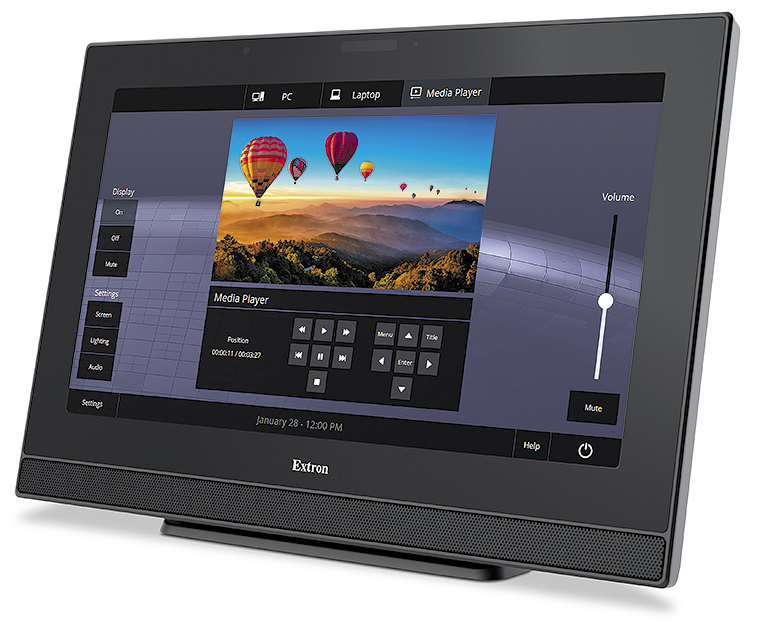

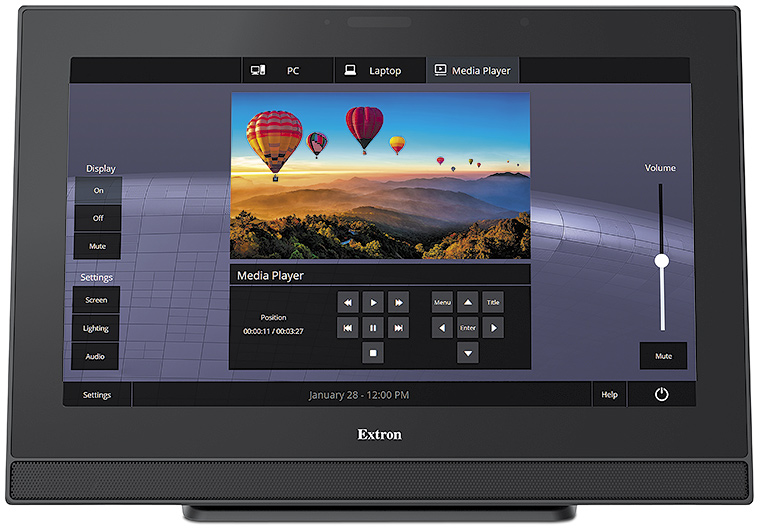

TLP Pro 1525TG

TLP Pro 1525TG

1. Provide a 15.6" capacitive touchscreen interface for switching and control of AV equipment
   1. Tabletop 15.6" touchscreen user interface for AV and control systems
      1. Provide a 15.6" LCD touchscreen that supports up to 16M colors and 1366x768 resolution
      2. Device shall support Extron IP Link Pro control processors and HC 400 Series systems
      3. Provide built-in speakers located in the bottom left and right corners of the touchpanel which can be configured to provide audio and button feedback

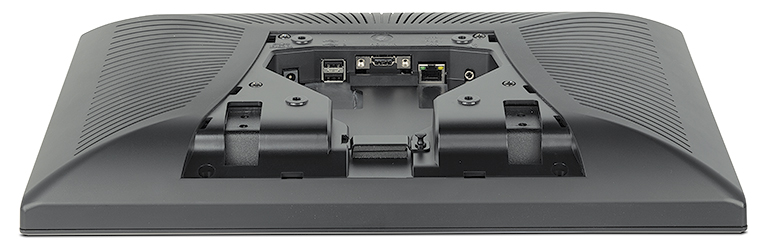

      4. Device shall have a female RJ-45 jack located on the back of the enclosure that supports 10/100Base-T, half/full duplex with auto-detect for connection to a LAN or WAN and includes link and activity LED indicators located on the left and right of the jack for troubleshooting network issues as well as supports PoE- Power over Ethernet using an optional high power PoE+ injector and doubles as an XTP video receiver
      5. Device shall have two USB inputs on the back of the touchpanel for future expansion
      6. Provide integrated red/green LED status lights located in the upper center of the touchpanel and one on the rear upper center of the panel, which can be configured or programmed
      7. Provide a built-in motion sensor located below the center of the touch surface allowing the panel to be woken from a sleep state or set up via software to trigger any number of actions
      8. Provide a light sensor located on the top bezel of the touchpanels that automatically adjusts the LCD screen’s backlight based on available ambient light
      9. Device shall have a female HDMI jack located on the back of the panel that supports HDCP-compliant video sources
      10. Device shall support the following protocols: DHCP, DNS, HTTP, HTTPS, ICMP, SFTP, SSH, TCP/IP, UDP/IP
      11. Device shall have a 3.5 mm headphone jack that will provide local audio out of the touchpanel
      12. Device shall have a menu button located on the back of the touchpanel for setup of items such as IP address and sound volume at minimum
      13. Device shall have the following memory available, at minimum:
          1. SDRAM
             1. 2 GB
          2. Flash
             1. 8 GB
      14. Device shall have an optional 12-volt DC Plug connection located on the back of the panel should a high-power injector not be available
      15. Device shall include a multi-function button that allows for the reset of the device or its communication properties at minimum
      16. Device shall have the ability to be controlled by an HTML5 and JavaScript enabled web browser, or an iOS or Android based device as a secondary point of control.
      17. Device shall be black in color
   2. Mounting requirements
      1. Device shall have the ability to sit on a tabletop with a base that can be secured using the threaded holes in the base of the touchpanel and while using owner furnished screws
      2. Device’s base shall be removable and allow for the touchpanel to accommodate being mounted using a VESA D 100 mm panel mount kit

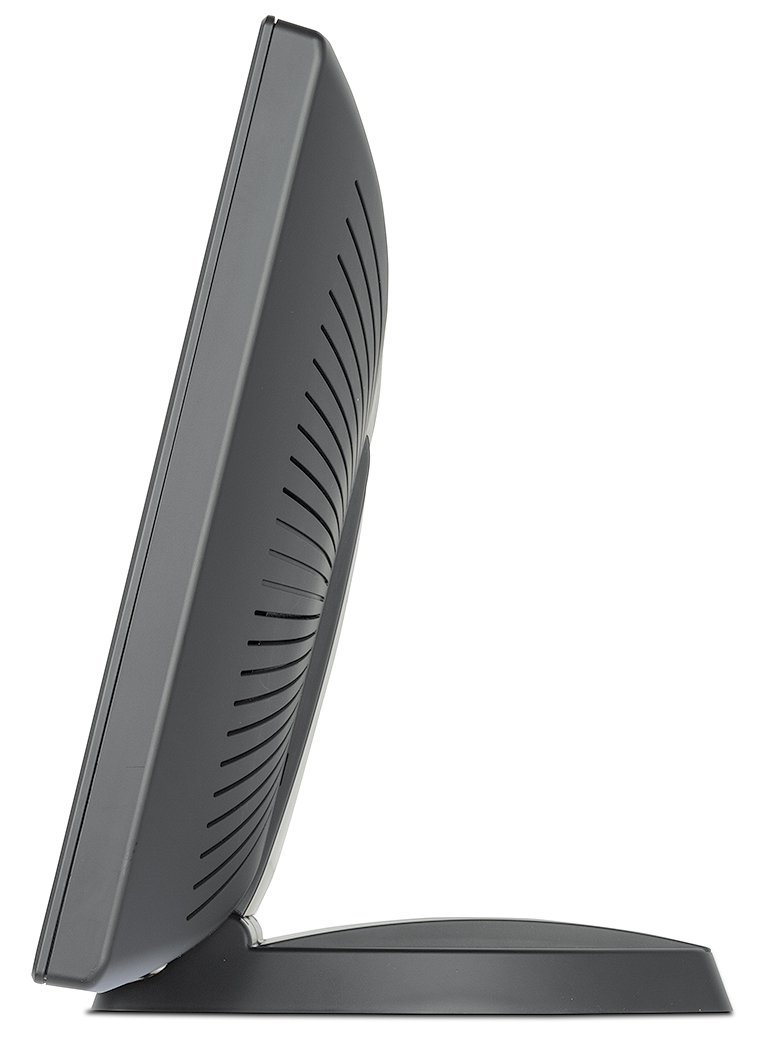

      3. Device’s base shall be weighted and allow for up to 40° of tilt

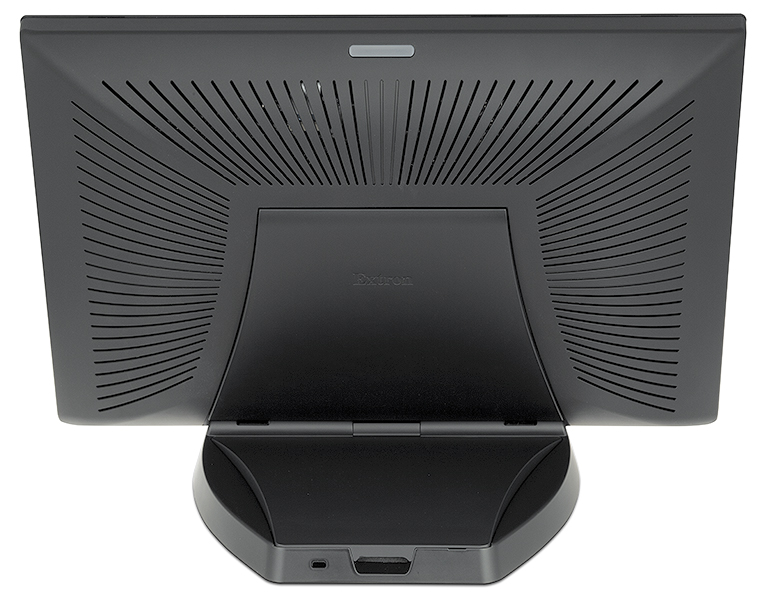

      4. Device shall have a built-in security slot located in the rear of its base that allows it to be secured using a Kensington lock
      5. Device’s base shall be able to be securely rotated horizontally ±180° with an optional swivel mount adapter
   3. Software requirements
      1. User interface shall be created using Extron’s GUI Designer software.
      2. The device may only be configured or programmed using Extron’s Global Configurator Plus or Professional, or Global Scripter respectively.
      3. Shall be configured or programmed by an Extron authorized user.
      4. The device’s configuration and settings shall be managed using Extron’s Toolbelt software.
   4. Security requirements
      1. Device shall support SFTP and SSH for secure communication between the control processor and TouchLink Pro touchpanel.
      2. Device shall support SFTP and SSH for secure communication between the control processor and the configuration or programming software
      3. Device shall provide the option to modify administrator and user credentials
      4. Device shall support security updates to maintain network health
      5. Device shall require that a Secure Socket Layer (SSL) Certificate is installed to maintain system confidentiality and data integrity
      6. Device shall support the installation of an owner furnished certificate with the following properties:
         1. Certificates shall include x.509 support
         2. Certificates shall include public / private key exchange
         3. Certificates shall support PEM encoding
      7. Extron shall furnish documentation that describes all supported network ports and services
   5. Shall meet regulatory compliances
      1. CE
      2. UL
      3. c-UL
      4. C-Tick
      5. FCC Class B
      6. ICES
      7. VCCI
      8. RoHS
      9. WEEE
   6. Product Warranty
      1. Shall provide at least 3 years parts and labor
      2. Shall provide 1-year touchscreen and overlay components
   7. Approved device shall be the Extron TLP Pro 1525TG, part number 60-1790-12, no alternates or equals
