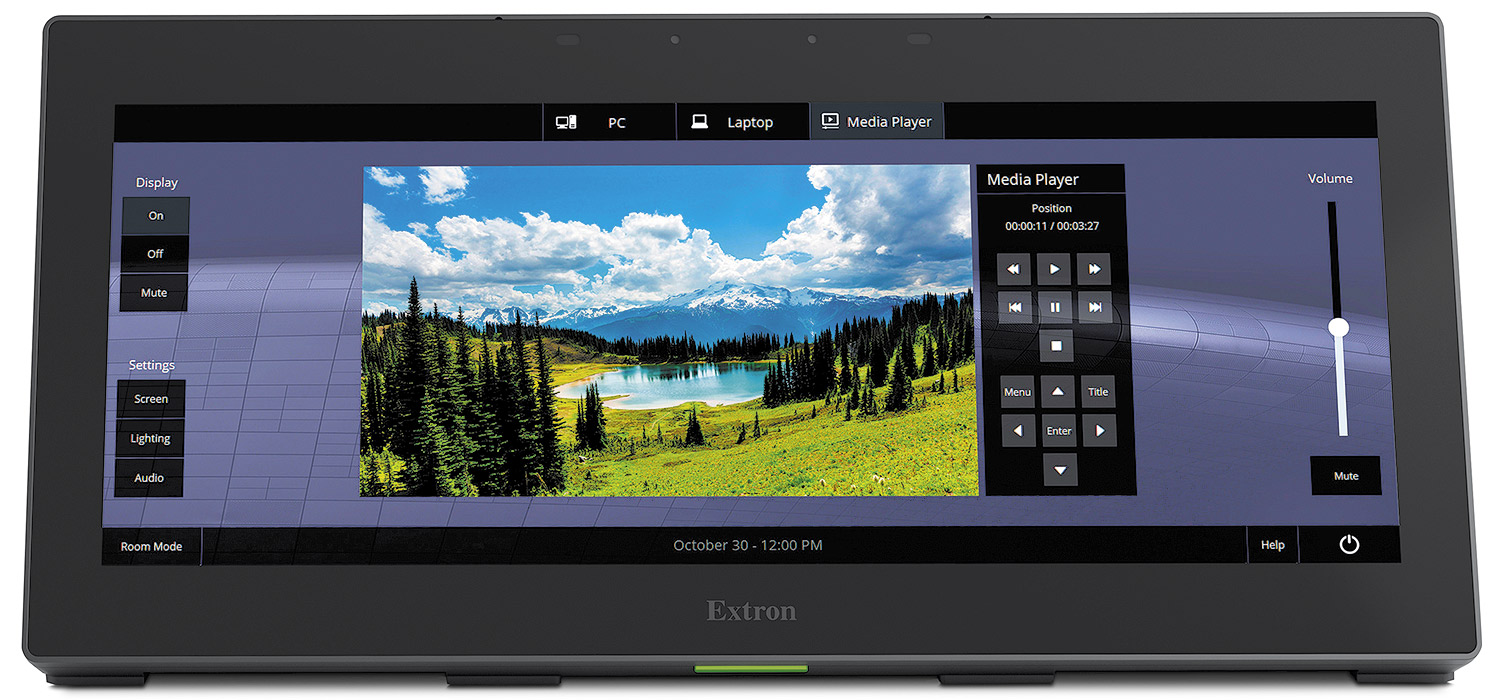

TLP Pro 1230WTG

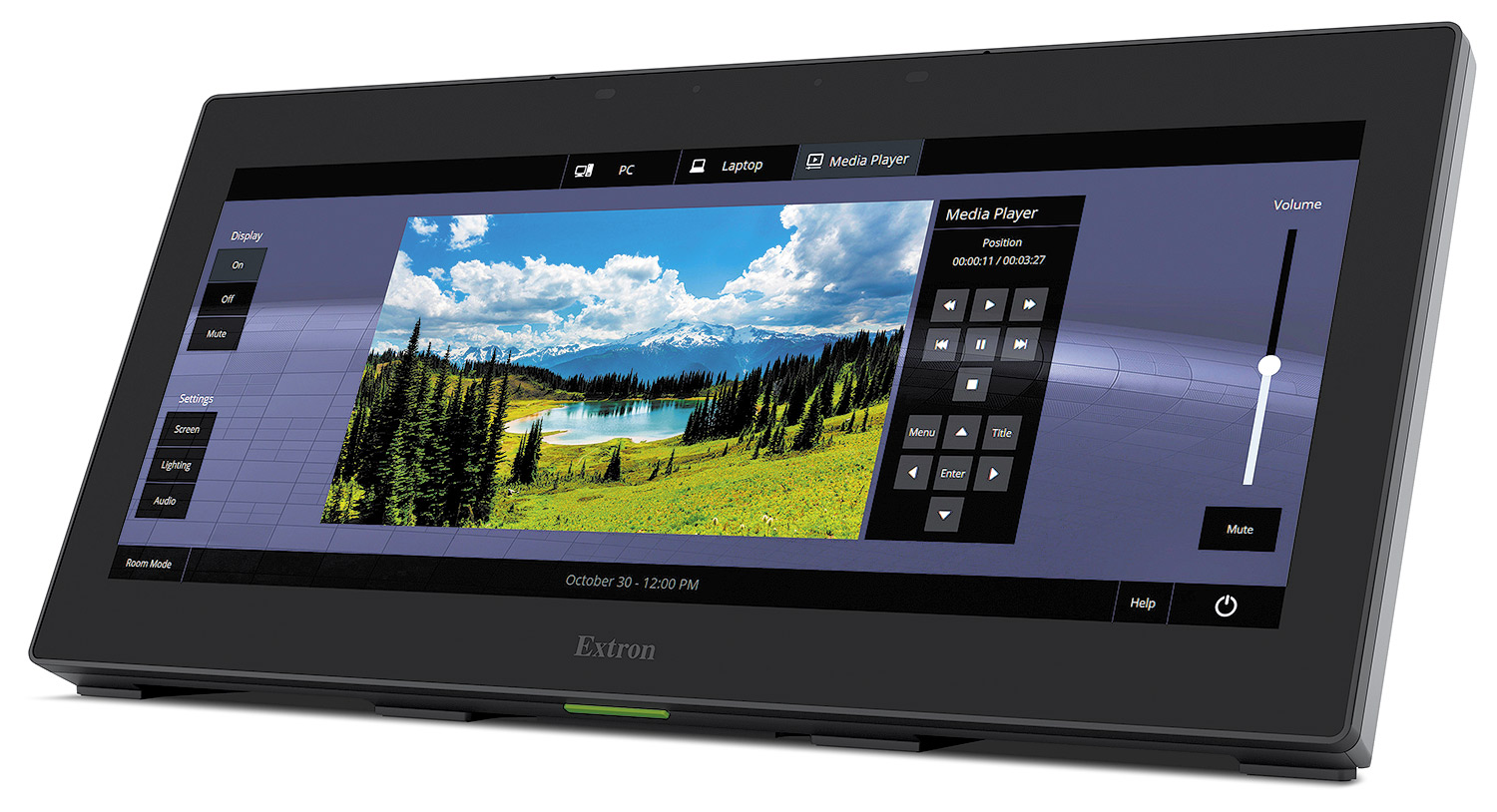

- Provide a 12.3" ultra-wide edge-to-edge glass capacitive touchscreen interface for switching and control of AV equipment
- Tabletop 12.3" ultra-wide touchscreen user interface for AV and control systems
- Provide a 12.3" LCD color touchscreen that supports up to 16M colors and 1920x720 resolution
- Device shall support Extron IP Link Pro control processors and HC 400 Series systems
- Device shall include two built-in down firing speakers which can be configured to provide audio and button feedback
- Device shall have a female RJ-45 jack located on the bottom of the enclosure hidden behind a removable door that supports 10/100/1000Base-T, half/full duplex with auto-detect for connection to a LAN or WAN and includes link and activity LED indicators located on the jack for troubleshooting network issues as well as supports PoE- Power over Ethernet, 802.3at
- Device shall include a single high-speed USB 2.0 type A connection located on the back of the enclosure hidden behind a removable cover plate
- Provide a total of two integrated red/green LED status lights - one located on the front-bottom center of the enclosure and the second located on the back-top center of the enclosure, both of which can be configured or programmed.
- Provide a built-in motion sensor located on the top bezel of the touch surface allowing the panel to be woken from a sleep state or set up via software to trigger any number of actions
- Provide a light sensor located on the top bezel of the touchpanel that automatically adjusts the LCD screen’s backlight based on available ambient light
- Device shall have a female HDMI jack located on the bottom of the enclosure hidden behind a removable door that supports HDCP-compliant video sources
- Provide a front panel status LED that blinks red if the touchpanel loses network connectivity with the control processor
- Device shall have a menu button located on the bottom of the enclosure hidden behind a removable door for setup of items such as IP address and sound volume at minimum
- Device shall include a multi-function button located on the bottom of the enclosure hidden behind a removable door that allows for the reset of the device or its communication properties at minimum
- Device shall support the following protocols: DHCP, DNS, HTTP, HTTPS, ICMP, SFTP, SSH, TCP/IP, UDP/IP
- Device shall have the following memory available, at minimum:
- SDRAM
- 2 GB
- Flash
- 8 GB
- SDRAM
- Device shall have the ability to be controlled by an HTML5 and JavaScript enabled web browser, or an iOS or Android based device as a secondary point of control.
- Device shall be black in color
- Mounting requirements
- Device shall have the ability to sit on a tabletop that can be secured using the threaded holes in the base of the touchpanel while using owner furnished screws
- Device shall be weighted and have an optimized viewing angle of 65°
- Device’s base shall be able to be securely rotated horizontally ±180° with an optional swivel mount adapter
- Software requirements
- User interface shall be created using Extron’s GUI Designer software.
- The device may only be configured or programmed using Extron’s Global Configurator Plus or Professional, or Global Scripter respectively.
- Shall be configured or programmed by an Extron authorized user.
- The device’s configuration and settings shall be managed using Extron’s Toolbelt software.
- Security requirements
- Device shall support SFTP and SSH for secure communication between the control processor and TouchLink Pro touchpanel.
- Device shall support SFTP and SSH for secure communication between the control processor and the configuration or programming software
- Device shall provide the option to modify administrator and user credentials
- Device shall support security updates to maintain network health
- Device shall require that a Secure Socket Layer (SSL) Certificate is installed to maintain system confidentiality and data integrity
- Device shall support the installation of an owner furnished certificate with the following properties:
- Certificates shall include x.509 support
- Certificates shall include public / private key exchange
- Certificates shall support PEM encoding
- Extron shall furnish documentation that describes all supported network ports and services
- Shall meet regulatory compliances
- CE
- c-UL
- UL
- C-Tick
- FCC Class B
- ICES
- VCCI
- RoHS
- WEEE
- Product Warranty
- Shall provide at least 3 years parts and labor
- Shall provide 1-year touchscreen and overlay components
- Approved device shall be the Extron TLP Pro 1230WTG, part number 60-1668-02, no alternates or equals
- Tabletop 12.3" ultra-wide touchscreen user interface for AV and control systems
TLP Pro 1230WTG
- Provide a 12.3" ultra-wide edge-to-edge glass capacitive touchscreen interface for switching and control of AV equipment
- Tabletop 12.3" ultra-wide touchscreen user interface for AV and control systems
- Provide a 12.3" LCD color touchscreen that supports up to 16M colors and 1920x720 resolution
- Device shall support Extron IP Link Pro control processors and HC 400 Series systems
- Device shall include two built-in down firing speakers which can be configured to provide audio and button feedback
- Device shall have a female RJ-45 jack located on the bottom of the enclosure hidden behind a removable door that supports 10/100/1000Base-T, half/full duplex with auto-detect for connection to a LAN or WAN and includes link and activity LED indicators located on the jack for troubleshooting network issues as well as supports PoE- Power over Ethernet, 802.3at
- Device shall include a single high-speed USB 2.0 type A connection located on the back of the enclosure hidden behind a removable cover plate
- Provide a total of two integrated red/green LED status lights - one located on the front-bottom center of the enclosure and the second located on the back-top center of the enclosure, both of which can be configured or programmed.
- Provide a built-in motion sensor located on the top bezel of the touch surface allowing the panel to be woken from a sleep state or set up via software to trigger any number of actions
- Provide a light sensor located on the top bezel of the touchpanel that automatically adjusts the LCD screen’s backlight based on available ambient light
- Device shall have a female HDMI jack located on the bottom of the enclosure hidden behind a removable door that supports HDCP-compliant video sources
- Provide a front panel status LED that blinks red if the touchpanel loses network connectivity with the control processor
- Device shall have a menu button located on the bottom of the enclosure hidden behind a removable door for setup of items such as IP address and sound volume at minimum
- Device shall include a multi-function button located on the bottom of the enclosure hidden behind a removable door that allows for the reset of the device or its communication properties at minimum
- Device shall support the following protocols: DHCP, DNS, HTTP, HTTPS, ICMP, SFTP, SSH, TCP/IP, UDP/IP
- Device shall have the following memory available, at minimum:
- SDRAM
- 2 GB
- Flash
- 8 GB
- SDRAM
- Device shall have the ability to be controlled by an HTML5 and JavaScript enabled web browser, or an iOS or Android based device as a secondary point of control.
- Device shall be black in color
- Mounting requirements
- Device shall have the ability to sit on a tabletop that can be secured using the threaded holes in the base of the touchpanel while using owner furnished screws
- Device shall be weighted and have an optimized viewing angle of 65°
- Device’s base shall be able to be securely rotated horizontally ±180° with an optional swivel mount adapter
- Software requirements
- User interface shall be created using Extron’s GUI Designer software.
- The device may only be configured or programmed using Extron’s Global Configurator Plus or Professional, or Global Scripter respectively.
- Shall be configured or programmed by an Extron authorized user.
- The device’s configuration and settings shall be managed using Extron’s Toolbelt software.
- Security requirements
- Device shall support SFTP and SSH for secure communication between the control processor and TouchLink Pro touchpanel.
- Device shall support SFTP and SSH for secure communication between the control processor and the configuration or programming software
- Device shall provide the option to modify administrator and user credentials
- Device shall support security updates to maintain network health
- Device shall require that a Secure Socket Layer (SSL) Certificate is installed to maintain system confidentiality and data integrity
- Device shall support the installation of an owner furnished certificate with the following properties:
- Certificates shall include x.509 support
- Certificates shall include public / private key exchange
- Certificates shall support PEM encoding
- Extron shall furnish documentation that describes all supported network ports and services
- Shall meet regulatory compliances
- CE
- c-UL
- UL
- C-Tick
- FCC Class B
- ICES
- VCCI
- RoHS
- WEEE
- Product Warranty
- Shall provide at least 3 years parts and labor
- Shall provide 1-year touchscreen and overlay components
- Approved device shall be the Extron TLP Pro 1230WTG, part number 60-1668-02, no alternates or equals
- Tabletop 12.3" ultra-wide touchscreen user interface for AV and control systems
TLP Pro 1230WTG
- Provide a 12.3" ultra-wide edge-to-edge glass capacitive touchscreen interface for switching and control of AV equipment
- Tabletop 12.3" ultra-wide touchscreen user interface for AV and control systems
- Provide a 12.3" LCD color touchscreen that supports up to 16M colors and 1920x720 resolution
- Device shall support Extron IP Link Pro control processors and HC 400 Series systems
- Device shall include two built-in down firing speakers which can be configured to provide audio and button feedback
- Device shall have a female RJ-45 jack located on the bottom of the enclosure hidden behind a removable door that supports 10/100/1000Base-T, half/full duplex with auto-detect for connection to a LAN or WAN and includes link and activity LED indicators located on the jack for troubleshooting network issues as well as supports PoE- Power over Ethernet, 802.3at
- Device shall include a single high-speed USB 2.0 type A connection located on the back of the enclosure hidden behind a removable cover plate
- Provide a total of two integrated red/green LED status lights - one located on the front-bottom center of the enclosure and the second located on the back-top center of the enclosure, both of which can be configured or programmed.
- Provide a built-in motion sensor located on the top bezel of the touch surface allowing the panel to be woken from a sleep state or set up via software to trigger any number of actions
- Provide a light sensor located on the top bezel of the touchpanel that automatically adjusts the LCD screen’s backlight based on available ambient light
- Device shall have a female HDMI jack located on the bottom of the enclosure hidden behind a removable door that supports HDCP-compliant video sources
- Provide a front panel status LED that blinks red if the touchpanel loses network connectivity with the control processor
- Device shall have a menu button located on the bottom of the enclosure hidden behind a removable door for setup of items such as IP address and sound volume at minimum
- Device shall include a multi-function button located on the bottom of the enclosure hidden behind a removable door that allows for the reset of the device or its communication properties at minimum
- Device shall support the following protocols: DHCP, DNS, HTTP, HTTPS, ICMP, SFTP, SSH, TCP/IP, UDP/IP
- Device shall have the following memory available, at minimum:
- SDRAM
- 2 GB
- Flash
- 8 GB
- SDRAM
- Device shall have the ability to be controlled by an HTML5 and JavaScript enabled web browser, or an iOS or Android based device as a secondary point of control.
- Device shall be white in color
- Mounting requirements
- Device shall have the ability to sit on a tabletop that can be secured using the threaded holes in the base of the touchpanel while using owner furnished screws
- Device shall be weighted and have an optimized viewing angle of 65°
- Device’s base shall be able to be securely rotated horizontally ±180° with an optional swivel mount adapter
- Software requirements
- User interface shall be created using Extron’s GUI Designer software.
- The device may only be configured or programmed using Extron’s Global Configurator Plus or Professional, or Global Scripter respectively.
- Shall be configured or programmed by an Extron authorized user.
- The device’s configuration and settings shall be managed using Extron’s Toolbelt software.
- Security requirements
- Device shall support SFTP and SSH for secure communication between the control processor and TouchLink Pro touchpanel.
- Device shall support SFTP and SSH for secure communication between the control processor and the configuration or programming software
- Device shall provide the option to modify administrator and user credentials
- Device shall support security updates to maintain network health
- Device shall require that a Secure Socket Layer (SSL) Certificate is installed to maintain system confidentiality and data integrity
- Device shall support the installation of an owner furnished certificate with the following properties:
- Certificates shall include x.509 support
- Certificates shall include public / private key exchange
- Certificates shall support PEM encoding
- Extron shall furnish documentation that describes all supported network ports and services
- Shall meet regulatory compliances
- CE
- c-UL
- UL
- C-Tick
- FCC Class B
- ICES
- VCCI
- RoHS
- WEEE
- Product Warranty
- Shall provide at least 3 years parts and labor
- Shall provide 1-year touchscreen and overlay components
- Approved device shall be the Extron TLP Pro 1230WTG, part number 60-1668-03, no alternates or equals
- Tabletop 12.3" ultra-wide touchscreen user interface for AV and control systems
TLP Pro 1230WTG
- Provide a 12.3" ultra-wide edge-to-edge glass capacitive touchscreen interface for switching and control of AV equipment
- Tabletop 12.3" ultra-wide touchscreen user interface for AV and control systems
- Provide a 12.3" LCD color touchscreen that supports up to 16M colors and 1920x720 resolution
- Device shall support Extron IP Link Pro control processors and HC 400 Series systems
- Device shall include two built-in down firing speakers which can be configured to provide audio and button feedback
- Device shall have a female RJ-45 jack located on the bottom of the enclosure hidden behind a removable door that supports 10/100/1000Base-T, half/full duplex with auto-detect for connection to a LAN or WAN and includes link and activity LED indicators located on the jack for troubleshooting network issues as well as supports PoE- Power over Ethernet, 802.3at
- Device shall include a single high-speed USB 2.0 type A connection located on the back of the enclosure hidden behind a removable cover plate
- Provide a total of two integrated red/green LED status lights - one located on the front-bottom center of the enclosure and the second located on the back-top center of the enclosure, both of which can be configured or programmed.
- Provide a built-in motion sensor located on the top bezel of the touch surface allowing the panel to be woken from a sleep state or set up via software to trigger any number of actions
- Provide a light sensor located on the top bezel of the touchpanel that automatically adjusts the LCD screen’s backlight based on available ambient light
- Device shall have a female HDMI jack located on the bottom of the enclosure hidden behind a removable door that supports HDCP-compliant video sources
- Provide a front panel status LED that blinks red if the touchpanel loses network connectivity with the control processor
- Device shall have a menu button located on the bottom of the enclosure hidden behind a removable door for setup of items such as IP address and sound volume at minimum
- Device shall include a multi-function button located on the bottom of the enclosure hidden behind a removable door that allows for the reset of the device or its communication properties at minimum
- Device shall support the following protocols: DHCP, DNS, HTTP, HTTPS, ICMP, SFTP, SSH, TCP/IP, UDP/IP
- Device shall have the following memory available, at minimum:
- SDRAM
- 2 GB
- Flash
- 8 GB
- SDRAM
- Device shall have the ability to be controlled by an HTML5 and JavaScript enabled web browser, or an iOS or Android based device as a secondary point of control.
- Device shall be white in color
- Mounting requirements
- Device shall have the ability to sit on a tabletop that can be secured using the threaded holes in the base of the touchpanel while using owner furnished screws
- Device shall be weighted and have an optimized viewing angle of 65°
- Device’s base shall be able to be securely rotated horizontally ±180° with an optional swivel mount adapter
- Software requirements
- User interface shall be created using Extron’s GUI Designer software.
- The device may only be configured or programmed using Extron’s Global Configurator Plus or Professional, or Global Scripter respectively.
- Shall be configured or programmed by an Extron authorized user.
- The device’s configuration and settings shall be managed using Extron’s Toolbelt software.
- Security requirements
- Device shall support SFTP and SSH for secure communication between the control processor and TouchLink Pro touchpanel.
- Device shall support SFTP and SSH for secure communication between the control processor and the configuration or programming software
- Device shall provide the option to modify administrator and user credentials
- Device shall support security updates to maintain network health
- Device shall require that a Secure Socket Layer (SSL) Certificate is installed to maintain system confidentiality and data integrity
- Device shall support the installation of an owner furnished certificate with the following properties:
- Certificates shall include x.509 support
- Certificates shall include public / private key exchange
- Certificates shall support PEM encoding
- Extron shall furnish documentation that describes all supported network ports and services
- Shall meet regulatory compliances
- CE
- c-UL
- UL
- C-Tick
- FCC Class B
- ICES
- VCCI
- RoHS
- WEEE
- Product Warranty
- Shall provide at least 3 years parts and labor
- Shall provide 1-year touchscreen and overlay components
- Approved device shall be the Extron TLP Pro 1230WTG, part number 60-1668-03, no alternates or equals

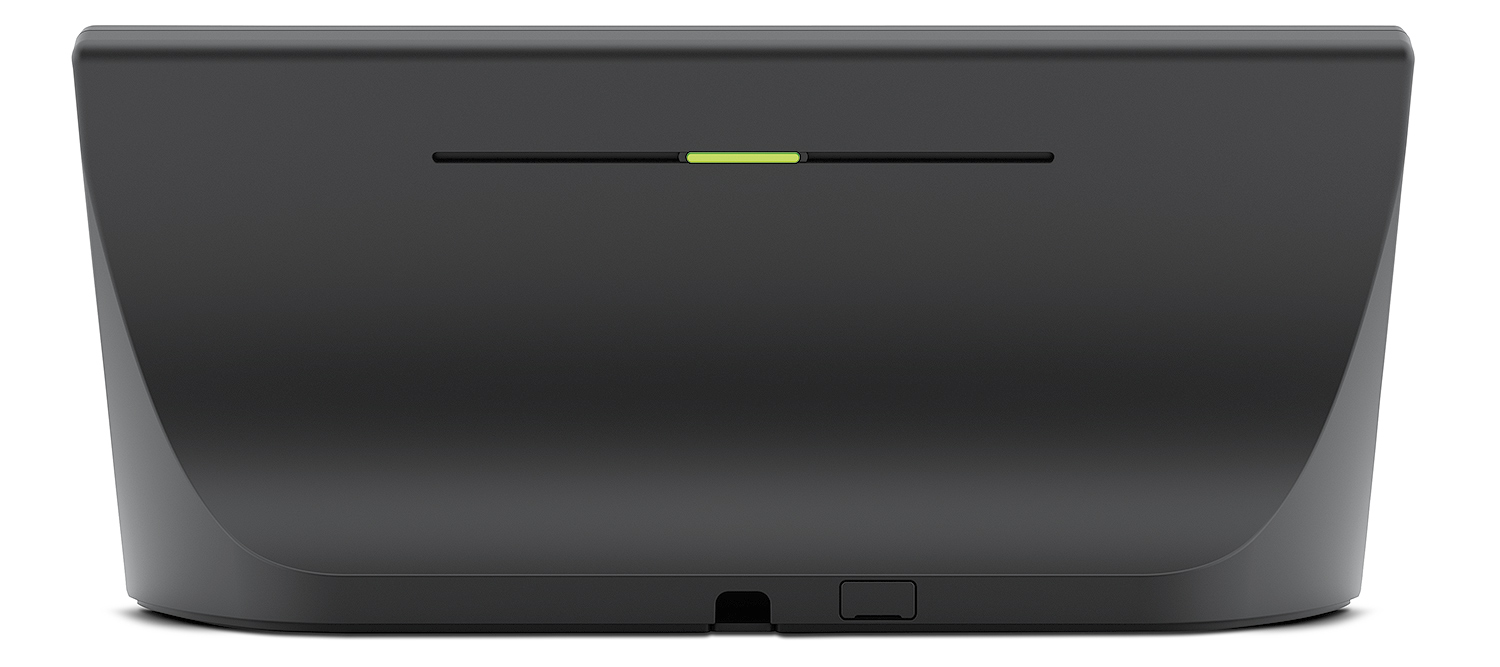

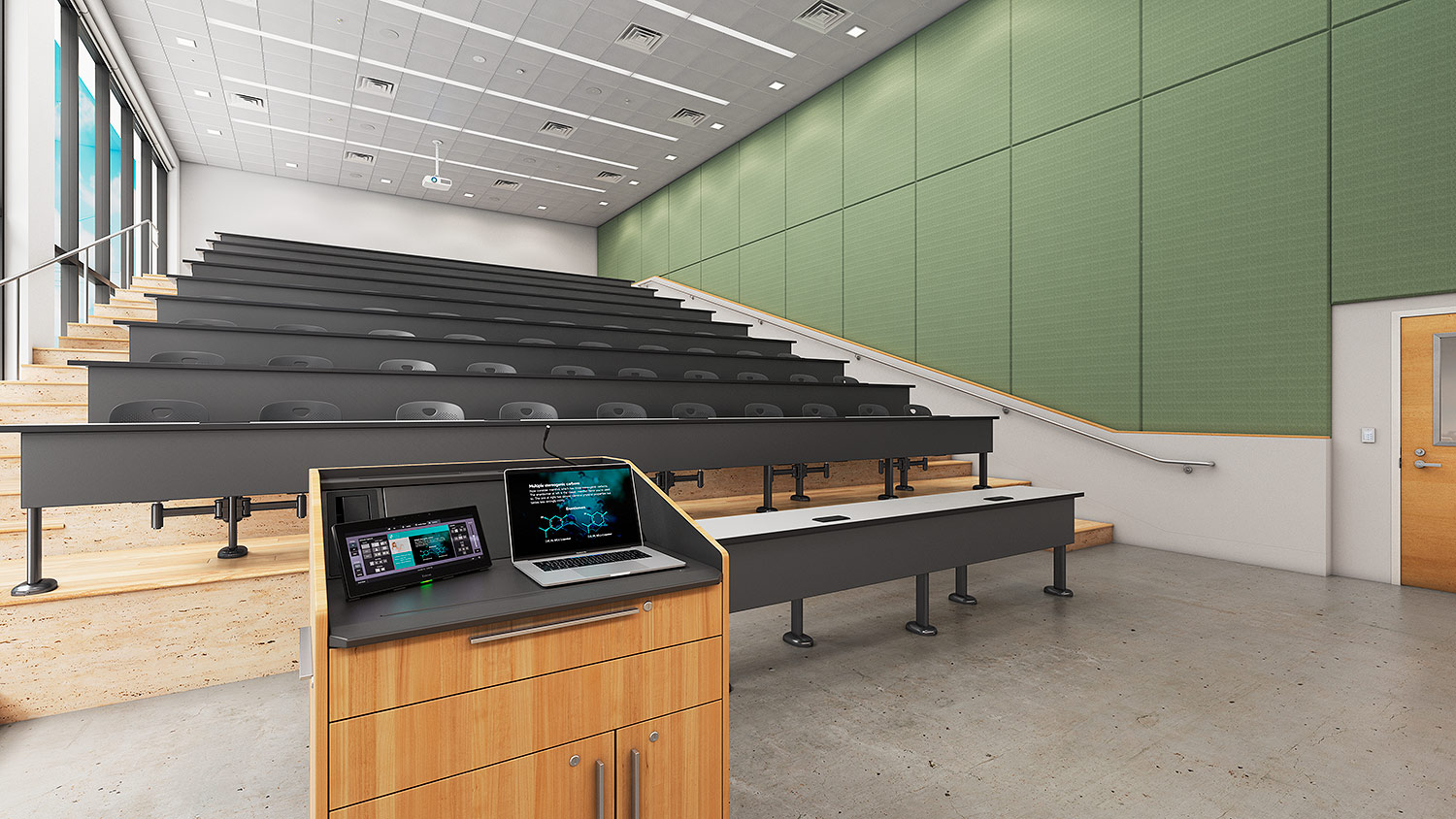

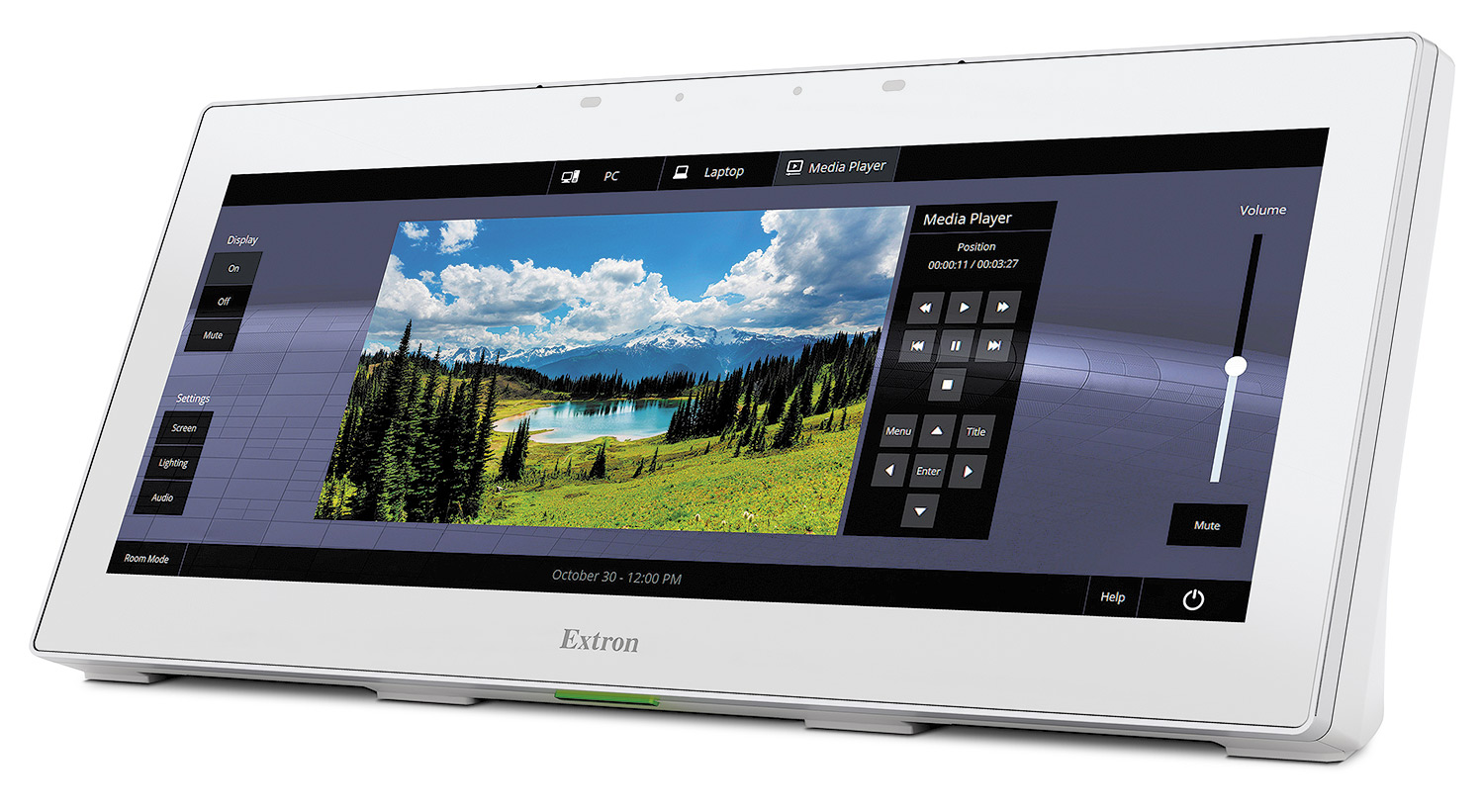

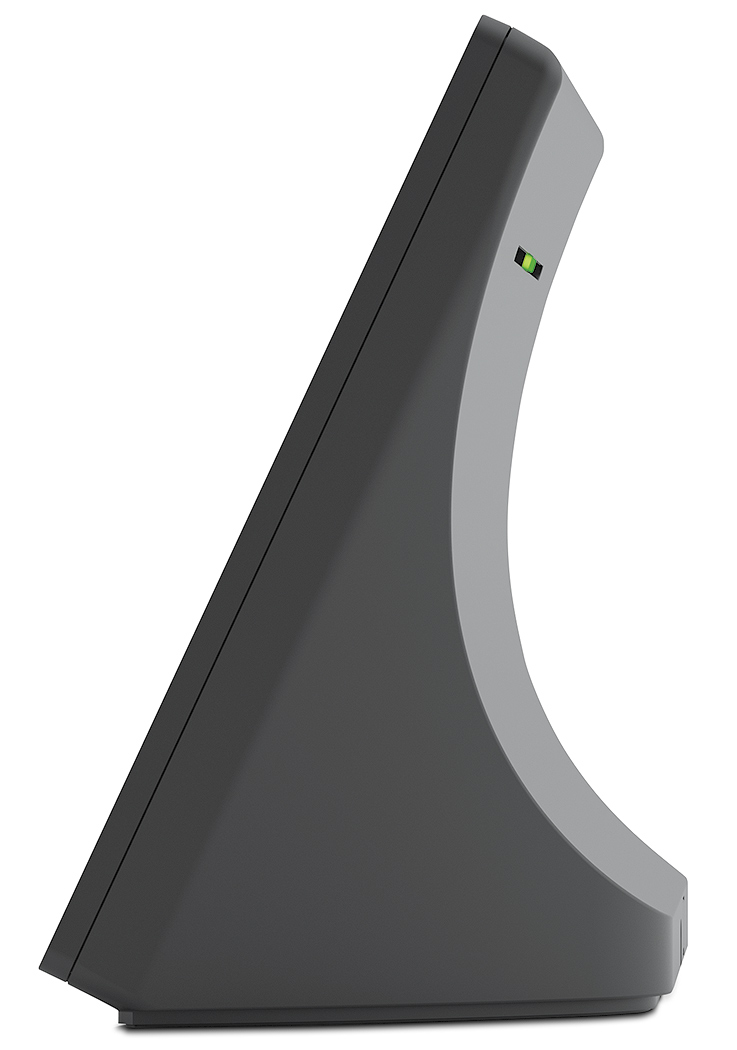

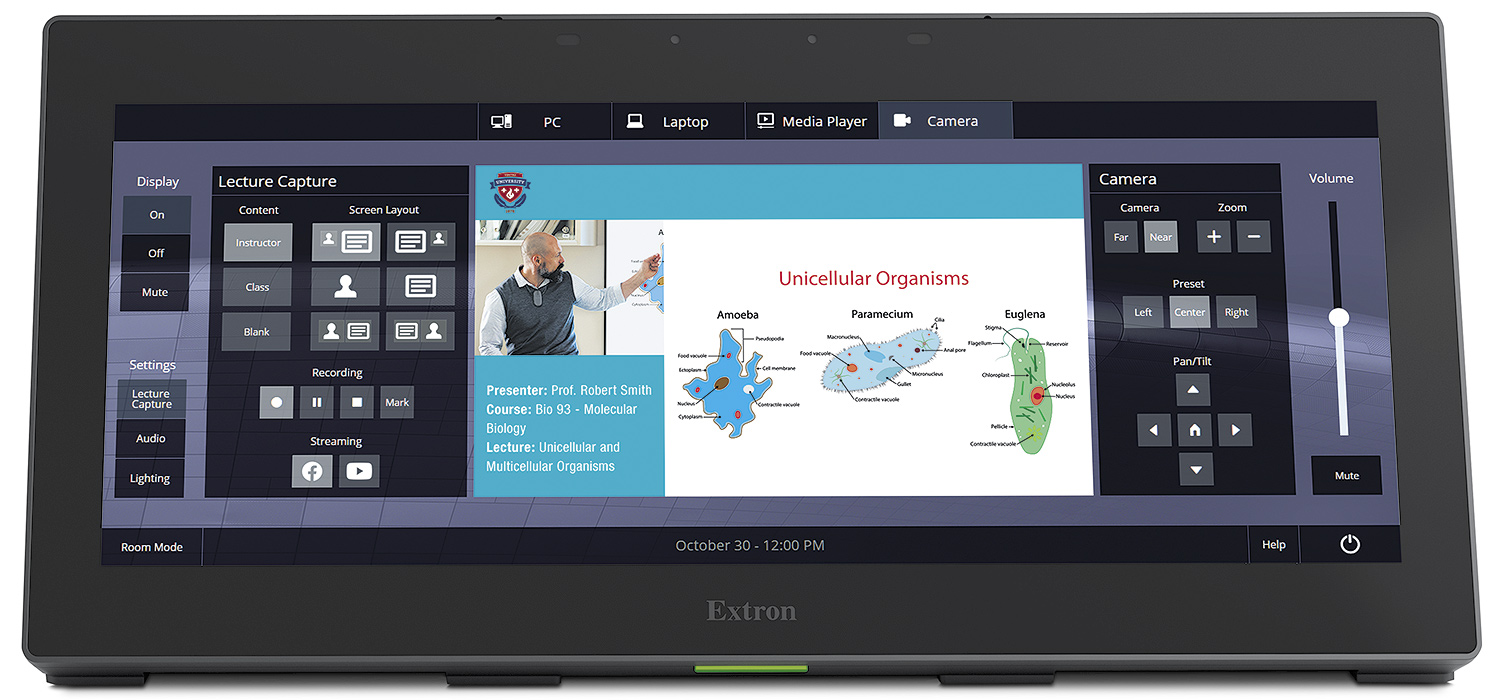

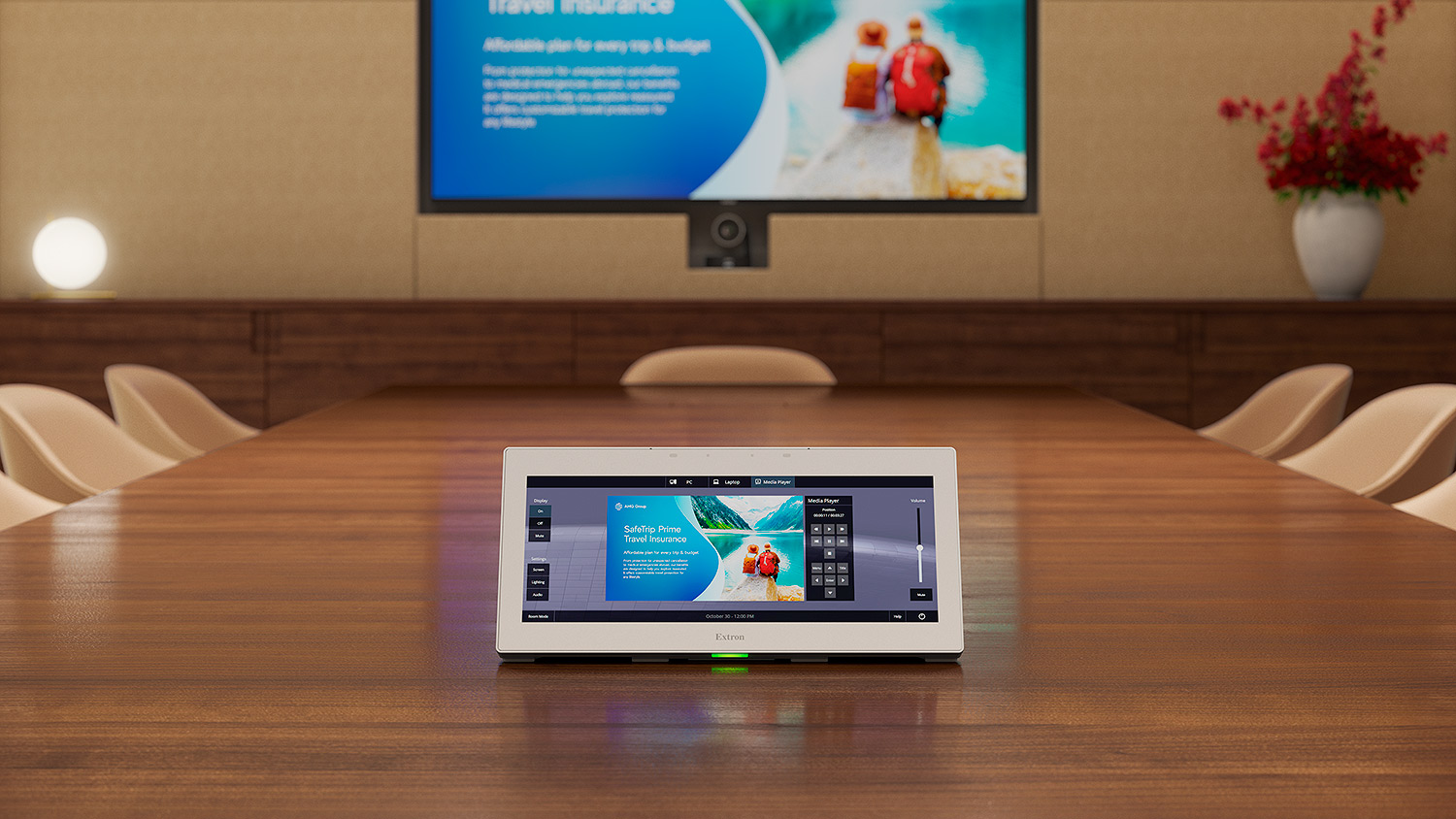

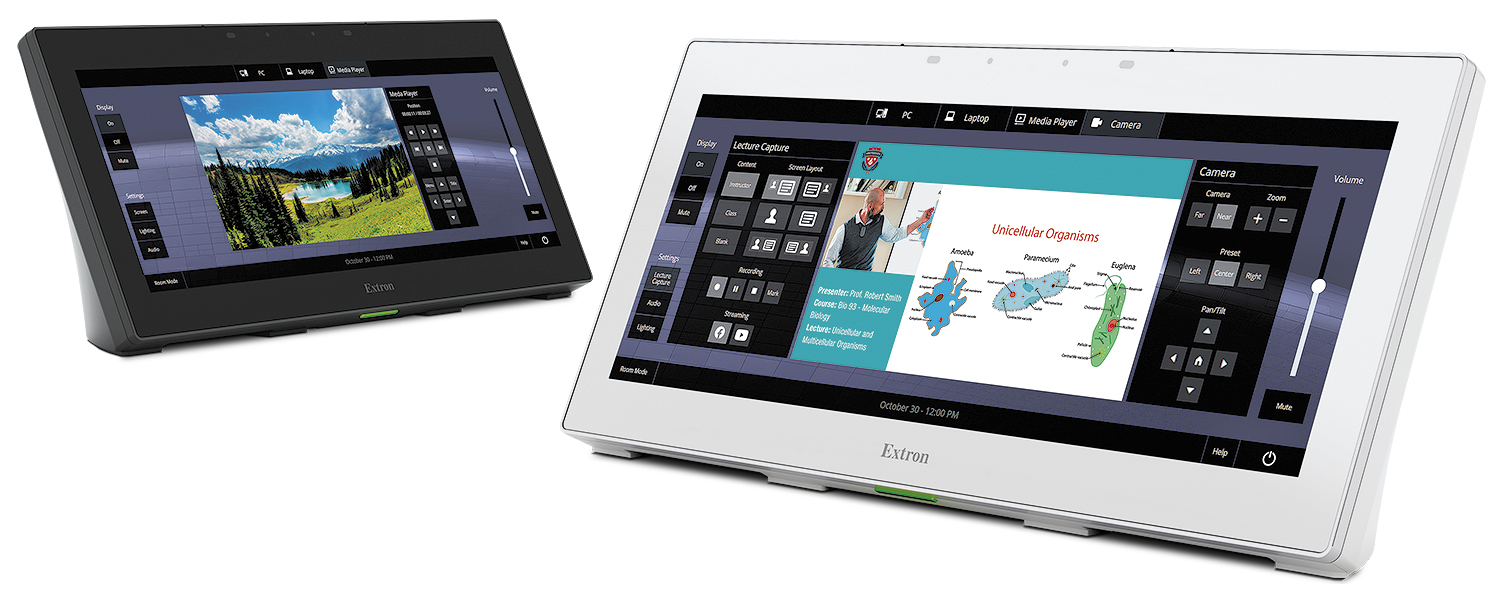

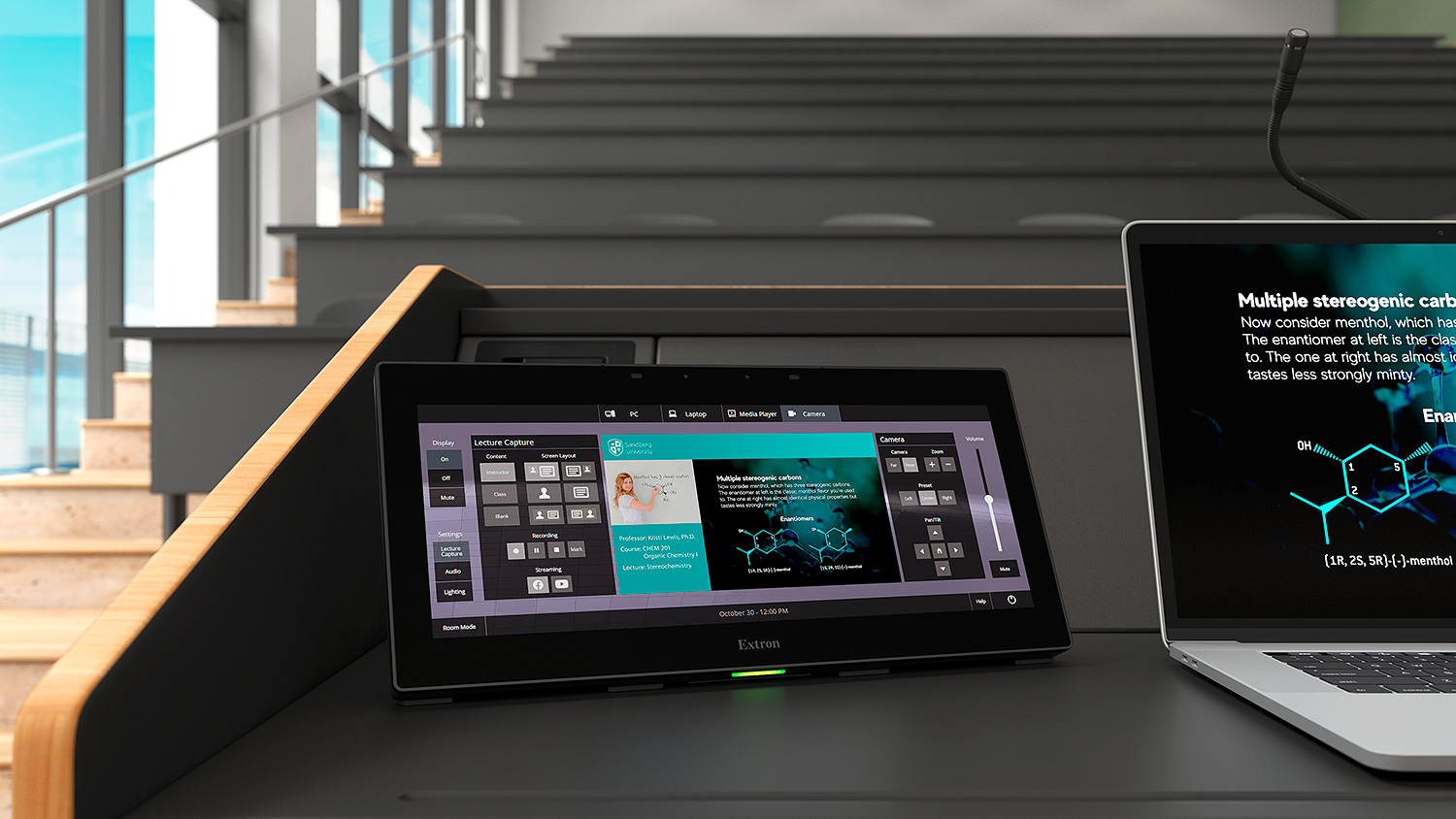

- Tabletop 12.3" ultra-wide touchscreen user interface for AV and control systems
把商品添加到购物车
Order Message Number
产品编号
注: 使用通用交流电源插座的 Extron 产品可支持多种不同的交流电源插头类型。在使用之前，确保设备满足您所在区域的所有规定要求，并符合所有应用的本地安全和电气规程及标准。
当前总计：
Annotation Graphics Processor
To view this page ensure that Adobe Flash Player version
11.0.0 or greater is installed and enabled.
Chrome
Firefox
Edge
Safari
