TLP Pro 1035M
- Provide a 10.1" capacitive touchscreen interface for switching and controlling AV equipment
- Wall mountable 10.1" touchscreen user interface for AV and control systems
- Provide a 10.1" LCD touchscreen that supports up to 16.7M colors and 1280x800 resolution
- Device shall feature scratch and smudge-resistant Corning® Gorilla Glass®
- Device shall support Extron IP Link Pro xi control processors
- Device shall include dual built-in down firing speakers which can be configured to provide audio and button feedback

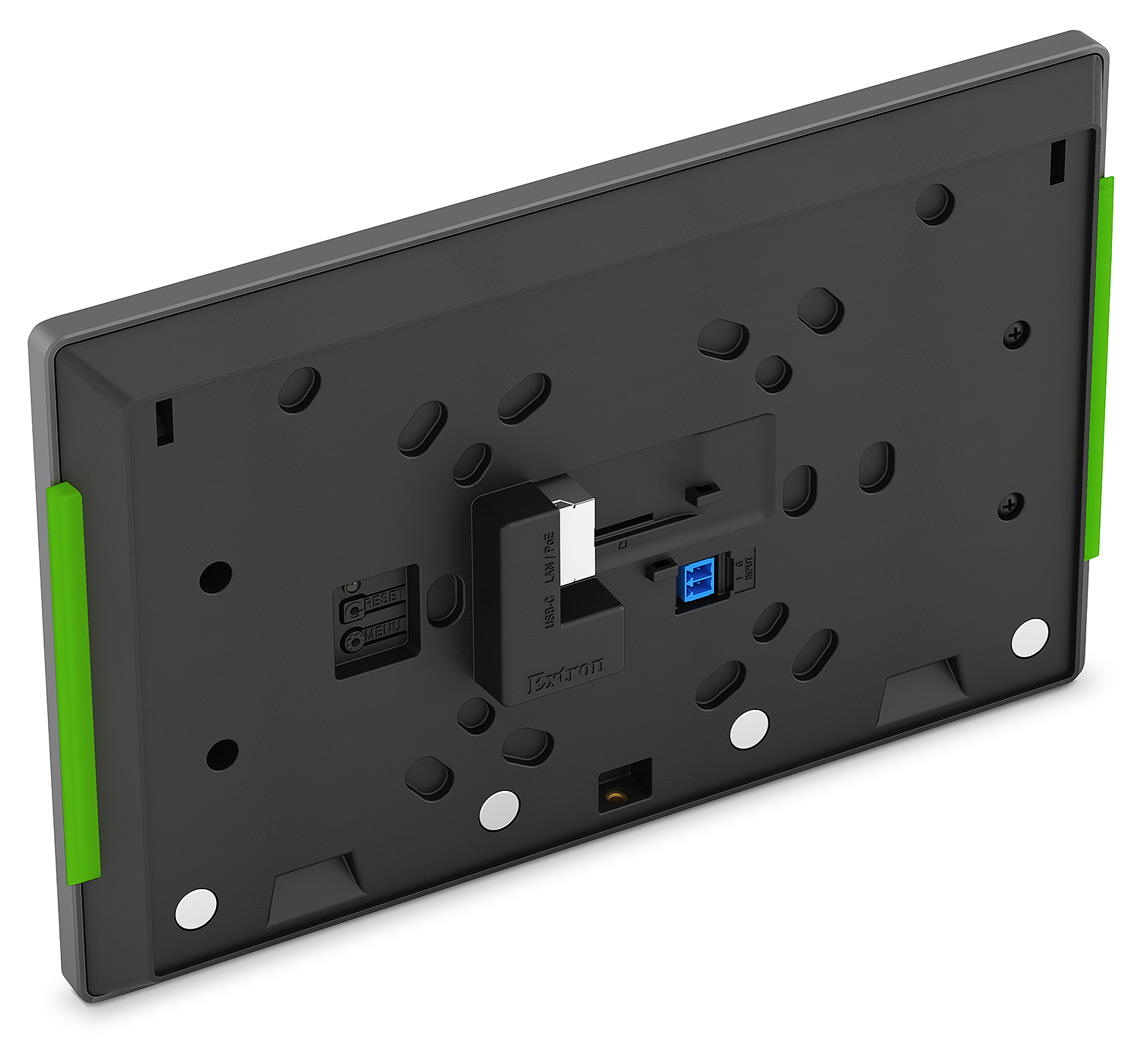

- Device shall have a female RJ-45 jack located on the back of the enclosure that supports 10/100/1000Base-T, half/full duplex with auto-detect for connection to a LAN or WAN and includes link and activity LED indicators located on the left and right of the jack for troubleshooting network issues as well as supports PoE (Power over Ethernet), 802.3af
- Device shall include a single high-speed USB 2.0 type C connection located on the back of the enclosure
- Device shall support expansion ports via a USB-C adapter when paired with LinkLicense for TLP Control Processor or can be remotely powered
- Provide a total of two integrated RGB LED status lightbars located along the left and right sides of the display, both of which can be configured or programmed
- Provide a built-in motion sensor located on the top bezel of the touch surface allowing the panel to be woken from a sleep state or set up via software to trigger any number of actions
- Provide a light sensor located on the right side of the bezel of the touch surface that automatically adjusts the LCD screen’s backlight based on available ambient light
- Device shall have a menu button located on the back setup of items such as IP address and sound volume at minimum
- Device shall include a multi-function button located on the back of the enclosure that allows for the reset of the device or its communication properties at minimum
- Device shall feature a digital input on the back of the panel
- Device shall support the following protocols: DHCP, DNS, HTTP, HTTPS (redirect), ICMP, IEEE 802.1X, IPv4, NTP, SFTP, SMTP, SNMP, SSH, SSL, TLS, TCP/IP, UDP/IP
- Device shall have the following memory available, at minimum:
- SDRAM
- 4 GB
- Flash
- 64 GB
- SDRAM
- Device shall have native support for H.264 streaming formats enabling the touchpanel to display live streaming video from an IP camera or a streaming encoder such as the Extron SMP or SME series of products
- Device shall have the ability to be controlled by an HTML5, and JavaScript enabled web browser, or an iOS or Android based device as a secondary point of control
- Device shall support a LinkLicense for TLP Control Processor allowing for up to:
- 32 Secure Platform Devices (SPD)
- 8 TouchLink panels
- TLCA2 Adapter
- 12 Network Button Panels (NBP)
- Device shall be black in color

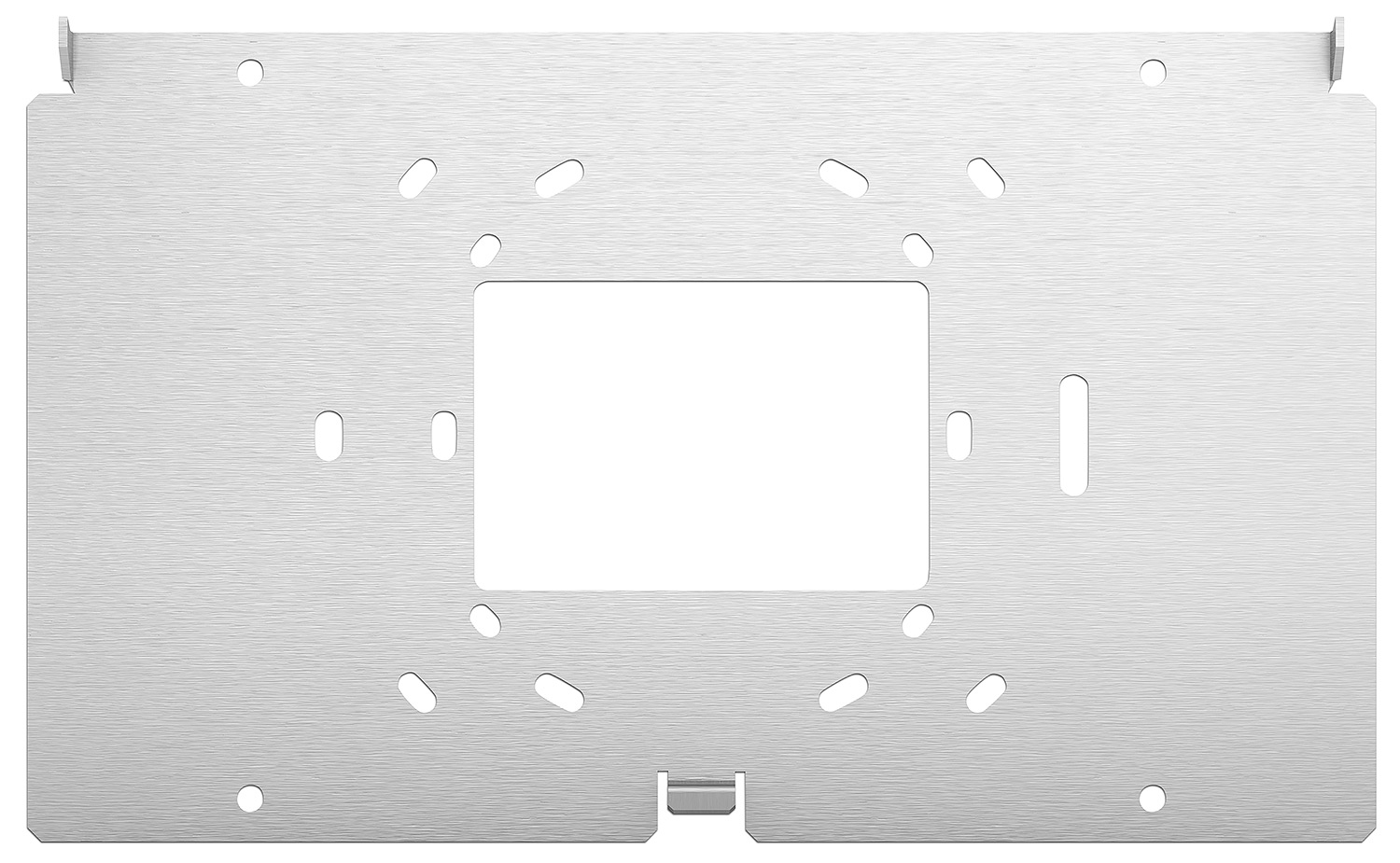

- Mounting requirements
- Device shall have the ability to be mounted directly in a wall, lectern, or other flat surface and shall be able to be secured using the included mounting plate
- Device shall support being securely mounted on the vertical frame that separates a door opening from the adjacent glass wall via an optional mullion mounting kit
- Device shall have the ability to be mounted to a glass surface using an optional glass mounting kit
- Device shall have the ability to be mounted into a rack using an optional rack mount kit
- Software requirements
- User interface shall be created using Extron’s GUI Designer software
- The device may only be configured or programmed using Extron’s Global Configurator Plus or Professional, or Extron’s ControlScript Deployment Utility respectively.
- Shall be configured or programmed by an Extron authorized user.
- The device’s configuration and settings shall be managed using Extron’s Toolbelt software
- Security requirements
- Device shall support SFTP and SSH for secure communication between the control processor and TouchLink Pro touchpanel
- Device shall support SFTP and SSH for secure communication between the control processor and the configuration or programming software
- Device shall provide the option to modify administrator and user credentials
- Device shall support security updates to maintain network health
- Device shall require that a Secure Socket Layer (SSL) Certificate is installed to maintain system confidentiality and data integrity
- Device shall support the installation of an owner furnished certificate with the following properties:
- Certificates shall include x.509 support
- Certificates shall include public / private key exchange
- Certificates shall support PEM encoding
- Extron shall furnish documentation that describes all supported network ports and services
- Shall meet regulatory compliances
- CE
- c-UL
- UL
- C-Tick
- FCC Class A
- ICES
- VCCI
- RoHS
- UKCA
- WEEE
- Product Warranty
- Shall provide at least 3 years’ parts and labor
- Shall provide 1-year touchscreen and overlay components
- Approved device shall be the Extron TLP Pro 1035M, part 60-1998-02; no alternates or equals
- Wall mountable 10.1" touchscreen user interface for AV and control systems
TLP Pro 1035M
- Provide a 10.1" capacitive touchscreen interface for switching and controlling AV equipment
- Wall mountable 10.1" touchscreen user interface for AV and control systems
- Provide a 10.1" LCD touchscreen that supports up to 16.7M colors and 1280x800 resolution
- Device shall feature scratch and smudge-resistant Corning® Gorilla Glass®
- Device shall support Extron IP Link Pro xi control processors
- Device shall include dual built-in down firing speakers which can be configured to provide audio and button feedback
- Device shall have a female RJ-45 jack located on the back of the enclosure that supports 10/100/1000Base-T, half/full duplex with auto-detect for connection to a LAN or WAN and includes link and activity LED indicators located on the left and right of the jack for troubleshooting network issues as well as supports PoE (Power over Ethernet), 802.3af
- Device shall include a single high-speed USB 2.0 type C connection located on the back of the enclosure
- Device shall support expansion ports via a USB-C adapter when paired with LinkLicense for TLP Control Processor or can be remotely powered
- Provide a total of two integrated RGB LED status lightbars located along the left and right sides of the display, both of which can be configured or programmed
- Provide a built-in motion sensor located on the top bezel of the touch surface allowing the panel to be woken from a sleep state or set up via software to trigger any number of actions
- Provide a light sensor located on the right side of the bezel of the touch surface that automatically adjusts the LCD screen’s backlight based on available ambient light
- Device shall have a menu button located on the back setup of items such as IP address and sound volume at minimum
- Device shall include a multi-function button located on the back of the enclosure that allows for the reset of the device or its communication properties at minimum
- Device shall feature a digital input on the back of the panel
- Device shall support the following protocols: DHCP, DNS, HTTP, HTTPS (redirect), ICMP, IEEE 802.1X, IPv4, NTP, SFTP, SMTP, SNMP, SSH, SSL, TLS, TCP/IP, UDP/IP
- Device shall have the following memory available, at minimum:
- SDRAM
- 4 GB
- Flash
- 64 GB
- SDRAM
- Device shall have native support for H.264 streaming formats enabling the touchpanel to display live streaming video from an IP camera or a streaming encoder such as the Extron SMP or SME series of products
- Device shall have the ability to be controlled by an HTML5, and JavaScript enabled web browser, or an iOS or Android based device as a secondary point of control
- Device shall support a LinkLicense for TLP Control Processor allowing for up to:
- 32 Secure Platform Devices (SPD)
- 8 TouchLink panels
- TLCA2 Adapter
- 12 Network Button Panels (NBP)
- Device shall be black in color
- Mounting requirements
- Device shall have the ability to be mounted directly in a wall, lectern, or other flat surface and shall be able to be secured using the included mounting plate
- Device shall support being securely mounted on the vertical frame that separates a door opening from the adjacent glass wall via an optional mullion mounting kit
- Device shall have the ability to be mounted to a glass surface using an optional glass mounting kit
- Device shall have the ability to be mounted into a rack using an optional rack mount kit
- Software requirements
- User interface shall be created using Extron’s GUI Designer software
- The device may only be configured or programmed using Extron’s Global Configurator Plus or Professional, or Extron’s ControlScript Deployment Utility respectively.
- Shall be configured or programmed by an Extron authorized user.
- The device’s configuration and settings shall be managed using Extron’s Toolbelt software
- Security requirements
- Device shall support SFTP and SSH for secure communication between the control processor and TouchLink Pro touchpanel
- Device shall support SFTP and SSH for secure communication between the control processor and the configuration or programming software
- Device shall provide the option to modify administrator and user credentials
- Device shall support security updates to maintain network health
- Device shall require that a Secure Socket Layer (SSL) Certificate is installed to maintain system confidentiality and data integrity
- Device shall support the installation of an owner furnished certificate with the following properties:
- Certificates shall include x.509 support
- Certificates shall include public / private key exchange
- Certificates shall support PEM encoding
- Extron shall furnish documentation that describes all supported network ports and services
- Shall meet regulatory compliances
- CE
- c-UL
- UL
- C-Tick
- FCC Class A
- ICES
- VCCI
- RoHS
- UKCA
- WEEE
- Product Warranty
- Shall provide at least 3 years’ parts and labor
- Shall provide 1-year touchscreen and overlay components
- Approved device shall be the Extron TLP Pro 1035M, part 60-1998-02; no alternates or equals
- Wall mountable 10.1" touchscreen user interface for AV and control systems
TLP Pro 1035M
- Provide a 10.1" capacitive touchscreen interface for switching and controlling AV equipment
- Wall mountable 10.1" touchscreen user interface for AV and control systems
- Provide a 10.1" LCD touchscreen that supports up to 16.7M colors and 1280x800 resolution
- Device shall feature scratch and smudge-resistant Corning® Gorilla Glass®
- Device shall support Extron IP Link Pro xi control processors
- Device shall include dual built-in down firing speakers which can be configured to provide audio and button feedback
- Device shall have a female RJ-45 jack located on the back of the enclosure that supports 10/100/1000Base-T, half/full duplex with auto-detect for connection to a LAN or WAN and includes link and activity LED indicators located on the left and right of the jack for troubleshooting network issues as well as supports PoE (Power over Ethernet), 802.3af
- Device shall include a single high-speed USB 2.0 type C connection located on the back of the enclosure
- Device shall support expansion ports via a USB-C adapter when paired with LinkLicense for TLP Control Processor or can be remotely powered
- Provide a total of two integrated RGB LED status lightbars located along the left and right sides of the display, both of which can be configured or programmed
- Provide a built-in motion sensor located on the top bezel of the touch surface allowing the panel to be woken from a sleep state or set up via software to trigger any number of actions
- Provide a light sensor located on the right side of the bezel of the touch surface that automatically adjusts the LCD screen’s backlight based on available ambient light
- Device shall have a menu button located on the back setup of items such as IP address and sound volume at minimum
- Device shall include a multi-function button located on the back of the enclosure that allows for the reset of the device or its communication properties at minimum
- Device shall feature a digital input on the back of the panel
- Device shall support the following protocols: DHCP, DNS, HTTP, HTTPS (redirect), ICMP, IEEE 802.1X, IPv4, NTP, SFTP, SMTP, SNMP, SSH, SSL, TLS, TCP/IP, UDP/IP
- Device shall have the following memory available, at minimum:
- SDRAM
- 4 GB
- Flash
- 64 GB
- SDRAM
- Device shall have native support for H.264 streaming formats enabling the touchpanel to display live streaming video from an IP camera or a streaming encoder such as the Extron SMP or SME series of products
- Device shall have the ability to be controlled by an HTML5, and JavaScript enabled web browser, or an iOS or Android based device as a secondary point of control
- Device shall support a LinkLicense for TLP Control Processor allowing for up to:
- 32 Secure Platform Devices (SPD)
- 8 TouchLink panels
- TLCA2 Adapter
- 12 Network Button Panels (NBP)

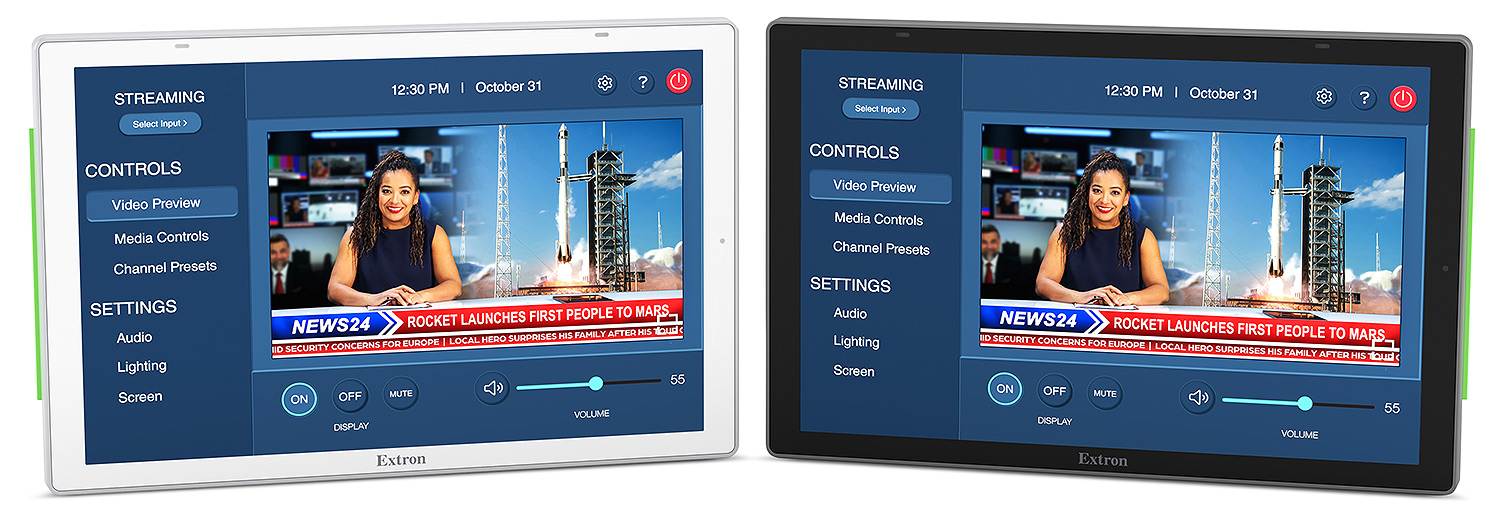

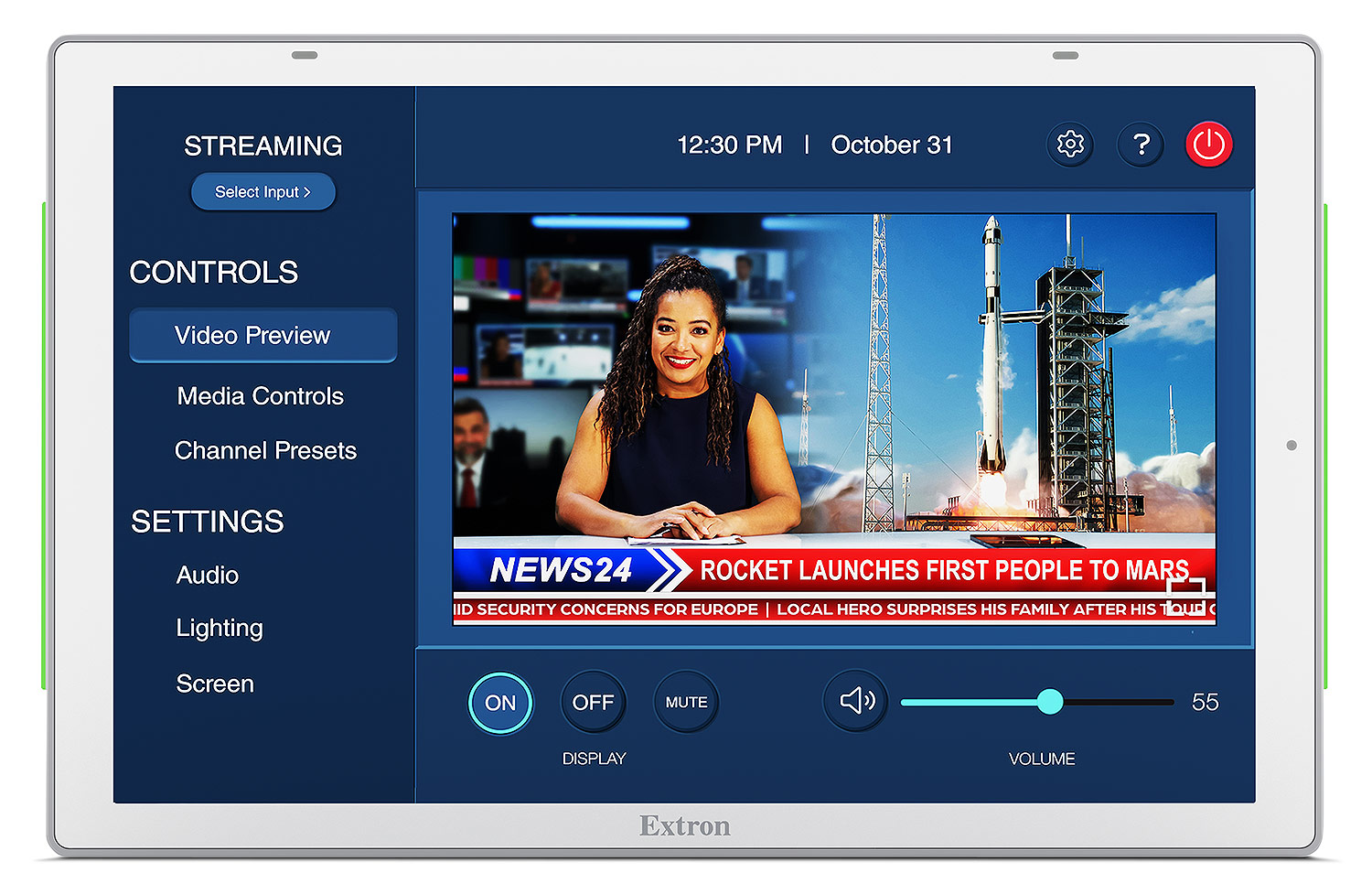

- Device shall be white in color
- Mounting requirements
- Device shall have the ability to be mounted directly in a wall, lectern, or other flat surface and shall be able to be secured using the included mounting plate
- Device shall support being securely mounted on the vertical frame that separates a door opening from the adjacent glass wall via an optional mullion mounting kit
- Device shall have the ability to be mounted to a glass surface using an optional glass mounting kit
- Device shall have the ability to be mounted into a rack using an optional rack mount kit
- Software requirements
- User interface shall be created using Extron’s GUI Designer software
- The device may only be configured or programmed using Extron’s Global Configurator Plus or Professional, or Extron’s ControlScript Deployment Utility respectively.
- Shall be configured or programmed by an Extron authorized user.
- The device’s configuration and settings shall be managed using Extron’s Toolbelt software
- Security requirements
- Device shall support SFTP and SSH for secure communication between the control processor and TouchLink Pro touchpanel
- Device shall support SFTP and SSH for secure communication between the control processor and the configuration or programming software
- Device shall provide the option to modify administrator and user credentials
- Device shall support security updates to maintain network health
- Device shall require that a Secure Socket Layer (SSL) Certificate is installed to maintain system confidentiality and data integrity
- Device shall support the installation of an owner furnished certificate with the following properties:
- Certificates shall include x.509 support
- Certificates shall include public / private key exchange
- Certificates shall support PEM encoding
- Extron shall furnish documentation that describes all supported network ports and services
- Shall meet regulatory compliances
- CE
- c-UL
- UL
- C-Tick
- FCC Class A
- ICES
- VCCI
- RoHS
- UKCA
- WEEE
- Product Warranty
- Shall provide at least 3 years’ parts and labor
- Shall provide 1-year touchscreen and overlay components
- Approved device shall be the Extron TLP Pro 1035M, part 60-1998-03; no alternates or equals
- Wall mountable 10.1" touchscreen user interface for AV and control systems
TLP Pro 1035M
- Provide a 10.1" capacitive touchscreen interface for switching and controlling AV equipment
- Wall mountable 10.1" touchscreen user interface for AV and control systems
- Provide a 10.1" LCD touchscreen that supports up to 16.7M colors and 1280x800 resolution
- Device shall feature scratch and smudge-resistant Corning® Gorilla Glass®
- Device shall support Extron IP Link Pro xi control processors
- Device shall include dual built-in down firing speakers which can be configured to provide audio and button feedback
- Device shall have a female RJ-45 jack located on the back of the enclosure that supports 10/100/1000Base-T, half/full duplex with auto-detect for connection to a LAN or WAN and includes link and activity LED indicators located on the left and right of the jack for troubleshooting network issues as well as supports PoE (Power over Ethernet), 802.3af
- Device shall include a single high-speed USB 2.0 type C connection located on the back of the enclosure
- Device shall support expansion ports via a USB-C adapter when paired with LinkLicense for TLP Control Processor or can be remotely powered
- Provide a total of two integrated RGB LED status lightbars located along the left and right sides of the display, both of which can be configured or programmed
- Provide a built-in motion sensor located on the top bezel of the touch surface allowing the panel to be woken from a sleep state or set up via software to trigger any number of actions
- Provide a light sensor located on the right side of the bezel of the touch surface that automatically adjusts the LCD screen’s backlight based on available ambient light
- Device shall have a menu button located on the back setup of items such as IP address and sound volume at minimum
- Device shall include a multi-function button located on the back of the enclosure that allows for the reset of the device or its communication properties at minimum
- Device shall feature a digital input on the back of the panel
- Device shall support the following protocols: DHCP, DNS, HTTP, HTTPS (redirect), ICMP, IEEE 802.1X, IPv4, NTP, SFTP, SMTP, SNMP, SSH, SSL, TLS, TCP/IP, UDP/IP
- Device shall have the following memory available, at minimum:
- SDRAM
- 4 GB
- Flash
- 64 GB
- SDRAM
- Device shall have native support for H.264 streaming formats enabling the touchpanel to display live streaming video from an IP camera or a streaming encoder such as the Extron SMP or SME series of products
- Device shall have the ability to be controlled by an HTML5, and JavaScript enabled web browser, or an iOS or Android based device as a secondary point of control
- Device shall support a LinkLicense for TLP Control Processor allowing for up to:
- 32 Secure Platform Devices (SPD)
- 8 TouchLink panels
- TLCA2 Adapter
- 12 Network Button Panels (NBP)
- Device shall be white in color
- Mounting requirements
- Device shall have the ability to be mounted directly in a wall, lectern, or other flat surface and shall be able to be secured using the included mounting plate
- Device shall support being securely mounted on the vertical frame that separates a door opening from the adjacent glass wall via an optional mullion mounting kit
- Device shall have the ability to be mounted to a glass surface using an optional glass mounting kit
- Device shall have the ability to be mounted into a rack using an optional rack mount kit
- Software requirements
- User interface shall be created using Extron’s GUI Designer software
- The device may only be configured or programmed using Extron’s Global Configurator Plus or Professional, or Extron’s ControlScript Deployment Utility respectively.
- Shall be configured or programmed by an Extron authorized user.
- The device’s configuration and settings shall be managed using Extron’s Toolbelt software
- Security requirements
- Device shall support SFTP and SSH for secure communication between the control processor and TouchLink Pro touchpanel
- Device shall support SFTP and SSH for secure communication between the control processor and the configuration or programming software
- Device shall provide the option to modify administrator and user credentials
- Device shall support security updates to maintain network health
- Device shall require that a Secure Socket Layer (SSL) Certificate is installed to maintain system confidentiality and data integrity
- Device shall support the installation of an owner furnished certificate with the following properties:
- Certificates shall include x.509 support
- Certificates shall include public / private key exchange
- Certificates shall support PEM encoding
- Extron shall furnish documentation that describes all supported network ports and services
- Shall meet regulatory compliances
- CE
- c-UL
- UL
- C-Tick
- FCC Class A
- ICES
- VCCI
- RoHS
- UKCA
- WEEE
- Product Warranty
- Shall provide at least 3 years’ parts and labor
- Shall provide 1-year touchscreen and overlay components
- Approved device shall be the Extron TLP Pro 1035M, part 60-1998-03; no alternates or equals

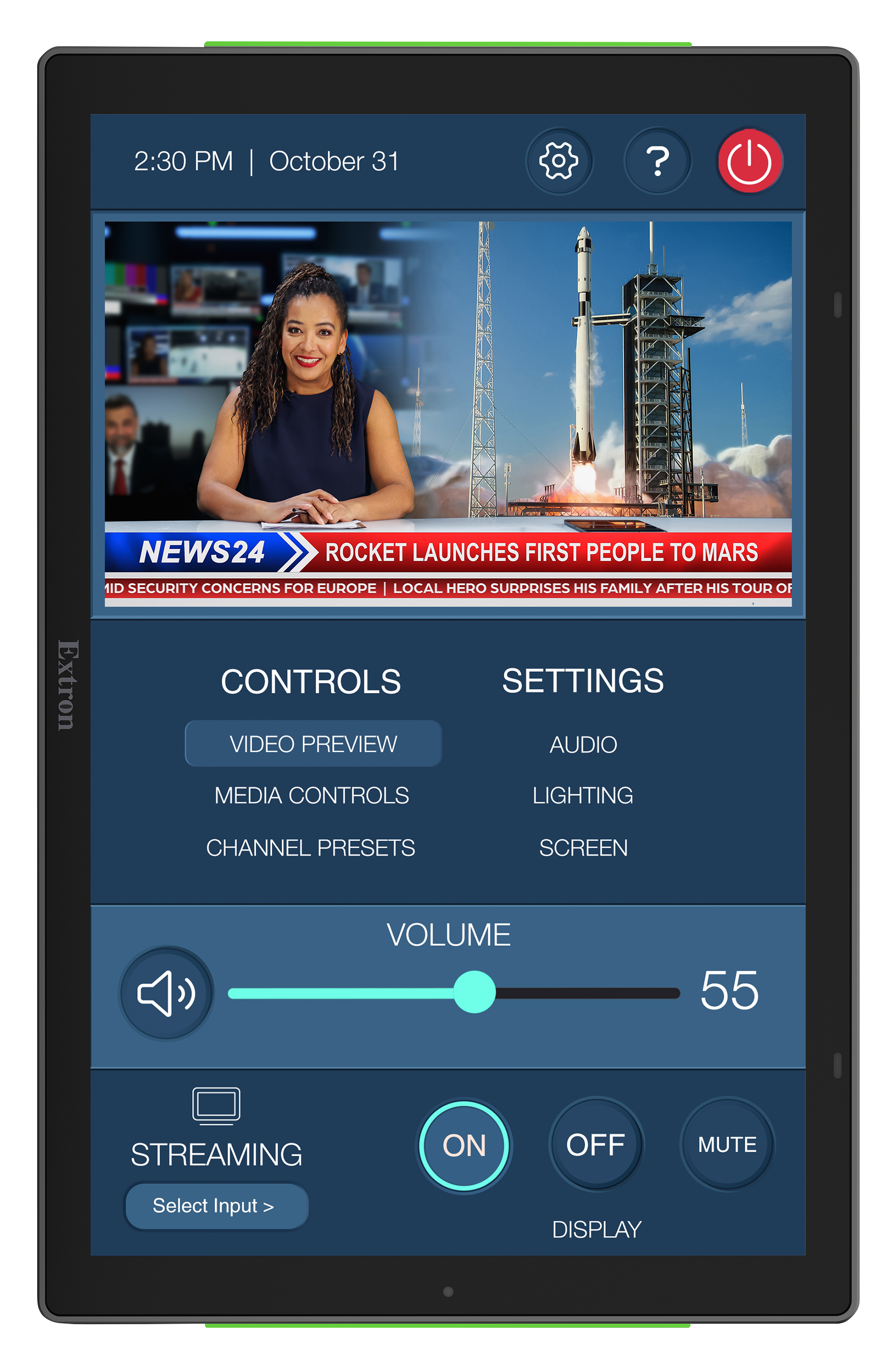

- Wall mountable 10.1" touchscreen user interface for AV and control systems
把商品添加到购物车
Order Message Number
产品编号
注: 使用通用交流电源插座的 Extron 产品可支持多种不同的交流电源插头类型。在使用之前，确保设备满足您所在区域的所有规定要求，并符合所有应用的本地安全和电气规程及标准。
当前总计：
Annotation Graphics Processor
To view this page ensure that Adobe Flash Player version
11.0.0 or greater is installed and enabled.
Chrome
Firefox
Edge
Safari
