SMK 2

Surface Mount Kit for TLP Pro 725M and TLS 725M

主要特性

Used to securely mount a TLP Pro 725M or TLS 725M on a wall or other flat surface, including glass

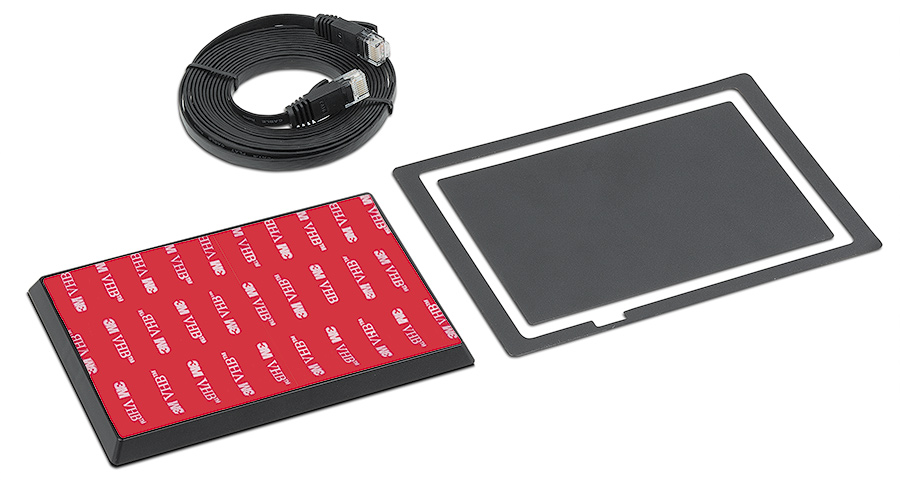

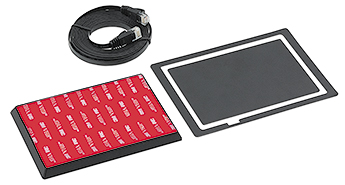

Kit includes black, pre-adhered adhesive and paper template to simplify alignment and installation
Special design allows the LED lights on either side of touchpanel to still be visible after mounting
Includes a glass-adhered overlay that provides a clean, inconspicuous appearance from inside the room
Includes four knock-outs for convenient and discreet Ethernet cable pass-thru
Flat Ethernet cable included, 10.0’ x 0.29” x 0.10” (3.1m x 7.4mm x 2.6mm)
所有特性

概述

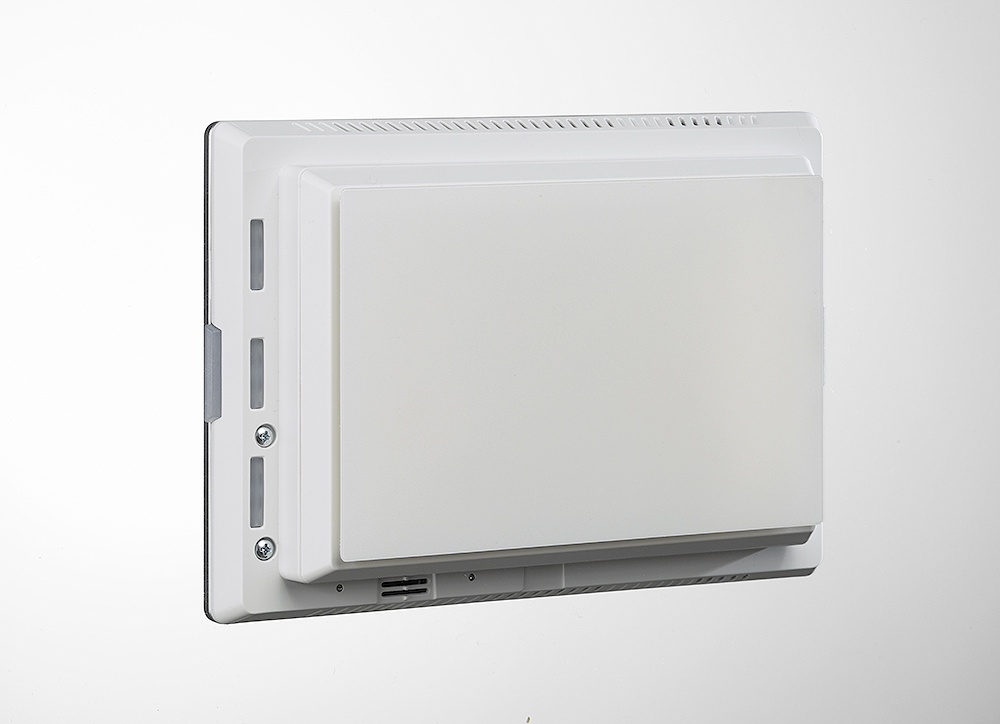

The Extron SMK 2 is a surface mount kit specifically designed for the TLP Pro 725M and TLS 725M. It allows either touchpanel to be mounted securely on a wall or other flat surface, including glass. From outside the room, the low-profile design of the SMK 2 maintains the sleek, stylish appearance of the touchpanel; while inside, the included glass overlay provides a clean discreet look. The SMK 2 includes a number of mounting accessories that aid in installation.
