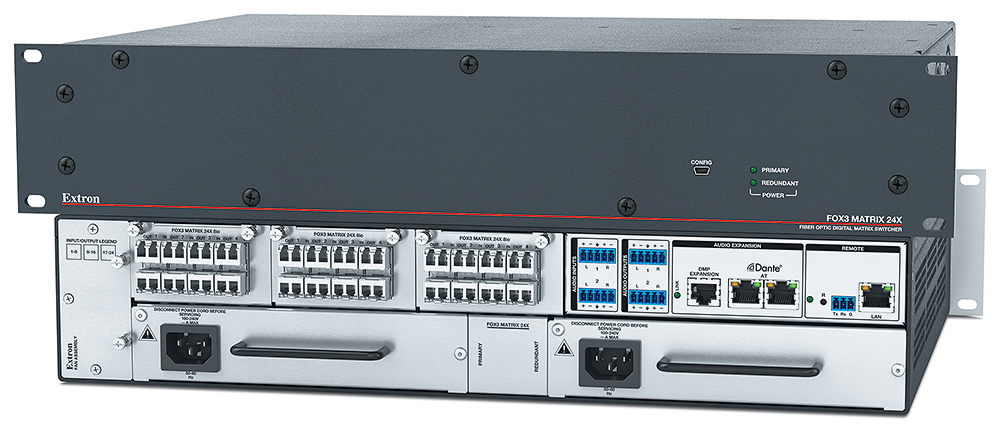

60-1716-04 - FOX3 Matrix 24x no FPC 8io MM
- Shall provide a configurable matrix switcher that support digital video, audio, USB, control, and 3D sync signals with up to 24 inputs and 24 outputs for transmission and routing over fiber optic cabling
- Rack mountable configured matrix switcher for routing HDMI video, audio, USB, control, and 3D sync over fiber optic cabling
- Configuration requirements
- Shall provide a modular, hot swappable I/O board design
- Configured out of factory with one (1) slot populated with one (1) multimode I/O board supporting 8 inputs and 8 outputs
- Can be reconfigured by adding or replacing matrix I/O boards
- Shall provide three (3) configurable matrix board slots for matrix boards
- Shall be configurable with I/O sizes from 8x8 up to 24x24 in 8x8 increments
- Eight (8) input connectors per board
- Eight (8) output connectors per board
- Shall support field configuration of each board slot
- Shall provide a modular, hot swappable I/O board design
- Input and output requirements
- Shall support remote device connections via FOX3 Series fiber optic transmitters and receivers
- Shall support FOX3 matrix I/O boards with multimode fiber optic input and output connections
- Compatible with all Extron FOX3 Series MM extenders
- Status LED indicators for fiber link status
- Automatic input and output reclocking
- Shall support FOX3 matrix boards with singlemode fiber optic input and output connections
- Compatible with Extron FOX3 Series SM extenders
- Status LED indicators for fiber link status
- Automatic input and output reclocking
- Shall provide an audio interface with support for DMP expansion, local analog stereo inputs and outputs, and Dante audio networking
- DMP audio expansion – one (1) RJ-45 jack for 8x8 stereo connection to an Extron DMP audio processor
- Analog audio – two (2) 5-pole 3.5mm captive screw stereo inputs, and two (2) 5-pole 3.5mm captive screw stereo outputs
- Dante® audio networking – two (2) RJ-45 jacks for Dante audio networking interface with 32 stereo inputs and 32 stereo outputs
- Signal switching requirements
- Shall provide all-digital switching of keyboard, video, and mouse – KVM signals
- Shall provide all-digital switching of HDMI video, audio, USB, control, and 3D sync signals
- Compatible with Extron FOX3 Series extenders
- Shall be configurable for use with sources and displays supporting resolutions up to 4096x2160 at 60 Hz with 4:4:4 chroma sampling and 12-bit color depth
- Supports mathematically lossless 4K at 60 Hz with 10 bits per color over one fiber
- Supports uncompressed 4K at 60 Hz with 12 bits per color over two fibers
- Shall be configurable for audio switching, processing and distribution
- Audio routing requirements
- Shall support audio breakaway to de-embed a two-channel PCM audio signal from its corresponding video signal for independent routing to any of the following destinations:
- Embedded audio to a connected receiver
- DMP expansion port
- Analog stereo output
- Dante audio output
- Shall support insertion of a return audio signal to a connected transmitter from any of the following sources:
- Return audio from a connected receiver
- DMP expansion port
- Analog stereo input
- Dante audio input
- Shall support embedding of an analog audio input into any selected output signal, including the analog return audio signal
- Shall support a Dante audio network of up to 32 stereo inputs and 32 stereo outputs with AES67 support
- Shall support DMP expansion to an Extron ProDSP allowing a 16-channel bidirectional 24-bit/48 kHz high-resolution digital audio expansion bus between the matrix switcher and the connected DMP 128 Plus audio processor
- Shall support two (2) local analog stereo audio inputs that can be routed to any audio output, including audio to any connected receiver, analog return audio to any connected transmitter, the DMP expansion port, any analog output port, or the Dante audio network
- Shall support two (2) local analog stereo audio outputs providing audio from any audio input, including any connected transmitter, DMP expansion port, any analog audio input port, or the Dante audio network
- Shall support audio breakaway to de-embed a two-channel PCM audio signal from its corresponding video signal for independent routing to any of the following destinations:
- Transmission requirements
- Shall support a maximum signal transmission distance of 500 m (1640 feet) over OM4 multimode fiber optic cable at 850 nm
- Shall support a maximum signal transmission distance of 20 km (12.4 miles) over singlemode fiber optic cable at 1310 nm
- Control requirements
- Shall support multiple methods for control, configuration, I/O selection, and general operation
- RS-232 configuration and control
- Ethernet configuration and control
- Front panel USB configuration
- Shall provide one (1) mini USB Type B port on the front panel for setup and configuration
- Shall provide one (1) bidirectional RS-232 serial port on the rear panel for setup, configuration, and control
- Supports firmware updates
- Shall provide a recessed Reset button on the rear panel
- Shall provide one (1) RJ-45 connector on the rear panel for setup, configuration, and control via an Ethernet connection
- Shall support secure Ethernet communication using SSH - Secure Shell protocol
- Shall support Ethernet monitoring and control using standard TCP/IP protocols
- Proactive monitoring and system management over a LAN, WAN, or the Internet
- Functional control of the matrix switcher
- Advanced computer-aided diagnostics
- Firmware updates
- Functional control of the matrix switcher
- Shall support RS-232 insertion through the Ethernet control port
- Shall provide Extron control software to enable control and configuration from a Windows®-based computer via the serial or Ethernet port
- Shall include advanced self-diagnostics of I/O boards, primary and redundant power supply voltages, fiber links, and overall matrix functionality
- Shall provide I/O port activity status via the rear panel, RS-232 port, or Ethernet
- Shall provide I/O activity viewable within internal Web pages that are easily obtainable by AV control systems
- Shall support multiple methods for control, configuration, I/O selection, and general operation
- Secure switching requirements
- Shall support secure partitioning into smaller sub-switchers to segregate sources and destinations in a secure environment
- Enable up to twelve (12) partitions
- Inputs can only be tied to outputs within the same partition
- Shall provide priority switching to prevent unauthorized access to sensitive date in a secure environment
- Each input and output is assigned a security level from one (1) to six (6) with level one (1) as the lowest level and level six (6) as the highest
- An input can only be tied to an output that is at the same level or higher
- Shall support secure partitioning into smaller sub-switchers to segregate sources and destinations in a secure environment
- Functional requirements
- Shall provide commands or control sequences for functional operation of the matrix switcher
- Create or remove ties within the matrix
- Group inputs and outputs
- Save or recall presets
- Mute or unmute outputs
- Shall provide commands or control sequences for functional operation of the matrix switcher
- HDCP requirements
- Shall include Extron SpeedSwitch® technology for high-speed switching of HDCP-encrypted content
- Power requirements
- Shall provide one primary power supply
- Shall support hot-swappable power supply replacement
- Shall provide optional redundant power supply
- Provides a back-up power supply for secondary power
- Provides a second AC power input for continuous connection to primary and secondary power sources
- General requirements
- Shall be a 2U high, full rack width metal enclosure
- Shall be rack mountable with integrated brackets
- Shall provide an internal, hot-swappable fan
- Shall meet regulatory compliance
- CE, c-UL, UL
- CE, C-tick, FCC Class A, ICES, VCCI
- Product-appropriate RoHS and WEEE
- Shall be compatible with Extron FOX3 Series products for AV, USB, control, and 3D sync signals distribution and routing over fiber optic cabling
- Shall provide at least three years parts and labor warranty
- Approved device shall be the Extron FOX3 Matrix 24x no FPC 8io MM (60-1716-04); no alternates or equals
60-1716-04 - FOX3 Matrix 24x no FPC 8io MM
- Shall provide a configurable matrix switcher that support digital video, audio, USB, control, and 3D sync signals with up to 24 inputs and 24 outputs for transmission and routing over fiber optic cabling
- Rack mountable configured matrix switcher for routing HDMI video, audio, USB, control, and 3D sync over fiber optic cabling
- Configuration requirements
- Shall provide a modular, hot swappable I/O board design
- Configured out of factory with one (1) slot populated with one (1) multimode I/O board supporting 8 inputs and 8 outputs
- Can be reconfigured by adding or replacing matrix I/O boards
- Shall provide three (3) configurable matrix board slots for matrix boards
- Shall be configurable with I/O sizes from 8x8 up to 24x24 in 8x8 increments
- Eight (8) input connectors per board
- Eight (8) output connectors per board
- Shall support field configuration of each board slot
- Shall provide a modular, hot swappable I/O board design
- Input and output requirements
- Shall support remote device connections via FOX3 Series fiber optic transmitters and receivers
- Shall support FOX3 matrix I/O boards with multimode fiber optic input and output connections
- Compatible with all Extron FOX3 Series MM extenders
- Status LED indicators for fiber link status
- Automatic input and output reclocking
- Shall support FOX3 matrix boards with singlemode fiber optic input and output connections
- Compatible with Extron FOX3 Series SM extenders
- Status LED indicators for fiber link status
- Automatic input and output reclocking
- Shall provide an audio interface with support for DMP expansion, local analog stereo inputs and outputs, and Dante audio networking
- DMP audio expansion – one (1) RJ-45 jack for 8x8 stereo connection to an Extron DMP audio processor
- Analog audio – two (2) 5-pole 3.5mm captive screw stereo inputs, and two (2) 5-pole 3.5mm captive screw stereo outputs
- Dante® audio networking – two (2) RJ-45 jacks for Dante audio networking interface with 32 stereo inputs and 32 stereo outputs
- Signal switching requirements
- Shall provide all-digital switching of keyboard, video, and mouse – KVM signals
- Shall provide all-digital switching of HDMI video, audio, USB, control, and 3D sync signals
- Compatible with Extron FOX3 Series extenders
- Shall be configurable for use with sources and displays supporting resolutions up to 4096x2160 at 60 Hz with 4:4:4 chroma sampling and 12-bit color depth
- Supports mathematically lossless 4K at 60 Hz with 10 bits per color over one fiber
- Supports uncompressed 4K at 60 Hz with 12 bits per color over two fibers
- Shall be configurable for audio switching, processing and distribution
- Audio routing requirements
- Shall support audio breakaway to de-embed a two-channel PCM audio signal from its corresponding video signal for independent routing to any of the following destinations:
- Embedded audio to a connected receiver
- DMP expansion port
- Analog stereo output
- Dante audio output
- Shall support insertion of a return audio signal to a connected transmitter from any of the following sources:
- Return audio from a connected receiver
- DMP expansion port
- Analog stereo input
- Dante audio input
- Shall support embedding of an analog audio input into any selected output signal, including the analog return audio signal
- Shall support a Dante audio network of up to 32 stereo inputs and 32 stereo outputs with AES67 support
- Shall support DMP expansion to an Extron ProDSP allowing a 16-channel bidirectional 24-bit/48 kHz high-resolution digital audio expansion bus between the matrix switcher and the connected DMP 128 Plus audio processor
- Shall support two (2) local analog stereo audio inputs that can be routed to any audio output, including audio to any connected receiver, analog return audio to any connected transmitter, the DMP expansion port, any analog output port, or the Dante audio network
- Shall support two (2) local analog stereo audio outputs providing audio from any audio input, including any connected transmitter, DMP expansion port, any analog audio input port, or the Dante audio network
- Shall support audio breakaway to de-embed a two-channel PCM audio signal from its corresponding video signal for independent routing to any of the following destinations:
- Transmission requirements
- Shall support a maximum signal transmission distance of 500 m (1640 feet) over OM4 multimode fiber optic cable at 850 nm
- Shall support a maximum signal transmission distance of 20 km (12.4 miles) over singlemode fiber optic cable at 1310 nm
- Control requirements
- Shall support multiple methods for control, configuration, I/O selection, and general operation
- RS-232 configuration and control
- Ethernet configuration and control
- Front panel USB configuration
- Shall provide one (1) mini USB Type B port on the front panel for setup and configuration
- Shall provide one (1) bidirectional RS-232 serial port on the rear panel for setup, configuration, and control
- Supports firmware updates
- Shall provide a recessed Reset button on the rear panel
- Shall provide one (1) RJ-45 connector on the rear panel for setup, configuration, and control via an Ethernet connection
- Shall support secure Ethernet communication using SSH - Secure Shell protocol
- Shall support Ethernet monitoring and control using standard TCP/IP protocols
- Proactive monitoring and system management over a LAN, WAN, or the Internet
- Functional control of the matrix switcher
- Advanced computer-aided diagnostics
- Firmware updates
- Functional control of the matrix switcher
- Shall support RS-232 insertion through the Ethernet control port
- Shall provide Extron control software to enable control and configuration from a Windows®-based computer via the serial or Ethernet port
- Shall include advanced self-diagnostics of I/O boards, primary and redundant power supply voltages, fiber links, and overall matrix functionality
- Shall provide I/O port activity status via the rear panel, RS-232 port, or Ethernet
- Shall provide I/O activity viewable within internal Web pages that are easily obtainable by AV control systems
- Shall support multiple methods for control, configuration, I/O selection, and general operation
- Secure switching requirements
- Shall support secure partitioning into smaller sub-switchers to segregate sources and destinations in a secure environment
- Enable up to twelve (12) partitions
- Inputs can only be tied to outputs within the same partition
- Shall provide priority switching to prevent unauthorized access to sensitive date in a secure environment
- Each input and output is assigned a security level from one (1) to six (6) with level one (1) as the lowest level and level six (6) as the highest
- An input can only be tied to an output that is at the same level or higher
- Shall support secure partitioning into smaller sub-switchers to segregate sources and destinations in a secure environment
- Functional requirements
- Shall provide commands or control sequences for functional operation of the matrix switcher
- Create or remove ties within the matrix
- Group inputs and outputs
- Save or recall presets
- Mute or unmute outputs
- Shall provide commands or control sequences for functional operation of the matrix switcher
- HDCP requirements
- Shall include Extron SpeedSwitch® technology for high-speed switching of HDCP-encrypted content
- Power requirements
- Shall provide one primary power supply
- Shall support hot-swappable power supply replacement
- Shall provide optional redundant power supply
- Provides a back-up power supply for secondary power
- Provides a second AC power input for continuous connection to primary and secondary power sources
- General requirements
- Shall be a 2U high, full rack width metal enclosure
- Shall be rack mountable with integrated brackets
- Shall provide an internal, hot-swappable fan
- Shall meet regulatory compliance
- CE, c-UL, UL
- CE, C-tick, FCC Class A, ICES, VCCI
- Product-appropriate RoHS and WEEE
- Shall be compatible with Extron FOX3 Series products for AV, USB, control, and 3D sync signals distribution and routing over fiber optic cabling
- Shall provide at least three years parts and labor warranty
- Approved device shall be the Extron FOX3 Matrix 24x no FPC 8io MM (60-1716-04); no alternates or equals
60-1716-14 - FOX3 Matrix 24x no FPC 8io SM
- Shall provide a configurable matrix switcher that support digital video, audio, USB, control, and 3D sync signals with up to 24 inputs and 24 outputs for transmission and routing over fiber optic cabling
- Rack mountable configured matrix switcher for routing HDMI video, audio, USB, control, and 3D sync over fiber optic cabling
- Configuration requirements
- Shall provide a modular, hot swappable I/O board design
- Configured out of factory with one (1) slot populated with one (1) singlemode I/O board supporting 8 inputs and 8 outputs
- Can be reconfigured by adding or replacing matrix I/O boards
- Shall provide three (3) configurable matrix board slots for matrix boards
- Shall be configurable with I/O sizes from 8x8 up to 24x24 in 8x8 increments
- Eight (8) input connectors per board
- Eight (8) output connectors per board
- Shall support field configuration of each board slot
- Shall provide a modular, hot swappable I/O board design
- Input and output requirements
- Shall support remote device connections via FOX3 Series fiber optic transmitters and receivers
- Shall support FOX3 matrix I/O boards with multimode fiber optic input and output connections
- Compatible with all Extron FOX3 Series MM extenders
- Status LED indicators for fiber link status
- Automatic input and output reclocking
- Shall support FOX3 matrix boards with singlemode fiber optic input and output connections
- Compatible with Extron FOX3 Series SM extenders
- Status LED indicators for fiber link status
- Automatic input and output reclocking
- Shall provide an audio interface with support for DMP expansion, local analog stereo inputs and outputs, and Dante audio networking
- DMP audio expansion – one (1) RJ-45 jack for 8x8 stereo connection to an Extron DMP audio processor
- Analog audio – two (2) 5-pole 3.5mm captive screw stereo inputs, and two (2) 5-pole 3.5mm captive screw stereo outputs
- Dante® audio networking – two (2) RJ-45 jacks for Dante audio networking interface with 32 stereo inputs and 32 stereo outputs
- Signal switching requirements
- Shall provide all-digital switching of keyboard, video, and mouse – KVM signals
- Shall provide all-digital switching of HDMI video, audio, USB, control, and 3D sync signals
- Compatible with Extron FOX3 Series extenders
- Shall be configurable for use with sources and displays supporting resolutions up to 4096x2160 at 60 Hz with 4:4:4 chroma sampling and 12-bit color depth
- Supports mathematically lossless 4K at 60 Hz with 10 bits per color over one fiber
- Supports uncompressed 4K at 60 Hz with 12 bits per color over two fibers
- Shall be configurable for audio switching, processing and distribution
- Audio routing requirements
- Shall support audio breakaway to de-embed a two-channel PCM audio signal from its corresponding video signal for independent routing to any of the following destinations:
- Embedded audio to a connected receiver
- DMP expansion port
- Analog stereo output
- Dante audio output
- Shall support insertion of a return audio signal to a connected transmitter from any of the following sources:
- Return audio from a connected receiver
- DMP expansion port
- Analog stereo input
- Dante audio input
- Shall support embedding of an analog audio input into any selected output signal, including the analog return audio signal
- Shall support a Dante audio network of up to 32 stereo inputs and 32 stereo outputs with AES67 support
- Shall support DMP expansion to an Extron ProDSP allowing a 16-channel bidirectional 24-bit/48 kHz high-resolution digital audio expansion bus between the matrix switcher and the connected DMP 128 Plus audio processor
- Shall support two (2) local analog stereo audio inputs that can be routed to any audio output, including audio to any connected receiver, analog return audio to any connected transmitter, the DMP expansion port, any analog output port, or the Dante audio network
- Shall support two (2) local analog stereo audio outputs providing audio from any audio input, including any connected transmitter, DMP expansion port, any analog audio input port, or the Dante audio network
- Shall support audio breakaway to de-embed a two-channel PCM audio signal from its corresponding video signal for independent routing to any of the following destinations:
- Transmission requirements
- Shall support a maximum signal transmission distance of 500 m (1640 feet) over OM4 multimode fiber optic cable at 850 nm
- Shall support a maximum signal transmission distance of 20 km (12.4 miles) over singlemode fiber optic cable at 1310 nm
- Control requirements
- Shall support multiple methods for control, configuration, I/O selection, and general operation
- RS-232 configuration and control
- Ethernet configuration and control
- Front panel USB configuration
- Shall provide one (1) mini USB Type B port on the front panel for setup and configuration
- Shall provide one (1) bidirectional RS-232 serial port on the rear panel for setup, configuration, and control
- Supports firmware updates
- Shall provide a recessed Reset button on the rear panel
- Shall provide one (1) RJ-45 connector on the rear panel for setup, configuration, and control via an Ethernet connection
- Shall support secure Ethernet communication using SSH - Secure Shell protocol
- Shall support Ethernet monitoring and control using standard TCP/IP protocols
- Proactive monitoring and system management over a LAN, WAN, or the Internet
- Functional control of the matrix switcher
- Advanced computer-aided diagnostics
- Firmware updates
- Functional control of the matrix switcher
- Shall support RS-232 insertion through the Ethernet control port
- Shall provide Extron control software to enable control and configuration from a Windows®-based computer via the serial or Ethernet port
- Shall include advanced self-diagnostics of I/O boards, primary and redundant power supply voltages, fiber links, and overall matrix functionality
- Shall provide I/O port activity status via the rear panel, RS-232 port, or Ethernet
- Shall provide I/O activity viewable within internal Web pages that are easily obtainable by AV control systems
- Shall support multiple methods for control, configuration, I/O selection, and general operation
- Secure switching requirements
- Shall support secure partitioning into smaller sub-switchers to segregate sources and destinations in a secure environment
- Enable up to twelve (12) partitions
- Inputs can only be tied to outputs within the same partition
- Shall provide priority switching to prevent unauthorized access to sensitive date in a secure environment
- Each input and output is assigned a security level from one (1) to six (6) with level one (1) as the lowest level and level six (6) as the highest
- An input can only be tied to an output that is at the same level or higher
- Shall support secure partitioning into smaller sub-switchers to segregate sources and destinations in a secure environment
- Functional requirements
- Shall provide commands or control sequences for functional operation of the matrix switcher
- Create or remove ties within the matrix
- Group inputs and outputs
- Save or recall presets
- Mute or unmute outputs
- HDCP requirements
- Shall include Extron SpeedSwitch® technology for high-speed switching of HDCP-encrypted content
- Shall provide commands or control sequences for functional operation of the matrix switcher
- Power requirements
- Shall provide one primary power supply
- Shall support hot-swappable power supply replacement
- Shall provide optional redundant power supply
- Provides a back-up power supply for secondary power
- Provides a second AC power input for continuous connection to primary and secondary power sources
- General requirements
- Shall be a 2U high, full rack width metal enclosure
- Shall be rack mountable with integrated brackets
- Shall provide an internal, hot-swappable fan
- Shall meet regulatory compliance
- CE, c-UL, UL
- CE, C-tick, FCC Class A, ICES, VCCI
- Product-appropriate RoHS and WEEE
- Shall be compatible with Extron FOX3 Series products for AV, USB, control, and 3D sync signals distribution and routing over fiber optic cabling
- Shall provide at least three years parts and labor warranty
- Approved device shall be the Extron FOX3 Matrix 24x no FPC 8io SM (60-1716-14); no alternates or equals
60-1716-14 - FOX3 Matrix 24x no FPC 8io SM
- Shall provide a configurable matrix switcher that support digital video, audio, USB, control, and 3D sync signals with up to 24 inputs and 24 outputs for transmission and routing over fiber optic cabling
- Rack mountable configured matrix switcher for routing HDMI video, audio, USB, control, and 3D sync over fiber optic cabling
- Configuration requirements
- Shall provide a modular, hot swappable I/O board design
- Configured out of factory with one (1) slot populated with one (1) singlemode I/O board supporting 8 inputs and 8 outputs
- Can be reconfigured by adding or replacing matrix I/O boards
- Shall provide three (3) configurable matrix board slots for matrix boards
- Shall be configurable with I/O sizes from 8x8 up to 24x24 in 8x8 increments
- Eight (8) input connectors per board
- Eight (8) output connectors per board
- Shall support field configuration of each board slot
- Shall provide a modular, hot swappable I/O board design
- Input and output requirements
- Shall support remote device connections via FOX3 Series fiber optic transmitters and receivers
- Shall support FOX3 matrix I/O boards with multimode fiber optic input and output connections
- Compatible with all Extron FOX3 Series MM extenders
- Status LED indicators for fiber link status
- Automatic input and output reclocking
- Shall support FOX3 matrix boards with singlemode fiber optic input and output connections
- Compatible with Extron FOX3 Series SM extenders
- Status LED indicators for fiber link status
- Automatic input and output reclocking
- Shall provide an audio interface with support for DMP expansion, local analog stereo inputs and outputs, and Dante audio networking
- DMP audio expansion – one (1) RJ-45 jack for 8x8 stereo connection to an Extron DMP audio processor
- Analog audio – two (2) 5-pole 3.5mm captive screw stereo inputs, and two (2) 5-pole 3.5mm captive screw stereo outputs
- Dante® audio networking – two (2) RJ-45 jacks for Dante audio networking interface with 32 stereo inputs and 32 stereo outputs
- Signal switching requirements
- Shall provide all-digital switching of keyboard, video, and mouse – KVM signals
- Shall provide all-digital switching of HDMI video, audio, USB, control, and 3D sync signals
- Compatible with Extron FOX3 Series extenders
- Shall be configurable for use with sources and displays supporting resolutions up to 4096x2160 at 60 Hz with 4:4:4 chroma sampling and 12-bit color depth
- Supports mathematically lossless 4K at 60 Hz with 10 bits per color over one fiber
- Supports uncompressed 4K at 60 Hz with 12 bits per color over two fibers
- Shall be configurable for audio switching, processing and distribution
- Audio routing requirements
- Shall support audio breakaway to de-embed a two-channel PCM audio signal from its corresponding video signal for independent routing to any of the following destinations:
- Embedded audio to a connected receiver
- DMP expansion port
- Analog stereo output
- Dante audio output
- Shall support insertion of a return audio signal to a connected transmitter from any of the following sources:
- Return audio from a connected receiver
- DMP expansion port
- Analog stereo input
- Dante audio input
- Shall support embedding of an analog audio input into any selected output signal, including the analog return audio signal
- Shall support a Dante audio network of up to 32 stereo inputs and 32 stereo outputs with AES67 support
- Shall support DMP expansion to an Extron ProDSP allowing a 16-channel bidirectional 24-bit/48 kHz high-resolution digital audio expansion bus between the matrix switcher and the connected DMP 128 Plus audio processor
- Shall support two (2) local analog stereo audio inputs that can be routed to any audio output, including audio to any connected receiver, analog return audio to any connected transmitter, the DMP expansion port, any analog output port, or the Dante audio network
- Shall support two (2) local analog stereo audio outputs providing audio from any audio input, including any connected transmitter, DMP expansion port, any analog audio input port, or the Dante audio network
- Shall support audio breakaway to de-embed a two-channel PCM audio signal from its corresponding video signal for independent routing to any of the following destinations:
- Transmission requirements
- Shall support a maximum signal transmission distance of 500 m (1640 feet) over OM4 multimode fiber optic cable at 850 nm
- Shall support a maximum signal transmission distance of 20 km (12.4 miles) over singlemode fiber optic cable at 1310 nm
- Control requirements
- Shall support multiple methods for control, configuration, I/O selection, and general operation
- RS-232 configuration and control
- Ethernet configuration and control
- Front panel USB configuration
- Shall provide one (1) mini USB Type B port on the front panel for setup and configuration
- Shall provide one (1) bidirectional RS-232 serial port on the rear panel for setup, configuration, and control
- Supports firmware updates
- Shall provide a recessed Reset button on the rear panel
- Shall provide one (1) RJ-45 connector on the rear panel for setup, configuration, and control via an Ethernet connection
- Shall support secure Ethernet communication using SSH - Secure Shell protocol
- Shall support Ethernet monitoring and control using standard TCP/IP protocols
- Proactive monitoring and system management over a LAN, WAN, or the Internet
- Functional control of the matrix switcher
- Advanced computer-aided diagnostics
- Firmware updates
- Functional control of the matrix switcher
- Shall support RS-232 insertion through the Ethernet control port
- Shall provide Extron control software to enable control and configuration from a Windows®-based computer via the serial or Ethernet port
- Shall include advanced self-diagnostics of I/O boards, primary and redundant power supply voltages, fiber links, and overall matrix functionality
- Shall provide I/O port activity status via the rear panel, RS-232 port, or Ethernet
- Shall provide I/O activity viewable within internal Web pages that are easily obtainable by AV control systems
- Shall support multiple methods for control, configuration, I/O selection, and general operation
- Secure switching requirements
- Shall support secure partitioning into smaller sub-switchers to segregate sources and destinations in a secure environment
- Enable up to twelve (12) partitions
- Inputs can only be tied to outputs within the same partition
- Shall provide priority switching to prevent unauthorized access to sensitive date in a secure environment
- Each input and output is assigned a security level from one (1) to six (6) with level one (1) as the lowest level and level six (6) as the highest
- An input can only be tied to an output that is at the same level or higher
- Shall support secure partitioning into smaller sub-switchers to segregate sources and destinations in a secure environment
- Functional requirements
- Shall provide commands or control sequences for functional operation of the matrix switcher
- Create or remove ties within the matrix
- Group inputs and outputs
- Save or recall presets
- Mute or unmute outputs
- HDCP requirements
- Shall include Extron SpeedSwitch® technology for high-speed switching of HDCP-encrypted content
- Shall provide commands or control sequences for functional operation of the matrix switcher
- Power requirements
- Shall provide one primary power supply
- Shall support hot-swappable power supply replacement
- Shall provide optional redundant power supply
- Provides a back-up power supply for secondary power
- Provides a second AC power input for continuous connection to primary and secondary power sources
- General requirements
- Shall be a 2U high, full rack width metal enclosure
- Shall be rack mountable with integrated brackets
- Shall provide an internal, hot-swappable fan
- Shall meet regulatory compliance
- CE, c-UL, UL
- CE, C-tick, FCC Class A, ICES, VCCI
- Product-appropriate RoHS and WEEE
- Shall be compatible with Extron FOX3 Series products for AV, USB, control, and 3D sync signals distribution and routing over fiber optic cabling
- Shall provide at least three years parts and labor warranty
- Approved device shall be the Extron FOX3 Matrix 24x no FPC 8io SM (60-1716-14); no alternates or equals
60-1716-05 - FOX3 Matrix 24x no FPC 16io MM
- Shall provide a configurable matrix switcher that support digital video, audio, USB, control, and 3D sync signals with up to 24 inputs and 24 outputs for transmission and routing over fiber optic cabling
- Rack mountable configured matrix switcher for routing HDMI video, audio, USB, control, and 3D sync over fiber optic cabling
- Configuration requirements
- Shall provide a modular, hot swappable I/O board design
- Configured out of factory with two (2) slots each populated with one (1) multimode I/O board, supporting a total of 16 inputs and 16 outputs
- Can be reconfigured by adding, removing, or replacing matrix I/O boards
- Shall provide three (3) configurable matrix board slots for matrix boards
- Shall be configurable with I/O sizes from 8x8 up to 24x24 in 8x8 increments
- Eight (8) input connectors per board
- Eight (8) output connectors per board
- Shall support field configuration of each board slot
- Shall provide a modular, hot swappable I/O board design
- Input and output requirements
- Shall support remote device connections via FOX3 Series fiber optic transmitters and receivers
- Shall support FOX3 matrix I/O boards with multimode fiber optic input and output connections
- Compatible with all Extron FOX3 Series MM extenders
- Status LED indicators for fiber link status
- Automatic input and output reclocking
- Shall support FOX3 matrix boards with singlemode fiber optic input and output connections
- Compatible with Extron FOX3 Series SM extenders
- Status LED indicators for fiber link status
- Automatic input and output reclocking
- Shall provide an audio interface with support for DMP expansion, local analog stereo inputs and outputs, and Dante audio networking
- DMP audio expansion – one (1) RJ-45 jack for 8x8 stereo connection to an Extron DMP audio processor
- Analog audio – two (2) 5-pole 3.5mm captive screw stereo inputs, and two (2) 5-pole 3.5mm captive screw stereo outputs
- Dante® audio networking – two (2) RJ-45 jacks for Dante audio networking interface with 32 stereo inputs and 32 stereo outputs
- Signal switching requirements
- Shall provide all-digital switching of keyboard, video, and mouse – KVM signals
- Shall provide all-digital switching of HDMI video, audio, USB, control, and 3D sync signals
- Compatible with Extron FOX3 Series extenders
- Shall be configurable for use with sources and displays supporting resolutions up to 4096x2160 at 60 Hz with 4:4:4 chroma sampling and 12-bit color depth
- Supports mathematically lossless 4K at 60 Hz with 10 bits per color over one fiber
- Supports uncompressed 4K at 60 Hz with 12 bits per color over two fibers
- Shall be configurable for audio switching, processing and distribution
- Audio routing requirements
- Shall support audio breakaway to de-embed a two-channel PCM audio signal from its corresponding video signal for independent routing to any of the following destinations:
- Embedded audio to a connected receiver
- DMP expansion port
- Analog stereo output
- Dante audio output
- Shall support insertion of a return audio signal to a connected transmitter from any of the following sources:
- Return audio from a connected receiver
- DMP expansion port
- Analog stereo input
- Dante audio input
- Shall support embedding of an analog audio input into any selected output signal, including the analog return audio signal
- Shall support a Dante audio network of up to 32 stereo inputs and 32 stereo outputs with AES67 support
- Shall support DMP expansion to an Extron ProDSP allowing a 16-channel bidirectional 24-bit/48 kHz high-resolution digital audio expansion bus between the matrix switcher and the connected DMP 128 Plus audio processor
- Shall support two (2) local analog stereo audio inputs that can be routed to any audio output, including audio to any connected receiver, analog return audio to any connected transmitter, the DMP expansion port, any analog output port, or the Dante audio network
- Shall support two (2) local analog stereo audio outputs providing audio from any audio input, including any connected transmitter, DMP expansion port, any analog audio input port, or the Dante audio network
- Shall support audio breakaway to de-embed a two-channel PCM audio signal from its corresponding video signal for independent routing to any of the following destinations:
- Transmission requirements
- Shall support a maximum signal transmission distance of 500 m (1640 feet) over OM4 multimode fiber optic cable at 850 nm
- Shall support a maximum signal transmission distance of 20 km (12.4 miles) over singlemode fiber optic cable at 1310 nm
- Control requirements
- Shall support multiple methods for control, configuration, I/O selection, and general operation
- RS-232 configuration and control
- Ethernet configuration and control
- Front panel USB configuration
- Shall provide one (1) mini USB Type B port on the front panel for setup and configuration
- Shall provide one (1) bidirectional RS-232 serial port on the rear panel for setup, configuration, and control
- Supports firmware updates
- Shall provide a recessed Reset button on the rear panel
- Shall provide one (1) RJ-45 connector on the rear panel for setup, configuration, and control via an Ethernet connection
- Shall support secure Ethernet communication using SSH - Secure Shell protocol
- Shall support Ethernet monitoring and control using standard TCP/IP protocols
- Proactive monitoring and system management over a LAN, WAN, or the Internet
- Functional control of the matrix switcher
- Advanced computer-aided diagnostics
- Firmware updates
- Functional control of the matrix switcher
- Shall support RS-232 insertion through the Ethernet control port
- Shall provide Extron control software to enable control and configuration from a Windows®-based computer via the serial or Ethernet port
- Shall include advanced self-diagnostics of I/O boards, primary and redundant power supply voltages, fiber links, and overall matrix functionality
- Shall provide I/O port activity status via the rear panel, RS-232 port, or Ethernet
- Shall provide I/O activity viewable within internal Web pages that are easily obtainable by AV control systems
- Shall support multiple methods for control, configuration, I/O selection, and general operation
- Secure switching requirements
- Shall support secure partitioning into smaller sub-switchers to segregate sources and destinations in a secure environment
- Enable up to twelve (12) partitions
- Inputs can only be tied to outputs within the same partition
- Shall provide priority switching to prevent unauthorized access to sensitive date in a secure environment
- Each input and output is assigned a security level from one (1) to six (6) with level one (1) as the lowest level and level six (6) as the highest
- An input can only be tied to an output that is at the same level or higher
- Shall support secure partitioning into smaller sub-switchers to segregate sources and destinations in a secure environment
- Functional requirements
- Shall provide commands or control sequences for functional operation of the matrix switcher
- Create or remove ties within the matrix
- Group inputs and outputs
- Save or recall presets
- Mute or unmute outputs
- Shall provide commands or control sequences for functional operation of the matrix switcher
- HDCP requirements
- Shall include Extron SpeedSwitch® technology for high-speed switching of HDCP-encrypted content
- Power requirements
- Shall provide one primary power supply
- Shall support hot-swappable power supply replacement
- Shall provide optional redundant power supply
- Provides a back-up power supply for secondary power
- Provides a second AC power input for continuous connection to primary and secondary power sources
- General requirements
- Shall be a 2U high, full rack width metal enclosure
- Shall be rack mountable with integrated brackets
- Shall provide an internal, hot-swappable fan
- Shall meet regulatory compliance
- CE, c-UL, UL
- CE, C-tick, FCC Class A, ICES, VCCI
- Product-appropriate RoHS and WEEE
- Shall be compatible with Extron FOX3 Series products for AV, USB, control, and 3D sync signals distribution and routing over fiber optic cabling
- Shall provide at least three years parts and labor warranty
- Approved device shall be the Extron FOX3 Matrix 24x no FPC 16io MM (60-1716-05); no alternates or equals
60-1716-05 - FOX3 Matrix 24x no FPC 16io MM
- Shall provide a configurable matrix switcher that support digital video, audio, USB, control, and 3D sync signals with up to 24 inputs and 24 outputs for transmission and routing over fiber optic cabling
- Rack mountable configured matrix switcher for routing HDMI video, audio, USB, control, and 3D sync over fiber optic cabling
- Configuration requirements
- Shall provide a modular, hot swappable I/O board design
- Configured out of factory with two (2) slots each populated with one (1) multimode I/O board, supporting a total of 16 inputs and 16 outputs
- Can be reconfigured by adding, removing, or replacing matrix I/O boards
- Shall provide three (3) configurable matrix board slots for matrix boards
- Shall be configurable with I/O sizes from 8x8 up to 24x24 in 8x8 increments
- Eight (8) input connectors per board
- Eight (8) output connectors per board
- Shall support field configuration of each board slot
- Shall provide a modular, hot swappable I/O board design
- Input and output requirements
- Shall support remote device connections via FOX3 Series fiber optic transmitters and receivers
- Shall support FOX3 matrix I/O boards with multimode fiber optic input and output connections
- Compatible with all Extron FOX3 Series MM extenders
- Status LED indicators for fiber link status
- Automatic input and output reclocking
- Shall support FOX3 matrix boards with singlemode fiber optic input and output connections
- Compatible with Extron FOX3 Series SM extenders
- Status LED indicators for fiber link status
- Automatic input and output reclocking
- Shall provide an audio interface with support for DMP expansion, local analog stereo inputs and outputs, and Dante audio networking
- DMP audio expansion – one (1) RJ-45 jack for 8x8 stereo connection to an Extron DMP audio processor
- Analog audio – two (2) 5-pole 3.5mm captive screw stereo inputs, and two (2) 5-pole 3.5mm captive screw stereo outputs
- Dante® audio networking – two (2) RJ-45 jacks for Dante audio networking interface with 32 stereo inputs and 32 stereo outputs
- Signal switching requirements
- Shall provide all-digital switching of keyboard, video, and mouse – KVM signals
- Shall provide all-digital switching of HDMI video, audio, USB, control, and 3D sync signals
- Compatible with Extron FOX3 Series extenders
- Shall be configurable for use with sources and displays supporting resolutions up to 4096x2160 at 60 Hz with 4:4:4 chroma sampling and 12-bit color depth
- Supports mathematically lossless 4K at 60 Hz with 10 bits per color over one fiber
- Supports uncompressed 4K at 60 Hz with 12 bits per color over two fibers
- Shall be configurable for audio switching, processing and distribution
- Audio routing requirements
- Shall support audio breakaway to de-embed a two-channel PCM audio signal from its corresponding video signal for independent routing to any of the following destinations:
- Embedded audio to a connected receiver
- DMP expansion port
- Analog stereo output
- Dante audio output
- Shall support insertion of a return audio signal to a connected transmitter from any of the following sources:
- Return audio from a connected receiver
- DMP expansion port
- Analog stereo input
- Dante audio input
- Shall support embedding of an analog audio input into any selected output signal, including the analog return audio signal
- Shall support a Dante audio network of up to 32 stereo inputs and 32 stereo outputs with AES67 support
- Shall support DMP expansion to an Extron ProDSP allowing a 16-channel bidirectional 24-bit/48 kHz high-resolution digital audio expansion bus between the matrix switcher and the connected DMP 128 Plus audio processor
- Shall support two (2) local analog stereo audio inputs that can be routed to any audio output, including audio to any connected receiver, analog return audio to any connected transmitter, the DMP expansion port, any analog output port, or the Dante audio network
- Shall support two (2) local analog stereo audio outputs providing audio from any audio input, including any connected transmitter, DMP expansion port, any analog audio input port, or the Dante audio network
- Shall support audio breakaway to de-embed a two-channel PCM audio signal from its corresponding video signal for independent routing to any of the following destinations:
- Transmission requirements
- Shall support a maximum signal transmission distance of 500 m (1640 feet) over OM4 multimode fiber optic cable at 850 nm
- Shall support a maximum signal transmission distance of 20 km (12.4 miles) over singlemode fiber optic cable at 1310 nm
- Control requirements
- Shall support multiple methods for control, configuration, I/O selection, and general operation
- RS-232 configuration and control
- Ethernet configuration and control
- Front panel USB configuration
- Shall provide one (1) mini USB Type B port on the front panel for setup and configuration
- Shall provide one (1) bidirectional RS-232 serial port on the rear panel for setup, configuration, and control
- Supports firmware updates
- Shall provide a recessed Reset button on the rear panel
- Shall provide one (1) RJ-45 connector on the rear panel for setup, configuration, and control via an Ethernet connection
- Shall support secure Ethernet communication using SSH - Secure Shell protocol
- Shall support Ethernet monitoring and control using standard TCP/IP protocols
- Proactive monitoring and system management over a LAN, WAN, or the Internet
- Functional control of the matrix switcher
- Advanced computer-aided diagnostics
- Firmware updates
- Functional control of the matrix switcher
- Shall support RS-232 insertion through the Ethernet control port
- Shall provide Extron control software to enable control and configuration from a Windows®-based computer via the serial or Ethernet port
- Shall include advanced self-diagnostics of I/O boards, primary and redundant power supply voltages, fiber links, and overall matrix functionality
- Shall provide I/O port activity status via the rear panel, RS-232 port, or Ethernet
- Shall provide I/O activity viewable within internal Web pages that are easily obtainable by AV control systems
- Shall support multiple methods for control, configuration, I/O selection, and general operation
- Secure switching requirements
- Shall support secure partitioning into smaller sub-switchers to segregate sources and destinations in a secure environment
- Enable up to twelve (12) partitions
- Inputs can only be tied to outputs within the same partition
- Shall provide priority switching to prevent unauthorized access to sensitive date in a secure environment
- Each input and output is assigned a security level from one (1) to six (6) with level one (1) as the lowest level and level six (6) as the highest
- An input can only be tied to an output that is at the same level or higher
- Shall support secure partitioning into smaller sub-switchers to segregate sources and destinations in a secure environment
- Functional requirements
- Shall provide commands or control sequences for functional operation of the matrix switcher
- Create or remove ties within the matrix
- Group inputs and outputs
- Save or recall presets
- Mute or unmute outputs
- Shall provide commands or control sequences for functional operation of the matrix switcher
- HDCP requirements
- Shall include Extron SpeedSwitch® technology for high-speed switching of HDCP-encrypted content
- Power requirements
- Shall provide one primary power supply
- Shall support hot-swappable power supply replacement
- Shall provide optional redundant power supply
- Provides a back-up power supply for secondary power
- Provides a second AC power input for continuous connection to primary and secondary power sources
- General requirements
- Shall be a 2U high, full rack width metal enclosure
- Shall be rack mountable with integrated brackets
- Shall provide an internal, hot-swappable fan
- Shall meet regulatory compliance
- CE, c-UL, UL
- CE, C-tick, FCC Class A, ICES, VCCI
- Product-appropriate RoHS and WEEE
- Shall be compatible with Extron FOX3 Series products for AV, USB, control, and 3D sync signals distribution and routing over fiber optic cabling
- Shall provide at least three years parts and labor warranty
- Approved device shall be the Extron FOX3 Matrix 24x no FPC 16io MM (60-1716-05); no alternates or equals
60-1716-15 - FOX3 Matrix 24x no FPC 16io SM
- Shall provide a configurable matrix switcher that support digital video, audio, USB, control, and 3D sync signals with up to 24 inputs and 24 outputs for transmission and routing over fiber optic cabling
- Rack mountable configured matrix switcher for routing HDMI video, audio, USB, control, and 3D sync over fiber optic cabling
- Configuration requirements
- Shall provide a modular, hot swappable I/O board design
- Configured out of factory with one (2) slots populated, each with one (1) singlemode I/O board, supporting a total of 16 inputs and 16 outputs
- Can be reconfigured by adding, removing, or replacing matrix I/O boards
- Shall provide three (3) configurable matrix board slots for matrix boards
- Shall be configurable with I/O sizes from 8x8 up to 24x24 in 8x8 increments
- Eight (8) input connectors per board
- Eight (8) output connectors per board
- Shall support field configuration of each board slot
- Shall provide a modular, hot swappable I/O board design
- Input and output requirements
- Shall support remote device connections via FOX3 Series fiber optic transmitters and receivers
- Shall support FOX3 matrix I/O boards with multimode fiber optic input and output connections
- Compatible with all Extron FOX3 Series MM extenders
- Status LED indicators for fiber link status
- Automatic input and output reclocking
- Shall support FOX3 matrix boards with singlemode fiber optic input and output connections
- Compatible with Extron FOX3 Series SM extenders
- Status LED indicators for fiber link status
- Automatic input and output reclocking
- Shall provide an audio interface with support for DMP expansion, local analog stereo inputs and outputs, and Dante audio networking
- DMP audio expansion – one (1) RJ-45 jack for 8x8 stereo connection to an Extron DMP audio processor
- Analog audio – two (2) 5-pole 3.5mm captive screw stereo inputs, and two (2) 5-pole 3.5mm captive screw stereo outputs
- Dante® audio networking – two (2) RJ-45 jacks for Dante audio networking interface with 32 stereo inputs and 32 stereo outputs
- Signal switching requirements
- Shall provide all-digital switching of keyboard, video, and mouse – KVM signals
- Shall provide all-digital switching of HDMI video, audio, USB, control, and 3D sync signals
- Compatible with Extron FOX3 Series extenders
- Shall be configurable for use with sources and displays supporting resolutions up to 4096x2160 at 60 Hz with 4:4:4 chroma sampling and 12-bit color depth
- Supports mathematically lossless 4K at 60 Hz with 10 bits per color over one fiber
- Supports uncompressed 4K at 60 Hz with 12 bits per color over two fibers
- Shall be configurable for audio switching, processing and distribution
- Audio routing requirements
- Shall support audio breakaway to de-embed a two-channel PCM audio signal from its corresponding video signal for independent routing to any of the following destinations:
- Embedded audio to a connected receiver
- DMP expansion port
- Analog stereo output
- Dante audio output
- Shall support insertion of a return audio signal to a connected transmitter from any of the following sources:
- Return audio from a connected receiver
- DMP expansion port
- Analog stereo input
- Dante audio input
- Shall support embedding of an analog audio input into any selected output signal, including the analog return audio signal
- Shall support a Dante audio network of up to 32 stereo inputs and 32 stereo outputs with AES67 support
- Shall support DMP expansion to an Extron ProDSP allowing a 16-channel bidirectional 24-bit/48 kHz high-resolution digital audio expansion bus between the matrix switcher and the connected DMP 128 Plus audio processor
- Shall support two (2) local analog stereo audio inputs that can be routed to any audio output, including audio to any connected receiver, analog return audio to any connected transmitter, the DMP expansion port, any analog output port, or the Dante audio network
- Shall support two (2) local analog stereo audio outputs providing audio from any audio input, including any connected transmitter, DMP expansion port, any analog audio input port, or the Dante audio network
- Shall support audio breakaway to de-embed a two-channel PCM audio signal from its corresponding video signal for independent routing to any of the following destinations:
- Transmission requirements
- Shall support a maximum signal transmission distance of 500 m (1640 feet) over OM4 multimode fiber optic cable at 850 nm
- Shall support a maximum signal transmission distance of 20 km (12.4 miles) over singlemode fiber optic cable at 1310 nm
- Control requirements
- Shall support multiple methods for control, configuration, I/O selection, and general operation
- RS-232 configuration and control
- Ethernet configuration and control
- Front panel USB configuration
- Shall provide one (1) mini USB Type B port on the front panel for setup and configuration
- Shall provide one (1) bidirectional RS-232 serial port on the rear panel for setup, configuration, and control
- Supports firmware updates
- Shall provide a recessed Reset button on the rear panel
- Shall provide one (1) RJ-45 connector on the rear panel for setup, configuration, and control via an Ethernet connection
- Shall support secure Ethernet communication using SSH - Secure Shell protocol
- Shall support Ethernet monitoring and control using standard TCP/IP protocols
- Proactive monitoring and system management over a LAN, WAN, or the Internet
- Functional control of the matrix switcher
- Advanced computer-aided diagnostics
- Firmware updates
- Functional control of the matrix switcher
- Shall support RS-232 insertion through the Ethernet control port
- Shall provide Extron control software to enable control and configuration from a Windows®-based computer via the serial or Ethernet port
- Shall include advanced self-diagnostics of I/O boards, primary and redundant power supply voltages, fiber links, and overall matrix functionality
- Shall provide I/O port activity status via the rear panel, RS-232 port, or Ethernet
- Shall provide I/O activity viewable within internal Web pages that are easily obtainable by AV control systems
- Shall support multiple methods for control, configuration, I/O selection, and general operation
- Secure switching requirements
- Shall support secure partitioning into smaller sub-switchers to segregate sources and destinations in a secure environment
- Enable up to twelve (12) partitions
- Inputs can only be tied to outputs within the same partition
- Shall provide priority switching to prevent unauthorized access to sensitive date in a secure environment
- Each input and output is assigned a security level from one (1) to six (6) with level one (1) as the lowest level and level six (6) as the highest
- An input can only be tied to an output that is at the same level or higher
- Shall support secure partitioning into smaller sub-switchers to segregate sources and destinations in a secure environment
- Functional requirements
- Shall provide commands or control sequences for functional operation of the matrix switcher
- Create or remove ties within the matrix
- Group inputs and outputs
- Save or recall presets
- Mute or unmute outputs
- Shall provide commands or control sequences for functional operation of the matrix switcher
- HDCP requirements
- Shall include Extron SpeedSwitch® technology for high-speed switching of HDCP-encrypted content
- Power requirements
- Shall provide one primary power supply
- Shall support hot-swappable power supply replacement
- Shall provide optional redundant power supply
- Provides a back-up power supply for secondary power
- Provides a second AC power input for continuous connection to primary and secondary power sources
- General requirements
- Shall be a 2U high, full rack width metal enclosure
- Shall be rack mountable with integrated brackets
- Shall provide an internal, hot-swappable fan
- Shall meet regulatory compliance
- CE, c-UL, UL
- CE, C-tick, FCC Class A, ICES, VCCI
- Product-appropriate RoHS and WEEE
- Shall be compatible with Extron FOX3 Series products for AV, USB, control, and 3D sync signals distribution and routing over fiber optic cabling
- Shall provide at least three years parts and labor warranty
- Approved device shall be the Extron FOX3 Matrix 24x no FPC 16io SM (60-1716-15); no alternates or equals
60-1716-15 - FOX3 Matrix 24x no FPC 16io SM
- Shall provide a configurable matrix switcher that support digital video, audio, USB, control, and 3D sync signals with up to 24 inputs and 24 outputs for transmission and routing over fiber optic cabling
- Rack mountable configured matrix switcher for routing HDMI video, audio, USB, control, and 3D sync over fiber optic cabling
- Configuration requirements
- Shall provide a modular, hot swappable I/O board design
- Configured out of factory with one (2) slots populated, each with one (1) singlemode I/O board, supporting a total of 16 inputs and 16 outputs
- Can be reconfigured by adding, removing, or replacing matrix I/O boards
- Shall provide three (3) configurable matrix board slots for matrix boards
- Shall be configurable with I/O sizes from 8x8 up to 24x24 in 8x8 increments
- Eight (8) input connectors per board
- Eight (8) output connectors per board
- Shall support field configuration of each board slot
- Shall provide a modular, hot swappable I/O board design
- Input and output requirements
- Shall support remote device connections via FOX3 Series fiber optic transmitters and receivers
- Shall support FOX3 matrix I/O boards with multimode fiber optic input and output connections
- Compatible with all Extron FOX3 Series MM extenders
- Status LED indicators for fiber link status
- Automatic input and output reclocking
- Shall support FOX3 matrix boards with singlemode fiber optic input and output connections
- Compatible with Extron FOX3 Series SM extenders
- Status LED indicators for fiber link status
- Automatic input and output reclocking
- Shall provide an audio interface with support for DMP expansion, local analog stereo inputs and outputs, and Dante audio networking
- DMP audio expansion – one (1) RJ-45 jack for 8x8 stereo connection to an Extron DMP audio processor
- Analog audio – two (2) 5-pole 3.5mm captive screw stereo inputs, and two (2) 5-pole 3.5mm captive screw stereo outputs
- Dante® audio networking – two (2) RJ-45 jacks for Dante audio networking interface with 32 stereo inputs and 32 stereo outputs
- Signal switching requirements
- Shall provide all-digital switching of keyboard, video, and mouse – KVM signals
- Shall provide all-digital switching of HDMI video, audio, USB, control, and 3D sync signals
- Compatible with Extron FOX3 Series extenders
- Shall be configurable for use with sources and displays supporting resolutions up to 4096x2160 at 60 Hz with 4:4:4 chroma sampling and 12-bit color depth
- Supports mathematically lossless 4K at 60 Hz with 10 bits per color over one fiber
- Supports uncompressed 4K at 60 Hz with 12 bits per color over two fibers
- Shall be configurable for audio switching, processing and distribution
- Audio routing requirements
- Shall support audio breakaway to de-embed a two-channel PCM audio signal from its corresponding video signal for independent routing to any of the following destinations:
- Embedded audio to a connected receiver
- DMP expansion port
- Analog stereo output
- Dante audio output
- Shall support insertion of a return audio signal to a connected transmitter from any of the following sources:
- Return audio from a connected receiver
- DMP expansion port
- Analog stereo input
- Dante audio input
- Shall support embedding of an analog audio input into any selected output signal, including the analog return audio signal
- Shall support a Dante audio network of up to 32 stereo inputs and 32 stereo outputs with AES67 support
- Shall support DMP expansion to an Extron ProDSP allowing a 16-channel bidirectional 24-bit/48 kHz high-resolution digital audio expansion bus between the matrix switcher and the connected DMP 128 Plus audio processor
- Shall support two (2) local analog stereo audio inputs that can be routed to any audio output, including audio to any connected receiver, analog return audio to any connected transmitter, the DMP expansion port, any analog output port, or the Dante audio network
- Shall support two (2) local analog stereo audio outputs providing audio from any audio input, including any connected transmitter, DMP expansion port, any analog audio input port, or the Dante audio network
- Shall support audio breakaway to de-embed a two-channel PCM audio signal from its corresponding video signal for independent routing to any of the following destinations:
- Transmission requirements
- Shall support a maximum signal transmission distance of 500 m (1640 feet) over OM4 multimode fiber optic cable at 850 nm
- Shall support a maximum signal transmission distance of 20 km (12.4 miles) over singlemode fiber optic cable at 1310 nm
- Control requirements
- Shall support multiple methods for control, configuration, I/O selection, and general operation
- RS-232 configuration and control
- Ethernet configuration and control
- Front panel USB configuration
- Shall provide one (1) mini USB Type B port on the front panel for setup and configuration
- Shall provide one (1) bidirectional RS-232 serial port on the rear panel for setup, configuration, and control
- Supports firmware updates
- Shall provide a recessed Reset button on the rear panel
- Shall provide one (1) RJ-45 connector on the rear panel for setup, configuration, and control via an Ethernet connection
- Shall support secure Ethernet communication using SSH - Secure Shell protocol
- Shall support Ethernet monitoring and control using standard TCP/IP protocols
- Proactive monitoring and system management over a LAN, WAN, or the Internet
- Functional control of the matrix switcher
- Advanced computer-aided diagnostics
- Firmware updates
- Functional control of the matrix switcher
- Shall support RS-232 insertion through the Ethernet control port
- Shall provide Extron control software to enable control and configuration from a Windows®-based computer via the serial or Ethernet port
- Shall include advanced self-diagnostics of I/O boards, primary and redundant power supply voltages, fiber links, and overall matrix functionality
- Shall provide I/O port activity status via the rear panel, RS-232 port, or Ethernet
- Shall provide I/O activity viewable within internal Web pages that are easily obtainable by AV control systems
- Shall support multiple methods for control, configuration, I/O selection, and general operation
- Secure switching requirements
- Shall support secure partitioning into smaller sub-switchers to segregate sources and destinations in a secure environment
- Enable up to twelve (12) partitions
- Inputs can only be tied to outputs within the same partition
- Shall provide priority switching to prevent unauthorized access to sensitive date in a secure environment
- Each input and output is assigned a security level from one (1) to six (6) with level one (1) as the lowest level and level six (6) as the highest
- An input can only be tied to an output that is at the same level or higher
- Shall support secure partitioning into smaller sub-switchers to segregate sources and destinations in a secure environment
- Functional requirements
- Shall provide commands or control sequences for functional operation of the matrix switcher
- Create or remove ties within the matrix
- Group inputs and outputs
- Save or recall presets
- Mute or unmute outputs
- Shall provide commands or control sequences for functional operation of the matrix switcher
- HDCP requirements
- Shall include Extron SpeedSwitch® technology for high-speed switching of HDCP-encrypted content
- Power requirements
- Shall provide one primary power supply
- Shall support hot-swappable power supply replacement
- Shall provide optional redundant power supply
- Provides a back-up power supply for secondary power
- Provides a second AC power input for continuous connection to primary and secondary power sources
- General requirements
- Shall be a 2U high, full rack width metal enclosure
- Shall be rack mountable with integrated brackets
- Shall provide an internal, hot-swappable fan
- Shall meet regulatory compliance
- CE, c-UL, UL
- CE, C-tick, FCC Class A, ICES, VCCI
- Product-appropriate RoHS and WEEE
- Shall be compatible with Extron FOX3 Series products for AV, USB, control, and 3D sync signals distribution and routing over fiber optic cabling
- Shall provide at least three years parts and labor warranty
- Approved device shall be the Extron FOX3 Matrix 24x no FPC 16io SM (60-1716-15); no alternates or equals
60-1716-06 - FOX3 Matrix 24x no FPC 24io MM
- Shall provide a configurable matrix switcher that support digital video, audio, USB, control, and 3D sync signals with up to 24 inputs and 24 outputs for transmission and routing over fiber optic cabling
- Rack mountable configured matrix switcher for routing HDMI video, audio, USB, control, and 3D sync over fiber optic cabling
- Configuration requirements
- Shall provide a modular, hot swappable I/O board design
- Configured out of factory with three (3) slots populated. each with one (1) multimode I/O board, supporting a total of 24 inputs and 24 outputs
- Can be reconfigured by replacing or removing matrix I/O boards
- Shall provide three (3) configurable matrix board slots for matrix boards
- Shall be configurable with I/O sizes from 8x8 up to 24x24 in 8x8 increments
- Eight (8) input connectors per board
- Eight (8) output connectors per board
- Shall support field configuration of each board slot
- Shall provide a modular, hot swappable I/O board design
- Input and output requirements
- Shall support remote device connections via FOX3 Series fiber optic transmitters and receivers
- Shall support FOX3 matrix I/O boards with multimode fiber optic input and output connections
- Compatible with all Extron FOX3 Series MM extenders
- Status LED indicators for fiber link status
- Automatic input and output reclocking
- Shall support FOX3 matrix boards with singlemode fiber optic input and output connections
- Compatible with Extron FOX3 Series SM extenders
- Status LED indicators for fiber link status
- Automatic input and output reclocking
- Shall provide an audio interface with support for DMP expansion, local analog stereo inputs and outputs, and Dante audio networking
- DMP audio expansion – one (1) RJ-45 jack for 8x8 stereo connection to an Extron DMP audio processor
- Analog audio – two (2) 5-pole 3.5mm captive screw stereo inputs, and two (2) 5-pole 3.5mm captive screw stereo outputs
- Dante® audio networking – two (2) RJ-45 jacks for Dante audio networking interface with 32 stereo inputs and 32 stereo outputs
- Signal switching requirements
- Shall provide all-digital switching of keyboard, video, and mouse – KVM signals
- Shall provide all-digital switching of HDMI video, audio, USB, control, and 3D sync signals
- Compatible with Extron FOX3 Series extenders
- Shall be configurable for use with sources and displays supporting resolutions up to 4096x2160 at 60 Hz with 4:4:4 chroma sampling and 12-bit color depth
- Supports mathematically lossless 4K at 60 Hz with 10 bits per color over one fiber
- Supports uncompressed 4K at 60 Hz with 12 bits per color over two fibers
- Shall be configurable for audio switching, processing and distribution
- Audio routing requirements
- Shall support audio breakaway to de-embed a two-channel PCM audio signal from its corresponding video signal for independent routing to any of the following destinations:
- Embedded audio to a connected receiver
- DMP expansion port
- Analog stereo output
- Dante audio output
- Shall support insertion of a return audio signal to a connected transmitter from any of the following sources:
- Return audio from a connected receiver
- DMP expansion port
- Analog stereo input
- Dante audio input
- Shall support embedding of an analog audio input into any selected output signal, including the analog return audio signal
- Shall support a Dante audio network of up to 32 stereo inputs and 32 stereo outputs with AES67 support
- Shall support DMP expansion to an Extron ProDSP allowing a 16-channel bidirectional 24-bit/48 kHz high-resolution digital audio expansion bus between the matrix switcher and the connected DMP 128 Plus audio processor
- Shall support two (2) local analog stereo audio inputs that can be routed to any audio output, including audio to any connected receiver, analog return audio to any connected transmitter, the DMP expansion port, any analog output port, or the Dante audio network
- Shall support two (2) local analog stereo audio outputs providing audio from any audio input, including any connected transmitter, DMP expansion port, any analog audio input port, or the Dante audio network
- Shall support audio breakaway to de-embed a two-channel PCM audio signal from its corresponding video signal for independent routing to any of the following destinations:
- Transmission requirements
- Shall support a maximum signal transmission distance of 500 m (1640 feet) over OM4 multimode fiber optic cable at 850 nm
- Shall support a maximum signal transmission distance of 20 km (12.4 miles) over singlemode fiber optic cable at 1310 nm
- Control requirements
- Shall support multiple methods for control, configuration, I/O selection, and general operation
- RS-232 configuration and control
- Ethernet configuration and control
- Front panel USB configuration
- Shall provide one (1) mini USB Type B port on the front panel for setup and configuration
- Shall provide one (1) bidirectional RS-232 serial port on the rear panel for setup, configuration, and control
- Supports firmware updates
- Shall provide a recessed Reset button on the rear panel
- Shall provide one (1) RJ-45 connector on the rear panel for setup, configuration, and control via an Ethernet connection
- Shall support secure Ethernet communication using SSH - Secure Shell protocol
- Shall support Ethernet monitoring and control using standard TCP/IP protocols
- Proactive monitoring and system management over a LAN, WAN, or the Internet
- Functional control of the matrix switcher
- Advanced computer-aided diagnostics
- Firmware updates
- Functional control of the matrix switcher
- Shall support RS-232 insertion through the Ethernet control port
- Shall provide Extron control software to enable control and configuration from a Windows®-based computer via the serial or Ethernet port
- Shall include advanced self-diagnostics of I/O boards, primary and redundant power supply voltages, fiber links, and overall matrix functionality
- Shall provide I/O port activity status via the rear panel, RS-232 port, or Ethernet
- Shall provide I/O activity viewable within internal Web pages that are easily obtainable by AV control systems
- Shall support multiple methods for control, configuration, I/O selection, and general operation
- Secure switching requirements
- Shall support secure partitioning into smaller sub-switchers to segregate sources and destinations in a secure environment
- Enable up to twelve (12) partitions
- Inputs can only be tied to outputs within the same partition
- Shall provide priority switching to prevent unauthorized access to sensitive date in a secure environment
- Each input and output is assigned a security level from one (1) to six (6) with level one (1) as the lowest level and level six (6) as the highest
- An input can only be tied to an output that is at the same level or higher
- Shall support secure partitioning into smaller sub-switchers to segregate sources and destinations in a secure environment
- Functional requirements
- Shall provide commands or control sequences for functional operation of the matrix switcher
- Create or remove ties within the matrix
- Group inputs and outputs
- Save or recall presets
- Mute or unmute outputs
- Shall provide commands or control sequences for functional operation of the matrix switcher
- HDCP requirements
- Shall include Extron SpeedSwitch® technology for high-speed switching of HDCP-encrypted content
- Power requirements
- Shall provide one primary power supply
- Shall support hot-swappable power supply replacement
- Shall provide optional redundant power supply
- Provides a back-up power supply for secondary power
- Provides a second AC power input for continuous connection to primary and secondary power sources
- General requirements
- Shall be a 2U high, full rack width metal enclosure
- Shall be rack mountable with integrated brackets
- Shall provide an internal, hot-swappable fan
- Shall meet regulatory compliance
- CE, c-UL, UL
- CE, C-tick, FCC Class A, ICES, VCCI
- Product-appropriate RoHS and WEEE
- Shall be compatible with Extron FOX3 Series products for AV, USB, control, and 3D sync signals distribution and routing over fiber optic cabling
- Shall provide at least three years parts and labor warranty
- Approved device shall be the Extron FOX3 Matrix 24x no FPC 24io MM (60-1716-06); no alternates or equals
60-1716-06 - FOX3 Matrix 24x no FPC 24io MM
- Shall provide a configurable matrix switcher that support digital video, audio, USB, control, and 3D sync signals with up to 24 inputs and 24 outputs for transmission and routing over fiber optic cabling
- Rack mountable configured matrix switcher for routing HDMI video, audio, USB, control, and 3D sync over fiber optic cabling
- Configuration requirements
- Shall provide a modular, hot swappable I/O board design
- Configured out of factory with three (3) slots populated. each with one (1) multimode I/O board, supporting a total of 24 inputs and 24 outputs
- Can be reconfigured by replacing or removing matrix I/O boards
- Shall provide three (3) configurable matrix board slots for matrix boards
- Shall be configurable with I/O sizes from 8x8 up to 24x24 in 8x8 increments
- Eight (8) input connectors per board
- Eight (8) output connectors per board
- Shall support field configuration of each board slot
- Shall provide a modular, hot swappable I/O board design
- Input and output requirements
- Shall support remote device connections via FOX3 Series fiber optic transmitters and receivers
- Shall support FOX3 matrix I/O boards with multimode fiber optic input and output connections
- Compatible with all Extron FOX3 Series MM extenders
- Status LED indicators for fiber link status
- Automatic input and output reclocking
- Shall support FOX3 matrix boards with singlemode fiber optic input and output connections
- Compatible with Extron FOX3 Series SM extenders
- Status LED indicators for fiber link status
- Automatic input and output reclocking
- Shall provide an audio interface with support for DMP expansion, local analog stereo inputs and outputs, and Dante audio networking
- DMP audio expansion – one (1) RJ-45 jack for 8x8 stereo connection to an Extron DMP audio processor
- Analog audio – two (2) 5-pole 3.5mm captive screw stereo inputs, and two (2) 5-pole 3.5mm captive screw stereo outputs
- Dante® audio networking – two (2) RJ-45 jacks for Dante audio networking interface with 32 stereo inputs and 32 stereo outputs
- Signal switching requirements
- Shall provide all-digital switching of keyboard, video, and mouse – KVM signals
- Shall provide all-digital switching of HDMI video, audio, USB, control, and 3D sync signals
- Compatible with Extron FOX3 Series extenders
- Shall be configurable for use with sources and displays supporting resolutions up to 4096x2160 at 60 Hz with 4:4:4 chroma sampling and 12-bit color depth
- Supports mathematically lossless 4K at 60 Hz with 10 bits per color over one fiber
- Supports uncompressed 4K at 60 Hz with 12 bits per color over two fibers
- Shall be configurable for audio switching, processing and distribution
- Audio routing requirements
- Shall support audio breakaway to de-embed a two-channel PCM audio signal from its corresponding video signal for independent routing to any of the following destinations:
- Embedded audio to a connected receiver
- DMP expansion port
- Analog stereo output
- Dante audio output
- Shall support insertion of a return audio signal to a connected transmitter from any of the following sources:
- Return audio from a connected receiver
- DMP expansion port
- Analog stereo input
- Dante audio input
- Shall support embedding of an analog audio input into any selected output signal, including the analog return audio signal
- Shall support a Dante audio network of up to 32 stereo inputs and 32 stereo outputs with AES67 support
- Shall support DMP expansion to an Extron ProDSP allowing a 16-channel bidirectional 24-bit/48 kHz high-resolution digital audio expansion bus between the matrix switcher and the connected DMP 128 Plus audio processor
- Shall support two (2) local analog stereo audio inputs that can be routed to any audio output, including audio to any connected receiver, analog return audio to any connected transmitter, the DMP expansion port, any analog output port, or the Dante audio network
- Shall support two (2) local analog stereo audio outputs providing audio from any audio input, including any connected transmitter, DMP expansion port, any analog audio input port, or the Dante audio network
- Shall support audio breakaway to de-embed a two-channel PCM audio signal from its corresponding video signal for independent routing to any of the following destinations:
- Transmission requirements
- Shall support a maximum signal transmission distance of 500 m (1640 feet) over OM4 multimode fiber optic cable at 850 nm
- Shall support a maximum signal transmission distance of 20 km (12.4 miles) over singlemode fiber optic cable at 1310 nm
- Control requirements
- Shall support multiple methods for control, configuration, I/O selection, and general operation
- RS-232 configuration and control
- Ethernet configuration and control
- Front panel USB configuration
- Shall provide one (1) mini USB Type B port on the front panel for setup and configuration
- Shall provide one (1) bidirectional RS-232 serial port on the rear panel for setup, configuration, and control
- Supports firmware updates
- Shall provide a recessed Reset button on the rear panel
- Shall provide one (1) RJ-45 connector on the rear panel for setup, configuration, and control via an Ethernet connection
- Shall support secure Ethernet communication using SSH - Secure Shell protocol
- Shall support Ethernet monitoring and control using standard TCP/IP protocols
- Proactive monitoring and system management over a LAN, WAN, or the Internet
- Functional control of the matrix switcher
- Advanced computer-aided diagnostics
- Firmware updates
- Functional control of the matrix switcher
- Shall support RS-232 insertion through the Ethernet control port
- Shall provide Extron control software to enable control and configuration from a Windows®-based computer via the serial or Ethernet port
- Shall include advanced self-diagnostics of I/O boards, primary and redundant power supply voltages, fiber links, and overall matrix functionality
- Shall provide I/O port activity status via the rear panel, RS-232 port, or Ethernet
- Shall provide I/O activity viewable within internal Web pages that are easily obtainable by AV control systems
- Shall support multiple methods for control, configuration, I/O selection, and general operation
- Secure switching requirements
- Shall support secure partitioning into smaller sub-switchers to segregate sources and destinations in a secure environment
- Enable up to twelve (12) partitions
- Inputs can only be tied to outputs within the same partition
- Shall provide priority switching to prevent unauthorized access to sensitive date in a secure environment
- Each input and output is assigned a security level from one (1) to six (6) with level one (1) as the lowest level and level six (6) as the highest
- An input can only be tied to an output that is at the same level or higher
- Shall support secure partitioning into smaller sub-switchers to segregate sources and destinations in a secure environment
- Functional requirements
- Shall provide commands or control sequences for functional operation of the matrix switcher
- Create or remove ties within the matrix
- Group inputs and outputs
- Save or recall presets
- Mute or unmute outputs
- Shall provide commands or control sequences for functional operation of the matrix switcher
- HDCP requirements
- Shall include Extron SpeedSwitch® technology for high-speed switching of HDCP-encrypted content
- Power requirements
- Shall provide one primary power supply
- Shall support hot-swappable power supply replacement
- Shall provide optional redundant power supply
- Provides a back-up power supply for secondary power
- Provides a second AC power input for continuous connection to primary and secondary power sources
- General requirements
- Shall be a 2U high, full rack width metal enclosure
- Shall be rack mountable with integrated brackets
- Shall provide an internal, hot-swappable fan
- Shall meet regulatory compliance
- CE, c-UL, UL
- CE, C-tick, FCC Class A, ICES, VCCI
- Product-appropriate RoHS and WEEE
- Shall be compatible with Extron FOX3 Series products for AV, USB, control, and 3D sync signals distribution and routing over fiber optic cabling
- Shall provide at least three years parts and labor warranty
- Approved device shall be the Extron FOX3 Matrix 24x no FPC 24io MM (60-1716-06); no alternates or equals
60-1716-16 - FOX3 Matrix 24x no FPC 24io SM
- Shall provide a configurable matrix switcher that support digital video, audio, USB, control, and 3D sync signals with up to 24 inputs and 24 outputs for transmission and routing over fiber optic cabling
- Rack mountable configured matrix switcher for routing HDMI video, audio, USB, control, and 3D sync over fiber optic cabling
- Configuration requirements
- Shall provide a modular, hot swappable I/O board design
- Configured out of factory with three (3) slots populated. each with one (1) singlemode I/O board, supporting a total of 24 inputs and 24 outputs
- Can be reconfigured by replacing or removing matrix I/O boards
- Shall provide three (3) configurable matrix board slots for matrix boards
- Shall be configurable with I/O sizes from 8x8 up to 24x24 in 8x8 increments
- Eight (8) input connectors per board
- Eight (8) output connectors per board
- Shall support field configuration of each board slot
- Shall provide a modular, hot swappable I/O board design
- Input and output requirements
- Shall support remote device connections via FOX3 Series fiber optic transmitters and receivers
- Shall support FOX3 matrix I/O boards with multimode fiber optic input and output connections
- Compatible with all Extron FOX3 Series MM extenders
- Status LED indicators for fiber link status
- Automatic input and output reclocking
- Shall support FOX3 matrix boards with singlemode fiber optic input and output connections
- Compatible with Extron FOX3 Series SM extenders
- Status LED indicators for fiber link status
- Automatic input and output reclocking
- Shall provide an audio interface with support for DMP expansion, local analog stereo inputs and outputs, and Dante audio networking
- DMP audio expansion – one (1) RJ-45 jack for 8x8 stereo connection to an Extron DMP audio processor
- Analog audio – two (2) 5-pole 3.5mm captive screw stereo inputs, and two (2) 5-pole 3.5mm captive screw stereo outputs
- Dante® audio networking – two (2) RJ-45 jacks for Dante audio networking interface with 32 stereo inputs and 32 stereo outputs
- Signal switching requirements
- Shall provide all-digital switching of keyboard, video, and mouse – KVM signals
- Shall provide all-digital switching of HDMI video, audio, USB, control, and 3D sync signals
- Compatible with Extron FOX3 Series extenders
- Shall be configurable for use with sources and displays supporting resolutions up to 4096x2160 at 60 Hz with 4:4:4 chroma sampling and 12-bit color depth
- Supports mathematically lossless 4K at 60 Hz with 10 bits per color over one fiber
- Supports uncompressed 4K at 60 Hz with 12 bits per color over two fibers
- Shall be configurable for audio switching, processing and distribution
- Audio routing requirements
- Shall support audio breakaway to de-embed a two-channel PCM audio signal from its corresponding video signal for independent routing to any of the following destinations:
- Embedded audio to a connected receiver
- DMP expansion port
- Analog stereo output
- Dante audio output
- Shall support insertion of a return audio signal to a connected transmitter from any of the following sources:
- Return audio from a connected receiver
- DMP expansion port
- Analog stereo input
- Dante audio input
- Shall support embedding of an analog audio input into any selected output signal, including the analog return audio signal
- Shall support a Dante audio network of up to 32 stereo inputs and 32 stereo outputs with AES67 support
- Shall support DMP expansion to an Extron ProDSP allowing a 16-channel bidirectional 24-bit/48 kHz high-resolution digital audio expansion bus between the matrix switcher and the connected DMP 128 Plus audio processor
- Shall support two (2) local analog stereo audio inputs that can be routed to any audio output, including audio to any connected receiver, analog return audio to any connected transmitter, the DMP expansion port, any analog output port, or the Dante audio network
- Shall support two (2) local analog stereo audio outputs providing audio from any audio input, including any connected transmitter, DMP expansion port, any analog audio input port, or the Dante audio network
- Shall support audio breakaway to de-embed a two-channel PCM audio signal from its corresponding video signal for independent routing to any of the following destinations:
- Transmission requirements
- Shall support a maximum signal transmission distance of 500 m (1640 feet) over OM4 multimode fiber optic cable at 850 nm
- Shall support a maximum signal transmission distance of 20 km (12.4 miles) over singlemode fiber optic cable at 1310 nm
- Control requirements
- Shall support multiple methods for control, configuration, I/O selection, and general operation
- RS-232 configuration and control
- Ethernet configuration and control
- Front panel USB configuration
- Shall provide one (1) mini USB Type B port on the front panel for setup and configuration
- Shall provide one (1) bidirectional RS-232 serial port on the rear panel for setup, configuration, and control
- Supports firmware updates
- Shall provide a recessed Reset button on the rear panel
- Shall provide one (1) RJ-45 connector on the rear panel for setup, configuration, and control via an Ethernet connection
- Shall support secure Ethernet communication using SSH - Secure Shell protocol
- Shall support Ethernet monitoring and control using standard TCP/IP protocols
- Proactive monitoring and system management over a LAN, WAN, or the Internet
- Functional control of the matrix switcher
- Advanced computer-aided diagnostics
- Firmware updates
- Functional control of the matrix switcher
- Shall support RS-232 insertion through the Ethernet control port
- Shall provide Extron control software to enable control and configuration from a Windows®-based computer via the serial or Ethernet port
- Shall include advanced self-diagnostics of I/O boards, primary and redundant power supply voltages, fiber links, and overall matrix functionality
- Shall provide I/O port activity status via the rear panel, RS-232 port, or Ethernet
- Shall provide I/O activity viewable within internal Web pages that are easily obtainable by AV control systems
- Shall support multiple methods for control, configuration, I/O selection, and general operation
- Secure switching requirements
- Shall support secure partitioning into smaller sub-switchers to segregate sources and destinations in a secure environment
- Enable up to twelve (12) partitions
- Inputs can only be tied to outputs within the same partition
- Shall provide priority switching to prevent unauthorized access to sensitive date in a secure environment
- Each input and output is assigned a security level from one (1) to six (6) with level one (1) as the lowest level and level six (6) as the highest
- An input can only be tied to an output that is at the same level or higher
- Shall support secure partitioning into smaller sub-switchers to segregate sources and destinations in a secure environment
- Functional requirements
- Shall provide commands or control sequences for functional operation of the matrix switcher
- Create or remove ties within the matrix
- Group inputs and outputs
- Save or recall presets
- Mute or unmute outputs
- Shall provide commands or control sequences for functional operation of the matrix switcher
- HDCP requirements
- Shall include Extron SpeedSwitch® technology for high-speed switching of HDCP-encrypted content
- Power requirements
- Shall provide one primary power supply
- Shall support hot-swappable power supply replacement
- Shall provide optional redundant power supply
- Provides a back-up power supply for secondary power
- Provides a second AC power input for continuous connection to primary and secondary power sources
- General requirements
- Shall be a 2U high, full rack width metal enclosure
- Shall be rack mountable with integrated brackets
- Shall provide an internal, hot-swappable fan
- Shall meet regulatory compliance
- CE, c-UL, UL
- CE, C-tick, FCC Class A, ICES, VCCI
- Product-appropriate RoHS and WEEE
- Shall be compatible with Extron FOX3 Series products for AV, USB, control, and 3D sync signals distribution and routing over fiber optic cabling
- Shall provide at least three years parts and labor warranty
- Approved device shall be the Extron FOX3 Matrix 24x no FPC 24io SM (60-1716-16); no alternates or equals
60-1716-16 - FOX3 Matrix 24x no FPC 24io SM
- Shall provide a configurable matrix switcher that support digital video, audio, USB, control, and 3D sync signals with up to 24 inputs and 24 outputs for transmission and routing over fiber optic cabling
- Rack mountable configured matrix switcher for routing HDMI video, audio, USB, control, and 3D sync over fiber optic cabling
- Configuration requirements
- Shall provide a modular, hot swappable I/O board design
- Configured out of factory with three (3) slots populated. each with one (1) singlemode I/O board, supporting a total of 24 inputs and 24 outputs
- Can be reconfigured by replacing or removing matrix I/O boards
- Shall provide three (3) configurable matrix board slots for matrix boards
- Shall be configurable with I/O sizes from 8x8 up to 24x24 in 8x8 increments
- Eight (8) input connectors per board
- Eight (8) output connectors per board
- Shall support field configuration of each board slot
- Shall provide a modular, hot swappable I/O board design
- Input and output requirements
- Shall support remote device connections via FOX3 Series fiber optic transmitters and receivers
- Shall support FOX3 matrix I/O boards with multimode fiber optic input and output connections
- Compatible with all Extron FOX3 Series MM extenders
- Status LED indicators for fiber link status
- Automatic input and output reclocking
- Shall support FOX3 matrix boards with singlemode fiber optic input and output connections
- Compatible with Extron FOX3 Series SM extenders
- Status LED indicators for fiber link status
- Automatic input and output reclocking
- Shall provide an audio interface with support for DMP expansion, local analog stereo inputs and outputs, and Dante audio networking
- DMP audio expansion – one (1) RJ-45 jack for 8x8 stereo connection to an Extron DMP audio processor
- Analog audio – two (2) 5-pole 3.5mm captive screw stereo inputs, and two (2) 5-pole 3.5mm captive screw stereo outputs
- Dante® audio networking – two (2) RJ-45 jacks for Dante audio networking interface with 32 stereo inputs and 32 stereo outputs
- Signal switching requirements
- Shall provide all-digital switching of keyboard, video, and mouse – KVM signals
- Shall provide all-digital switching of HDMI video, audio, USB, control, and 3D sync signals
- Compatible with Extron FOX3 Series extenders
- Shall be configurable for use with sources and displays supporting resolutions up to 4096x2160 at 60 Hz with 4:4:4 chroma sampling and 12-bit color depth
- Supports mathematically lossless 4K at 60 Hz with 10 bits per color over one fiber
- Supports uncompressed 4K at 60 Hz with 12 bits per color over two fibers
- Shall be configurable for audio switching, processing and distribution
- Audio routing requirements
- Shall support audio breakaway to de-embed a two-channel PCM audio signal from its corresponding video signal for independent routing to any of the following destinations:
- Embedded audio to a connected receiver
- DMP expansion port
- Analog stereo output
- Dante audio output
- Shall support insertion of a return audio signal to a connected transmitter from any of the following sources:
- Return audio from a connected receiver
- DMP expansion port
- Analog stereo input
- Dante audio input
- Shall support embedding of an analog audio input into any selected output signal, including the analog return audio signal
- Shall support a Dante audio network of up to 32 stereo inputs and 32 stereo outputs with AES67 support
- Shall support DMP expansion to an Extron ProDSP allowing a 16-channel bidirectional 24-bit/48 kHz high-resolution digital audio expansion bus between the matrix switcher and the connected DMP 128 Plus audio processor
- Shall support two (2) local analog stereo audio inputs that can be routed to any audio output, including audio to any connected receiver, analog return audio to any connected transmitter, the DMP expansion port, any analog output port, or the Dante audio network
- Shall support two (2) local analog stereo audio outputs providing audio from any audio input, including any connected transmitter, DMP expansion port, any analog audio input port, or the Dante audio network
- Shall support audio breakaway to de-embed a two-channel PCM audio signal from its corresponding video signal for independent routing to any of the following destinations:
- Transmission requirements
- Shall support a maximum signal transmission distance of 500 m (1640 feet) over OM4 multimode fiber optic cable at 850 nm
- Shall support a maximum signal transmission distance of 20 km (12.4 miles) over singlemode fiber optic cable at 1310 nm
- Control requirements
- Shall support multiple methods for control, configuration, I/O selection, and general operation
- RS-232 configuration and control
- Ethernet configuration and control
- Front panel USB configuration
- Shall provide one (1) mini USB Type B port on the front panel for setup and configuration
- Shall provide one (1) bidirectional RS-232 serial port on the rear panel for setup, configuration, and control
- Supports firmware updates
- Shall provide a recessed Reset button on the rear panel
- Shall provide one (1) RJ-45 connector on the rear panel for setup, configuration, and control via an Ethernet connection
- Shall support secure Ethernet communication using SSH - Secure Shell protocol
- Shall support Ethernet monitoring and control using standard TCP/IP protocols
- Proactive monitoring and system management over a LAN, WAN, or the Internet
- Functional control of the matrix switcher
- Advanced computer-aided diagnostics
- Firmware updates
- Functional control of the matrix switcher
- Shall support RS-232 insertion through the Ethernet control port
- Shall provide Extron control software to enable control and configuration from a Windows®-based computer via the serial or Ethernet port
- Shall include advanced self-diagnostics of I/O boards, primary and redundant power supply voltages, fiber links, and overall matrix functionality
- Shall provide I/O port activity status via the rear panel, RS-232 port, or Ethernet
- Shall provide I/O activity viewable within internal Web pages that are easily obtainable by AV control systems
- Shall support multiple methods for control, configuration, I/O selection, and general operation
- Secure switching requirements
- Shall support secure partitioning into smaller sub-switchers to segregate sources and destinations in a secure environment
- Enable up to twelve (12) partitions
- Inputs can only be tied to outputs within the same partition
- Shall provide priority switching to prevent unauthorized access to sensitive date in a secure environment
- Each input and output is assigned a security level from one (1) to six (6) with level one (1) as the lowest level and level six (6) as the highest
- An input can only be tied to an output that is at the same level or higher
- Shall support secure partitioning into smaller sub-switchers to segregate sources and destinations in a secure environment
- Functional requirements
- Shall provide commands or control sequences for functional operation of the matrix switcher
- Create or remove ties within the matrix
- Group inputs and outputs
- Save or recall presets
- Mute or unmute outputs
- Shall provide commands or control sequences for functional operation of the matrix switcher
- HDCP requirements
- Shall include Extron SpeedSwitch® technology for high-speed switching of HDCP-encrypted content
- Power requirements
- Shall provide one primary power supply
- Shall support hot-swappable power supply replacement
- Shall provide optional redundant power supply
- Provides a back-up power supply for secondary power
- Provides a second AC power input for continuous connection to primary and secondary power sources
- General requirements
- Shall be a 2U high, full rack width metal enclosure
- Shall be rack mountable with integrated brackets
- Shall provide an internal, hot-swappable fan
- Shall meet regulatory compliance
- CE, c-UL, UL
- CE, C-tick, FCC Class A, ICES, VCCI
- Product-appropriate RoHS and WEEE
- Shall be compatible with Extron FOX3 Series products for AV, USB, control, and 3D sync signals distribution and routing over fiber optic cabling
- Shall provide at least three years parts and labor warranty
- Approved device shall be the Extron FOX3 Matrix 24x no FPC 24io SM (60-1716-16); no alternates or equals
把商品添加到购物车
Order Message Number
产品编号
注: 使用通用交流电源插座的 Extron 产品可支持多种不同的交流电源插头类型。在使用之前，确保设备满足您所在区域的所有规定要求，并符合所有应用的本地安全和电气规程及标准。
当前总计：
Annotation Graphics Processor
To view this page ensure that Adobe Flash Player version
11.0.0 or greater is installed and enabled.
Chrome
Firefox
Edge
Safari
