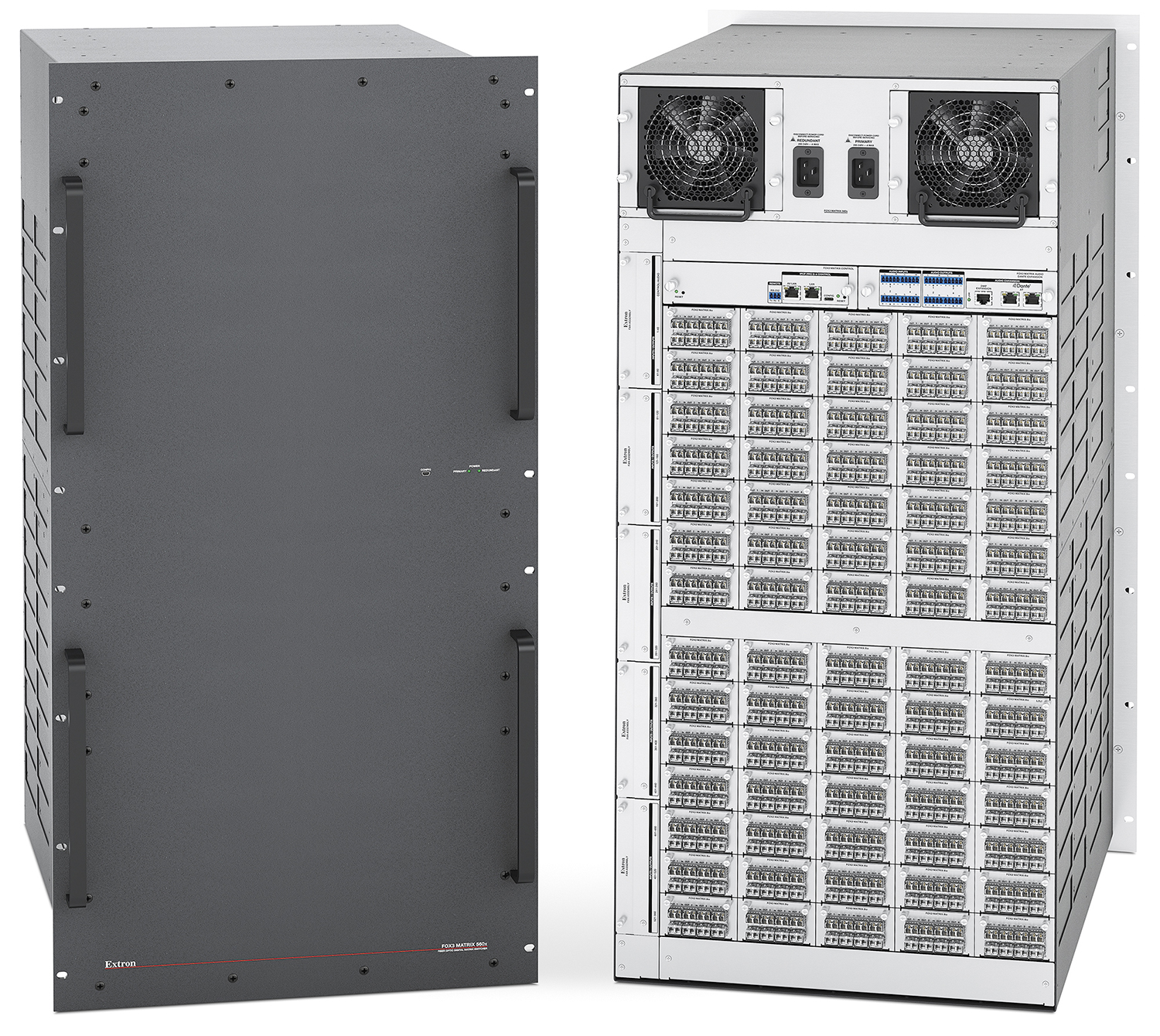

FOX3 Matrix 560x

60-1978-12 - FOX3 Matrix 560x IPCP Pro

1. Shall provide a configurable matrix switcher that support digital video, audio, USB, control, and 3D sync signals with up to 560 inputs and 560 outputs for transmission and routing over fiber optic cabling
   1. Rack mountable configurable matrix switcher for routing HDMI video, audio, USB, control, and 3D sync over fiber optic cabling
   2. Configuration requirements
      1. Shall provide a modular, hot swappable I/O board design
      2. Shall provide seventy (70) configurable matrix board slots for matrix boards
      3. Shall be configurable with I/O sizes from 8x8 up to 560x560 in 8x8 increments
         1. Eight (8) input connectors per board
         2. Eight (8) output connectors per board
      4. Shall support field configuration of each board slot
   3. Input and output requirements
      1. Shall support remote device connections via FOX3 Series fiber optic transmitters and receivers
      2. Shall support FOX3 matrix I/O boards with multimode fiber optic input and output connections
         1. Compatible with all Extron FOX3 Series MM extenders
         2. Automatic input and output reclocking
         3. Status LED indicators for fiber link status
      3. Shall support FOX3 matrix boards with singlemode fiber optic input and output connections
         1. Compatible with Extron FOX3 Series SM extenders
         2. Automatic input and output reclocking
         3. Status LED indicators for fiber link status
      4. Shall provide an audio interface board with support for DMP expansion, local analog stereo inputs and outputs, and Dante audio networking
         1. DMP audio expansion – one (1) RJ-45 jack for 8x8 stereo connection to an Extron DMP audio processor
         2. Analog audio – four (4) 5-pole 3.5mm captive screw stereo inputs, and four (4) 5-pole 3.5mm captive screw stereo outputs
         3. Dante® audio networking – two (2) RJ-45 jacks for Dante audio networking interface with 32 stereo inputs and 32 stereo outputs
   4. Signal switching requirements
      1. Shall provide all-digital switching of keyboard, video, and mouse – KVM signals
      2. Shall provide all-digital switching of HDMI video, audio, USB, control, and 3D sync signals
         1. Compatible with Extron FOX3 Series extenders
         2. Compatible with Extron FOX and FOX II Series transmitters and receivers
      3. Shall be configurable for use with sources and displays supporting resolutions up to 4096x2160 at 60 Hz with 4:4:4 chroma sampling and 12-bit color depth
         1. Supports mathematically lossless 4K at 60 Hz with 10 bits per color over one fiber
         2. Supports uncompressed 4K at 60 Hz with 12 bits per color over two fibers
      4. Shall be configurable for audio switching, processing and distribution
      5. Shall support the LinkLicense for KVM System Configuration and Control package
   5. Audio routing requirements
      1. Shall support audio breakaway to de-embed a two-channel PCM audio signal from its corresponding video signal for independent routing to any of the following destinations:
         1. Embedded audio to a connected receiver
         2. DMP expansion port
         3. Analog stereo output
         4. Dante audio output
      2. Shall support insertion of a return audio signal to a connected transmitter from any of the following sources:
         1. Return audio from a connected receiver
         2. DMP expansion port
         3. Analog stereo input
         4. Dante audio input
      3. Shall support embedding of an analog audio input into any selected output signal, including the analog return audio signal
      4. Shall support a Dante audio network of up to 32 stereo inputs and 32 stereo outputs with AES67 support
      5. Shall support DMP expansion to an Extron ProDSP allowing a 16-channel bidirectional 24-bit/48 kHz high-resolution digital audio expansion bus between the matrix switcher and the connected DMP 128 Plus audio processor
      6. Shall support four (4) local analog stereo audio inputs that can be routed to any audio output, including audio to any connected receiver, analog return audio to any connected transmitter, the DMP expansion port, any analog output port, or the Dante audio network
      7. Shall support four (4) local analog stereo audio outputs providing audio from any audio input, including any connected transmitter, DMP expansion port, any analog audio input port, or the Dante audio network
   6. LinkLicense for KVM System Configuration and Control requirements
      1. Shall enable KVM System Configuration and Control via a LinkLicense
      2. Shall enable breakaway of USB HID signals independent of the video signal
      3. Shall enable breakaway of USB 2.0 signals independent of the video signal
      4. Shall enable SmartGlide™ KVM Switching to enable automatic, fast, and seamless keyboard and mouse switching as the mouse glides from one workstation display to the next
      5. Shall support a workstation on-screen display control panel via a hotkey sequence
      6. Shall support KVM control via an FPX 6000 Front Panel Controlller
      7. Shall support KVM control via an external control system
      8. Shall support up to four displays in a 1x4 or 2x2 configuration
   7. Transmission requirements
      1. Shall support a maximum signal transmission distance of 500 m (1640 feet) over OM4 multimode fiber optic cable at 850 nm
      2. Shall support a maximum signal transmission distance of 20 km (12.4 miles) over singlemode fiber optic cable at 1310 nm
   8. Control requirements
      1. Shall support multiple methods for control, configuration, I/O selection, and general operation
         1. Control via an Integrated IPCP Pro Q xi control processor
         2. RS-232 configuration and control
         3. Ethernet configuration and control
         4. Front panel USB configuration
      2. Shall provide an integrated IPCP Pro Q xi control processor
         1. Shall provide one AV LAN port for local control of AV devices
            1. Shall support DHCP server for AV LAN to streamline system setup and management
         2. Shall provide one LAN port for a secure connection to facility LAN
            1. LAN port shall only permit discovery, setup, and firmware updates for Extron devices connected to the AV LAN port
         3. Shall support secure industry standard communications protocols, including HTTP, HTTPS, SSH, SFTP, SMTP, NTP, Discover Service, DHCP, DNS, ICMP, and 802.1X
         4. Shall support 10/100/1000Base-T
         5. Shall provide multi-level password protection
         6. Shall support 802.1X authentication
         7. Shall include a USB-C configuration port for local configuration of the IPCP Pro control processor
         8. Shall provide a recessed Reset button for the control processor
      3. Shall provide one (1) mini USB Type B port on the front panel for setup and configuration
      4. Shall provide one (1) bidirectional RS-232 serial port on the rear panel for setup, configuration, and control
         1. Supports firmware updates
      5. Shall provide a recessed Reset button on the rear panel
      6. Shall provide one (1) RJ-45 connector on the rear panel for setup, configuration, and control via an Ethernet connection
      7. Shall support secure Ethernet communication using SSH - Secure Shell protocol
      8. Shall support Ethernet monitoring and control using standard TCP/IP protocols
         1. Proactive monitoring and system management over a LAN, WAN, or the Internet
         2. Functional control of the matrix switcher
         3. Advanced computer-aided diagnostics
         4. Firmware updates
      9. Shall support SNMP for remote monitoring
      10. Shall support RS-232 insertion through the Ethernet control port
      11. Shall provide Extron control software to enable control and configuration from a Windows®-based computer via the serial or Ethernet port
      12. Shall include advanced self-diagnostics of I/O boards, primary and redundant power supply voltages, fiber links, and overall matrix functionality
      13. Shall provide I/O port activity status via the rear panel, RS-232 port, or Ethernet
      14. Shall provide I/O activity viewable within internal Web pages that are easily obtainable by AV control systems
   9. Secure switching requirements
      1. Shall support secure partitioning into smaller sub-switchers to segregate sources and destinations in a secure environment
         1. Enable up to twelve (12) partitions
         2. Inputs can only be tied to outputs within the same partition
      2. Shall provide priority switching to prevent unauthorized access to sensitive date in a secure environment
         1. Each input and output is assigned a security level from one (1) to six (6) with level one (1) as the lowest level and level six (6) as the highest
         2. An input can only be tied to an output that is at the same level or higher
   10. Functional requirements
       1. Shall provide commands or control sequences for functional operation of the matrix switcher
          1. Create or remove ties within the matrix
          2. Group inputs and outputs
          3. Save or recall presets
          4. Mute or unmute outputs
   11. HDCP requirements
       1. Shall include Extron SpeedSwitch® technology for high-speed switching of HDCP-encrypted content
   12. Power requirements
       1. Shall provide dual redundant power supplies
       2. Shall support hot-swappable power supply replacement
       3. Shall provide two (2) AC power inputs for continuous connection to primary and secondary power sources
   13. General requirements
       1. Shall be a 12U high, full rack width metal enclosure
       2. Shall be rack mountable with integrated brackets
       3. Shall provide an internal, hot-swappable fan
       4. Shall meet regulatory compliance
          1. CE, c-UL, UL
          2. CE, C-tick, FCC Class A, ICES, VCCI
          3. Product-appropriate RoHS and WEEE
       5. Shall be compatible with Extron FOX3 Series products for AV, USB, control, and 3D sync signals distribution and routing over fiber optic cabling
       6. Shall provide at least three years parts and labor warranty
   14. Approved device shall be the Extron FOX3 Matrix 560x (60-1978-12); no alternates or equals
