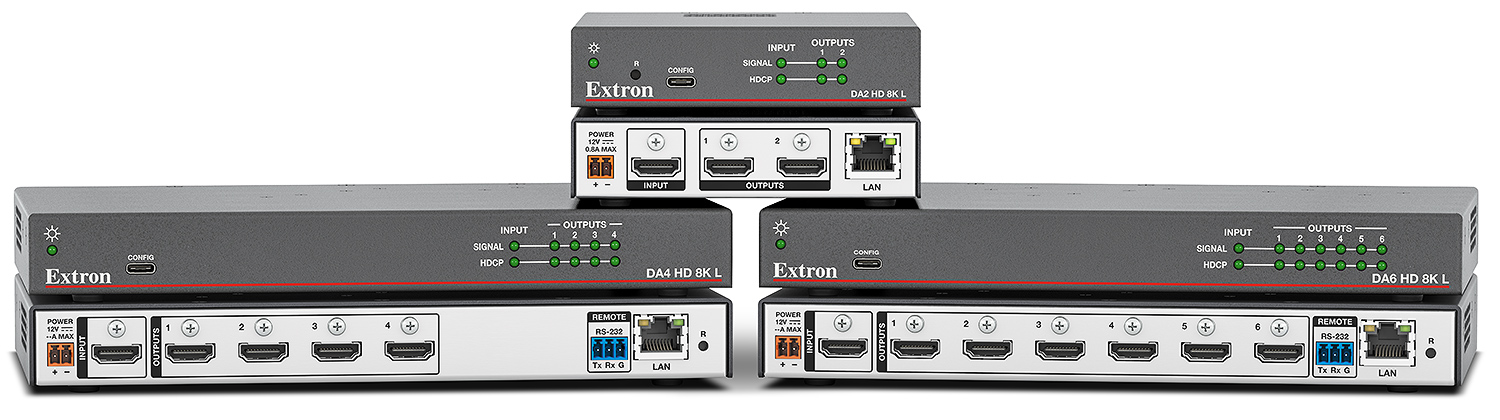

DA HD 8K L 系列
建筑工程规范
选择一个产品编号：
复制文本
已复制！
发生错误。请稍后重试。

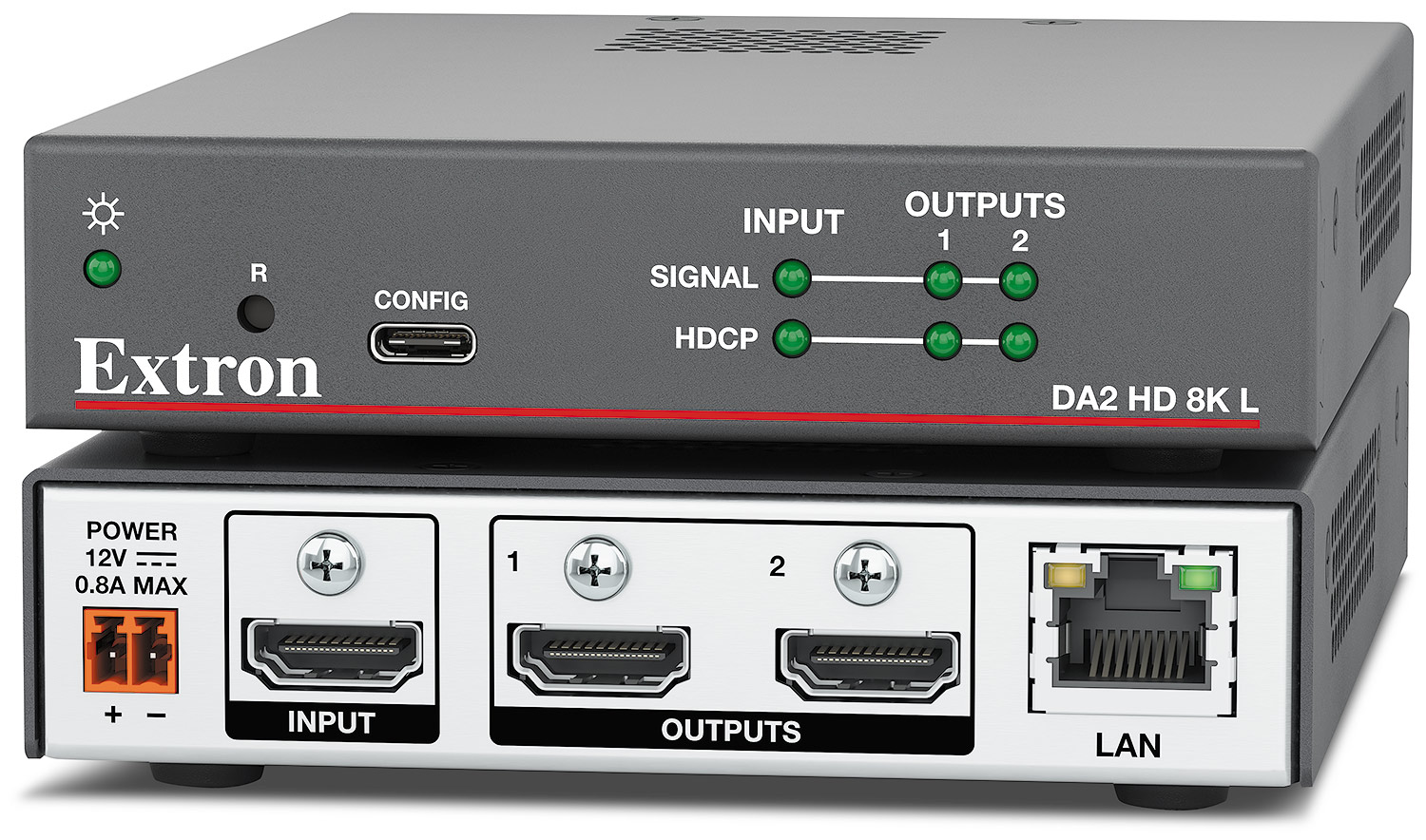

DA2 HD 8K L
- Shall be a distribution amplifier for HDMI video and embedded digital audio signals
- Shall support local device connection
- Shall support computer and video resolutions with 4:4:4 color sampling up to 8K (7680 x 4320) at 30 Hz
- Shall support HDMI 2.1 specification features include data rates up to 40 Gbps, HDR, Deep Color up to 12-bit, 3D, HD lossless audio formats, and CEC control
- Video input requirements
- Shall provide one (1) female HDMI Type A connector for digital video signals with embedded audio
- Shall provide automatic input cable equalization
- Video output requirements
- Shall provide two (2) female HDMI Type A connectors for digital video signals with embedded audio
- EDID requirements
- Shall include Extron EDID Minder® Plus technology for automatic management of EDID communication between connected devices
- Support additional memory blocks for displays that convey advanced features via both EDID and DisplayID
- Support 5K and 21:9 aspect ratio content
- User-selection of EDID from the connected display
- User-selection of EDID from pre-stored data files
- User upload of custom-generated EDID files
- Assignment of pre-stored, captured, or uploaded files
- Maintain continuous EDID communication with the connected sources
- Shall provide automatic management of color bit depth based on the capabilities of the connected displays, as reported by display EDID
- Shall include Extron EDID Minder® Plus technology for automatic management of EDID communication between connected devices
- HDCP requirements
- Shall be HDCP 2.3 compliant
- Shall include Extron Key Minder® technology to authenticate and maintain continuous verification of HDCP key exchange between the connected source and sink devices
- Shall provide the option to disable HDCP processing at the HDMI input connection when passing unencrypted content
- Shall provide a full green screen signal for visual confirmation when encrypted content is routed to a non-HDCP compliant display
- Shall provide real-time verification of HDCP status for each HDMI input and output on the product front panel
- Electronically accessible over the LAN or USB connection
- Control requirements
- Shall provide one (1) LAN connector on rear panel for control
- Shall provide one (1) USB-C connector on front panel for setup, configuration, and firmware update loading
- Shall provide selectable output muting via LAN or USB port to allow content to be viewed on a local monitor prior to appearance on a main presentation display
- Shall support device setup and commissioning using Extron Product Configuration Software (PCS)
- Power requirements
- Shall include an external, universal AC power supply supporting 100-240 VAC, 50/60 Hz power
- High demonstrated reliability
- Worldwide power compatibility
- Shall provide +5 VDC, 250 mA power on each output for an external peripheral device
- Shall include an external, universal AC power supply supporting 100-240 VAC, 50/60 Hz power
- General requirements
- Shall be housed in a 1” (2.5 cm) high, quarter rack-width metal enclosure
- Shall be rack mountable with optional rack shelf or rack shelf kit
- Shall be furniture mountable with optional mounting kits
- Shall provide visual signal on LED indicators located on front panel for signal presence and HDCP authentication
- Electronically accessible over the LAN or USB connection
- Shall provide automatic reformatting of HDMI source signals when routed to a DVI display
- Shall include LockIt® HDMI cable lacing brackets
- Shall meet regulatory compliance
- CE, c-UL, UL
- CD, C-tick, FCC Class A, ICES, VCCI
- Product-appropriate RoHS and WEEE
- Shall provide at least three years parts and labor warranty
- Approved device shall be the Extron DA2 HD 8K L, part number 60-1870-01; no alternates or equals
DA2 HD 8K L
- Shall be a distribution amplifier for HDMI video and embedded digital audio signals
- Shall support local device connection
- Shall support computer and video resolutions with 4:4:4 color sampling up to 8K (7680 x 4320) at 30 Hz
- Shall support HDMI 2.1 specification features include data rates up to 40 Gbps, HDR, Deep Color up to 12-bit, 3D, HD lossless audio formats, and CEC control
- Video input requirements
- Shall provide one (1) female HDMI Type A connector for digital video signals with embedded audio
- Shall provide automatic input cable equalization
- Video output requirements
- Shall provide two (2) female HDMI Type A connectors for digital video signals with embedded audio
- EDID requirements
- Shall include Extron EDID Minder® Plus technology for automatic management of EDID communication between connected devices
- Support additional memory blocks for displays that convey advanced features via both EDID and DisplayID
- Support 5K and 21:9 aspect ratio content
- User-selection of EDID from the connected display
- User-selection of EDID from pre-stored data files
- User upload of custom-generated EDID files
- Assignment of pre-stored, captured, or uploaded files
- Maintain continuous EDID communication with the connected sources
- Shall provide automatic management of color bit depth based on the capabilities of the connected displays, as reported by display EDID
- Shall include Extron EDID Minder® Plus technology for automatic management of EDID communication between connected devices
- HDCP requirements
- Shall be HDCP 2.3 compliant
- Shall include Extron Key Minder® technology to authenticate and maintain continuous verification of HDCP key exchange between the connected source and sink devices
- Shall provide the option to disable HDCP processing at the HDMI input connection when passing unencrypted content
- Shall provide a full green screen signal for visual confirmation when encrypted content is routed to a non-HDCP compliant display
- Shall provide real-time verification of HDCP status for each HDMI input and output on the product front panel
- Electronically accessible over the LAN or USB connection
- Control requirements
- Shall provide one (1) LAN connector on rear panel for control
- Shall provide one (1) USB-C connector on front panel for setup, configuration, and firmware update loading
- Shall provide selectable output muting via LAN or USB port to allow content to be viewed on a local monitor prior to appearance on a main presentation display
- Shall support device setup and commissioning using Extron Product Configuration Software (PCS)
- Power requirements
- Shall include an external, universal AC power supply supporting 100-240 VAC, 50/60 Hz power
- High demonstrated reliability
- Worldwide power compatibility
- Shall provide +5 VDC, 250 mA power on each output for an external peripheral device
- Shall include an external, universal AC power supply supporting 100-240 VAC, 50/60 Hz power
- General requirements
- Shall be housed in a 1” (2.5 cm) high, quarter rack-width metal enclosure
- Shall be rack mountable with optional rack shelf or rack shelf kit
- Shall be furniture mountable with optional mounting kits
- Shall provide visual signal on LED indicators located on front panel for signal presence and HDCP authentication
- Electronically accessible over the LAN or USB connection
- Shall provide automatic reformatting of HDMI source signals when routed to a DVI display
- Shall include LockIt® HDMI cable lacing brackets
- Shall meet regulatory compliance
- CE, c-UL, UL
- CD, C-tick, FCC Class A, ICES, VCCI
- Product-appropriate RoHS and WEEE
- Shall provide at least three years parts and labor warranty
- Approved device shall be the Extron DA2 HD 8K L, part number 60-1870-01; no alternates or equals

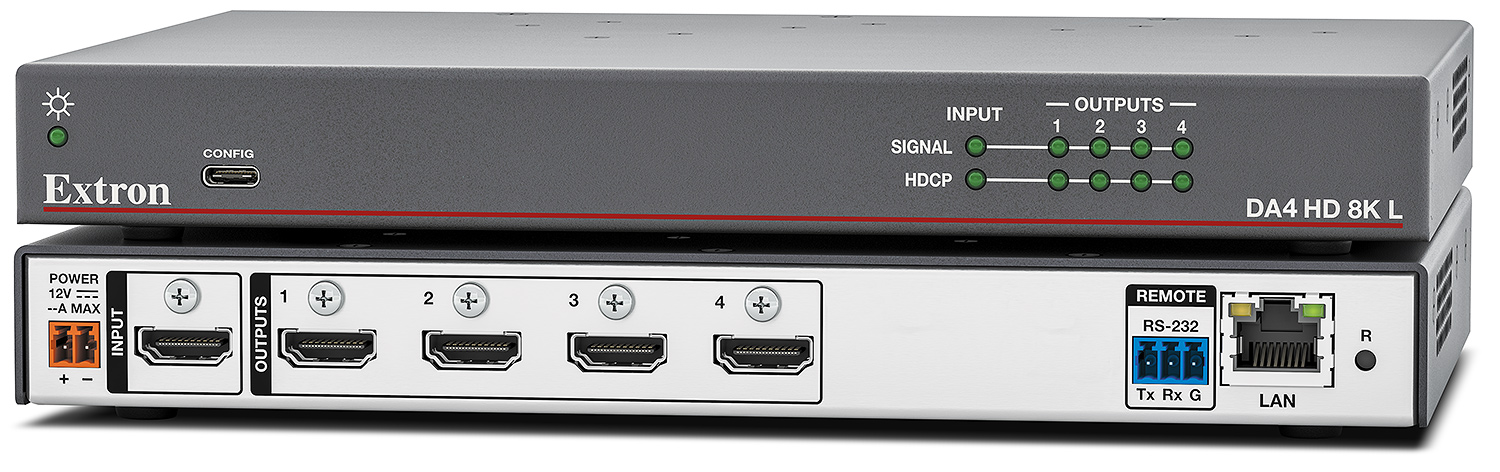

DA4 HD 8K L
- Shall be a distribution amplifier for HDMI video and embedded digital audio signals
- Shall support local device connection
- Shall support computer and video resolutions with 4:4:4 color sampling up to 8K (7680 x 4320) at 30 Hz
- Shall support HDMI 2.1 specification features include data rates up to 40 Gbps, HDR, Deep Color up to 12-bit, 3D, HD lossless audio formats, and CEC control
- Video input requirements
- Shall provide one (1) female HDMI Type A connector for digital video signals with embedded audio
- Shall provide automatic input cable equalization
- Video output requirements
- Shall provide four (4) female HDMI Type A connectors for digital video signals with embedded audio
- EDID requirements
- Shall include Extron EDID Minder® Plus technology for automatic management of EDID communication between connected devices
- Support additional memory blocks for displays that convey advanced features via both EDID and DisplayID
- Support 5K and 21:9 aspect ratio content
- User-selection of EDID from any connected display
- User-selection of EDID from pre-stored data files
- User upload of custom-generated EDID files
- Assignment of pre-stored, captured, or uploaded EDID files
- Maintain continuous EDID communication with the connected source
- Shall provide automatic management of color bit depth based on the capabilities of the connected displays, as reported by display EDID
- Shall include Extron EDID Minder® Plus technology for automatic management of EDID communication between connected devices
- HDCP requirements
- Shall be HDCP 2.3 compliant
- Shall include Extron Key Minder® technology to authenticate and maintain continuous verification of HDCP key exchange between the connected source and sink devices
- Shall provide the option to disable HDCP processing at the HDMI input connection when passing unencrypted content
- Shall provide a full green screen signal for visual confirmation when encrypted content is routed to a non-HDCP compliant display
- Shall provide real-time verification of HDCP status for each HDMI input and output on the product front panel
- Electronically accessible over the LAN or USB connection
- Control requirements
- Shall provide one (1) LAN connector on rear panel for control
- Shall provide one (1) USB-C connector on front panel for setup, configuration, and firmware update loading
- Shall provide one (1) RS-232 connector on rear panel to enable the use of serial commands for integration into a control system
- Shall provide selectable output muting via LAN, RS-232, or USB port to allow content to be viewed on a local monitor prior to appearance on a main presentation display
- Shall support Extron SIS™ - Simple Instruction Set command protocol for control
- Shall support device setup and commissioning using Extron Product Configuration Software (PCS)
- Power requirements
- Shall include an external, universal AC power supply supporting 100-240 VAC, 50/60 Hz power
- High demonstrated reliability
- Worldwide power compatibility
- Shall provide +5 VDC, 250 mA power on each output for an external peripheral device
- Shall include an external, universal AC power supply supporting 100-240 VAC, 50/60 Hz power
- General requirements
- Shall be housed in a 1” (2.5 cm) high, quarter rack-width metal enclosure
- Shall be rack mountable with optional rack shelf or rack shelf kit
- Shall be furniture mountable with optional mounting kits
- Shall provide visual signal on LED indicators located on front panel for signal presence and HDCP authentication
- Electronically accessible over the LAN or USB connection
- Shall provide automatic reformatting of HDMI source signals when routed to a DVI display
- Shall include LockIt® HDMI cable lacing brackets
- Shall meet regulatory compliance
- CE, c-UL, UL
- CD, C-tick, FCC Class A, ICES, VCCI
- Product-appropriate RoHS and WEEE
- Shall provide at least three years parts and labor warranty
- Approved device shall be the Extron DA4 HD 8K L, part number 60-1871-01; no alternates or equals
DA4 HD 8K L
- Shall be a distribution amplifier for HDMI video and embedded digital audio signals
- Shall support local device connection
- Shall support computer and video resolutions with 4:4:4 color sampling up to 8K (7680 x 4320) at 30 Hz
- Shall support HDMI 2.1 specification features include data rates up to 40 Gbps, HDR, Deep Color up to 12-bit, 3D, HD lossless audio formats, and CEC control
- Video input requirements
- Shall provide one (1) female HDMI Type A connector for digital video signals with embedded audio
- Shall provide automatic input cable equalization
- Video output requirements
- Shall provide four (4) female HDMI Type A connectors for digital video signals with embedded audio
- EDID requirements
- Shall include Extron EDID Minder® Plus technology for automatic management of EDID communication between connected devices
- Support additional memory blocks for displays that convey advanced features via both EDID and DisplayID
- Support 5K and 21:9 aspect ratio content
- User-selection of EDID from any connected display
- User-selection of EDID from pre-stored data files
- User upload of custom-generated EDID files
- Assignment of pre-stored, captured, or uploaded EDID files
- Maintain continuous EDID communication with the connected source
- Shall provide automatic management of color bit depth based on the capabilities of the connected displays, as reported by display EDID
- Shall include Extron EDID Minder® Plus technology for automatic management of EDID communication between connected devices
- HDCP requirements
- Shall be HDCP 2.3 compliant
- Shall include Extron Key Minder® technology to authenticate and maintain continuous verification of HDCP key exchange between the connected source and sink devices
- Shall provide the option to disable HDCP processing at the HDMI input connection when passing unencrypted content
- Shall provide a full green screen signal for visual confirmation when encrypted content is routed to a non-HDCP compliant display
- Shall provide real-time verification of HDCP status for each HDMI input and output on the product front panel
- Electronically accessible over the LAN or USB connection
- Control requirements
- Shall provide one (1) LAN connector on rear panel for control
- Shall provide one (1) USB-C connector on front panel for setup, configuration, and firmware update loading
- Shall provide one (1) RS-232 connector on rear panel to enable the use of serial commands for integration into a control system
- Shall provide selectable output muting via LAN, RS-232, or USB port to allow content to be viewed on a local monitor prior to appearance on a main presentation display
- Shall support Extron SIS™ - Simple Instruction Set command protocol for control
- Shall support device setup and commissioning using Extron Product Configuration Software (PCS)
- Power requirements
- Shall include an external, universal AC power supply supporting 100-240 VAC, 50/60 Hz power
- High demonstrated reliability
- Worldwide power compatibility
- Shall provide +5 VDC, 250 mA power on each output for an external peripheral device
- Shall include an external, universal AC power supply supporting 100-240 VAC, 50/60 Hz power
- General requirements
- Shall be housed in a 1” (2.5 cm) high, quarter rack-width metal enclosure
- Shall be rack mountable with optional rack shelf or rack shelf kit
- Shall be furniture mountable with optional mounting kits
- Shall provide visual signal on LED indicators located on front panel for signal presence and HDCP authentication
- Electronically accessible over the LAN or USB connection
- Shall provide automatic reformatting of HDMI source signals when routed to a DVI display
- Shall include LockIt® HDMI cable lacing brackets
- Shall meet regulatory compliance
- CE, c-UL, UL
- CD, C-tick, FCC Class A, ICES, VCCI
- Product-appropriate RoHS and WEEE
- Shall provide at least three years parts and labor warranty
- Approved device shall be the Extron DA4 HD 8K L, part number 60-1871-01; no alternates or equals
DA6 HD 8K L
- Shall be a distribution amplifier for HDMI video and embedded digital audio signals
- Shall support local device connection
- Shall support computer and video resolutions with 4:4:4 color sampling up to 8K (7680 x 4320) at 30 Hz
- Shall support HDMI 2.1 specification features include data rates up to 40 Gbps, HDR, Deep Color up to 12-bit, 3D, HD lossless audio formats, and CEC control
- Video input requirements
- Shall provide one (1) female HDMI Type A connector for digital video signals with embedded audio
- Shall provide automatic input cable equalization
- Video output requirements
- Shall provide six (6) female HDMI Type A connectors for digital video signals with embedded audio
- EDID requirements
- Shall include Extron EDID Minder® Plus technology for automatic management of EDID communication between connected devices
- Support additional memory blocks for displays that convey advanced features via both EDID and DisplayID
- Support 5K and 21:9 aspect ratio content
- User-selection of EDID from any connected display
- User-selection of EDID from pre-stored data files
- User upload of custom-generated EDID files
- Assignment of pre-stored, captured, or uploaded EDID files
- Maintain continuous EDID communication with the connected source
- Shall provide automatic management of color bit depth based on the capabilities of the connected displays, as reported by display EDID
- Shall include Extron EDID Minder® Plus technology for automatic management of EDID communication between connected devices
- HDCP requirements
- Shall be HDCP 2.3 compliant
- Shall include Extron Key Minder® technology to authenticate and maintain continuous verification of HDCP key exchange between the connected source and sink devices
- Shall provide the option to disable HDCP processing at the HDMI input connection when passing unencrypted content
- Shall provide a full green screen signal for visual confirmation when encrypted content is routed to a non-HDCP compliant display
- Shall provide real-time verification of HDCP status for each HDMI input and output on the product front panel
- Electronically accessible over the LAN or USB connection
- Control requirements
- Shall provide one (1) LAN connector on rear panel for control
- Shall provide one (1) USB-C connector on front panel for setup, configuration, and firmware update loading
- Shall provide one (1) RS-232 connector on rear panel to enable the use of serial commands for integration into a control system
- Shall provide selectable output muting via LAN, RS-232, or USB port to allow content to be viewed on a local monitor prior to appearance on a main presentation display
- Shall support Extron SIS™ - Simple Instruction Set command protocol for control
- Shall support device setup and commissioning using Extron Product Configuration Software (PCS)
- Power requirements
- Shall include an external, universal AC power supply supporting 100-240 VAC, 50/60 Hz power
- High demonstrated reliability
- Worldwide power compatibility
- Shall provide +5 VDC, 250 mA power on each output for an external peripheral device
- Shall include an external, universal AC power supply supporting 100-240 VAC, 50/60 Hz power
- General requirements
- Shall be housed in a 1” (2.5 cm) high, quarter rack-width metal enclosure
- Shall be rack mountable with optional rack shelf or rack shelf kit
- Shall be furniture mountable with optional mounting kits
- Shall provide visual signal on LED indicators located on front panel for signal presence and HDCP authentication
- Electronically accessible over the LAN or USB connection
- Shall provide automatic reformatting of HDMI source signals when routed to a DVI display
- Shall include LockIt® HDMI cable lacing brackets
- Shall meet regulatory compliance
- CE, c-UL, UL
- CD, C-tick, FCC Class A, ICES, VCCI
- Product-appropriate RoHS and WEEE
- Shall provide at least three years parts and labor warranty
- Approved device shall be the Extron DA6 HD 8K L, part number 60-1872-01; no alternates or equals

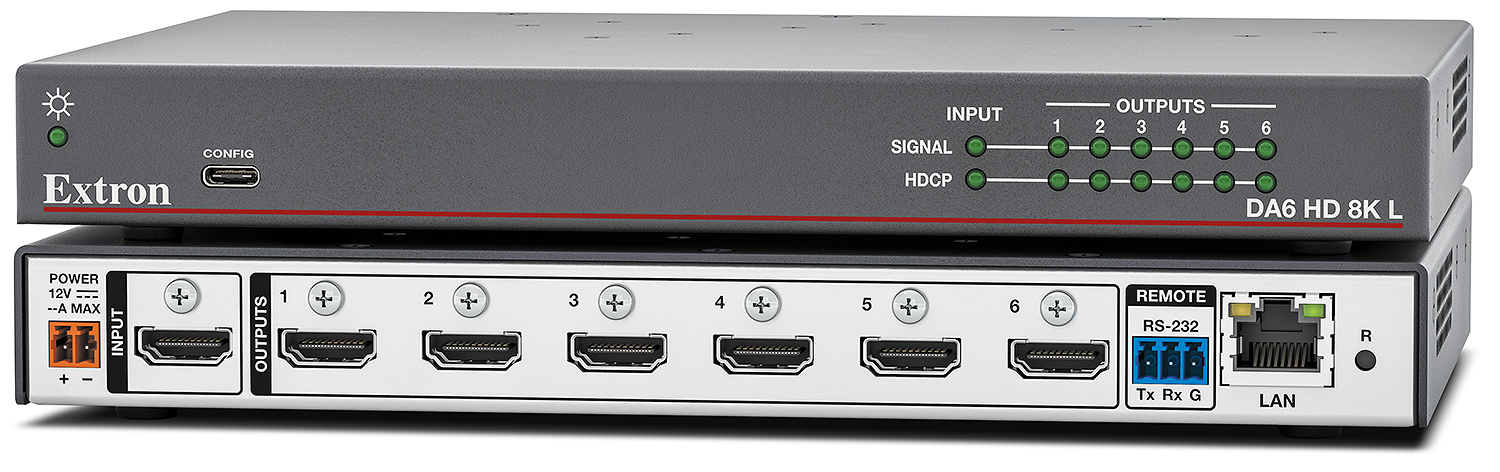

DA6 HD 8K L
- Shall be a distribution amplifier for HDMI video and embedded digital audio signals
- Shall support local device connection
- Shall support computer and video resolutions with 4:4:4 color sampling up to 8K (7680 x 4320) at 30 Hz
- Shall support HDMI 2.1 specification features include data rates up to 40 Gbps, HDR, Deep Color up to 12-bit, 3D, HD lossless audio formats, and CEC control
- Video input requirements
- Shall provide one (1) female HDMI Type A connector for digital video signals with embedded audio
- Shall provide automatic input cable equalization
- Video output requirements
- Shall provide six (6) female HDMI Type A connectors for digital video signals with embedded audio
- EDID requirements
- Shall include Extron EDID Minder® Plus technology for automatic management of EDID communication between connected devices
- Support additional memory blocks for displays that convey advanced features via both EDID and DisplayID
- Support 5K and 21:9 aspect ratio content
- User-selection of EDID from any connected display
- User-selection of EDID from pre-stored data files
- User upload of custom-generated EDID files
- Assignment of pre-stored, captured, or uploaded EDID files
- Maintain continuous EDID communication with the connected source
- Shall provide automatic management of color bit depth based on the capabilities of the connected displays, as reported by display EDID
- Shall include Extron EDID Minder® Plus technology for automatic management of EDID communication between connected devices
- HDCP requirements
- Shall be HDCP 2.3 compliant
- Shall include Extron Key Minder® technology to authenticate and maintain continuous verification of HDCP key exchange between the connected source and sink devices
- Shall provide the option to disable HDCP processing at the HDMI input connection when passing unencrypted content
- Shall provide a full green screen signal for visual confirmation when encrypted content is routed to a non-HDCP compliant display
- Shall provide real-time verification of HDCP status for each HDMI input and output on the product front panel
- Electronically accessible over the LAN or USB connection
- Control requirements
- Shall provide one (1) LAN connector on rear panel for control
- Shall provide one (1) USB-C connector on front panel for setup, configuration, and firmware update loading
- Shall provide one (1) RS-232 connector on rear panel to enable the use of serial commands for integration into a control system
- Shall provide selectable output muting via LAN, RS-232, or USB port to allow content to be viewed on a local monitor prior to appearance on a main presentation display
- Shall support Extron SIS™ - Simple Instruction Set command protocol for control
- Shall support device setup and commissioning using Extron Product Configuration Software (PCS)
- Power requirements
- Shall include an external, universal AC power supply supporting 100-240 VAC, 50/60 Hz power
- High demonstrated reliability
- Worldwide power compatibility
- Shall provide +5 VDC, 250 mA power on each output for an external peripheral device
- Shall include an external, universal AC power supply supporting 100-240 VAC, 50/60 Hz power
- General requirements
- Shall be housed in a 1” (2.5 cm) high, quarter rack-width metal enclosure
- Shall be rack mountable with optional rack shelf or rack shelf kit
- Shall be furniture mountable with optional mounting kits
- Shall provide visual signal on LED indicators located on front panel for signal presence and HDCP authentication
- Electronically accessible over the LAN or USB connection
- Shall provide automatic reformatting of HDMI source signals when routed to a DVI display
- Shall include LockIt® HDMI cable lacing brackets
- Shall meet regulatory compliance
- CE, c-UL, UL
- CD, C-tick, FCC Class A, ICES, VCCI
- Product-appropriate RoHS and WEEE
- Shall provide at least three years parts and labor warranty
- Approved device shall be the Extron DA6 HD 8K L, part number 60-1872-01; no alternates or equals
把商品添加到购物车
Order Message Number
产品编号
注: 使用通用交流电源插座的 Extron 产品可支持多种不同的交流电源插头类型。在使用之前，确保设备满足您所在区域的所有规定要求，并符合所有应用的本地安全和电气规程及标准。
当前总计：
Annotation Graphics Processor
To view this page ensure that Adobe Flash Player version
11.0.0 or greater is installed and enabled.
Chrome
Firefox
Edge
Safari
