XTP DTP 22

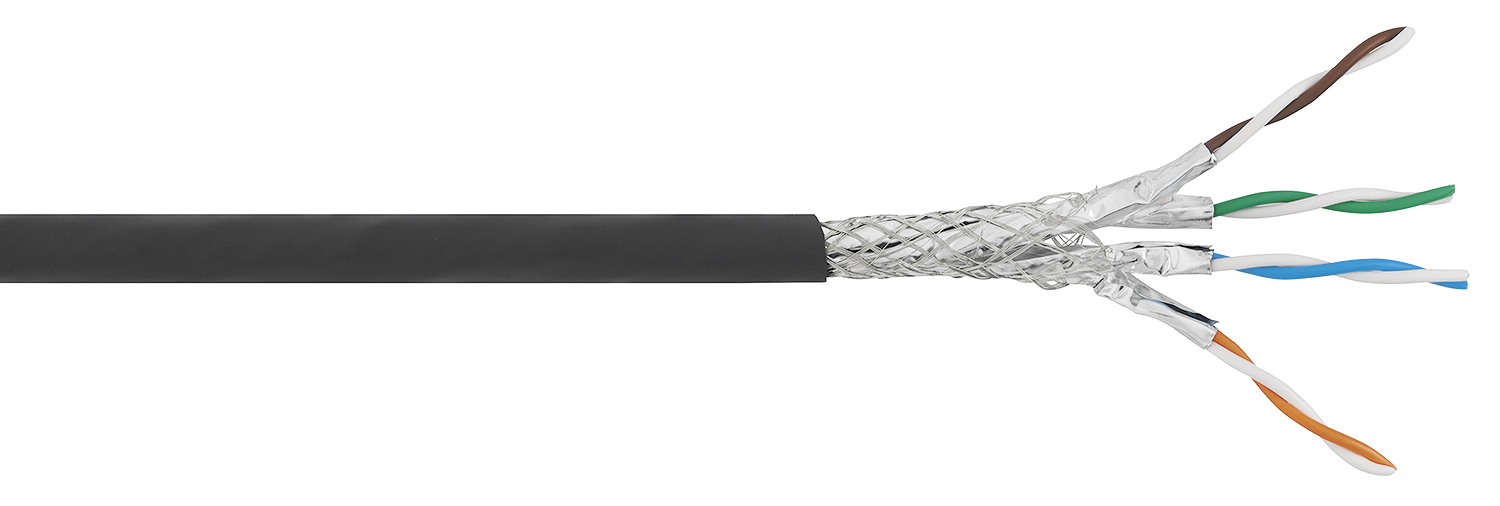

XTP DTP 22 – non-plenum

1. Provide interconnection of digital video over twisted pair switching, distribution, and extension devices when terminated with an applicable RJ-45 plug or jack
   1. Shielded twisted pair cable for digital video over twisted pair devices
      1. Cable shall be optimized for use in digital video over twisted pair applications
      2. Cable shall ensure signal integrity for uncompressed HDMI 2.0b 4K/60 video at 4:4:4 up to distances of 330 feet (100 meters)
      3. Cable shall support 500 MHz bandwidth at distances up to 330 feet (100 meters)
      4. Cable shall provide protection from outside electrical interference

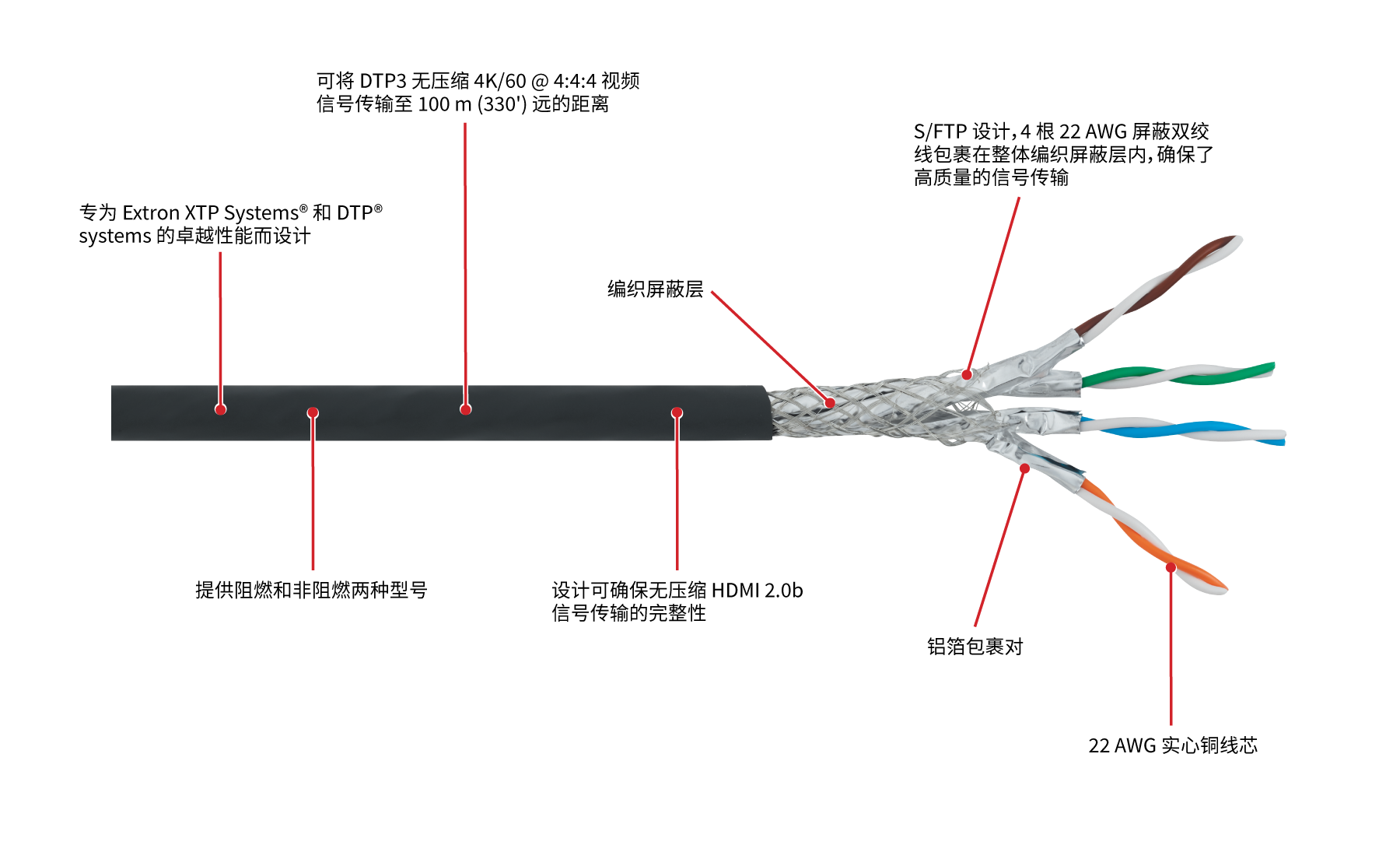

      5. Cable shall utilize S/FTP construction
         1. An overall tinned copper braid with 40% coverage
         2. An overall aluminized Mylar shield
         3. Four shielded twisted pair conductors (eight individual conductors) of 22 AWG solid copper
      6. Nominal pair-to-pair skew shall be no less than 8 nano-seconds per 100 meters, and no more than 45 nano-seconds per 100 meters
      7. Cable shall comply with NEC – National Electrical Code Article 800 CM and UL 1685 standards at 75 degrees Celsius
      8. Cable shall be rated and in compliance with European Commission CPR, Construction Products Regulation (EU 305/2011)
         1. Euroclass Eca classification
      9. Cable shall be packaged in spools of 1000 feet (305 meters)

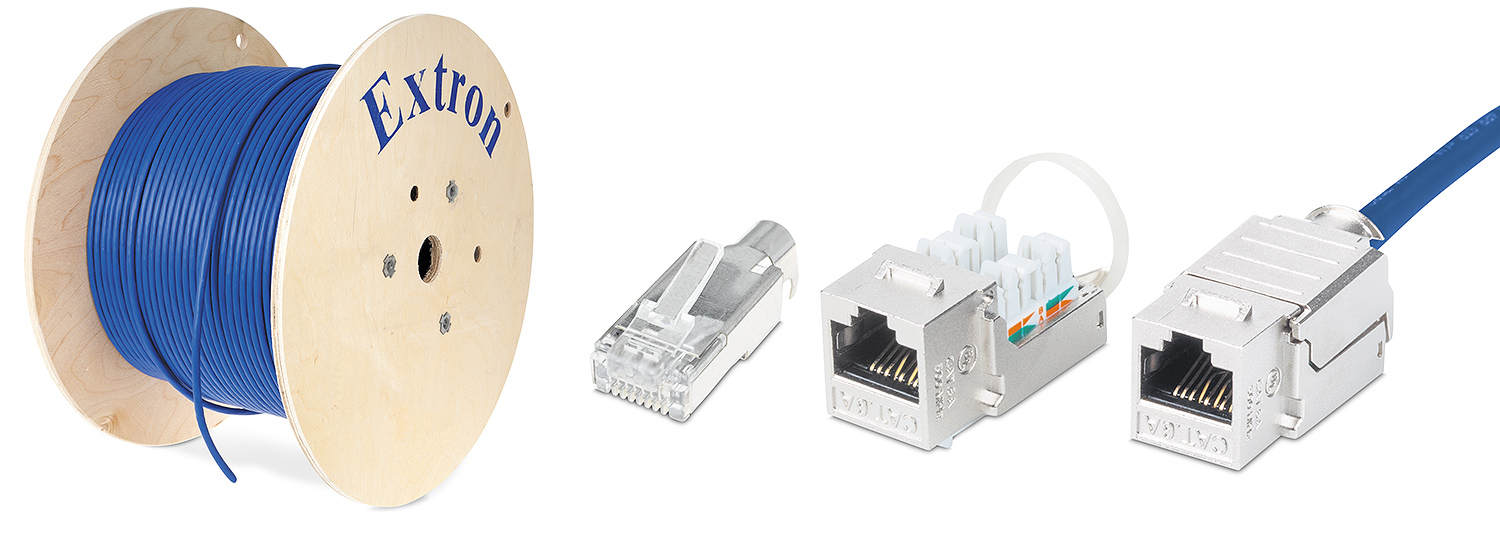

      10. Complementary cable termination products, including shielded RJ-45 Plugs, Punch Down Jacks, and Couplers, shall be available from the same source as the cable
   2. Approved cable shall be Extron XTP DTP 22, part number 22-285-03; no alternates or equals
   3. Available complementary cable termination products shall be the Extron XTP DTP 22 RJ-45 Plug, part number 101-037-01; Extron XTP DTP 24 Jack, part number 101-023-01; and Extron XTP DTP 24 Coupler, part number 101-022-02; no alternates or equals
