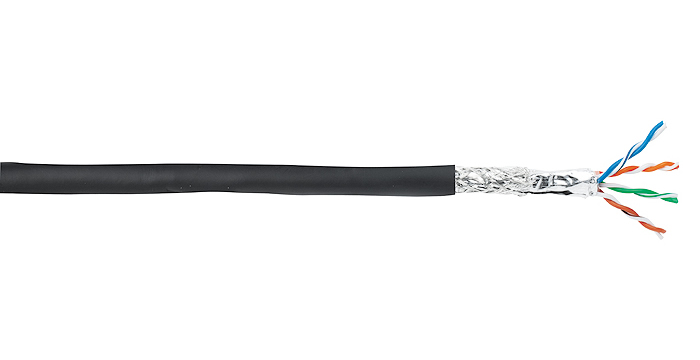

XTP DTP 24 (non-plenum)
- Provide interconnection of digital video over twisted pair switching, distribution, and extension devices when terminated with an applicable RJ-45 plug or jack
- Shielded twisted pair cable for digital video over twisted pair devices
- Cable shall be optimized for use in digital video over twisted pair applications
- Cable shall be certified to 475 MHz bandwidth at distances up to 100 meters (330 feet)
- Cable shall provide protection from outside electrical interference
- Cable shall utilize SF/UTP construction
- An overall tinned copper braid with 55% coverage
- An overall aluminized Mylar shield
- Four unshielded twisted pair conductors (eight individual conductors) of 24 AWG solid copper
- Nominal pair-to-pair skew shall be no less than 8 nano-seconds per 100 meters, and no more than 25 nano-seconds per 100 meters
- Cable shall comply with NEC – National Electrical Code Article 800 CM and UL 1685 standards at 75 degrees Celsius
- Cable shall be rated and in compliance with European Commission CPR, Construction Products Regulation (EU 305/2011)
- Euroclass Dca-s2,d0 classification
- Cable shall be packaged in spools of 1000 feet (305 meters)

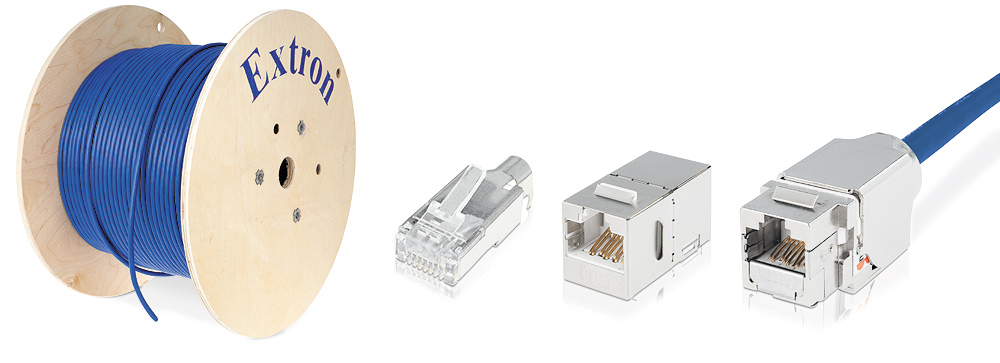

- Complementary cable termination products, including shielded RJ-45 Plugs, Punch Down Jacks, and Couplers, shall be available from the same source as the cable
- Approved cable shall be Extron XTP DTP 24, part number 22-236-03; no alternates or equals
- Available complementary cable termination products shall be the Extron XTP DTP 24 Plug, part number 101-005-02; Extron XTP DTP 24 Jack, part number 101-023-01; and Extron XTP DTP 24 Coupler, part number 101-022-02; no alternates or equals
- Shielded twisted pair cable for digital video over twisted pair devices
XTP DTP 24 (non-plenum)
- Provide interconnection of digital video over twisted pair switching, distribution, and extension devices when terminated with an applicable RJ-45 plug or jack
- Shielded twisted pair cable for digital video over twisted pair devices
- Cable shall be optimized for use in digital video over twisted pair applications
- Cable shall be certified to 475 MHz bandwidth at distances up to 100 meters (330 feet)
- Cable shall provide protection from outside electrical interference
- Cable shall utilize SF/UTP construction
- An overall tinned copper braid with 55% coverage
- An overall aluminized Mylar shield
- Four unshielded twisted pair conductors (eight individual conductors) of 24 AWG solid copper
- Nominal pair-to-pair skew shall be no less than 8 nano-seconds per 100 meters, and no more than 25 nano-seconds per 100 meters
- Cable shall comply with NEC – National Electrical Code Article 800 CM and UL 1685 standards at 75 degrees Celsius
- Cable shall be rated and in compliance with European Commission CPR, Construction Products Regulation (EU 305/2011)
- Euroclass Dca-s2,d0 classification
- Cable shall be packaged in spools of 1000 feet (305 meters)
- Complementary cable termination products, including shielded RJ-45 Plugs, Punch Down Jacks, and Couplers, shall be available from the same source as the cable
- Approved cable shall be Extron XTP DTP 24, part number 22-236-03; no alternates or equals
- Available complementary cable termination products shall be the Extron XTP DTP 24 Plug, part number 101-005-02; Extron XTP DTP 24 Jack, part number 101-023-01; and Extron XTP DTP 24 Coupler, part number 101-022-02; no alternates or equals
- Shielded twisted pair cable for digital video over twisted pair devices

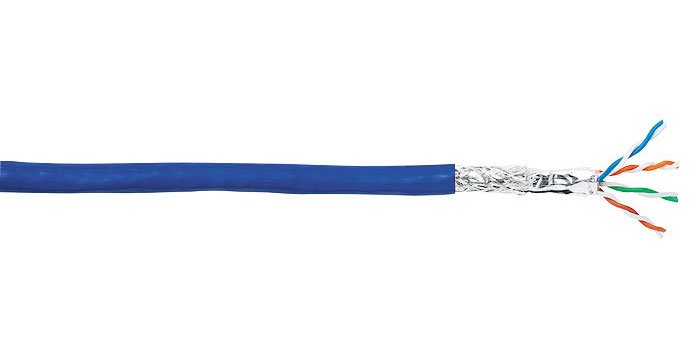

XTP DTP 24P (plenum)
- Provide interconnection of digital video over twisted pair switching, distribution, and extension devices when terminated with an applicable RJ-45 plug or jack
- Shielded twisted pair cable for digital video over twisted pair devices
- Cable shall be optimized for use in digital video over twisted pair applications
- Cable shall be certified to 475 MHz bandwidth at distances up to 100 meters (330 feet)
- Cable shall provide protection from outside electrical interference
- Cable shall utilize fire-resistant SF/UTP construction
- An overall tinned copper braid with 55% coverage
- An overall aluminized Mylar shield
- Four unshielded twisted pair conductors (eight individual conductors) of 24 AWG solid copper
- Solid FEP - Fluorinated ethylene propylene insulation
- Fire-resistant PVC outer jacket
- Nominal pair-to-pair skew shall be no less than 8 nano-seconds per 100 meters, and no more than 25 nano-seconds per 100 meters
- Cable shall comply with NEC – National Electrical Code Article 800 CMP and UL 910 standards at 75 degrees Celsius
- Cable shall be rated and in compliance with European Commission CPR, Construction Products Regulation (EU 305/2011)
- Euroclass Dca-s1,d0 classification
- Cable shall be packaged in spools of 1000 feet (305 meters)
- Complementary cable termination products, including shielded RJ-45 Plugs, Punch Down Jacks, and Couplers, shall be available from the same source as the cable
- Approved cable shall be Extron XTP DTP 24P, part number 22-235-03; no alternates or equals
- Available complementary cable termination products shall be the Extron XTP DTP 24 Plug, part number 101-005-02; Extron XTP DTP 24 Jack, part number 101-023-01; and Extron XTP DTP 24 Coupler, part number 101-022-02; no alternates or equals
- Shielded twisted pair cable for digital video over twisted pair devices
XTP DTP 24P (plenum)
- Provide interconnection of digital video over twisted pair switching, distribution, and extension devices when terminated with an applicable RJ-45 plug or jack
- Shielded twisted pair cable for digital video over twisted pair devices
- Cable shall be optimized for use in digital video over twisted pair applications
- Cable shall be certified to 475 MHz bandwidth at distances up to 100 meters (330 feet)
- Cable shall provide protection from outside electrical interference
- Cable shall utilize fire-resistant SF/UTP construction
- An overall tinned copper braid with 55% coverage
- An overall aluminized Mylar shield
- Four unshielded twisted pair conductors (eight individual conductors) of 24 AWG solid copper
- Solid FEP - Fluorinated ethylene propylene insulation
- Fire-resistant PVC outer jacket
- Nominal pair-to-pair skew shall be no less than 8 nano-seconds per 100 meters, and no more than 25 nano-seconds per 100 meters
- Cable shall comply with NEC – National Electrical Code Article 800 CMP and UL 910 standards at 75 degrees Celsius
- Cable shall be rated and in compliance with European Commission CPR, Construction Products Regulation (EU 305/2011)
- Euroclass Dca-s1,d0 classification
- Cable shall be packaged in spools of 1000 feet (305 meters)
- Complementary cable termination products, including shielded RJ-45 Plugs, Punch Down Jacks, and Couplers, shall be available from the same source as the cable
- Approved cable shall be Extron XTP DTP 24P, part number 22-235-03; no alternates or equals
- Available complementary cable termination products shall be the Extron XTP DTP 24 Plug, part number 101-005-02; Extron XTP DTP 24 Jack, part number 101-023-01; and Extron XTP DTP 24 Coupler, part number 101-022-02; no alternates or equals
- Shielded twisted pair cable for digital video over twisted pair devices
