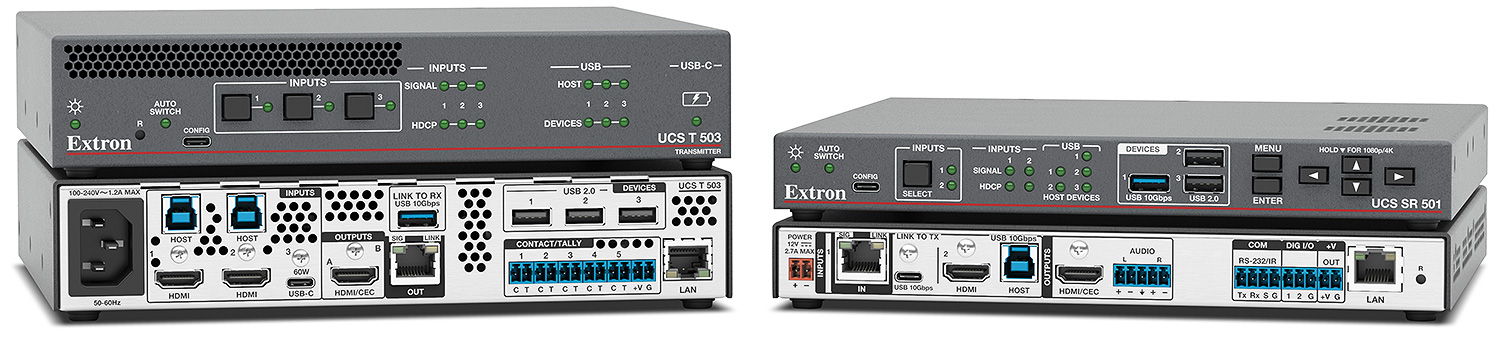

1. Shall provide a kit with transmitter and receiver with input switching device with included rack mounting brackets that supports USB data and AV signals

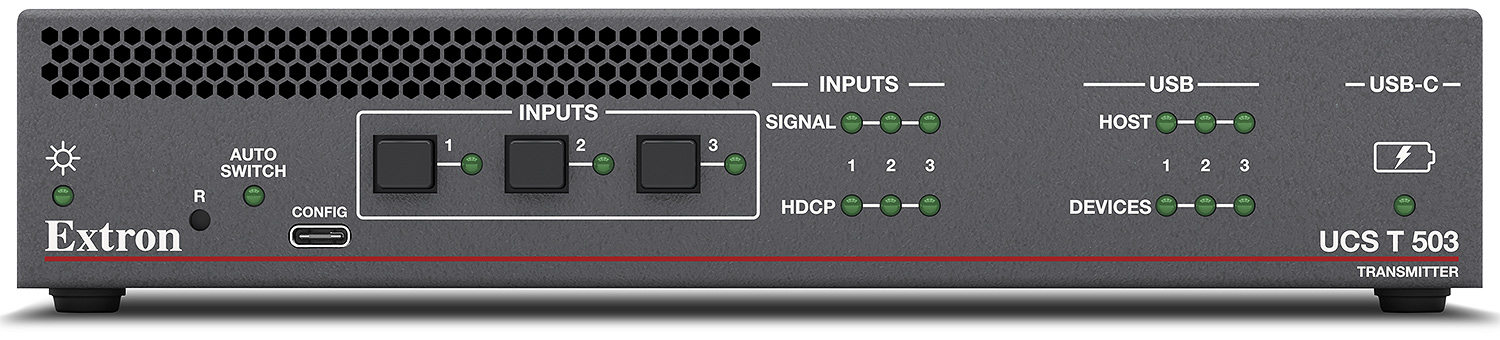

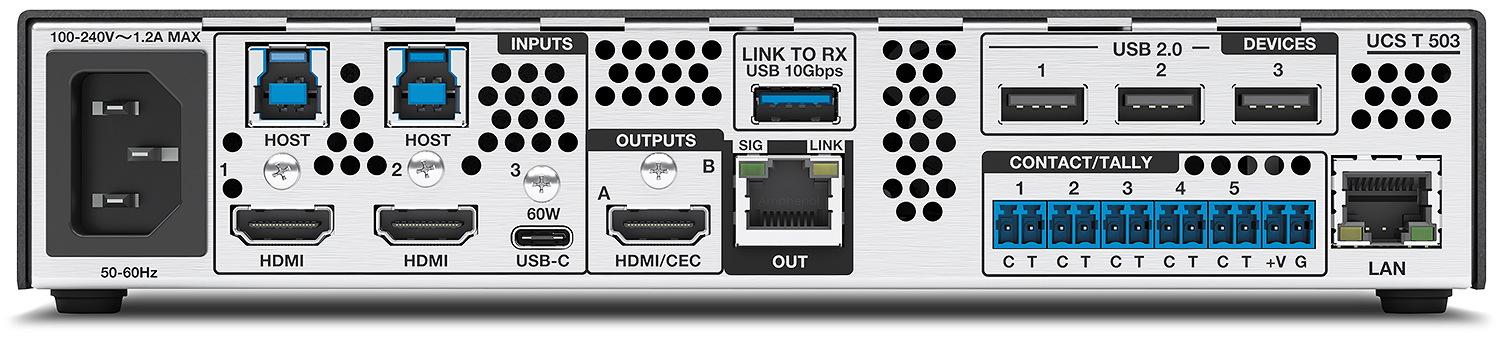

   1. UCS T 503
      1. Shall be a switcher for HDMI video and embedded digital audio signals with associated USB Host ports with a third USBC connection for AV, USB data and power delivery, plus signal extension over shielded CATx cable
         1. Shall support local device connection
         2. Shall support computer and video resolutions up to 4096x2160 at 60 Hz, 8-bit at 4:4:4 chroma sampling
         3. Shall support HDMI specifications including data rates up to 18 Gbps, HDR 10, HDR 10+, Dolby Vision, 12-bit Deep Color, and HD lossless audio formats
      2. Video Input requirements Input Requirements
         1. Shall provide two female HDMI Type A connectors used to connect HDMI source devices
         2. Shall provide one female USB-C connector used to connect a USB-C source device for DisplayPort Alternate Mode video
      3. AV Output Requirements
         1. Shall provide one female ethernet port for AV and USB extension
         2. Shall provide one female HDMI connector used to connect HDMI sink
         3. Shall provide automatic management of color bit depth based on the capabilities of the connected display, as reported by display EDID
      4. EDID requirements
         1. Shall include Extron EDID Minder technology for automatic management of EDID communication between connected devices
         2. User-selection of EDID from the connected display
         3. User-selection of EDID from pre-stored data files
         4. User upload of custom-generated EDID files
         5. Assignment of pre-stored, captured, or uploaded files
         6. Maintain continuous EDID communication with the connected sources
      5. HDCP requirements
         1. Shall be HDCP 2.3 compliant
         2. Shall provide the option to disable HDCP processing at any HDMI input connection when passing unencrypted content
         3. Shall provide a full green screen signal for visual confirmation when encrypted content is routed to a non-HDCP compliant display
         4. Shall provide real-time verification of HDCP status for each HDMI input and output
         5. Electronically accessible over Ethernet, or USB connection
         6. Shall provide 250mW power on the output for active cables
      6. USB input Requirements
         1. Shall provide two female USB 3.2 B connector used to connect USB Hosts for input 1 & 2
         2. Shall provide one female USB-C connector used to connect a USB-C source device for 10 Gbps data connection
      7. USB Output Requirements
         1. Shall support data transfer rates up to USB 10Gbps
         2. Shall provide three black female USB 2.0 A connectors used for USB 2.0/1.x device ports
            1. Provide 5V, 500 mA per USB 2.0/1.x port
         3. Shall support data transfer rates up to High Speed
         4. Share Provide on blue female USB 3.x for connection to USB 10 GBPS blue USB 3.x port on UCS SR 501
      8. Control Requirements
         1. Shall provide one (1) LAN port on rear panel for Ethernet control
         2. Shall provide five (5) 3.5 mm, 2-pole captive screw connector on rear panel for contact closure remote control with tally output
         3. Shall provide one (1) USBC connector on front panel for setup, configuration, and firmware update loading
      9. Interconnection requirements
         1. Shall provide signal transmission distance capability of 330 feet (100 meters) for all supported video resolutions and using a shielded CATx cable
      10. Power Requirements
          1. Shall include and internal power supply supporting 100-240 VAC, 50/60 Hz power
             1. High demonstrated reliability
             2. Worldwide power compatibility
      11. General Requirements
          1. Shall be convection cooled and with vents on right and left sides, and rear panel
          2. Shall be housed in a 1U high, half EIA rack-width metal enclosure
          3. Shall be rack mountable with optional 1U rack shelf
          4. Shall be furniture mountable with included brackets
          5. Shall provide visual signal on LED indicators located on front panel for auto-switch status, signal presence, HDCP authentication, USB host presence, USB device presence, and USB Power Delivery
          6. Shall provide automatic reformatting of HDMI source signals when routed to a DVI display
          7. Shall support front panel security lockout to prevent unauthorized use in non-secure environments
      12. Shall include LockIt HDMI cable lacing brackets

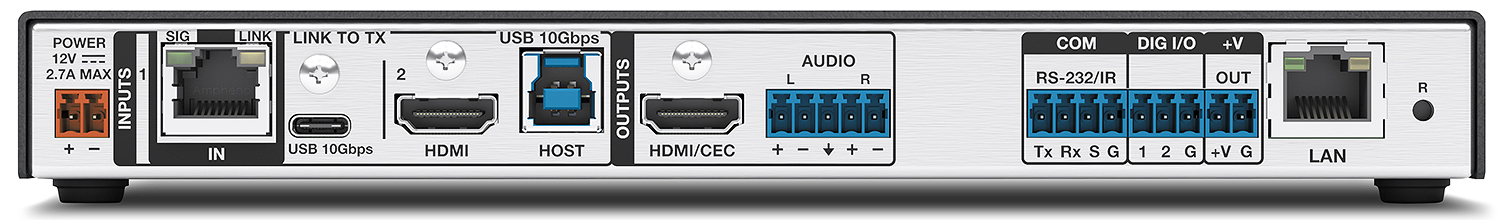

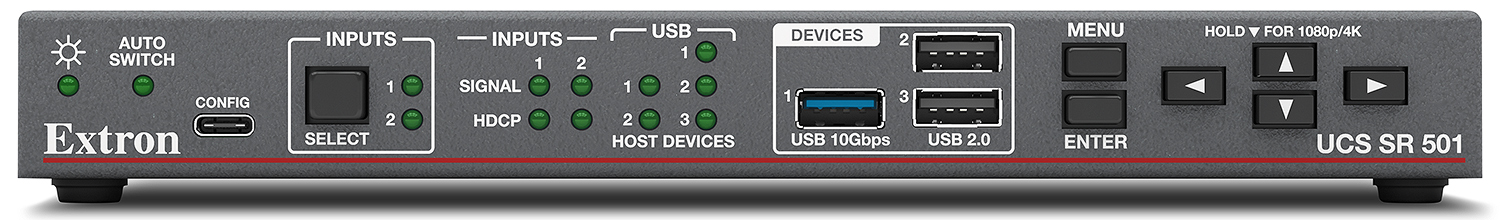

   2. UCS SR 501
      1. Shall be a switcher receiver for HDMI video and embedded digital audio signals with associated USB Host ports with a second USBC device connection to the UCS T 503 for USB 3.0 data connection
         1. Shall support local device connection
         2. Shall support computer and video resolutions up to 4096x2160 at 60 Hz, 8-bit at 4:4:4 chroma sampling
         3. Shall support HDMI specifications including data rates up to 18 Gbps, HDR 10, HDR 10+, Dolby Vision, 12-bit Deep Color, and HD lossless audio formats
      2. Video Input requirements Input Requirements
         1. Shall provide one female HDMI Type A connectors used to connect HDMI source devices
      3. Video Output Requirements
         1. Shall provide one female HDMI Type A connector used to connect HDMI sink
         2. Shall provide automatic management of color bit depth based on the capabilities of the connected display, as reported by display EDID
      4. EDID requirements
         1. Shall include Extron EDID Minder technology for automatic management of EDID communication between connected devices
         2. User-selection of EDID from the connected display
         3. User-selection of EDID from pre-stored data files
         4. User upload of custom-generated EDID files
         5. Assignment of pre-stored, captured, or uploaded files
         6. Maintain continuous EDID communication with the connected sources
      5. HDCP requirements
         1. Shall be HDCP 2.3 compliant
         2. Shall provide the option to disable HDCP processing at any HDMI input connection when passing unencrypted content
         3. Shall provide a full green screen signal for visual confirmation when encrypted content is routed to a non-HDCP compliant display
         4. Shall provide real-time verification of HDCP status for each HDMI input and output
         5. Electronically accessible over Ethernet, or USB connection
         6. Shall provide 250mW power on the output for active cables
      6. USB input Requirements
         1. Shall provide one female USB 3.2 B connector used to connect USB Hosts for input 1, 2 & 3
         2. Shall provide one female USB-C connector used to connect a USB-C source device for 10 Gbps data connection
      7. USB Output Requirements
         1. Shall provide one blue female USB 3.2 A connector used for USB 3.2 device ports
            1. Provide 5V, 900 mA per USB 3.2 port
         2. Shall support data transfer rates up to USB 10Gbps
         3. Shall provide two black female USB 2.0 A connectors used for USB 2.0/1.x device ports
            1. Provide 5V, 500 mA per USB 2.0/1.x port
         4. Shall support data transfer rates up to High Speed
      8. Control Requirements
         1. Shall provide one (1) LAN port on rear panel for Ethernet control
         2. Shall provide one (1) 3.5 mm, three-pole captive screw RS-232 connector on rear panel for display control
         3. Shall provide one (1) 3.5 mm, three-pole captive screw RS-232 connector on rear panel for display control
         4. Shall provide one (1) 3.5 mm, five-pole captive screw digital I/O’s connectors that can be used to interface with devices such as sensors, switches, LEDs and relays.
         5. Shall provide one (1) USBC connector on front panel for setup, configuration, and firmware update loading
      9. Interconnection requirements
         1. Shall provide signal transmission distance capability of 330 feet (100 meters) for all supported video resolutions and using an optional shielded CATx cable
         2. Shall provide signal transmission for all USB 5Gbps and USB 10Gbps using an optional USB-A to USB-C cable
      10. Power Requirements
          1. Shall include an external power supply supporting 100-240 VAC, 50/60 Hz power
             1. High demonstrated reliability
             2. Worldwide power compatibility
      11. General Requirements
          1. Shall be convection cooled and with vents on right and left sides, and rear panel
          2. Shall be housed in a 1U high, half EIA rack-width metal enclosure
          3. Shall be rack mountable with optional 1U rack shelf
          4. Shall be furniture mountable with included brackets
          5. Shall provide visual signal on LED indicators located on front panel for auto-switch status, signal presence, HDCP authentication, USB host presence, USB device presence, and USB Power Delivery
          6. Shall provide automatic reformatting of HDMI source signals when routed to a DVI display
          7. Shall support front panel security lockout to prevent unauthorized use in non-secure environments
          8. Shall include LockIt HDMI cable lacing brackets
   3. Shall meet regulatory compliance
      1. Safety - CE, c-UL, UL
      2. EMI/EMC - CE, C-tick, FCC Class A, ICES, VCCI
   4. Shall provide at least three years parts and labor warranty
   5. Approved device shall be the Extron UCS 504, part number 42-361-01; no alternates or equals.
