NBP 108 D

NBP 108 D

1. Provide an ethernet enabled, one-gang decorator-style network button panel for remotely controlling AV devices when paired with an Extron IP Link Pro control processor, HC 403, or HC 404.
   1. Fully-customizable ethernet enabled button panel interface.

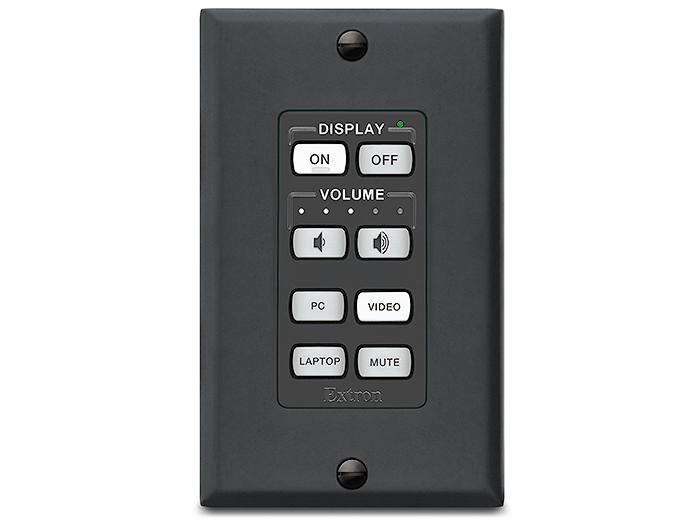

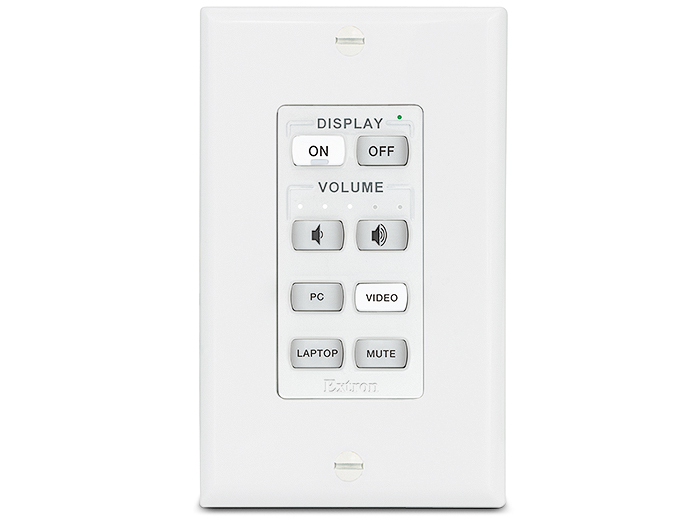

      1. Device shall have a total of eight fully-customizable soft-touch, backlit buttons, four dedicated for input selection, two dedicated for volume control, and the remaining two dedicated for power control arranged in a logical order.
         1. Buttons shall illuminate white when active and should have the ability to flash.
         2. Buttons shall feature two levels of illumination, dim and bright.
         3. Button text shall be able to be customized by selected from pre-packaged kits or may be ordered individually using an online custom button application.
      2. Device shall feature five white LEDs arranged horizontally located just above the second row of buttons dedicated for volume control. When configured or programmed, these LEDs shall provide visual feedback to reflect the relative audio level of the AV system.

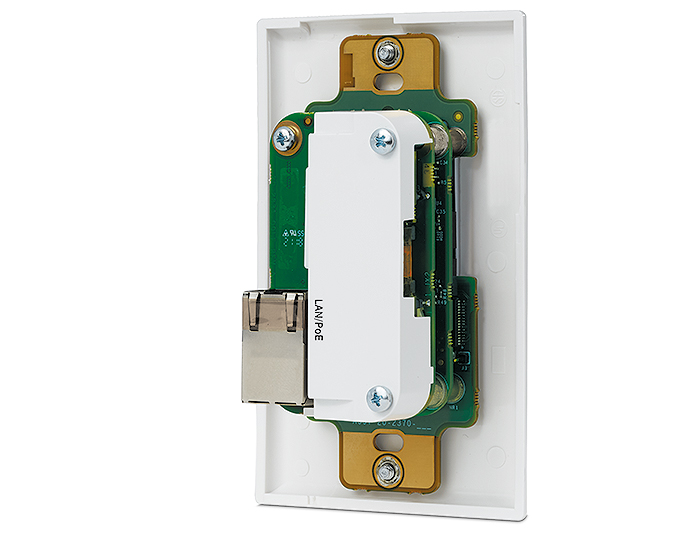

      3. Device shall have a female RJ-45 jack located on the back of the enclosure that supports 10/100Base-T, half/full duplex with auto-detect for connection to a LAN or WAN and includes link and activity LED indicators located on the left and right of the jack for troubleshooting network issues as well as supports PoE- Power over Ethernet, 802.3af.
      4. Device shall include a multi-function button located below the faceplate on the left front side of the product that allows for the reset of the device or its communication properties at minimum.
      5. Device shall be Section 508 compliant and shall meet or exceed U.S. accessibility standards for Electronic Information Technology.
      6. Supports a web-based AV resource management application that provides a means to manage, monitor, and control AV equipment.
      7. Device shall be controllable using Extron Control for Web, Android, and iOS as a secondary point of control.
      8. Device shall support the following protocols: DHCP, DNS, HTTP, HTTPS, ICMP, SFTP, SSH, TCP/IP, UDP/IP.
      9. Device shall include both white and black faceplates.
   2. Mounting requirements
      1. Device shall have the ability to be mounted directly in a wall, lectern, or other flat surface and shall be able to be secured using the supplied mud ring and hardware.
      2. Device shall have the ability to be mounted to the surface of a wall using an optional wall box.
   3. Software requirements
      1. The device may only be configured or programmed using Extron’s Global Configurator Plus or Professional, or Global Scripter respectively.
      2. Shall be configured or programmed by an Extron authorized user.
      3. The device’s configuration and settings shall be managed using Extron’s Toolbelt software.
   4. Security requirements
      1. Device shall support SSH for secure communication between the network button panel and the control processor or the meeting space collaboration system.
      2. Device shall support SFTP and SSH for secure communication between the control processor and the configuration or programming software.
      3. Device shall provide the option to modify administrator and user credentials.
      4. Device shall support security updates to maintain network health.
      5. Device shall require that a Secure Socket Layer (SSL) Certificate is installed to maintain system confidentiality and data integrity.
      6. Device shall support the installation of an owner furnished certificate with the following properties:
         1. Certificates shall include x.509 support
         2. Certificates shall include public / private key exchange
         3. Certificates shall support PEM encoding
      7. Extron shall furnish documentation that describes all supported network ports and services.
   5. Shall meet regulatory compliances
      1. CE
      2. c-UL
      3. UL
      4. C-Tick
      5. FCC Class B
      6. ICES
      7. VCCI
      8. RoHS
      9. WEEE
   6. Product Warranty
      1. Shall provide at least 3 years parts and labor
   7. Approved device shall be the Extron NBP 108 D, part number 60-1818-01; no alternates or equals
