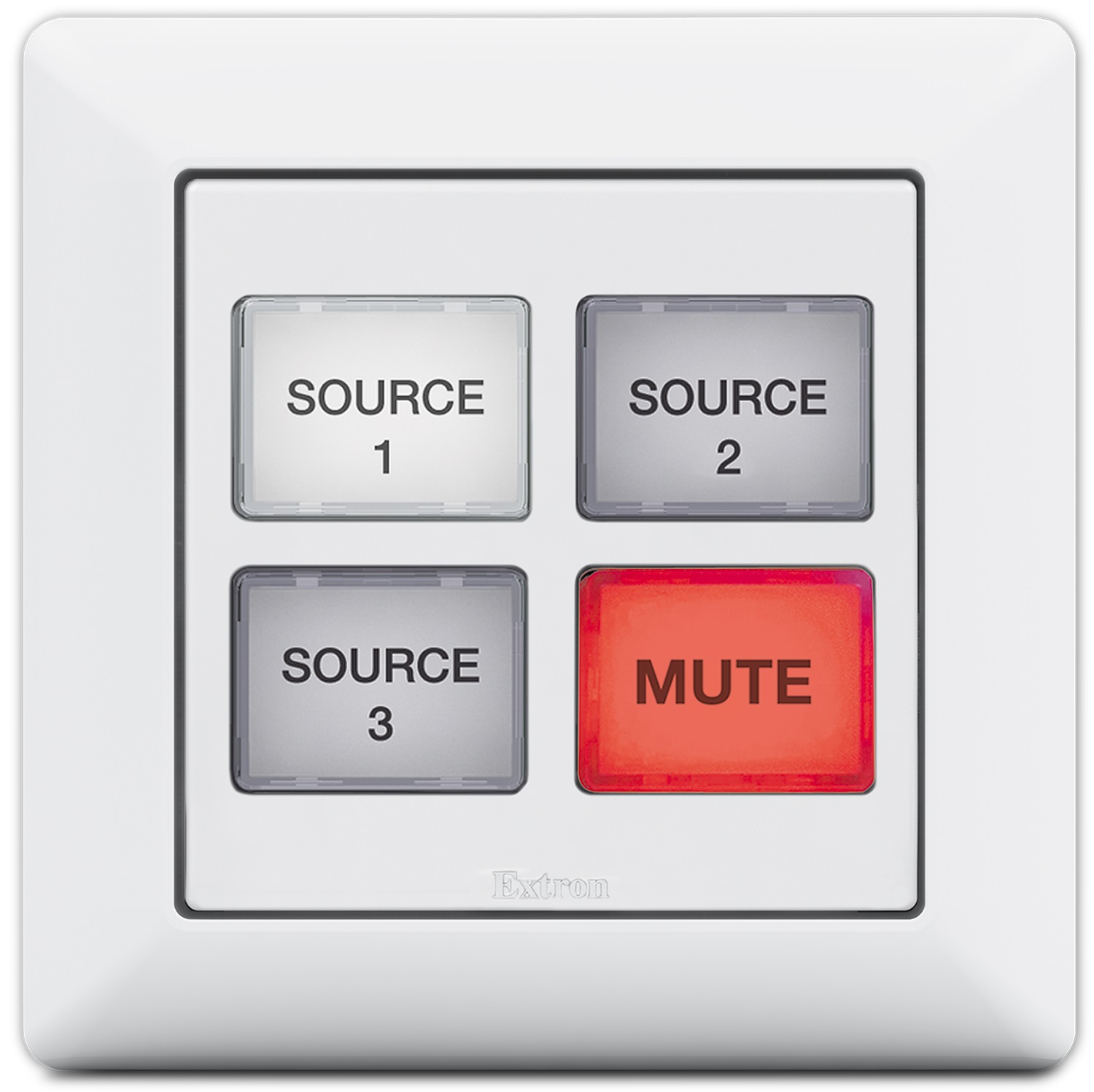

NBP 104 EU
- Provide an Ethernet-enabled network button panel for the purpose of remotely controlling, monitoring and troubleshooting connected AV equipment and AV systems when paired with an Extron Control System
- Fully customizable ethernet enabled button panel interface.
- Device shall have a total of four dual color LED backlit buttons.
- Buttons shall illuminate white or red, depending on function, for ease of use in low-light environments.
- Buttons shall feature two levels of illumination, dim and bright.
- Buttons shall feature removable button caps, allowing them to be custom labeled for easy identification.
- Device shall have a female RJ-45 jack located on the back of the enclosure that supports 10/100Base-T, half/full duplex with auto-detect for connection to a LAN or WAN and includes link and activity LED indicators located on the left and right of the jack for troubleshooting network issues as well as supports PoE- Power over Ethernet, 802.3af.
- Device shall include a multi-function button located below the faceplate on the left front side of the product that allows for the reset of the device or its communication properties at minimum.
- Device shall provide audible feedback from the built-in speaker by beeping when a button is pressed.
- Device shall be Section 508 compliant and shall meet or exceed U.S. accessibility standards for Electronic Information Technology.
- Supports a web-based AV resource management application that provides a means to manage, monitor, and control AV equipment.
- Device shall be controllable using Extron Control for Web, Android, and iOS as a secondary point of control.
- Device shall support the following protocols: DHCP, DNS, HTTP, HTTPS, ICMP, SFTP, SSH, TCP/IP, UDP/IP.

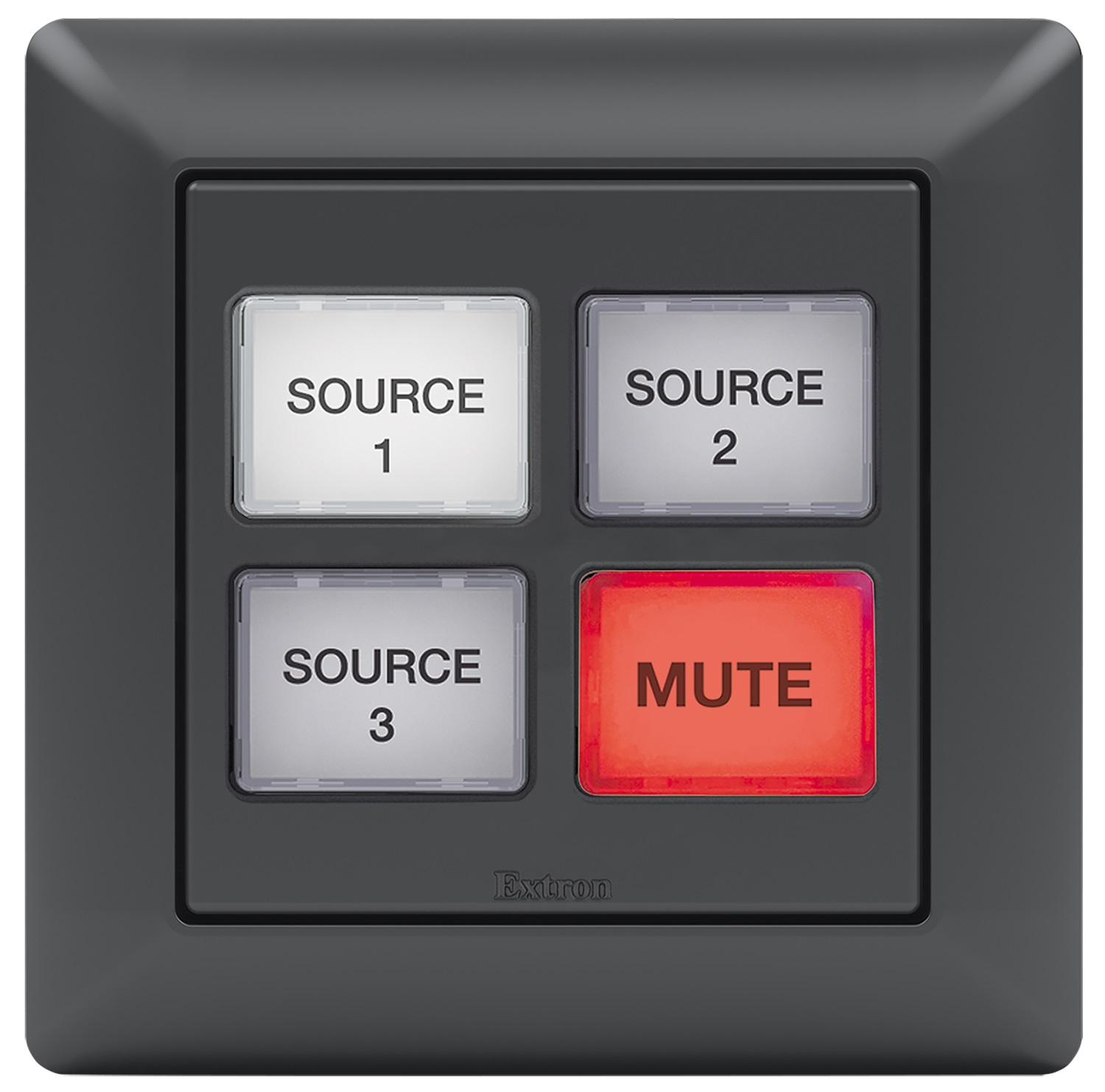

- Device shall include both white and black wall frames and a mounting bracket.
- Device shall have a total of four dual color LED backlit buttons.
- Mounting requirements
- Device shall have the ability to be mounted directly in a wall, lectern, or other flat surface
- Device shall be able to mount in a standard single size European electrical junction box with 60 mm mounting centers with an included adapter frame.
- Device shall be compatible with Flex55 mounting systems
- Software requirements
- The device may only be configured or programmed using Extron’s Global Configurator Plus or Professional, or ControlScript respectively.
- Shall be configured or programmed by an Extron authorized user.
- The device’s configuration and settings shall be managed using Extron’s Toolbelt software.
- Shall meet regulatory compliances
- CE
- c-UL
- UL
- C-Tick
- FCC Class A
- ICES
- VCCI class A
- Product Warranty
- Shall provide at least 3 years parts and labor
- Approved device shall be the Extron NBP 104 EU part number 60-2050-01; no alternates or equals
- Fully customizable ethernet enabled button panel interface.
