NBP VC1 EU

NBP VC1 EU

1. Provide an Ethernet-enabled network button panel for the purpose of remotely controlling, monitoring and troubleshooting connected AV equipment and AV systems when paired with an Extron Control System
   1. Fully customizable ethernet enabled button panel interface.
      1. Device shall have one fully customizable soft-touch, backlit button for audio muting.
         1. Button shall illuminate white when active and should have the ability to flash.
         2. Button shall feature two levels of illumination, dim and bright.
         3. Button text shall be able to be customized using an online custom button application.
      2. Device shall provide a rotary encoder knob located in the center of the panel that can be configured to control the audio level of an AV system.
      3. Device shall feature five white LEDs arranged horizontally located above the rotary encoder. When configured, these LEDs shall provide visual feedback to reflect the relative audio level of the AV system.
      4. Device shall have a female RJ-45 jack located on the back of the enclosure that supports 10/100Base-T, half/full duplex with auto-detect for connection to a LAN or WAN and includes link and activity LED indicators located on the left and right of the jack for troubleshooting network issues as well as supports PoE- Power over Ethernet, 802.3af.
      5. Device shall include a multi-function button located below the faceplate on the left front side of the product that allows for the reset of the device or its communication properties at minimum.
      6. Device shall provide audible feedback from the built-in speaker by beeping when a button is pressed.
      7. Device shall be Section 508 compliant and shall meet or exceed U.S. accessibility standards for Electronic Information Technology.
      8. Supports a web-based AV resource management application that provides a means to manage, monitor, and control AV equipment.
      9. Device shall be controllable using Extron Control for Web, Android, and iOS as a secondary point of control.
      10. Device shall support the following protocols: DHCP, DNS, HTTP, HTTPS, ICMP, SFTP, SSH, TCP/IP, UDP/IP.

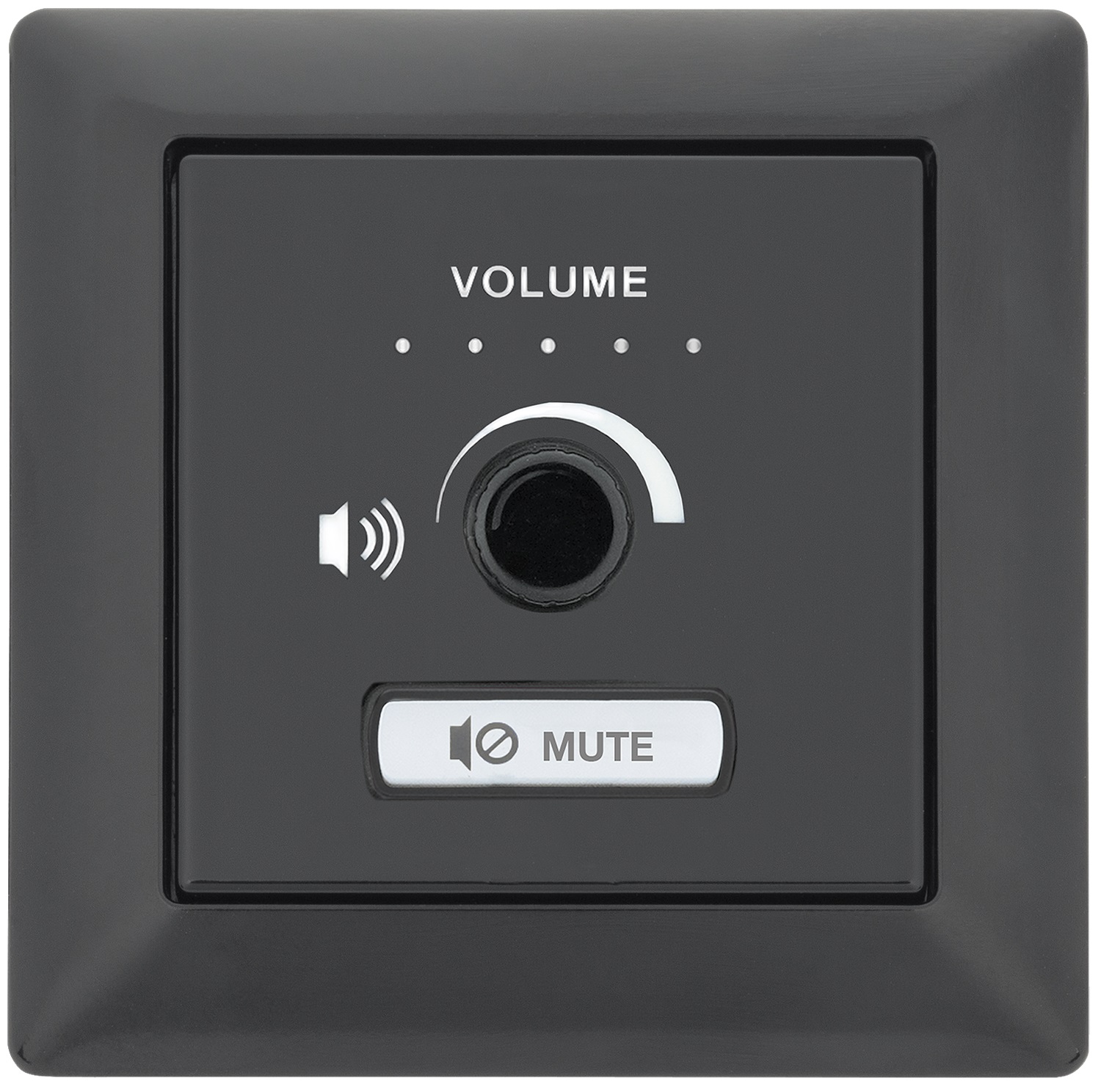

      11. Device shall include both white and black wall frames and a mounting bracket.
   2. Mounting requirements
      1. Device shall have the ability to be mounted directly in a wall, lectern, or other flat surface
      2. Device shall be able to mount in a standard single size European electrical junction box with 60 mm mounting centers with an included adapter frame.
      3. Device shall be compatible with Flex55 mounting systems
   3. Software requirements
      1. The device may only be configured or programmed using Extron’s Global Configurator Plus or Professional, or ControlScript respectively.
      2. Shall be configured or programmed by an Extron authorized user.
      3. The device’s configuration and settings shall be managed using Extron’s Toolbelt software.
   4. Shall meet regulatory compliances
      1. CE
      2. c-UL
      3. UL
      4. C-Tick
      5. FCC Class A
      6. ICES
      7. VCCI class A
   5. Product Warranty
      1. Shall provide at least 3 years parts and labor
   6. Approved device shall be the Extron NBP VC1 EU part number 60-2052-01; no alternates or equals
