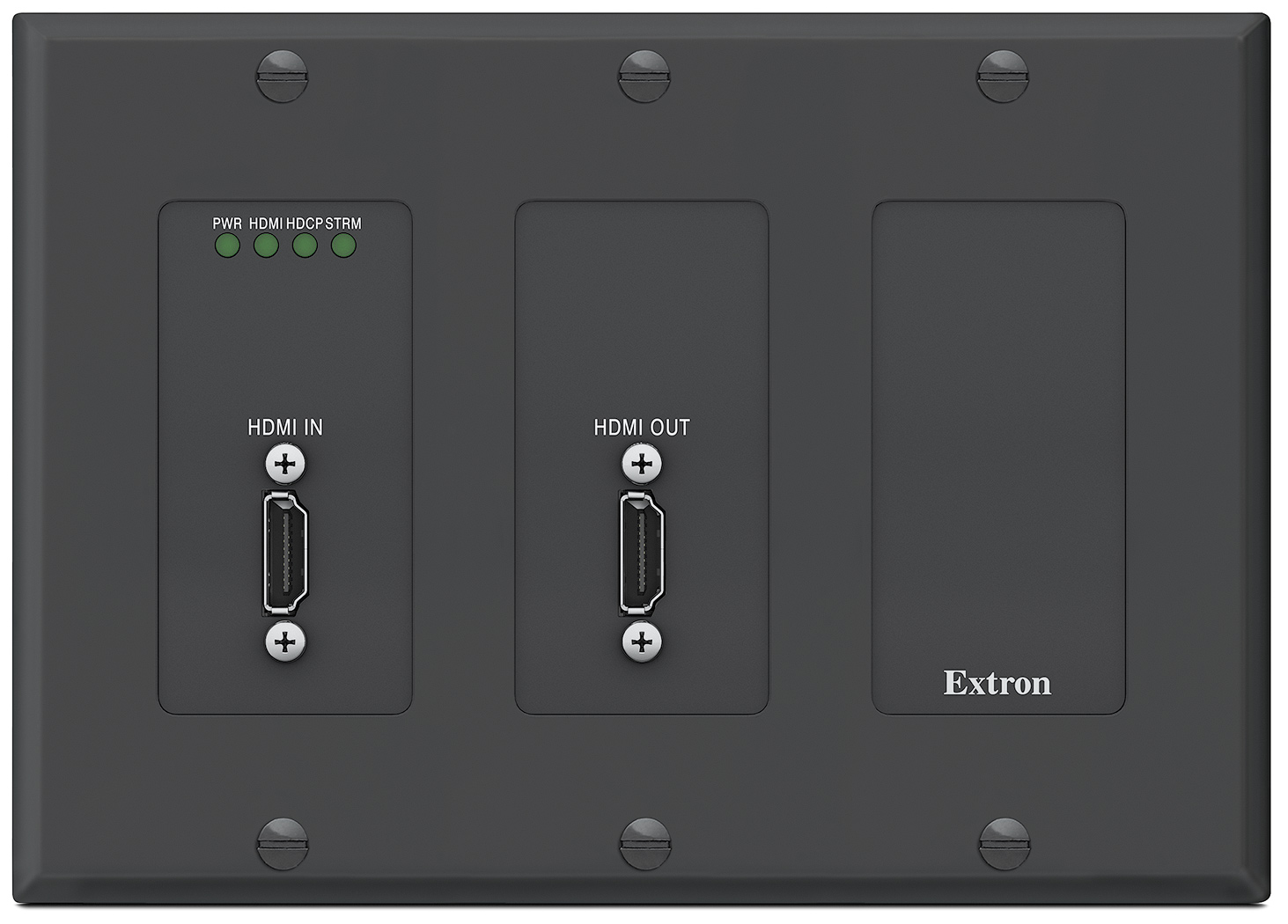

NAV 10E 201 D (Black Multimode)
- Provide a Pro AV over IP, HDMI decorator-style wallplate encoder that shall stream ultra-low latency, high quality video and audio signals over a 10 Gbps optical Ethernet interface
- Three-gang decorator-style wallplate that encodes video and audio, and shall:
- Provide an HDMI connector for interfacing digital video signal input with embedded audio and a loop through HDMI connection
- Provide connections for device configuration from a PC or other peripheral
- One USB connection on the front panel
- Provide a 5-pole captive screw connector for remote RS-232 and IR control from a central control processor via remote port access mapping
- Provide one LC/LC fiber optic connector for control and transport of streaming data over multimode fiber optic cable for distances up to 400 meters (1312 feet)
- Provide one 2-pole captive screw connector for 12VDC power
- Provide ten LED indicators for status monitoring
- Power LED on front panel to indicate power connection
- HDMI LED on front panel to indicate HDMI input signal presence
- HDCP LED on front panel to indicate encryption status
- Stream LED on front panel to indicate streaming status
- Two LAN LEDs on front panel to indicate network link/activity status
- Two LAN LEDs on back panel to indicate network link/activity status
- ID LED on front panel for visual confirmation of units on the network
- Reset LED on front panel to indicate reset status
- Provide an ID button on the front panel to identify the unit on the network
- Provide a recessed reset button on the front panel to revert unit back to factory loaded firmware
- Support audio streaming between encoder and decoder
- Support streaming of HDCP 2.3 encrypted sources to decoders connected to HDCP 2.3 compliant displays
- Maintain continuous HDCP encryption between the source and encoder
- Support Extended Display Identification Data – EDID and Display Data Channel – DDC data using the EDID 2.0 standard
- Support use of EDID values defined by the user, supplied by a locally connected display or stored values captured from previously connected displays
- Support standard video resolutions including: 720p, 1080i ,1080p, UHD (3840 x 2160), and 4K (4096 x 2160) @ 60 Hz
- Support computer video resolutions from 640 x 480 up to 4096 x 2160
- Support HDMI embedded audio
- Support 30-bit, 10-bit per color encoding and processing that maintains 4:4:4 color information throughout the entire encode-streaming-decode process
- Support streaming of all video and computer-video signals maintaining native resolution from encode to decode
- Support streaming of signals at 60 frames per second at resolutions up to 4096 x 2160
- Support a low delay, encode and decode process
- Provide a video error concealment system which does not increase streaming bandwidth or encoding delay
- Support IGMP v2 and v3 multicast per RFC 2236 and RFC 3376
- Support RTP transport type per RFC 3550
- Support 802.1X port-based Network Access Control (PNAC)
- Support audio breakaway
- Support Audio only streaming with a blackburst signal
- Support AES67 audio streaming
- Support Diffserv QoS with DSCP and Precedence Values
- Support multicast TTL (Time to Live) values
- Support SRTP Secure Real-time Transport Protocol encryption of AV and data stream per RFC 3711
- Support creation of user defined device names
- Support configuration and control from an embedded web browser
- Support optional on-screen messaging for device identification
- Support matrix switching between multiple encoders or decoders
- Support compatibility with 1 Gbps decoders in mixed 1/10 Gbps solutions
- Support configuration and control in systems consisting of multiple encoders and decoders from a central networked control unit
- Support encoding and decoding video and audio at bit rates adjustable from 150 Mbps to 9.5 Gbps
- Encoder shall be capable of preserving absolute changes to the video on a frame-by-frame basis up to 60 frames per second
- Support temporal compression applied on a sub-picture basis examining change that discriminates between luminance, chrominance as well as a threshold for signal or image noise
- Shall be mountable in a standard triple-gang electrical box
- Approved device shall be the Extron NAV 10E 201 D (Black MM) (60-1572-21; no alternates or equals).
- Three-gang decorator-style wallplate that encodes video and audio, and shall:
NAV 10E 201 D (Black Multimode)
- Provide a Pro AV over IP, HDMI decorator-style wallplate encoder that shall stream ultra-low latency, high quality video and audio signals over a 10 Gbps optical Ethernet interface
- Three-gang decorator-style wallplate that encodes video and audio, and shall:
- Provide an HDMI connector for interfacing digital video signal input with embedded audio and a loop through HDMI connection
- Provide connections for device configuration from a PC or other peripheral
- One USB connection on the front panel
- Provide a 5-pole captive screw connector for remote RS-232 and IR control from a central control processor via remote port access mapping
- Provide one LC/LC fiber optic connector for control and transport of streaming data over multimode fiber optic cable for distances up to 400 meters (1312 feet)
- Provide one 2-pole captive screw connector for 12VDC power
- Provide ten LED indicators for status monitoring
- Power LED on front panel to indicate power connection
- HDMI LED on front panel to indicate HDMI input signal presence
- HDCP LED on front panel to indicate encryption status
- Stream LED on front panel to indicate streaming status
- Two LAN LEDs on front panel to indicate network link/activity status
- Two LAN LEDs on back panel to indicate network link/activity status
- ID LED on front panel for visual confirmation of units on the network
- Reset LED on front panel to indicate reset status
- Provide an ID button on the front panel to identify the unit on the network
- Provide a recessed reset button on the front panel to revert unit back to factory loaded firmware
- Support audio streaming between encoder and decoder
- Support streaming of HDCP 2.3 encrypted sources to decoders connected to HDCP 2.3 compliant displays
- Maintain continuous HDCP encryption between the source and encoder
- Support Extended Display Identification Data – EDID and Display Data Channel – DDC data using the EDID 2.0 standard
- Support use of EDID values defined by the user, supplied by a locally connected display or stored values captured from previously connected displays
- Support standard video resolutions including: 720p, 1080i ,1080p, UHD (3840 x 2160), and 4K (4096 x 2160) @ 60 Hz
- Support computer video resolutions from 640 x 480 up to 4096 x 2160
- Support HDMI embedded audio
- Support 30-bit, 10-bit per color encoding and processing that maintains 4:4:4 color information throughout the entire encode-streaming-decode process
- Support streaming of all video and computer-video signals maintaining native resolution from encode to decode
- Support streaming of signals at 60 frames per second at resolutions up to 4096 x 2160
- Support a low delay, encode and decode process
- Provide a video error concealment system which does not increase streaming bandwidth or encoding delay
- Support IGMP v2 and v3 multicast per RFC 2236 and RFC 3376
- Support RTP transport type per RFC 3550
- Support 802.1X port-based Network Access Control (PNAC)
- Support audio breakaway
- Support Audio only streaming with a blackburst signal
- Support AES67 audio streaming
- Support Diffserv QoS with DSCP and Precedence Values
- Support multicast TTL (Time to Live) values
- Support SRTP Secure Real-time Transport Protocol encryption of AV and data stream per RFC 3711
- Support creation of user defined device names
- Support configuration and control from an embedded web browser
- Support optional on-screen messaging for device identification
- Support matrix switching between multiple encoders or decoders
- Support compatibility with 1 Gbps decoders in mixed 1/10 Gbps solutions
- Support configuration and control in systems consisting of multiple encoders and decoders from a central networked control unit
- Support encoding and decoding video and audio at bit rates adjustable from 150 Mbps to 9.5 Gbps
- Encoder shall be capable of preserving absolute changes to the video on a frame-by-frame basis up to 60 frames per second
- Support temporal compression applied on a sub-picture basis examining change that discriminates between luminance, chrominance as well as a threshold for signal or image noise
- Shall be mountable in a standard triple-gang electrical box
- Approved device shall be the Extron NAV 10E 201 D (Black MM) (60-1572-21; no alternates or equals).
- Three-gang decorator-style wallplate that encodes video and audio, and shall:

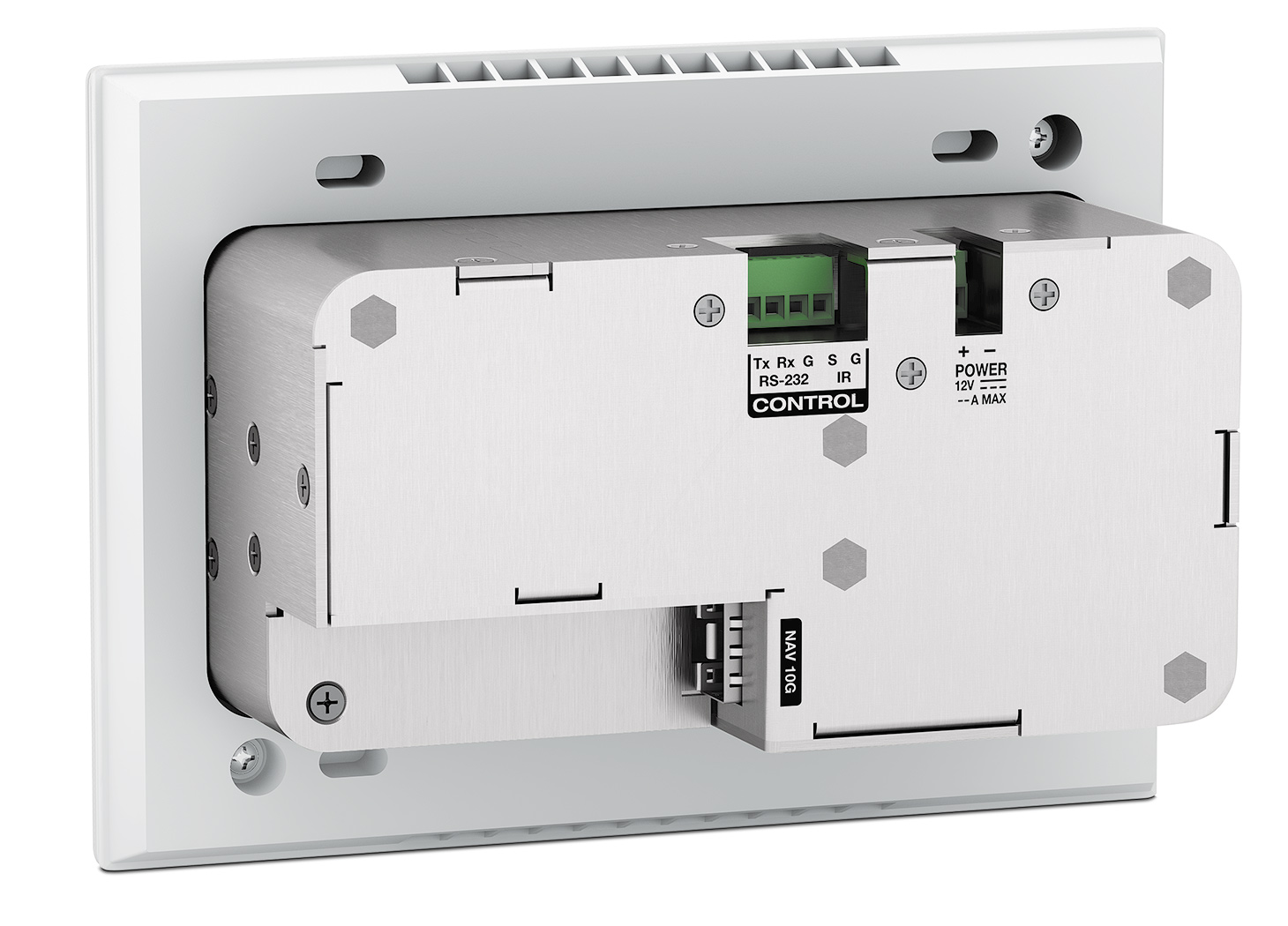

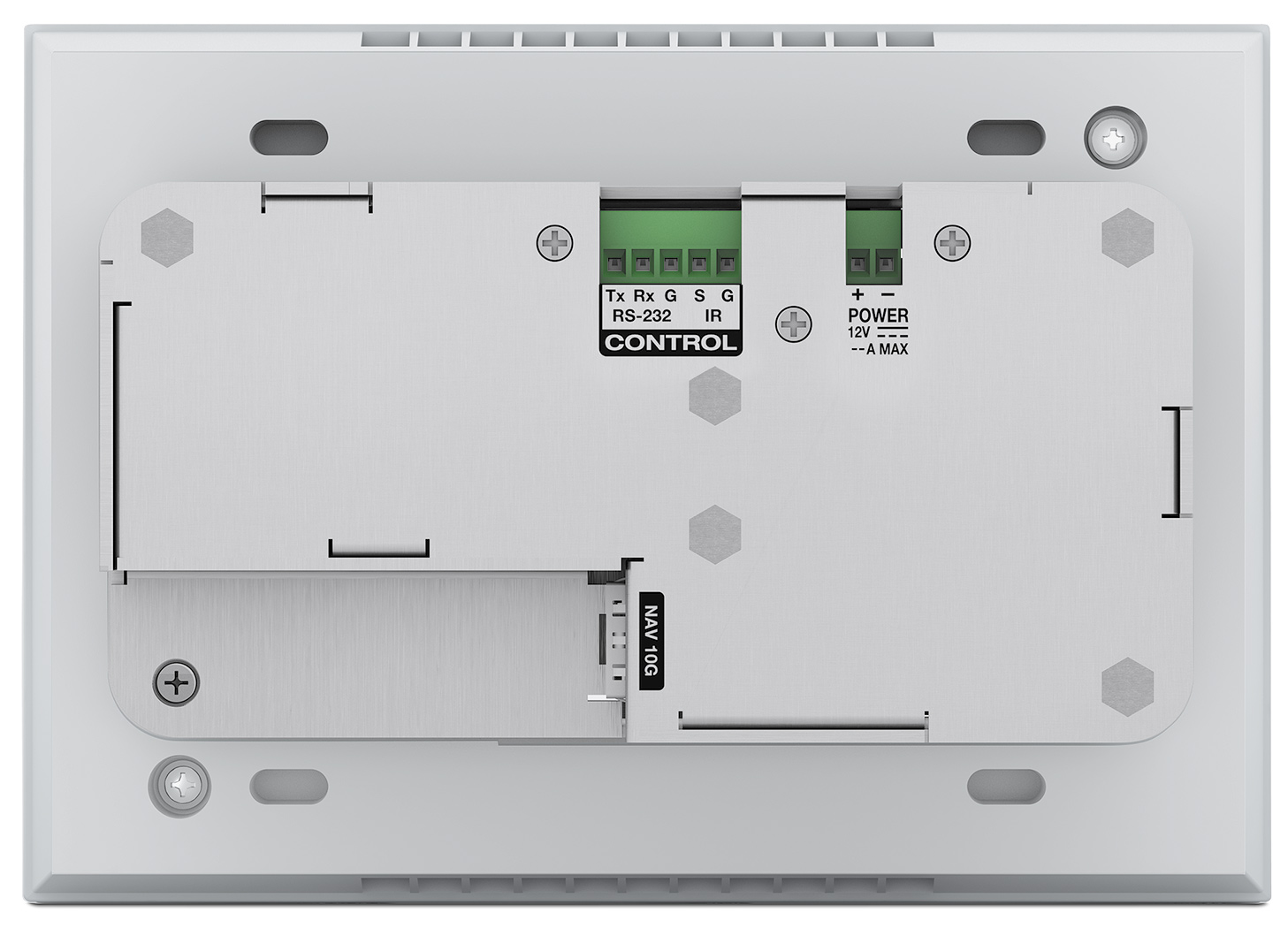

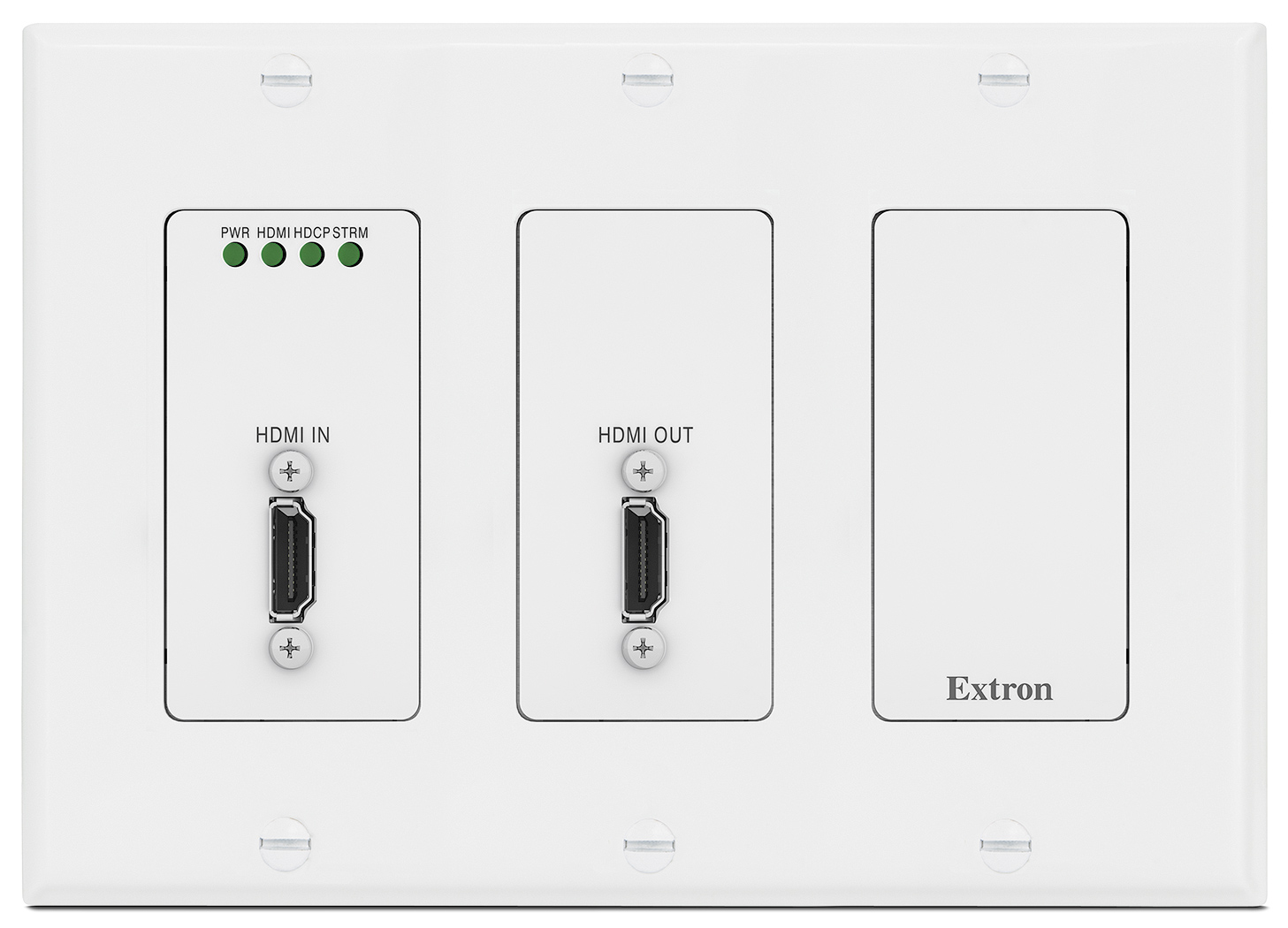

NAV 10E 201 D (White Multimode)
- Provide a Pro AV over IP, HDMI decorator-style wallplate encoder that shall stream ultra-low latency, high quality video and audio signals over a 10 Gbps optical Ethernet interface
- Three-gang decorator-style wallplate that encodes video and audio, and shall:
- Provide an HDMI connector for interfacing digital video signal input with embedded audio and a loop through HDMI connection
- Provide connections for device configuration from a PC or other peripheral
- One USB connection on the front panel
- Provide a 5-pole captive screw connector for remote RS-232 and IR control from a central control processor via remote port access mapping
- Provide one LC/LC fiber optic connector for control and transport of streaming data over multimode fiber optic cable for distances up to 400 meters (1312 feet)
- Provide one 2-pole captive screw connector for 12VDC power
- Provide ten LED indicators for status monitoring
- Power LED on front panel to indicate power connection
- HDMI LED on front panel to indicate HDMI input signal presence
- HDCP LED on front panel to indicate encryption status
- Stream LED on front panel to indicate streaming status
- Two LAN LEDs on front panel to indicate network link/activity status
- Two LAN LEDs on back panel to indicate network link/activity status
- ID LED on front panel for visual confirmation of units on the network
- Reset LED on front panel to indicate reset status
- Provide an ID button on the front panel to identify the unit on the network
- Provide a recessed reset button on the front panel to revert unit back to factory loaded firmware
- Support audio streaming between encoder and decoder
- Support streaming of HDCP 2.3 encrypted sources to decoders connected to HDCP 2.3 compliant displays
- Maintain continuous HDCP encryption between the source and encoder
- Support Extended Display Identification Data – EDID and Display Data Channel – DDC data using the EDID 2.0 standard
- Support use of EDID values defined by the user, supplied by a locally connected display or stored values captured from previously connected displays
- Support standard video resolutions including: 720p, 1080i ,1080p, UHD (3840 x 2160), and 4K (4096 x 2160) @ 60 Hz
- Support computer video resolutions from 640 x 480 up to 4096 x 2160
- Support HDMI embedded audio
- Support 30-bit, 10-bit per color encoding and processing that maintains 4:4:4 color information throughout the entire encode-streaming-decode process
- Support streaming of all video and computer-video signals maintaining native resolution from encode to decode
- Support streaming of signals at 60 frames per second at resolutions up to 4096 x 2160
- Support a low delay, encode and decode process
- Provide a video error concealment system which does not increase streaming bandwidth or encoding delay
- Support IGMP v2 and v3 multicast per RFC 2236 and RFC 3376
- Support RTP transport type per RFC 3550
- Support 802.1X port-based Network Access Control (PNAC)
- Support audio breakaway
- Support Audio only streaming with a blackburst signal
- Support AES67 audio streaming
- Support Diffserv QoS with DSCP and Precedence Values
- Support multicast TTL (Time to Live) values
- Support SRTP Secure Real-time Transport Protocol encryption of AV and data stream per RFC 3711
- Support creation of user defined device names
- Support configuration and control from an embedded web browser
- Support optional on-screen messaging for device identification
- Support matrix switching between multiple encoders or decoders
- Support compatibility with 1 Gbps decoders in mixed 1/10 Gbps solutions
- Support configuration and control in systems consisting of multiple encoders and decoders from a central networked control unit
- Support encoding and decoding video and audio at bit rates adjustable from 150 Mbps to 9.5 Gbps
- Encoder shall be capable of preserving absolute changes to the video on a frame-by-frame basis up to 60 frames per second
- Support temporal compression applied on a sub-picture basis examining change that discriminates between luminance, chrominance as well as a threshold for signal or image noise
- Shall be mountable in a standard triple-gang electrical box
- Approved device shall be the Extron NAV 10E 201 D (White MM) (60-1572-23; no alternates or equals).
- Three-gang decorator-style wallplate that encodes video and audio, and shall:
NAV 10E 201 D (White Multimode)
- Provide a Pro AV over IP, HDMI decorator-style wallplate encoder that shall stream ultra-low latency, high quality video and audio signals over a 10 Gbps optical Ethernet interface
- Three-gang decorator-style wallplate that encodes video and audio, and shall:
- Provide an HDMI connector for interfacing digital video signal input with embedded audio and a loop through HDMI connection
- Provide connections for device configuration from a PC or other peripheral
- One USB connection on the front panel
- Provide a 5-pole captive screw connector for remote RS-232 and IR control from a central control processor via remote port access mapping
- Provide one LC/LC fiber optic connector for control and transport of streaming data over multimode fiber optic cable for distances up to 400 meters (1312 feet)
- Provide one 2-pole captive screw connector for 12VDC power
- Provide ten LED indicators for status monitoring
- Power LED on front panel to indicate power connection
- HDMI LED on front panel to indicate HDMI input signal presence
- HDCP LED on front panel to indicate encryption status
- Stream LED on front panel to indicate streaming status
- Two LAN LEDs on front panel to indicate network link/activity status
- Two LAN LEDs on back panel to indicate network link/activity status
- ID LED on front panel for visual confirmation of units on the network
- Reset LED on front panel to indicate reset status
- Provide an ID button on the front panel to identify the unit on the network
- Provide a recessed reset button on the front panel to revert unit back to factory loaded firmware
- Support audio streaming between encoder and decoder
- Support streaming of HDCP 2.3 encrypted sources to decoders connected to HDCP 2.3 compliant displays
- Maintain continuous HDCP encryption between the source and encoder
- Support Extended Display Identification Data – EDID and Display Data Channel – DDC data using the EDID 2.0 standard
- Support use of EDID values defined by the user, supplied by a locally connected display or stored values captured from previously connected displays
- Support standard video resolutions including: 720p, 1080i ,1080p, UHD (3840 x 2160), and 4K (4096 x 2160) @ 60 Hz
- Support computer video resolutions from 640 x 480 up to 4096 x 2160
- Support HDMI embedded audio
- Support 30-bit, 10-bit per color encoding and processing that maintains 4:4:4 color information throughout the entire encode-streaming-decode process
- Support streaming of all video and computer-video signals maintaining native resolution from encode to decode
- Support streaming of signals at 60 frames per second at resolutions up to 4096 x 2160
- Support a low delay, encode and decode process
- Provide a video error concealment system which does not increase streaming bandwidth or encoding delay
- Support IGMP v2 and v3 multicast per RFC 2236 and RFC 3376
- Support RTP transport type per RFC 3550
- Support 802.1X port-based Network Access Control (PNAC)
- Support audio breakaway
- Support Audio only streaming with a blackburst signal
- Support AES67 audio streaming
- Support Diffserv QoS with DSCP and Precedence Values
- Support multicast TTL (Time to Live) values
- Support SRTP Secure Real-time Transport Protocol encryption of AV and data stream per RFC 3711
- Support creation of user defined device names
- Support configuration and control from an embedded web browser
- Support optional on-screen messaging for device identification
- Support matrix switching between multiple encoders or decoders
- Support compatibility with 1 Gbps decoders in mixed 1/10 Gbps solutions
- Support configuration and control in systems consisting of multiple encoders and decoders from a central networked control unit
- Support encoding and decoding video and audio at bit rates adjustable from 150 Mbps to 9.5 Gbps
- Encoder shall be capable of preserving absolute changes to the video on a frame-by-frame basis up to 60 frames per second
- Support temporal compression applied on a sub-picture basis examining change that discriminates between luminance, chrominance as well as a threshold for signal or image noise
- Shall be mountable in a standard triple-gang electrical box
- Approved device shall be the Extron NAV 10E 201 D (White MM) (60-1572-23; no alternates or equals).
- Three-gang decorator-style wallplate that encodes video and audio, and shall:
NAV 10E 201 D (Black Singlemode)
- Provide a Pro AV over IP, HDMI decorator-style wallplate encoder that shall stream ultra-low latency, high quality video and audio signals over a 10 Gbps optical Ethernet interface
- Three-gang decorator-style wallplate that encodes video and audio, and shall:
- Provide an HDMI connector for interfacing digital video signal input with embedded audio and a loop through HDMI connection
- Provide connections for device configuration from a PC or other peripheral
- One USB connection on the front panel
- Provide a 5-pole captive screw connector for remote RS-232 and IR control from a central control processor via remote port access mapping
- Provide one LC/LC fiber optic connector for control and transport of streaming data over singlemode fiber optic cable for distances up to 10 km (6.25 miles)
- Provide one 2-pole captive screw connector for 12VDC power
- Provide ten LED indicators for status monitoring
- Power LED on front panel to indicate power connection
- HDMI LED on front panel to indicate HDMI input signal presence
- HDCP LED on front panel to indicate encryption status
- Stream LED on front panel to indicate streaming status
- Two LAN LEDs on front panel to indicate network link/activity status
- Two LAN LEDs on back panel to indicate network link/activity status
- ID LED on front panel for visual confirmation of units on the network
- Reset LED on front panel to indicate reset status
- Provide an ID button on the front panel to identify the unit on the network
- Provide a recessed reset button on the front panel to revert unit back to factory loaded firmware
- Support audio streaming between encoder and decoder
- Support streaming of HDCP 2.3 encrypted sources to decoders connected to HDCP 2.3 compliant displays
- Maintain continuous HDCP encryption between the source and encoder
- Support Extended Display Identification Data – EDID and Display Data Channel – DDC data using the EDID 2.0 standard
- Support use of EDID values defined by the user, supplied by a locally connected display or stored values captured from previously connected displays
- Support standard video resolutions including: 720p, 1080i ,1080p, UHD (3840 x 2160), and 4K (4096 x 2160) @ 60 Hz
- Support computer video resolutions from 640 x 480 up to 4096 x 2160
- Support HDMI embedded audio
- Support 30-bit, 10-bit per color encoding and processing that maintains 4:4:4 color information throughout the entire encode-streaming-decode process
- Support streaming of all video and computer-video signals maintaining native resolution from encode to decode
- Support streaming of signals at 60 frames per second at resolutions up to 4096 x 2160
- Support a low delay, encode and decode process
- Provide a video error concealment system which does not increase streaming bandwidth or encoding delay
- Support IGMP v2 and v3 multicast per RFC 2236 and RFC 3376
- Support RTP transport type per RFC 3550
- Support 802.1X port-based Network Access Control (PNAC)
- Support audio breakaway
- Support Audio only streaming with a blackburst signal
- Support AES67 audio streaming
- Support Diffserv QoS with DSCP and Precedence Values
- Support multicast TTL (Time to Live) values
- Support SRTP Secure Real-time Transport Protocol encryption of AV and data stream per RFC 3711
- Support creation of user defined device names
- Support configuration and control from an embedded web browser
- Support optional on-screen messaging for device identification
- Support matrix switching between multiple encoders or decoders
- Support compatibility with 1 Gbps decoders in mixed 1/10 Gbps solutions
- Support configuration and control in systems consisting of multiple encoders and decoders from a central networked control unit
- Support encoding and decoding video and audio at bit rates adjustable from 150 Mbps to 9.5 Gbps
- Encoder shall be capable of preserving absolute changes to the video on a frame-by-frame basis up to 60 frames per second
- Support temporal compression applied on a sub-picture basis examining change that discriminates between luminance, chrominance as well as a threshold for signal or image noise
- Shall be mountable in a standard triple-gang electrical box
- Approved device shall be the Extron NAV 10E 201 D (Black SM) (60-1572-22; no alternates or equals).
- Three-gang decorator-style wallplate that encodes video and audio, and shall:
NAV 10E 201 D (Black Singlemode)
- Provide a Pro AV over IP, HDMI decorator-style wallplate encoder that shall stream ultra-low latency, high quality video and audio signals over a 10 Gbps optical Ethernet interface
- Three-gang decorator-style wallplate that encodes video and audio, and shall:
- Provide an HDMI connector for interfacing digital video signal input with embedded audio and a loop through HDMI connection
- Provide connections for device configuration from a PC or other peripheral
- One USB connection on the front panel
- Provide a 5-pole captive screw connector for remote RS-232 and IR control from a central control processor via remote port access mapping
- Provide one LC/LC fiber optic connector for control and transport of streaming data over singlemode fiber optic cable for distances up to 10 km (6.25 miles)
- Provide one 2-pole captive screw connector for 12VDC power
- Provide ten LED indicators for status monitoring
- Power LED on front panel to indicate power connection
- HDMI LED on front panel to indicate HDMI input signal presence
- HDCP LED on front panel to indicate encryption status
- Stream LED on front panel to indicate streaming status
- Two LAN LEDs on front panel to indicate network link/activity status
- Two LAN LEDs on back panel to indicate network link/activity status
- ID LED on front panel for visual confirmation of units on the network
- Reset LED on front panel to indicate reset status
- Provide an ID button on the front panel to identify the unit on the network
- Provide a recessed reset button on the front panel to revert unit back to factory loaded firmware
- Support audio streaming between encoder and decoder
- Support streaming of HDCP 2.3 encrypted sources to decoders connected to HDCP 2.3 compliant displays
- Maintain continuous HDCP encryption between the source and encoder
- Support Extended Display Identification Data – EDID and Display Data Channel – DDC data using the EDID 2.0 standard
- Support use of EDID values defined by the user, supplied by a locally connected display or stored values captured from previously connected displays
- Support standard video resolutions including: 720p, 1080i ,1080p, UHD (3840 x 2160), and 4K (4096 x 2160) @ 60 Hz
- Support computer video resolutions from 640 x 480 up to 4096 x 2160
- Support HDMI embedded audio
- Support 30-bit, 10-bit per color encoding and processing that maintains 4:4:4 color information throughout the entire encode-streaming-decode process
- Support streaming of all video and computer-video signals maintaining native resolution from encode to decode
- Support streaming of signals at 60 frames per second at resolutions up to 4096 x 2160
- Support a low delay, encode and decode process
- Provide a video error concealment system which does not increase streaming bandwidth or encoding delay
- Support IGMP v2 and v3 multicast per RFC 2236 and RFC 3376
- Support RTP transport type per RFC 3550
- Support 802.1X port-based Network Access Control (PNAC)
- Support audio breakaway
- Support Audio only streaming with a blackburst signal
- Support AES67 audio streaming
- Support Diffserv QoS with DSCP and Precedence Values
- Support multicast TTL (Time to Live) values
- Support SRTP Secure Real-time Transport Protocol encryption of AV and data stream per RFC 3711
- Support creation of user defined device names
- Support configuration and control from an embedded web browser
- Support optional on-screen messaging for device identification
- Support matrix switching between multiple encoders or decoders
- Support compatibility with 1 Gbps decoders in mixed 1/10 Gbps solutions
- Support configuration and control in systems consisting of multiple encoders and decoders from a central networked control unit
- Support encoding and decoding video and audio at bit rates adjustable from 150 Mbps to 9.5 Gbps
- Encoder shall be capable of preserving absolute changes to the video on a frame-by-frame basis up to 60 frames per second
- Support temporal compression applied on a sub-picture basis examining change that discriminates between luminance, chrominance as well as a threshold for signal or image noise
- Shall be mountable in a standard triple-gang electrical box
- Approved device shall be the Extron NAV 10E 201 D (Black SM) (60-1572-22; no alternates or equals).
- Three-gang decorator-style wallplate that encodes video and audio, and shall:
NAV 10E 201 D (White Singlemode)
- Provide a Pro AV over IP, HDMI decorator-style wallplate encoder that shall stream ultra-low latency, high quality video and audio signals over a 10 Gbps optical Ethernet interface
- Three-gang decorator-style wallplate that encodes video and audio, and shall:
- Provide an HDMI connector for interfacing digital video signal input with embedded audio and a loop through HDMI connection
- Provide connections for device configuration from a PC or other peripheral
- One USB connection on the front panel
- Provide a 5-pole captive screw connector for remote RS-232 and IR control from a central control processor via remote port access mapping
- Provide one LC/LC fiber optic connector for control and transport of streaming data over singlemode fiber optic cable for distances up to 10 km (6.25 miles)
- Provide one 2-pole captive screw connector for 12VDC power
- Provide ten LED indicators for status monitoring
- Power LED on front panel to indicate power connection
- HDMI LED on front panel to indicate HDMI input signal presence
- HDCP LED on front panel to indicate encryption status
- Stream LED on front panel to indicate streaming status
- Two LAN LEDs on front panel to indicate network link/activity status
- Two LAN LEDs on back panel to indicate network link/activity status
- ID LED on front panel for visual confirmation of units on the network
- Reset LED on front panel to indicate reset status
- Provide an ID button on the front panel to identify the unit on the network
- Provide a recessed reset button on the front panel to revert unit back to factory loaded firmware
- Support audio streaming between encoder and decoder
- Support streaming of HDCP 2.3 encrypted sources to decoders connected to HDCP 2.3 compliant displays
- Maintain continuous HDCP encryption between the source and encoder
- Support Extended Display Identification Data – EDID and Display Data Channel – DDC data using the EDID 2.0 standard
- Support use of EDID values defined by the user, supplied by a locally connected display or stored values captured from previously connected displays
- Support standard video resolutions including: 720p, 1080i ,1080p, UHD (3840 x 2160), and 4K (4096 x 2160) @ 60 Hz
- Support computer video resolutions from 640 x 480 up to 4096 x 2160
- Support HDMI embedded audio
- Support 30-bit, 10-bit per color encoding and processing that maintains 4:4:4 color information throughout the entire encode-streaming-decode process
- Support streaming of all video and computer-video signals maintaining native resolution from encode to decode
- Support streaming of signals at 60 frames per second at resolutions up to 4096 x 2160
- Support a low delay, encode and decode process
- Provide a video error concealment system which does not increase streaming bandwidth or encoding delay
- Support IGMP v2 and v3 multicast per RFC 2236 and RFC 3376
- Support RTP transport type per RFC 3550
- Support 802.1X port-based Network Access Control (PNAC)
- Support audio breakaway
- Support Audio only streaming with a blackburst signal
- Support AES67 audio streaming
- Support Diffserv QoS with DSCP and Precedence Values
- Support multicast TTL (Time to Live) values
- Support SRTP Secure Real-time Transport Protocol encryption of AV and data stream per RFC 3711
- Support creation of user defined device names
- Support configuration and control from an embedded web browser
- Support optional on-screen messaging for device identification
- Support matrix switching between multiple encoders or decoders
- Support compatibility with 1 Gbps decoders in mixed 1/10 Gbps solutions
- Support configuration and control in systems consisting of multiple encoders and decoders from a central networked control unit
- Support encoding and decoding video and audio at bit rates adjustable from 150 Mbps to 9.5 Gbps
- Encoder shall be capable of preserving absolute changes to the video on a frame-by-frame basis up to 60 frames per second
- Support temporal compression applied on a sub-picture basis examining change that discriminates between luminance, chrominance as well as a threshold for signal or image noise
- Shall be mountable in a standard triple-gang electrical box
- Approved device shall be the Extron NAV 10E 201 D (White SM) (60-1572-24; no alternates or equals).
- Three-gang decorator-style wallplate that encodes video and audio, and shall:
NAV 10E 201 D (White Singlemode)
- Provide a Pro AV over IP, HDMI decorator-style wallplate encoder that shall stream ultra-low latency, high quality video and audio signals over a 10 Gbps optical Ethernet interface
- Three-gang decorator-style wallplate that encodes video and audio, and shall:
- Provide an HDMI connector for interfacing digital video signal input with embedded audio and a loop through HDMI connection
- Provide connections for device configuration from a PC or other peripheral
- One USB connection on the front panel
- Provide a 5-pole captive screw connector for remote RS-232 and IR control from a central control processor via remote port access mapping
- Provide one LC/LC fiber optic connector for control and transport of streaming data over singlemode fiber optic cable for distances up to 10 km (6.25 miles)
- Provide one 2-pole captive screw connector for 12VDC power
- Provide ten LED indicators for status monitoring
- Power LED on front panel to indicate power connection
- HDMI LED on front panel to indicate HDMI input signal presence
- HDCP LED on front panel to indicate encryption status
- Stream LED on front panel to indicate streaming status
- Two LAN LEDs on front panel to indicate network link/activity status
- Two LAN LEDs on back panel to indicate network link/activity status
- ID LED on front panel for visual confirmation of units on the network
- Reset LED on front panel to indicate reset status
- Provide an ID button on the front panel to identify the unit on the network
- Provide a recessed reset button on the front panel to revert unit back to factory loaded firmware
- Support audio streaming between encoder and decoder
- Support streaming of HDCP 2.3 encrypted sources to decoders connected to HDCP 2.3 compliant displays
- Maintain continuous HDCP encryption between the source and encoder
- Support Extended Display Identification Data – EDID and Display Data Channel – DDC data using the EDID 2.0 standard
- Support use of EDID values defined by the user, supplied by a locally connected display or stored values captured from previously connected displays
- Support standard video resolutions including: 720p, 1080i ,1080p, UHD (3840 x 2160), and 4K (4096 x 2160) @ 60 Hz
- Support computer video resolutions from 640 x 480 up to 4096 x 2160
- Support HDMI embedded audio
- Support 30-bit, 10-bit per color encoding and processing that maintains 4:4:4 color information throughout the entire encode-streaming-decode process
- Support streaming of all video and computer-video signals maintaining native resolution from encode to decode
- Support streaming of signals at 60 frames per second at resolutions up to 4096 x 2160
- Support a low delay, encode and decode process
- Provide a video error concealment system which does not increase streaming bandwidth or encoding delay
- Support IGMP v2 and v3 multicast per RFC 2236 and RFC 3376
- Support RTP transport type per RFC 3550
- Support 802.1X port-based Network Access Control (PNAC)
- Support audio breakaway
- Support Audio only streaming with a blackburst signal
- Support AES67 audio streaming
- Support Diffserv QoS with DSCP and Precedence Values
- Support multicast TTL (Time to Live) values
- Support SRTP Secure Real-time Transport Protocol encryption of AV and data stream per RFC 3711
- Support creation of user defined device names
- Support configuration and control from an embedded web browser
- Support optional on-screen messaging for device identification
- Support matrix switching between multiple encoders or decoders
- Support compatibility with 1 Gbps decoders in mixed 1/10 Gbps solutions
- Support configuration and control in systems consisting of multiple encoders and decoders from a central networked control unit
- Support encoding and decoding video and audio at bit rates adjustable from 150 Mbps to 9.5 Gbps
- Encoder shall be capable of preserving absolute changes to the video on a frame-by-frame basis up to 60 frames per second
- Support temporal compression applied on a sub-picture basis examining change that discriminates between luminance, chrominance as well as a threshold for signal or image noise
- Shall be mountable in a standard triple-gang electrical box
- Approved device shall be the Extron NAV 10E 201 D (White SM) (60-1572-24; no alternates or equals).
- Three-gang decorator-style wallplate that encodes video and audio, and shall:
把商品添加到购物车
Order Message Number
产品编号
注: 使用通用交流电源插座的 Extron 产品可支持多种不同的交流电源插头类型。在使用之前，确保设备满足您所在区域的所有规定要求，并符合所有应用的本地安全和电气规程及标准。
当前总计：
Annotation Graphics Processor
To view this page ensure that Adobe Flash Player version
11.0.0 or greater is installed and enabled.
Chrome
Firefox
Edge
Safari
