1. Provide a Pro AV over IP switching encoder that streams ultra-low latency, high quality video and audio, signals over 1 Gbps Ethernet networks

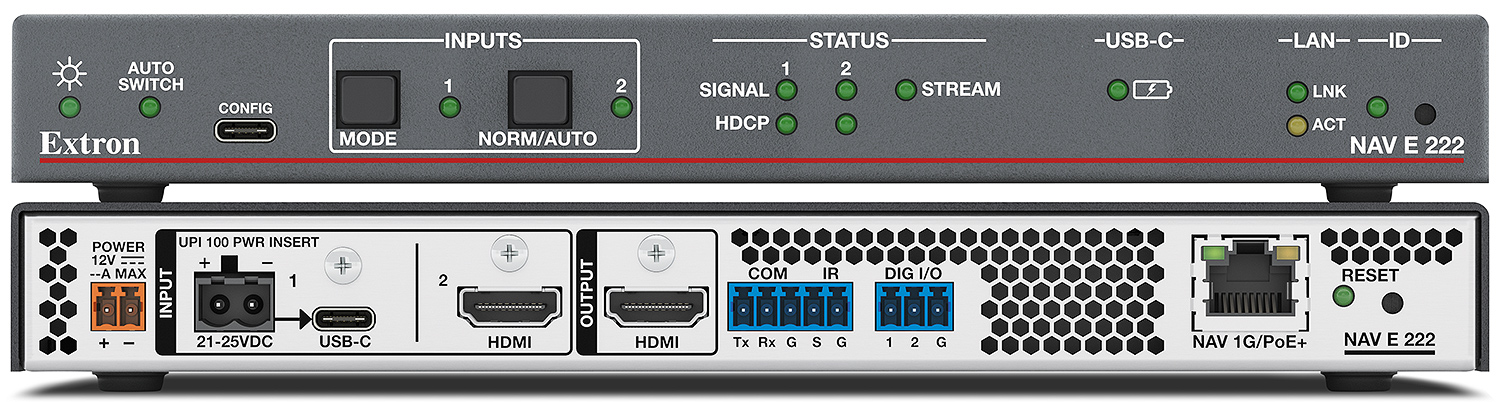

   1. Rack mountable, one-half rack width, 1” (2.5 cm) high metal enclosure that encodes video and audio
      1. Provide a USB-C connector for interfacing DisplayPort Alt Mode video input with embedded audio
      2. Provide an HDMI connector for interfacing digital video signal input with embedded audio
      3. Provide an HDMI connector for a loop through connection
      4. Provide connections for device configuration from a PC or other peripheral
         1. One USB connection on the front panel

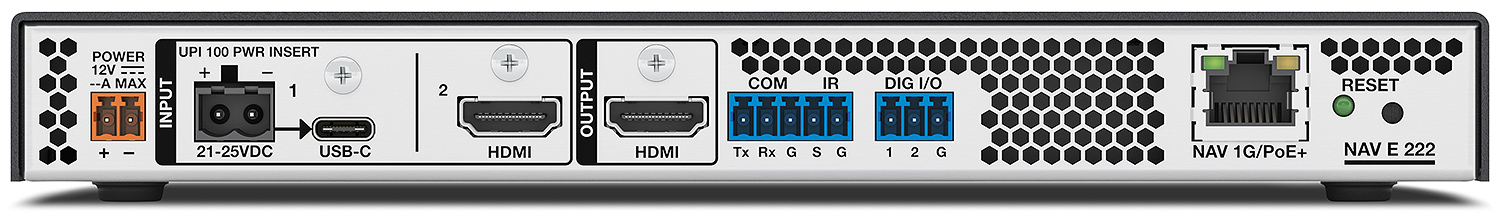

      5. Provide a 3-pole captive screw connector for remote Digital I/O control from a central control processor via remote port access mapping
      6. Provide a 5-pole captive screw connector for remote RS-232 and IR control from a central control processor via remote port access mapping
      7. Provide one 1000BASE-T RJ45 connector with PoE+ for powering and control and transport of streaming data over CAT 5e/6/6a/7 cable for distances up to 328 feet (100 m)
      8. Provide one 2-pole captive screw connector for 12VDC power
      9. Provide one 2-pole connector for UPI 100 power supply to power and charge a USB-C connected device

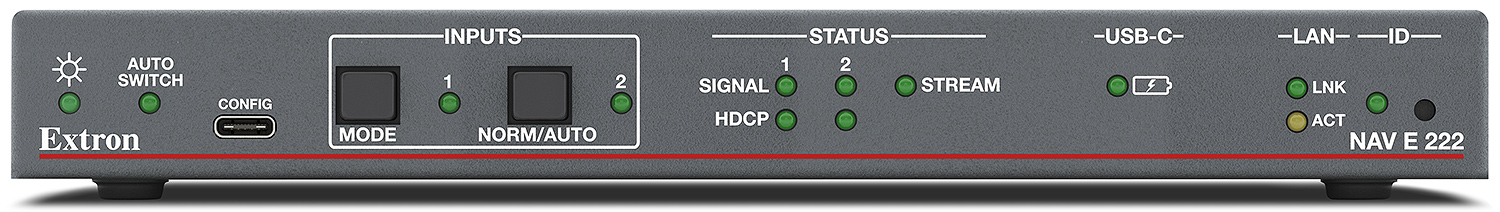

      10. Provide sixteen LED indicators for status monitoring
          1. Power LED on front panel to indicate power connection
          2. Auto Switch LED on front panel to indicate Auto Switch status
          3. Input 1 LED on front panel to indicate USB-C input selected
          4. Input 2 LED on front panel to indicate HDMI input selected
          5. Input 1 Signal LED on front panel to indicate USB-C input signal presence
          6. HDCP Input 1 LED on front panel to indicate encryption status
          7. Input 2 Signal LED on front panel to indicate HDMI input signal presence
          8. HDCP Input 2 LED on front panel to indicate encryption status
          9. Stream LED on front panel to indicate streaming status
          10. USB-C Charging LED indicator
          11. Two LAN LEDs on front panel to indicate network link/activity status
          12. ID LED on front panel for visual confirmation of units on the network
          13. Two LAN LEDs on back panel to indicate network link/activity status
          14. Reset LED on back panel to indicate reset status
      11. Provide an ID button on the front panel to identify the unit on the network
      12. Provide a recessed reset button on the back panel to revert unit back to factory loaded firmware or other reset modalities
      13. Support audio streaming between encoder and decoder
      14. Support streaming of HDCP-encrypted sources to decoders connected to HDCP-compliant displays
      15. Maintain continuous HDCP-encryption between the source and encoder
      16. Support Extended Display Identification Data – EDID and Display Data Channel – DDC data using the EDID 2.0 standard
      17. Support use of EDID values defined by the user, supplied by a locally connected display or stored values captured from previously connected displays
      18. Support standard video resolutions including: 720p, 1080i ,1080p, UHD (3840 x 2160), and 4K (4096 x 2160) @ 60 Hz
      19. Support computer video resolutions from 640 x 480 up to 4096 x 2160
      20. Support USB-C DP Alt mode video and embedded stereo audio
      21. Support HDMI video and embedded stereo audio
      22. Support 30-bit, 10-bit per color encoding and processing that maintains 4:4:4 color information throughout the entire encode-streaming-decode process
      23. Support streaming of all video and computer-video signals maintaining native resolution from encode to decode
      24. Support streaming of signals at 60 frames per second at resolutions up to 4096 x 2160
      25. Support a low delay, encode and decode process
      26. Provide a video error concealment system which does not increase streaming bandwidth or encoding delay
      27. Support IGMPv3multicast per RFC 3376
      28. Support RTP transport type per RFC 1889
      29. Support 802.1x port-based Network Access Control (PNAC)
      30. Support audio breakaway
      31. Support Audio only streaming with a blackburst signal
      32. Support AES67 audio streaming
      33. Support VLAN tagging
      34. Support Diffserv QoS with DSCP and Precedence Values
      35. Support multicast TTL (Time to Live) values on all interfaces
      36. Support SRTP encryption of AV and data stream
      37. Support creation of user defined device names
      38. Support configuration and control from an embedded web browser
      39. Support optional on-screen messaging for device identification
      40. Support matrix switching between multiple encoders or decoders
      41. Support compatibility with 10 Gbps decoders in mixed 1 Gbps/10 Gbps solutions
      42. Support configuration and control in systems consisting of multiple encoders and decoders from a central networked control unit
      43. Support encoding and decoding video and audio at bit rates adjustable from 250 Mbps to 900 Mbps
      44. Encoder shall be capable of preserving absolute changes to the video on a frame-by-frame basis up to 60 frames per second
      45. Support temporal compression applied on a sub-picture basis examining change that discriminates between luminance, chrominance as well as a threshold for signal or image noise
   2. Rack mountable, one-half rack width, 1” (2.5 cm) high metal enclosure
2. Approved device shall be the Extron NAV E 222 (60-2069-01); no alternates or equals.
