XTP T HWP 101 4K
- Provide a twisted pair decorator-style wallplate transmitter that shall support the distribution of HDMI video and embedded audio
- One-gang wallplate transmitter for the long distance transmission of HDMI with or without embedded audio over a shielded CATx twisted pair cable
- Video input requirements

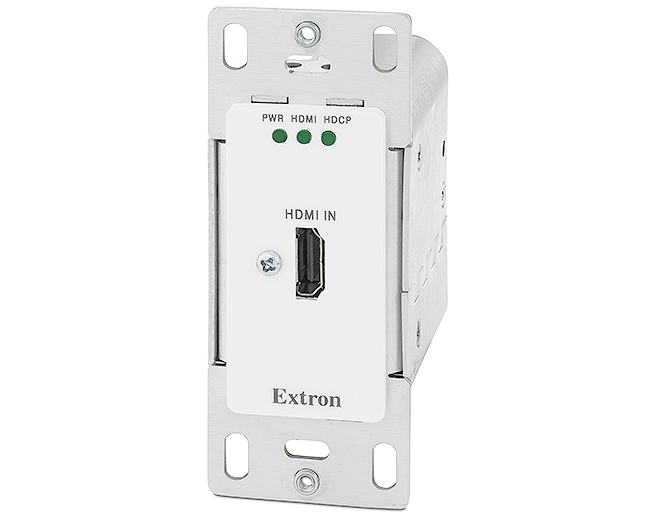

- Shall provide one (1) female HDMI Type A connector for digital video signals with embedded audio
- Shall support computer and video resolutions up to 4096x2160 at 30 Hz with 4:4:4 chroma sampling
- Shall support RGB and YCbCr color space formats
- Shall support HDMI specifications of
- Data rates up 10.2 Gbps
- Deep Color up to 12-bit
- 3D content
- HD lossless audio formats
- HDCP requirements
- Shall be HDCP 2.3 compliant
- Shall provide authentication and maintain continuous verification of HDCP key exchange between connected devices
- Shall provide the option to disable HDCP processing at the HDMI input connection when passing unencrypted content
- Shall provide human-readable visual confirmation of HDCP compliance when encrypted content is routed to a non-compliant display
- EDID requirements
- Shall provide automatic EDID management between connected devices
- Maintain continuous EDID communication with the connected source
- User selection of EDID from any connected display
- User-selection of EDID from pre-stored data files
- Shall provide automatic EDID management between connected devices
- Audio input requirements
- Shall provide one (1) female HDMI Type A connector – shared with video input
- Shall support multiple embedded audio formats
- Transmission requirements
- Shall support signal extension of 4K video, audio, and control signals plus Ethernet up to 330 feet (100 meters)
- Shall provide signal transmission over a single, shielded CATx twisted pair cable
- Interconnection requirements
- Shall provide one (1) RJ-45 twisted pair connection
- Shall provide interconnection between the transmitter and an XTP Series receiver or input board over one, shielded CATx twisted pair cable
- Control/Configuration requirements

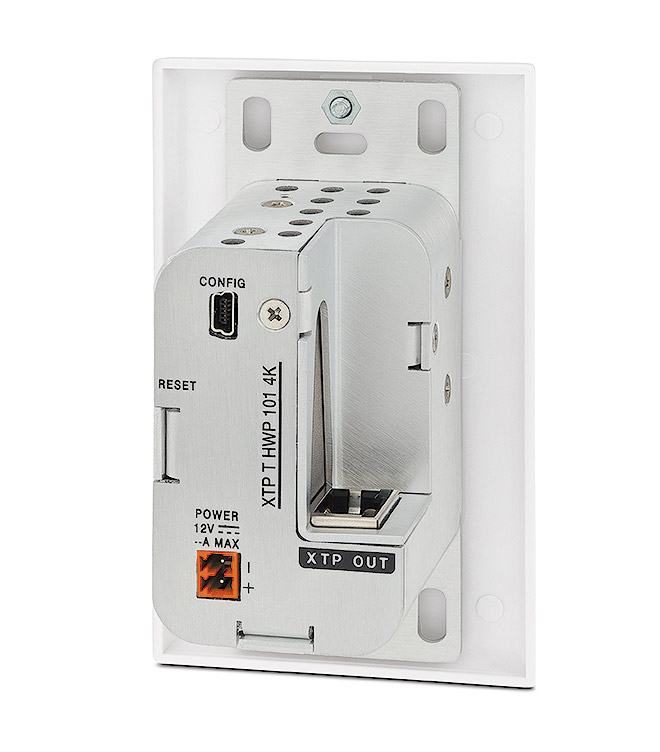

- Shall provide one (1) female mini USB port B on rear panel for setup and configuration
- Shall allow setup and configuration through a system-wide management software from an XTP CrossPoint matrix switcher communication channel
- Power requirements
- Shall support remote powering from an XTP twisted pair input board or XTP power injector
- Shall include an external, universal AC power supply capable of supporting 100 – 240 VAC, 50/60 Hz power
- General requirements
- Shall be installable into a one-gang electrical junction box

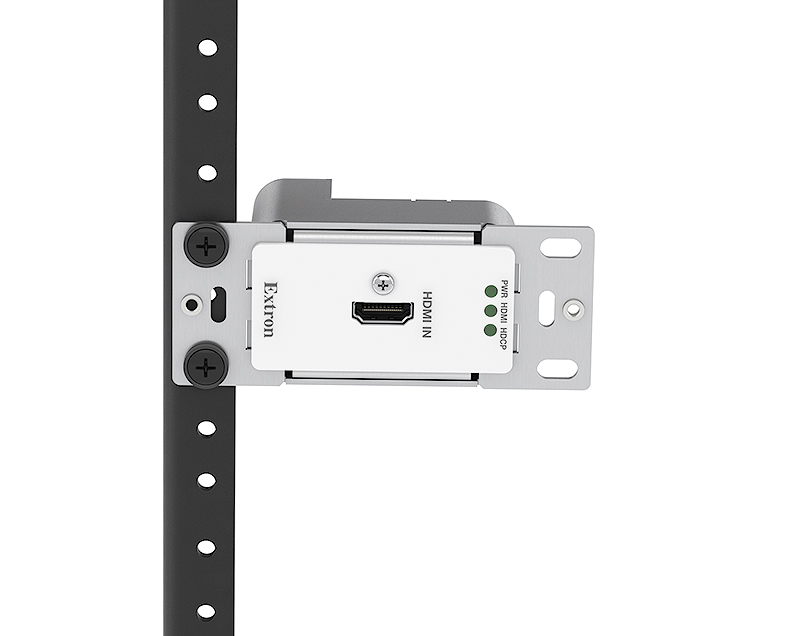

- Shall be wall, floor, or furniture mountable in a decorator-style opening

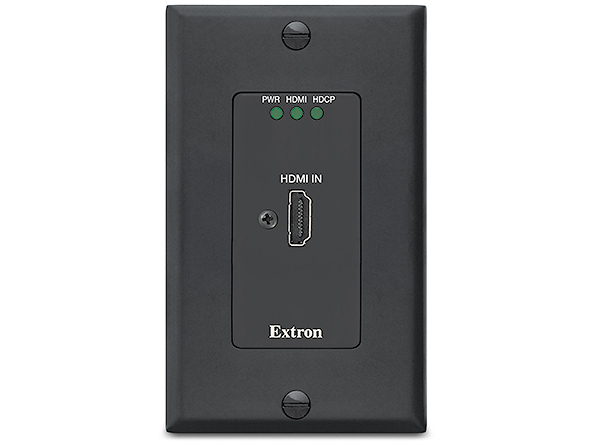

- Shall provide visual signal on LED indicators located on front panel for video signal presence, HDCP compliance, and power
- Shall support the use of HDMI to DVI-D cables or adapters for DVI-D signals
- Shall meet regulatory compliance
- CE, c-UL, UL
- CE, C-tick, FCC Class A, ICES, VCCI
- Appropriate requirements of RoHS, WEEE
- Shall provide at least three (3) years parts and labor warranty
- Shall be compatible with other devices within an XTP System for distribution and routing
- Approved device shall be the Extron XTP T HWP 101 4K (60-1611-12 or 60-1611-13); no alternates or equal
